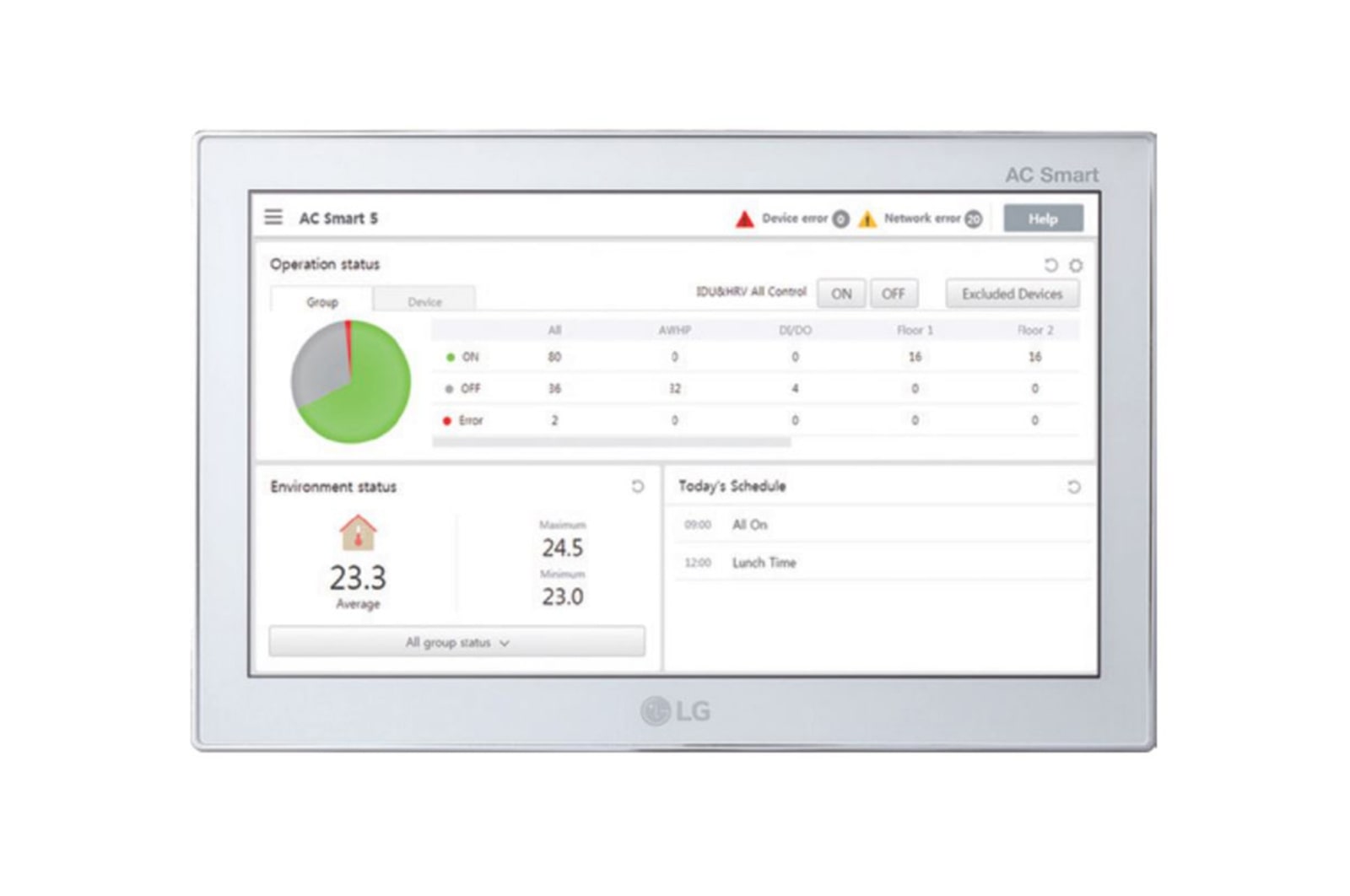

The AC Smart provides a 10-inch touch screen with
HTML5 GUI (Graphic User Interface) allowing easy control for the user.
The AC Smart can control up to 128 units
(IDU, ERV, Hydro Kit, AHU Kit, Commercial Air Purifier).
By analysing the current energy consumption and comparing it with the set plan,it is possible to avoid overconsumption and lower the system's operating costs.
Visual navigation enables control and monitoring of the device on the floor plan view for intuitive management.
Air Purify Control
O
Advanced Function Setting and Display
Comfort Cooling / ODU Low Noise / ODU Defrost Mode / Comfort Level display / CO2 Level display (for ERV / ERV DX) / Night Time Free Cooling (for ERV / ERV DX)
Air Quality Level
O
Auto Changeover / Setback
O
BMS Integration
BACnet IP / Modbus TCP
Daylight Saving Time
O
Emergency Stop & Alarm Display
O
Energy Navigation (with PDI)
O
Error Check
O
External IO Port
DI 2 / DO 2
Individual Controller Lock
Temperature / Mode / Fan speed / All
Individual / Group Control
On & Off / Mode / Temperature / Fan speed
Interfaceable Products
MULTI V / ERV / ERV DX / Hydro kit / THERMA V / AHU Kit / LG Chiller / Commercial Air Purifier
Interlock Control
O
IPv6 Support
O
Maximum number of units
128
ODU Capacity Control
O
Operation Time Limit
O
Operation Trend
O
Power Consumption Monitoring (with PDI)
O
Schedule
Weekly / Monthly / Yearly / Exception day
Size (W x H x D, mm)
253.2 x 167.7 x 28.9
Slave Mode (Interlocking with higher level controller)
O
Temperature Limit
O
Virtual Group Control
O
Visual Navigation
O
Web Access
O
