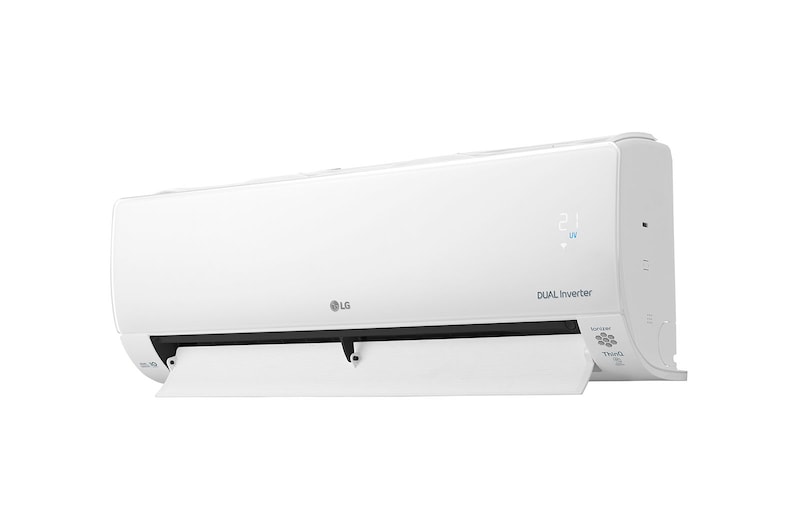

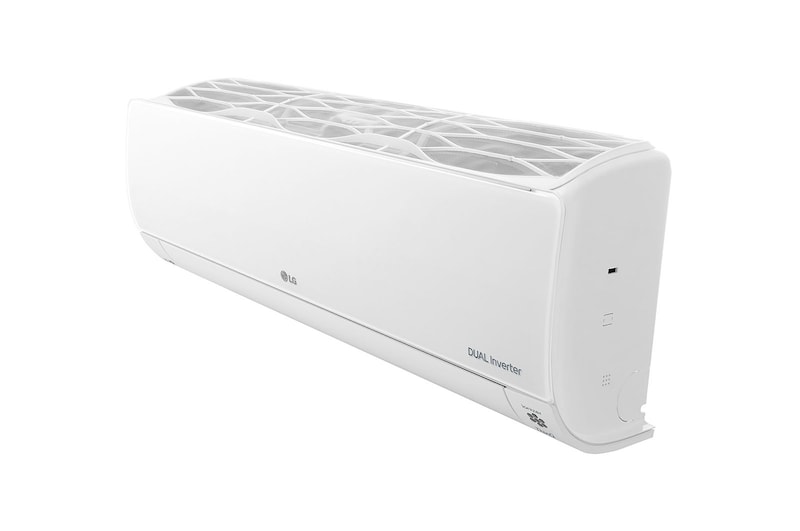

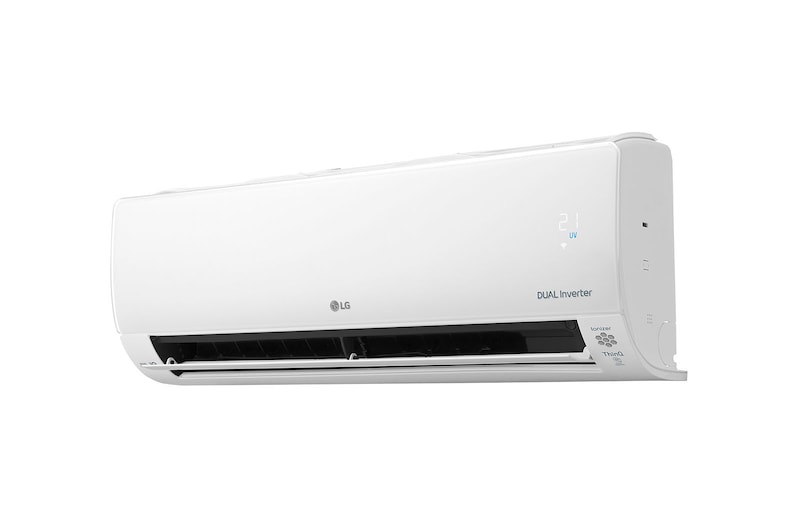

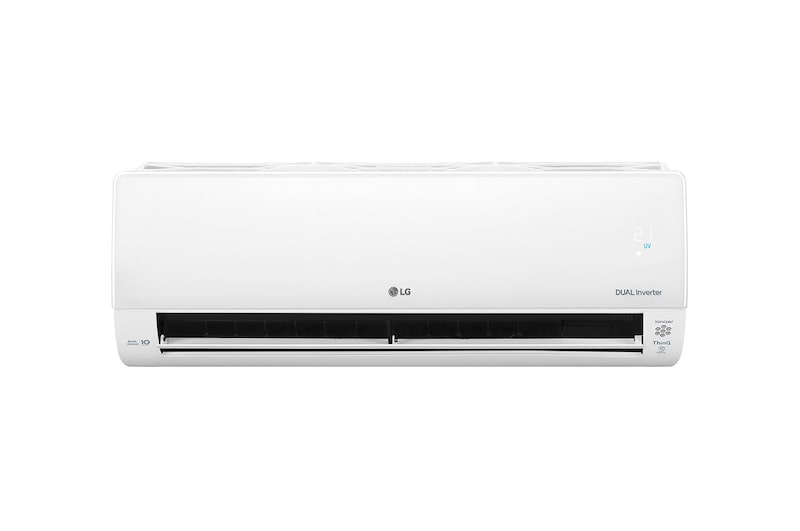

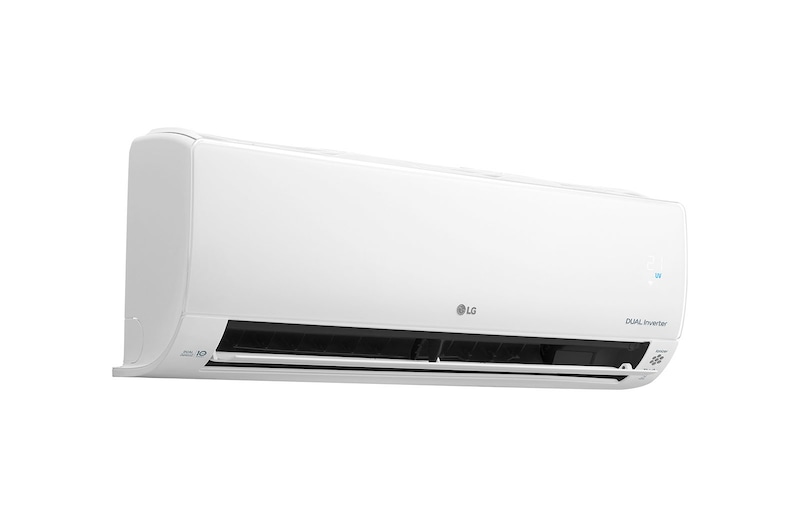

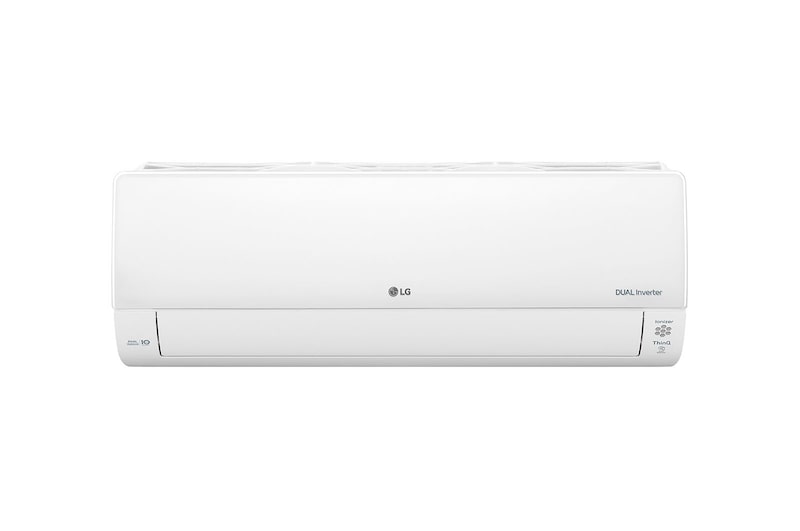

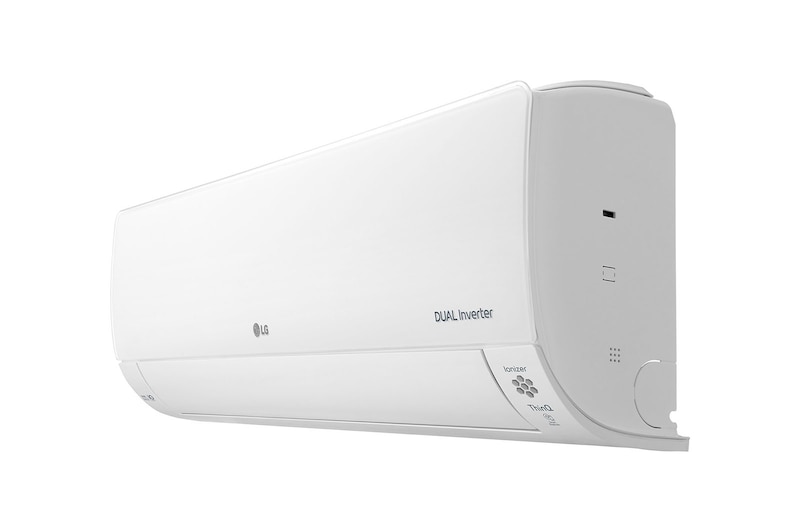

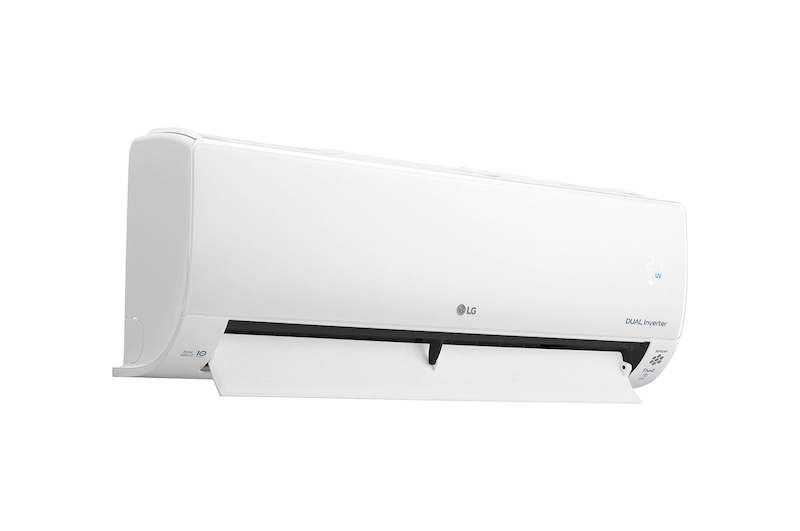

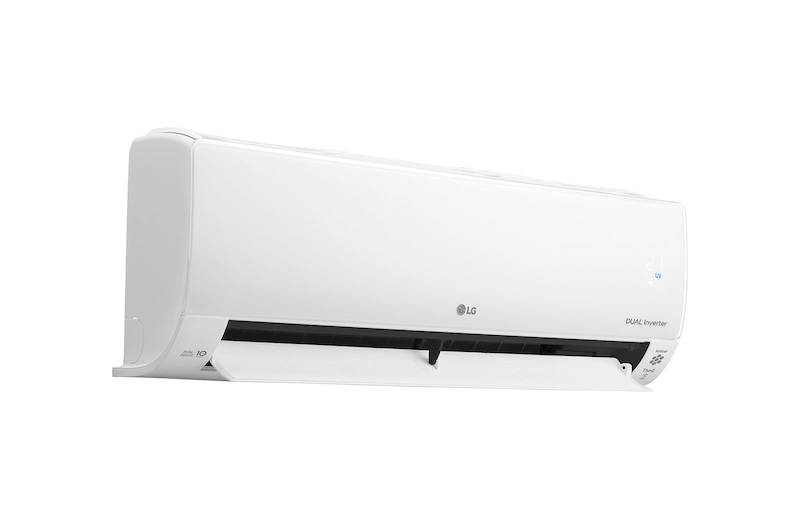

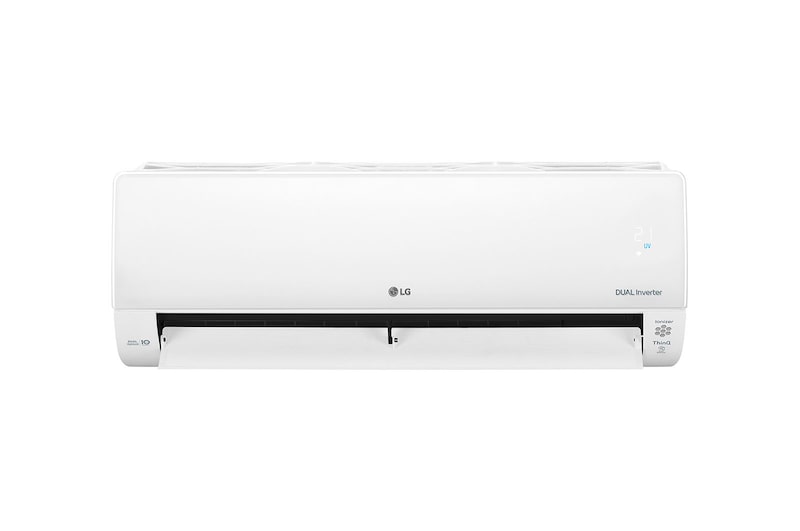

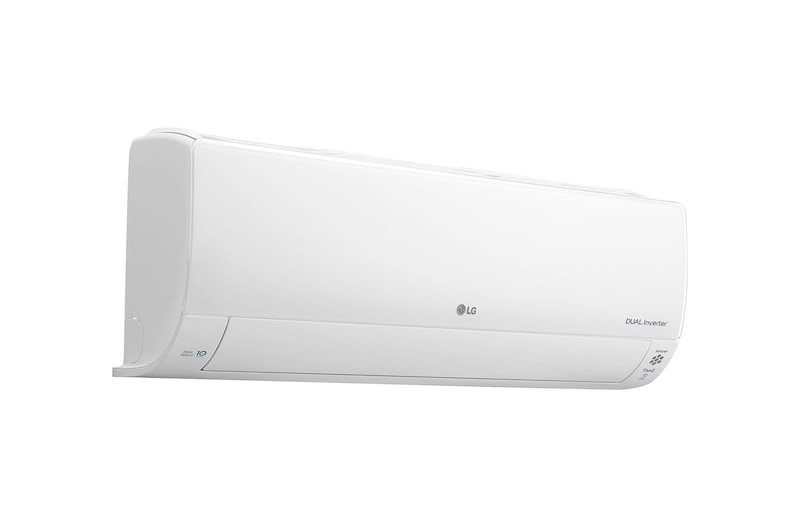

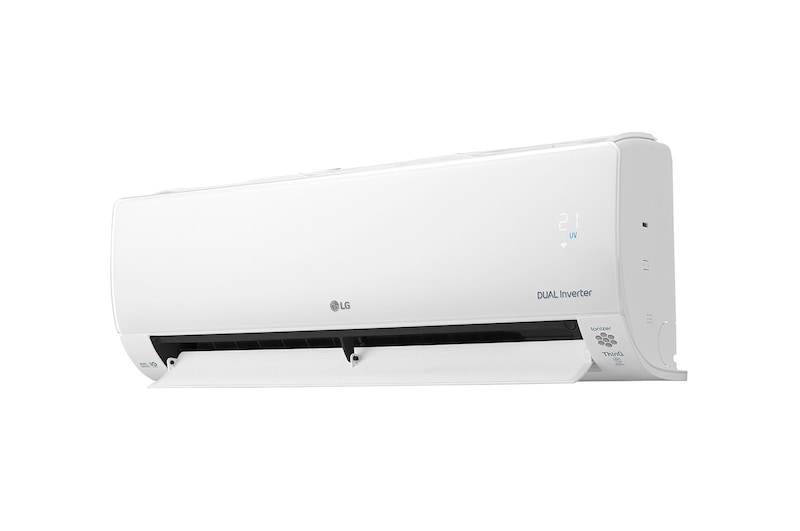

6.6kW DUALCOOL DELUXE Wall Mounted Air Conditioner DUAL Inverter
Smart Control, Smarter Life
Simple Control with Voice Assistant
Connect and Control from Anywhere
Efficient Product Maintenance
*Google and Google Home are trademarks of Google LLC. *Amazon, Alexa, Echo and all related logos and motion marks are trademarks of Amazon.com, Inc or its affiliates. *LG SmartThinQ is now renamed as LG ThinQ. *Smart features and voice assistant product may vary by country and model. Check with your local retailer or LG for service availability. *Voice-enabled smart speaker device is not included.
*According to LG internal test, LG DUAL Inverter air conditioner is less than 19dBA. (Model - V10API)
Summary
DIMENSIONS

All Spec
RUNNING CURRENT
- Cooling - Min / Rated / Max (A) - ? / 9.8 / 14.0
- Heating - Min / Rated / Max (A) - ? / 10.4 / 14.0
STARTING CURRENT
- Cooling / Heating - Rated (A) - 9.8 / 10.4
NET WEIGHT
- Net Weight (kg) - 12.7
POWER SUPPLY
- Power Supply (Ø / V / Hz) - 1/220-240/50
CAPACITY
- Cooling - Min / Rated / Max (kW) - 0.9 / 6.6 / 7.42
- Heating - Min / Rated / Max (kW) - 0.9 / 7.5 / 8.64
- Heating -7°C - Rated (W) - 6000
POWER INPUT
- Cooling - Rated (W) - 2164
- Heating - Rated (W) - 2238
EER
- EER - W/W - 3.05
S.E.E.R.
- S.E.E.R - W/W - 6.90
P DESIGN C
- P design C (kW) - 6.6
COP
- COP - W/W - 3.35
S.C.O.P
- S.C.O.P - Average / Warmer (kW) - 4.3 / 5.3
P DESIGN H
- P design H - Average / Warmer (kW) - 5.0 / 2.7
ENERGY LABEL(A+++ TO D SCALE)
- Cooling - A++
- Heating - Average / Warmer - A+ / A+++
ANNUAL ENERGY CONSUMPTION
- Cooling (kWh) - 335
- Heating - Average / Warmer (kWh) - 1628 / 713
SOUND PRESSURE
- Cooling - S / L / M / H dB(A) - 31 / 34 / 42 / 47
- Heating - L / M / H dB(A) - 34 / 42 / 47
SOUND POWER
- Cooling - Power dB(A) - 65
AIR FLOW RATE
- Cooling - S / L / M/ H (m3/min) - 8.0 / 10.5 / 13.1 / 16.1
- Cooling - Max (Power) (m3/min) - 20.0
- Heating - L / M / H (m3/min) - 10.5 / 13.1 / 16.1
DEHUMIDIFICATION RATE
- Dehumidification Rate (l/h) - 2.5
CIRCUIT BREAKER
- Circuit Breaker (A) - 25
POWER SUPPLY CABLE
- Power Supply Cable (N x mm2) - 3 x 2.5
POWER & TRANSMISSION CABLE
- Power & Transmission Cable (N x mm2) - 4 x 1.0 (Including Earth)
DIMENSION
- Dimension (mm) - 998 X 345 X 210
FAN MOTOR OUTPUT
- Fan Motor Output (W) - 60
