3.5kW DUALCOOL Premium Wall Mounted Air Conditioner Dual Vane
UKEU
Product Information Sheet

3.5kW DUALCOOL Premium Wall Mounted Air Conditioner Dual Vane

UKEU
Product Information Sheet

3.5kW DUALCOOL Premium Wall Mounted Air Conditioner Dual Vane

H12S1P

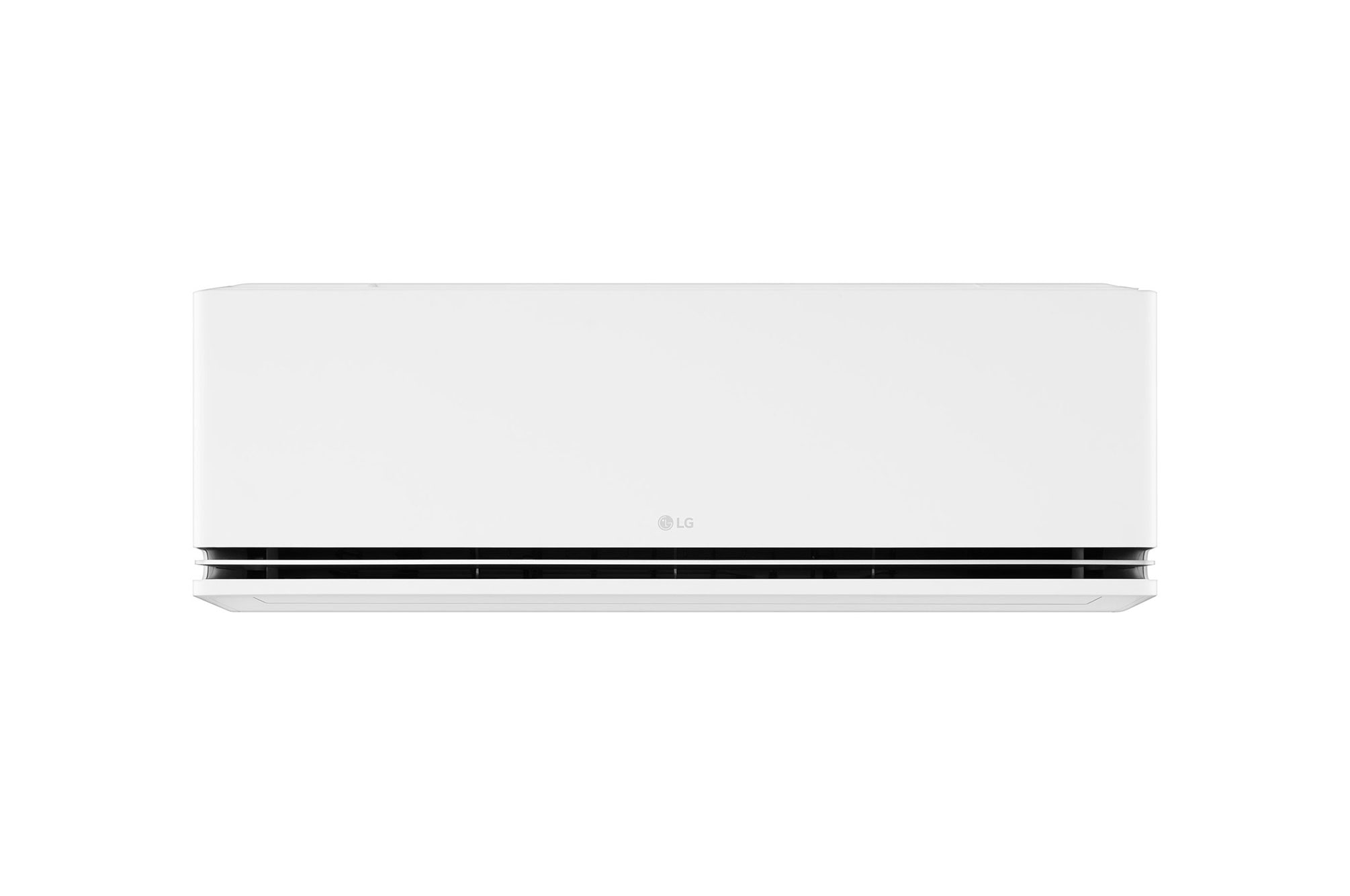

front-view
front_open

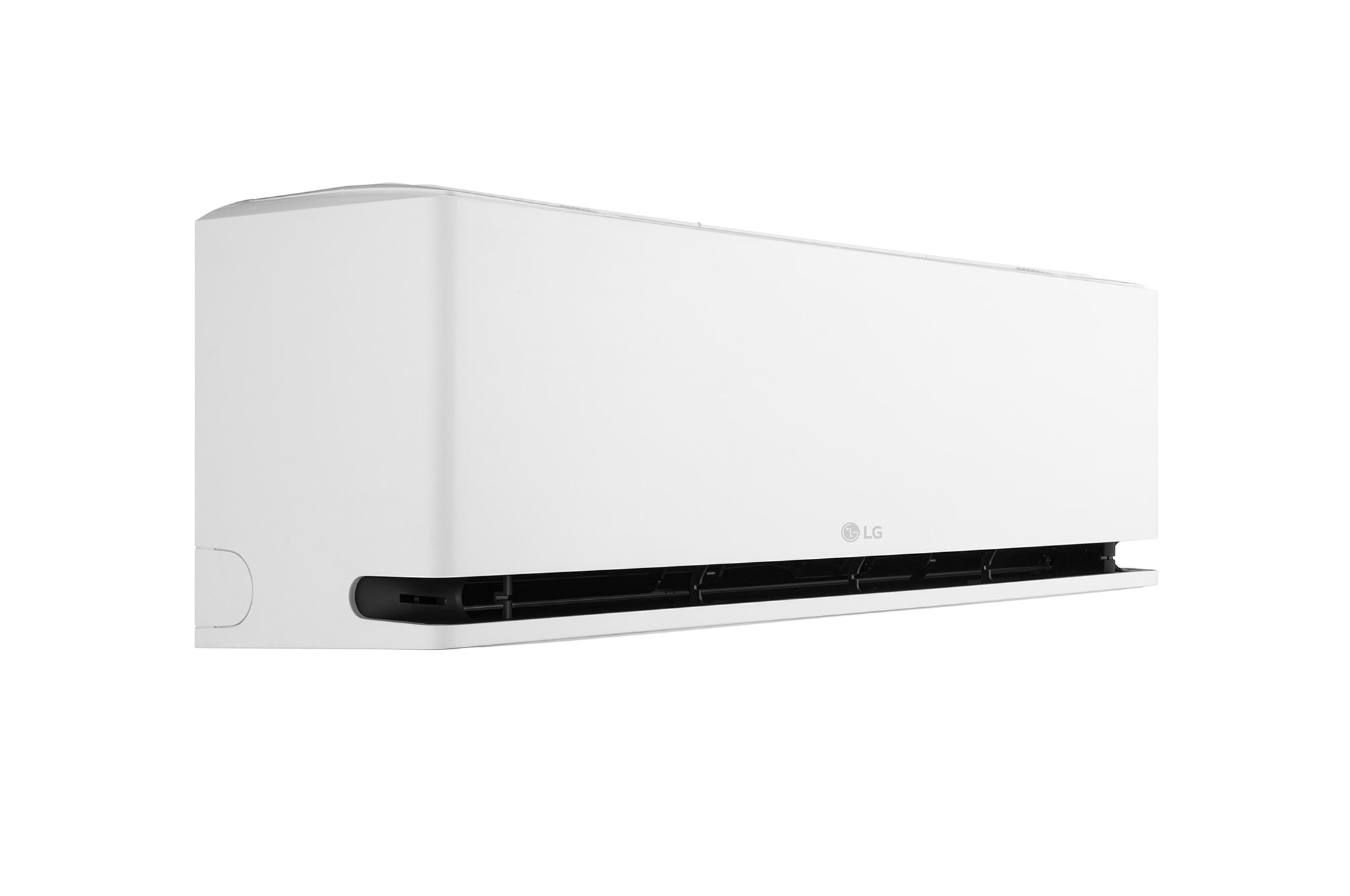

leftside-view
leftside-view

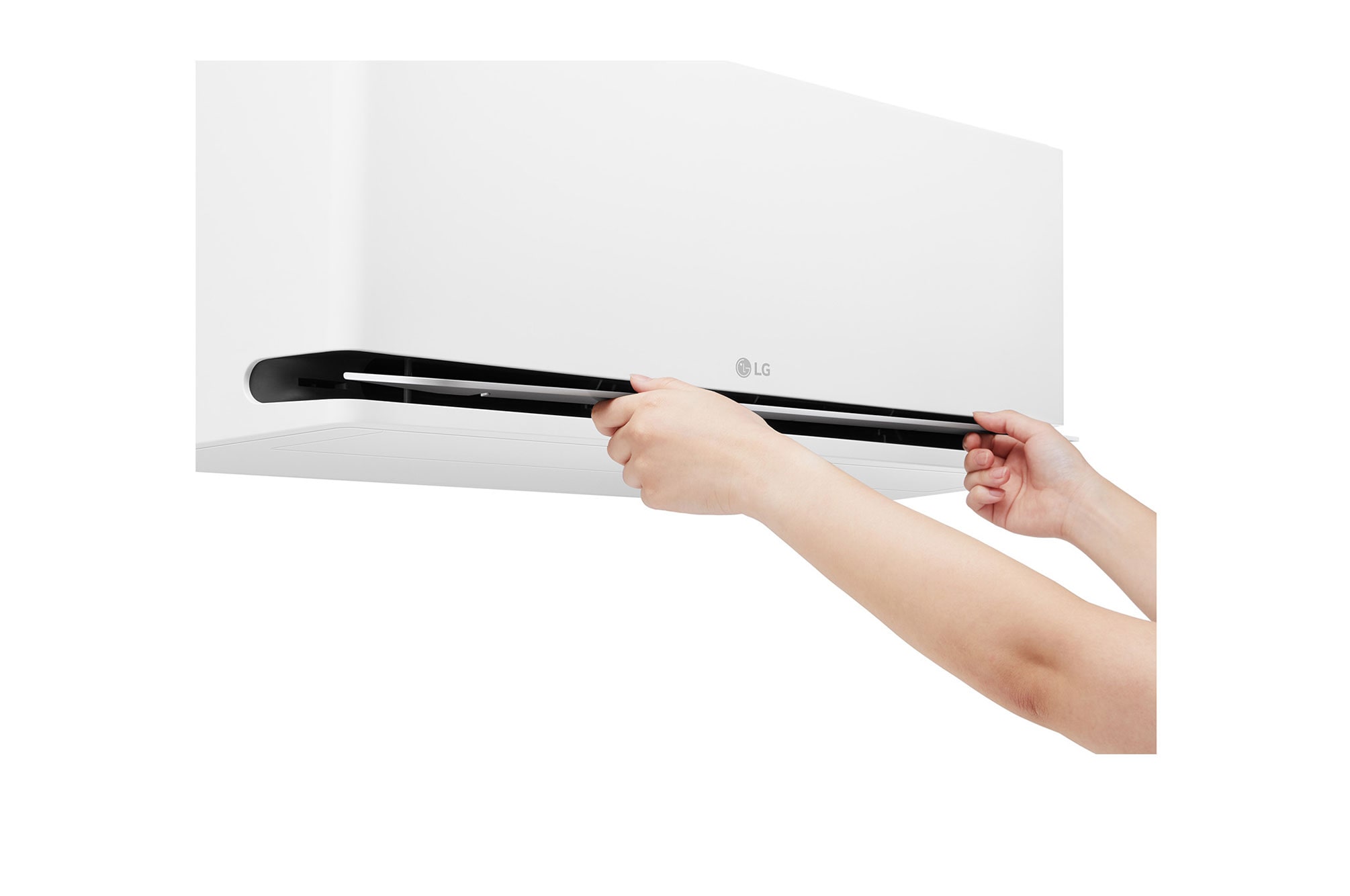

Detail view
Detail view

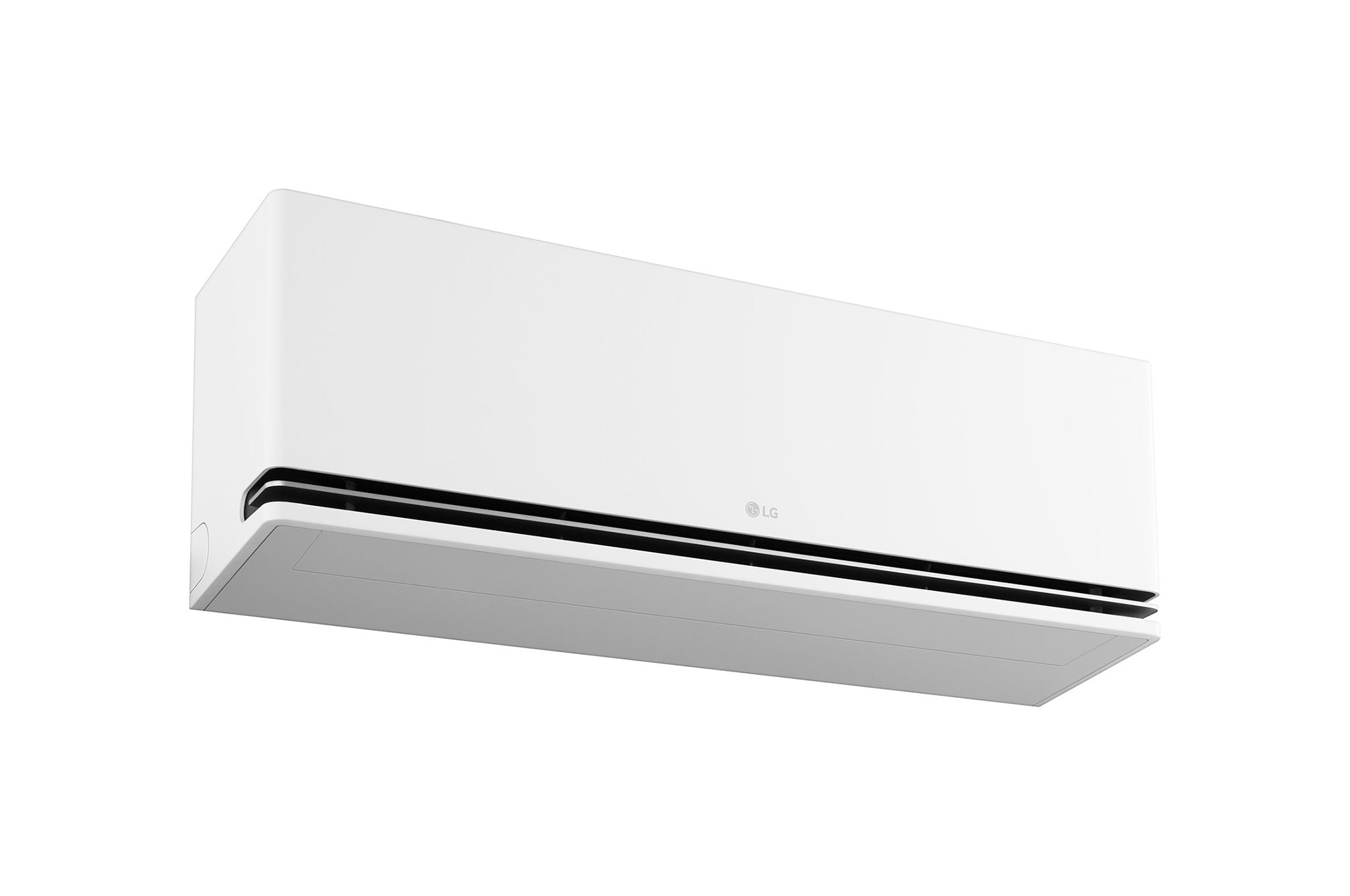

leftlow view

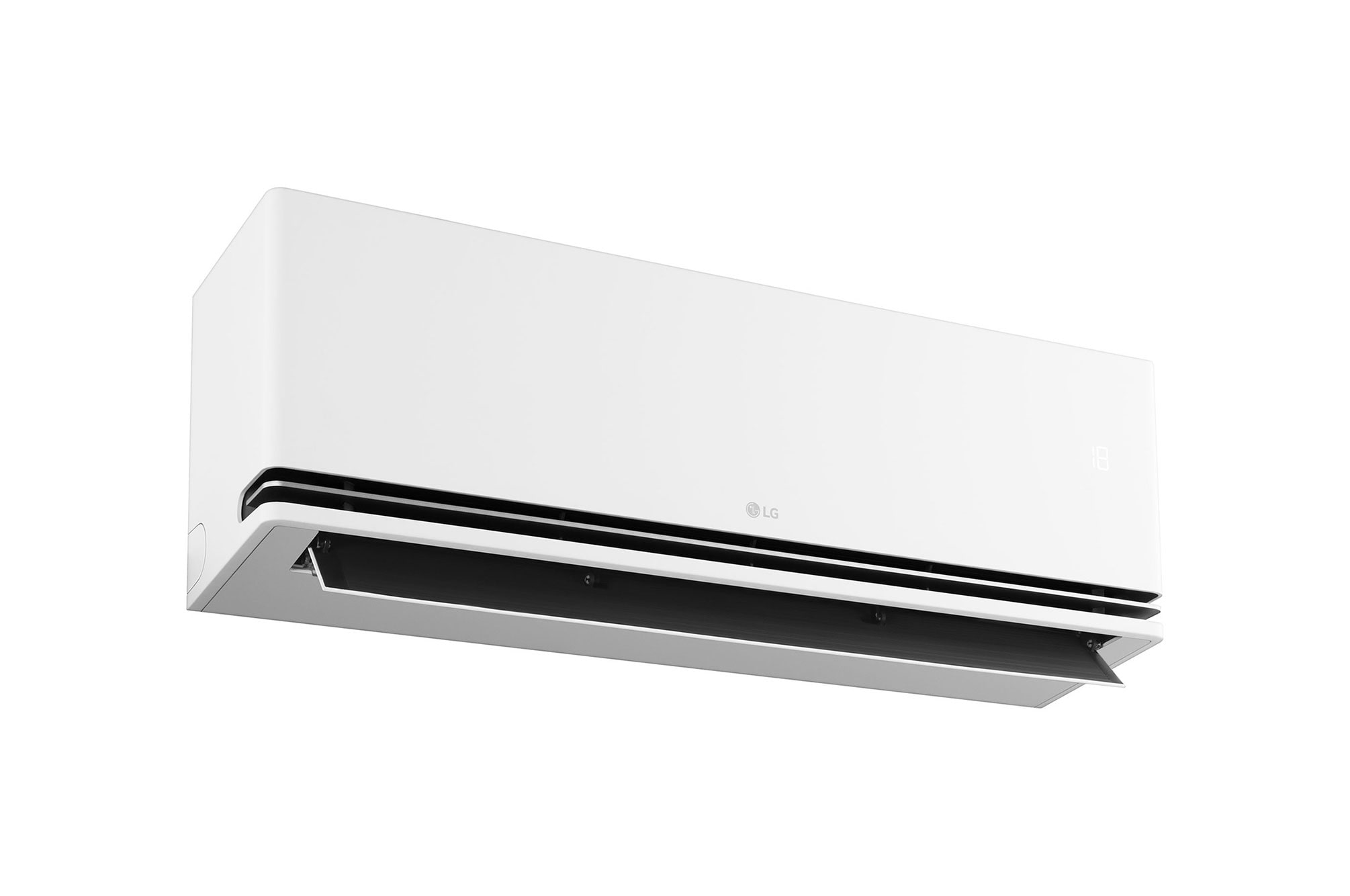

Leftlow_open

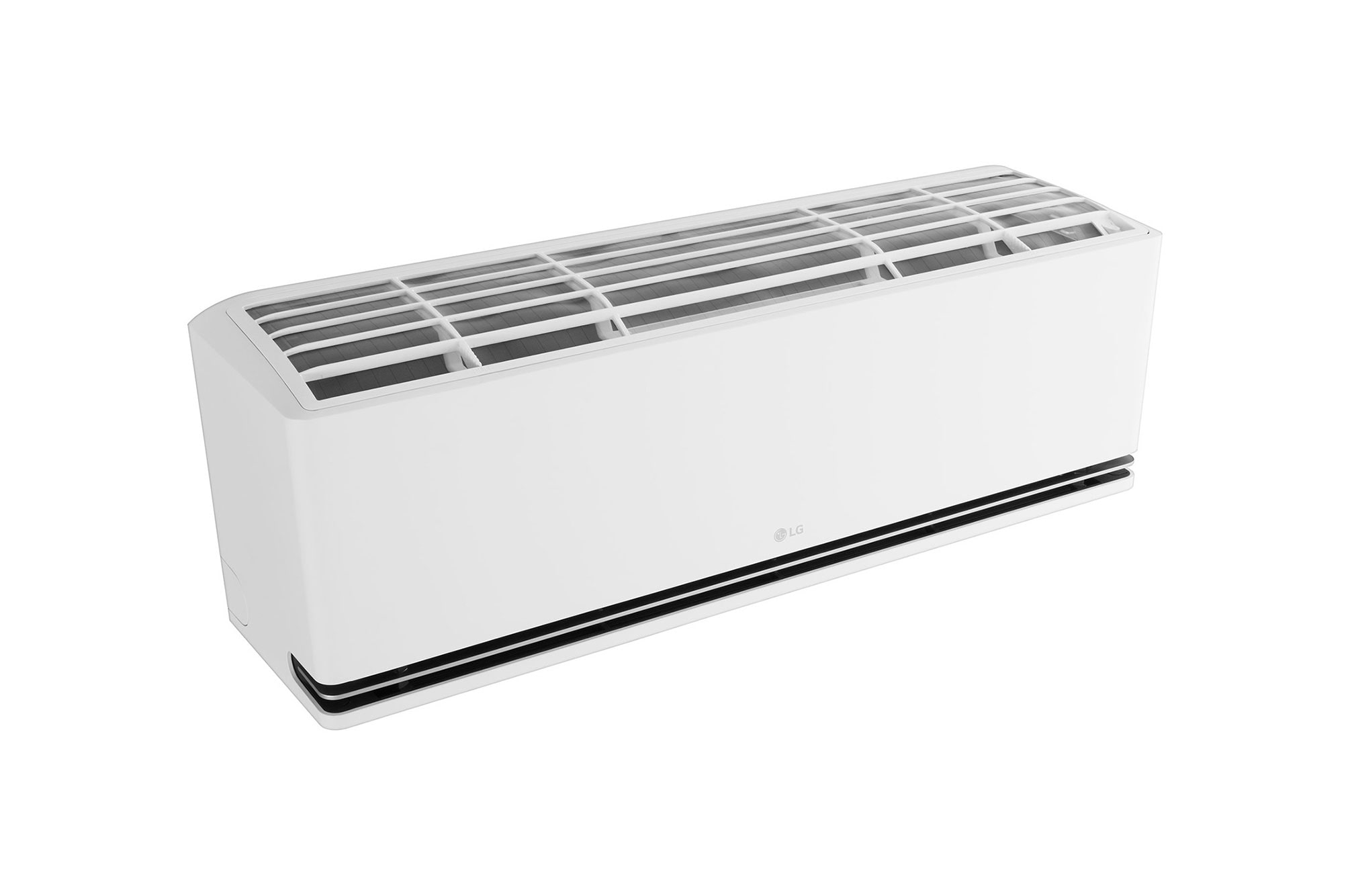

left_perspective_view

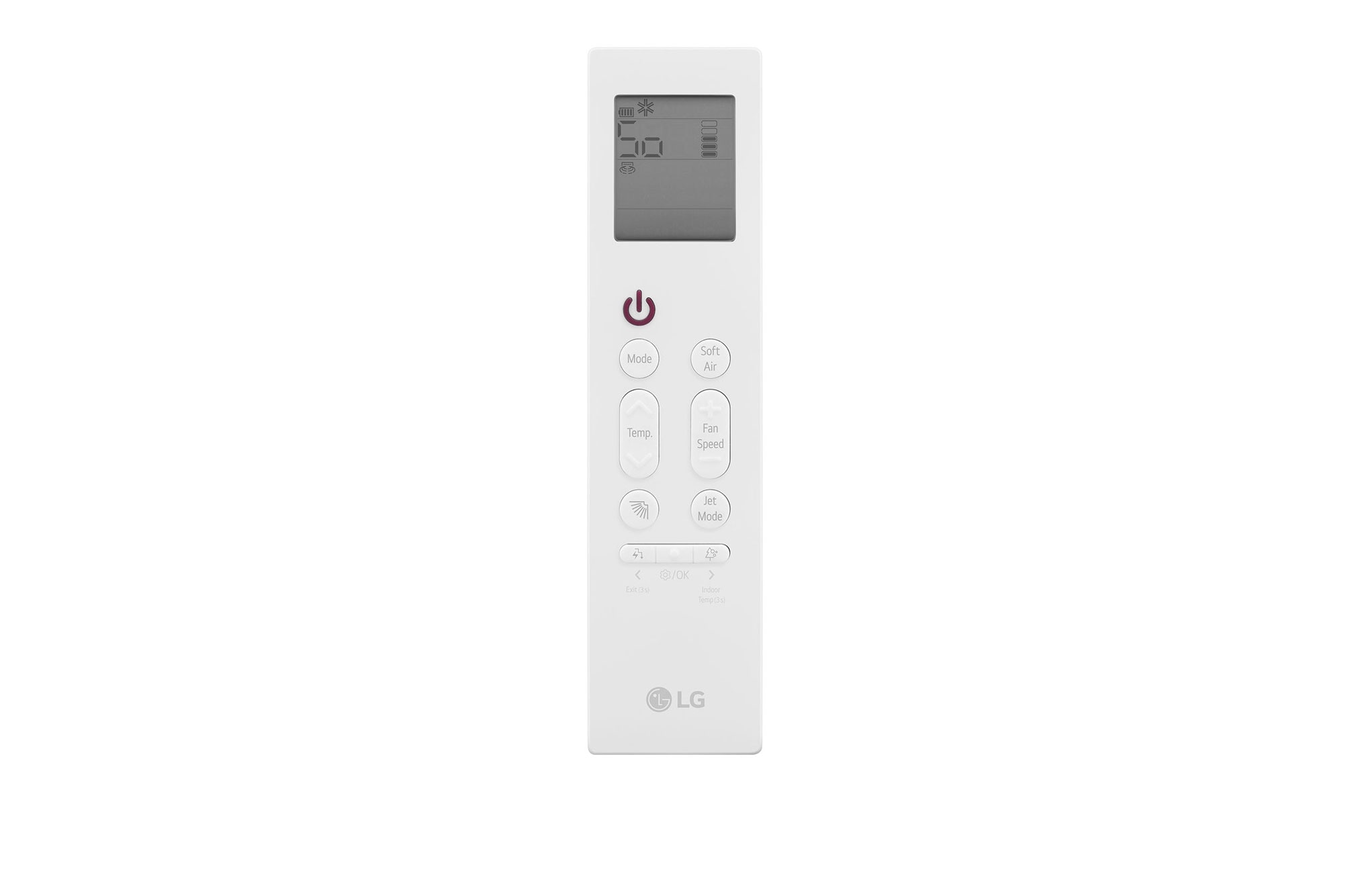

remote
lifestyle
lifestyle2

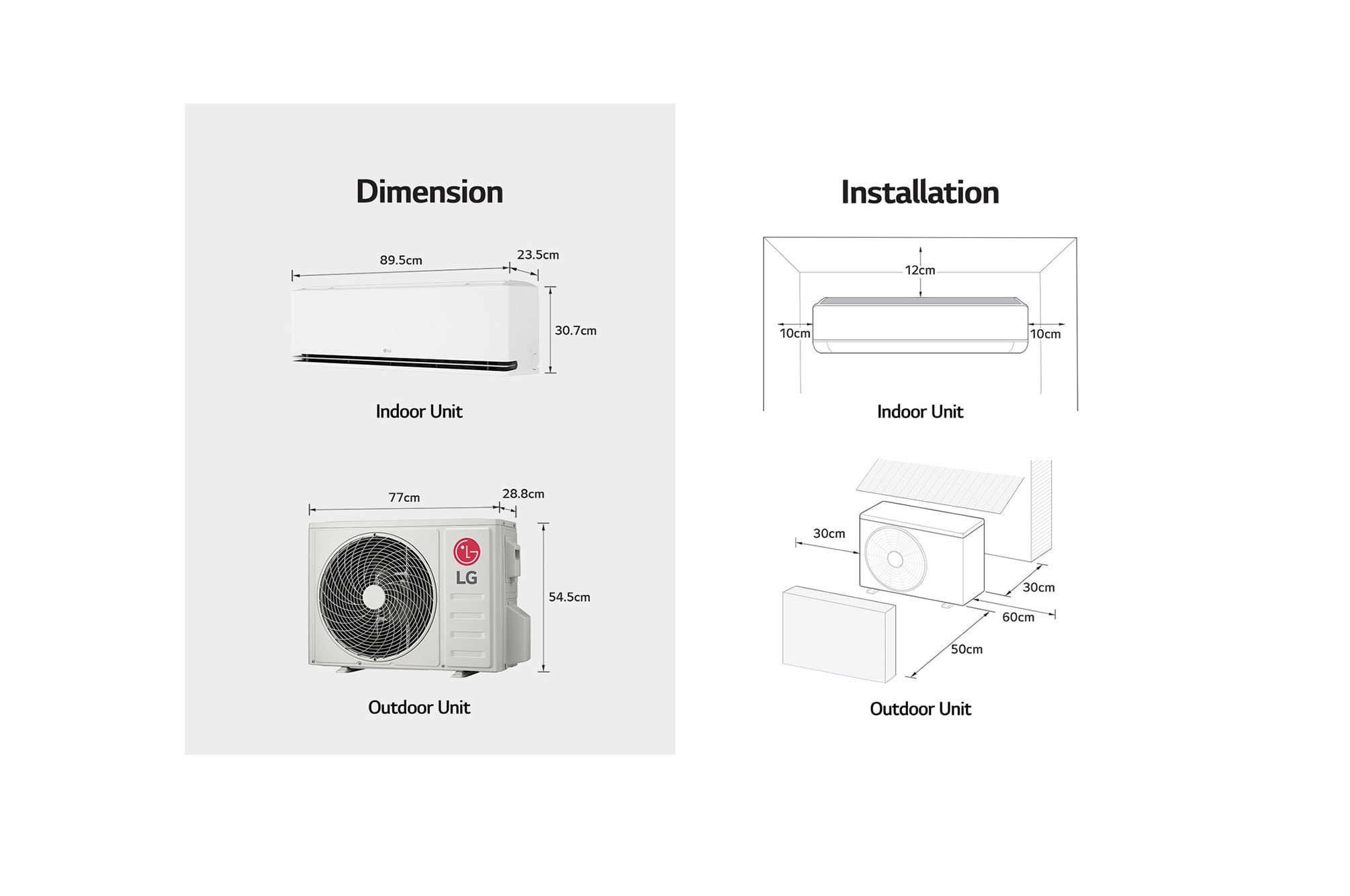

dimension_installation
front-view

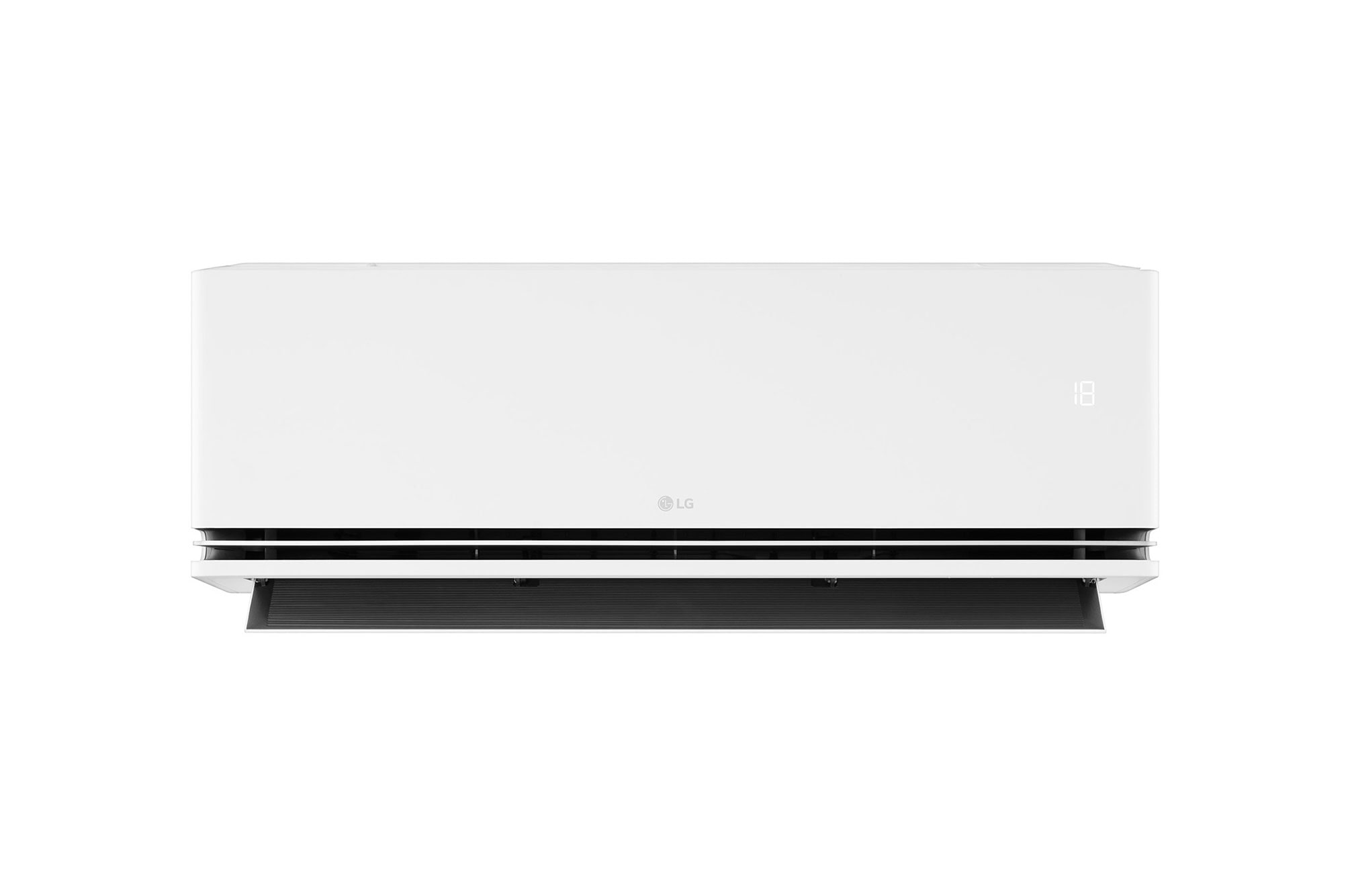

front_open

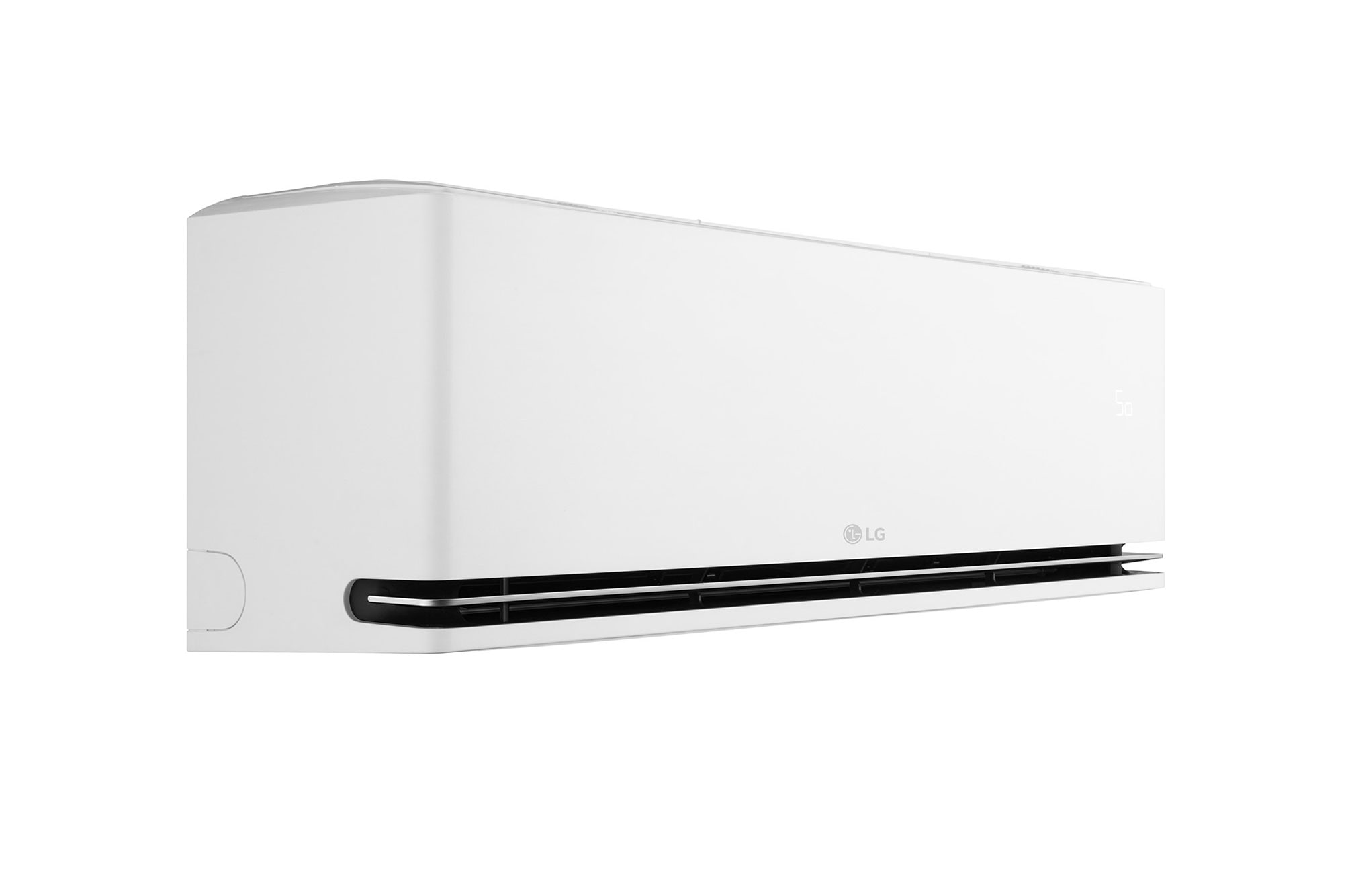

leftside-view
leftside-view

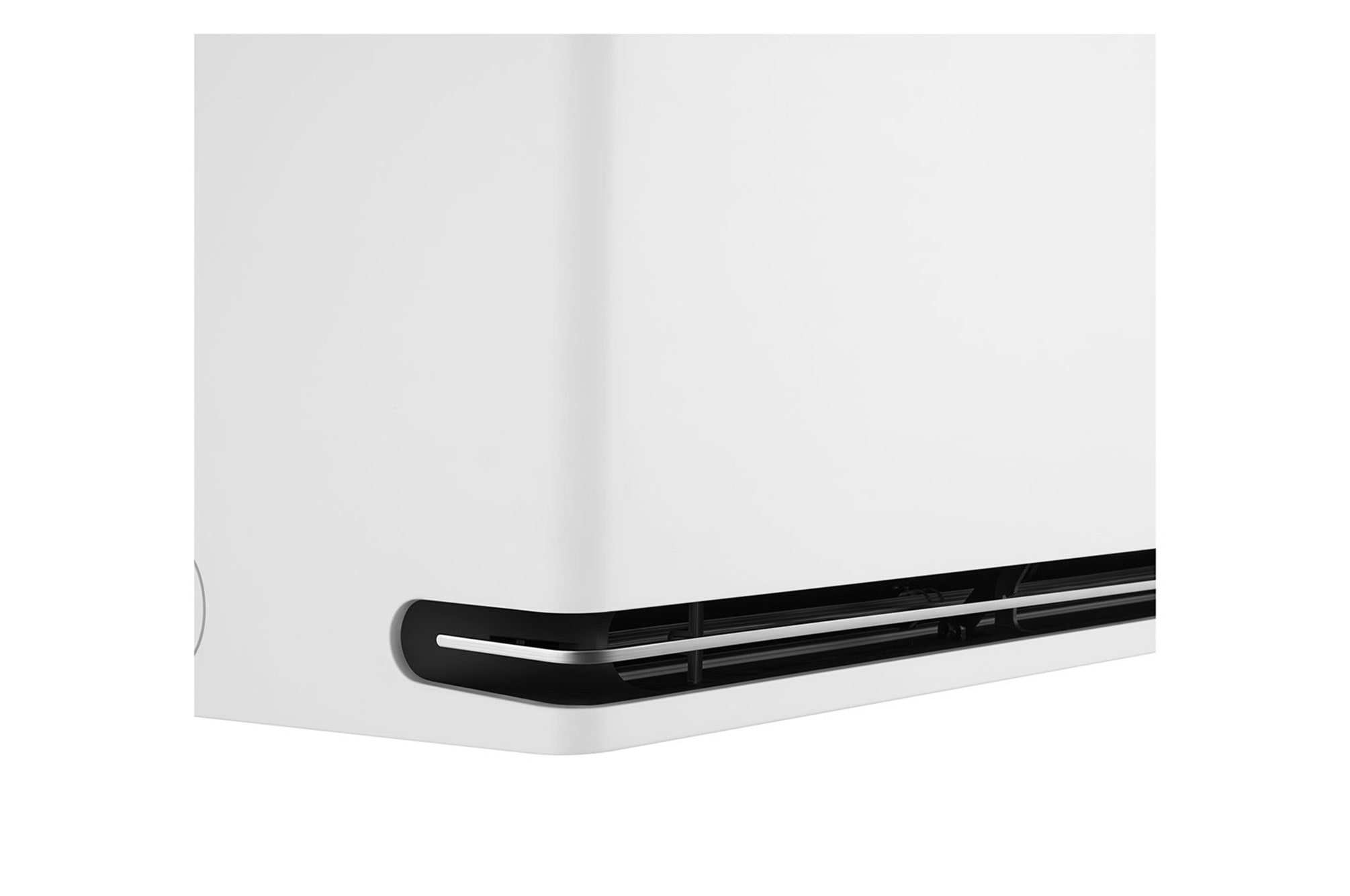

Detail view
Detail view
leftlow view
Leftlow_open
left_perspective_view
remote

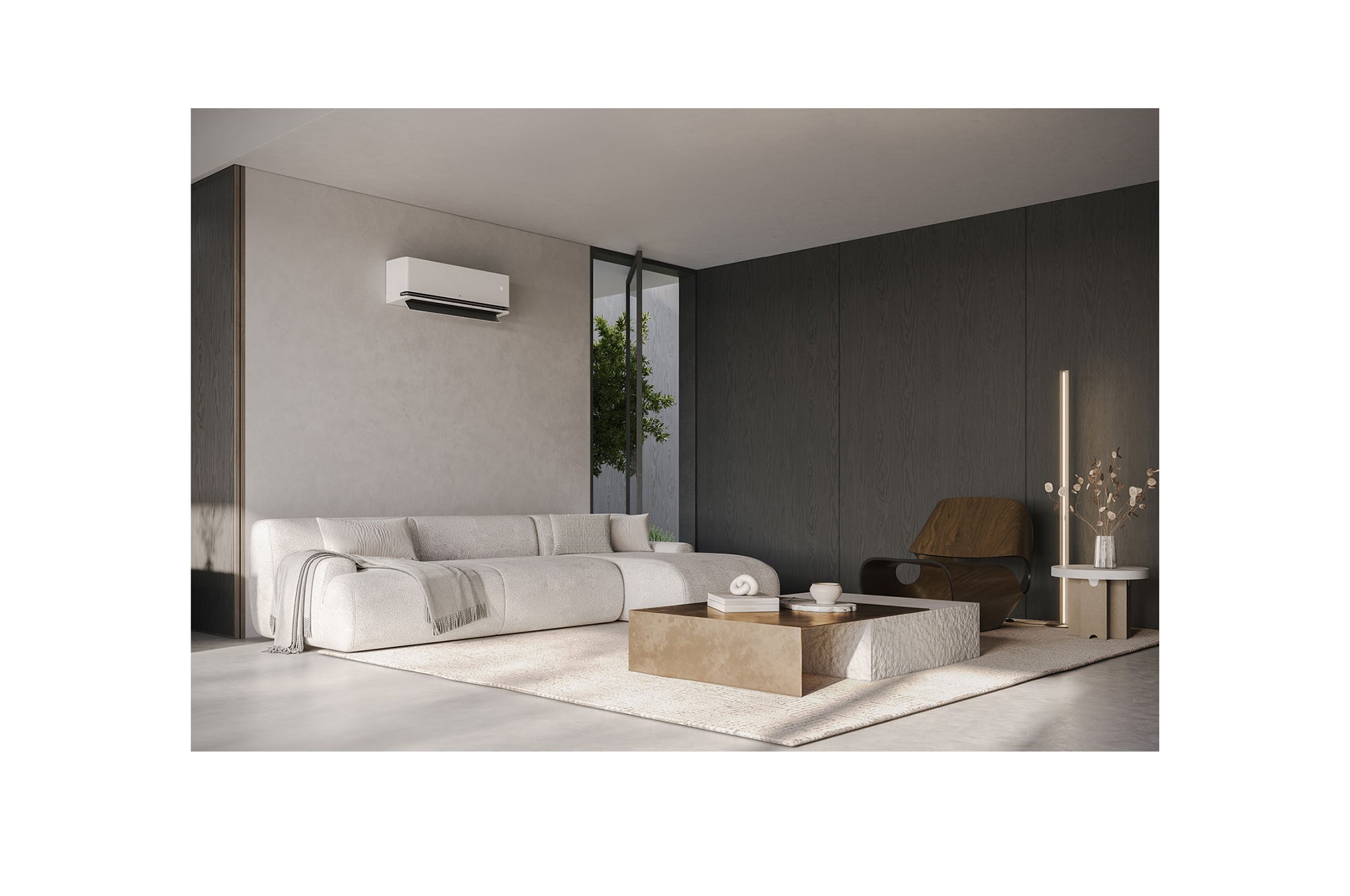

lifestyle

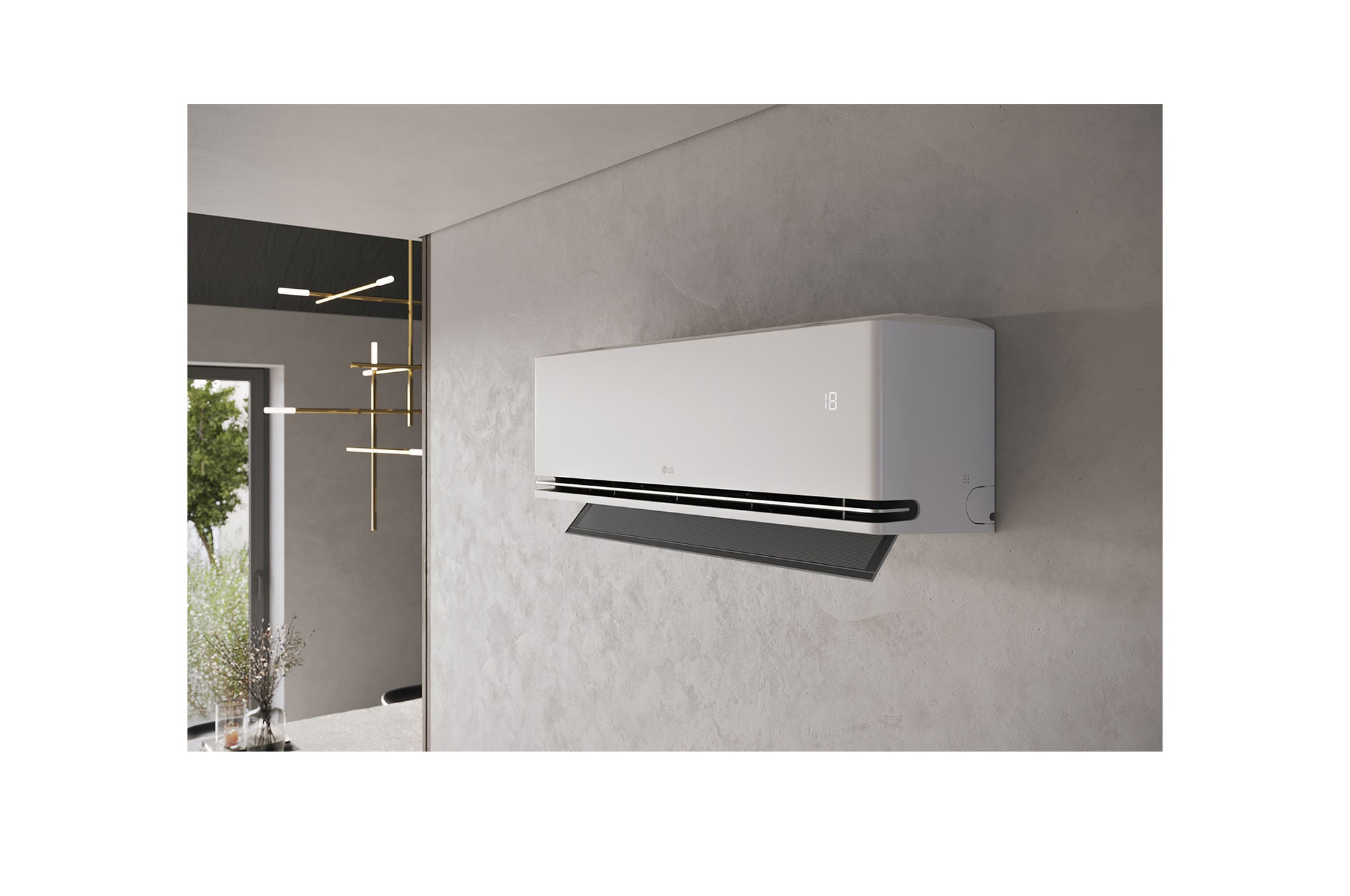

lifestyle2
dimension_installation

Key Features

  • DUAL Vane
  • DUAL Compressor
  • Active Energy Control
  • Uvnano
  • Comfort Sleep
  • Fast Cooling
More

Summary

Print

DIMENSIONS

H12S1P
Indoor Unit Dimension_WxHxD(mm)
895x307x235
Cooling Capacity Max(W)
4350
Heating Capacity Max(W)
6000
Cooling Capacity Rated/Min(W)
3500 / 890

All Spec

AIR PURIFYING

  • Ionizer

    Yes

BAR CODE

  • Bar Code

    8806084687531

COMPLIANCE

  • Product Type & Model Name

    Wall Mounted & H12S1P

  • Launching Month (YYYY-MM)

    2024-01

  • Manufacturer (Importer)

    LG Electronics

  • Product Model Name

    S3-M121L1C0

CONVENIENCE

  • Auto Restart

    Yes

  • Fan Mode

    Yes

  • Forced Switch Operation

    Yes

  • Human Body Detecting

    Yes

  • Low Noise

    Yes

  • On/Off Reservation(24Hr)

    Yes

  • Remote Controller

    Yes

  • Reservation

    Yes

  • Smart Diagnosis

    Yes

  • ThinQ(Wi-Fi)

    Yes

COOLING

  • Power Cooling

    Yes

  • 4way

    Up-Down/Left-Right

  • Airflow direction control (left & right)

    Yes

  • Airflow direction control (up & down)

    Yes(6 Steps)

  • Comfort Air

    Yes

  • Fan Speed

    6 Steps

DEHUMIDIFICATION

  • Humidity Sensor

    Yes

  • Dehumidification

    Yes

DESIGN

  • Display

    88 Hidden

  • Color(Body)

    White

  • Color(Discharge)

    Black

ENERGY SAVING

  • Active Energy Control

    Yes

  • Dry Contact

    Yes

  • Energy Display

    Yes

  • Energy Monitoring

    Yes

  • kW Manager

    Yes

FILTER

  • Pre Filter

    Yes

  • Allergy Filter

    Yes

  • Fine Dust Filter

    N/A

GENERAL

  • HVAC Type

    H/P

  • Cooling Capacity Max(W)

    4350

  • Cooling Capacity Rated/Min(W)

    3500 / 890

  • Cooling Power Consumption Rated/Min(W)

    815 / 160

  • Est. Cooling Area (Sq. Ft.)

    N/A

  • Est. Heating Area (Sq. Ft.)

    N/A

  • Heating Capacity Max(W)

    6000

  • Heating Capacity Rated/Min(W)

    4000 / 650

  • Heating Consumption Power Rated/Min(W)

    850 / 160

  • Indoor Unit Dimension_WxHxD(mm)

    895x307x235

  • Indoor Unit Weight(kg)

    12.6

  • Indoor Unit Weight(lb.)

    27.6

  • Outdoor Unit Dimension_WxHxD(mm)

    770 x 545 x 288

  • Outdoor Unit Weight(kg)

    29.9

  • Outdoor Unit Weight(lb.)

    65.9

  • Product Type

    Wall Mounted

  • Product Type II

    Inverter

  • Rated Input Voltage(V, Hz)

    220 ~ 240, 50

  • Refrigerant Type

    R32

  • Sound Power(Cooling) SH/H/M/L/SL(dB(A))

    47 / 40 / 35 / 27 / 19

  • Sound Power(Heating) SH/H/M/L/SL(dB(A))

    48 / 40 / 35 / 27 / 0

HEATING

  • Low Heating

    Yes

  • Power Heating

    Yes

HYGIENE

  • Auto Cleaning

    Yes

OUTDOOR UNIT

  • Outdoor Unit Model Name

    S3UM121L1C0

COMPLIANCE INFORMATION

MORE COMPLIANCE INFORMATION
The safety information for accessories is included with the safety information for the product and is not provided separately.
