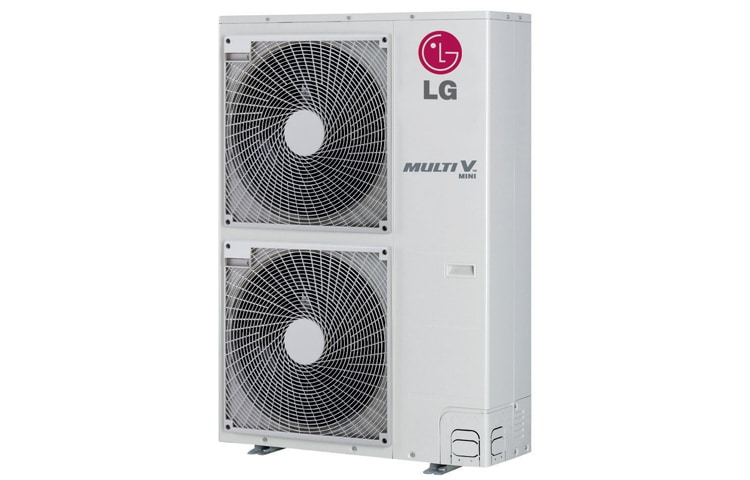

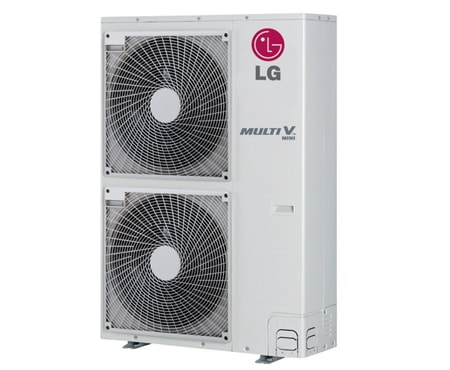

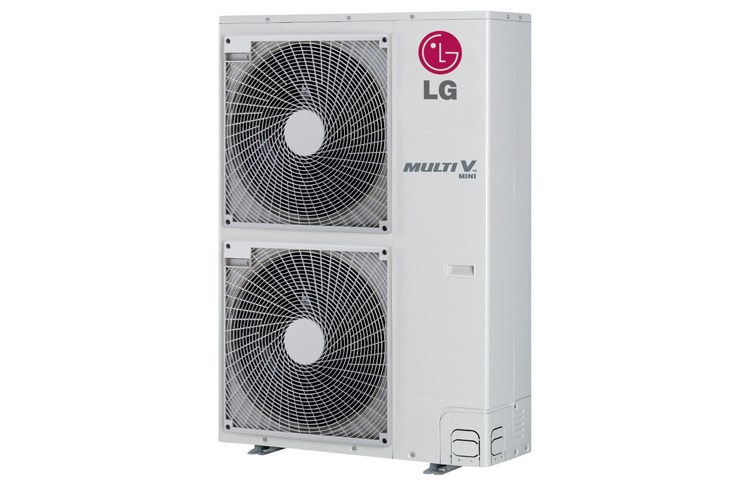

MULTI V™ MINI OUTDOOR UNIT (15.5 KW COOLING, 18 KW HEATING)
All Spec
COOLING CAPACITY(BTU/HR)
Cooling kW
15.5
HEATING CAPACITY(MIN/RATING/MAX)
Heating kW
18
INPUT
Cooling W
4.2kW
Heating W
4.6kW
C.O.P
Cooling
3.69
Heating (W / W)
3.91
COLOUR
Colour
Warm Grey
NOISE LEVEL(SOUNDPRESS,1M)
Outdoor, Max dB(A)±3
54
FAN
Type
BLDC
AIR FLOW
m3/min
110
DIMENSIONS(WXHXD)
Unit(WxHxD) mm
950×1380×330
NET WEIGHT
Unit kg
106
COMPRESSOR
Type
DC INV Rotary
No. of Compressors
1
HEAT EXCHANGER
Type
Gold Fin
REFRIGERANT
Type
R410A
Control
3.0
Charge kg
EEV
REFRIGERANT OIL
Charge Amount (cc)
FVC68D
Type
1,300
PIPE CONNECTIONS
Gas Pipes mm(inch)
ø9.52(3/8)
Liquid Pipes mm(inch)
ø19.05(3/4)
CONNECTABLE INDOOR UNITS
Number
9
Ratio
50~130%
LONGEST PIPING
Length/ Level Difference
150m/50m
