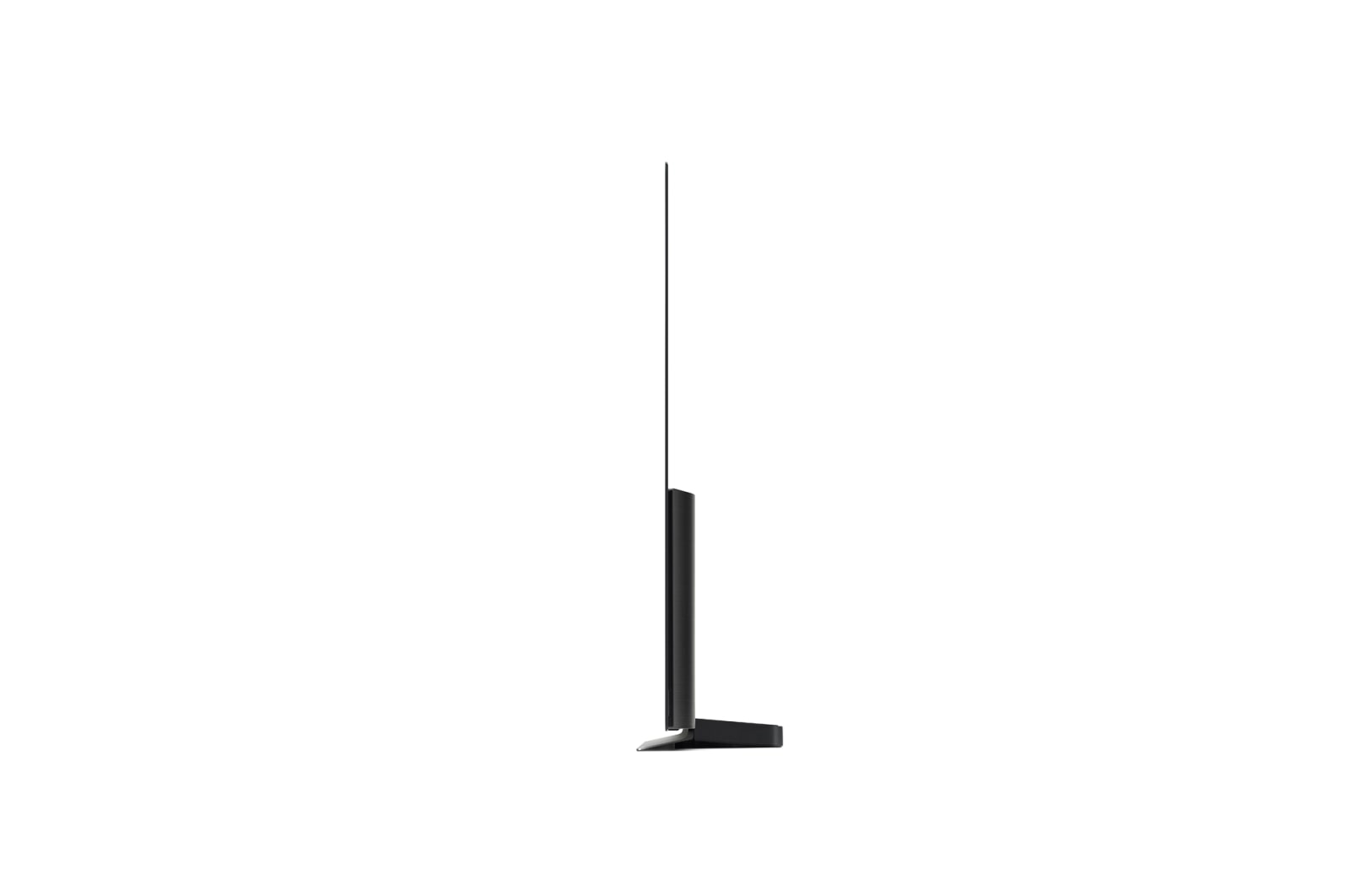

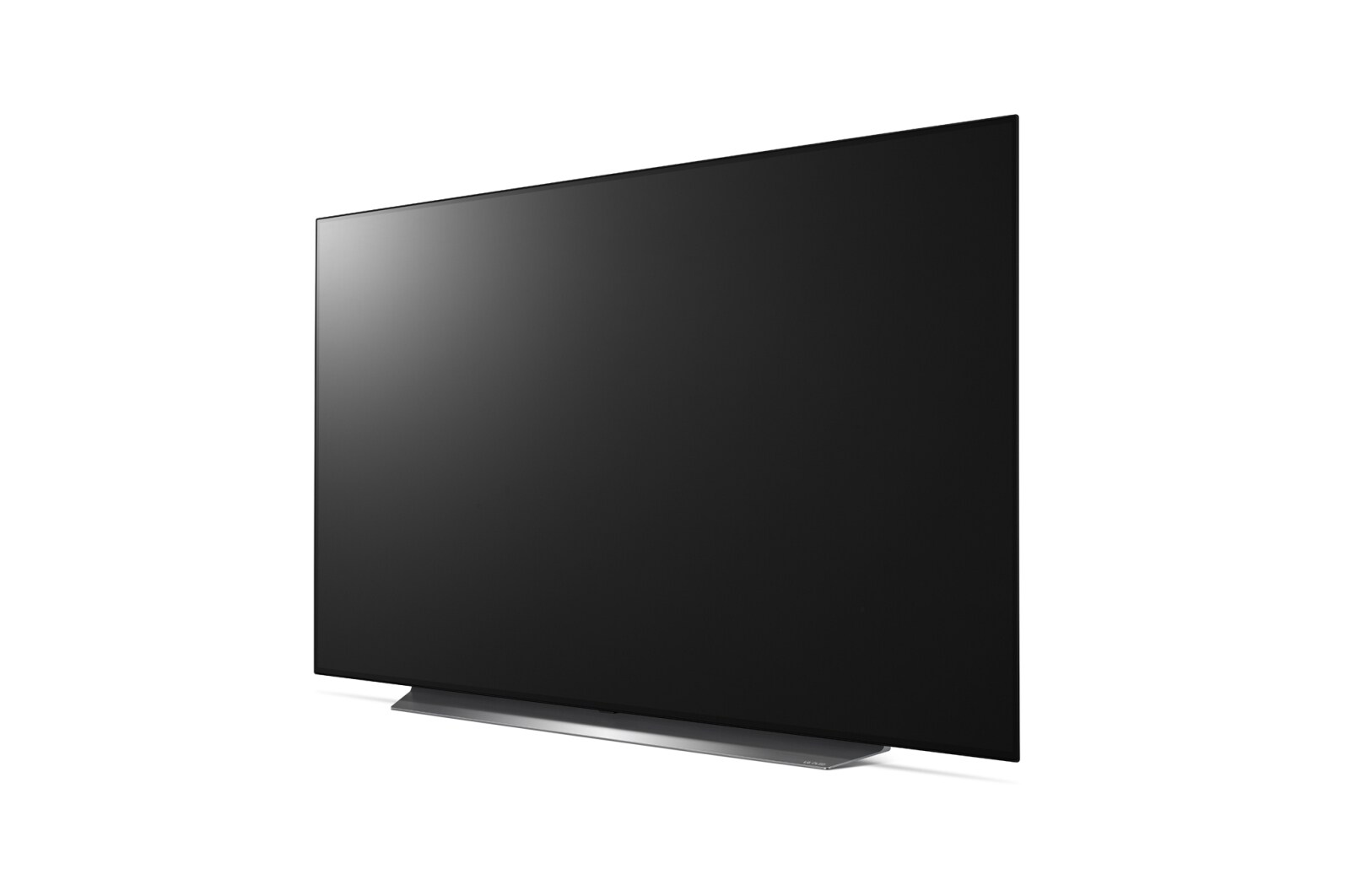

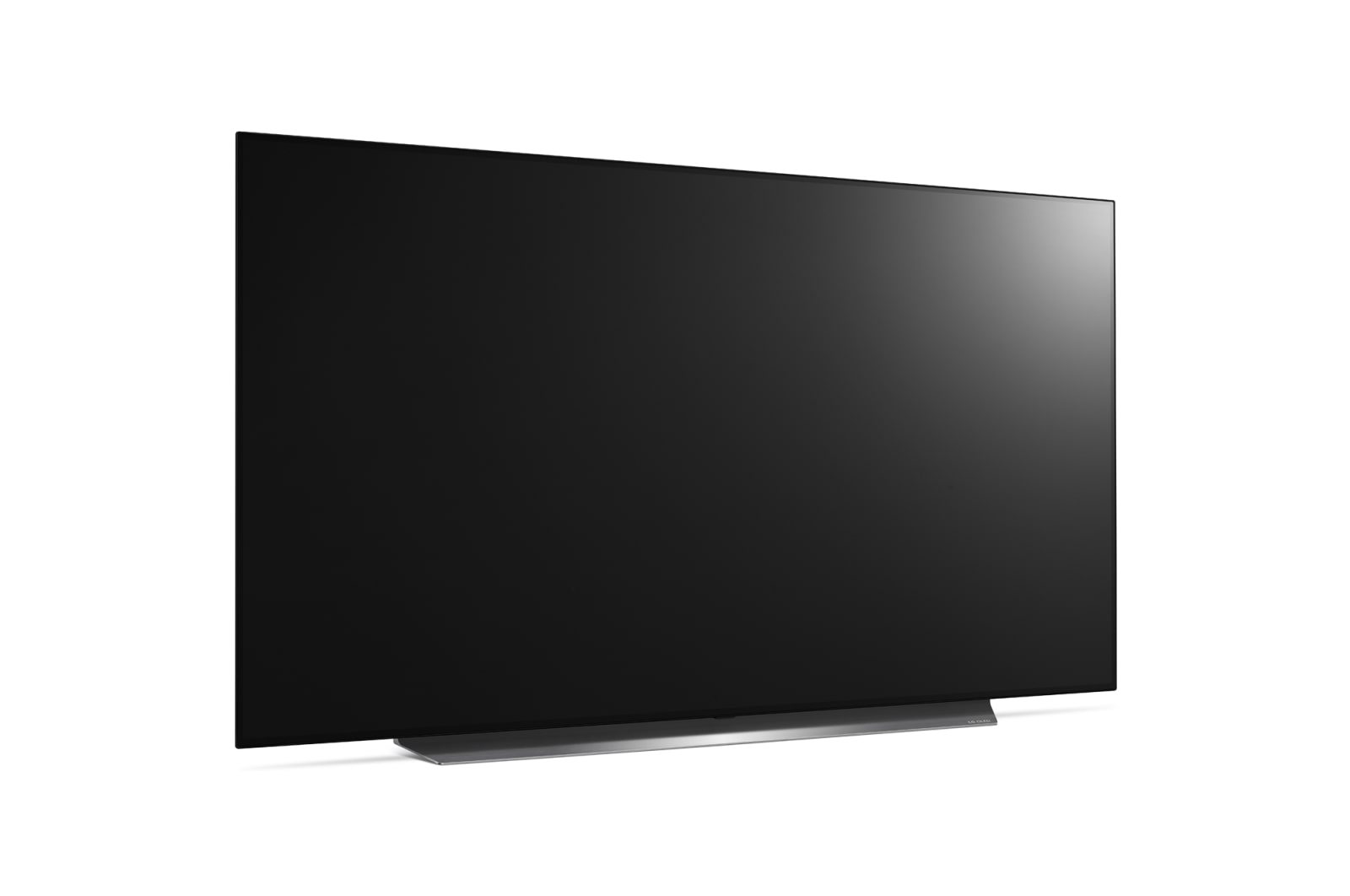

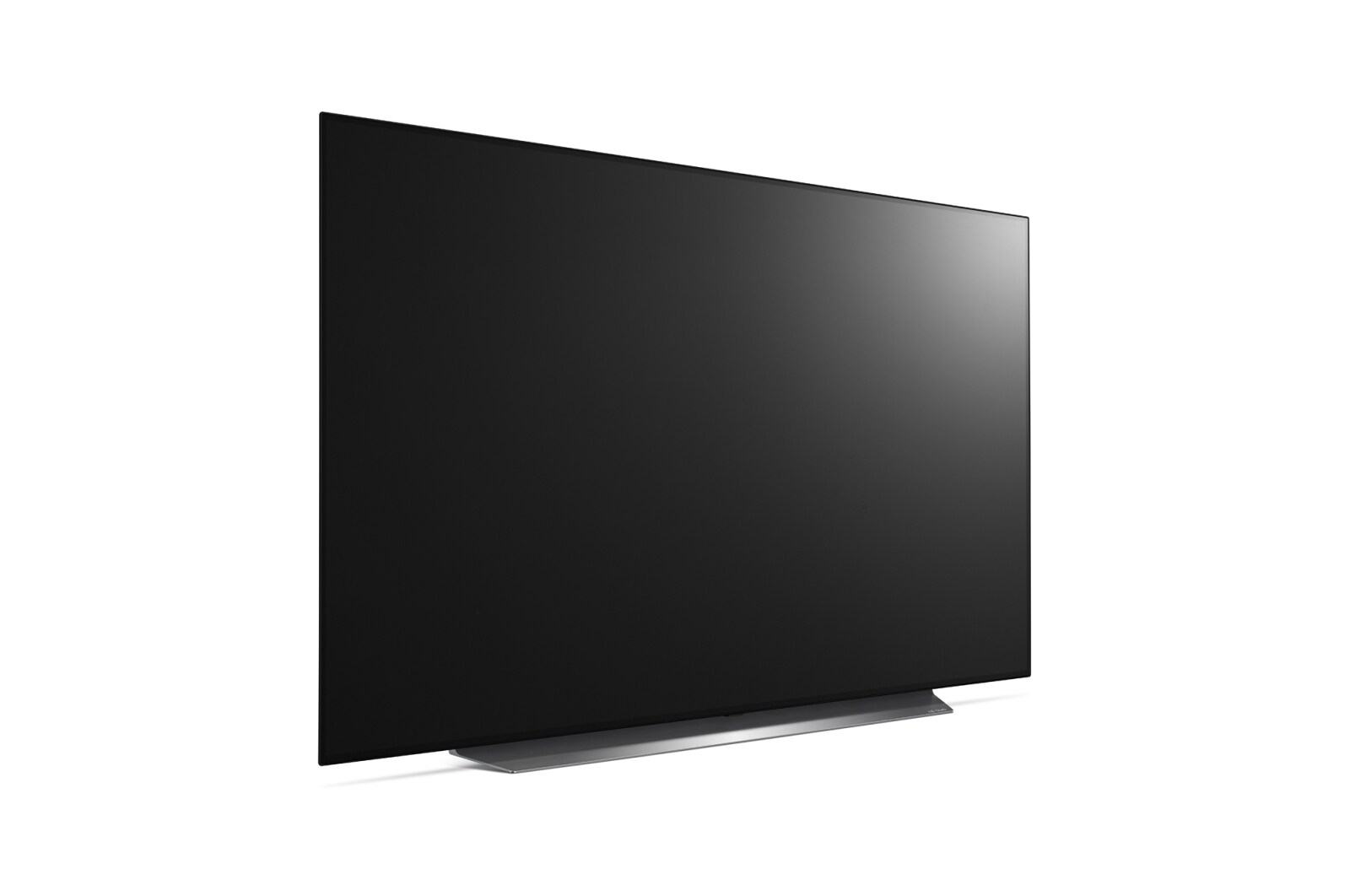

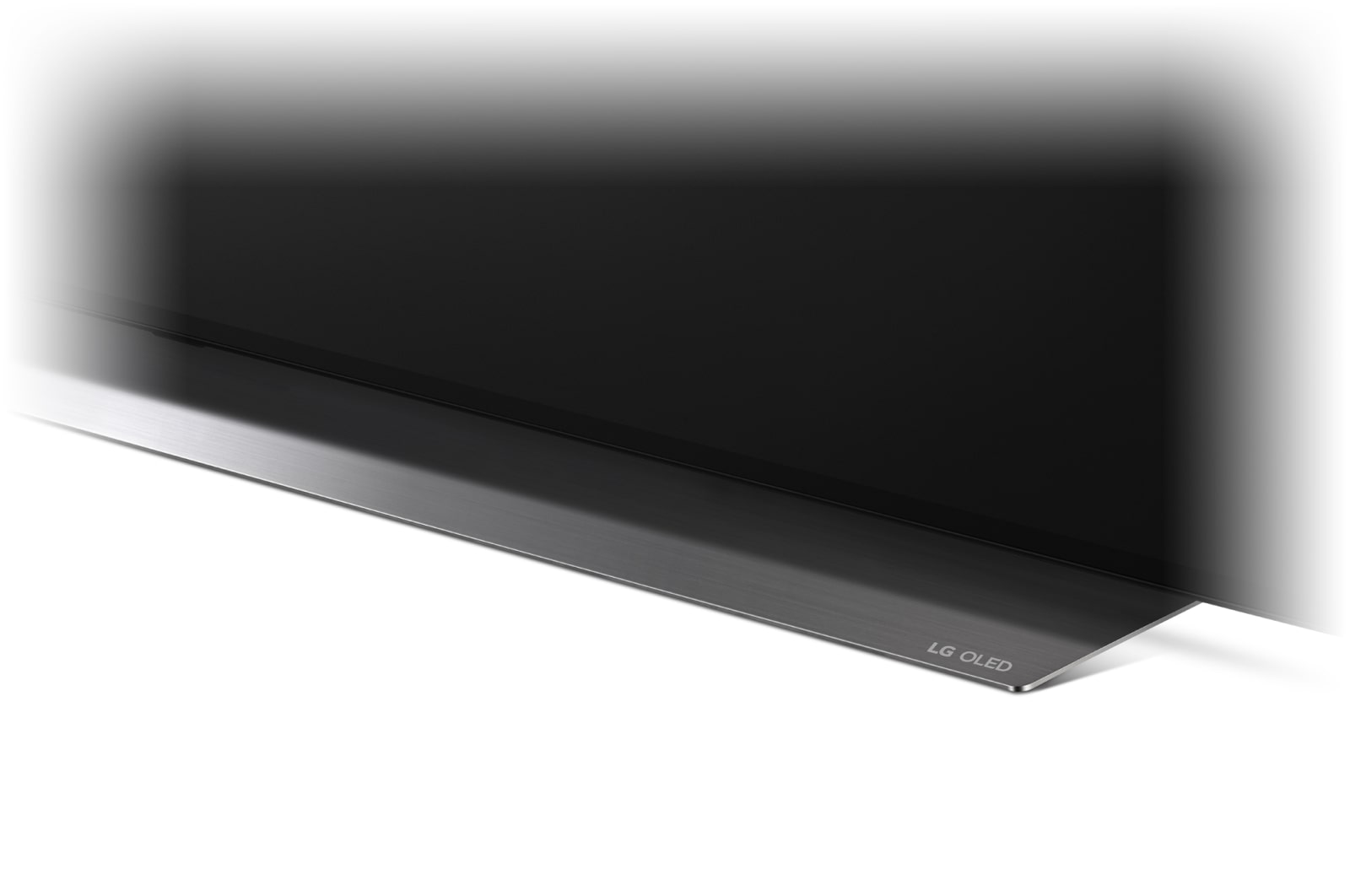

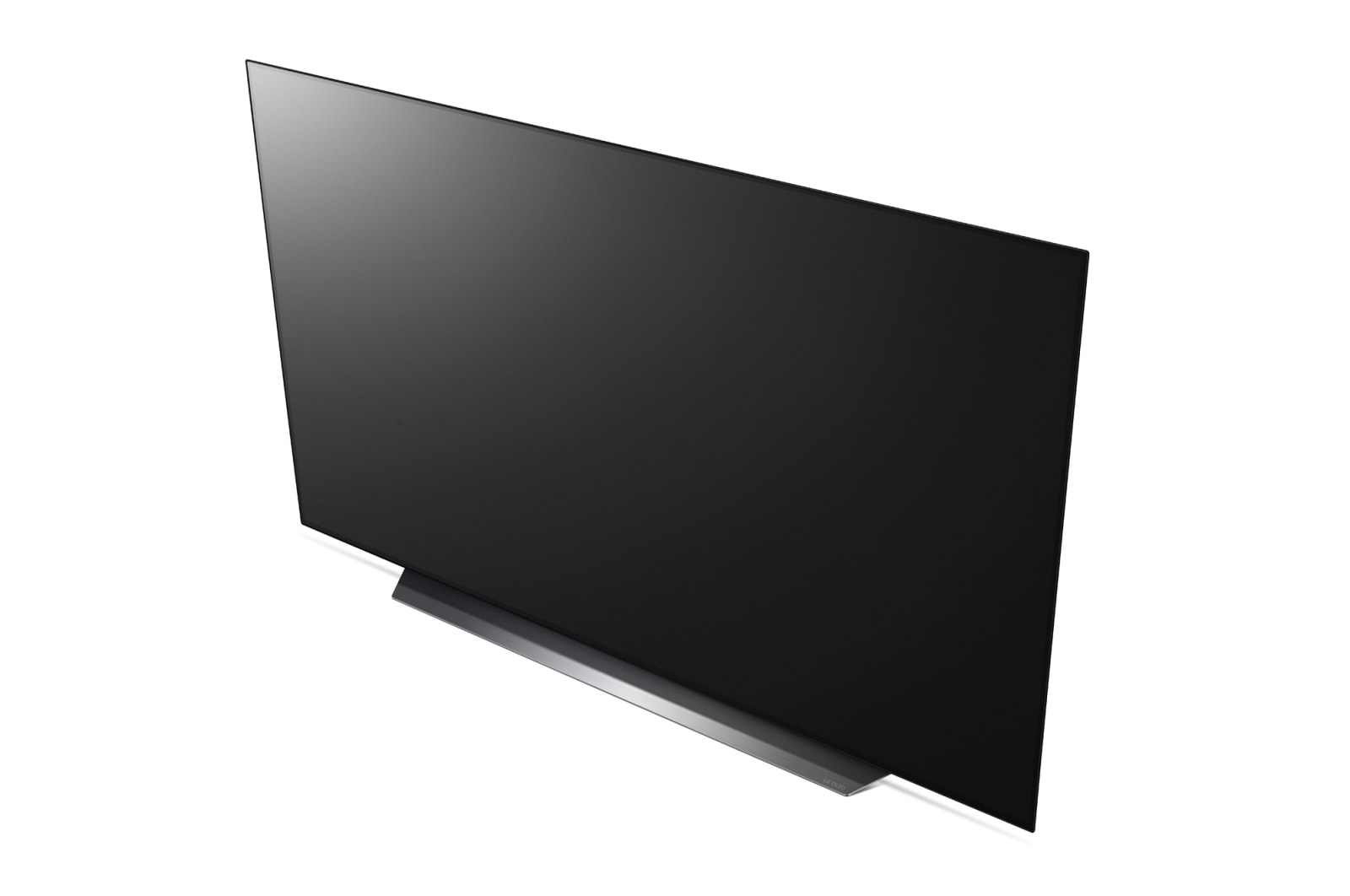

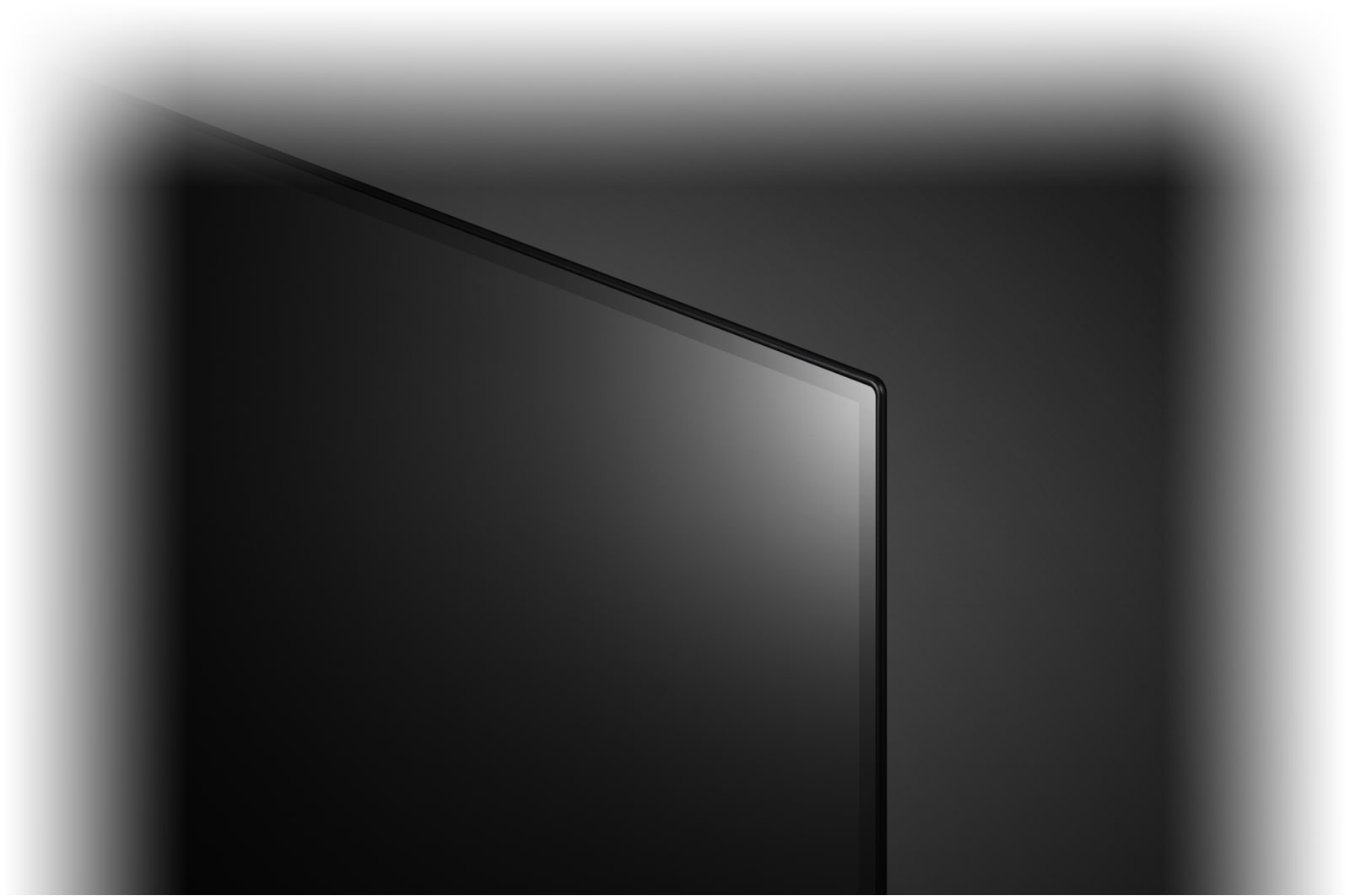

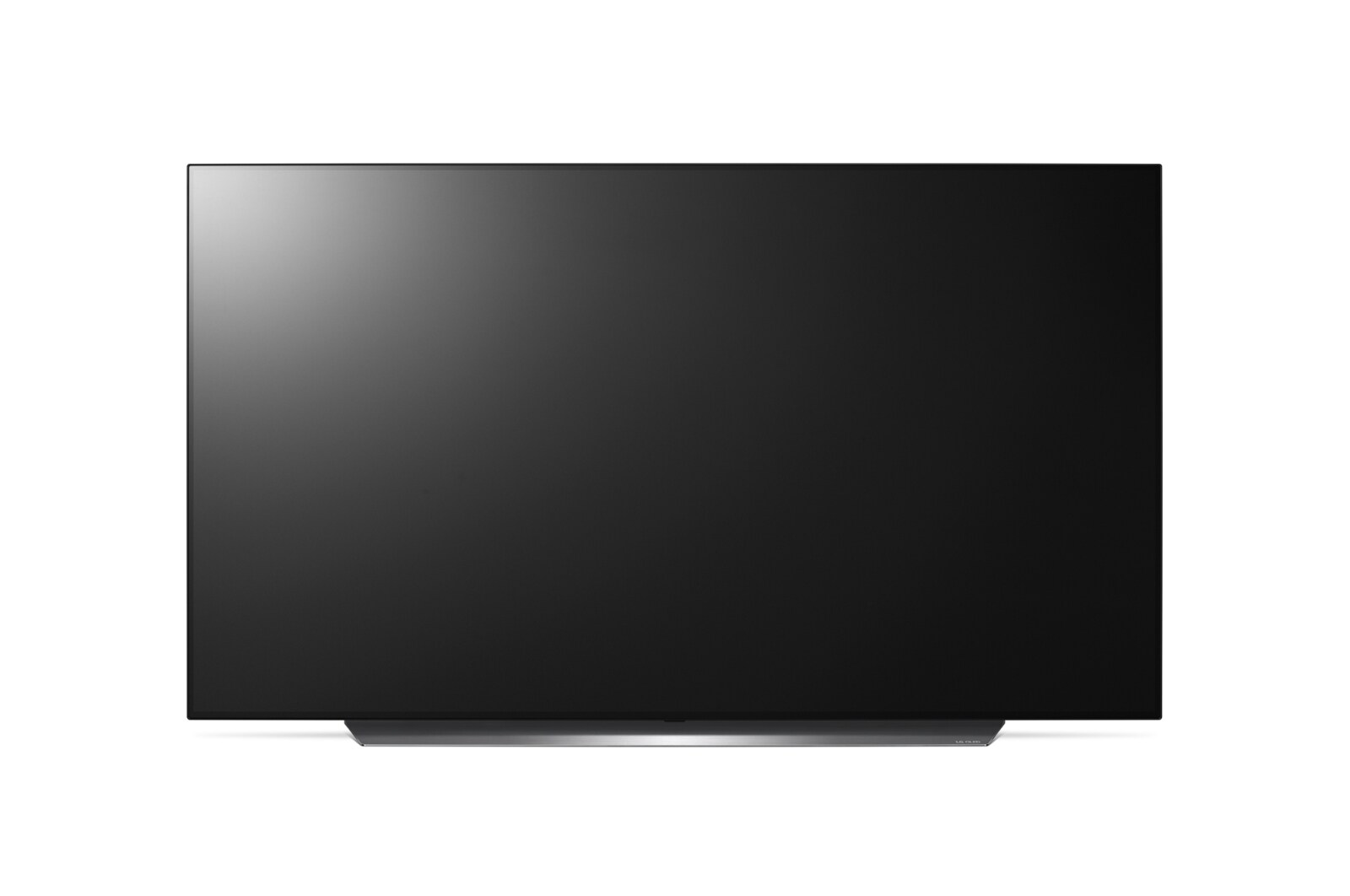

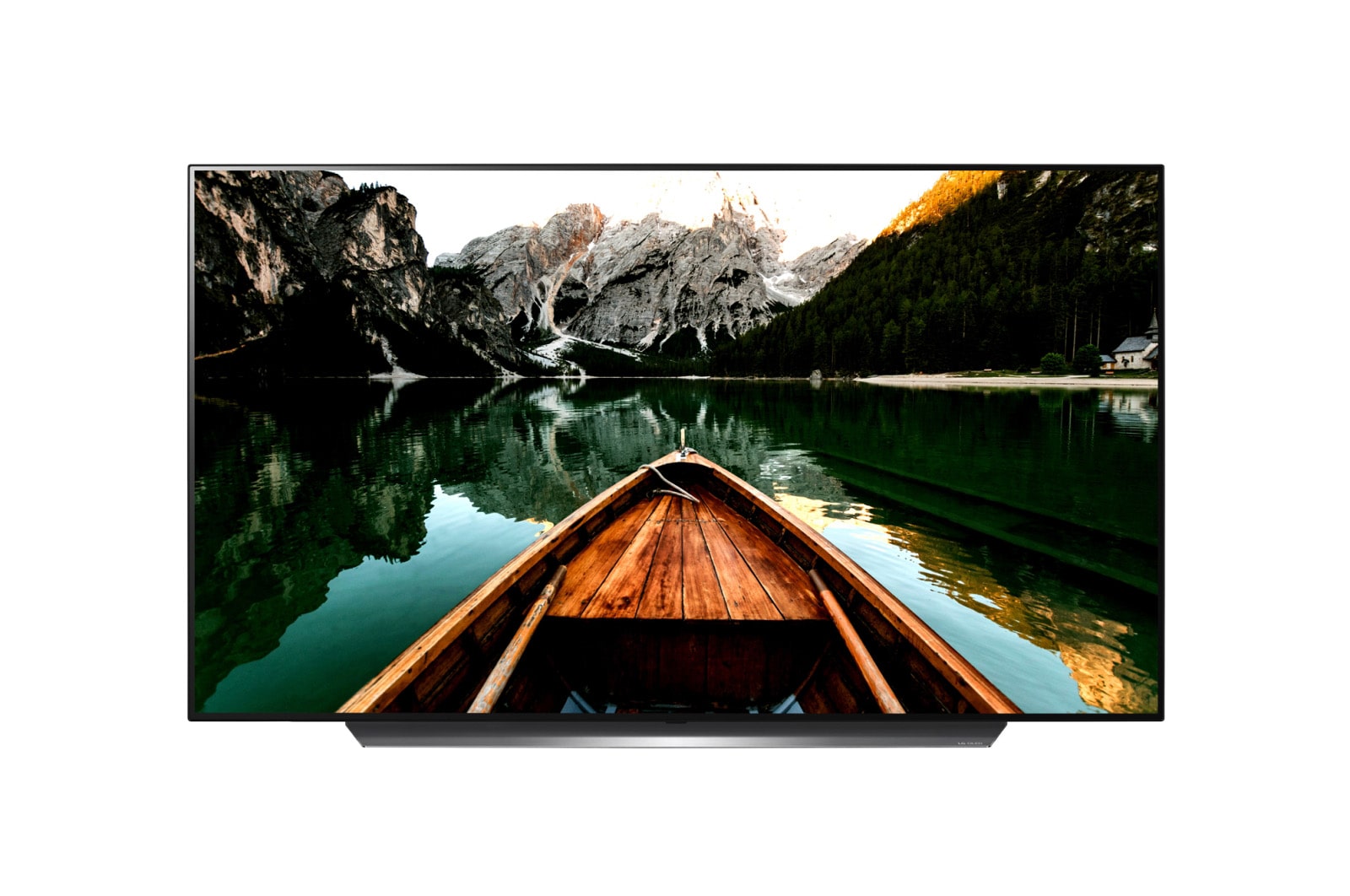

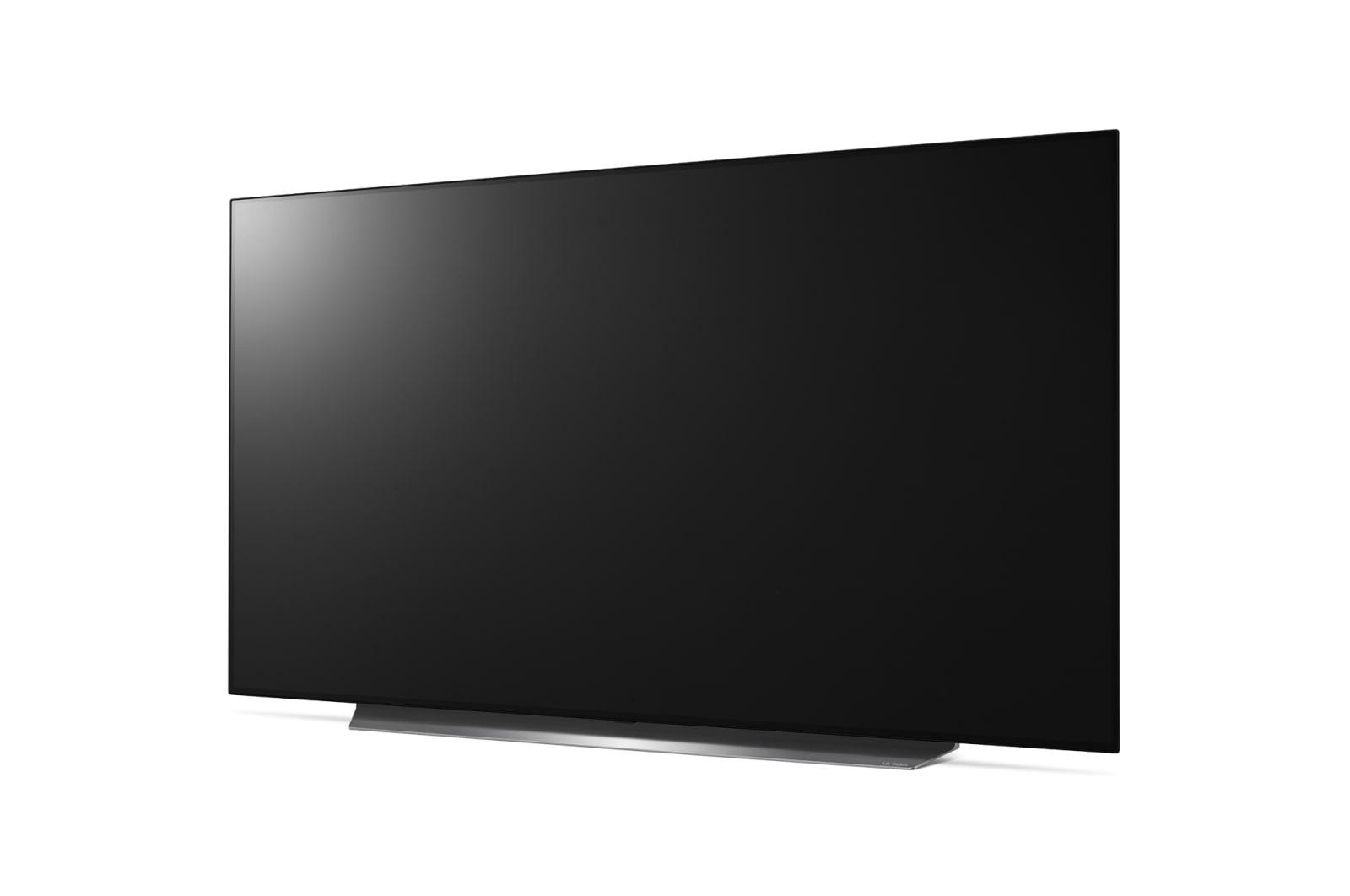

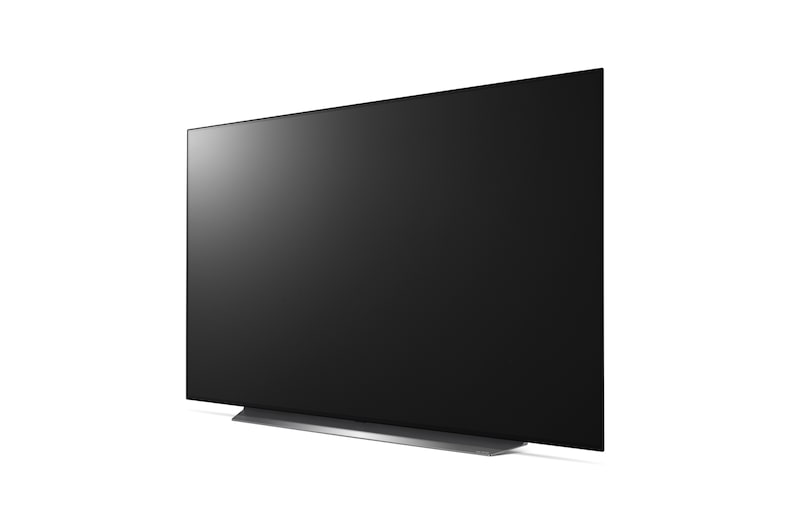

55" OLED Hotel TV
* Actual UI may differ
* Customized Ul may differ
* When PCS400R and PCD 2.0 are used, it is able to have PCD feature even in RF infrastructure. However, to have interactive services in RF infrastructure, Wi-Fi is required (RF+Wireless Infrastructure is needed).

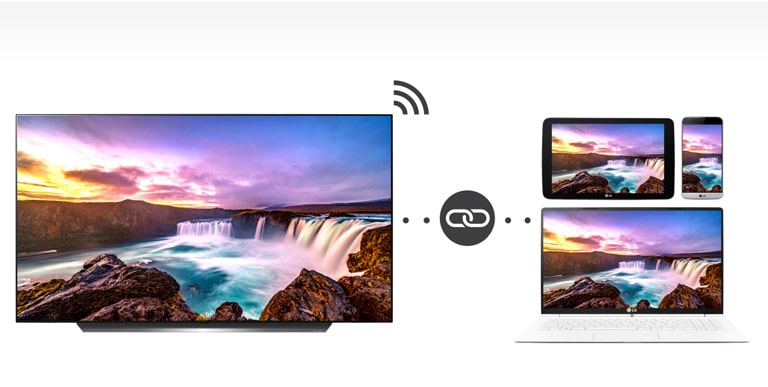

* SoftAP should be set in the installation menu after the TV is turned on.
* Smart Mirroring may not be operated at the same time.
All Spec
VIDEO
HDR (10 Pro / HLG / Dolby Vision)
• / • / •
AUDIO
Audio Output
20W + 20W
Speaker System
2.2 ch
DOLBY ATMOS
•
FEATURES
Hospitality
Hotel Mode (Installer Menu), Lock mode (Limited), Welcome Video, Welcome Screen (Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 2W with 8Ω), Instant ON, V-Lan Tag, RJP (remote jack pack) Compatibility
GENERAL
Region
Europe
DISPLAY
Inch
55
Resolution
3840 X 2160 (UHD)
Brightness (cd/m²)
500
HOSPITALITY SOLUTION
Hospitality Solution

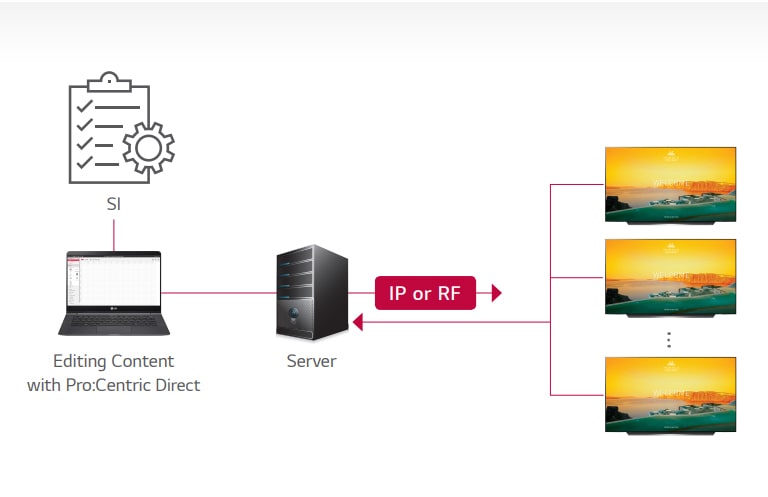

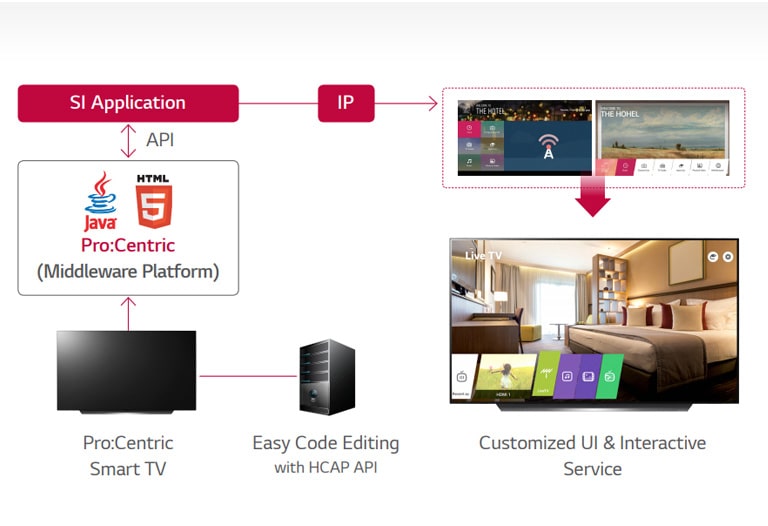

Pro:Centric Smart (Data Streaming (IP & RF), HCAP (GEM/FLASH/HTML) Service Carousel (TLL/XML) (GEM / HTML5), IP Return path, Multicast / Unicast ready)), Pro:Centric Direct 3.0, Pro:Centric V(Pro:Centric Application (PCA3.8)), Pro:Cenric Server(PCS400R, PCS200S), Quick Menu 3.0, Pro:Idiom (S/W Type), Pro:Idiom Media
JACK INTERFACE
Set Side
HDMI In 3 (2.0), USB (2.0), CI Slot
Set Rear
USB (2.0), Headphone Out, RF In 2, AV In (Phone Jack Type), Component in (Y,Pb,Pr-Video (Phone Jack Type)), Digital Audio Out (Coaxial / Optical), RS-232C(D-Sub 9pin (Control & Service)), RJ45 (Usage Purpose 2 (Ethernet, Aux)), External Speaker Out(3.5mm phone jack) 2 (Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω) Vol. Control 1)
POWER(UNIT : WATTS)
Voltage, Hz
100 ~ 240V, 50/60Hz
Power Consumption(Typ.)
293W
Stand-by
0.3W
BROADCASTING SYSTEM
Digital
DVB-T2/C/S2
DIMENSION(UNIT: MM/KG)
Vesa
300 x 200
W x H x D / Weight (with stand)
1,228 x 738 x 251/ 23.0
W x H x D / Weight (without stand)
1,228 x 706 x 46.9 / 18.9
W x H x D / Weight (Shipping)
1,345 x 810 x 207 / 28.6
