49" 4000 nits FHD Window Facing

49" 4000 nits FHD Window Facing

49" 4000 nits FHD Window Facing

49XS4F-B

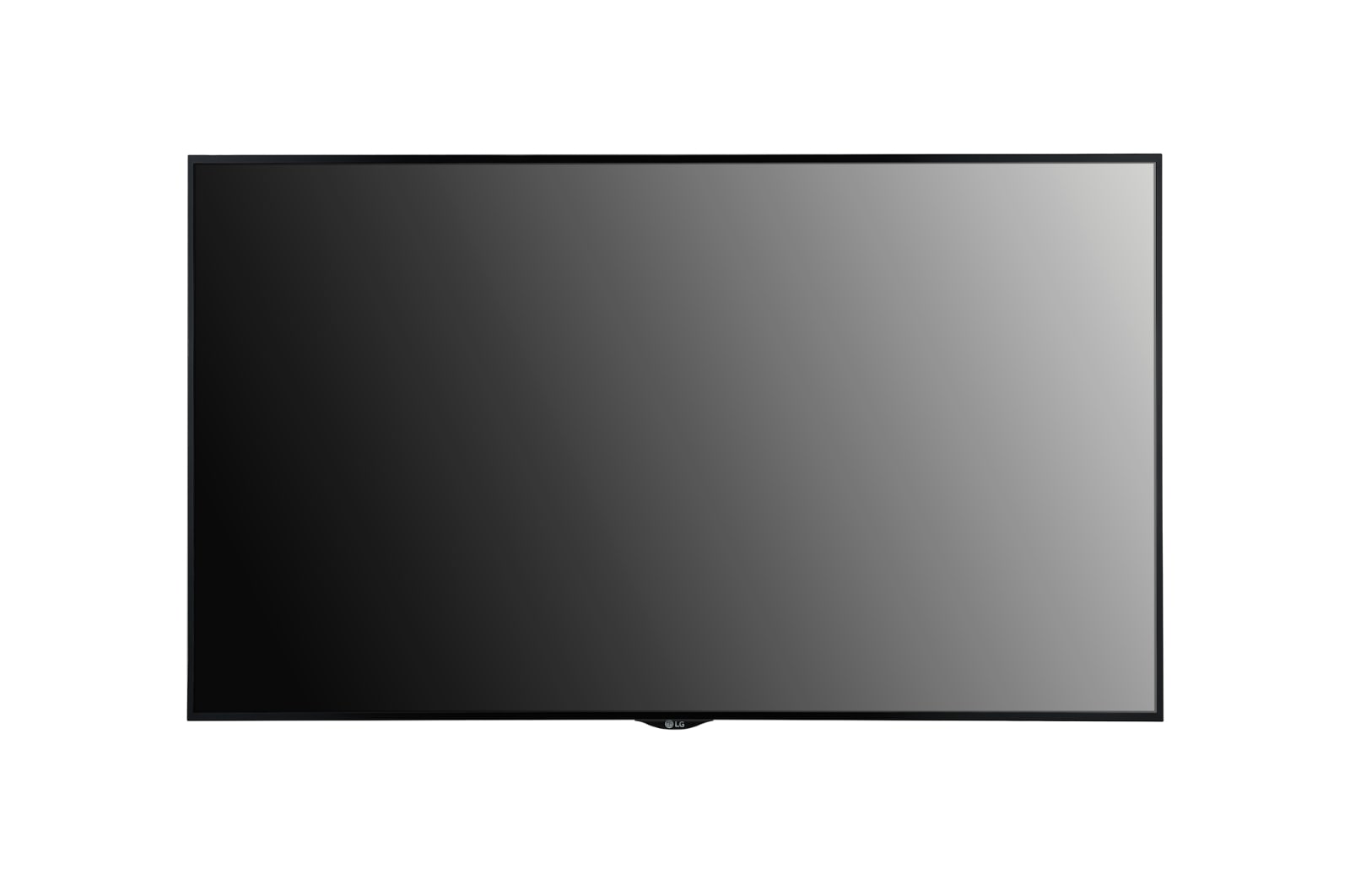

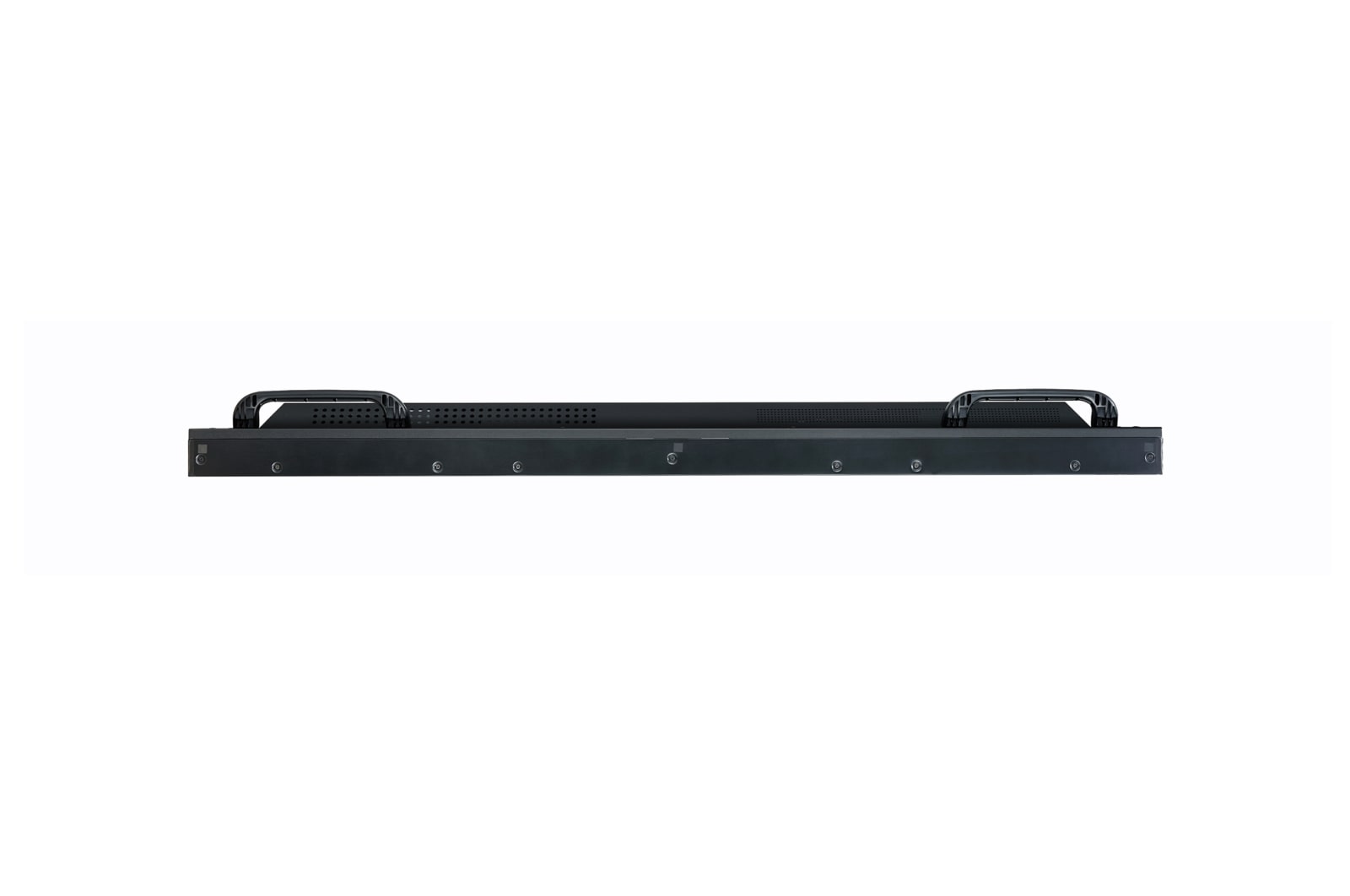

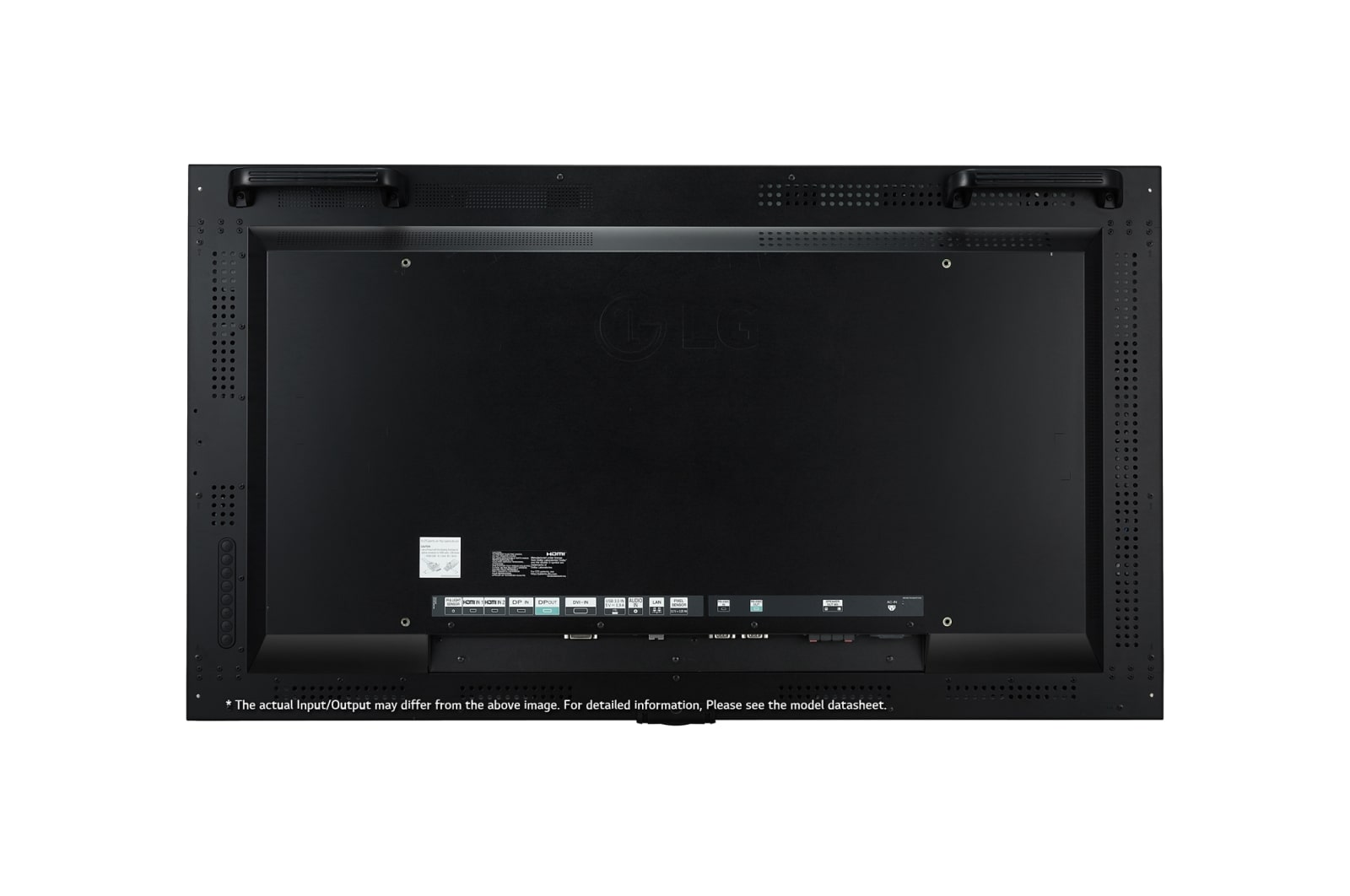

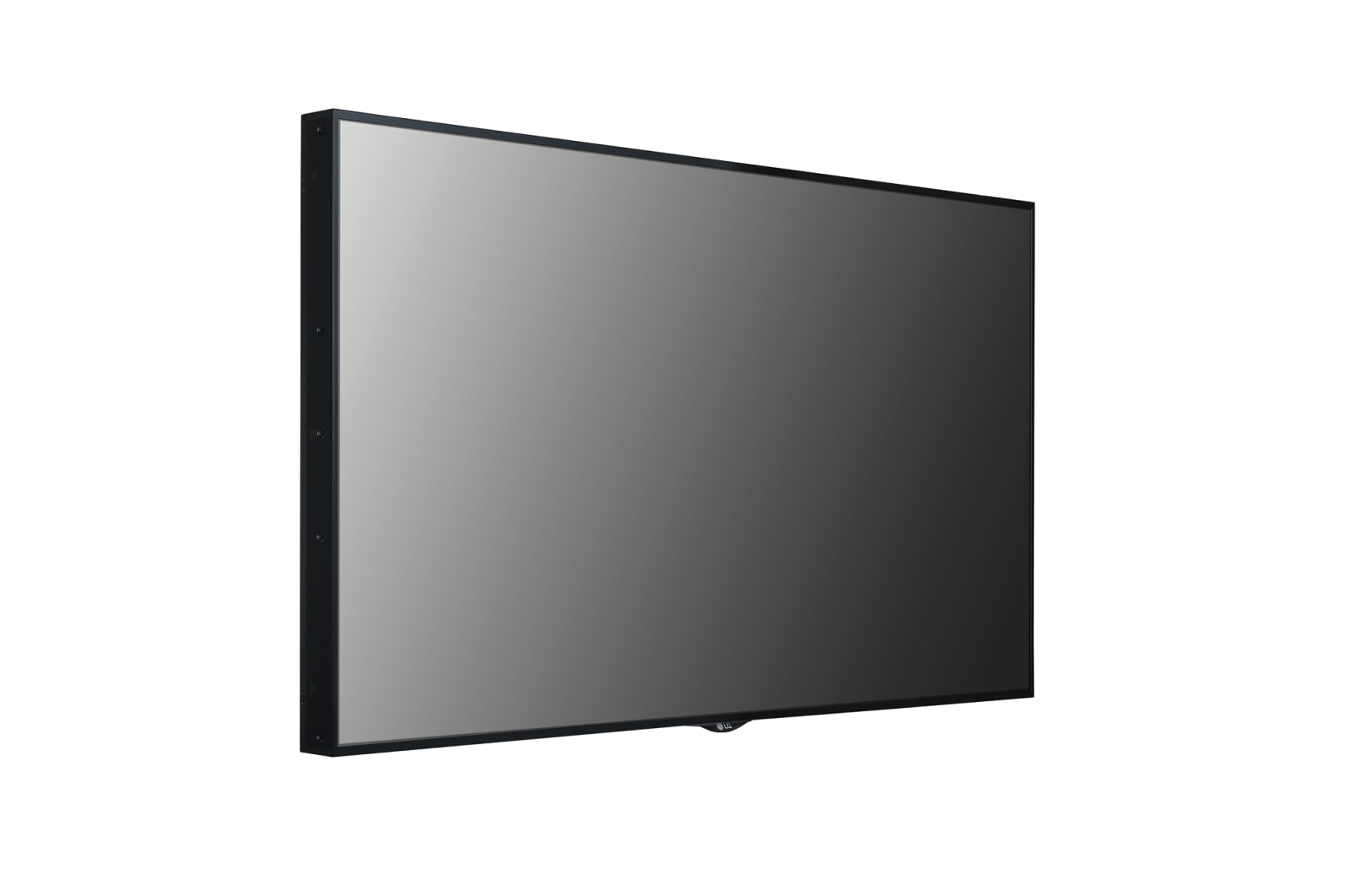

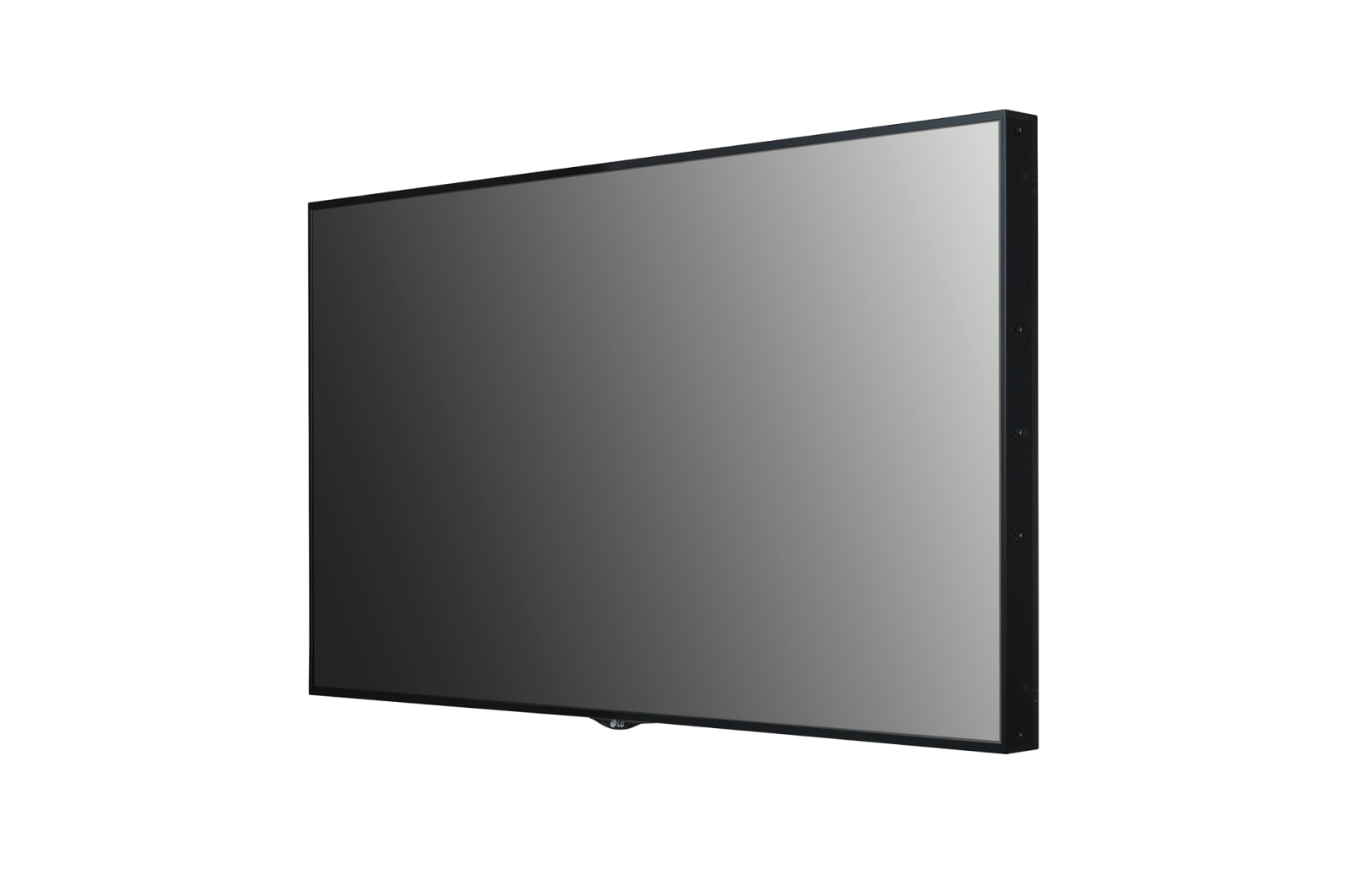

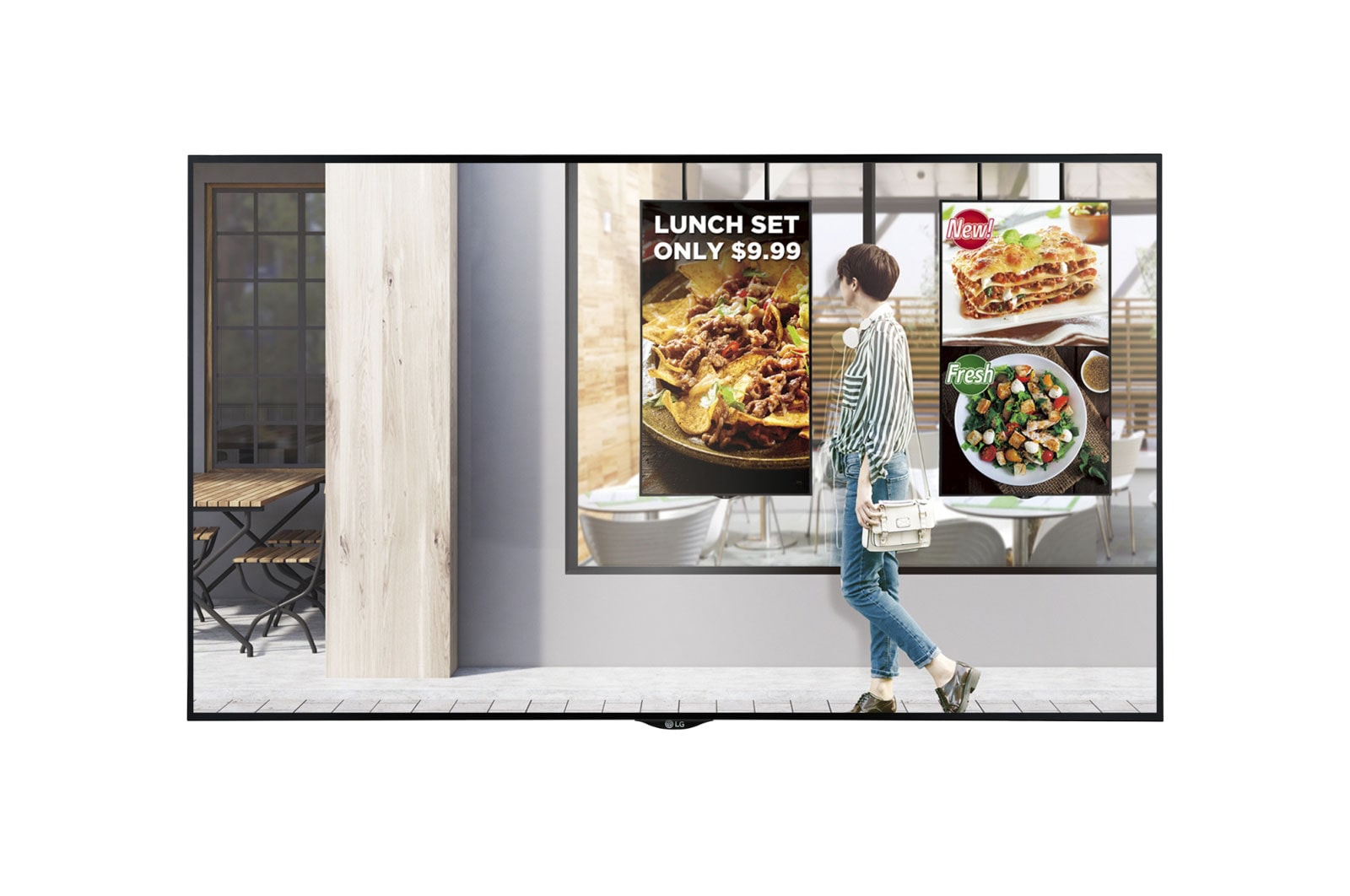

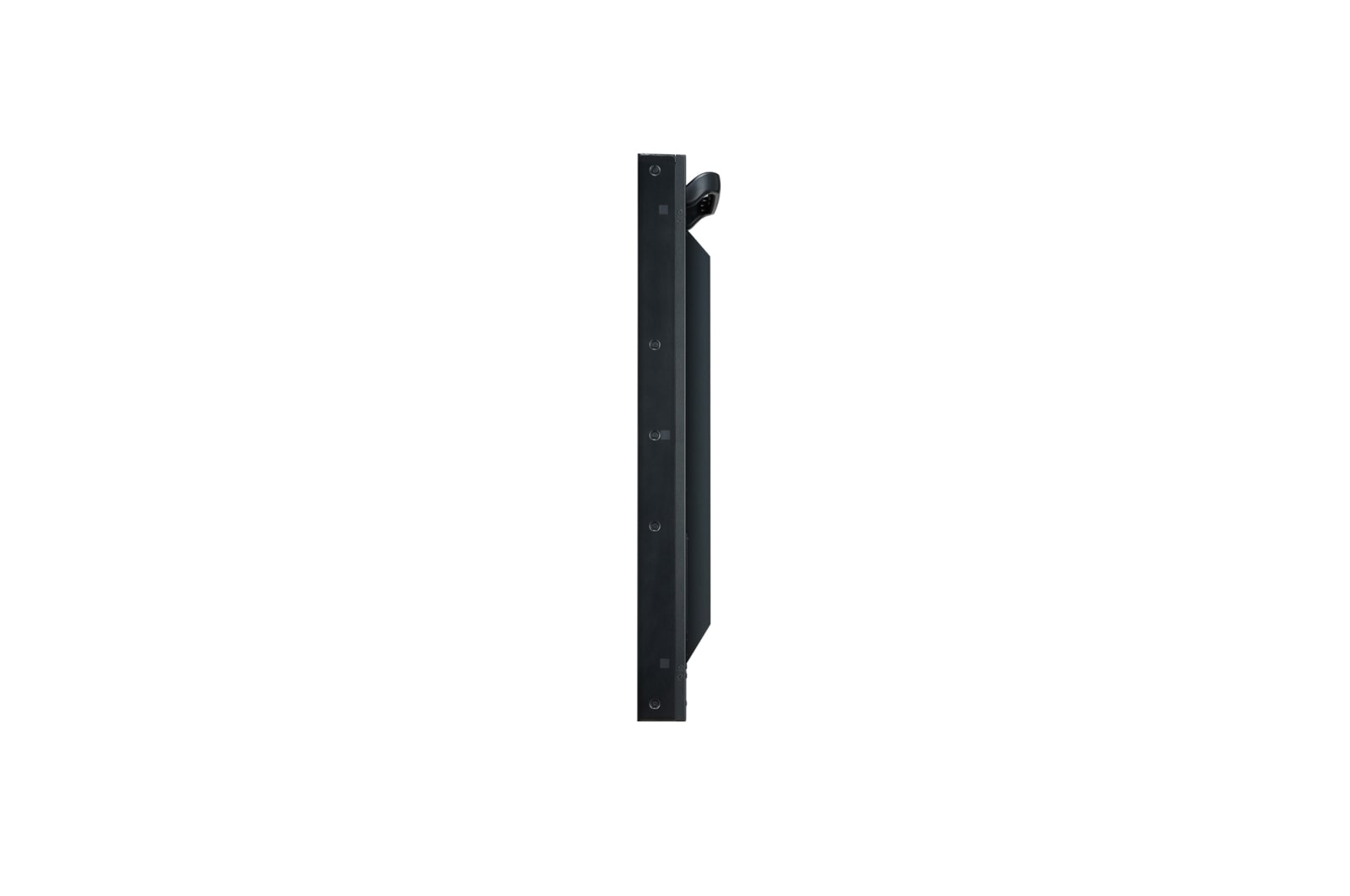

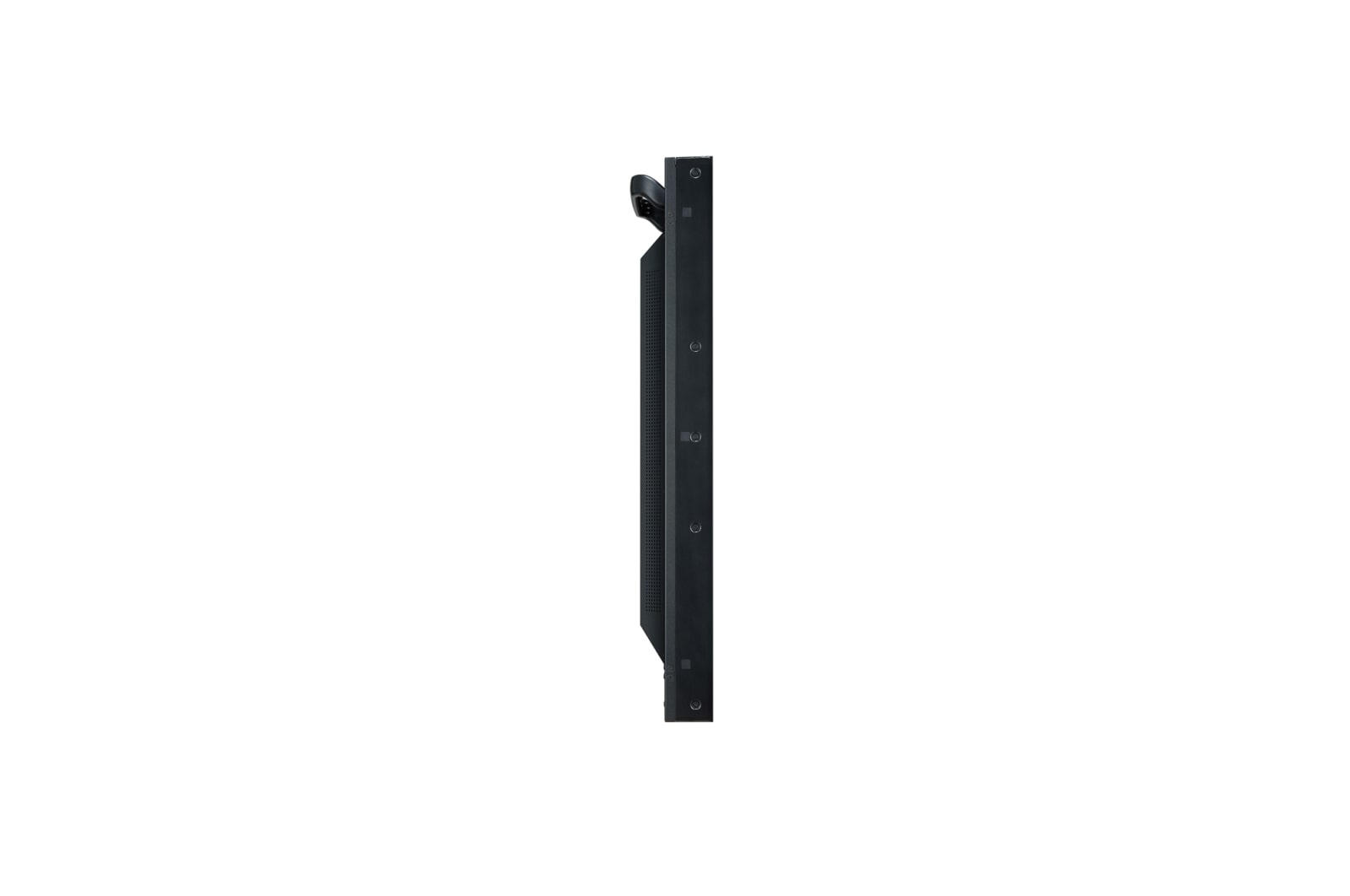

LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B
LG 49" 4000 nits FHD Window Facing, 49XS4F-B

Key Features

  • Brightness: 4,000cd/m² (Typ)
  • Life Time: 50,000 Hours
  • Bezel Width: 9.0 mm (T/B), 6.5 mm (L/R)
  • Depth: 83.5 mm
  • Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out(L/R)
More

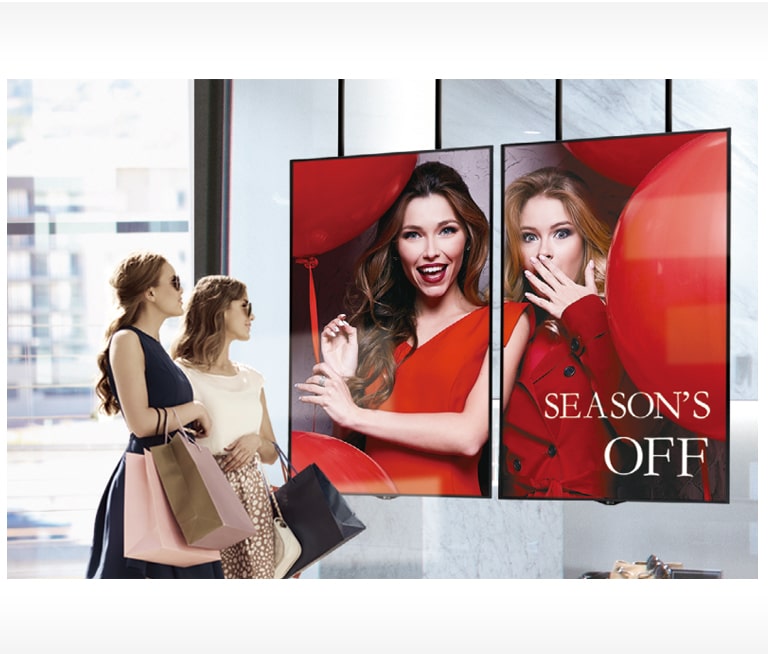

Outstanding Visibility with Extreme Brightness1

Outstanding Visibility with Extreme Brightness

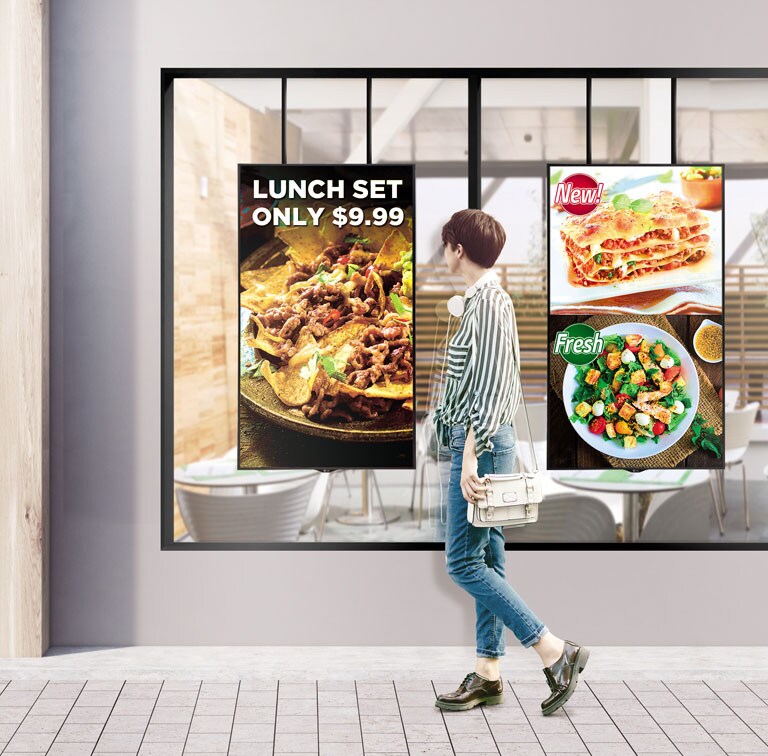

LG's XS series of window-facing digital signage captivates customers with their bright and vivid image quality. The XS series helps businesses enhance their brand image while making customers' shopping experience more enjoyable.

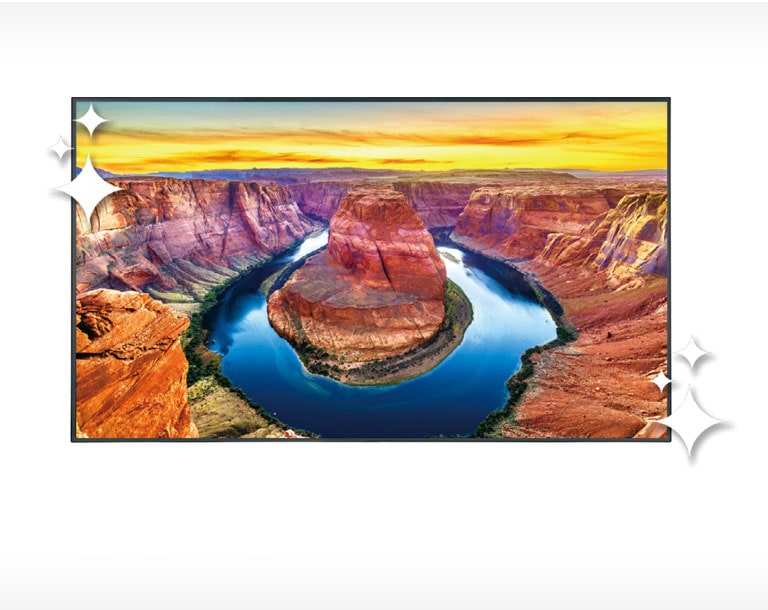

High Brightness1
OUTSTANDING VISIBILITY

High Brightness

With a great brightness of 4,000 cd/m², XS series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.

* Except 75XS2C (2,500 cd/m²

Visible with Polarized Sunglasses1
OUTSTANDING VISIBILITY

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

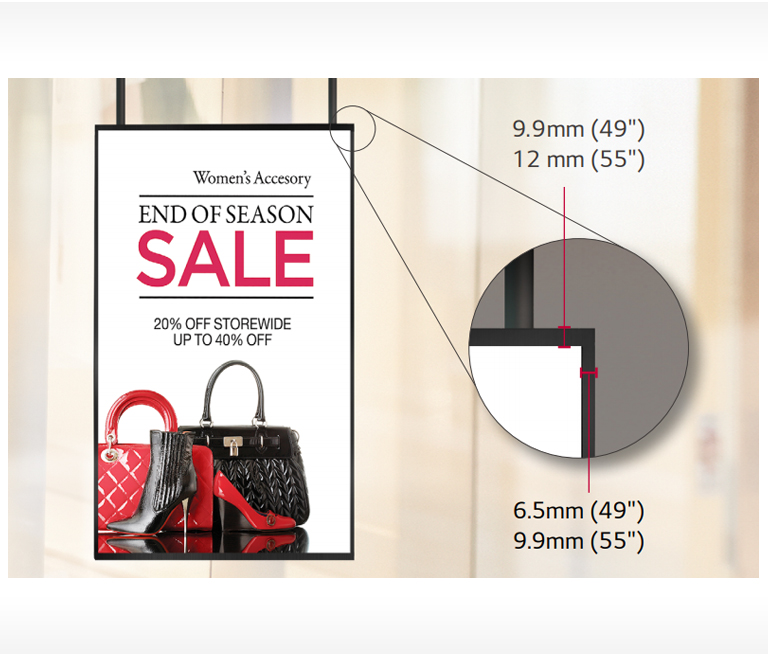

Slim Bezel1
HIGH PERFORMANCE & RELIABILITY

Slim Bezel

The XS series attracts attention with elegant design, featuring a slim bezel. These displays enhance the visual impact of the played content and the retail store's overall atmosphere.
Smart Brightness Control1
HIGH PERFORMANCE & RELIABILITY

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for effi cient power management.
Wide Operating Temperature Range1
HIGH PERFORMANCE & RELIABILITY

Wide Operating Temperature Range

The panel offers superb reliability in a wide range of operating temperatures.
Conformal Coating1
HIGH PERFORMANCE & RELIABILITY

Conformal Coating

Conformal Coating improves the long-term reliability of the main board and power board, protecting them from dust, iron powder, humidity, etc.
webOS Smart Platform1
HIGH PERFORMANCE & RELIABILITY

Energy Saving

XS Series offers high energy effi ciency, thanks to the M+ panels.

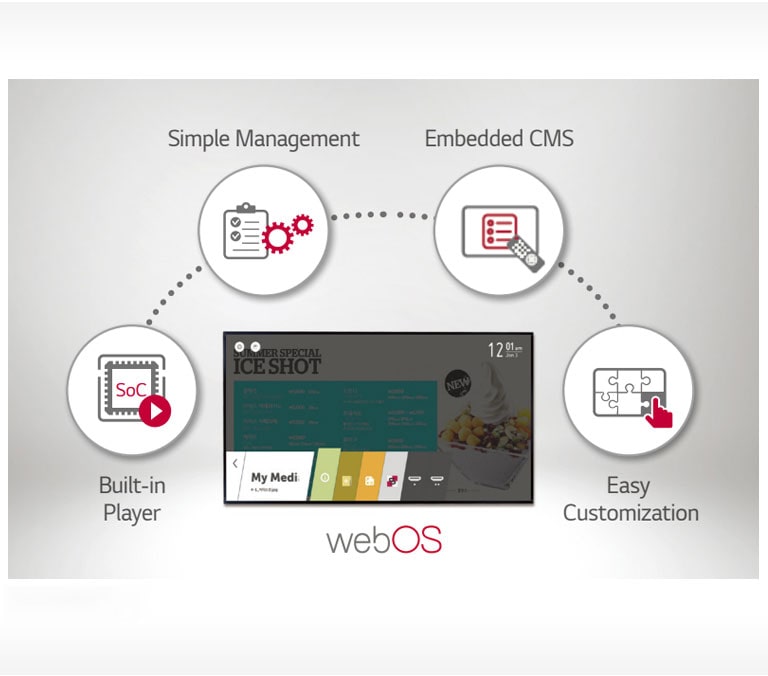

webOS Smart Platform1
HIGH PERFORMANCE & RELIABILITY

webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

* System-on-Chip

Print

All Spec

PANEL

  • Screen Size

    49"

  • Panel Technology

    IPS, M+ (WRGB)

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness (Typ., cd/m²)

    4000

  • Brightness (Min., cd/m²)

    3200

  • Contrast Ratio (Typ.)

    1,300:1

  • Viewing Angle (H x V)

    178 x 178

  • Surface Treatment

    Haze 3%, QWP

  • Lifetime

    50,000 Hrs

  • Operation Hours

    24 Hrs

  • Orientation

    Landscape & Portrait

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Type

    Built-In Power

  • Power Supply

    100-240 V~, 50/60 Hz

POWER CONSUMPTION

  • Typ./Max

    345 W / 370 W

  • Smart Energy Saving

    135 W

STANDARD(CERTIFICATION)

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC / VCCI

  • ErP / Energy Star

    Yes / No

ACCESSORY

  • Basic

    Remote Controller, Power Cord, HDMI Cable, Manual (ESG/EIG), IR Receiver (w/ Ambient Light Sensor)

  • Optional

    Landscape Wall Mount (WM-L640V), Portrait Wall Mount (WM-P640V), Wi-Fi Dongle (AN-WF500)

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control+

CONNECTIVITY

  • Input

    HDMI(2), DP, DVI-D, Audio, USB

  • Output

    DP, External Speaker (L/R)

  • External Control

    RS232C In/Out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    9 mm (T/B), 6.5 mm (L/R)

  • Monitor Dimension (W x H x D)

    1,092.7 x 626.4 x 83.5 mm

  • Weight (Head)

    20.5 kg

  • Carton Dimensions (W x H x D)

    1,181 x 212 x 725 mm

  • Packed Weight

    25 kg

  • Handle

    Yes (2ea)

  • VESA™ Standard Mount Interface

    600 x 400 mm

COMPLIANCE INFORMATION

MORE COMPLIANCE INFORMATION
The safety information for accessories is included with the safety information for the product and is not provided separately.

Specification Sheet

extension : pdf
HSP894 - ID Specsheet 98UH5F.PDF
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
