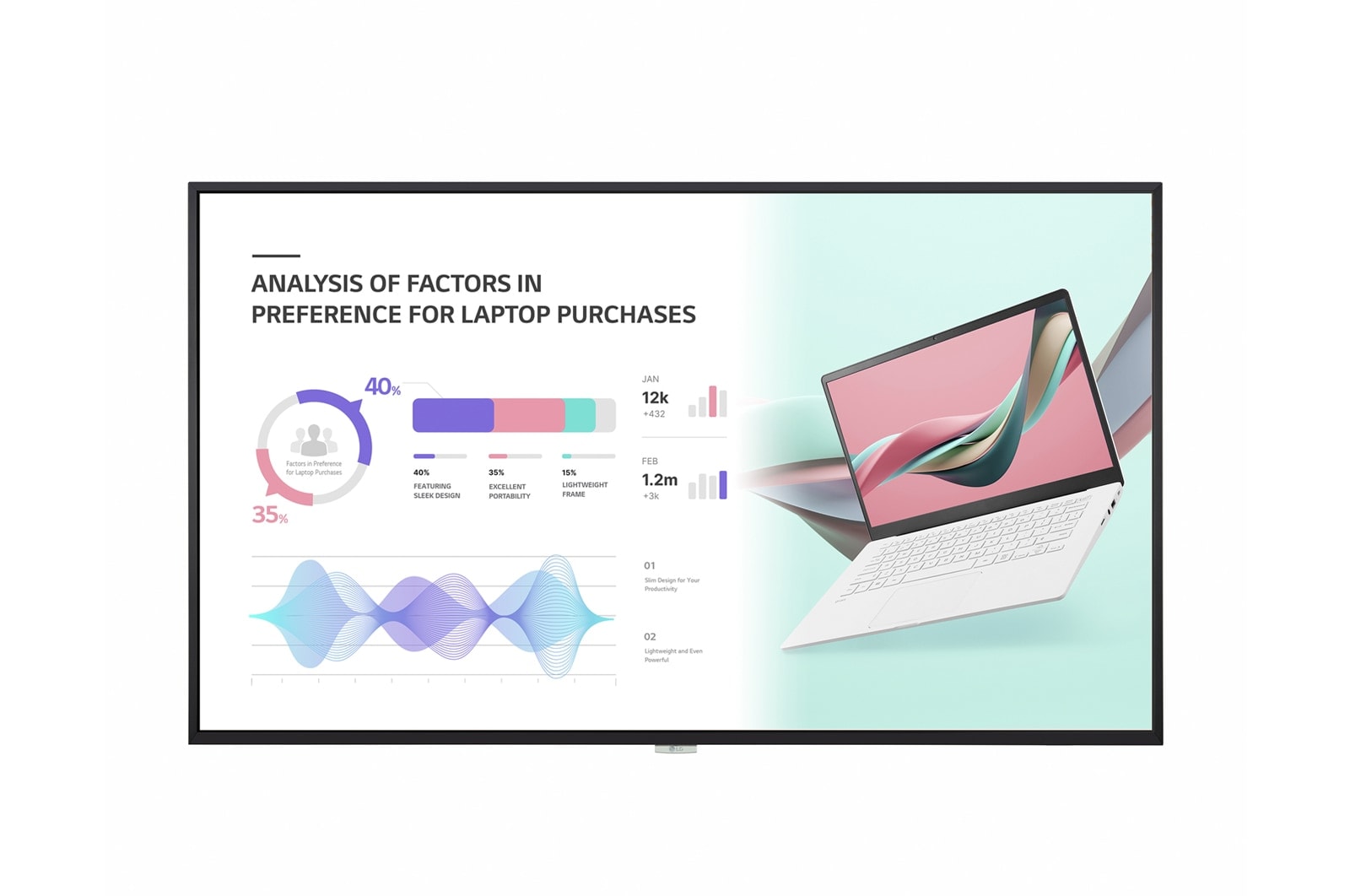

55" UHD Standard Signage | 55UH5J-H

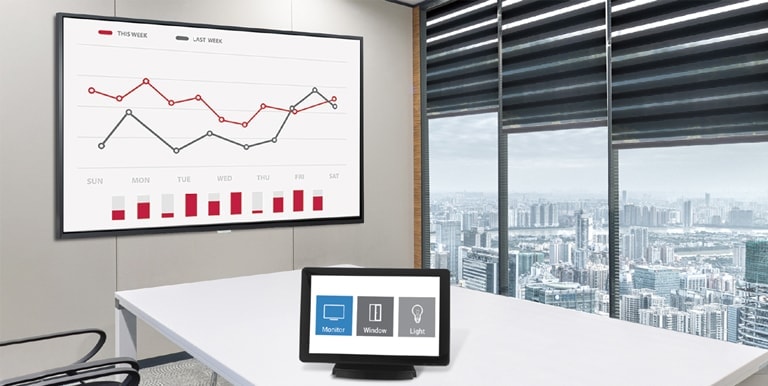

A screen showing the meeting’s contents is installed on the meeting room’s wall.
* All images in this web page are for illustrative purposes only.
UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light.
* Actual images available may differ from the example images shown.
A number of tasks can be done at the same time with the intuitive GUI.
The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
* Actual images (signage display) available may differ from the example images shown.
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
In a clothing store, a user is using the app to produce promotional content to display on the UH5J-H installed on the store’s wall.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
* In Korea, the name is not Promota, but Mustard.
* Network based control
Screen Size
55"
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16 : 9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Colour gamut
BT709 95%
Viewing Angle(H x V)
178 X 178
Colour Depth
10bit(D), 1.07Billion colors
Response Time
8ms (G to G)
Surface Treatment(Haze)
28%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portrait / Landscape
Yes / Yes
Input
HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
Output
HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
Bezel Colour
Black
Bezel Width
T/R/L: 9.9mm, B: 14.4mm
Weight(Head)
19.0Kg
Packed Weight
24.2Kg
Monitor Dimension(W x H x D)
1234.4 x 720.9 x 39.9mm
(with LG Logo)
VESA™ Standard Mount Interface
300 x 300

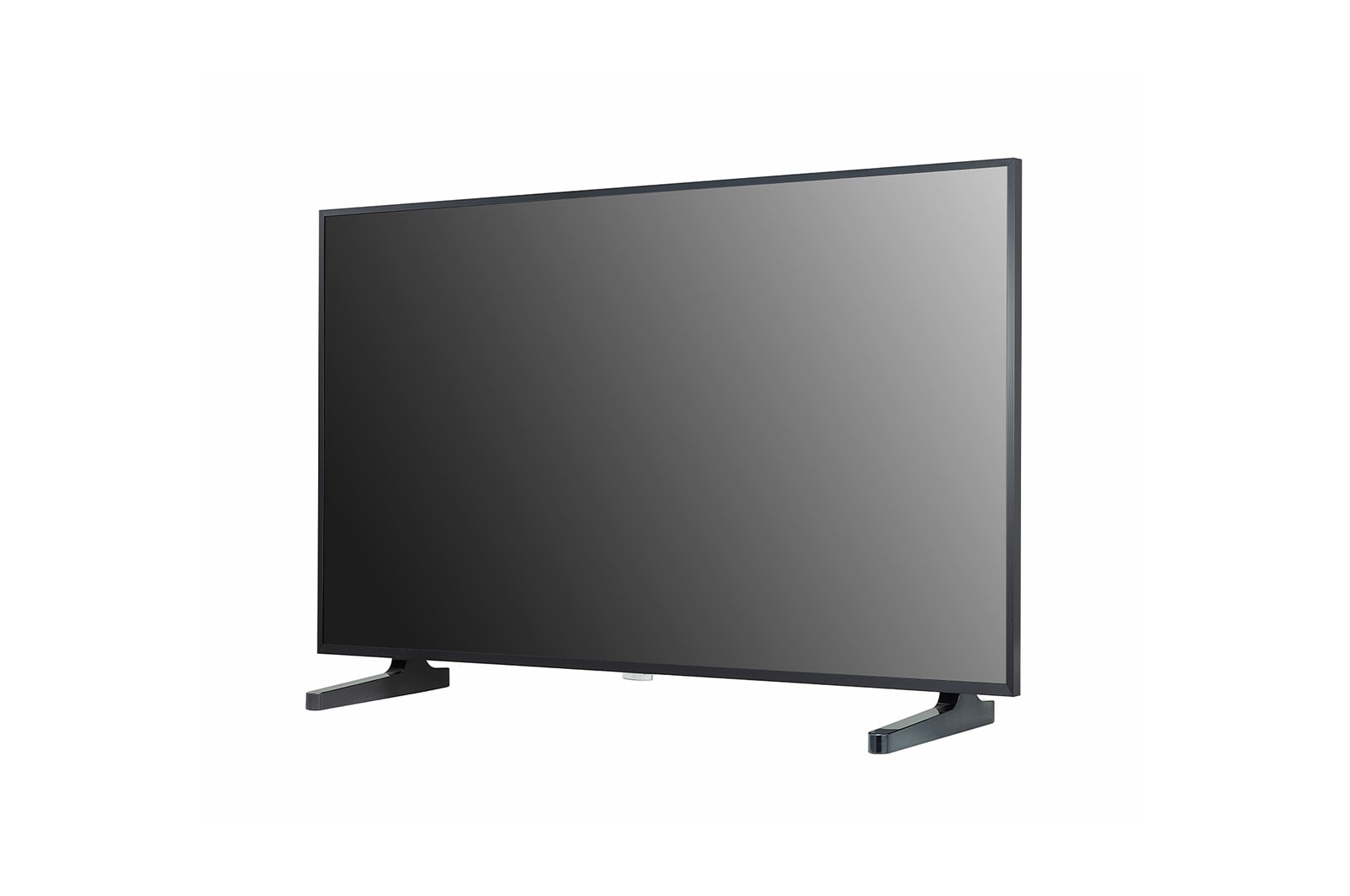

Monitor Dimensions with Stand(W x H x D)
1234.4 x 770.7 x 290.0mm
Weight(Head+Stand)
19.6Kg
Carton Dimensions(W x H x D) (Box outer size)
1360.0 x 835.0 x 175.0mm
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
110W
Max.
150W
BTU (British Thermal Unit)
376 BTU/Hr(Typ.), 512 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Smart Enegy Saving(~70%)
77W
Speaker
Yes
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (NewErP) / Yes
Carbon Trust Certified (CO2 Measured)
Yes
OPS Type Compatible
Yes
SuperSign CMS
Yes
SuperSign WB
Yes
Mobile CMS
Yes
SuperSign Control / Control+
Yes / Yes
SuperSign Media Editor
Yes
Signage 365 Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional
Stand(ST-653T), Wall bracket(LSW350B), OPS Kit(KT-OPSF)
IP Rating
IP5X
Tilt(Facedown)
Yes (Max 30º degree, 30ºC temperature, humidity 50%)
Key features
Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
