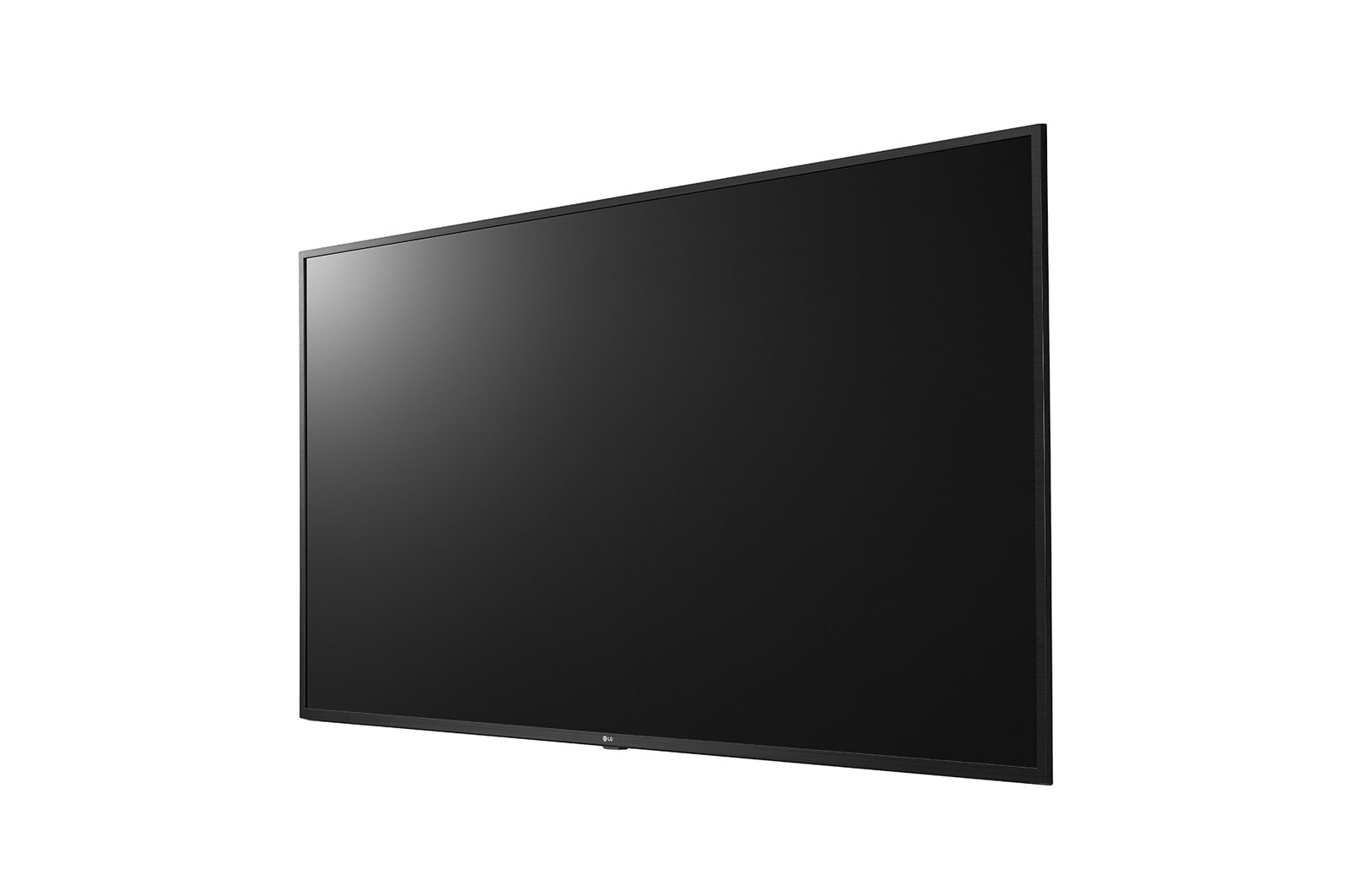

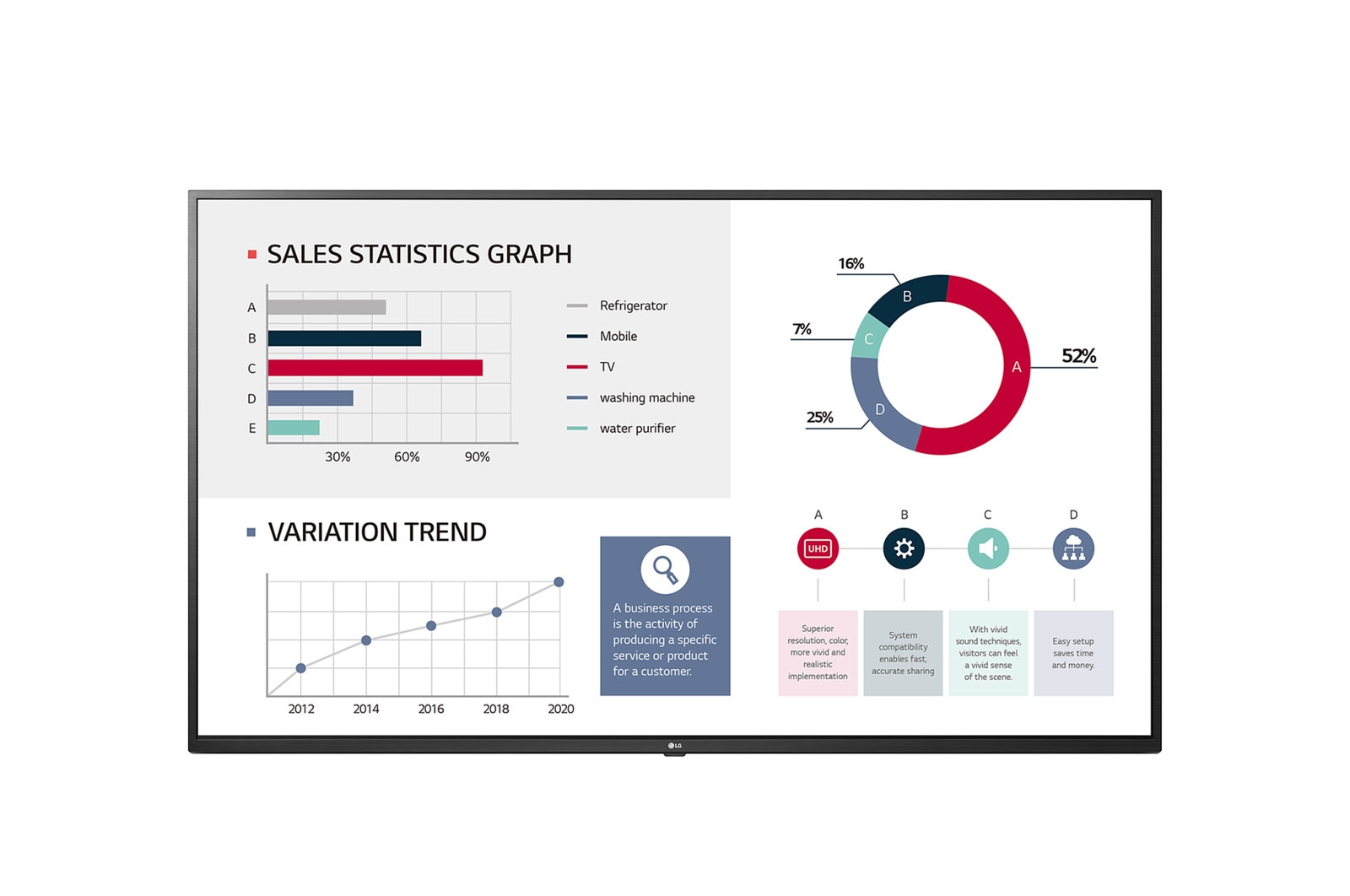

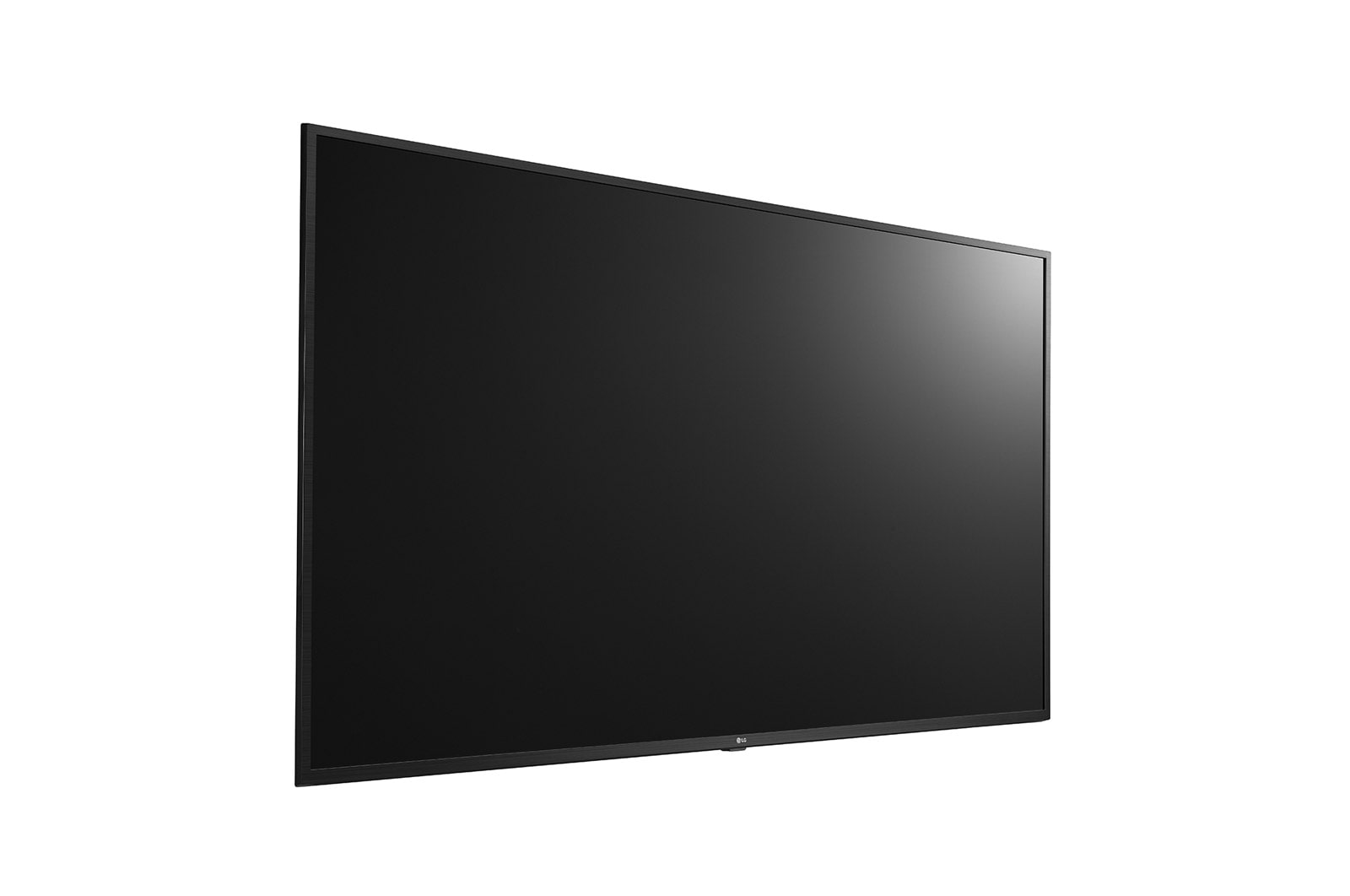

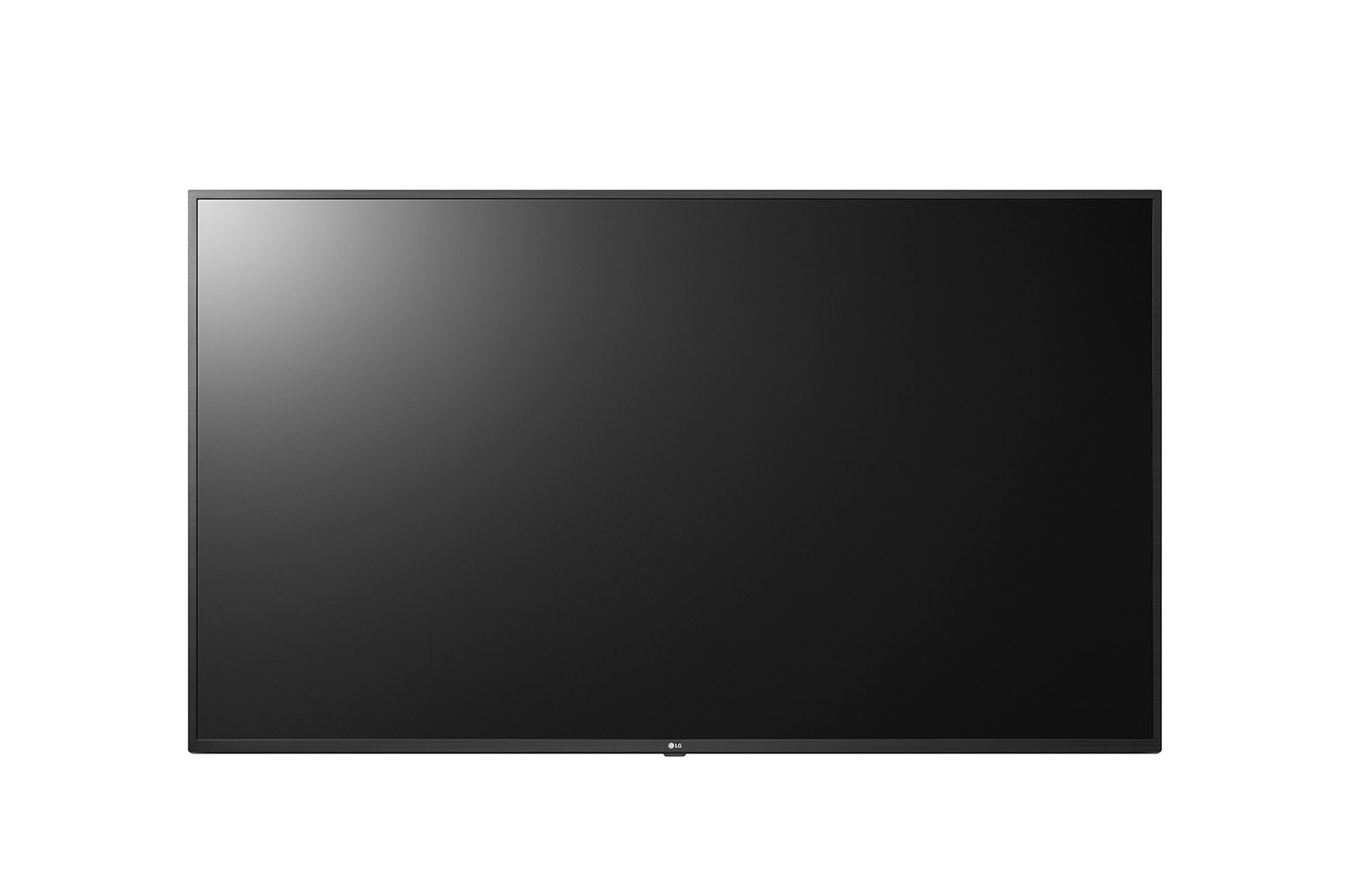

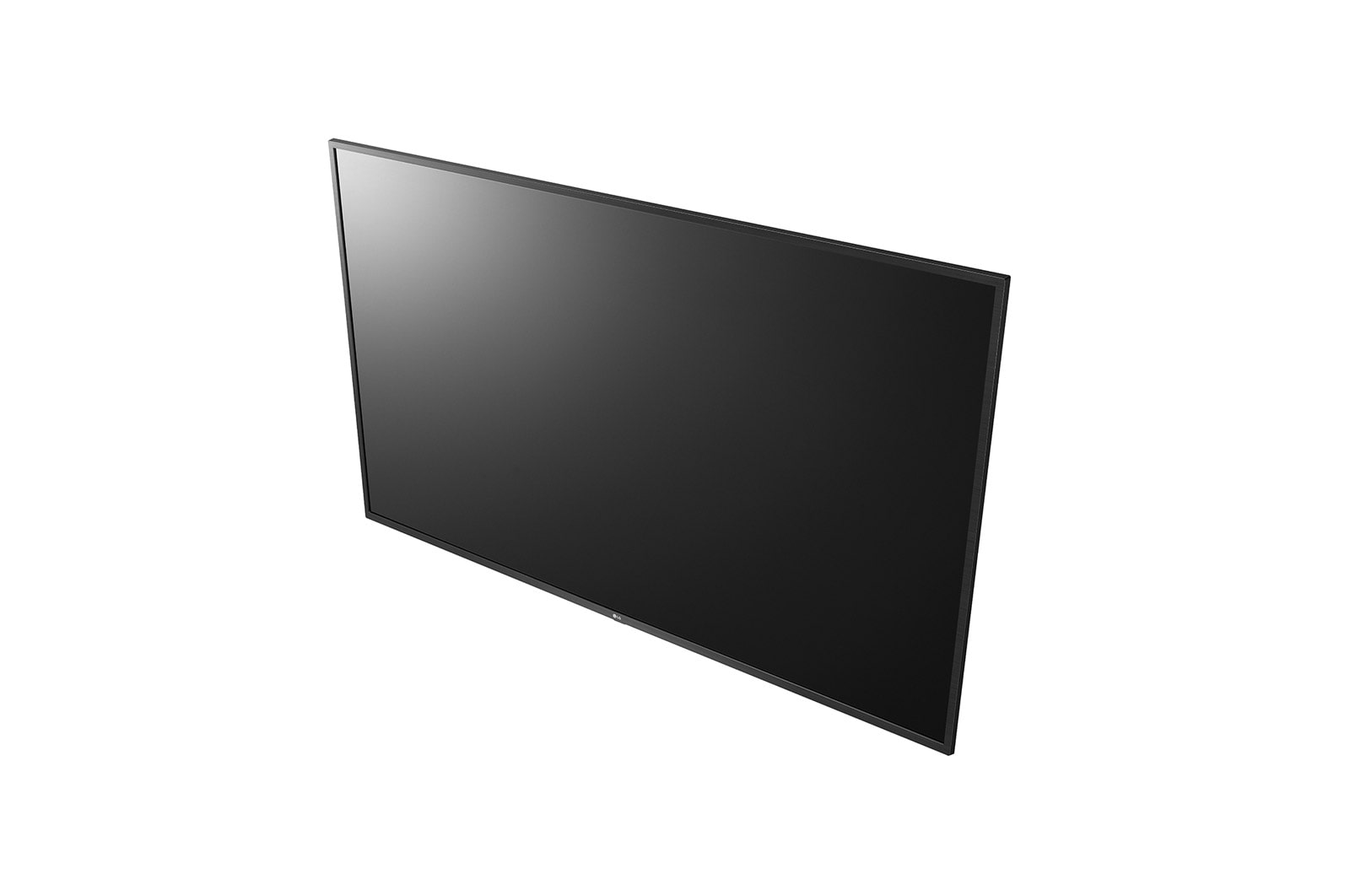

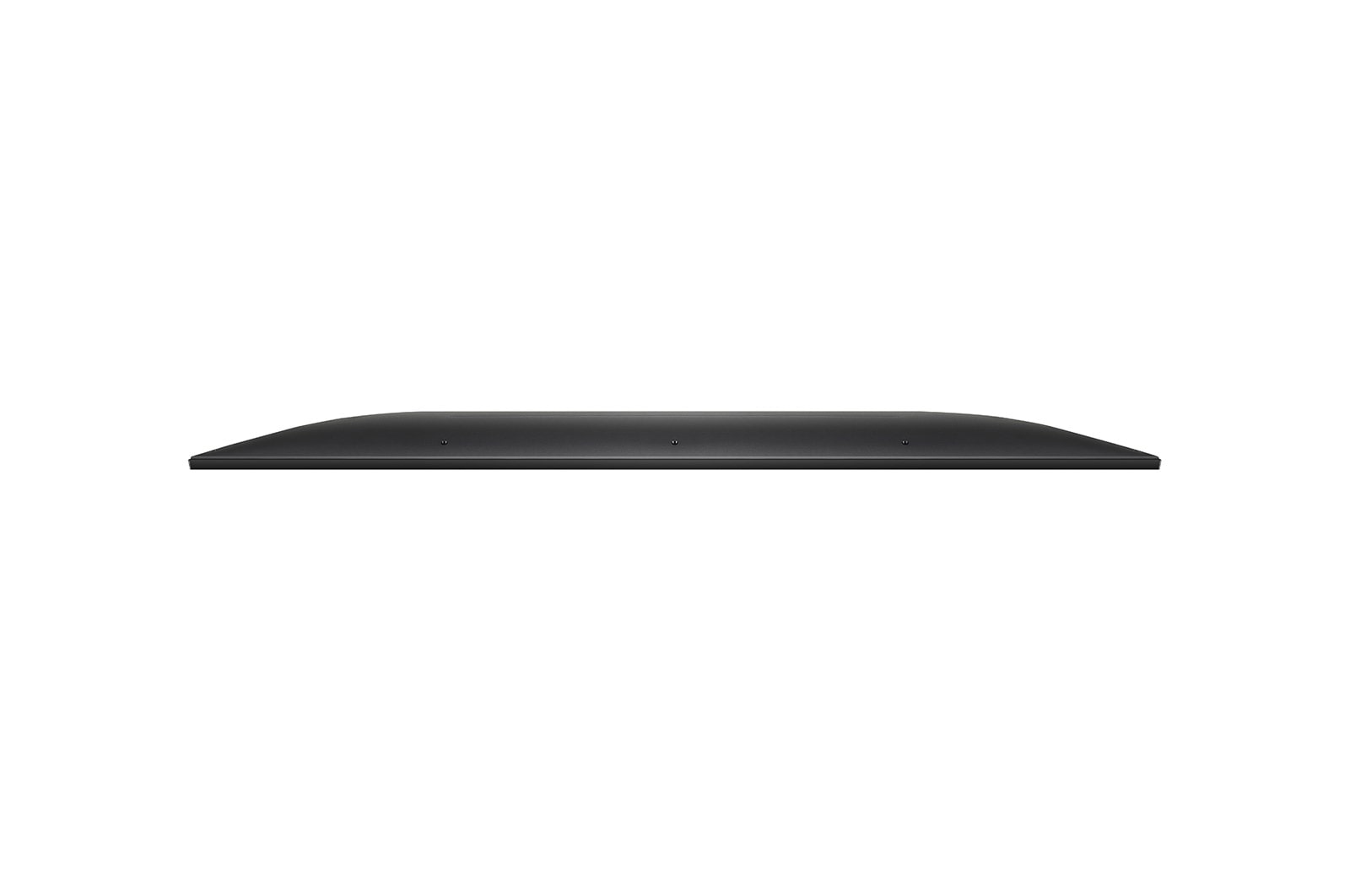

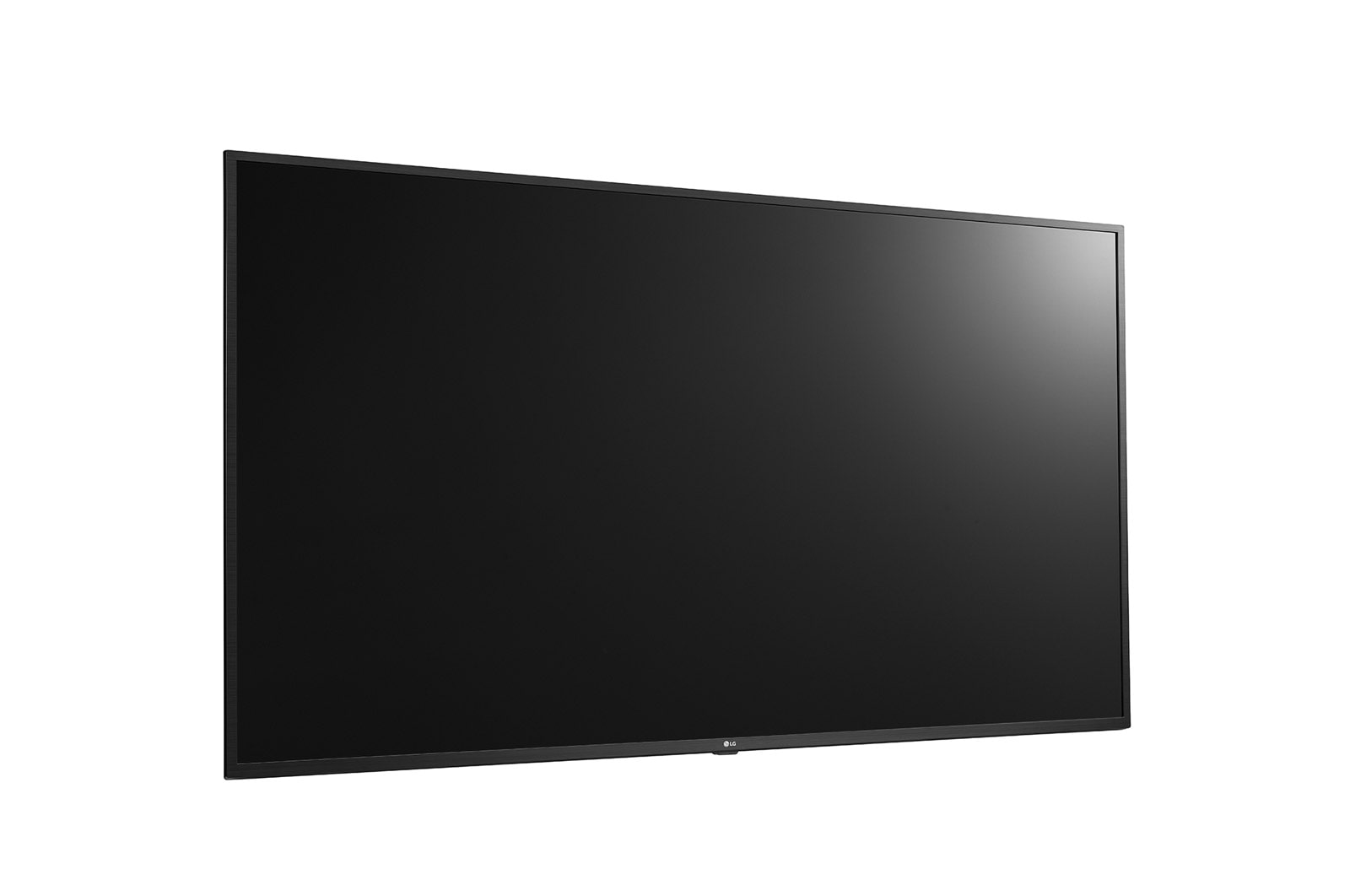

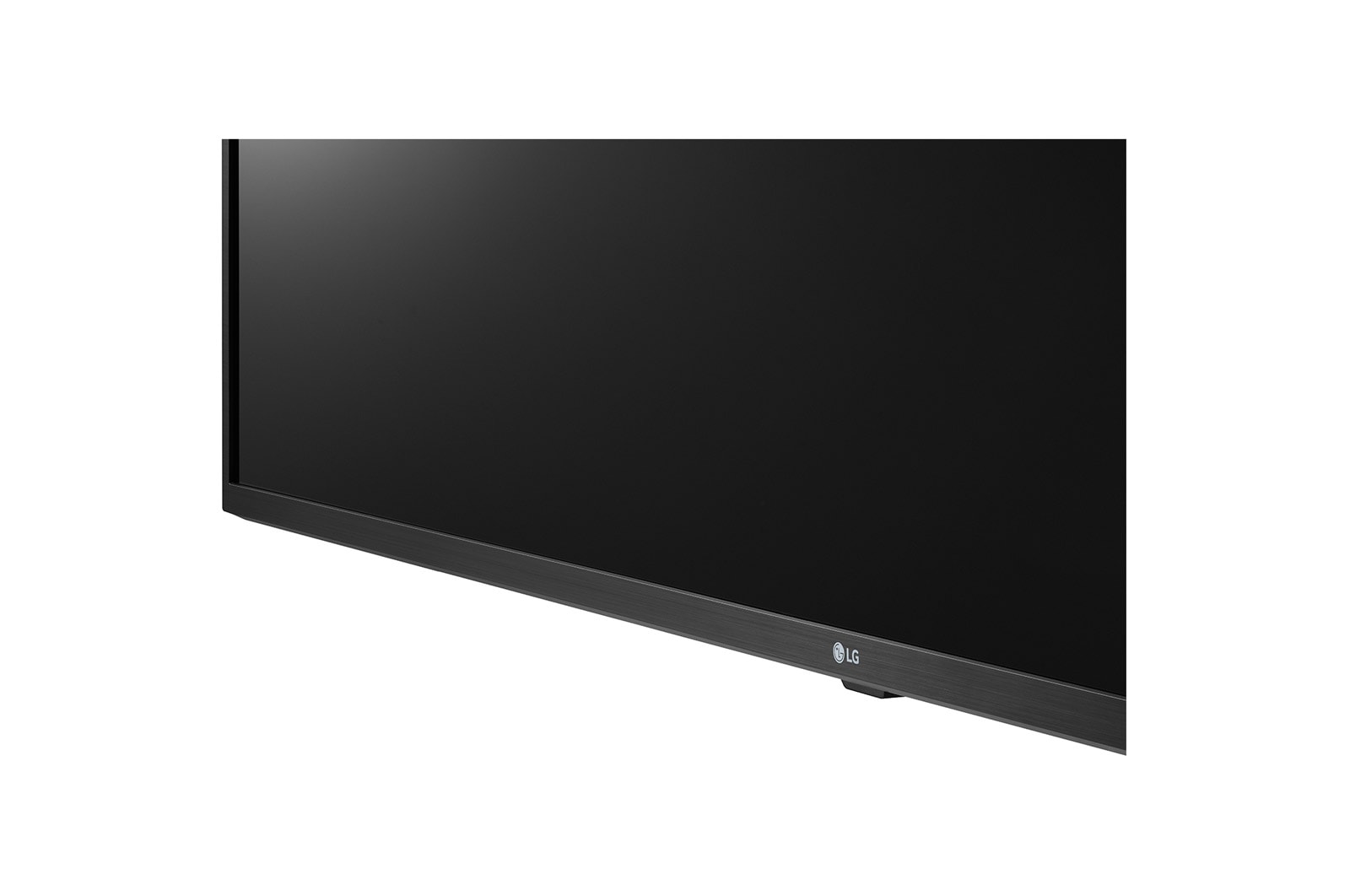

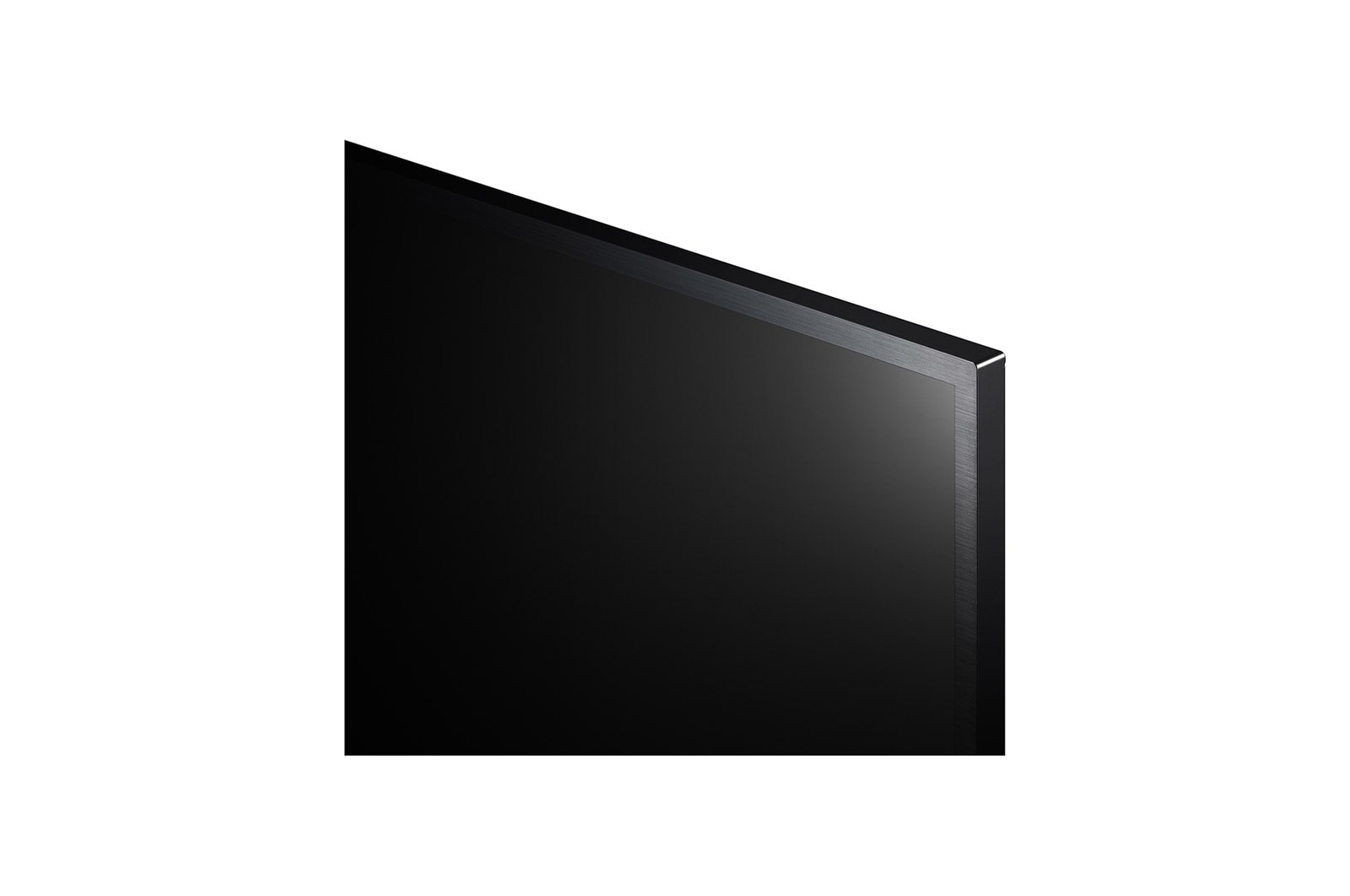

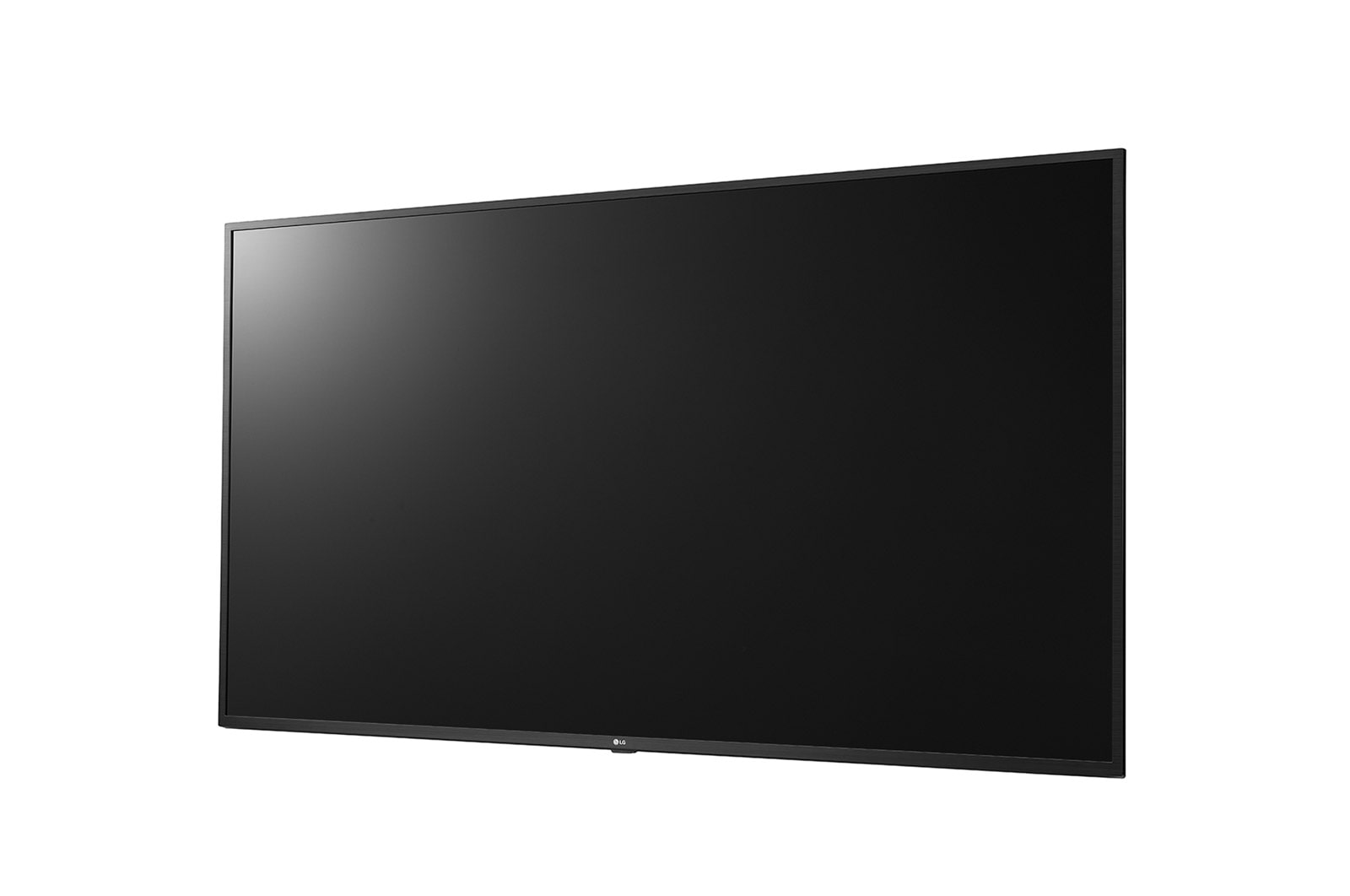

55UL3G-B

55" 400 nits 60 Hz UHD Signage

Clear Color Expression of UHD Content

Clear Colour Expression of UHD Content

An Ultra HD large display, the UL3G Series will improve business productivity in any location. All content is delivered in vivid colours and with fine details, giving audiences a clearer viewing experience.
ULTRA HD Resolution
SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the colour and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.
High Efficiency Video Coding
SUPERB PICTURE QUALITY

High Efficiency Video Coding

The UL3G Series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.

* HEVC : High Efficiency Video Coding

High Performance SoC with webOS1
SMART SIGNAGE PLATFORM

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Smart Signage Platform

Smart Signage Platform

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.

Real-time Promotion

With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

Wireless Solution

The UL3G Series operates as a virtual router which can be a wireless access point for mobile devices.

Compatibility with AV Control System
OPERATIONAL EFFICIENCY

Compatibility with AV Control System

The UL3G Series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

Compatibility with Conferencing System
OPERATIONAL EFFICIENCY

Compatibility with Conferencing System

The certification of compatibility between the UL3G Series and Cisco System that offers powerful and integrated control* for video conference is in progress. It will promote the optimal visual meeting by eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

Remote Monitoring and Control
OPERATIONAL EFFICIENCY

Remote Monitoring and Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UL3G Series displays in different locations in real-time. It is available on internetconnected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service with LG Signage365Care
OPERATIONAL EFFICIENCY

Real-time Care Service with LG Signage365Care

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

*The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.

All Spec

PANEL

  • Screen Size

    55"

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness(Typ.,cd/m²)

    400

  • Contrast Ratio

    1.200:1

  • Dynamic CR

    1,000,000:1

  • Colour gamut

    DCI 80%

  • Viewing Angle (H x V)

    178 x 178

  • Colour Depth

    8bit, 16.7Million colours

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 1%

  • Life Time (Min.)

    30,000 Hrs

  • Operation Hours (Hours / Day)

    16 / 7

  • Portrait / Landscape

    No / Yes

CONNECTIVITY

  • Input

    HDMI (3, HDCP2.2/1.4), USB 2.0 Type A (2)

  • Output

    Audio

  • External Control

    RS232C IN/OUT (4 pin phone-jack), RJ45 (LAN)

MECHANICAL SPECIFICATION

  • Bezel Colour

    Ceramic Black

  • Bezel Width

    15.5mm (R/L/T), 22.3mm (B)

  • Weight(Head)

    14.3Kg

  • Weight (Head+Stand)

    14.5Kg

  • Packed Weight

    19.5Kg

  • Monitor Dimension (W × H × D)

    1244 x 726 x 87.1mm

  • Monitor incl. Stand Dimensions (W x H x D)

    1244 x 786 x 231mm

  • Carton Dimensions (W × H × D)

    1360 x 835 x 175mm

  • Handle

    No

  • VESA™ Standard Mount Interface

    300 x 300

KEY FEATURE

  • Internal Memory

    8GB

  • Wi-Fi

    Built-in

  • Sensor

    Temperature Sensor, Auto Brightness Sensor

  • Local Key Operation

    Yes (Power On/Off only)

  • webOS ver.

    webOS 4.1

  • Embedded CMS

    Local Contents Scheduling, Group Manager

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • SW - Background Image - Booting Logo Image

    Yes

  • SW - Background Image - No Signal Image

    Yes

  • Sync mode

    RS-232C Sync, Local Network Sync

  • Screen Share

    Yes

  • Video Tag

    Yes (4, Max One HDMI input)

  • Play via URL

    Yes

  • Gapless Playback

    Yes

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Mode (Image Sticking Minimization)

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • 3rd Party Control Compatibility

    Yes

  • Beacon

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% ~ 80%

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ. /Max

    115W / 175W

  • BTU (British Thermal Unit)

    393 BTU/Hr (Typ.), 598 BTU/Hr (Max)

  • Smart Energy Saving

    80.5W

  • DPM

    0.5W

  • Power off

    0.5 W

SOUND

  • Speaker

    Yes

CERTIFICATION

  • Safety

    CB / UL (TBD)

  • EMC

    FCC Class “A” / CE / KC (TBD)

  • ErP / Energy Star

    Yes (EU Only) / No

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control+ / Control

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • Signage365Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Stand, Cable Holder
