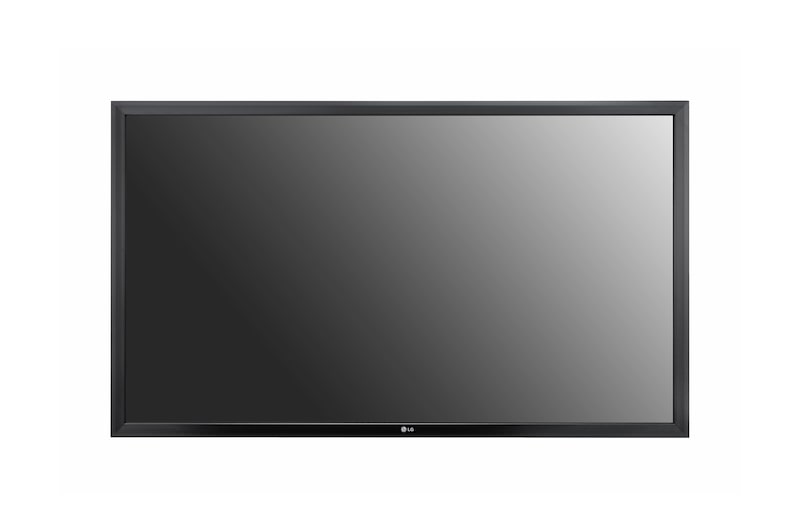

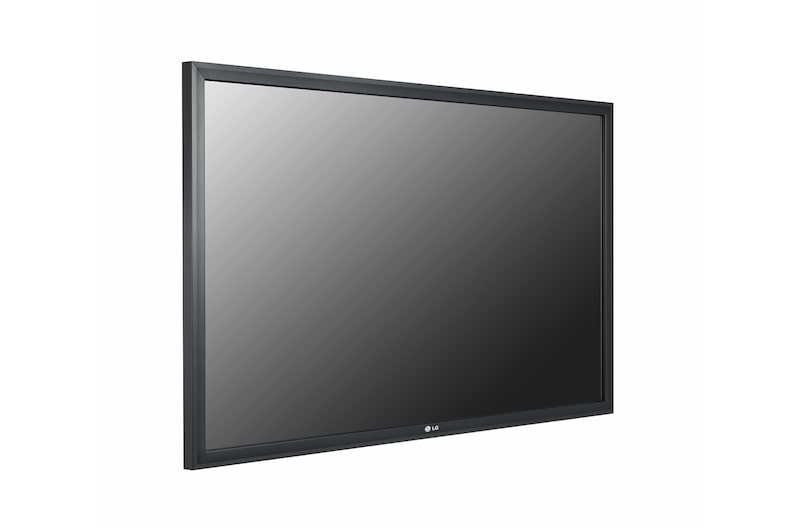

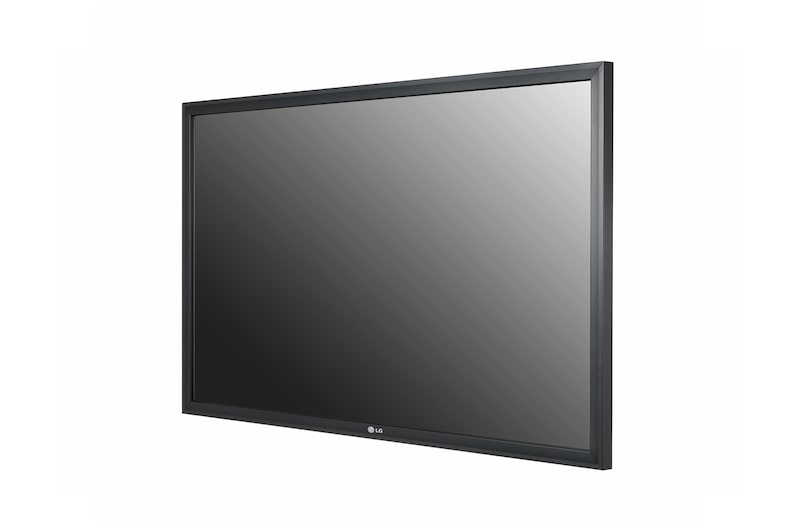

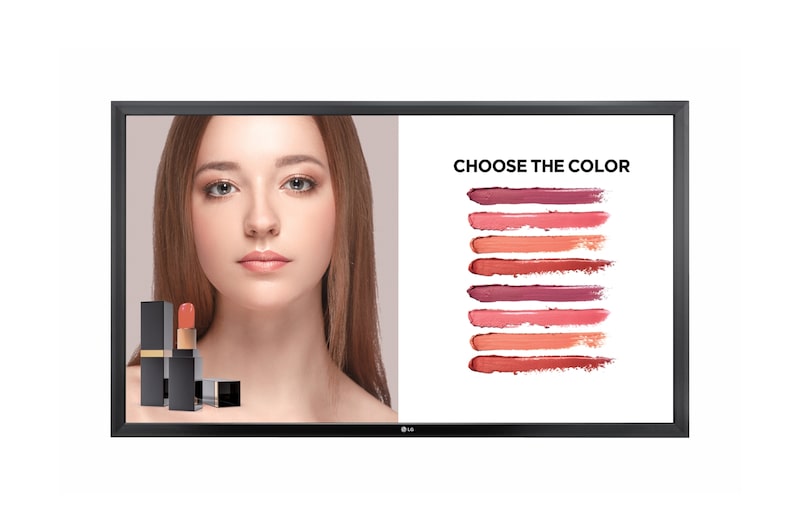

49" 450 nits FHD Built-in Touch Signage
*Touch points can vary depending on the connection environment.
*SDK:Software Development Kit
*It is a network based control system. Available AV control systems may differ by regions.
*The priority can be set by users.
*PBP:Picture-by-Picture
**PIP:Picture-in-Picture
All Spec
PANEL
Screen Size
49"
Native Resolution
1,920 x 1,080 (FHD)
Orientation
Portrait & Landscape
Brightness(Module, Typ., cd/m²)
450cd/m2 (w/Glass 325cd/m2)
ENVIRONMENT CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
TOUCH
Touch type
IR (Scattering)
Scan Time
10 ms ↓
Interface
USB 2.0
Protection Glass Thickness
2.8T (Anti-Glare)
Available object size for touch
Ø4 mm ↑
Accuracy
2mm ↓
Operating Systme Support
Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later)
Multi touch point
Max 10 Points
POWER
Power Supply
100-240 V~, 50/60 Hz
Power Type
Built-In Power
POWER CONSUMPTION
Typ
85W/105W
Smart Energy Saving
60W
STANDARD(CERTIFICATION)
Safety
UL / cUL / CB / TUV / KC
EMC
FCC Class “A” / CE / KCC
ErP / Energy Star
NA / Yes (Energy Star 7.0)
ACCESSORY
Basic
Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover
Optional
Media player, Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSA)
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign Premium
Control and Monitoring Software
SuperSign Link
CONNECTIVITY
Input
HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0
Output
DP, Audio Out
External Control
RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In
PHYSICAL SPECIFICATION
Bezel Width
32.7 mm (Even)
Monitor Dimension (W x H x D)
1,142.2 x 672.4 x 71.4 mm
Weight (Head)
22.3 kg
Carton Dimensions (W x H x D)
1,260 x 785 x 162 mm
Packed Weight
26.3 kg
VESA™ Standard Mount Interface
300 x 300 mm
