32” LG Medical Monitor, 8mp ips display, multi-resolution mode, pathology mode, Black
Contact us

32” LG Medical Monitor, 8mp ips display, multi-resolution mode, pathology mode, Black

Contact us

32” LG Medical Monitor, 8mp ips display, multi-resolution mode, pathology mode, Black

32HL512D-M

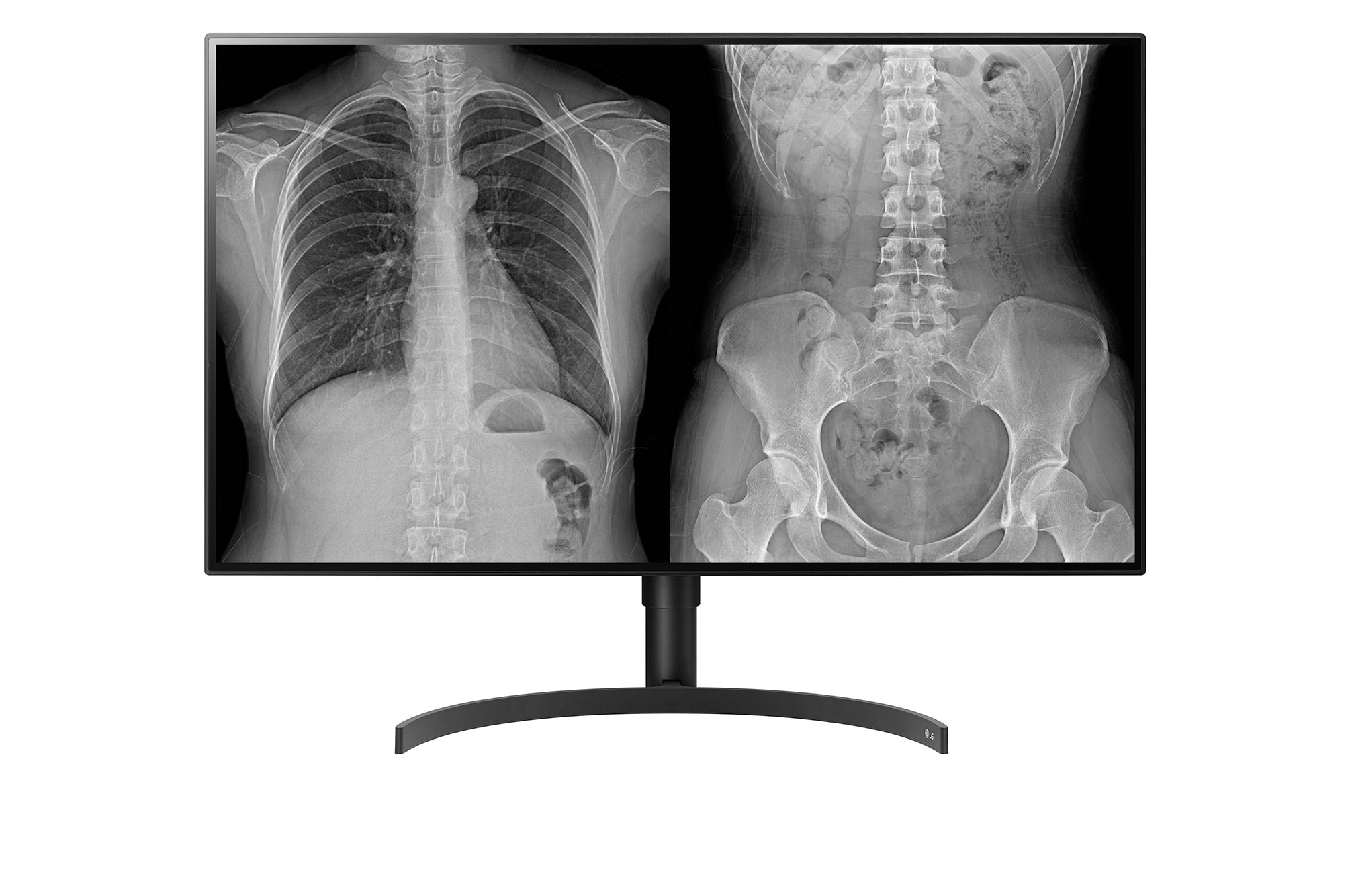

Front view of 31.5'' 8MP Diagnostic Monitor (32HL512D-M)

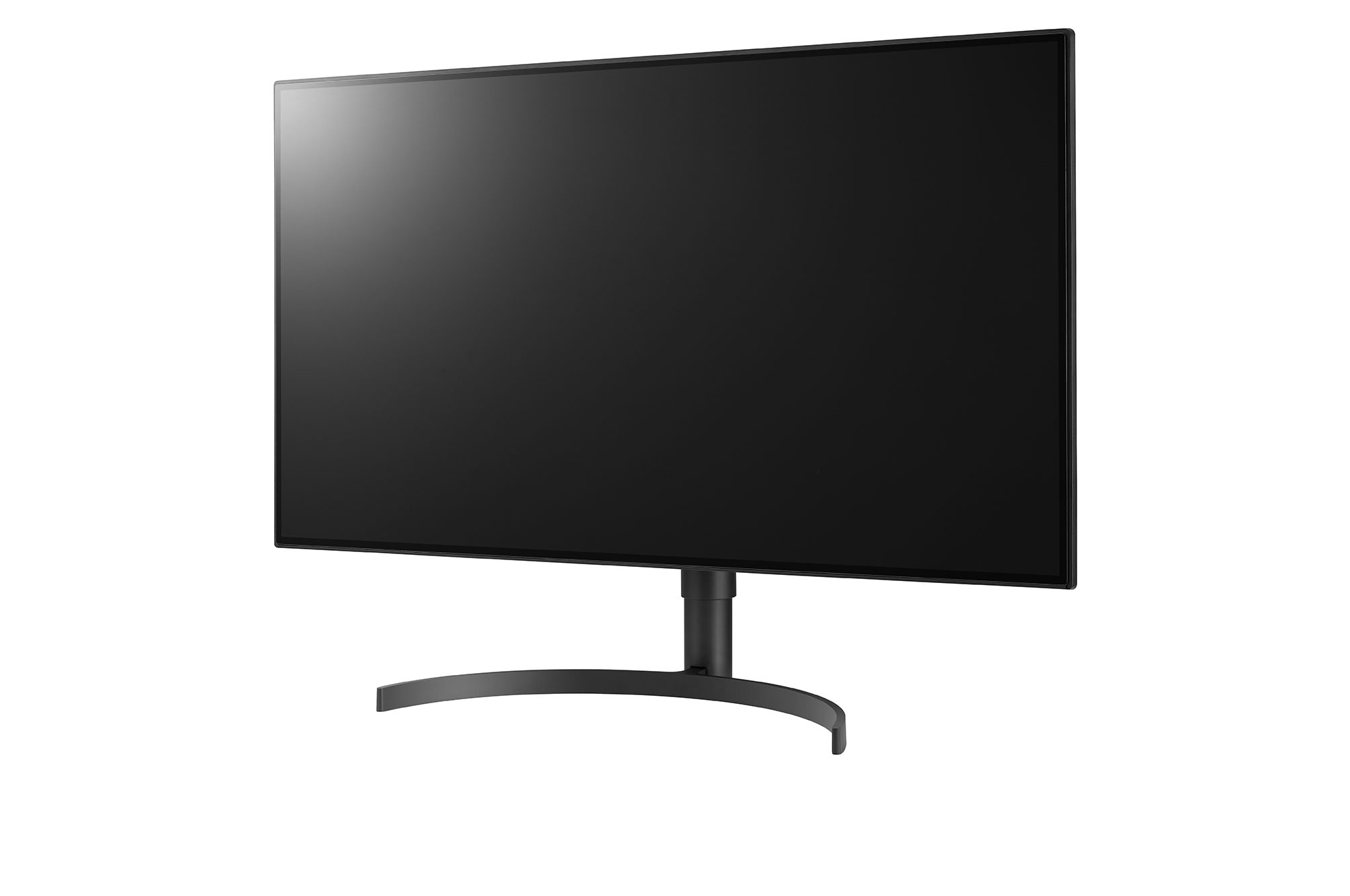

-15 degree side view

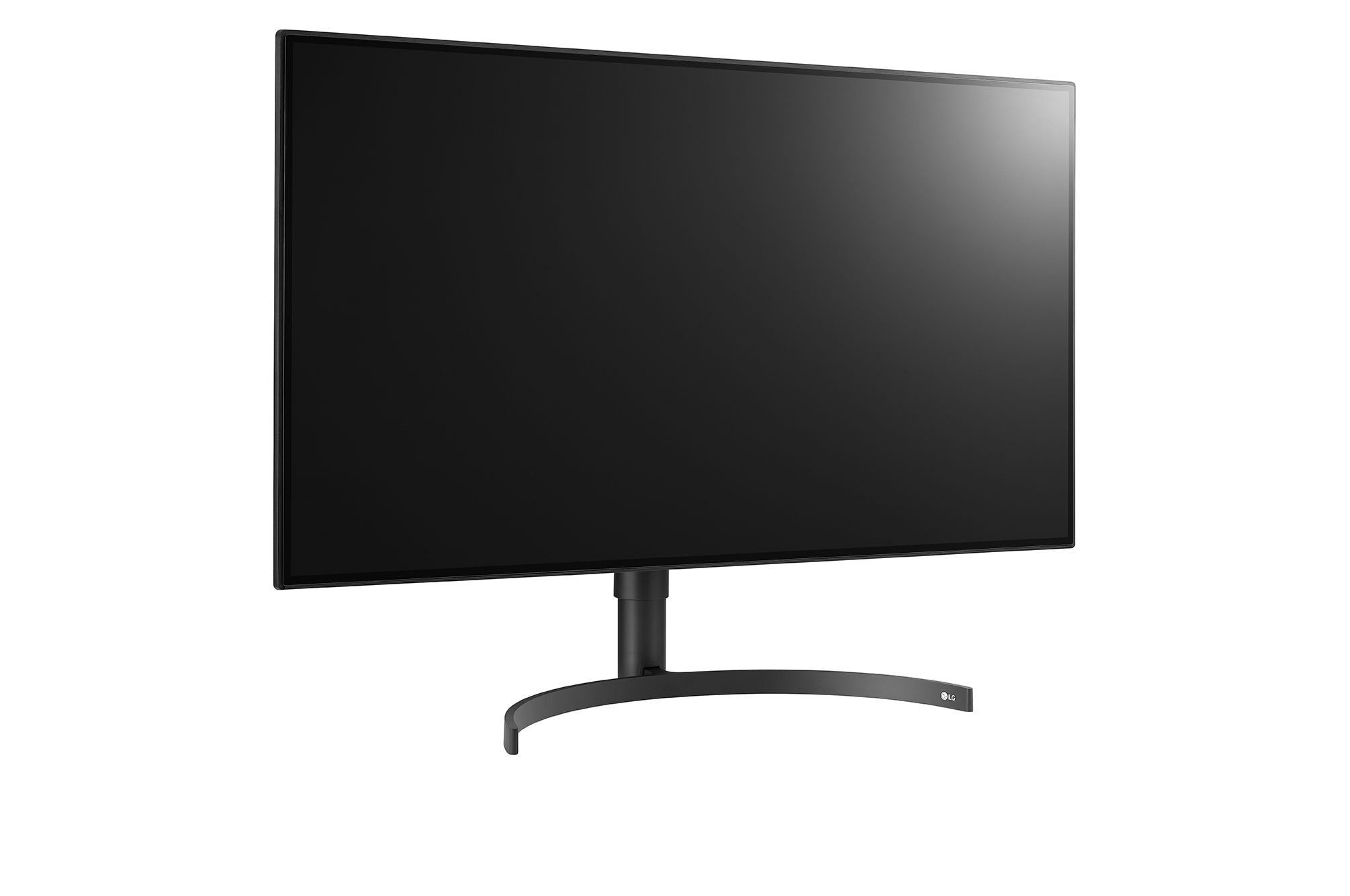

+15 degree side view

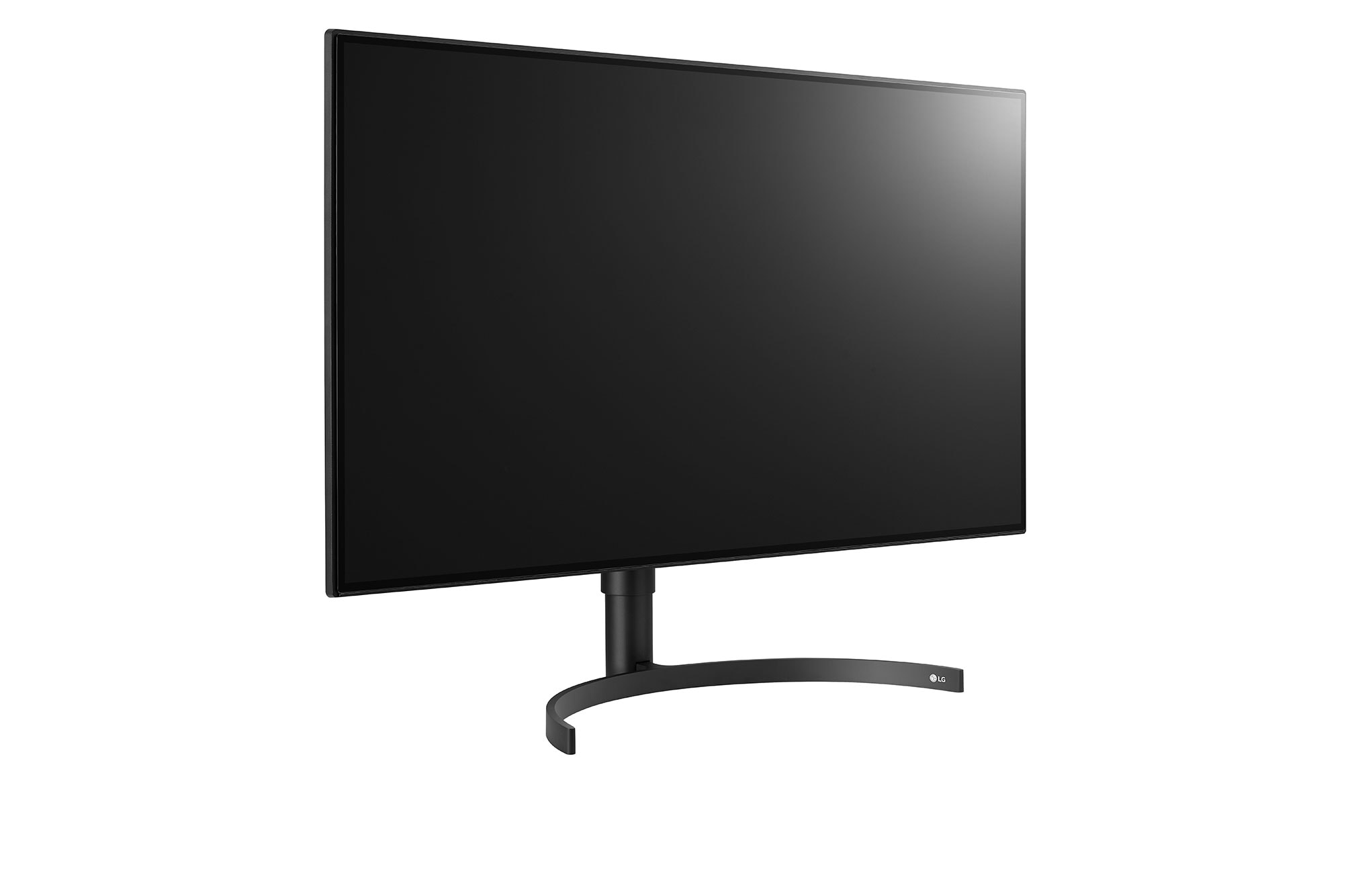

perspective view

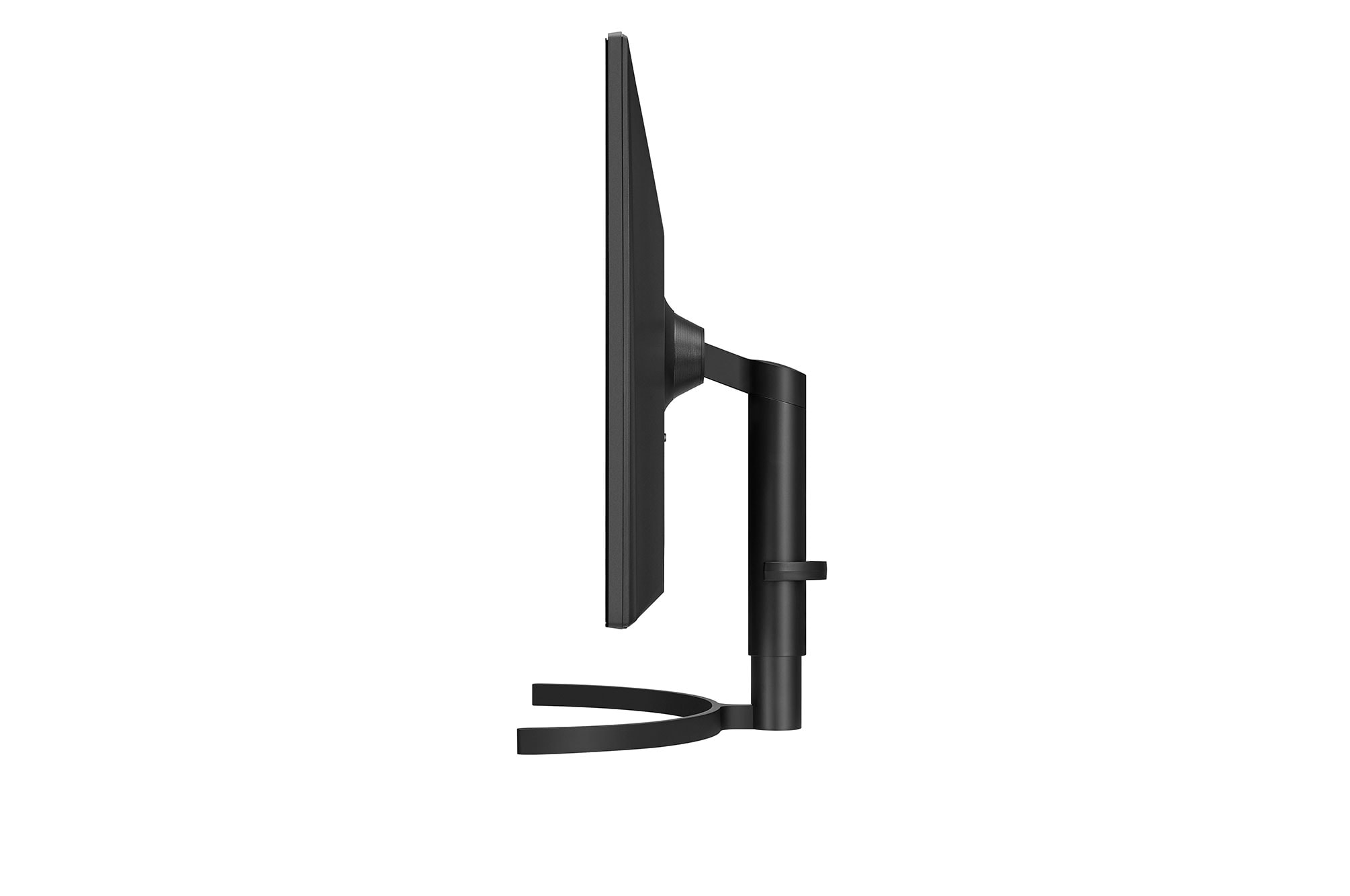

side view

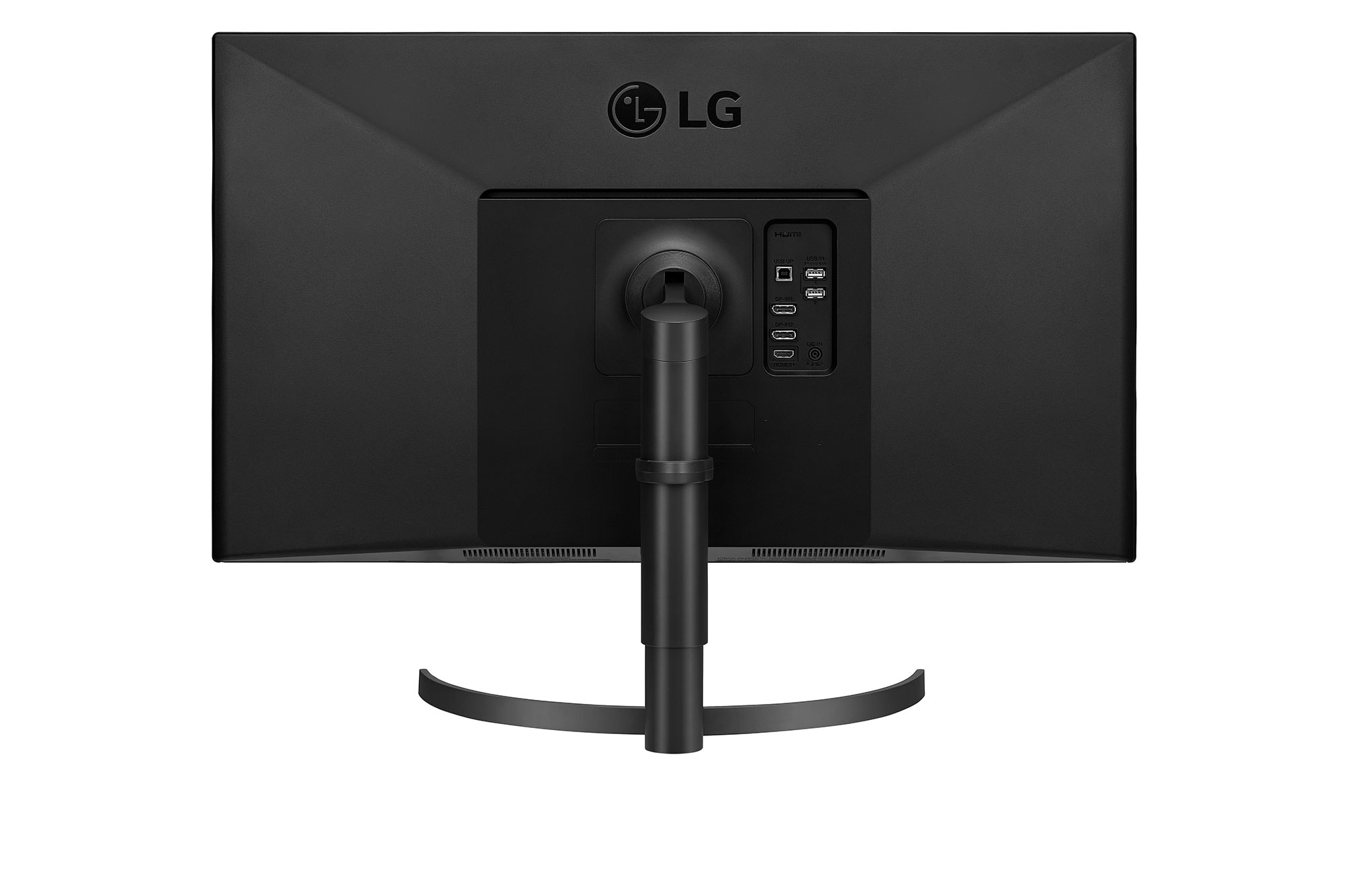

rear view

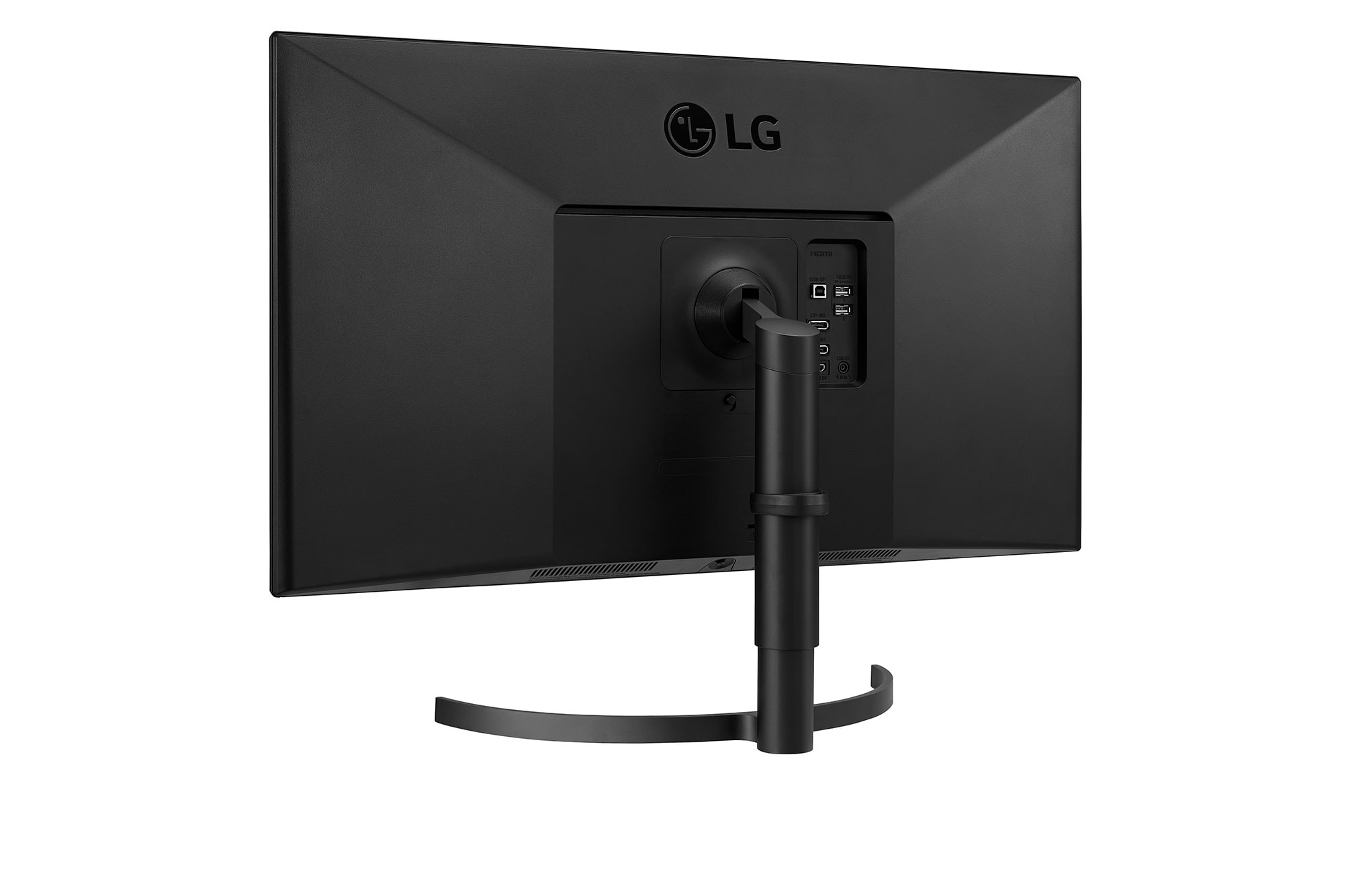

rear perspective view

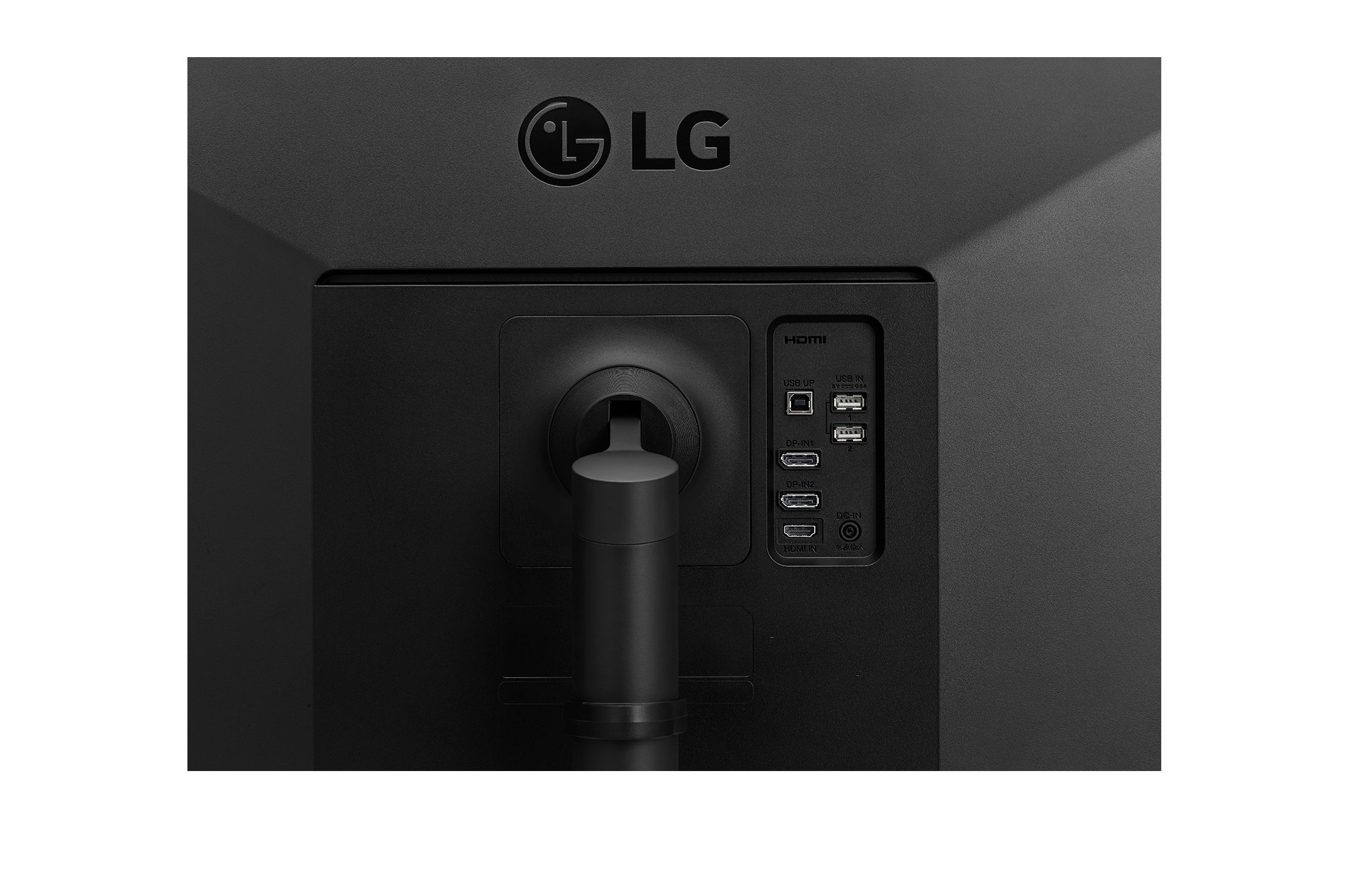

close-up view of ports

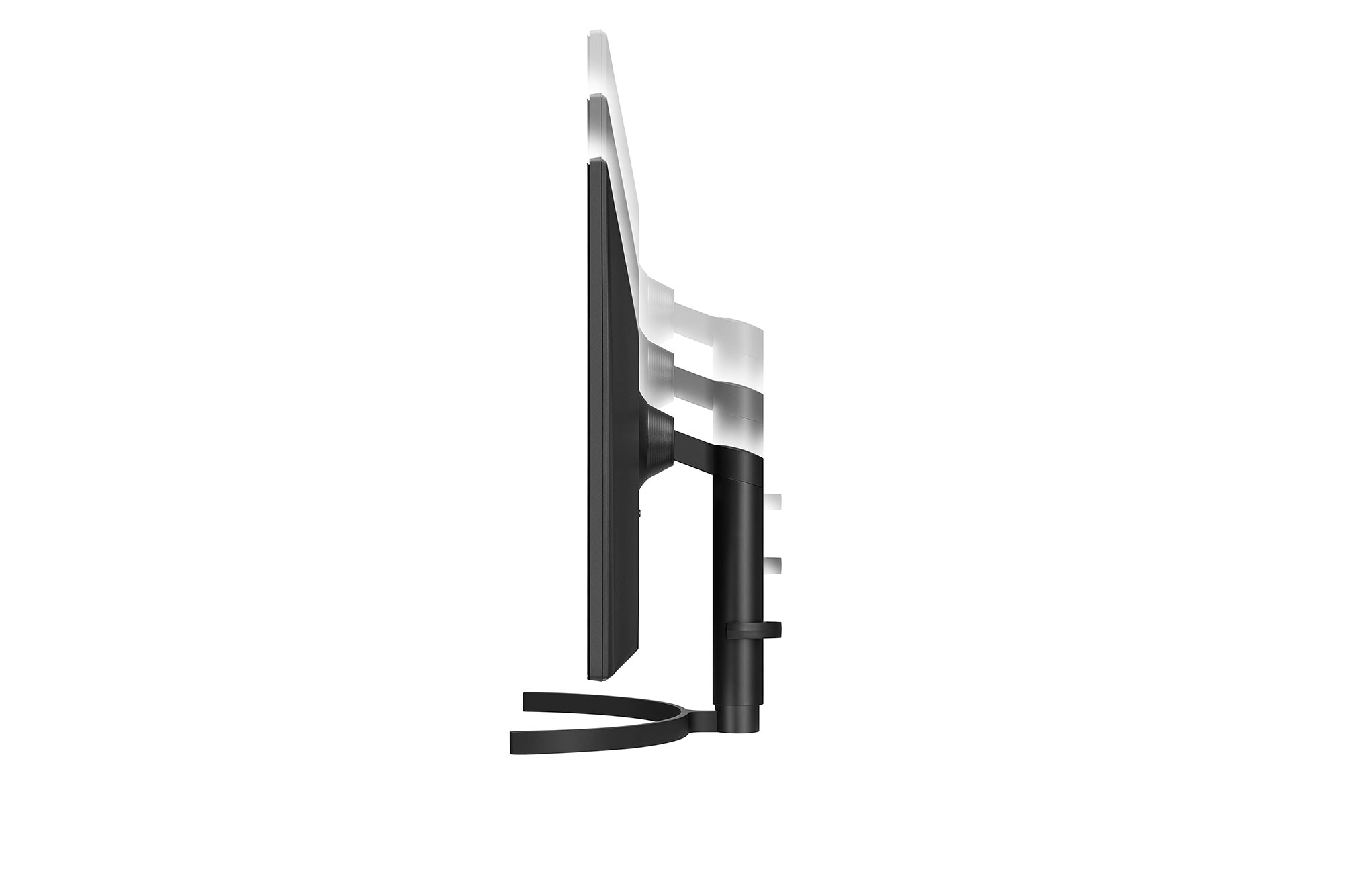

side view of the monitor moving downwards for height adjustment

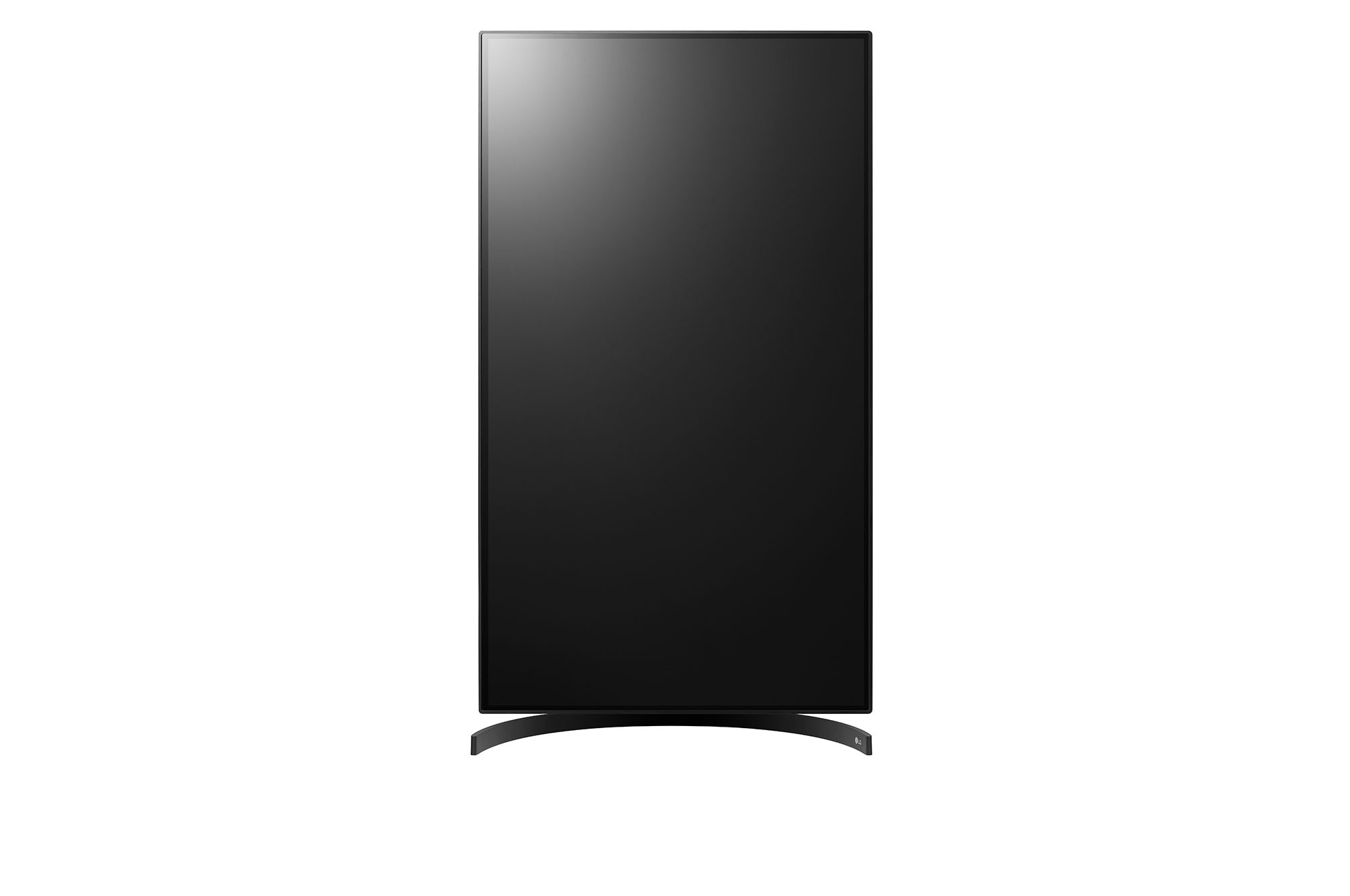

front view with the display pivoting 90 degrees in a portrait view
Front view of 31.5'' 8MP Diagnostic Monitor (32HL512D-M)
-15 degree side view
+15 degree side view
perspective view
side view
rear view
rear perspective view
close-up view of ports
side view of the monitor moving downwards for height adjustment
front view with the display pivoting 90 degrees in a portrait view

Key Features

  • 32-inch 8MP IPS Display
  • 450cd/m², DCI-P3 98% (CIE1976)
  • Multi-resolution Mode (8/6/4MP)
  • Pathology Mode
  • 4-Side Virtually Borderless Design
More

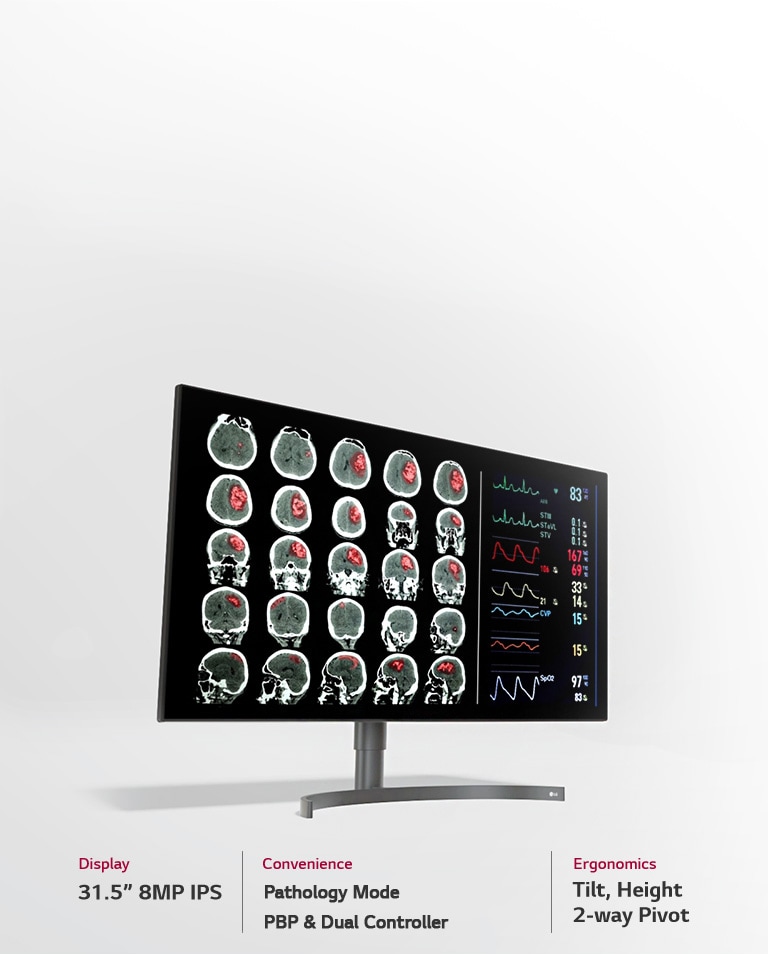

31.5" 8MP Diagnostic Monitor3

LG Medical Display

32" 8MP Diagnostic Monitor

Optimised Image Quality for Diagnostic Review

Accurate Image from Any Angle1

32" 8MP IPS Display

Accurate Image from Any Angle

The 32-inch 8MP IPS display facilitates precise diagnoses of medical images. The 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.

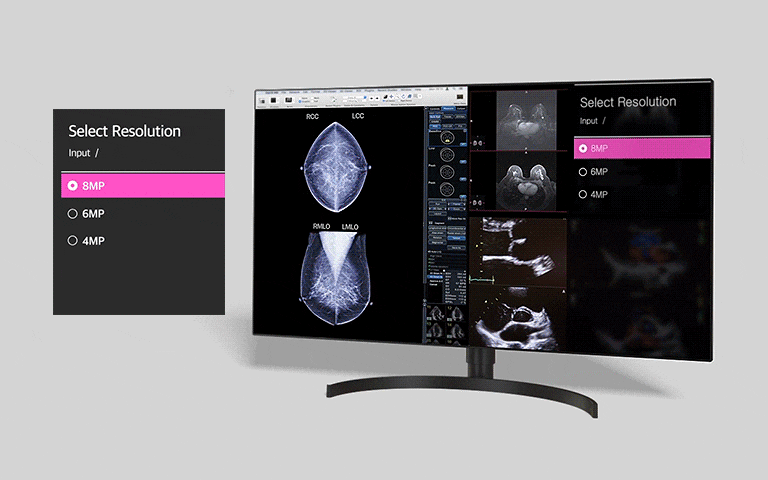

Compatible with Every Device1
Multi-resolution Mode (8/ 6/ 4MP)

Compatible with Every Device

Connection to various types of devices is essential for diagnostic monitors. Thanks to 32HL512D’s multi resolution mode, you can adjust the resolution of monitor to optimise for the connected device.

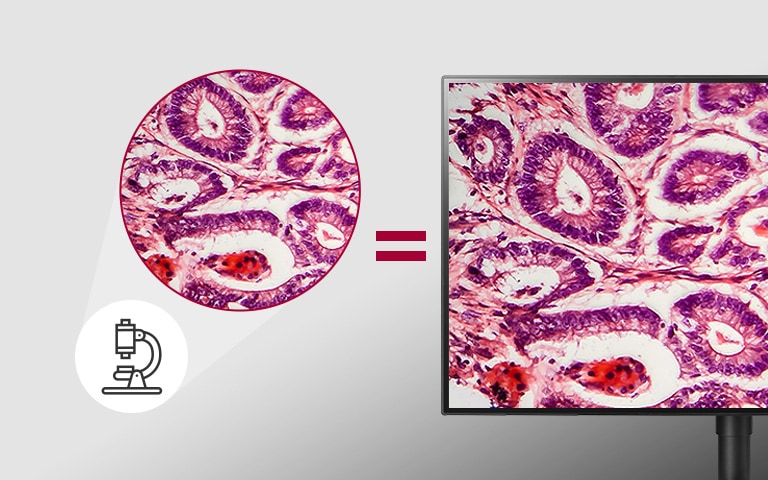

Realistic Color Reproduction1

Pathology Mode

True-to-Life Colour Reproduction

In Pathology Mode, the 32HL512D reproduces the same level of detail and colour accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.

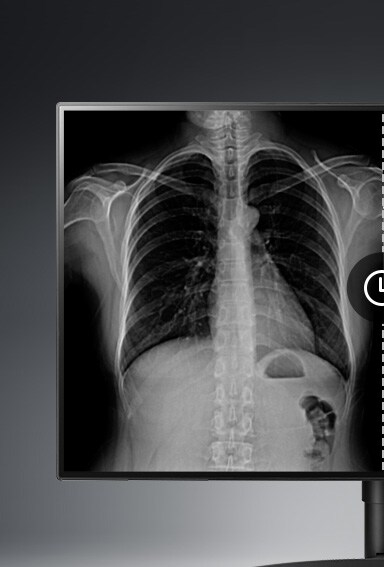

  • Conventional

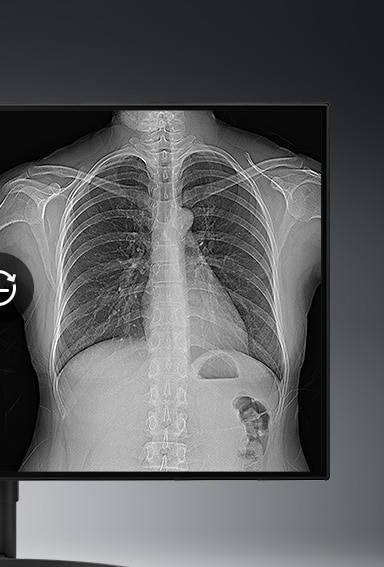

  • Brightness Stabilisation

Brightness Stabilisation

A sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by display aging for a consistently stable display throughout the usage lifespan.

To Increase Efficiency & Convenience

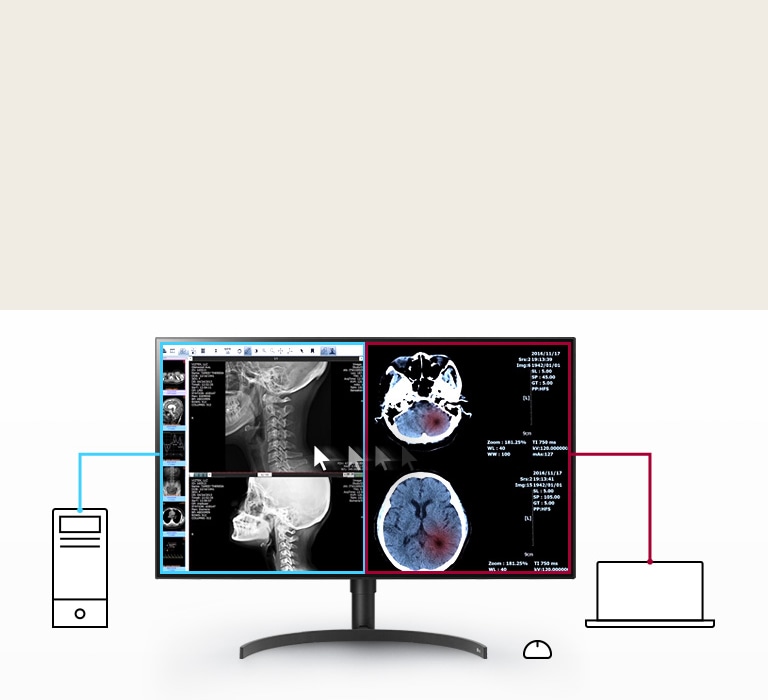

Multiple Signals on One Screen1

PBP & Dual Controller

Multiple Signals on One Screen

PBP (Picture By Picture) with Dual Controller, control multiple devices connected to one screen with one keyboard and mouse, helping to increase convenience in review. You can review multiple information in parallel on one screen.

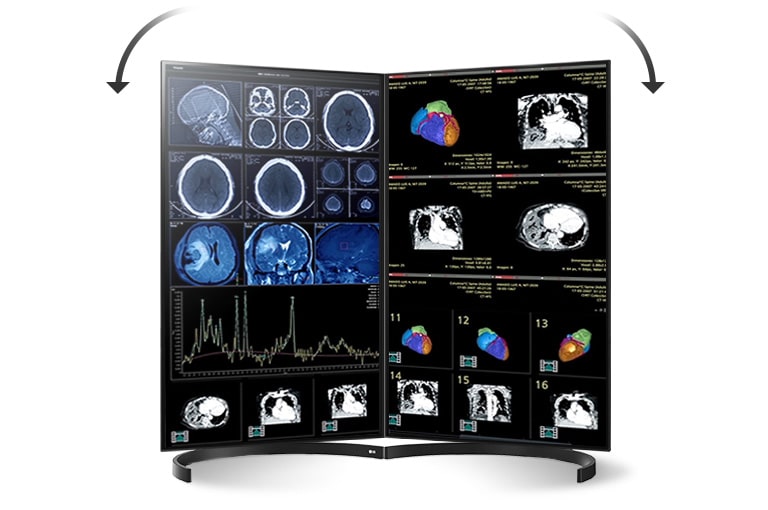

Designed for Comfort & Immersion1

Ergonomics Design

Designed for Comfort & Immersion

Its ergonomic stand, two-way pivot adjustment and narrow bezel can realise an optimised diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.

pivot adjustable stand bi-directionally

Pivot

Two-way

height adjustable stand within the range of 0m to 110mm

Height

0~110mm

tilt adjustable stand within the range of -5 degrees to 20 degrees

Tilt

-5~20°

design 4-side virtually borderless

Design

4-side virtually borderless design

Key Feature

  • 32-inch 8MP IPS Display
  • 450cd/m², DCI-P3 98% (CIE1976)
  • Multi-resolution Mode (8/6/4MP)
  • Pathology Mode
  • 4-Side Virtually Borderless Design
Print

All Spec

DISPLAY

  • Size [Inch]

    32-inch (16:9)

  • Resolution

    8MP (3840 x 2160)

  • Panel Type

    IPS

  • Color Gamut (Typ.)

    DCI-P3 98% (CIE1976)

  • Contrast Ratio (Typ.)

    1300:1

  • Response Time

    14ms (Off- setting), 5ms (Faster- setting)

  • Viewing Angle (CR≥10)

    178° (Right/Left), 178° (Up/Down)

POWER

  • AC Input

    100-240Vac, 50-60Hz

  • Power Consumption (Max.)

    65W

  • Power Consumption (DC Off)

    Less than 0.3W

DIMENSIONS/WEIGHTS

  • Weight with Stand [kg]

    7.0 kg (15.4 lb)

  • Weight without Stand [kg]

    5.6 kg (12.4 lb)
