Discontinued
SH7DB Series

Key Features

component-OBScountrySelectDesc

SH7DB Series
PANEL
  • Screen Size
    48.50" (1232.00mm) diagonal
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    700cd/m²
CONNECTIVITY - INTPUT
  • HDMI
    Yes (1)
    DP
    Yes (1)
  • DVI
    Yes (1)
    Audio
    Yes (1)
  • Analog (RGB)
    Yes (1)
    External Control (RS232C(Phone Jack Type))
    Yes (1)
  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    Yes (1)
  • External Control (Pixel Sensor(Optional))
    Yes
    USB
    Yes (1)
CONNECTIVITY - OUTPUT
  • DP Out
    Yes
    Audio Out
    Yes
  • Externel Speaker Out
    Yes (1, L/R)
    External Control (RS232C OUT)
    Yes (1)
PHYSICAL SPECIFICATION

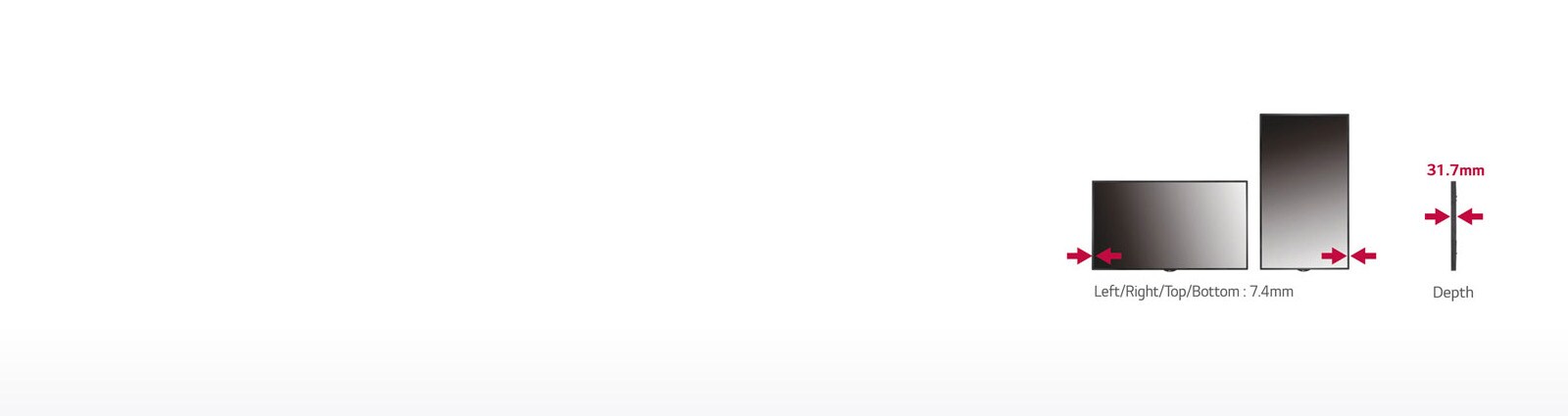

  • Bezel Width
    7.4mm (T/L/R/U even)
    Monitor Dimension (W x H x D)
    109.5cm X 63.7cm X 3.2cm
  • Weight (Head)
    15.6kg
    VESA™ Standard Mount Interface
    400mm x 400mm
MEDIA PLAYER COMPATIBILITY

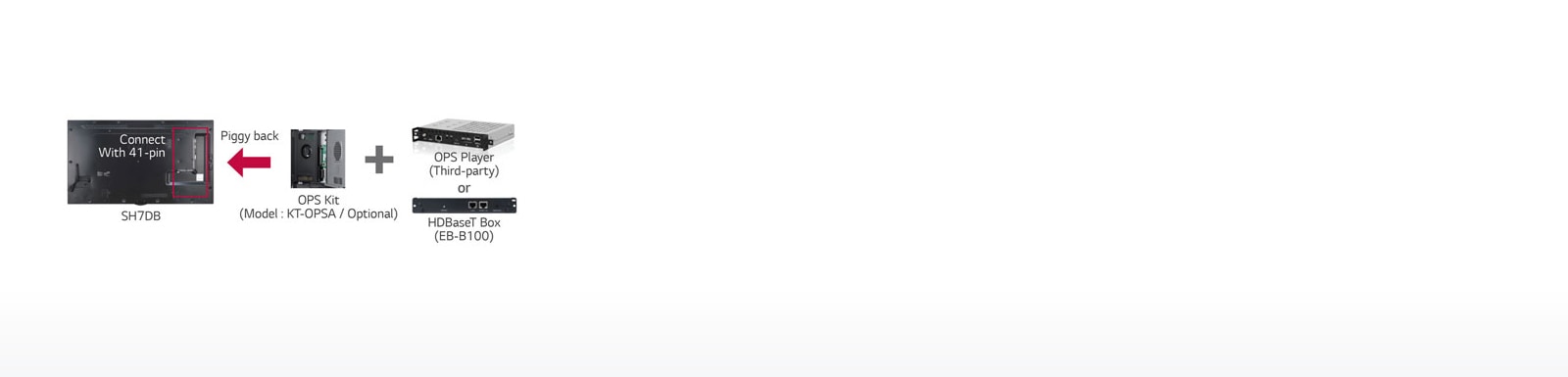

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes
ACCESSORY
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
    Optional
    SP-2100 (External Speaker), ST-200T, LSW440S, AN-WF500 (WiFi USB Dongle), KT-OPSA (OPS Kits), KT-SP0 (Pixel Sensor)
GENERAL
  • Region
    Global
