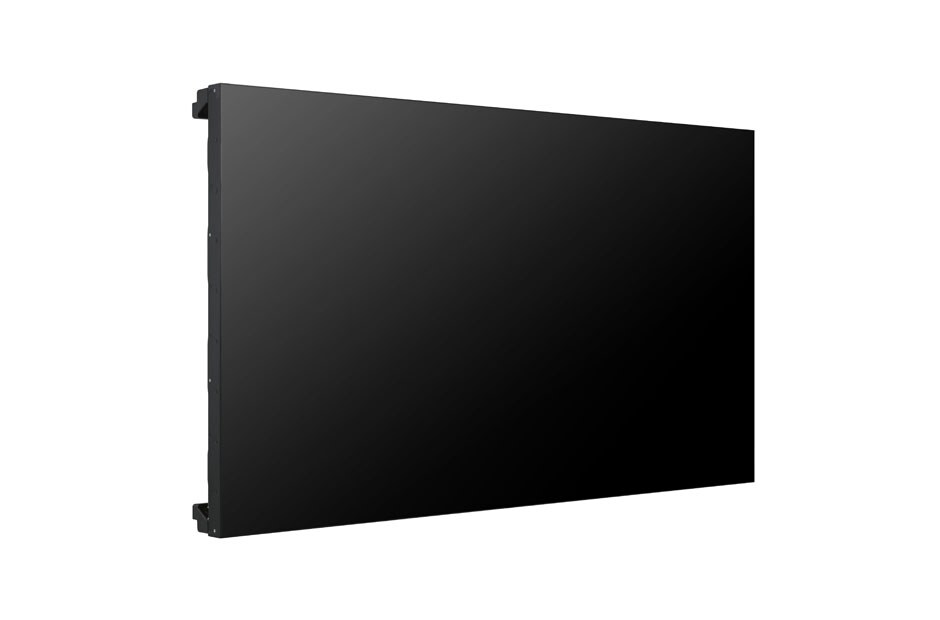

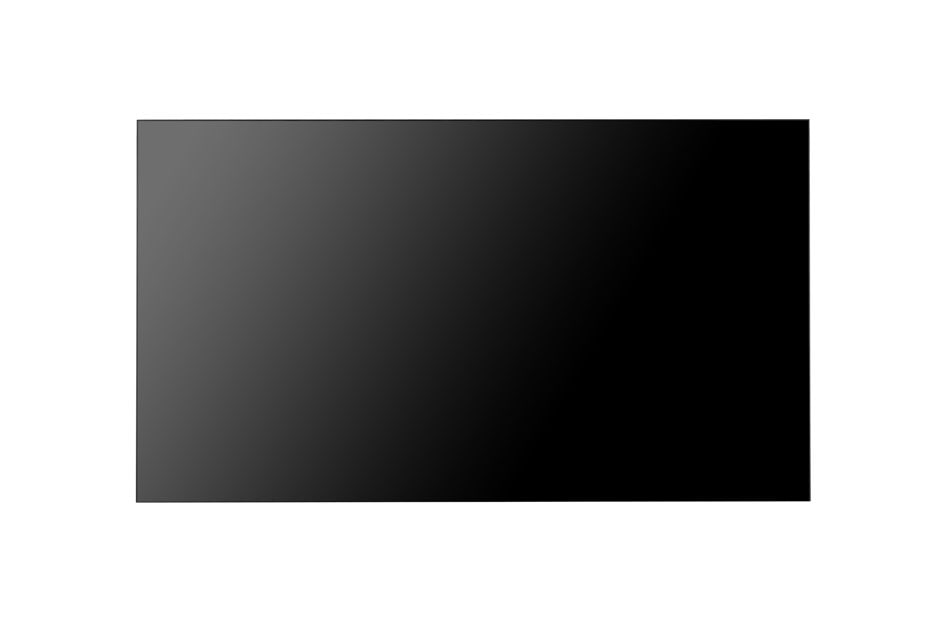

LV77A Series

Key Features

component-OBScountrySelectDesc

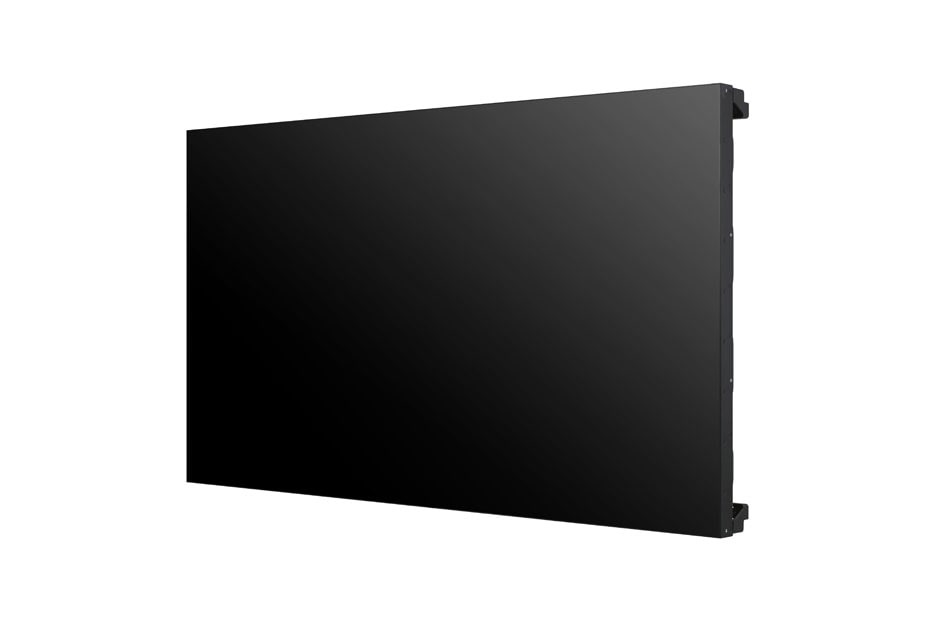

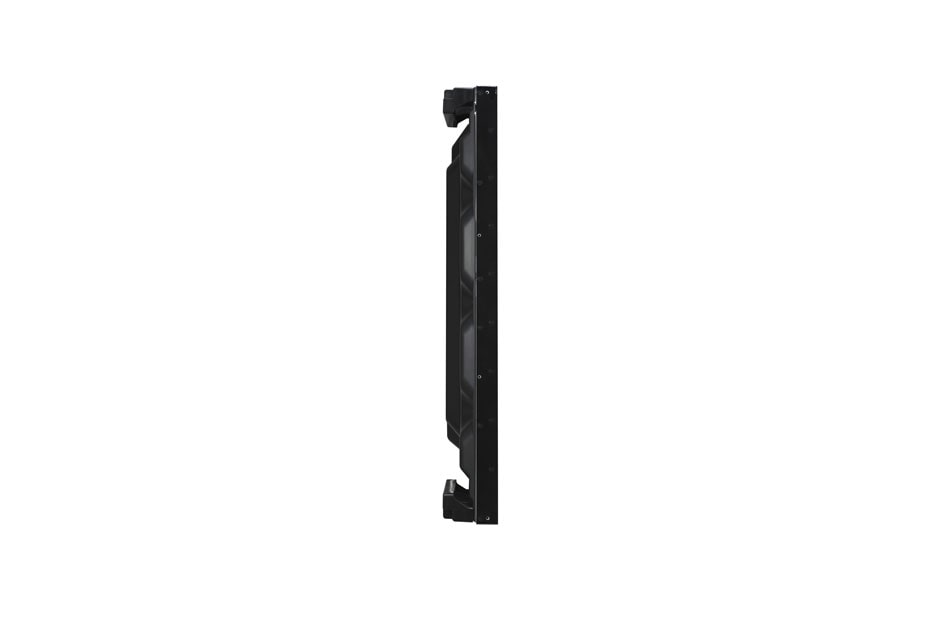

LV77A Series
PANEL
  • Screen Size
    55" (54.64" measured diagonal)
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    700cd/m²
CONNECTIVITY - INTPUT
  • Digital
    DVI-D (1), HDMI (2), Display Port (1) with HDCP for input
    Analog
    RGB (1), Shared Component, AV (1)
  • Audio
    PC Audio In (1)
    External Control
    RS232C (1), RJ45 (1), IR Receiver (1)
  • USB
    USB (1)
CONNECTIVITY - OUTPUT

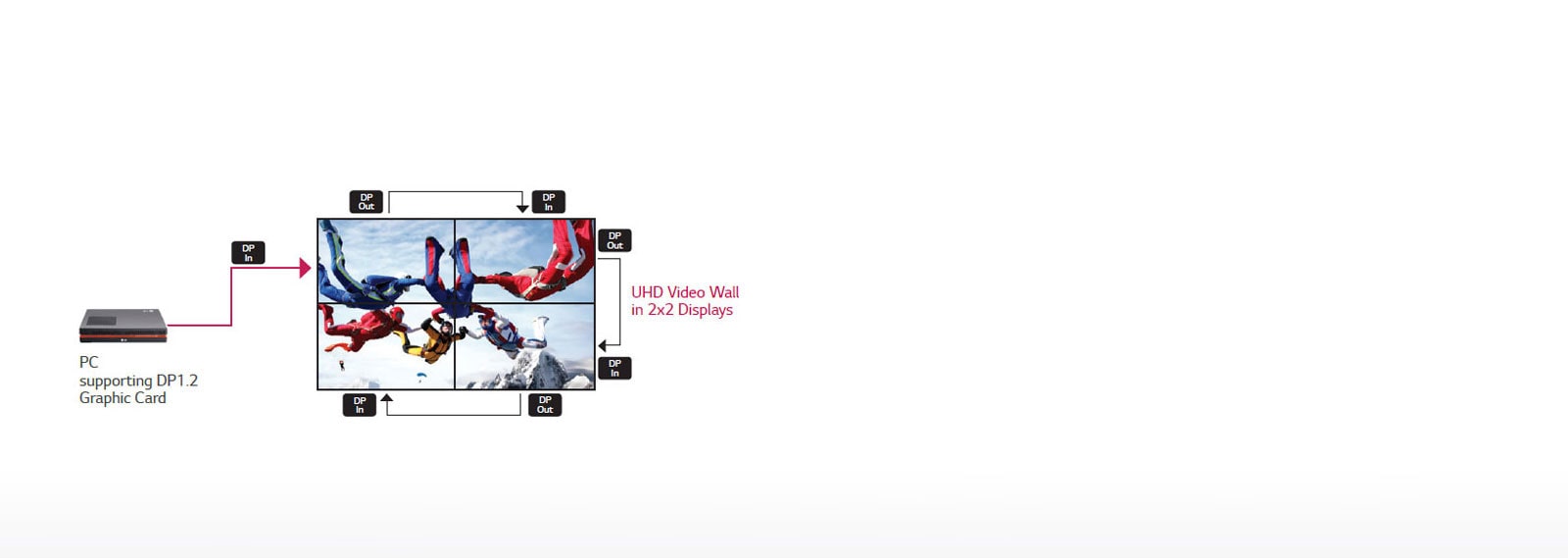

  • Digital
    Display Port(1)
    Audio
    Audio Out(1)
  • External Control
    RS232C(1)
PHYSICAL SPECIFICATION

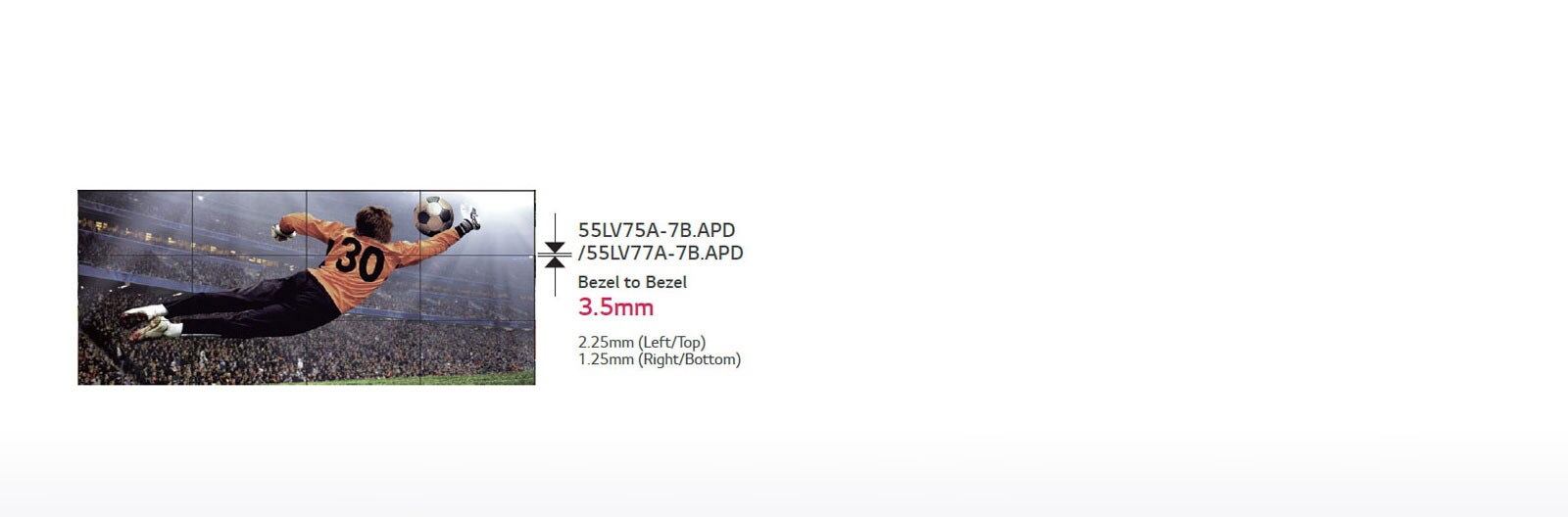

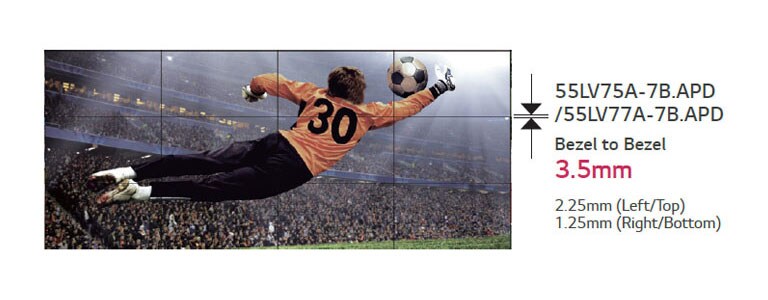

  • Bezel Width
    2.25mm (left/top), 1.25mm (right/bottom)
    Monitor Dimension (W x H x D)
    1213.4 x 684.2 x 88.5 mm
  • Weight (Head)
    23.2kg
    VESA™ Standard Mount Interface
    600mm x 400mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    230 W
    Smart Energy Saving
    130 W
  • DPM
    0.7 W
    Power off
    0.5 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "B" / CE / KCC
  • ErP / Energy Star
    NA / Yes (Energy Star 6.0)
MEDIA PLAYER COMPATIBILITY
  • External Media player Attatchable
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign-w lite
    Yes

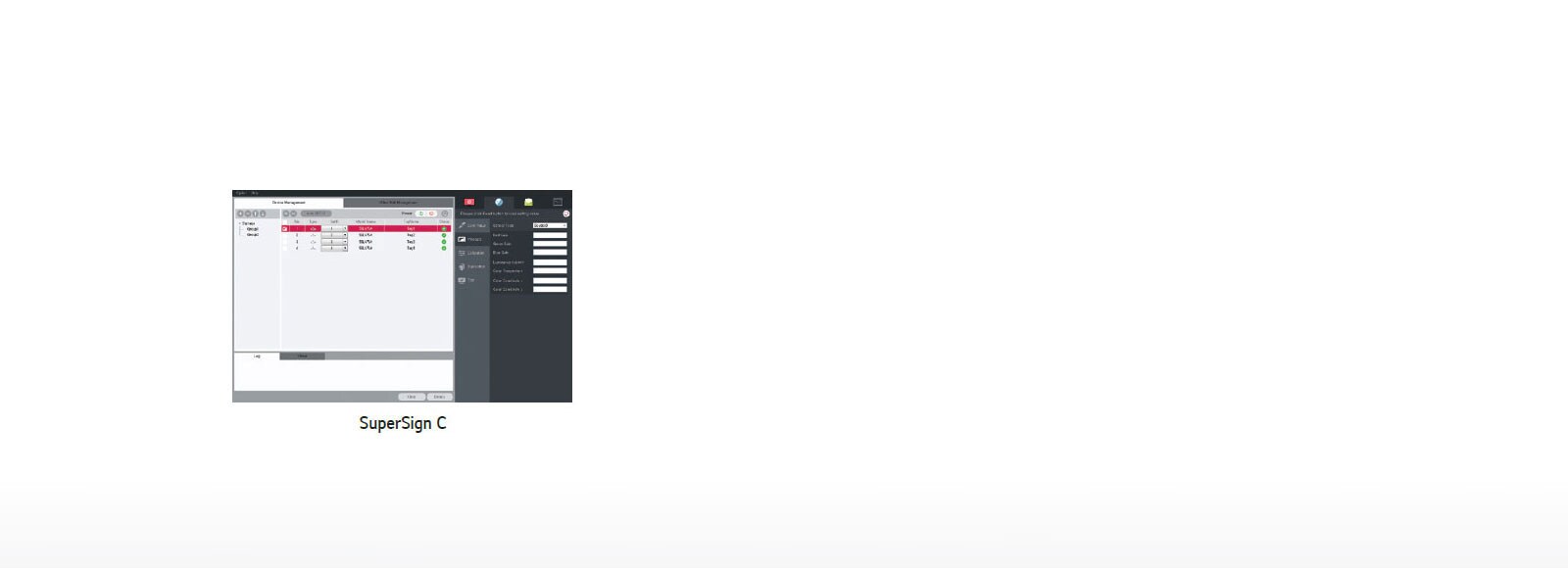

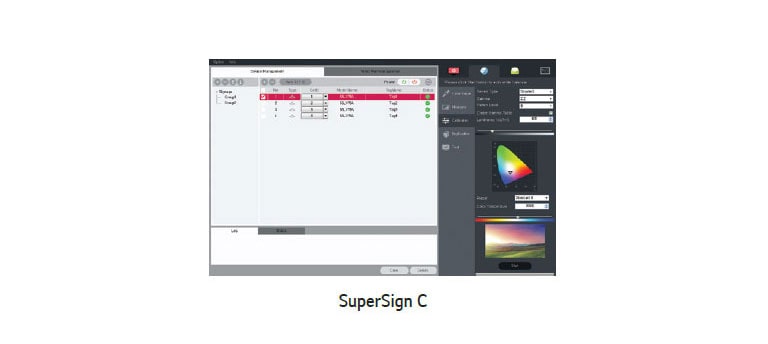

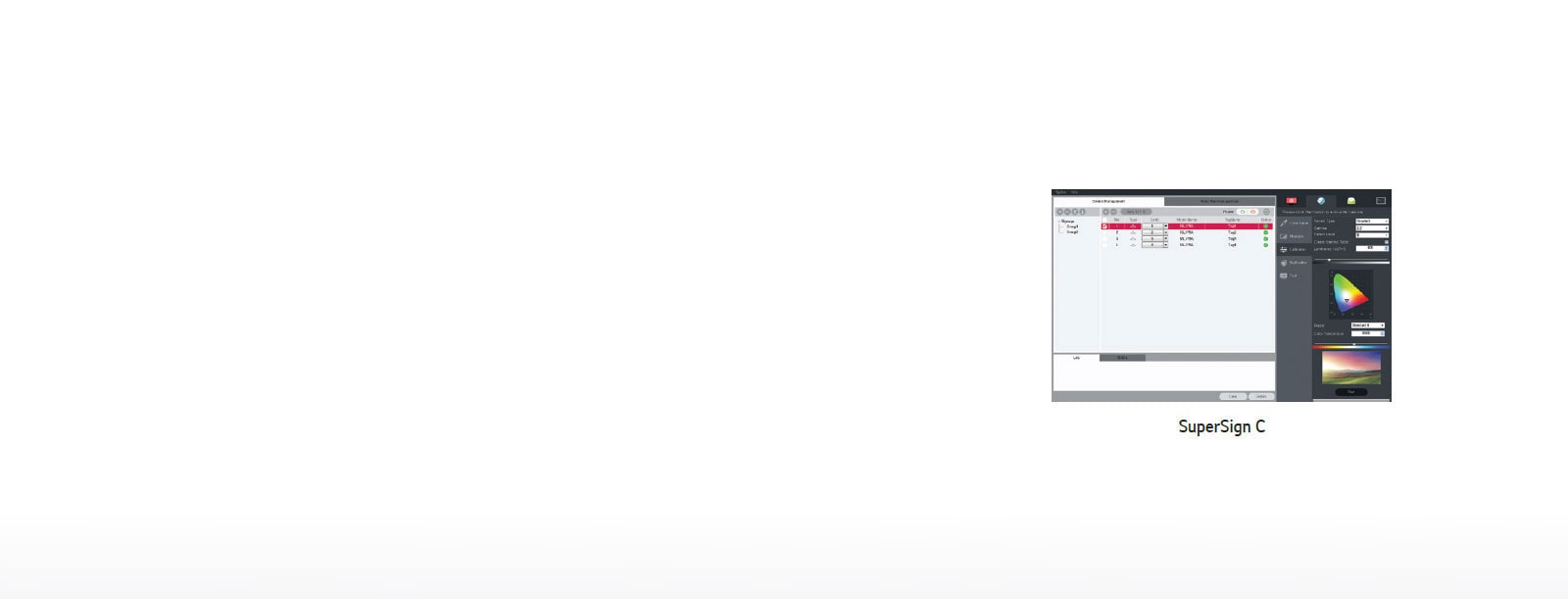

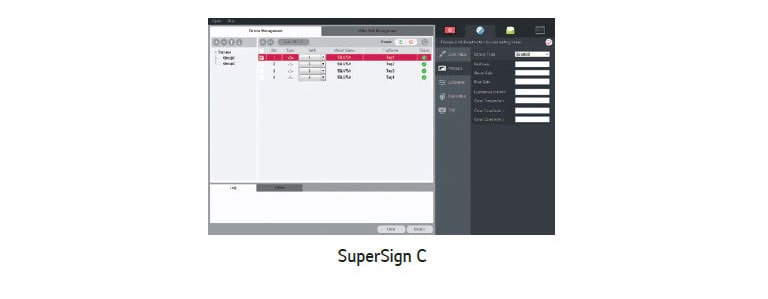

    SuperSign-c
    Yes
ACCESSORY
  • Basic
    Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, Tiling Guide, Screw
    Optional
    WM-L640V(Landscape), WM-P640V(Portrait)
