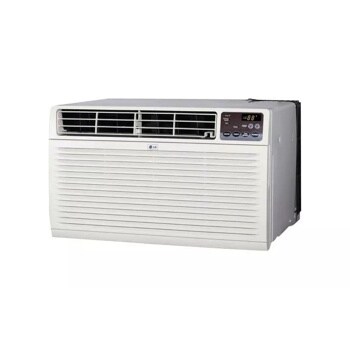

11,500 BTU Thru-the-Wall Air Conditioner with Remote

  • LT1213CNR

Key Features

  • Universal Fit for Sleeve
  • Gold Fin Anti-Corrosion
  • 3 Cooling and Fan Speeds with Auto Cool
  • 4-Way Air Direction
EER 8.8
Dehumid. (Pts/Hr) 3.8
Dry Air Flow (CFM) 290
dBA Level (Indoor / Outdoor) 52 / 61
BTU Performance Cooling 11,500
Net Weight (lbs.) 80
Carton Height (inch) 17 13/32
Carton Width (inch) 27 23/32
Carton Depth (inch) 22 13/32
Dimension Height (inch) 14 13/32
Dimension Width (inch) 24
Dimension Depth (inch) 20 3/32
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Fan Speed: Cooling (Heating) 3
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XB
Auto Restart Yes
Fan Only 3
Real Grille Yes
Voltage / 60 Hz 115
Watts (Cooling) 1,310
Rated Amps (Cooling) 12.0
Limited Warranty 1 Year Parts and Labor(Limited In-Home Service)

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 370ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View LT1213CNR Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.


For the above AC. What is the part number for the sleeve for it. ALso what are the dimensions of the sleeve it would use.. Thanks Leo
Asked by: homeuser1958
We appreciate your interest in this air conditioner. This device has been designed as compatible with many wall sleeves, such as the AXSVA1 or AXSVA4 ( According to page 11 of your owner’s manual, the minimum dimensions of the wall sleeve should be 25 7/8” wide, by 15 17/32” high, by 16 23/32” deep. Hopefully this will help in your search.
Answered by: NeilE
Date published: 2015-05-27

Wall unit in window

do i have to use the sleeve to put this in my regular window as long as i have support beam under it?
Asked by: coolinsummer
We appreciate your interest in this air conditioner. We do not recommend attempting to install this air conditioning unit into a window. Improper installation of the unit can lead to damage to the product. If you choose to have an air conditioner in the window, then it would be recommended to obtain a Window Air Conditioner, rather than this Wall unit.
Answered by: NeilE
Date published: 2013-06-27

what type freion do they use

Asked by: mstanley1957
We appreciate your interest in this air conditioner. This model uses 18.5oz of R-410A refrigerant. We recommend testing and/or adding coolant by a qualified technician only.
Answered by: NeilE
Date published: 2013-06-13

what is the sleeve Part Number for this unit

Further does an outside cover come with this sleeve?
Asked by: neveragain
We appreciate your interest in this air conditioner and its accessories. The model AXSVA4 should be available through your local appliance dealer.
Answered by: NeilE
Date published: 2013-05-20

Condensation drainage?

I am concerned about condensation drainage. I have owned a lot of window air and this is the first thru wall. Can't see how this is going to be able to dispense the water that these machines make. Especially once it is in the sleeve, there is no reasonable place I can detect for the condensation to drain?
Asked by: zenthing

Do I really need a " wall sleve " with this unit ?? LT1213 cnr. Thank you in advance.

Asked by: mayn888

Which wall sleeve should I purchase for this model? I will be ordering from Home Depot. Thanks

Asked by: Boatmike1
