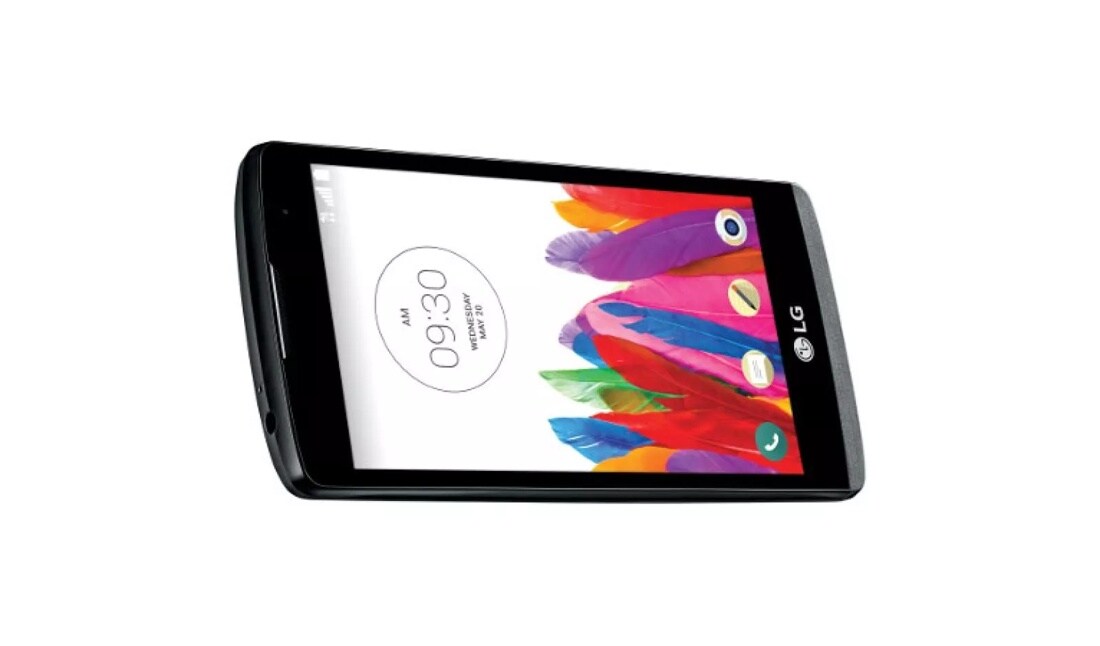

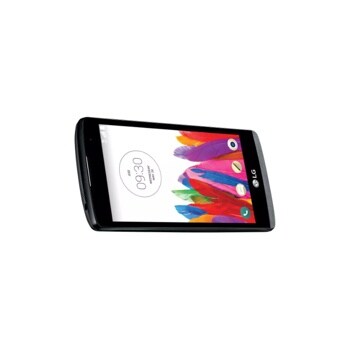

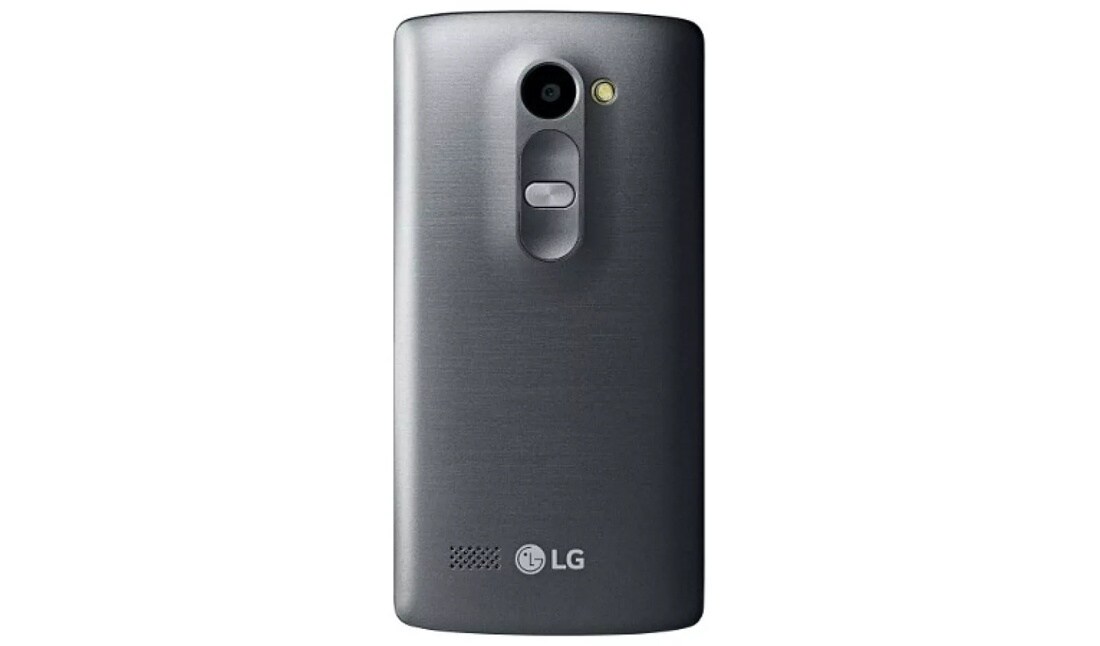

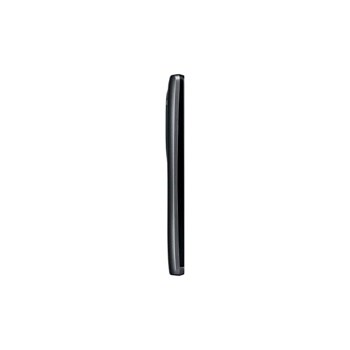

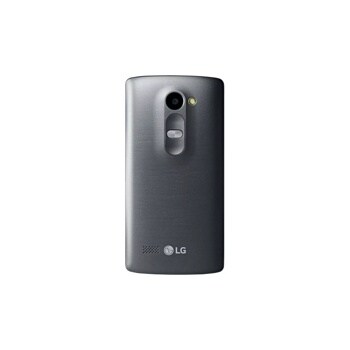

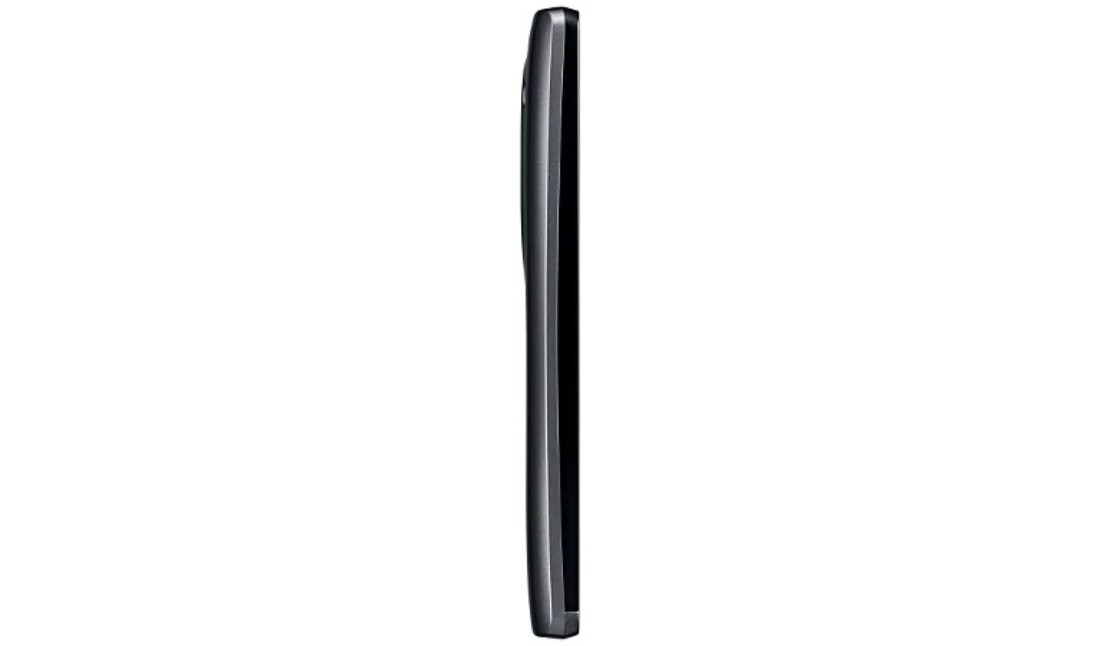

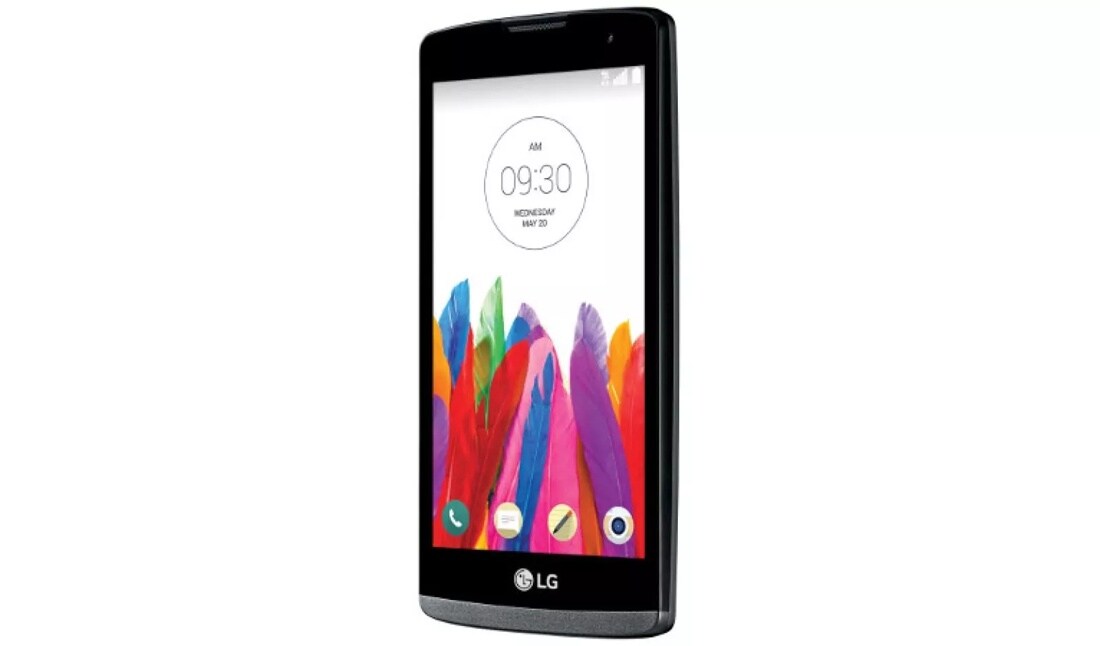

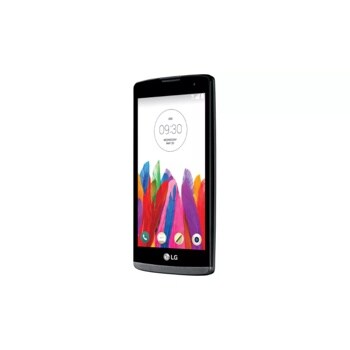

Leon™ LTE T-Mobile®

  • H345

  • Discontinued Product

Key Features

  • 4.5" Full Wide VGA Display
  • Front-Facing Camera with Gesture Shot and Soft Light
  • Curved Design
  • 1.2 GHz Quad-Core Processor
Summary
Screen Size 4.5 inches
Screen Resolution 854 x 480 pixels
Battery Capacity 1,820 mAh
Camera Resolution 5 MP
Processor 1.2 GHz Quad-Core
Memory -
Storage 8 GB (up to 3.48 GB usable) - expandable via microSD™ card (sold separately)
Carrier T-Mobile
Other Features Front-Facing Camera with Gesture Shot and Soft Light, Curved Design
Technical Specifications
Carrier T-Mobile
Form Factor Bar
Platform Android™ 5.0, Lollipop
Technology GSM, LTE
Processor 1.2 GHz Quad-Core
Network LTE
Frequencies GSM 850/900/1800/1900 MHz, LTE Bands 2/4/12, UMTS Bands 2,4,5
Data Transmission LTE
Dimensions 5.11" (H) x 2.55" (W) x 0.43" (D)
Weight 4.89 oz.
Display 16M Color TFT, 854 x 480 pixels 4.5" (FWVGA)
Battery Capacity 1,820 mAh
Talk Time Up to 10 hours *
Standby Time Up to 11.7 days*
Total Internal Memory 8 GB (3.48 GB usable)
microSD™ Memory Slot Support up to 32 GB**
* Actual battery time may vary depending on network connectivity and application use.
** microSD cards sold separately.
Camera/Video
Rear-Facing Camera 5 MP HD Rear-Facing Fixed Focus Camera and Full HD Camcorder with LED Flash
Front-Facing Camera VGA front-facing camera and camcorder
Camera Resolutions Up to 2560 x 1920* (2560 x 1440 default)
Gesture Shot Take selfies with a simple hand gesture.**
Soft Light Screen will illuminate a soft light around the photo preview for well-lit selfies.**
Burst Shot Hold the shutter button to take multiple shots quickly.*
Digital Zoom Up to 4x*
Multiple Shutter Options Tap the shutter button, tap the screen, use your voice, or press a volume key to take a photo
Video Resolutions Up to 1920 x 1080* (1280 x 720 default)
Pause & Resume Recording Pause and start in record mode for one continuous video file.
Live Shot Take still shots while recording video.
Self-Timer Choose to take a picture/video 3 or 10 seconds after you press the shutter/record button.
Geotagging Include location information with photos and videos.
* Available only on rear-facing camera or camcorder
** Available only on front-facing camera or camcorder
Connectivity
Network T-Mobile 4G LTE Network*,**
Wi-Fi® Connectivity 802.11 b/g/n
Wi-Fi® Calling Use Wi-Fi® to improve voice and data coverage.
Mobile Hotspot Share a data connection with other compatible wireless devices**
Bluetooth® Version 4.1
Supported Bluetooth® Profiles Headset, hands-free, object push, advanced audio distribution, audio/video remote control, human interface device, and phone book acces
USB and Bluetooth® Tethering Share your phone’s Internet connection with your computer.**
LG PC Suite Connect your phone to your PC to manage multimedia content and apps.
GPS A-GPS For Enhanced Location Accuracy
* T-Mobile’s 4G LTE Network not available everywhere
** Depends on network availability. Additional carrier charges may apply
*** USB cable required (included).
Entertainment
Video Player With Touch Lock and Resume Play Function; supports 3GP, 3G2, and MP4 formats
Customizable Video Screen Ratio Subtitle Settings, and Video Auto Off Function
Music Player With Sleep Timer: supports AAC, AAC+, eAAC+, MP3, WAV, FLAC, AMR, M4A, MIDI, and Ogg formats
Music Library Organized by song, album, artist, genre, favorites, playlist, and folder
Media Sync (MTP) Transfer files or synchronize with Windows® Media Player.*
* USB cable required (included)
Interactivity
Interruptions Prevent interruptions from notifications.
Knock On™ Double tap the screen to put your phone to sleep/wake it without picking it up or pressing the Power/Lock Key.
Knock Code™ Create a 3 to 8 point tapping pattern for security and direct access to the home screen with more than 86,000 possible combinations
QuickMemo+ Write or draw on nearly any screen and schedule memos to appear at certain times using calendar inputs or when the user reaches predetermined locations via GPS
Customizable Keyboard Adjust keyboard height and layout
Multilanguage Support Support for Phone and Keyboard Input
Polaris® Office PC-like office suite app for viewing and editing documents, presentations, and spreadsheets
EasyHome™ Show the dialer and other frequently used features right on the home screen for quick and easy access.
