DISCONTINUED
LDE3037BD

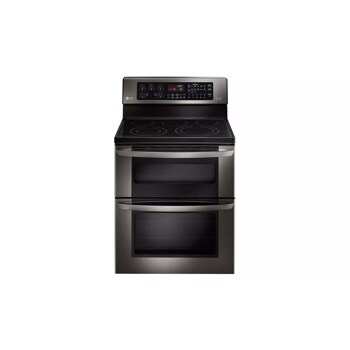

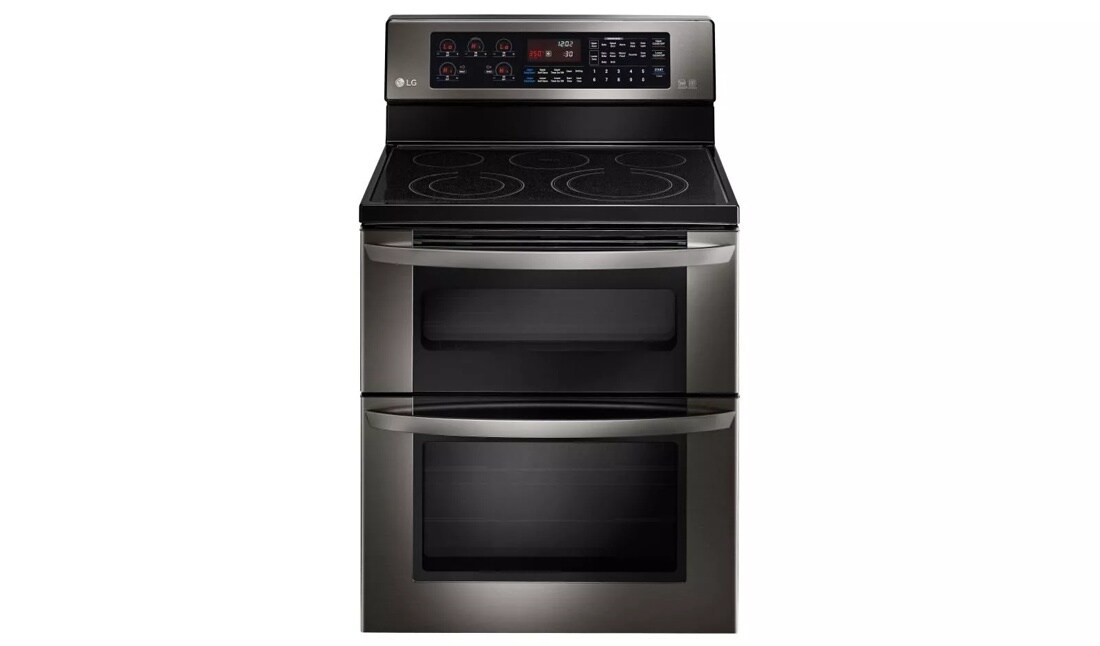

LG Black Stainless Steel Series 6.7 cu. ft. Electric Double Oven Range With EasyClean®
Key Features
All Specs
- Luxurious, Fingerprint-Resistant Finish
- Infrared Heating™ System
Compare
Features and Specs
CONTROLS
Control Type
IntuiTouch™ Keypad
Control Location
Backsplash
Control Display
VFD (Scrolling Display)
POWER/RATINGS
Amp Rating at 208V
40
Amp Rating at 240V
40
KW Rating at 208V
120/208 VAC
KW Rating at 240V
120/240 VAC
COOKTOP
Cooktop Finish
Grey Patterned on Black Ceramic Glass
Burner Type
Radiant
Element Configuration - Left Front
9", 6" / 3000W, 1400W
Element Configuration - Left Rear
6" / 1200W
Element Configuration - Center (Warm)
7" / 100W
Element Configuration - Right Front
12", 9" / 2700W, 1700W
Element Configuration - Right Rear
6" / 1200W
WARRANTY/UPC
Limited Warranty
1 Year Parts and Labor (In Home Service) 10 Years Limited on Magnetron (In Home Service)
UPC
048231319591
DIMENSIONS
Overall Width
28 3/16"
Overall Height
47 7/16"
Overall Depth (from rear)
25 13/16"
Approximate Shipping Weight
263 lbs.
Product Weight
213 lbs
Cabinet Width (in)
30"
Oven Interior Dimensions (Upper) (in) (W x H x D)
24 1/2" x 8 11/16" x 18 15/16"
Height to Cooking Surface (in)
36"
Oven Interior Dimensions (Lower) (in) (W x H x D)
24 1/2" x 16 5/16" x 18 15/16"
Shipping Dimensions (WxHxD)
33" x 49 5/8" x 29 15/16
OVEN SPECIFICATIONS
Broil Element (Upper)
3200W (1600W x 2) Infrared Heating™
Bake Element (Upper)
2100W / 6 Pass
No. of Racks
2 Standard Racks, 1 Offset Rack (Standard)
No. of Rack Positions
7
Total Oven Capacity
6.7 cu. ft. (2.3 cu. ft. / 4.4 cu. ft.)
EasyClean® Technology
Yes
Upper Oven Capacity
2.32 cu. ft.
Lower Oven Capacity
4.38 cu. ft.
Bake Element (Lower)
2500W / 8 Pass (Hidden Bake)
Broil Element (Lower)
3800W / 6 Pass
Oven Cooking Technology
Convection, Infrared Heating™
Oven Cooking Modes
Bake, Broil, Convection Bake (Lower), Convection Roast (Lower), Proof (Lower), War
Oven Cleaning Features
Delay Bake, Delay Clean, Automatic Shut-Off
APPEARANCE
Available Colors
Black Stainless Steel (BD), Stainless Steel (ST), Smooth White (SW), Smooth Black (SB)
Handle
Matching Stainless
Oven Door Feature
Large WideView™ Window, Full SS Wrap
Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice. Prices, promotions, and availability may vary by model, store, and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for their final price and availability.
