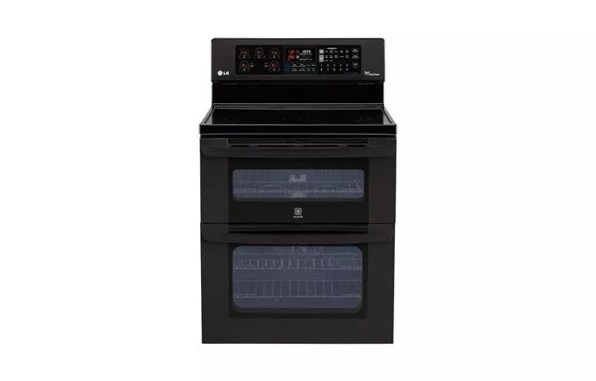

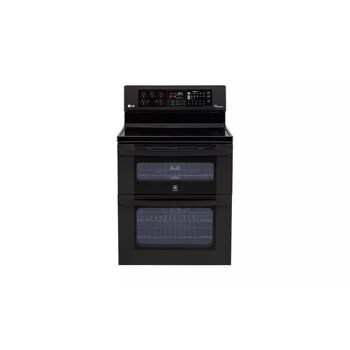

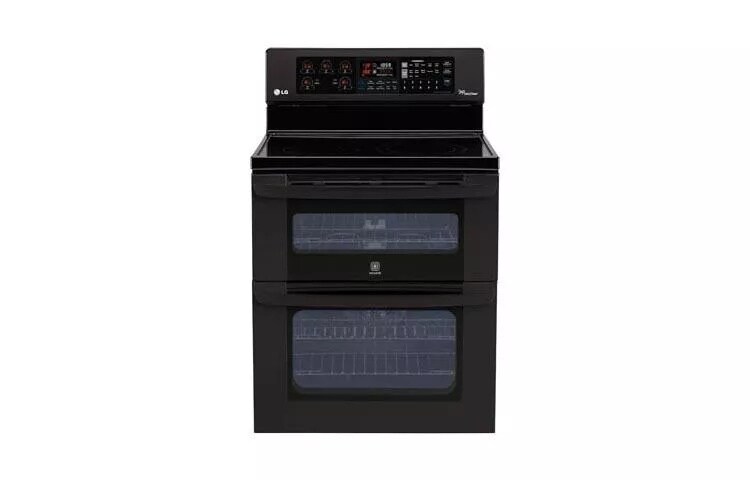

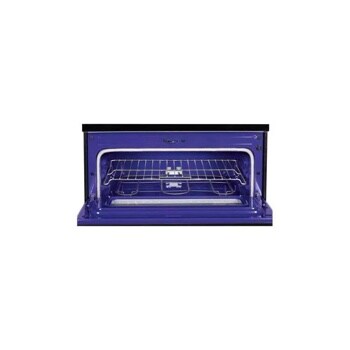

6.7 cu. ft. Capacity Electric Double Oven Range with Infrared Grill and EasyClean™

  • LDE3037SB

  • Smooth Black
  • Discontinued Product

Key Features

  • Infrared Grill System
  • EasyClean™ Cleaning Feature
  • Large Capacity (6.7 cu ft.)
  • True Convection (Lower)
AVAILABLE COLORS:
SUMMARY
Range Type Double Door
CAPACITY

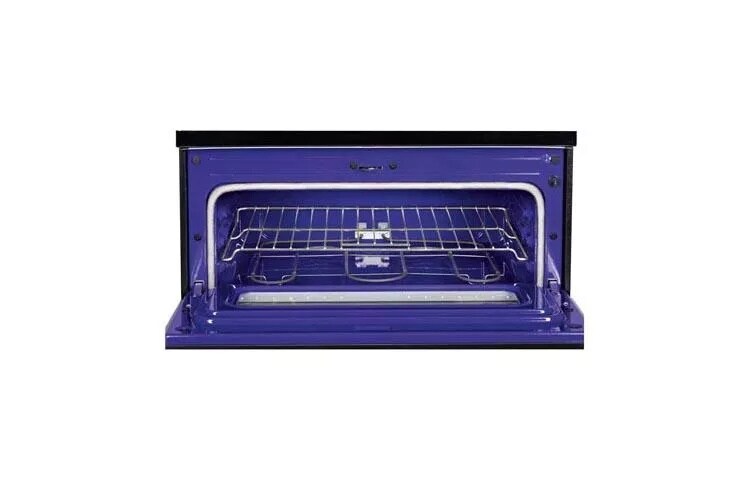

Upper Oven 2.32 cu. ft.

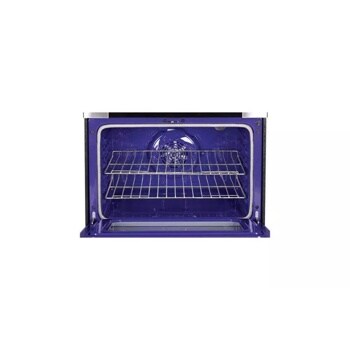

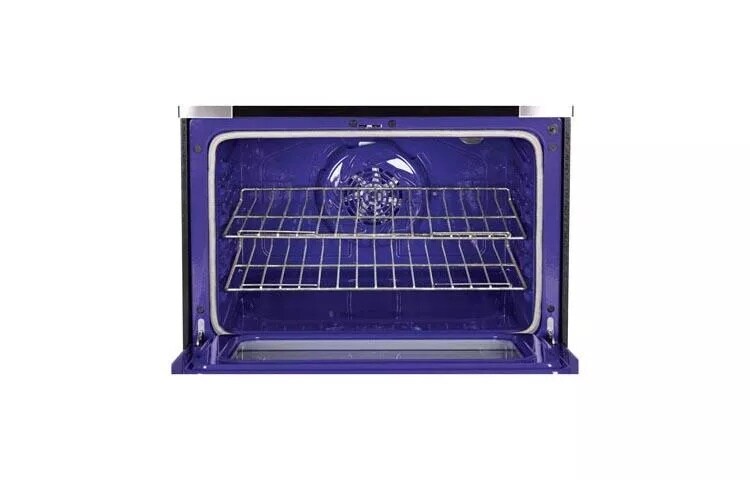

Lower Oven 4.38 cu. ft.
Total Capacity 6.7 cu. ft.
OVEN FEATURES
EasyClean™ Technology Yes
Configuration Freestanding Electric Double Oven
Infrared Grill System Yes
True Convection Yes
Bake Element (Upper) 2100W / 6 Pass
Broil Element (Upper) 3200W (1600W x 2) InfraGrill™
Bake Element (Lower) 2500W / 8 Pass (Hidden Bake)
Broil Element (Lower) 3800W / 6 Pass
Oven Cooking Technology Convection, InfraredGrill
Oven Cooking Modes Bake, Broil, Convection Bake (Lower), Convection Roast (Lower), Proof (Lower), Warm
Oven Cleaning Features Delay Bake, Delay Clean, Automatic Shut-Off
Cleaning Self Clean / EasyClean™
Oven Light Yes
Oven Rack 2 Standard Racks, 1 Offset Rack (Standard)
COOKTOP
Element Configuration - Left Front 9” / 6” 3200W / 1400W
Element Configuration - Left Rear 6" / 1200W
Element Configuration - Center (Warm) 7" / 100W
Element Configuration - Right Front 12", 9" / 2700W, 1700W
Element Configuration - Right Rear 6" / 1200W
Cooktop Burner Type Radiant
Cooktop Finish Grey Patterned on Black Ceramic Glass
CONTROL
Control Location Backsplash
Control Type IntuiTouch™ Keypad
Control Display VFD (Scrolling Display)
APPEARANCE
Available Colors Stainless Steel, Smooth Black, Smooth White
Handle Matching Stainless
Oven Door Feature Large WideView™ Plus Window, Full SS Wrap
DIMENSIONS/CLEARANCES/WEIGHT
Shipping Weight (lbs) 263
Product Weight (lbs) 213
Cabinet Width (in) 30"
Overall Depth (in) 25 13/16"
Overall Height (in) 47 7/16"
Overall Width (in) 29 7/8"
Height to Cooking Surface (in) 36"
Oven Interior Dimensions (Upper) (in) (W x H x D) 24 1/2" x 8 11/16" x 18 15/16"
Oven Interior Dimensions (Lower) (in) (W x H x D) 24 1/2" x 16 5/16" x 18 15/16"
POWER/RATINGS
Amp Rating at 208V 40
Amp Rating at 240V 40
KW Rating at 208V 120/208 VAC
KW Rating at 240V 120/240 VAC
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor (In Home Service), 5 Years Limited on Cooktop and Radiant Surface Units (In home service)
UPC 048231 318297
