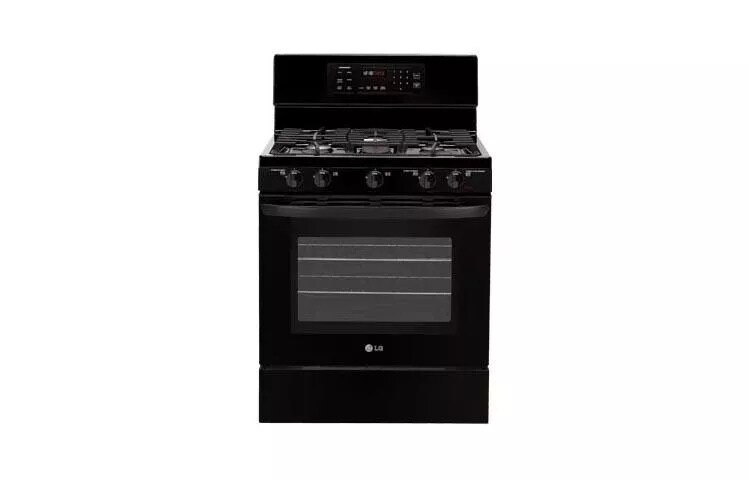

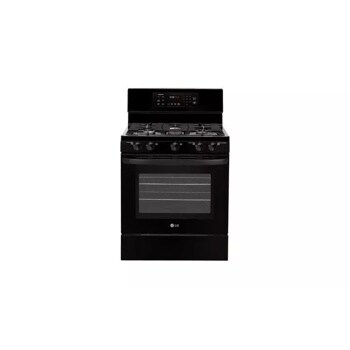

5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle
DISCONTINUED
5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle
LRG3093SB

5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle

Key Features
All Specs
  • Large Capacity Oven
  • Superboil™ 17,000 BTU Burner

Compare


Features and Specs

Collapse All

DOWNLOAD SPEC SHEETdownload-guide iconDOWNLOAD ENERGY GUIDE
Capacity
1.0 cu. ft.
Type
Storage
Limited Warranty
One Year Parts & Labor
Configuration
Freestanding Gas Oven with Storage Drawer
Color
Smooth Black
Capacity
5.4 cu. ft.
Cooktop Material
Coated Porcelain
Range Type
Single Door
Product Dimensions (WxHxD)
29 15/16” x 47 5/8” x 26 29/32”
Control System
IntuiTouch™/Knobs
Number of Burners
5
Burner Power (BTUs)
Left Front (High Output): 12,000 BTU, Left Rear (All Purpose): 9,100 BTU, Center: 8,000 BTU, Right Front (SuperBoil™): 17,000 BTU, Right Rear (Simmer): 5,000 BTU
Broil Burner
15,500 BTU Flat Broiler
Bake Burner
18,000 BTU
Net Weight
227 lbs
Width
29 15/16"
Height (to top of cooktop)
36"
Height (to top of backguard)
47 5/8"
Depth (including door)
26 1/2"
Depth (including handle)
26 29/32"
Oven Capacity (WxHxD)
24 1/2" X 19 1/2" X 19 11/16"
Drawer (WxHxD)
23" x 4 11/16" x 16 1/2"
WideView™ Window (WxH)
19 19/32 x 11 1/32"
Electrical Requirements
540kW / 4.5A 120 VAC
Variable Cleaning Time
2hr, 3hr, 4hr
WideView™ Window
Yes
Capacity
5.4 cu. ft.
Type
Self-Cleaning
Delay Clean
Yes
Delay Bake
12 Hours
Automatic Shut-Off
After 12 Hours
GoCook™ Smart Oven Light
Yes
Interior Oven Light Adjustment
1, Auto/Manual
No. of Racks/Positions
2 Full/7
Broil Burner
15.5k BTU
Broiler Type
Flat Broiler
Bake Burner
18K BTU
Burner Type
Coated Procelain
Configuration - Left Rear
9100Btu/h
Configuration - Center (Single Oval)
8000Btu/h
Configuration - Right Front
SuperBoil™ 17000Btu/h
Configuration - Right Rear
5000Btu/h
Configuration - Left Front
12000Btu/h
No. of Sealed Gas Burners
5
Type
Free Standing Gas
Oven/Cooktop
IntuiTouch™/Knobs
Display
VFD
Electronic Clock & Timer
Yes
Control Lock Function
Yes
Audible Preheat Signal
Yes
Special Functions
Temperature Unit of Measure (F/C) Beeper Volume (High, Low, Mute), Language: English or Spanish, Preheating Alarm Light On/Off
Door Lock
Yes
Handle
Matching Commercial Handle
Available Colors
Smooth White (SW), Smooth Black (SB), Stainless Steel (ST)
Knobs
Matching Metal
Oven Interior
Brilliant Blue
