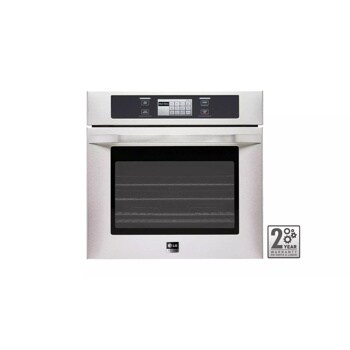

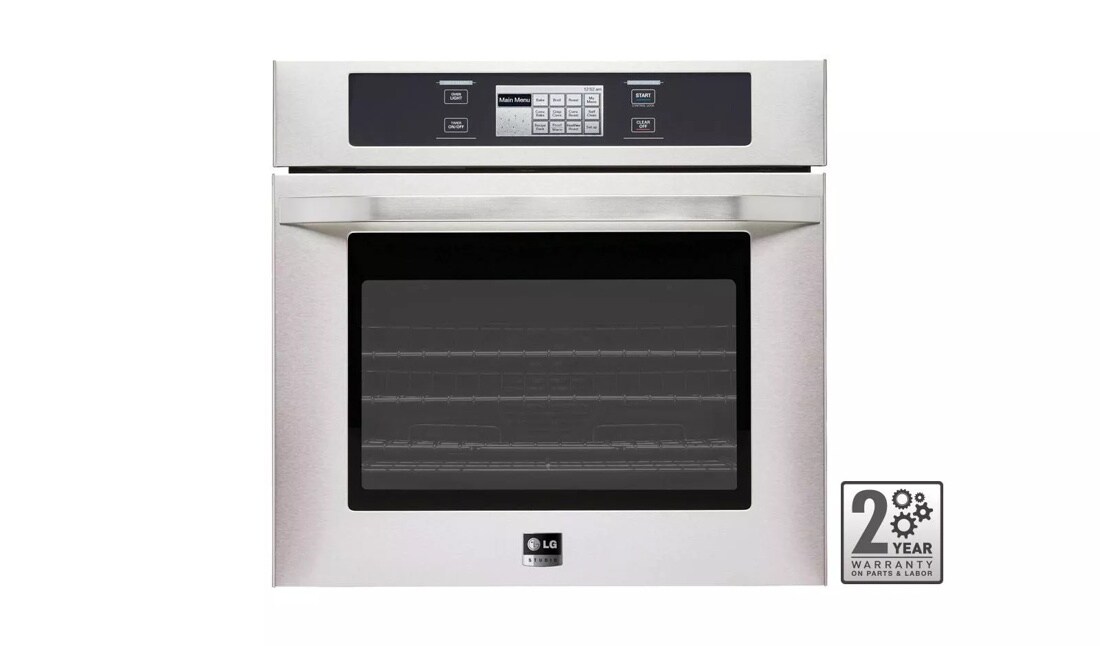

LG Studio - 4.7 cu. ft. Capacity 30” Built-in Single Wall Oven with Convection System

  • LSWS305ST

  • Stainless Steel

Key Features

  • 6.3” LCD touch-screen control system
  • Exclusive Convection System
6.3” LCD Touch-Screen Controls

6.3” LCD Touch-Screen Controls

The 6.3” LCD touch-screen control system is very easy to use. One-touch activation allows users to select and monitor any of the cooking options, including 100 auto-cook recipes in the Gourmet Recipe bank.

Exclusive Convection System

Exclusive Convection System

LG’s Exclusive Convection System delivers the ideal temperature and airflow for faster preheating, and uniform cooking. Cook your meals just as you want with 4 Convection Options: Convection Bake, Roast, Crisp, and Healthier Roast.


ADA - Compliant Ovens*

To be considered ADA-compliant, a freestanding slide in range must have a maximum high forward reach for controls and operating mechanisms is 48", maximum low forward reach is 15".

Oven Type Single Wall Oven/Self-Cleaning
LG Studio Yes
Capacity 4.7 cubic ft.
Dimensions (W x H x D) 29 3/4" x 29 5/16" x 23 1/2"
Convection Bake Yes
Convection Roast Yes
Healthier Roast Yes
Crisp Convection Yes
Convection Conversion Yes
Convection Element 2500W Carbon Heater
LCD Display 6.3" SmoothTouch™ LCD
Gourmet Recipe Bank 100 Recipes/42 Auto Cook Menu
Color / Finish Stainless Steel
Interior Color Brilliant Blue
Auto Shut-Off Yes
ADA Compliant Yes
Display Type 6.3" SmoothTouch™ LCD
No. of My Menu 10
Access Control Control Lockout
Variable Cleaning Time 2 hr, 3 hr & 4 hr
Variable Broil Full, Center/High, Med, Low
Broil Element 2,500W Inner/1,500W Outer
Broil Element Pass 8
Bake Element 2,500W
Bake Element Type Hidden (8 Pass)
No. of Racks 2 Heavy Duty Racks with 1 Gliding Rack
No. of Rack Positions 5
No. of Lights 3 (Halogen Lamp - 3 Dimension Lighting)
Convection Element 2500W Carbon Heater
Proof Yes
Variable Warm High, Med, Low
Broiler Pan Yes
12 hrs. Shut-Off Yes
WideView™ Window Yes
Electrical Requirements 120/240 VAC, 120/208 VAC, 4.1kW
Product (WxHxD) 29 3/4" x 29 5/16" x 23 1/2"
Cut-Out (WxHxD) 28 1/2" x 29" x 23 1/2"
Weight (Product) 157 lbs.
Limited Warranty 2 Years Parts and Labor

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 210ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View LSWS305ST Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Does a fan run continuously in Bake mode?

When we start the oven in Bake mode a fan appears to run. At temperature the sound does not change. The convection fan in the back of the oven does not appear to be moving. We have a Studio wall oven LSWS305ST.
Asked by: KenPA
We appreciate your interest in this Studio Series Wall Oven. This device is designed with more than one fan in the system. The Convection Fan will not be running during the standard bake function. Another fan can still be in operation. It seems this unit is operating normally.
Answered by: NeilE
Date published: 2014-12-05

Is this real stainless steal or just the look like stainless steal?

Asked by: JoshW
This unit has real stainless steel.
Answered by: LGJoel
Date published: 2012-07-12

Does the Studio series wall oven blow hot air out the front when baking?

Many single wall ovens on the market today blow a lot of hot air out the front when they operate. Is this the case with the LG studio series single 30" wall oven? Also, will the broiler operate with the door open a bit?
Asked by: Calico
Please feel free to contact LG Customer Service at (800) 243-0000 or visit the support section of our website at for assistance.
Answered by: Nadine
Date published: 2016-02-07

Is this a gas or electric oven

I can't see where it lets me see gas ovens
Asked by: Anonymous
Hello, this is an Electric Built-In Oven. Thank you for your question! We appreciate your feedback, please give us a “thumbs up” if this answer is helpful to you; and please let us know if we can assist you with anything else. Have a great week!
Answered by: Nadine
Date published: 2015-02-15

can this model be mounted under LSCG306ST?

Asked by: Anonymous
Yes. As long as all installation requirements for both units are met.
Answered by: Nadine
Date published: 2015-09-12

cleaning the oven

can you keep the racks in during cleaning
Asked by: Anonymous
It is not recommended to leave the racks in the oven during the self-cleaning cycle. On page 30 of the owner’s manual, this is stated at least twice: Remove the oven racks, broiler pan, broiler grid, all cookware, and aluminum foil or any other material from the oven.
Answered by: NeilE
Date published: 2016-02-07

Can this model be mounted under the LSCE305ST Radiant cooktop?

Asked by: Anonymous
Yes, as long as you regard all the recommended installation instructions of both units.
Answered by: Nadine
Date published: 2014-07-31

what are the interior dimensions of the 30" single wall oven

Asked by: wren
Thank you for your question. You should find all of the measurements and specifications for your unit at If the information is not there, please feel free to contact one of product specialists at 1-800-243-0000 or via live chat @
Answered by: Stan
Date published: 2014-07-31
