4.7(x2) cu.ft. Capacity 30” Built-in Double Wall Oven with Crisp Convection

  • LWD3010ST

  • Stainless Steel

Key Features

  • Crisp Convection
  • Self Cleaning
  • SmoothTouch™ Controls
AVAILABLE COLORS:
SUMMARY
Oven Type Double
Capacity 4.7 cu.ft. Upper / 4.7 cu.ft. Lower
Dimensions (W x H x D) 29 3/4" x 52 1/16" x 24 3/8"
Convection Bake Yes
Convection Roast Yes
Color / Finish Stainless Steel
Interior Color Blue
Self Cleaning Yes
Auto Shut-Off Yes

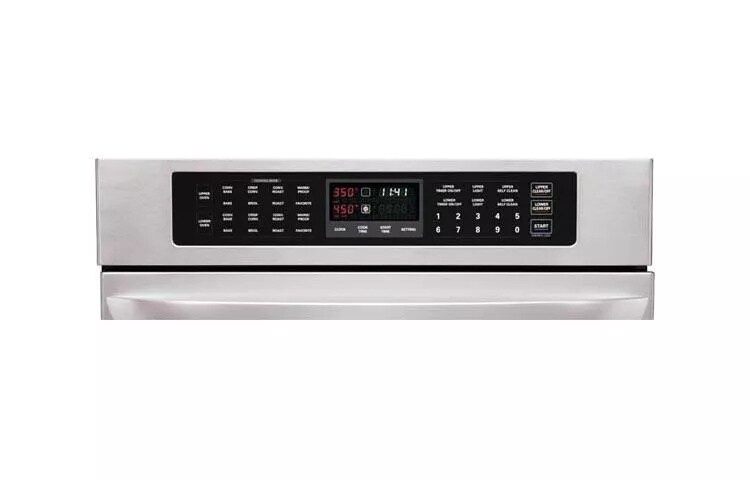

CONTROLS
Display Type White VFD
OVEN SPECIFICATIONS
Variable Broil Full, Center/High, Med, Low
Broil Element 2,500W Inner/1,500W Outer
Broil Element Pass 8
Bake Element 2,500W
Bake Element Type Hidden (8 Pass)
No. of Racks 5 Heavy Duty Racks
No. of Rack Positions 5
Convection Element 2500W Carbon Heater
Variable Warm High, Med, Low
Specialized Cooking Healthier Roast (Reduced Fat Cook) on Upper Oven Only, Crisp Convection
Broiler Pan Yes
DIMENSIONS
Product (WxHxD) 29 3/4" x 52 1/16" x 24 3/8"
Cut-Out (WxHxD) 28 1/2" x 51 15/16" x 23 1/2"
Weight (Shipping) 303 lbs.
WARRANTY
Limited Warranty 1 Year
UPC Code 048231 317108

What People Are Saying

Rated 5 out of 5 by from Double Oven Gorgeous look. Purple color inside is unique. Cooks crisp and refreshing!
Date published: 2015-11-05
Rated 5 out of 5 by from Well worth the money To have two ovens at your disposal is great but when they are convection ovens even better. Self clean feature is great and the fact that the inside is blue give it a very sharp look . Would definitely recommend
Date published: 2015-07-21
Rated 4 out of 5 by from Spectacular Ovens These are definitely a chefs oven! We cook every evening and these ovens are fantastic. They heat up quick, the convection crisp feature is very nice, broiler works well (multiple settings), favorite setting is an easy "1", "2", Startup and we couldn't be happier! the cobalt blue interior, lighting and orange heating element make this oven a conversation piece+cool factor. we purchased 2 additional/Gliding Racks which really help with heavier pans and just make it easier. we have a few other LG appliances in the home and were comfortable purchasing the double wall ovens, as a replacement to our GE monogram/builder ovens. the LG oven was a perfect fit, no retrofitting needed. easy installation/guy was here for about an hour. LG dishwasher, washer/dryer and now wall ovens. when all are going at the same time, its like an orchestra in our house! they all sing tunes.. definitely recommend, for the price and what you get. we've done our research and had our choices down to about 4 ovens. waited, and got this on sale and we were thrilled with the outcome.
Date published: 2015-07-11
Rated 5 out of 5 by from Gorgeous Appliance! We love our new LG oven! Not only is it attractive, it works well and is quiet during operation. And by waiting for the right sale we purchased it for almost $1,000 below suggested retail. You'll love this oven and its features!
Date published: 2015-04-16
Rated 5 out of 5 by from Musical Oven This double oven is not only beautiful to view but it sings to you at different times. I am just learning how to use the convection feature and the first item was a success. The chicken was moist inside and tasted much better. This oven is large and very functional. It is sleek and shiny inside and has beautiful stainless outside. I am amazed at how much faster everything cooks.
Date published: 2014-11-29
Rated 5 out of 5 by from Great Product I love all of the LG products. The ovens heat up much faster than our old oven. My wife can't wait for Thanksgiving.
Date published: 2014-08-30
Rated 5 out of 5 by from This product is beautiful inside & out I love my double oven. It heats up quickly & quietly, cooks evenly, is so pretty inside, came with a beautiful broiling pan to match it & then it cools down quickly & quietly. No complaints, just good stuff to say. Oh - and the sound of the timer is so pleasant :)
Date published: 2014-05-08
Rated 5 out of 5 by from Looks good, great features, Stainless Steel Oven does a great job both using convection and traditional selections. Very stylish w/other LG appliances in new kitchen reno.
Date published: 2014-04-04
  • 2016-08-25T09:04CST
  • bvseo_cps, prod_bvrr, vn_cps_3.3.0
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_10
  • loc_en_US, sid_MD00000006, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LWD3010ST Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How can I order additional racks.

Asked by: itspamo
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2016-07-21

This oven fan is very loud and continues to run for an extremely long time after the oven is turned off. How can this be corrected? It is embarrassing when your dinner guest can't hear over the fan. Is the only cooling vent in the front of the unit?

Asked by: Pedey
We regret the trouble you have experienced with this Dual Wall Oven. The only available vents are located in the front of the oven, as all other sides are designed to be enclosed in the cabinetry. The operations of the oven could be affected if the unit was not properly installed. If this is not the case, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-03-29

Matching microwave oven/dishwasher?

I recently purchased the double wall oven, and would like the microwave and dishwasher to match as closely as possible. Suggestions as to a particular line or models? Thanks.
Asked by: Lucille
We appreciate your interest in this oven and its kitchen series. There is not a microwave model designed to exactly match this model. It is suggested to review the LMVM2033ST or the LMH2237ST, or other similar models listed on our website at http://www.lg.com/us/microwave-ovens.
Answered by: NeilE
Date published: 2016-03-25

what is the recomended height from the floor to the start of the cutout?

Asked by: vikes
We appreciate your interest in this Double Wall Oven. It is recommended to allow a minimum of 1” below the oven cut-out, to allow for overlap of the oven. These specifications are provided on page 5 of the Installation Guide that is packaged with the oven.
Answered by: NeilE
Date published: 2015-12-12

What is the lowest temperature settomg? I would like to dehydrate in my oven. Can you order glide/rollout racks for this mode?

Asked by: ovengirl
Both the upper and lower ovens on the LG 4.7(x2) cu.ft. Capacity 30” Built-in Double Wall Oven with Crisp Convection, Model # LWD3010ST can be programmed to bake at any temperature from 170°F (80°C) to 550°F (288°C). Default temperature is 350°F (177°C). The closest LG Authorized Parts Distributor to your region where you can order glide/rollout racks for this model if they are available is: Andrews Electronics 25158 Avenue Stanford Santa Clarita, CA 91355 Sales: 877-389-6384 Fax: 800-289-0301 http://lge.andrewselectronics.com...^IFV
Answered by: LGJoel
Date published: 2015-08-18

Does this model come in white?

Asked by: grannyjan
Hello grannyjan. Your inquiry is appreciated. The LG 4.7(x2) cu.ft. Capacity 30” Built-in Double Wall Oven with Crisp Convection, Model # LWD3010ST only comes in the Stainless Steel finish...^IFV
Answered by: LGJoel
Date published: 2015-05-18

where can a get copy of the installation instructions?

i ordered this oven through home depot. is it possible to get a copy of the installation instructions so that i can have the cabinet the exact specifications for when the installers come to install it? I need information on the flange. thank you
Asked by: steve123
We appreciate your interest in this wall oven. We would be more than happy to provide installation materials. Please contact our Customer Interactive Center at 800-243-0000 for assistance in this matter.
Answered by: NeilE
Date published: 2014-09-17

What does the term "crisp convection" mean?

Asked by: Tall
Crisp Convection Continually distributes heat precisely so cooked foods such as biscuits, scones or pizza can remain delicious on the inside and crisp on the outside.
Answered by: Nadine
Date published: 2014-01-20
