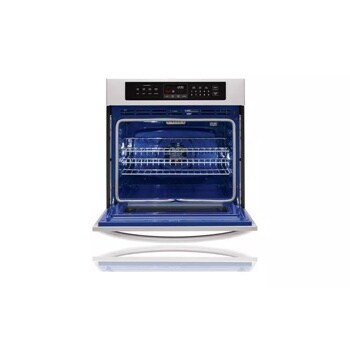

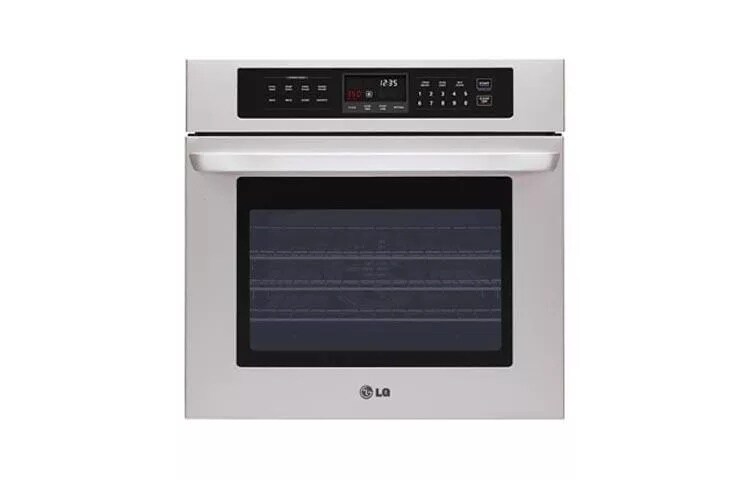

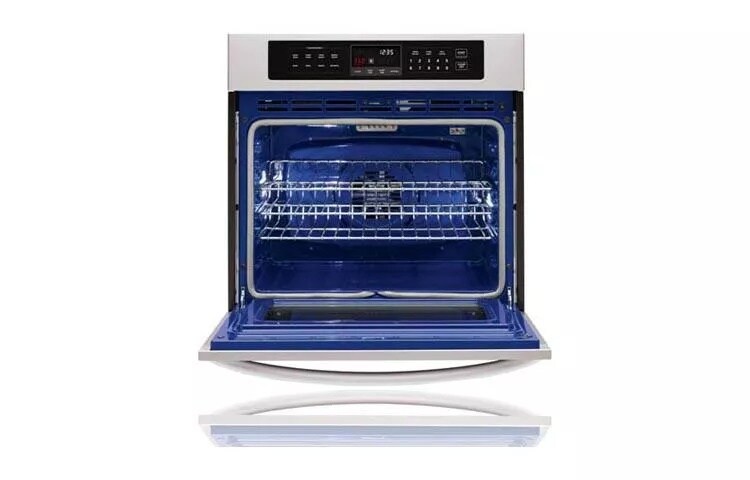

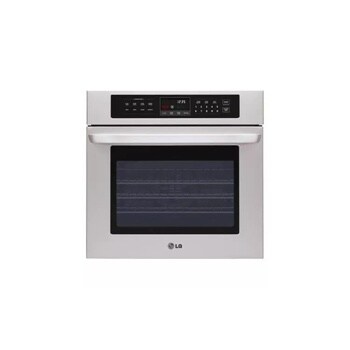

4.7 cu.ft. Capacity 30" Built-in Single Wall Oven with Crisp Convection

  • LWS3010ST

  • Stainless Steel

Key Features

  • Crisp Convection
  • Self Cleaning

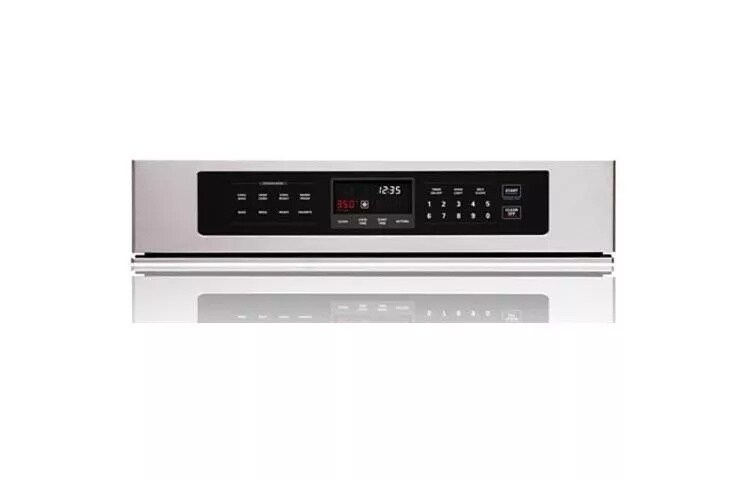

  • SmoothTouch(TM) controls

ADA - Compliant Ovens*

To be considered ADA-compliant, a freestanding slide in range must have a maximum high forward reach for controls and operating mechanisms is 48", maximum low forward reach is 15".

Oven Type Single
Capacity 4.7 cubic ft.
Dimensions (W x H x D) 29 3/4" x 29 5/16" x 24 3/8"
Convection Bake Yes
Convection Roast Yes
Healthier Roast Yes
Crisp Convection Yes
Convection Conversion Yes
LCD Display Yes
Gourmet Recipe Bank Yes
Color / Finish Stainless Steel
Interior Color Blue
Self Cleaning Yes
Auto Shut-Off Yes
ADA Compliant Yes
Display Type White VFD
Variable Broil Full, Center/High, Med, Low
Broil Element 2,500W Inner/1,500W Outer
Broil Element Pass 8
Bake Element 2,500W
Bake Element Type Hidden (8 Pass)
No. of Racks 3 Heavy Duty Racks
No. of Rack Positions 5
Convection Element 2500W Carbon Heater
Variable Warm High, Med, Low
Specialized Cooking Healthier Roast (Reduced Fat Cook) on Upper Oven Only, Crisp Convection
Broiler Pan Yes
Product (WxHxD) 29 3/4" x 29 5/16" x 24 3/8"
Cut-Out (WxHxD) 28 1/2" x 29" x 23 1/2"
Weight (Shipping) 179 lbs.
Limited Warranty 1 Year
UPC Code 048231 317092

What People Are Saying

Rated 5 out of 5 by from Xmas cooking We are remodeling our kitchen & decided to put in a wall oven to go with our stove. I haven't used it yet as I don't want to use the new appliances until the kitchen is finished, but I can tell that it has some really good features, it has a lot of cooking room, looks great with the other appliances & I am going to really have a good time at Xmas cooking cookies, cakes & the big turkey. I can't wait to try all the features.
Date published: 2015-08-14
Rated 4 out of 5 by from Great oven with many features! I haven't had this unit very long so only used a few times but have been very pleased with my experience so far! IT's a sharp looking oven with so many neat features. I like the indicator tones allowing me to hear when oven is pre-heated, etc. Another feature I have not had with previous ovens that I will really like is the 5 position rack. Overall I'm very happy with my purchase of this oven!
Date published: 2015-07-06
Rated 5 out of 5 by from Great oven This oven is wonderful. It is also beautiful. The inside is a beautiful blue and I love how it plays a song instead of an annoying buzzer when the timer goes off. It cooks everything great and I love the convection capabilities, which I am just learning how to use. Very glad I chose this product.
Date published: 2014-10-22
Rated 5 out of 5 by from Electric Wall Oven My wife loves to cook and baking is her specialty. This oven has met her expectaions (which were high). It looks great, the controls are easy to understand. It heats up quickly and holds a consistent temp. needed for baking.. Great device.
Date published: 2014-07-22
Rated 1 out of 5 by from FAN NOISE Bought this unit and put it in the open wall space, turned it on and knew immediately that I had made a huge mistake in buying this oven. My wife and I looked at each other and our mouths wide open. The fan noise is almost like a practical joke its so loud. Not only can you not hear yourself think, you have to listen to this noise for over 55 minutes after you take something out of the oven. LG did not do their homework when it came to this product. This thing needs a whole remake. Do not waste your hard earned money!!!
Date published: 2014-04-21
Rated 4 out of 5 by from solid unit I have only had this product for one month and I have used it only a few times. It hass lots of nice features and looks great. The construction of the unit is solid and it heats up fast to baking temperature. I had wished I could increase the alert sounds from the factory setting, but no adjustment there. Kitchens can be noisy environments. Installation was a piece of cake. Considering other high end stainless steel ovens out there, this was was a much better deal. So far it is everything I need and want
Date published: 2012-05-11
  • 2015-11-26T07:30CST
  • bvseo_cps, prod_bvrr, vn_cps_3.1.6
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_6
  • loc_en_US, sid_MD00001189, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 12ms

We're here to support you with our product.

View LWS3010ST Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How do you change the clock from military time to standard time?

Asked by: Lisa4361
Touch the SETUP button on the display panel. Press the #7 for SETTING THE CLOCK TIME. Touch 12HR for a Standard 12-hour clock. Press the OK button, and then BACK. Next, enter the current time and press the OK button to store.
Answered by: NeilE
Date published: 2015-05-18

do you have a wall mount bracket for this oven

mod# lws3081st
Asked by: kitchenredo
I apologize, but no; there is no mounting bracket that is required for the installation of this range. All that is provided with this unit is the Metal Bottom Trim Kit and various screws needed for the process.
Answered by: NeilE
Date published: 2014-04-04

can this go under a gas Cooktop that is 36 inches tall 35 to the countertop

Asked by: tugger
We appreciate your interest in this Single Wall Oven. This model is designed for a total height of 29 5/16”. Beyond this, it will depend upon how deep the cooktop rests into the cabinet.
Answered by: NeilE
Date published: 2014-10-09

what is the amp for lg lws3010st single oven

Asked by: arturo
A single wall oven can consume up to 4,100 Watts at 240 VAC. A 30 Amp circuit breaker with wire gauge of at least #10 AWG must be used. A double wall oven can consume up to 7,800 Watts at 240 VAC. A 40 Amp circuit breaker with wire gauge of #8 AWG must be used.
Answered by: NeilE
Date published: 2012-12-05


Asked by: HOWARDS
LG Electronics is a company that thrives on innovation. Our products and technologies enhance lives and introduce our customers to a whole new world of creative designs. We are committed to finding new ways to make your life better and easier-through simple user interfaces, stylish designs and intelligent, state-of-the-art technology. Each unit has special design features and specifications. You may visit our website at to review all information on all of our newest models.
Answered by: LGJoel
Date published: 2014-11-14

What voltage that this product need? Is it 240 watts or 120 watts?

Asked by: CROPPIE
The power/ratings for this range are as follows: Amp Rating @208V - 120/208 VAC Amp Rating @240V - 120/240 VAC KW Rating @208V - 3kW KW Rating @240V - 4.1kW
Answered by: LGJoel
Date published: 2012-07-13

what is the space required between the lg oven 3010 and the fridge LMX2596

we are putting in new cabinets and the contractor wants to install them next to each other. what is the allowable distance?
Asked by: JoanneWB
Please contact LG Customer Service at (800) 243-0000 or visit the support section of our website at for assistance.
Answered by: Nadine
Date published: 2012-05-05

Plug receptacle location

I am building a new home will plans of putting this oven in. Is there a better place to rough wire for the oven then another.
Asked by: gashdown
Please contact LG Customer Service at (800) 243-0000 or visit the support section of our website at for assistance.
Answered by: Nadine
Date published: 2012-05-05
