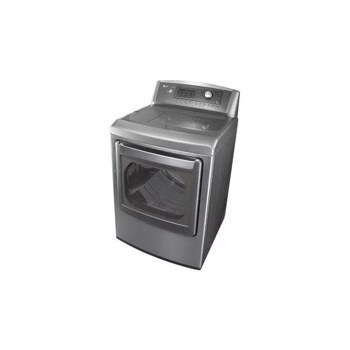

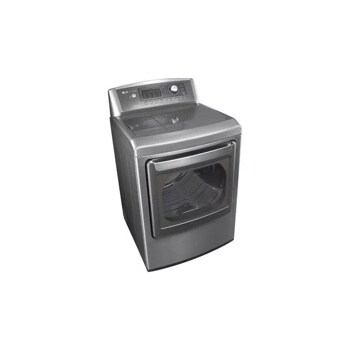

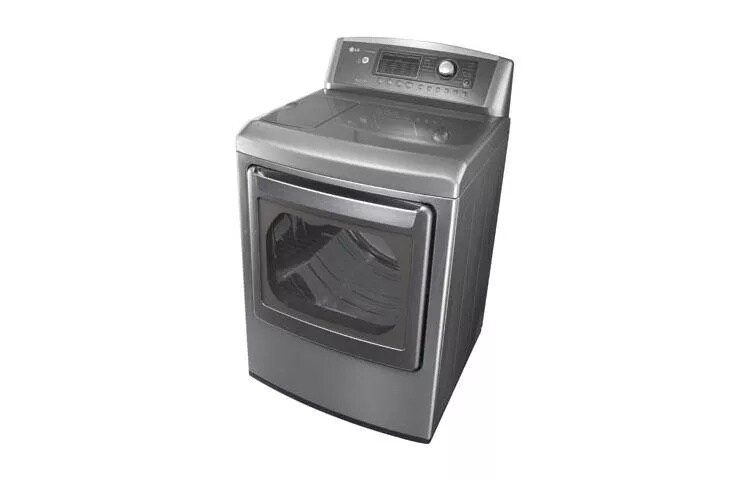

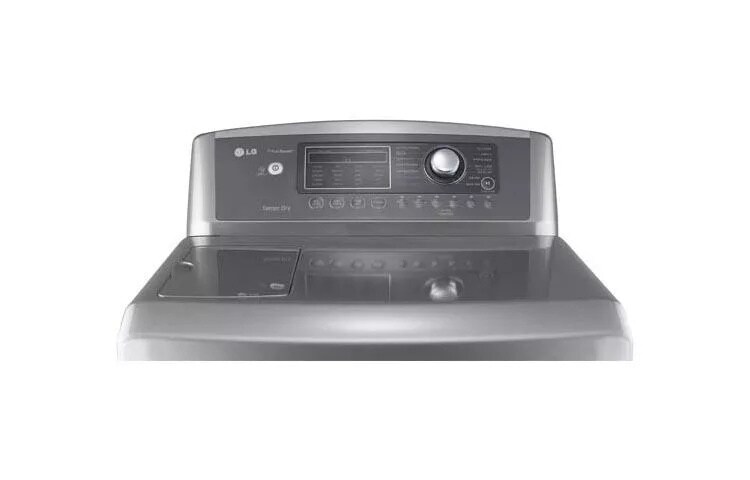

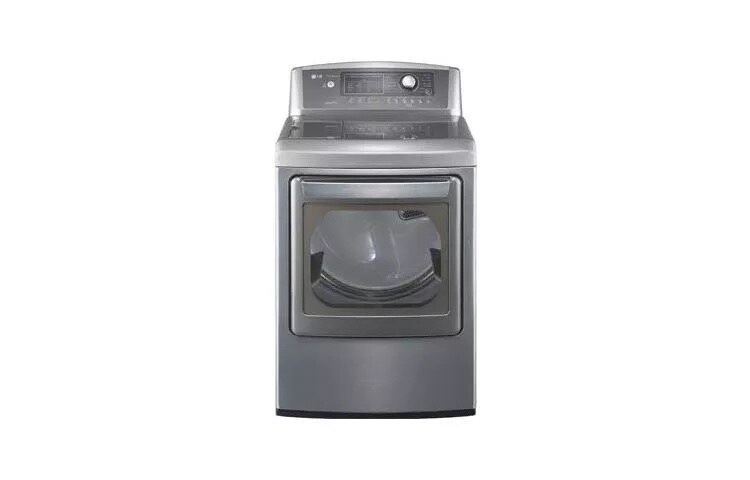

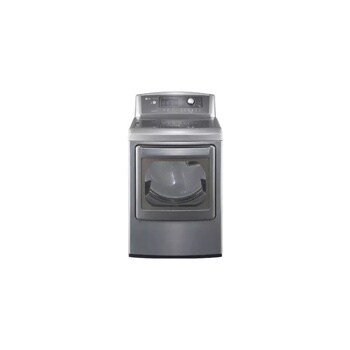

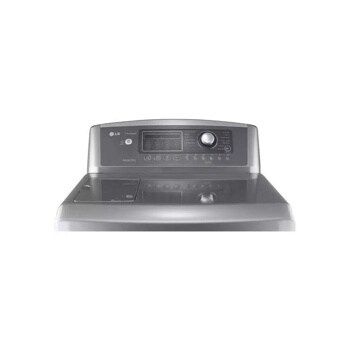

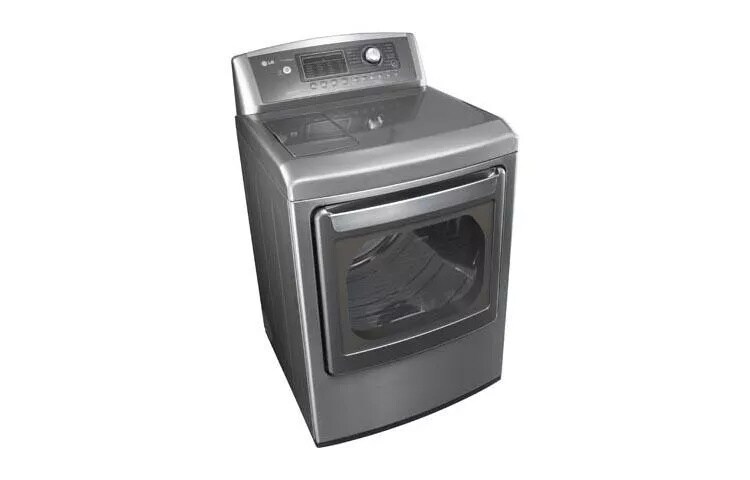

7.3 cu. ft. Ultra Large Capacity SteamDryer™ (Gas)

  • DLGX5171V

  • Graphite Steel

Key Features

  • 7.3 cu. ft. Ultra Capacity
  • TrueSteam™ Technology
  • SteamFresh™ cycle
  • SteamSanitary™ cycle
AVAILABLE COLORS:
Big time saver

Big time saver

Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Smooth operator

Smooth operator

A lot of those drying headaches can be a thing of the past. Our TrueSteam™ Technology generates real steam to reduce wrinkles and odors, and practically eliminates the need for ironing.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Wash the unwashable

You probably wish you could clean your throw pillows or children’s toys. With the SteamSanitary™ Cycle, you can. It uses steam to safely sanitize items marked as non-washable.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

Really dry clothes

Really dry clothes

What’s worse than pulling clothes out of the dryer and finding they’re still damp? Our Sensor Dry system measures the moisture levels during the cycle and automatically adjusts the drying time, to help ensure you get dry laundry every time.

SUMMARY
Dryer Type Gas
Type of Display Dual LED
Dimensions (WxHxD) 27" x 45 3/8" x 28 3/8"
Capacity 7.3 cu. ft.
SteamDryer™ Yes
Number of Drying Programs 14
Number of Temp Levels 5
Number of Options 9
Dial-A-Cycle™ Yes
Sensor Dry System Yes
Warranty 1 Year Parts and Labor
DRYING PROGRAMS
Options Damp Dry Signal, End of Cycle Signal, EasyIron™, ReduceStatic™, Less Time, More Time, Child Lock, Custom Program, Wrinkle Care
Program Names Manual Dry: Rack Dry, Air Dry, Speed Dry Sensor Dry: Cotton/Normal, Perm/Press, Heavy Duty, Bulky Bedding, Delicates, Anti-Bacterial, Towels, Small Load, Sports Wear, SteamFresh™, SteamSanitary™
Temperature Levels High, Medium High, Medium, Low, Ultra Low
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
FlowSense™ Duct Clogging Indicator Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Damp Dry Beep Yes
Sensor Dry (Dual System) Yes
3 Minute Installation Check Yes
Drying Rack Yes
Drum Light Yes
Venting Option 3 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
Drum NeveRust™ Stainless Steel
Top Plate Painted Steel
Cabinet Painted Steel
Control Panel Plastic
Available Colors Graphite Steel, White
Door Rim Glass/Chrome
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps
Type Gas
DIMENSIONS
Product (WxHxD) 27" x 45 3/8" x 28 3/8"
Carton (WxHxD) 29 1/2” x 48” x 31 1/4”
Weight (Product/Carton) 136.7 lbs. / 149.0 lbs.
SIZE AND WEIGHT
Width 27"
Height 45 3/8"
Depth 28 3/8"
Depth with Door Open 55 3/4"
Carton (WxHxD) 29 1/2” x 48” x 31 1/4”
Weight (Product) 136.7 lbs.
Weight (Shipping) 149 lbs.

What People Are Saying

Rated 4.9 out of 5 by 110 reviewers.
Rated 5 out of 5 by This product has great features. I like the conveniently placed water dispenser. Steam cleaning works well. The dryer runs quietly and very efficiently. Clothes are not wrinkled. July 31, 2014
Rated 5 out of 5 by This is the only dryer to have Have had this dryer a little over two months now and we have loved it since the first day we used it. So so easy to operate. It is a steam dryer where you add the water in a container on the top. I like this much better than having to have someone come out and run a water line to the dryer. We haven't used the steam function yet but it will be very easy to use and we will definitely be using this steam function. When setting the time for drying a certain type of load it will show so much time to dry but with the sensing system the time showing at the beginning of the cycle is usually cut in half. Our clothes come out and they are not wrinkled like they were with our old dryer. This dryer is very very quiet. We love it and our matching LG washing machine. A great product from LG. July 4, 2014
Rated 5 out of 5 by Excellent product! This dryer is great--I love the stainless steel drum and the see-thru door. The features are easy to use and the combinations are endless. The dryer is extremely well built and I would buy it again, along with the matching washer, in a heart beat. July 4, 2014
Rated 5 out of 5 by Best dryer ever owned. Excellent dryer, this dryer drys the clothes on the first settings, unlike my previous dryer(s) which took about two to three tries. Love all the additional features and it even looks great. May 31, 2014
Rated 5 out of 5 by Multiple drying option allow for customized drying I have been very pleased with this dryer and the many drying options it offers. If I'm in a hurry I can select one of the standard options or when I need to be a bit more particular, I can tailor my drying choices. We also have an LG washer, purchased at least a year before the dryer, and have been pleased with it. No problems yet. Have not used the steam process. The dryer filter does need cleaning frequently. May 17, 2014
Rated 4 out of 5 by Love this dryer Great dryer....costs a lot, but it has a lot of great features. My favorite, the light in the drum. Too many cycle selections, but I wanted all the bells and whistles. Put this machine on a surge protector...it's not just a dryer, it's a computer. May 15, 2014
Rated 5 out of 5 by Very satisfied with this dryer I read many reviews of different dryers and have to agree with the consistently positive reviews of this dryer. Lots of drying options, easy to use, dries well and the drying rack is great. I've only had it for several weeks, so I can't comment on durability or long-term use, but I am happy with this purchase and plan to look at a matching LG washer; this was my first LG appliance purchase. May 13, 2014
Rated 5 out of 5 by sensor dry I had set the dryer for a 41 minute dry following removal of a large bathroom rug from the load of clothes previously run. I was upset to hear the dryer stop within ten minutes. Upon checking the clothes, they were all dry. The dryer turned itself off responding to the sensor dry feature. My dryer is in an out of the way location so I was totally unaware and pleasantly surprised by this feature. Just another perk. May 5, 2014
2 3 4 5 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

14 Questions & 12 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


WT2101HV vs WT5171H
DLGX5102V vs DLEX5171 (gas)

Should I wait for the new model?
When will it be available?
2 years, 4 months ago
User Name:
DKDK
Scottsdale, AZ

Please wait while more information about DKDK is loaded.
Additional information about DKDK could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
LG Electronics is a company that thrives on innovation. Our products and technologies enhance
lives and introduce our customers to a whole new world of creative designs. We are committed to
finding new ways to make your life better and easier-through simple user interfaces, stylish designs and
intelligent, state-of-the-art technology. Each unit has special design features and specifications. You may
visit our website at www.lg.com to review all information on all of our newest models.
Please contact our Customer Interactive Center at 800-243-0000 for additional information.
Please contact LG's Customer Service team at www.lgusa.com/support for assistance.
2 years ago
User Name:
LGJoel

Please wait while more information about LGJoel is loaded.
Additional information about LGJoel could not be loaded.
-2points
0out of 2found this answer helpful.
HelpfulNot Helpful
2 years, 4 months ago
User Name:
washerwoman
vi

Please wait while more information about washerwoman is loaded.
Additional information about washerwoman could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
I apologize, but no; it is not recommended to use any sort of oil or other fragrance additive in the steam compartment of the dryer. The use of such can cause improper sealing in the tank and water valves, which can result in water flowing into the dryer. Water alone should be added to this tank.
2 years, 4 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
Interested in: Specifications
2 years ago
User Name:
myninony
New York, NY, USA

Please wait while more information about myninony is loaded.
Additional information about myninony could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Please contact our Customer Interactive Center at 800-243-0000 for additional information.
2 years ago
User Name:
LGJoel

Please wait while more information about LGJoel is loaded.
Additional information about LGJoel could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

what are the EXACT measurements for the gas line and vent?

Category: I own this product
1 year, 8 months ago
User Name:
justanswerthequestion

Please wait while more information about justanswerthequestion is loaded.
Additional information about justanswerthequestion could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We appreciate your interest in the proper installation of this gas dryer. Use a 4” diameter, rigid or semi-rigid metal duct for your ventilation. The male end of each section of exhaust duct must point away from the dryer. This information is located on page 18 of the owner’s manual. The gas valve, on the back of the dryer, is a 3/8” connection and is configured to use Natural Gas from the factory. The gas shut-off valve must be installed within 6’ of the dryer. Use only a new stainless steel flexible AGA/CSA-Certified gas line. Installation of the gas lines must be performed by a qualified installer, service agency, or gas supplier. This information is found on page 20 of your owner’s manual.
1 year, 8 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I own this product
Interested in: How To use
1 year, 4 months ago
User Name:
kimb

Please wait while more information about kimb is loaded.
Additional information about kimb could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We regret the inconvenience you have experienced with this dryer. The SIGNAL alarm is designed to be ON or OFF by way of the SIGNAL button. Once it is ON, the tone should be present for each cycle completion.
1 year, 4 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
