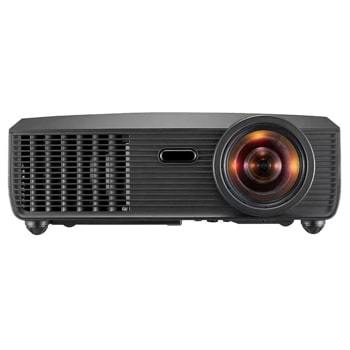

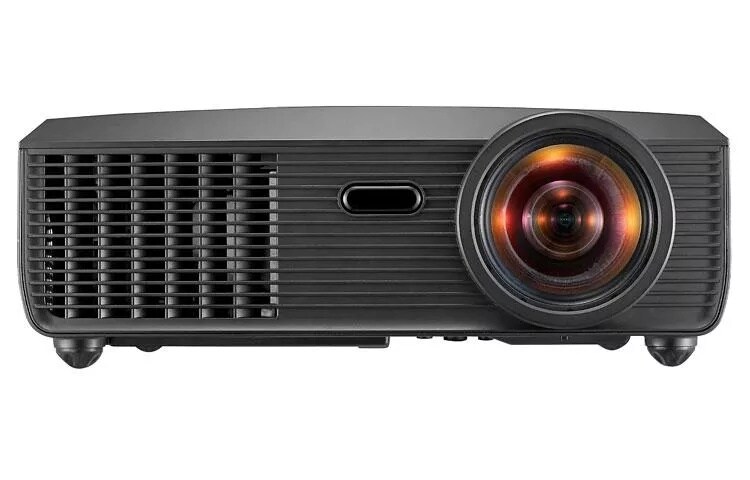

Short Throw Projector

  • BX286

  • Discontinued Product

Key Features

  • XGA (1024x768) Resolution
  • HDMI
  • 2800 ANSI
  • 2,100:1 Contrast Ratio
System DLP
Native Resolution XGA (1024 x 768)
Aspect Ratio 4:3 and 16:9
Brightness (ANSI-Lumens) Up to 2800 lumens
Contrast Ratio (FOFO) 2,100:1
Digital Keystone Correction Yes
Lamp (Type) 230W Bulb
Lamp Life Up to 4,000 hrs
3D Type DLP 3D Ready (PC XGA 120Hz)
Built-in Speakers 5W Speaker
Input / Output Terminals
RGB In 2
RGB(PC) Audio In 1
RGB Out 1
Composite (AV) In 1
S Video 1
Component (Y,Pb,Pr) 2 (thru RGB)
Audio Out 1
Power Supply AC (100~240V, 50/60Hz)
Power Consumption 295W (Normal), 243W (Eco)
Standby Mode 1W
Included Accessories
D-sub 15 1
Remote Control 1
Dimensions (WxHxD) 12.04" x 3.90" x 8.82"
Shipping Dimensions (WxHxD) 15.63" x 10.0" x 12.95"
Weight 6.83 lbs
Shipping Weight 10.14 lbs
Limited Warranty 2 Years Parts and Labor
UPC 719192579392
