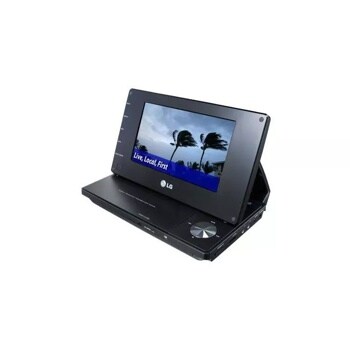

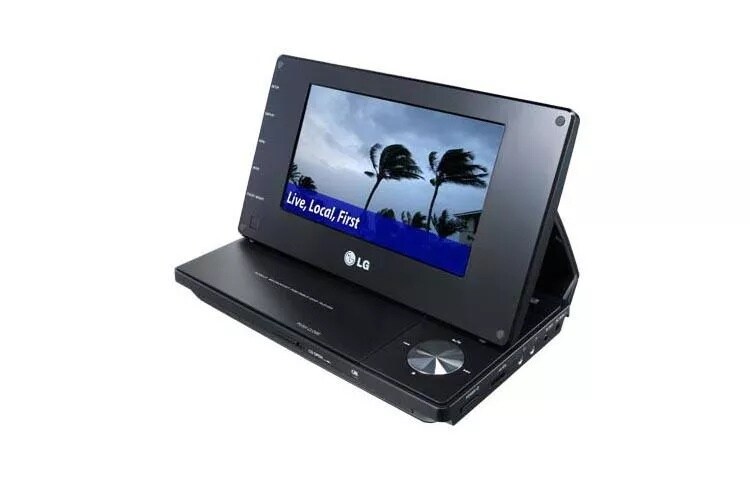

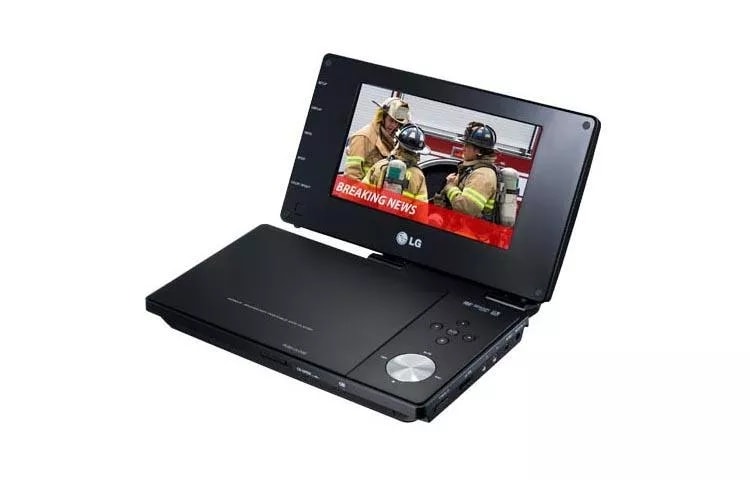

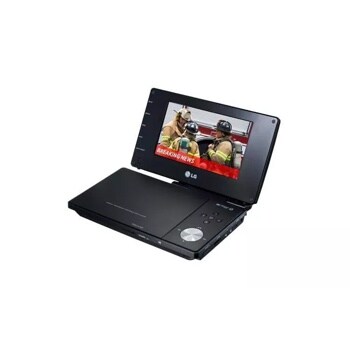

Portable DVD Player with Mobile DTV

  • DP570MH

  • Discontinued Product

Key Features

VIDEO FEATURES
Digital/Analog Conversion 108MHz/10bit
DIMENSIONS / WEIGHT
Unit Dimensions (W x H x D) 11.1" x 1.6" x 6.9"
Unit Dimensions with Battery (W x H x D) 9.3” x 5.4” x 1.8”
Shipping Dimensions (W x H x D) 13.6" x 3.9" x 10.4"
Unit Weight 0.66 lbs
Unit Weight with Battery 2.4 lbs
Package Weight 1.8 lbs
AUDIO CAPABILITIES
Digital/Analog Conversion 192KHz/24bit
Signal/Noise Ratio 100+ dB
Dolby® Digital 2 ch Down Mix Yes
Dolby® Digital Out Yes
Dynamic Range >80dB
Speaker 1.5W x 2
SUMMARY
Disc Capacity 1
Disc Playback Capability Audio CD, DVD, DVD-R, DVD-RW, DVD+R, DVD+RW
Digital Tuner Yes
Screen Type 7” 480x234 LCD
Battery Rating Up to 3 hours
Limited Waranty 1 Year Parts/90 Days Labor
Menu Language English/Spanish/French
Battery Type Rechargeable
Battery Capacity 3000 mAh
SPECIAL FEATURES
JPEG Slideshow Yes
JPEG Slideshow with MP3 Play Yes
Rotate Picture Yes
Screen Saver Mode Yes
Zoom Yes
Marker/Search Yes
Last Scene Memory Yes
Resume Play Yes
Subtitle Yes
Initial Logo Yes
Auto Power Off Yes
Lock (Parental Control) Yes
Country Code Yes
Search (Fwd/Rev) Yes
Skip (Fwd/Rev) Yes
Slow (Fwd/Rev) Yes
Still Picture & Frame by Frame Playback Yes
Repeat Yes
Repeat A-B Yes
Program Yes
Random Yes
Programmable Track Yes
Time Search Yes
Title Menu Yes
Disc Menu Yes
Changing the Audio Language Yes
Changing the Audio Channel Yes
Camera Angle Selection Yes
Black Level Expansion Yes
Vocal On/Off Yes
DRC On/Off Yes
Programmable TV Channels Yes
ACCESSORIES / BOX CONTENTS
Remote Control 1 (Mini)
Batteries 1 (Coin Type)
User Manual 1
A/V Cable 1 (RCA Type)
Warranty Card 1
AC Adaptor & Power Cord 1
Automotive Adaptor 1
WARRANTY / UPC
Limited Warranty 1 Year Parts/90 Days Labor
TUNER SYSTEM
Digital Broadcast System ATSC-M/H Built-in
Antenna Built-in
Receiving Frequency Range VHF L: 57 ~ 85 MHz, VHF H: 177 ~ 213 MHz, UHF: 473 ~ 803 MHz
Input Typical Sensitivity (Signal Level) Yes
Bandwidth 6 MHz
RF Input Impedance 50
Code Rate 1/4, 1/2
Maximum MPH data rate 5.056 Mbps
