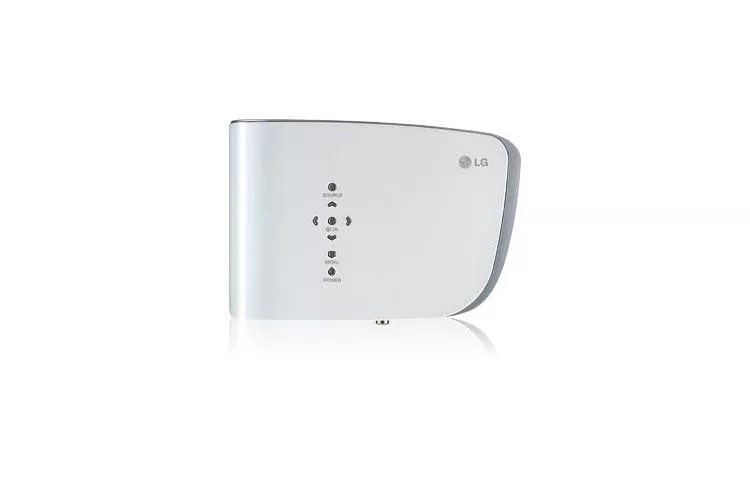

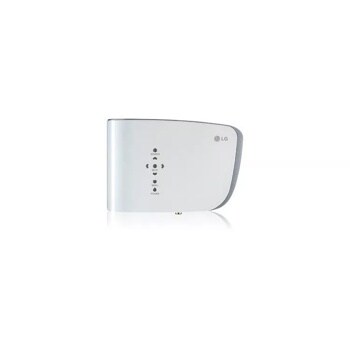

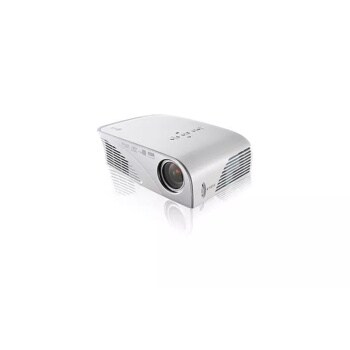

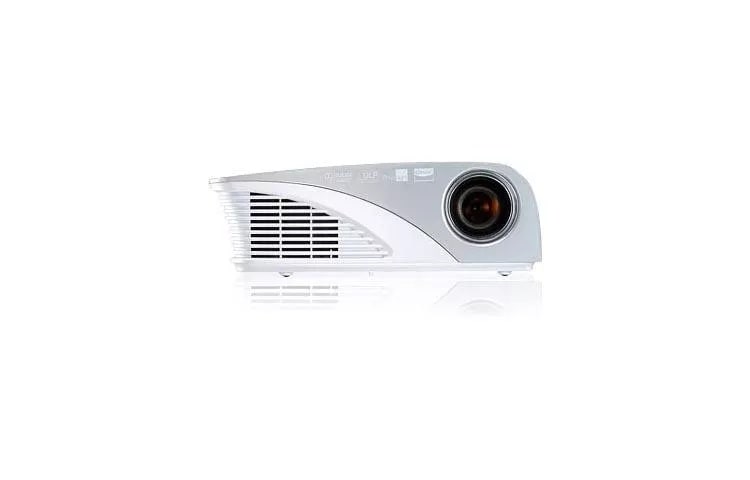

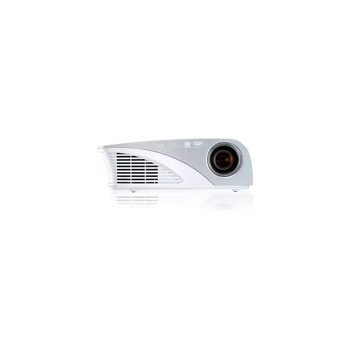

Ultra Portable LED Projector

  • HS201

  • Discontinued Product

Key Features

  • LED-Digital Based Light Source
  • Super Long Lasting LED Lamp
  • HDMI™ Input
  • Photo and Movie Player via USB, DivX SD
Display Technology 0.55" DMD
Native Resolution SVGA (800x600)
Brightness (ANSI-Lumens) 200
Contrast Ratio (FOFO) 2000:1
Noise (High Brightness) 29dB (Normal), 35dB (PT mode)
Noice (Economic) 23dB
Uniformorty > 80 %
Projection Lens (Focus) Manual
Projection Lens (Zoom) Fixed
Projection Image (Standard) 40"@ 1.1m
Projection Image (Throw Ratio) 1.35
Projection Offset 110%
Lamp LED (RGB)
Life time 30,000 Hrs
General Specification
Menu Language Korean/English/French/Spanish/German/Italian/Swedish/Portguses/Chinese Simplified/Polish/Turkish/Russian/Arabic/Brazilian Portuguese
Aspect Ratio Correction Native 4:3,Support Just Scan/Set By Program/ 16:9/Zoom/Cinema Zoom
Sound 1W+1W Stereo
Dimension (WxHxD, mm) 183 X 122 X 60
Weight 800g
Power Consumption 80W
Stand by Power < 1W
Power Supply AC DC Adaptor(100~240 free voltage), 50/60Hz
Input Signal Compatibility - Digital (HDMI) 1080p/1080i/720p/576p/480p, up to SXGA+(1400x1050@60Hz)
Input Signal Compatibility - RGB Up to WSXGA+(1680x1050@60Hz)
Input Signal Compatibility - Component Video 1080p/1080i/720p/576p/576i/480p/480i
Input Signal Compatibility - Composite Video NTSC-M/NTSC 4.43/PAL/PAL-M/PAL-N/SECAM

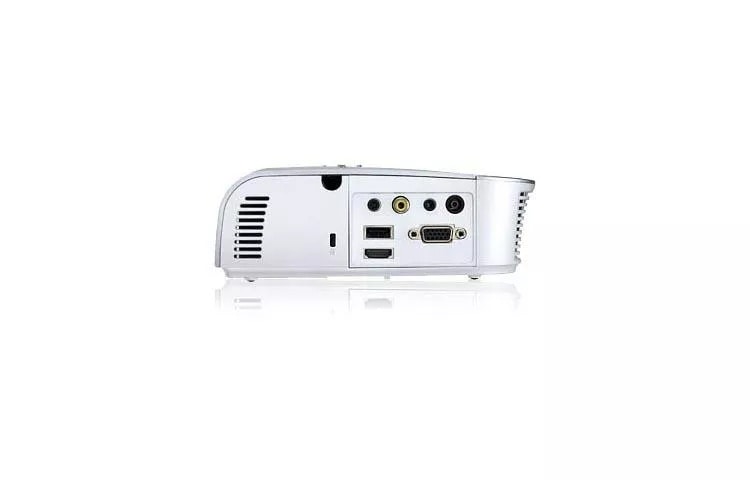

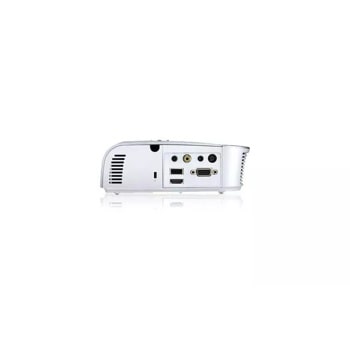

Input / Output Terminals
RGB in 1
RGB(PC) Audio in 1
Composite(AV) in 1 (Video Only)
Component (YPbPr) 1 (Thru RGB)
Audio out 1(mini Jack)
USB 1 (type A)
Special Features
Digital Keystone Correction Vertical
Picture Still Yes
Auto Source Detection Yes
Quick Power on/off Yes
Auto Sleep Yes
Blank Black, Blue, Green, Logo, Captured image
Image Flip Horizontal / Vertical
Color Temperature Yes
Black Level Control Yes
Expert control Yes
Added Features
MP3, JPEG, HD DivX Player Yes
Cabinet Color White
Local Key Yes
Kensington Lock Yes
Manual CD
Remote control Card type
RC Battery CR2032 3V Battery
Cable D-sub, RGB to Component, Power cord
Etc. External Battery (Option)
Safety Regulation CE, IEC, MIC, USA/Japan/Chinese
Limited Warranty 2 Years Parts and Labor
