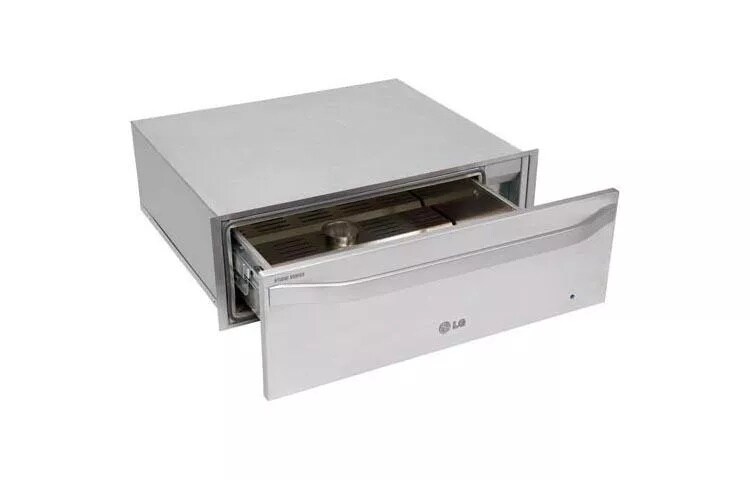

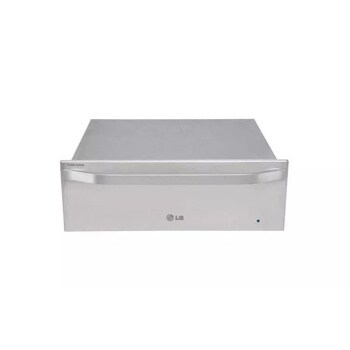

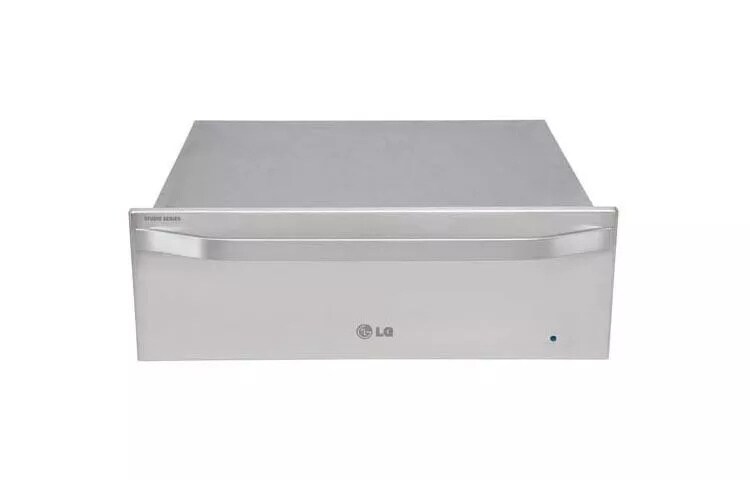

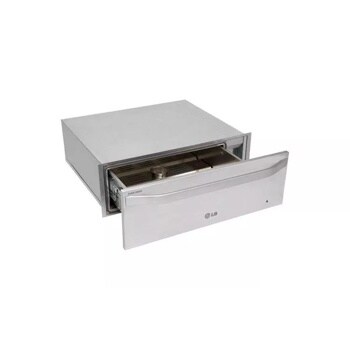

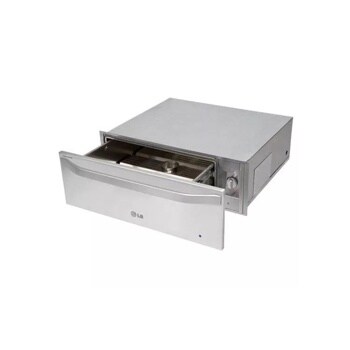

LG Studio - 30" Warming Drawer

  • LSWR300ST

  • Stainless Steel
  • Discontinued Product

Key Features

  • 1.6 cu.ft. Capacity
  • Temperature Settings 90°F – 250°F
  • Two Half-Sized Low Racks
  • Indicator Light
Type Warming Drawer
Capacity 1.6 cu.ft.
Overall Width 29 1/8"
Overall Height 10"
Overall Depth (from rear) to front edge of trim 23 1/2"
Overall Depth (from rear) to end of handle 27 1/2"
Overall Depth (from rear) with drawer open 47 1/2"
Cutout Width 28 1/4"
Cutout Height 9 5/8"
Cutout Depth 24"
Interior Width 20 1/2"
Interior Height 6"
Interior Depth 22 1/2"
Approximate Shipping Weight 90 lbs.
Variable and Preset Temperature Settings 90° – 250°F
Control Type Rotary Thermostat Control
Indicator Light Yes
Half-sized Low Racks Yes
Full Extension Ball Bearing Glides Yes
Removable Drawer Yes
Available Colors Stainless Steel (ST)
Handle Stainless Steel (ST)
Installation Under Oven
Electrical Requirements 120 VAC/60Hz/15A
Certification UL/cUL Listed
Concealed Heating Element 500W
Limited Warranty 2 Years Parts and Labor

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 415ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View LSWR300ST Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Can the 30" warming drawer be installed in place of the bottom storage drawer on a LRG3095ST?

I own a LG Oven LRG3095ST with a storage drwer underneath that is wasted space. I would like to change that drawer and replace it with the warming drawer. Can that be easily done?
Asked by: ovenretrofit
I apologize, but no; this gas range has not been designed for compatibility with the LSWR300ST warming drawer.
Answered by: NeilE
Date published: 2014-12-12

What is this used for?

Asked by: Anonymous
LG LSWR300ST - 30" Warming Drawer Lower settings are great for proofing bread or keeping plates warm. Higher settings can keep hot foods hot until serving time.
Answered by: Nadine
Date published: 2012-08-24

Is this item being produced?

I'm having difficulty finding the LG warming drawer LSWR300ST anywhere. It appears like it is not being produced. If that is the case, this product page is misleading. I would appreciate if you could help me get one. Thanks!
Asked by: SearchingForLG

Can this be installed under a cooktop?

Asked by: Ggotham
