ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+
Energy label A12LL.png
Energieklasse : CH
Produktinformationsblatt

Spezifikationen

Bewertungen

Support

ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+

Energy label A12LL.png
Energieklasse : CH
Produktinformationsblatt

ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+

A12LL

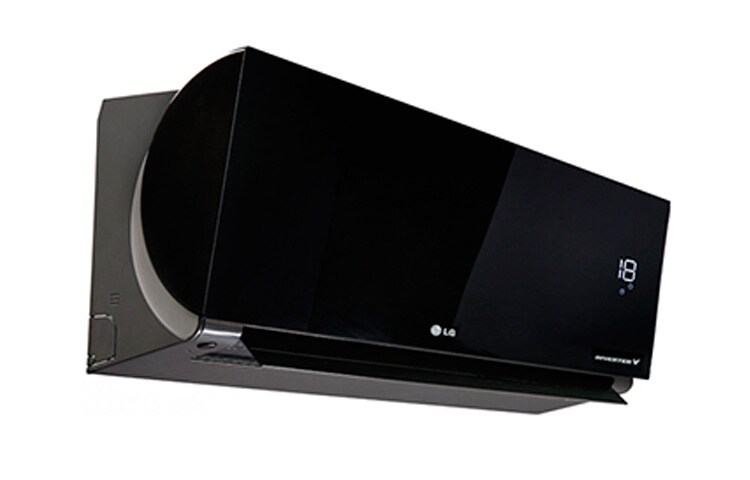

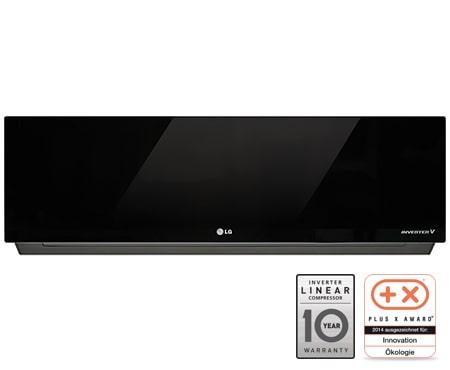

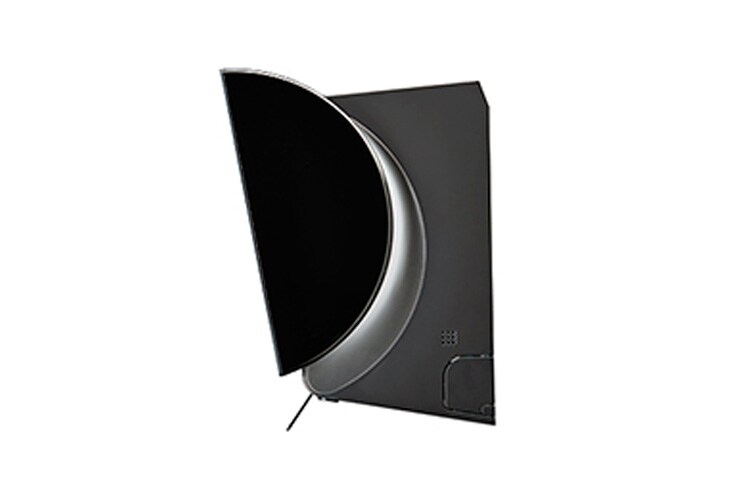

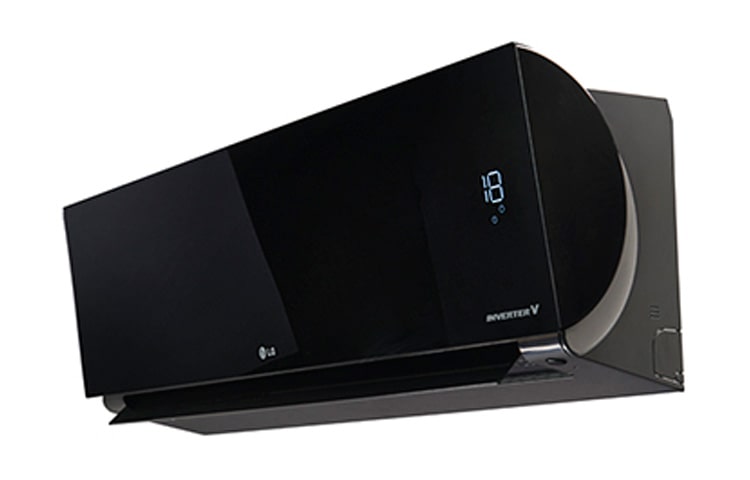

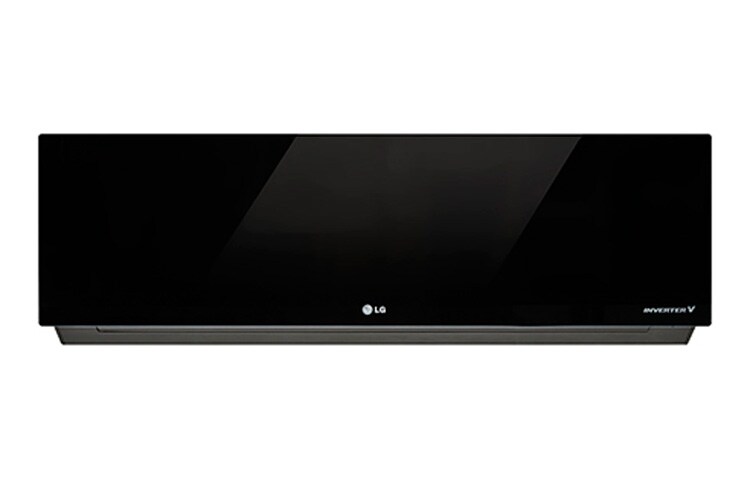

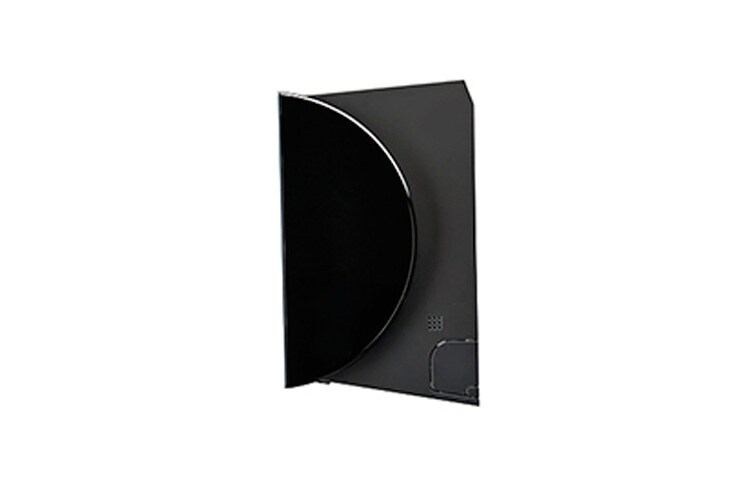

  • Vorderseite von ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+ A12LL
  • LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL
  • LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL
  • LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL
  • LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL
  • LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL
Vorderseite von ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+ A12LL
LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL
LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL
LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL
LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL
LG ARTCOOL SLIM INVERTER V, SINGLESPLIT 3,5,5KW, ENERGIEEFFIZIENZ A++/A+, A12LL

Hauptmerkmale

  • Aktive Energiekontrolle
  • Stylisches Design
  • Plasmaster™ Ionizer Plus
  • Mikro-Staubfilter Powered by 3M
Mehr
Drucken

Alle Spezifikationen

INNENEINHEIT

  • Gewicht

    10 kg

  • Betriebsstrom (Standard/Max) in A

    Kühlung (4,1 / 6,0); Heizung (4,4 / 8,0)

  • Leistungsaufnahme (Standard) in kW

    Kühlung (0,9); Heizung +7°C (1,0)

  • Energieeffizienzklasse (Kühlen/Heizen)

    A++ / A+

  • COP

    4,0

  • Leistung (Min/Standard/Max) in kW

    Kühlung (0,9 / 3,5 / 4,0); Heizung (0,8 / 3,8 / 5,1); Heizung -7°C (3,6)

  • Empf. Verbindungsleitung

    4 x 1,0 mm2

  • Empf. Netzkabel

    3 x 1,5 mm2

  • Lüfter Motorleistung

    20 W

  • Leistung (nominal) Heizen

    3,5 kW

  • Leistung (nominal) Kühlen

    3,5 kW

  • Spannungsversorgung ü. AE

    ø 1 / 220-240 V / 50Hz

  • Max. Absicherung

    16 A

  • Jahresenergieverbauch (Kühlen/Heizen) in kWh

    190 / 1350

  • SEER

    6,4

  • Anlaufstrom (Standard) in A

    Kühlung (4,1); Heizung (4,4)

  • SCOP

    4,0

  • Schallleistungspegel (Hoch) in dBA

    Kühlung (57 dBA)

  • Abmessungen (H x B x T) in mm

    305 x 957 x 177

  • EER

    3,7

  • Luftvolumenstrom (Max/H/M/L/S) in m3/h

    Kühlung (720 / 600 / 420 / 330 / 210); Heizung ( - / 630 / 510 / 390 / - )

  • Entfeuchtungsrate

    1,3 l/h

  • Schalldruckpegel (H/M/L/S) in dBA

    Kühlung (39 / 33 / 23 / 19); Heizung (39 / 33 / 23 / - )

AUSSENEINHEIT

  • Gewicht

    32,3 kg

  • Abmessungen (H x B x T) in mm

    545 x 770 x 288

  • Luftvolumenstrom (hoch) in m3/h

    Kühlung (1980)

  • Rohranschlüsse (mm/zoll)

    Flüssig (6,35 / 1/4); Gas (9,52 / 3/8); Abfluss (21,5 / 0,85)

  • Verdichter

    1P Rotary

  • Betriebsbereich (Kühlung)

    -10 - 48 °C DB

  • Schalldruckpegel (hoch) in dBA

    Kühlung (45); Heizung (45)

  • Leitungslänge (Min-Max)

    2-10m

  • Schallleistungspegel (Hoch) in dBA

    Kühlung (65)

  • Betriebsbereich (Heizung)

    -15 - 24 °C WB

  • Kältemittel (enthält fluorierte Treibhausgase)

    Typ (R410A); Füllmenge bis 7,5m (1.000 g); Nachfüllmenge (20 g/m)

  • Lüfter Motorleistung

    43 W

  • Höhendifferenz (max)

    10m

Compliance-Informationen

WEITERE INFORMATION ZUR COMPLIANCE
The safety information for accessories is included with the safety information for the product and is not provided separately.
