STANDARD INVERTER V, Rotary, Energieeffizienz A++/A
13. Energy label P12RL.png
Energieklasse : CH
Produktinformationsblatt

Spezifikationen

Bewertungen

Support

STANDARD INVERTER V, Rotary, Energieeffizienz A++/A

13. Energy label P12RL.png
Energieklasse : CH
Produktinformationsblatt

STANDARD INVERTER V, Rotary, Energieeffizienz A++/A

P12RL
  • Vorderseite von STANDARD INVERTER V, Rotary, Energieeffizienz A++/A P12RL
  • LG STANDARD INVERTER V, Rotary, Energieeffizienz A++/A, P12RL

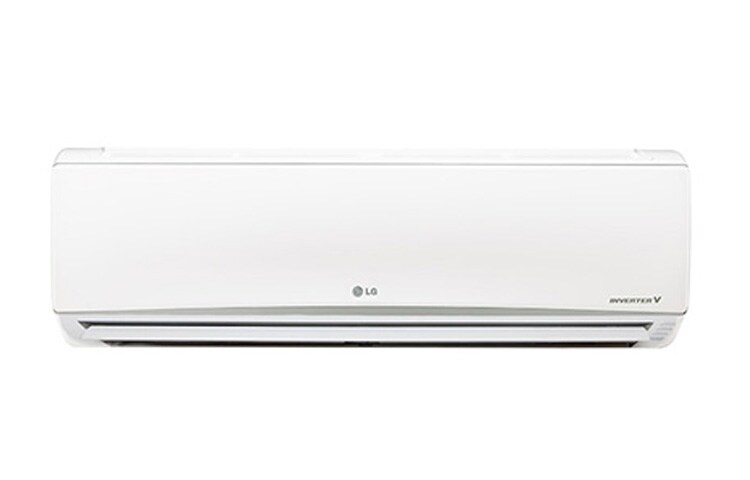

Vorderseite von STANDARD INVERTER V, Rotary, Energieeffizienz A++/A P12RL
LG STANDARD INVERTER V, Rotary, Energieeffizienz A++/A, P12RL
Drucken

Alle Spezifikationen

INNENEINHEIT

  • Gewicht

    9 kg

  • Betriebsstrom (Standard/Max) in A

    Kühlung (4,7 / 6,5); Heizung (4,4 / 6,0)

  • Leistungsaufnahme (Standard) in kW

    Kühlung (1,1); Heizung +7°C (0,1)

  • Energieeffizienzklasse (Kühlen/Heizen)

    A++ / A

  • COP

    3,8

  • Leistung (Min/Standard/Max) in kW

    Kühlung (0,8 / 2,5 / 3,7); Heizung (0,8 / 3,2 / 4,1); Heizung -7°C (3,0)

  • Empf. Verbindungsleitung

    4 x 0,75 mm2

  • Empf. Netzkabel

    3 x 1,5 mm2

  • Lüfter Motorleistung

    20 W

  • Leistung (nominal) Heizen

    2,8 kW

  • Leistung (nominal) Kühlen

    2,5 kW

  • Spannungsversorgung ü. AE

    ø 1 / 220-240 V / 50Hz

  • Max. Absicherung

    16 A

  • Jahresenergieverbauch (Kühlen/Heizen) in kWh

    201 / 1400

  • SEER

    6,1

  • Anlaufstrom (Standard) in A

    Kühlung (4,4); Heizung (4,7)

  • SCOP

    3,8

  • Schallleistungspegel (Hoch) in dBA

    Kühlung (58 dBA)

  • Abmessungen (H x B x T) in mm

    285 x 885 x 210

  • EER

    3,2

  • Luftvolumenstrom (Max/H/M/L/S) in m3/h

    Kühlung (720 / 600 / 480 / 330 / 210); Heizung ( - / 630 / 510 / 390 / - )

  • Entfeuchtungsrate

    1,3 l/h

  • Schalldruckpegel (H/M/L/S) in dBA

    Kühlung (38 / 33 / 23 / 19); Heizung (38 / 33 / 23 / - )

AUSSENEINHEIT

  • Gewicht

    28 kg

  • Abmessungen (H x B x T) in mm

    483 x 717 x 230

  • Luftvolumenstrom (hoch) in m3/h

    Kühlung (1620)

  • Rohranschlüsse (mm/zoll)

    Flüssig (6,35 / 1/4); Gas (9,52 / 3/8); Abfluss (21,5 / 0,85)

  • Verdichter

    Rotary

  • Betriebsbereich (Kühlung)

    -10 - 48 °C DB

  • Schalldruckpegel (hoch) in dBA

    Kühlung (47); Heizung (47)

  • Leitungslänge (Min-Max)

    3-15m

  • Schallleistungspegel (Hoch) in dBA

    Kühlung (65)

  • Betriebsbereich (Heizung)

    -10 - 24 °C WB

  • Kältemittel (enthält fluorierte Treibhausgase)

    Typ (R410A); Füllmenge bis 7,5m (900 g); Nachfüllmenge (20 g/m)

  • Lüfter Motorleistung

    43 W

  • Höhendifferenz (max)

    7m
