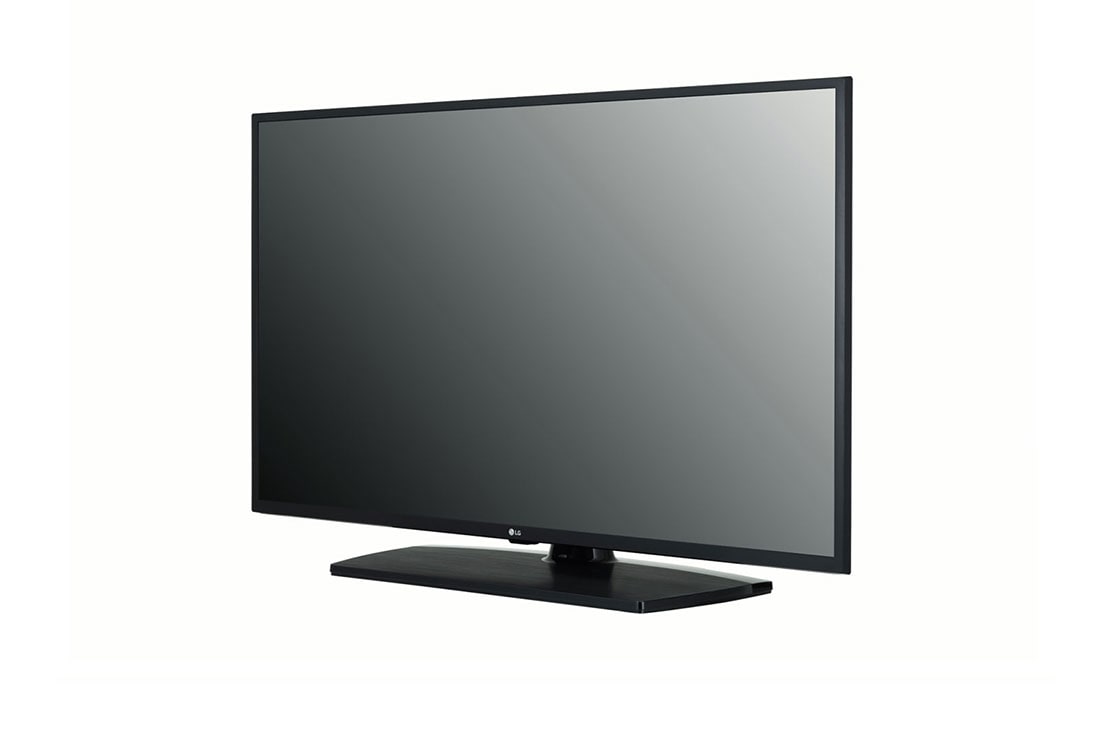

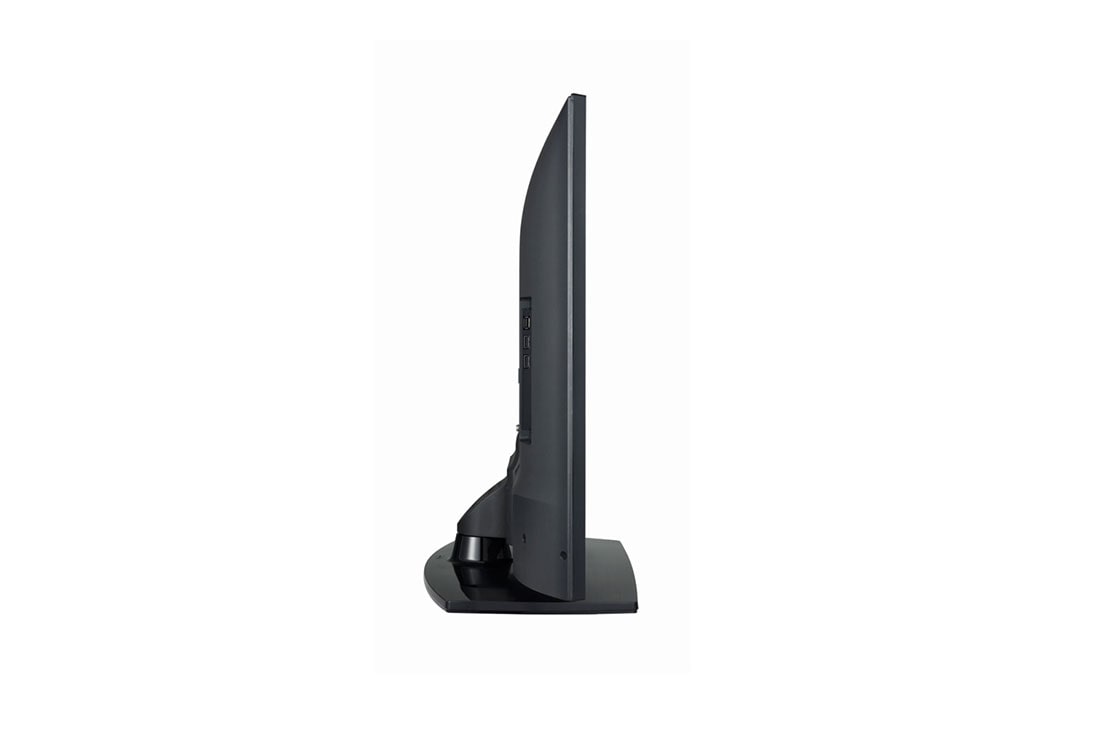

43UT661H0GA
UT661H Series
  • Pro:Centric Hotel Management Solution
  • Voice Recognition
  • Quick Menu
UT661H Series
MSRP $

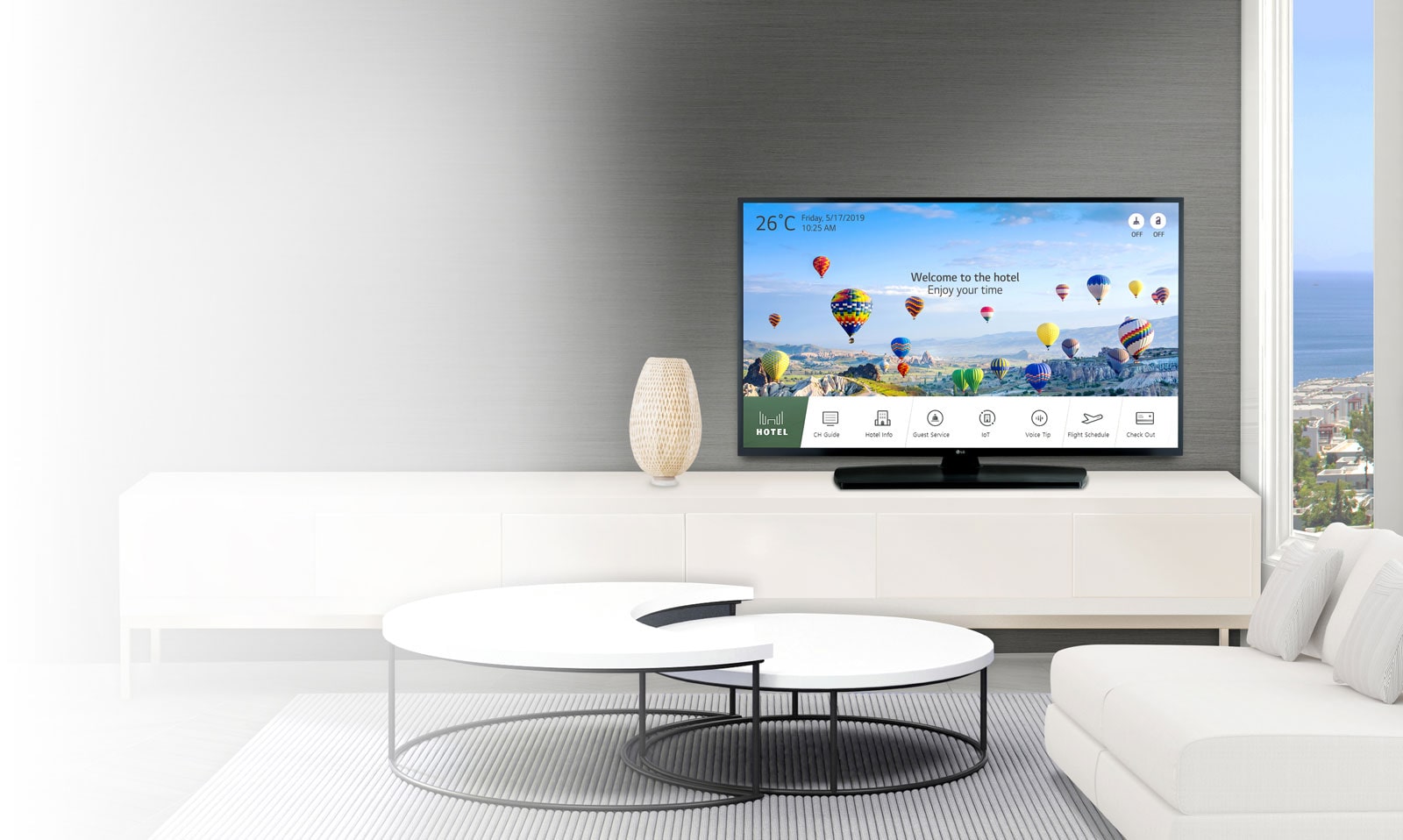

*Customized UI may slighty differ.
*Actual UI may slightly differ when implemented.
*When PCS400R and PCD 2.0 are used, the PCD features is available, even in an RF infrastructure. However, to provide interactive services in an RF infrastructure, Wi-fi is required (RF+Wireless infrastructure).
*Actual In-screen image may slightly differ.
*TV native Control.
*Server Based control.
*Magic Motion Remote is required (sold separately).

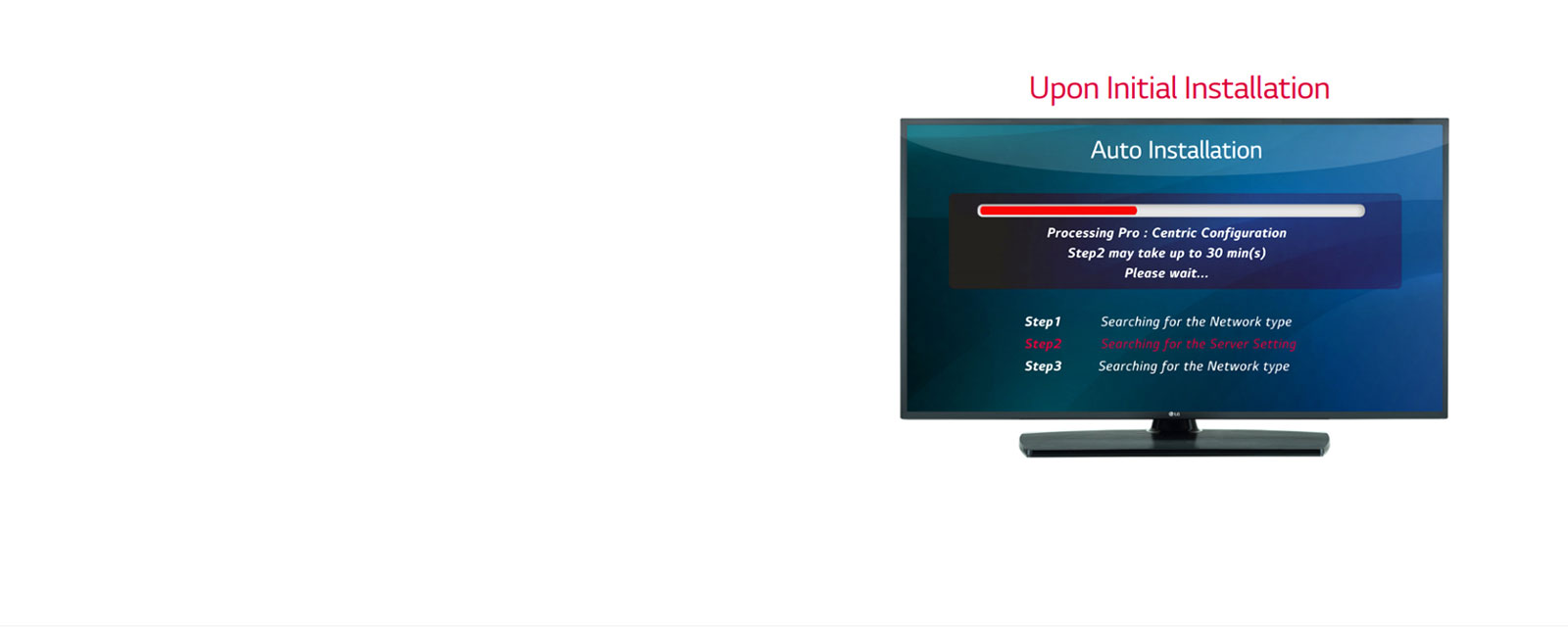

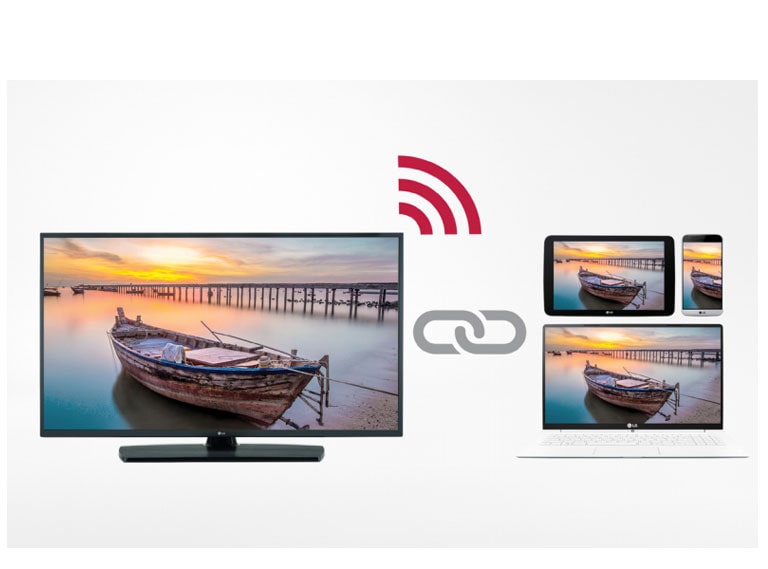

*SoftAP should be set in the installation menu after the TV is turned on.
*Smart Mirroring may not be operated at the same time.
*Actual remote control may slightly differ.

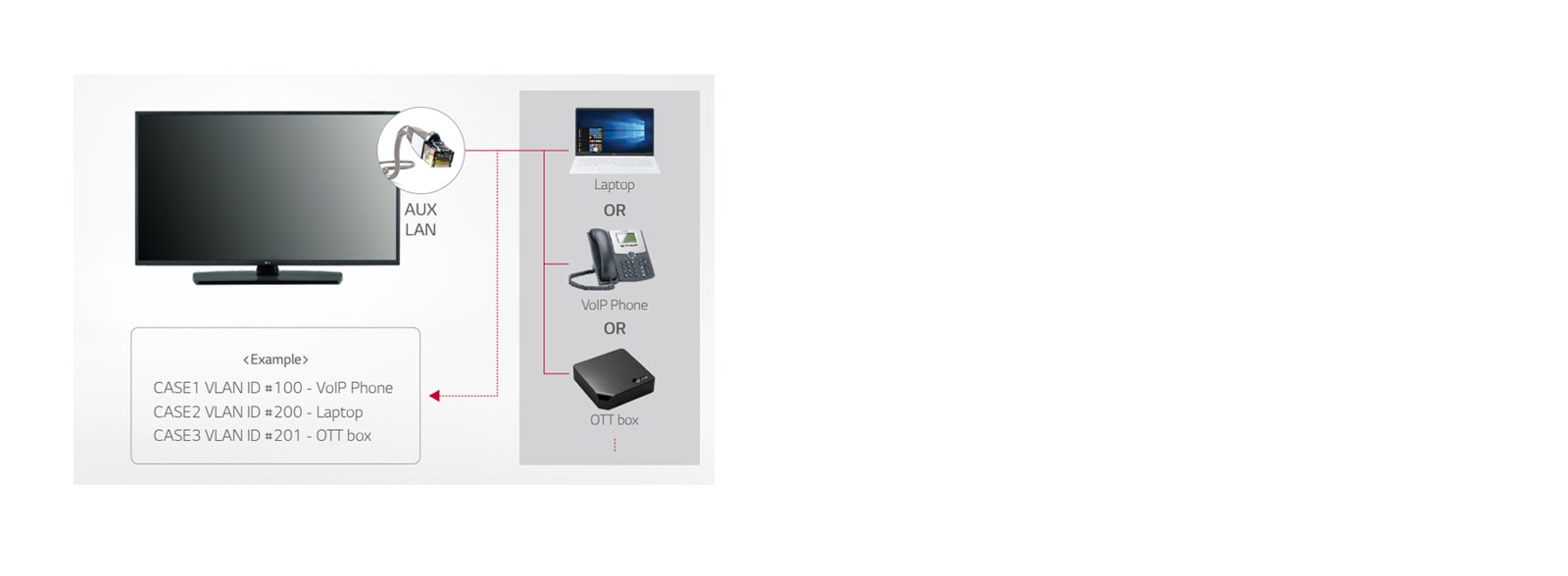

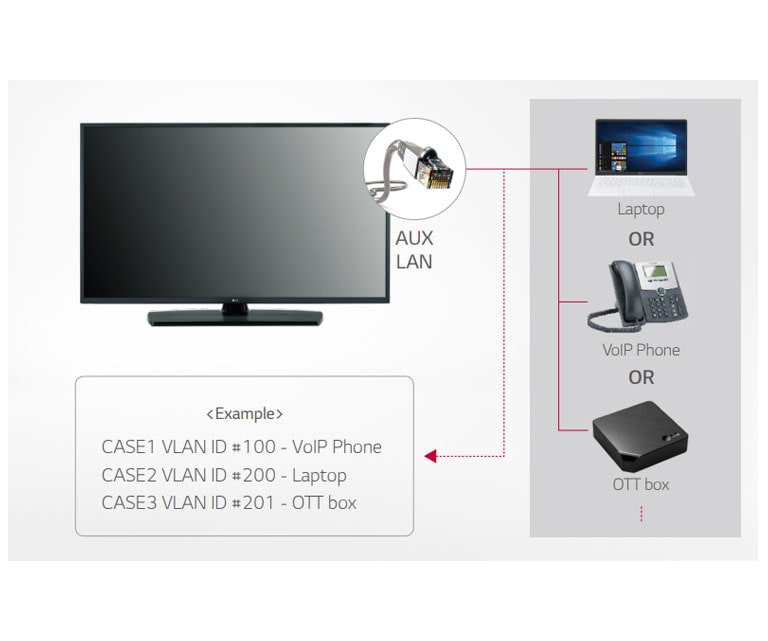

*AUX LAN (LAN out) ID: Set a VLAN ID to be assigned to external devices connected to the LAN out port (An AUX LAN is used for assigning a VLAN ID).
*VLAN ID: Create a separate Virtual LAN group with IDs (tagging).

DISPLAY

  • Inch
    43
    Resolution
    3,840 x 2,160 (UHD)
  • Backlight Unit Type
    Direct
    Brightness (cd/m²)
    300

BROADCASTING SYSTEM

  • Digital
    DVB -T2/C/S2

VIDEO

  • HDR (10 Pro / HLG)
    Yes/Yes

AUDIO

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • One Touch Sound Tuning
    Ready
    LG Sound Sync
    Bluetooth required

HOSPITALITY SOLUTION

  • Solution Type

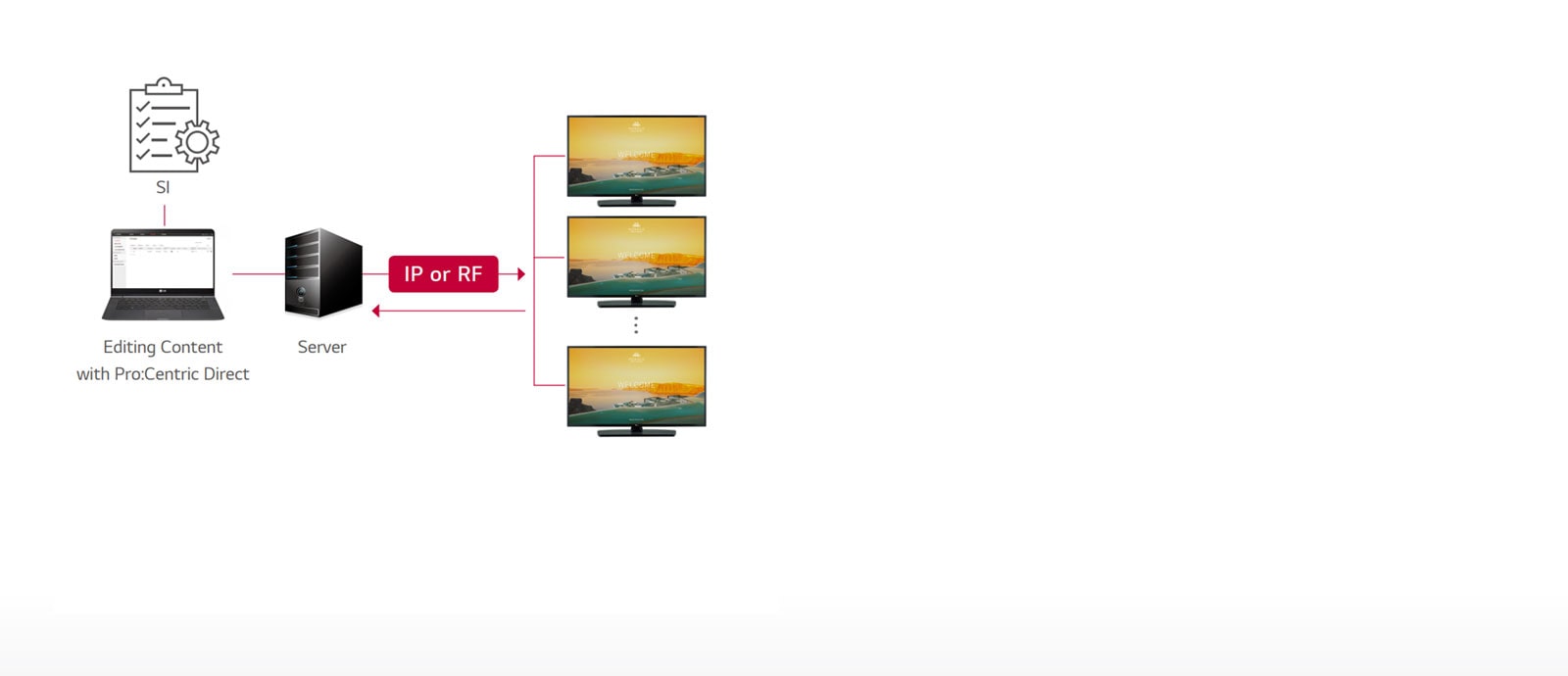

    Pro:Centric (Smart, V, Direct), Quick Menu 3.0
    Data Streaming (IP & RF)
    Yes
  • HCAP (GEM/FLASH/HTML)※ Service Carousel (TLL/XML)
    GEM/HTML5
    IP Return path
    Yes
  • Multicast / Unicast ready
    Yes
    webRTC (Real Time Communication)
    Yes
  • Pro:Centric Application (version)
    PCA3.8
    Pro:Centric Server
    PCS400R/PCS200S
  • DRM
    Pro:Idiom (S/W Type), Pro:Idiom Media

FEATURES

  • Hospitality
    Hotel Mode(Installer Menu), Lock mode (Limited), Welcome Video / Screen(Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable / Fixed), Instant ON, External Power Out, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, External Clock Compatibility (LEC-005), Moving Picture Playback (SD / HD / Plus HD), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care

JACK INTERFACE

  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot
    Set Rear
    HDMI In (HDCP, 2.0) (2), RF In (2), Digital Audio Out (Optical), RS-232C (Control & Service), Clock Interface (RJ12), RJ45 (Usage Purpose : 2 (Ethernet, Aux)), External Speaker Out (3.5mm Phone Jack) : 2 (Spk-out 1, 4W (Stereo, R : 2.0W, L : 2.0W, 8Ω) - Vol. Control1)

DIMENSION (UNIT: MM / KG)

  • Vesa
    200 x 200
    W x H x D / Weight (with stand)
    973 x 626 x 303 / 11.2
  • W x H x D / Weight (without stand)
    973 x 572 x 85.0 / 8.0
    W x H x D / Weight (Shipping)
    1,147 x 660 x 190 / 14.0

POWER (UNIT : WATTS)

  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical
    101W
  • Stand-by
    0.5W

GENERAL

  • Region
    Middle East & Africa
