DUAL Vane Cassette

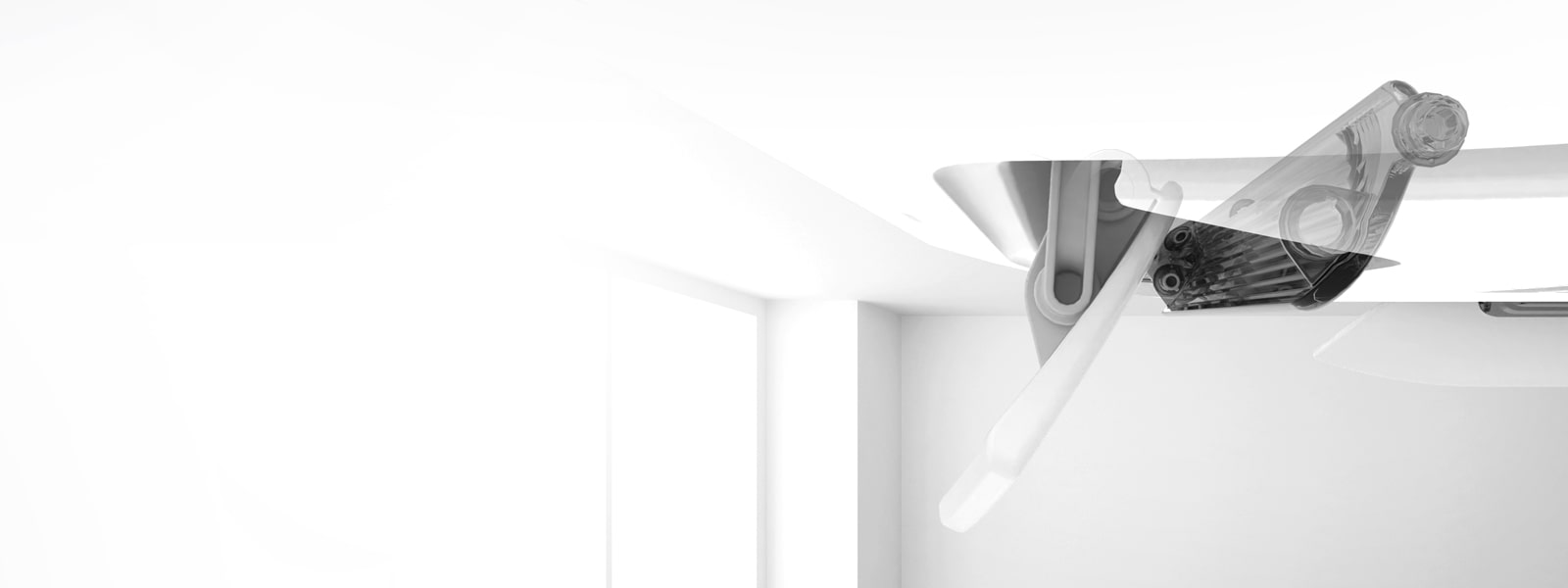

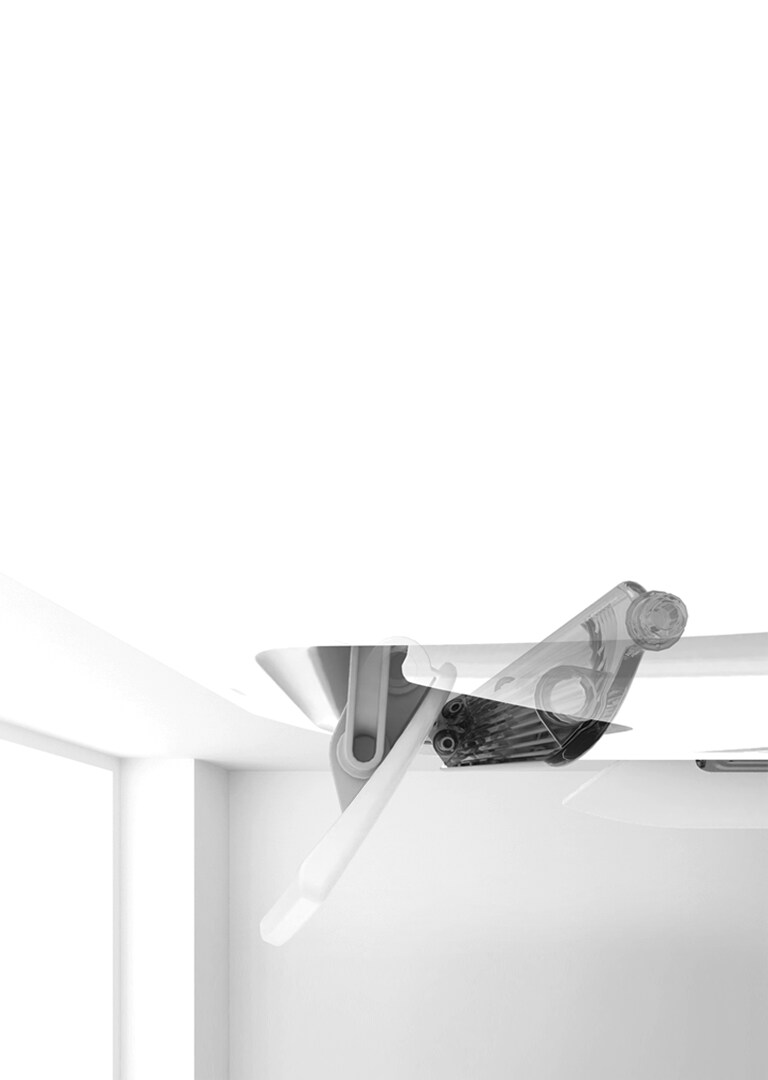

LG DUAL Vane Cassette delivers wider airflow with two individual vanes. No matter where it’s installed, you can customize airflow with fine angle control.

Why LG DUAL Vane?

In addition to fine angle control, the DUAL Vane Cassette fills the room with healthier and cooler air with a 5-step filtration air purification kit.

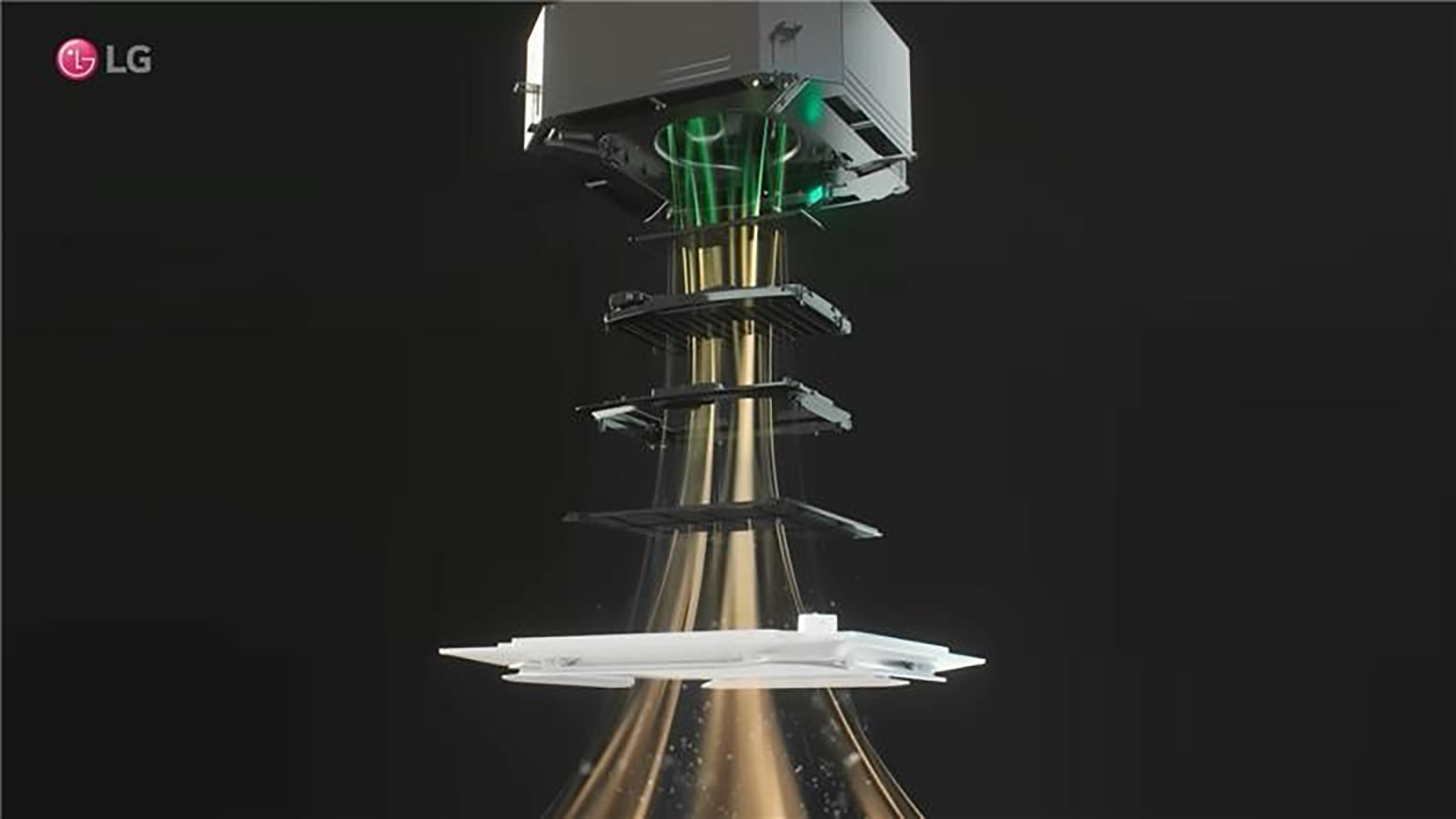

A video of 5 step filters appearing when Dual Vane Cassette is disassembled. A video of 5 step filters appearing when Dual Vane Cassette is disassembled.
Images with '5-step filtration' and 'Up to 99%' and the logo of Intertek and TUV Rheinland. Images with '5-step filtration' and 'Up to 99%' and the logo of Intertek and TUV Rheinland.

Air Purification Kit Images with '5-step filtration' and 'Up to 99%' and the logo of Intertek and TUV Rheinland.

Removes Ultrafine Dust, Bacteria & Virus Images with '5-step filtration' and 'Up to 99%' and the logo of Intertek and TUV Rheinland.

Certified by Images with '5-step filtration' and 'Up to 99%' and the logo of Intertek and TUV Rheinland.

*The Air Purification Kit can be purchased as an option.

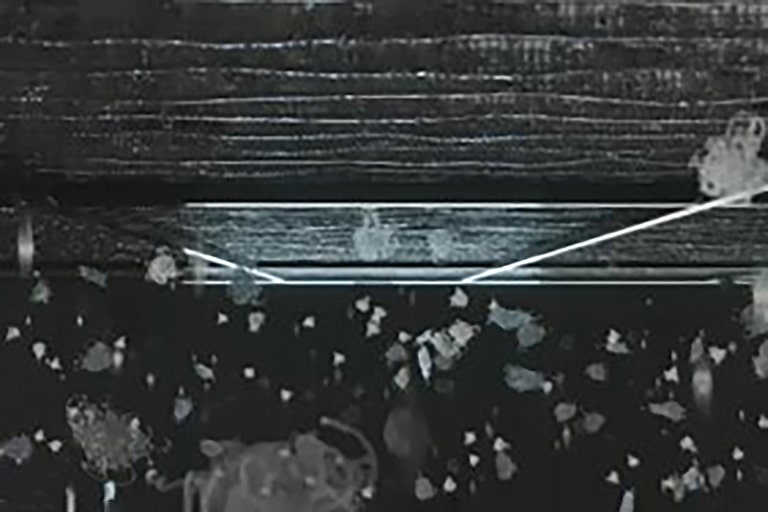

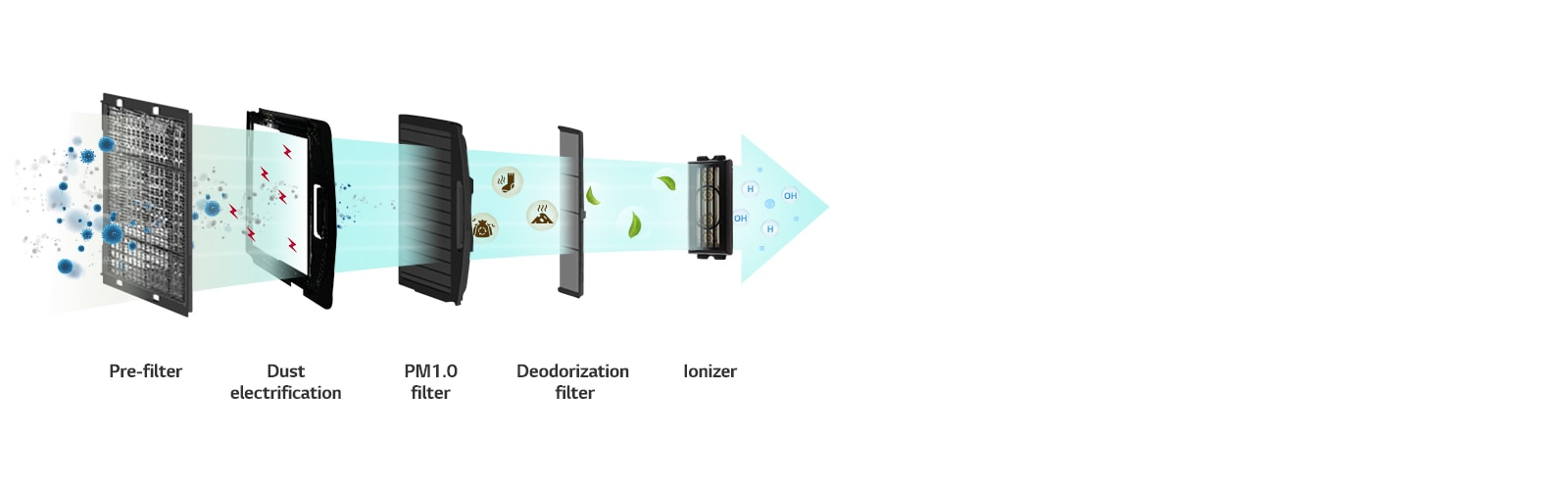

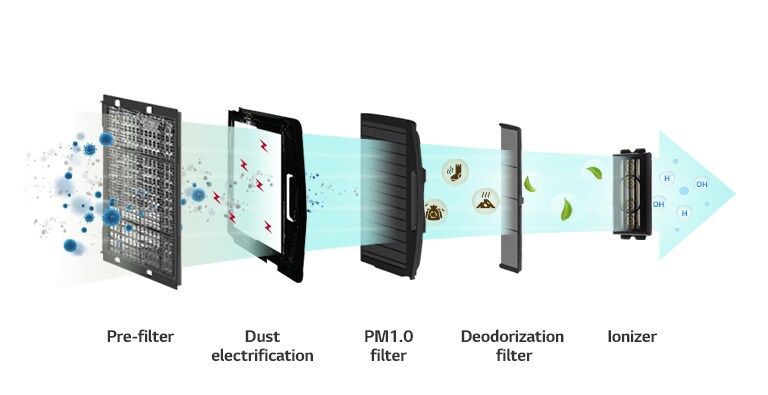

  • Fine dust that cannot pass through the pre-filter.

    Step 1

    Pre-Filter

    Capture fine dust.

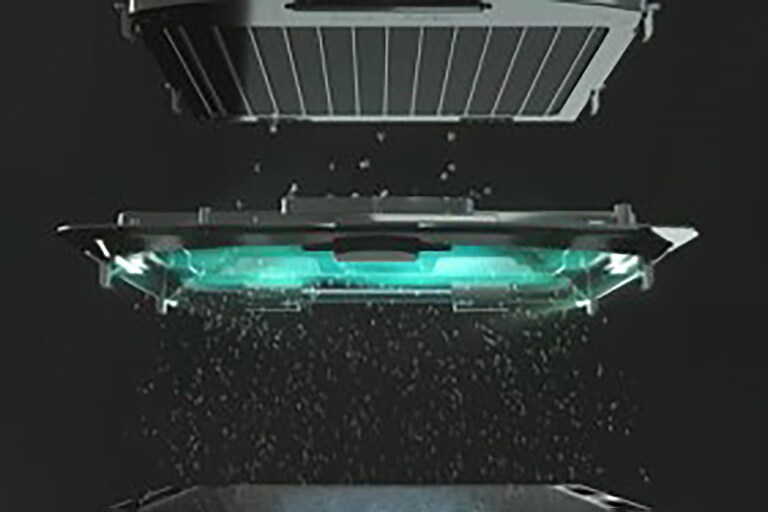

  • Very small particles are attached to the filter due to static electricity.

    Step 2

    Dust Electrification

    Increases the electrostatic force of particle. Improves filter’s collecting efficiency.

  • Ultrafine dust is filtered by PM 1.0 Filter

    Step 3

    PM 1.0 Filter

    Removes up to 99% of fine to ultrafine dust.

  • Deodorization Filter removes unpleasant odors and harmful gases.

    Step 4

    Deodorization Filter

    High efficiency gas absorption technology removes unpleasant odors & harmful gases.

  • Ions are attached to bacteria and germs and disappears.

    Step 5

    Ionizer

    Inactivate bacteria and germs.

*The fine dust removal performance of the air purification kit was verified by TUV Rheinland in the test No. 60382341 001, based on the Korean experimental standard SPS-KACA002-132: 2018, to eliminate 99.9% of fine dust of 50 nm and 100 nm.
*The bacteria and virus removal performance was verified by TUV Rheinland in the test No. 60375745 001, to remove 99.9 % of Staphylococcus epidermidis bacteria in 60 minutes and remove 99.4 % of Phi-X174 virus in 30 minutes in a 60 m3 chamber and by intertek in the test No. RT20E-S0054, to inactivate 99% of bacteria on the surfaces.

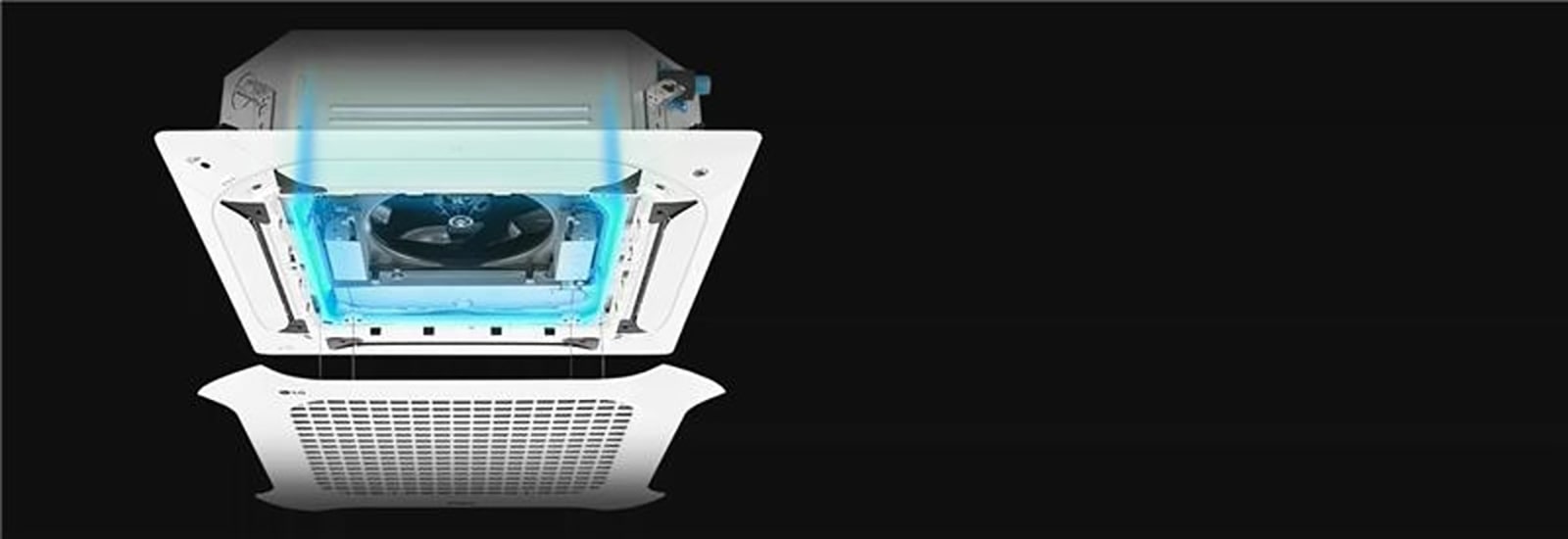

*Safe plus insulation will be applied to devices beginning in May 2021. Please contact your local LG office for further information about products.

Healthy Air for Large Spaces

Purified air covers an area even larger than that of cooled air. The air purification area can cover up to 147m2 to create a clean, healthy environment even in dense vertical spaces such as kindergartens, schools, and shopping malls.

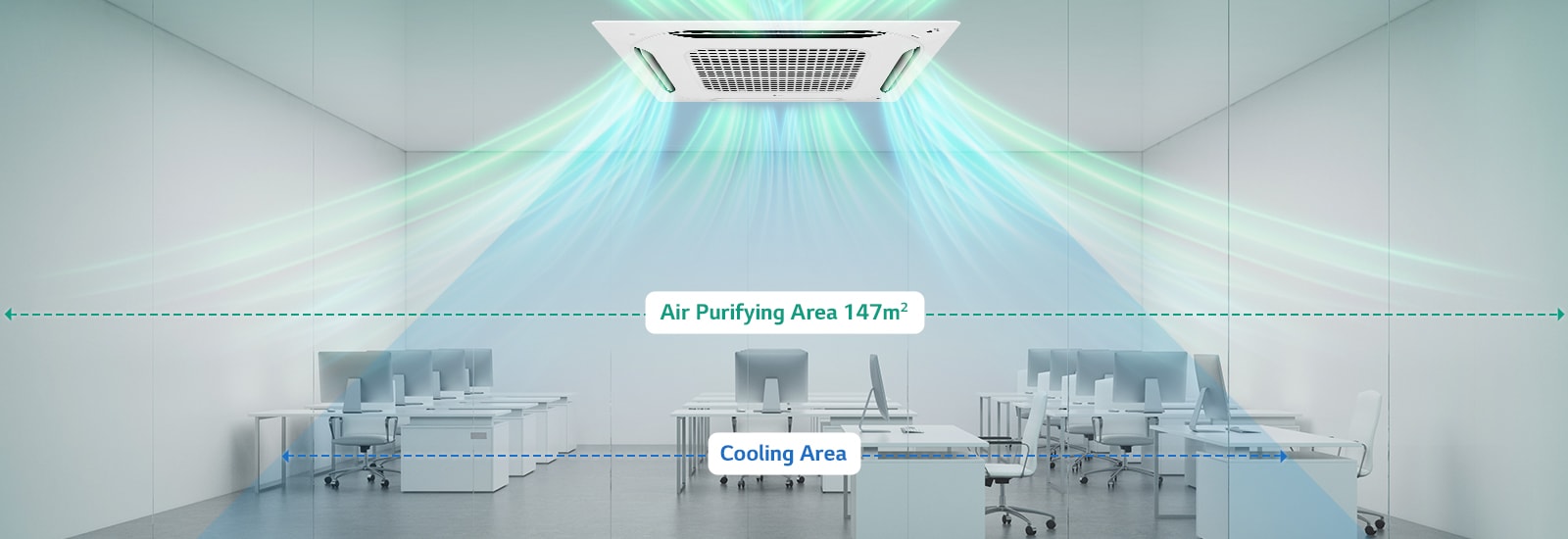

Dual vane cassette provides clean and cool air in offices, shopping malls, school, and kindergartens, and covers up to 142㎡. Dual vane cassette provides clean and cool air in offices, shopping malls, school, and kindergartens, and covers up to 142㎡.

Check Your Building’s Air Quality in Real Time

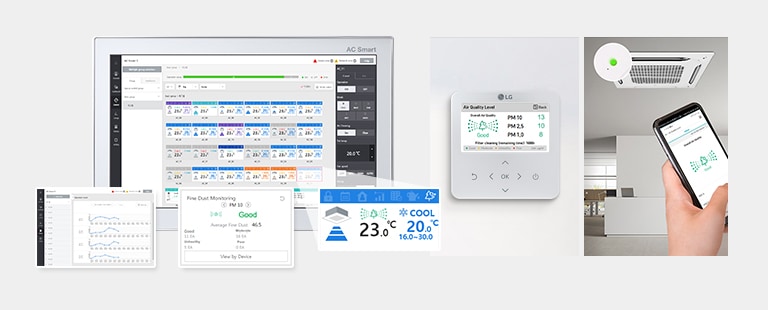

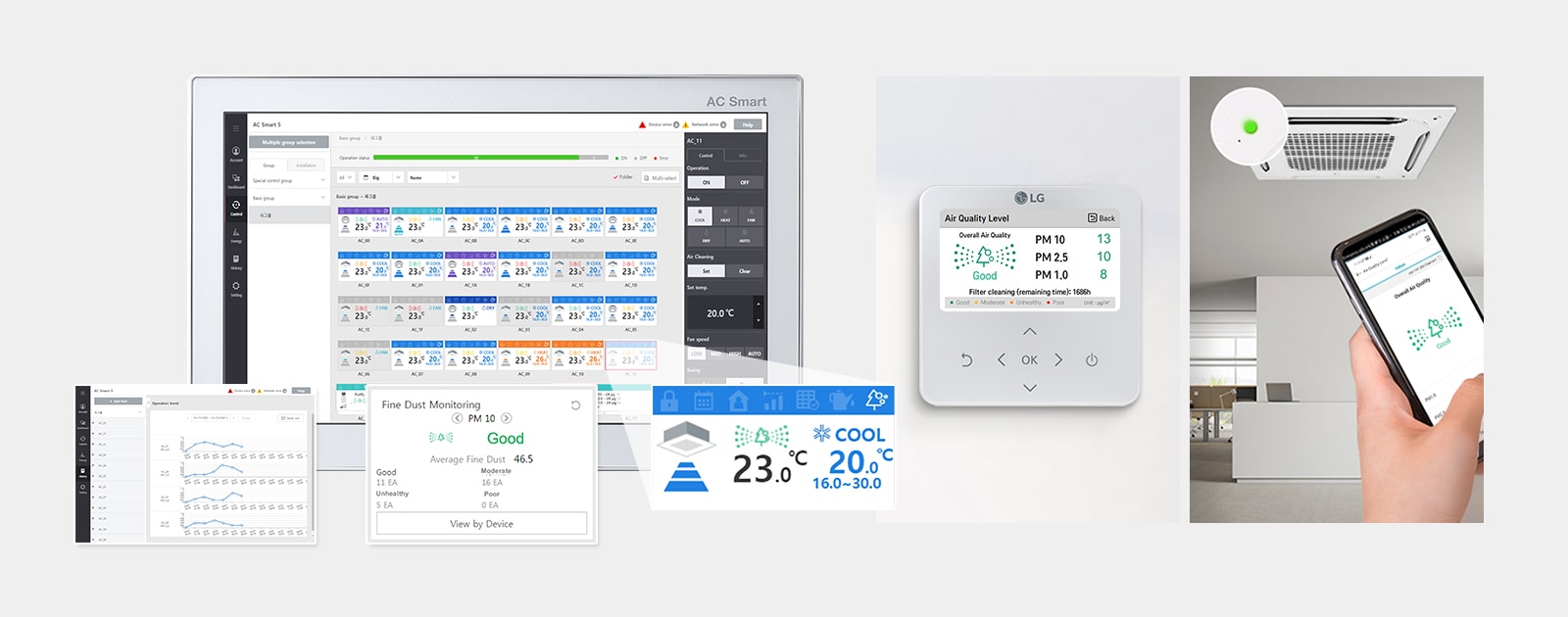

You can check and control the whole building’s air quality with the central controller or monitor units in real time with a remote control, LED panel lamp, or smartphone.
Image of a product being controlled on the central controller, individual controller, and mobile. Image of a product being controlled on the central controller, individual controller, and mobile.

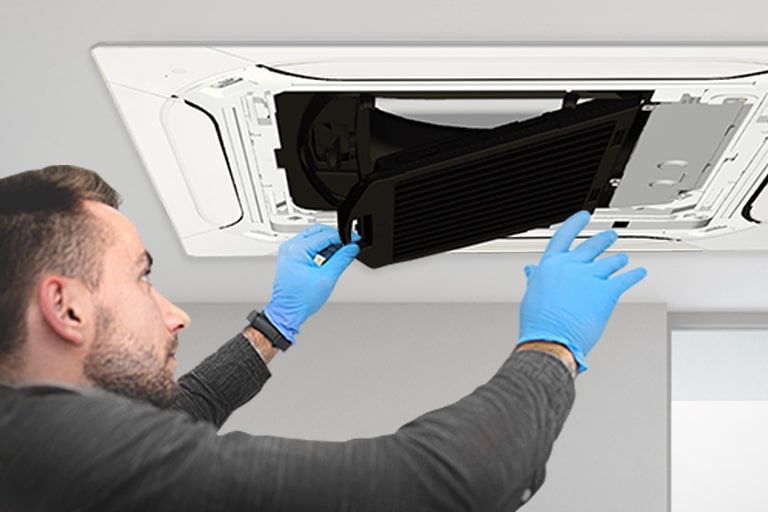

  • Easy Installation

    The filter attaches to the indoor unit body for easier installation.

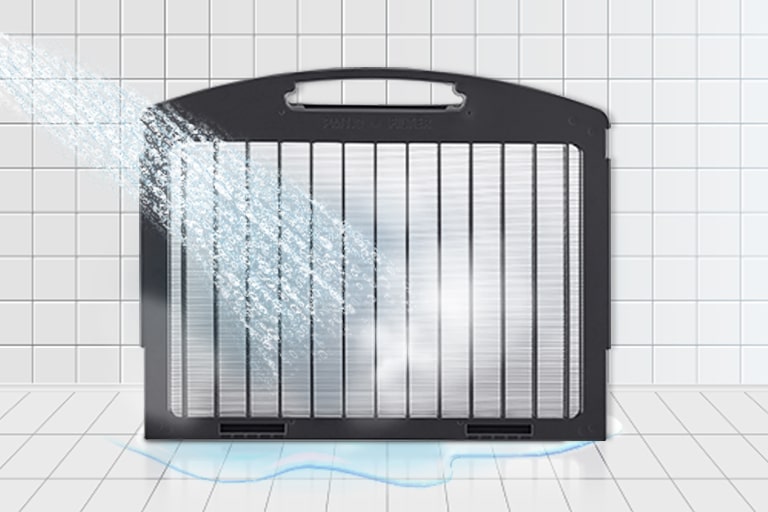

  • Washable Filter

    Save on filter replacement with a semi-permanent filter that’s easy to clean.

Customized Airflow with Innovative DUAL Vane

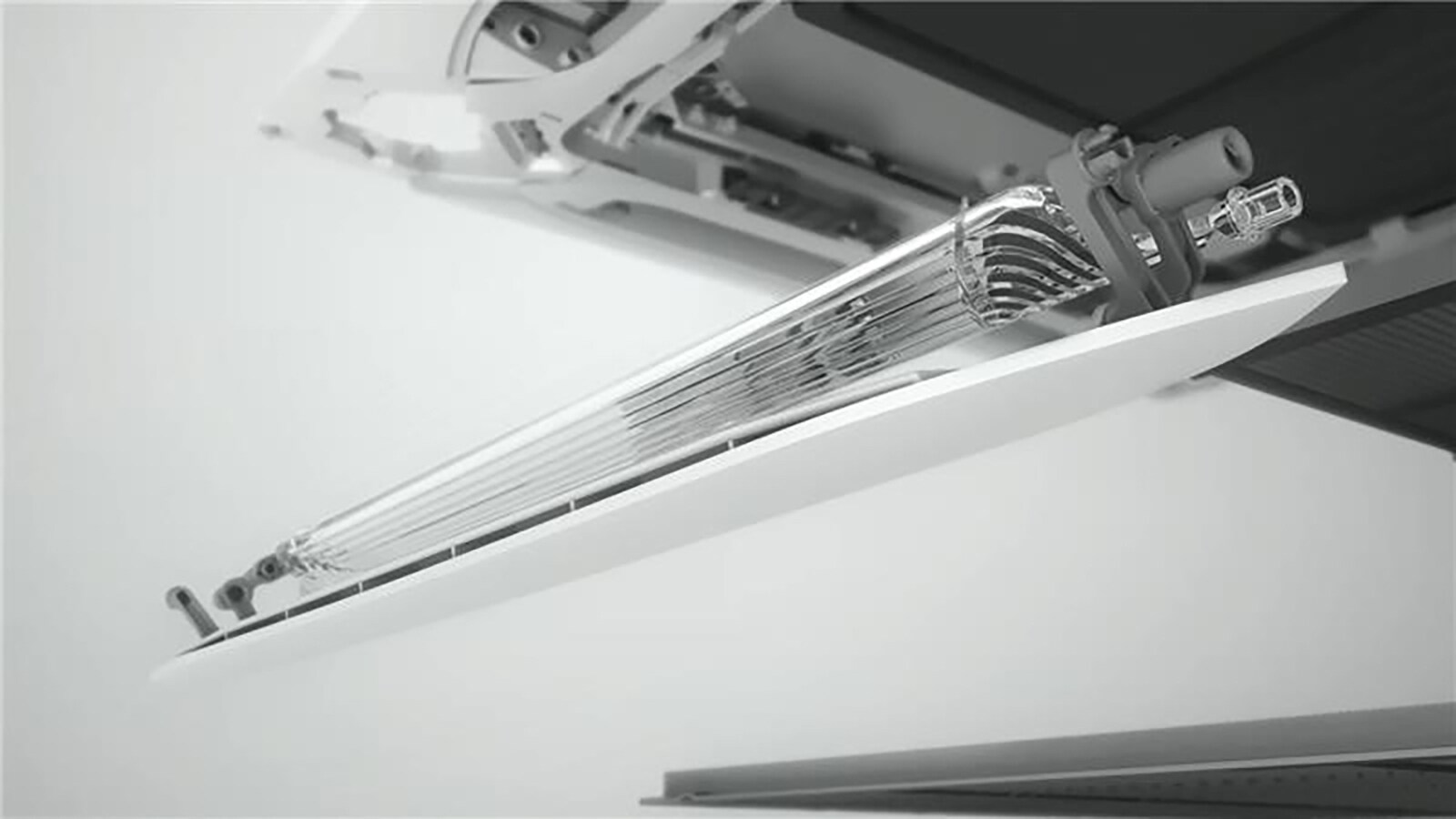

LG DUAL Vane Cassette uses 2 individual vanes to provide customized air flow for any environment.

  • Covers Wider Spaces

  • Reaches Even Farther

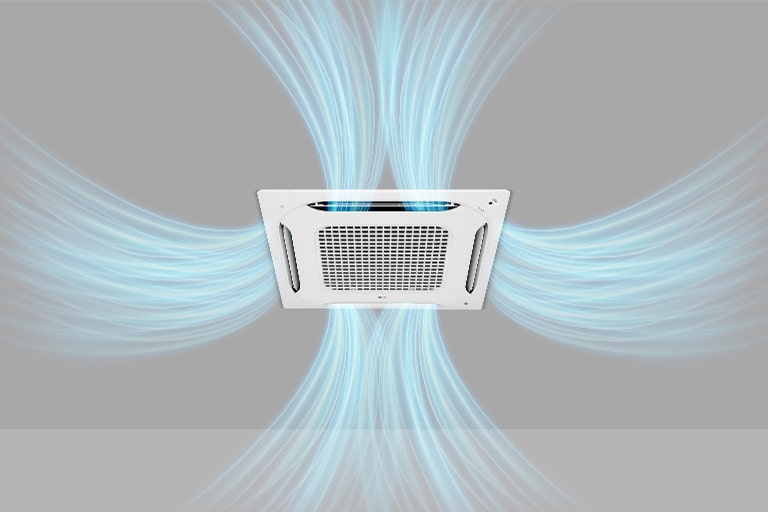

  • More Diverse Airflow

Customized Airflow

One solution for every space. LG DUAL Vane provides optimal airflow.

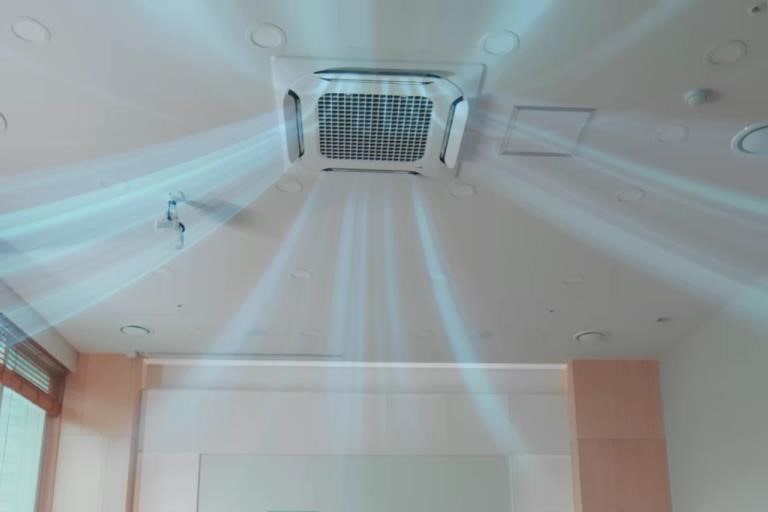

  • Airflow changes the direction for not come into blow directly with people.

    Indirect Airflow

    Prevents air from the unit from blowing directly on you.

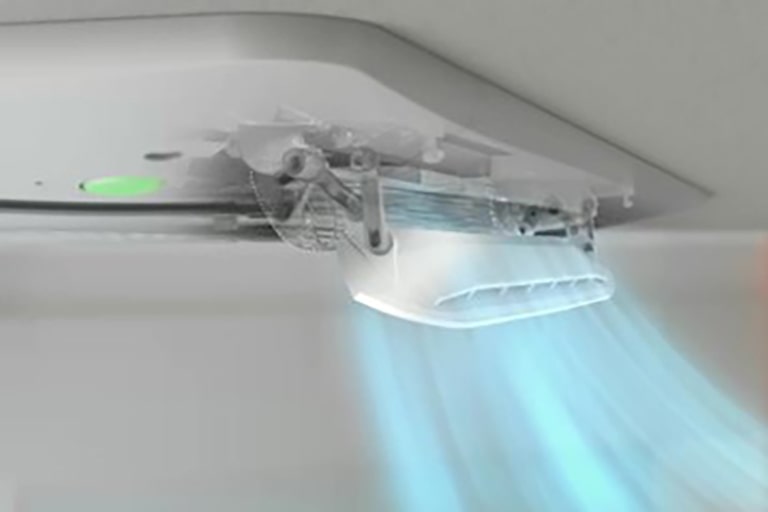

  • Airflow swings up and down for maintaining even temperature in any space

    Up & Down Swing

    Maintains an even temperature in any space.

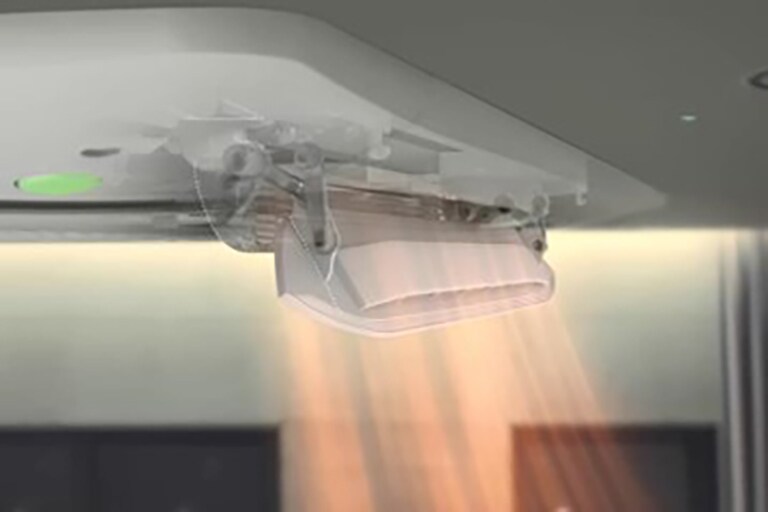

  • Airflow changes direction to reach the person directly.

    Direct Airflow

    Can reach up to 5m without any additional components.

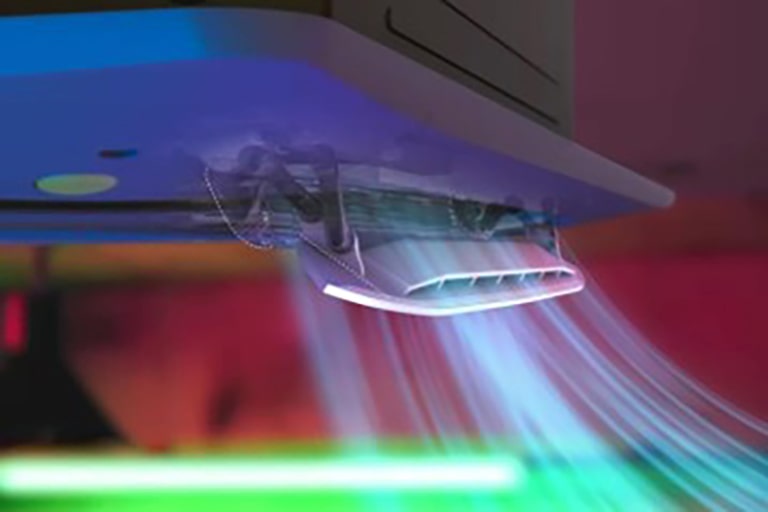

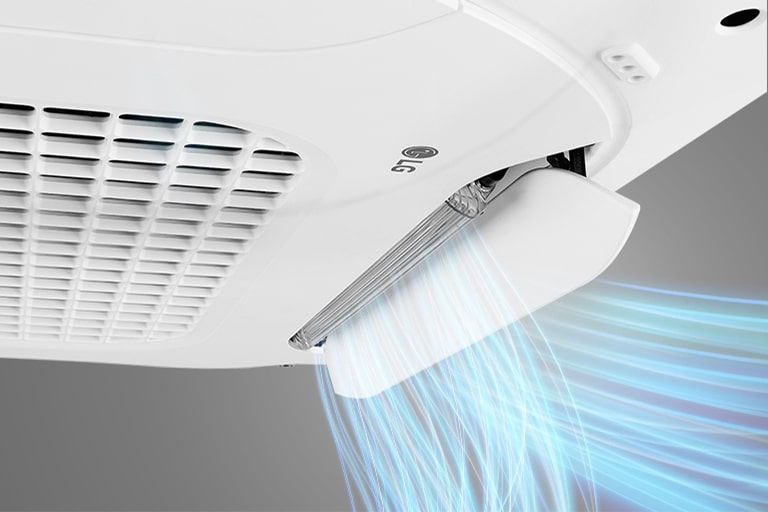

  • The air comes out powerful for cools space fastly

    Power Mode

    Brings your space to the target temperature faster.

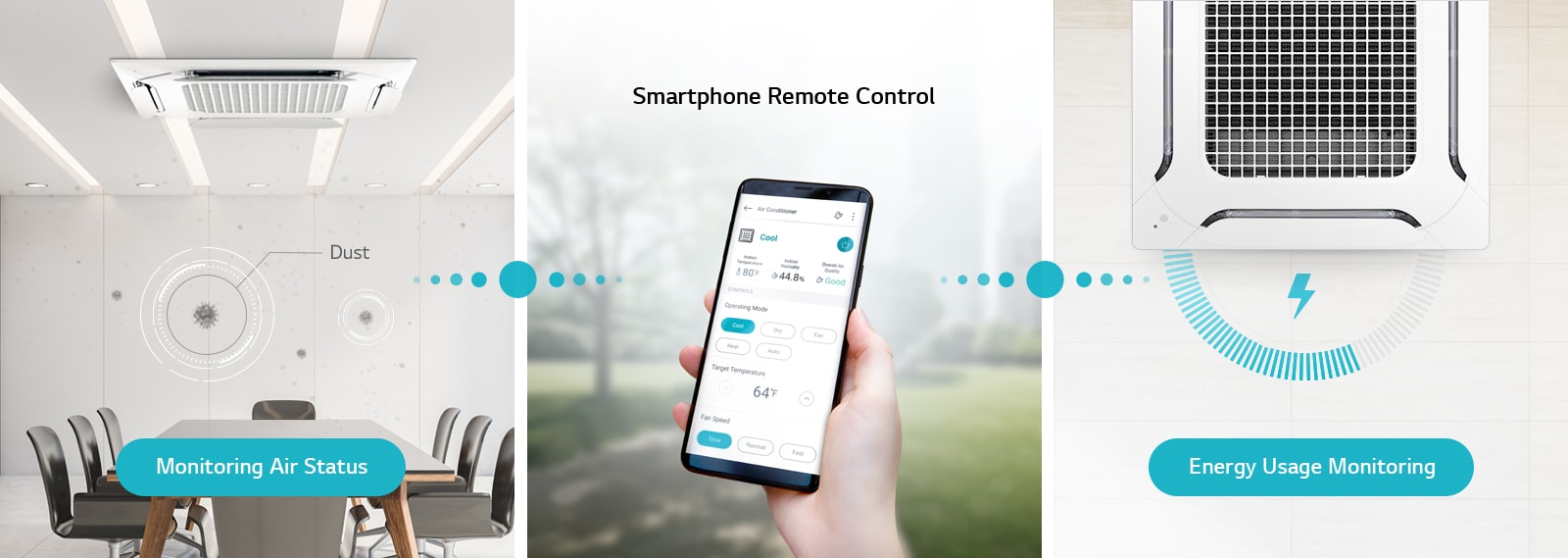

Management by LG ThinQTM

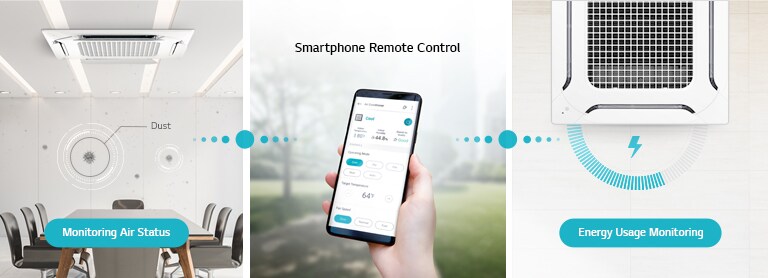

DUAL Vane cassette can be monitored and controlled via mobile devices to conserve energy and ensure better air quality
Monitor and control the product from the outside with LG ThinQ App. Monitor and control the product from the outside with LG ThinQ App.

Smart Sensor

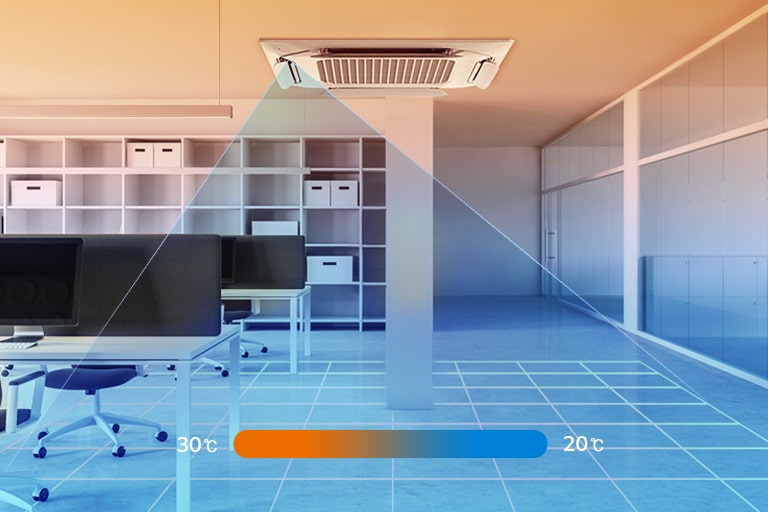

  • Floor Temperature

    Airflow is increased until the desired temperature is reached at ground level. *The Floor Temperature Sensor can be purchased as an option.

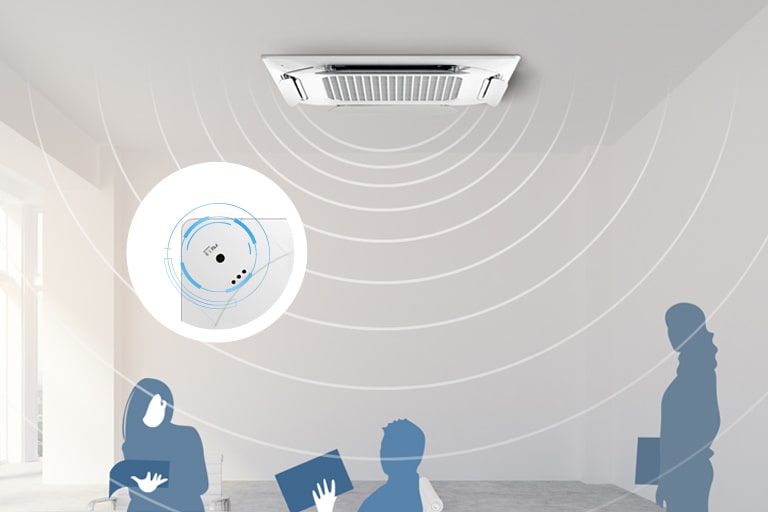

  • Human Detection

    By detecting the location of people, the Human Detection funtion adjusts airflow and turns off automatically when the space is not occupied. *Human Detectin Sensor can be purchased as an option

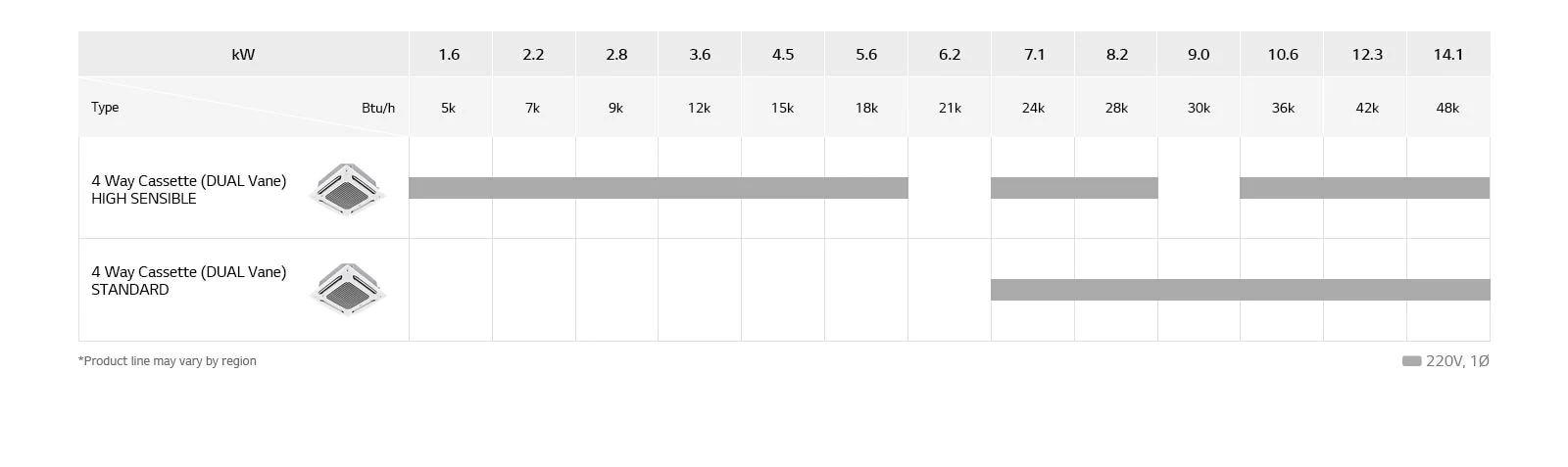

DUAL Vane 4 Way Cassette

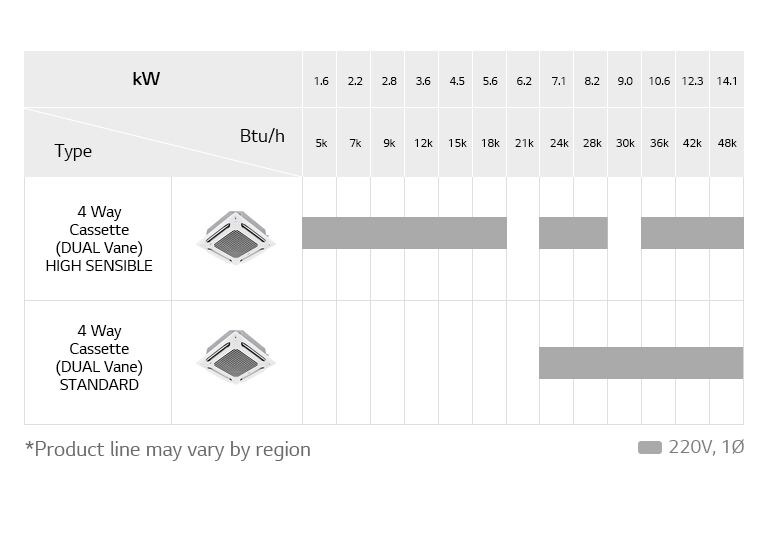

An image of Dual vaan cassette's line up An image of Dual vaan cassette's line up
