Software
Linux OS kernel 3.10, PCA (Java) and PCD (HTML) server applications
Data Output
RF, 100/1000T Ethernet

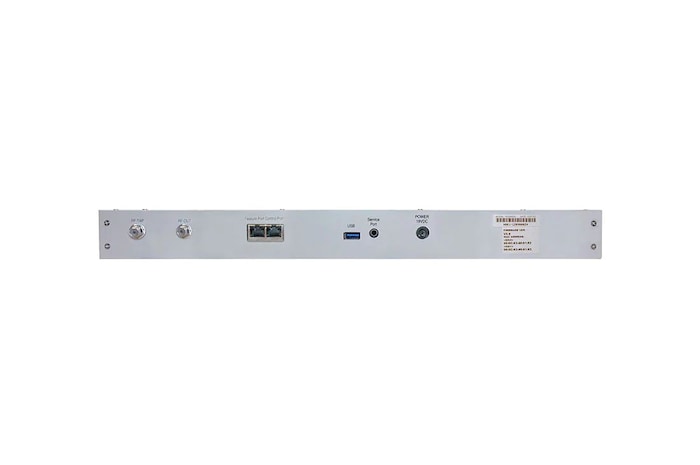

Rear Port
RF/RF Tap/TTL serial, Ethernet 2 Port
DC Input
+19V DC @ 2.2Amps Adaptor
RF Output Connectors (2)
75Ohm, Type 'F'
RF Output Span
Up to 8 Channels (Typically 48-64MHz) (non-contiguous)
RF Output Frequency Range
54MHz to 865MHz
Active Output Level
-1dBm (+47.75dBmV) Typical
Test Output Level
-47.75dBm (+1dBmV) Typical
Frequency Accuracy
+/- 5 ppm
Ethernet Connector (Control Port)
10/100/1000 BaseT, RJ-45
Ethernet Connector (Feature Port)
100/1000 BaseT, Full Duplex RJ-45
TTL-UART
Command Line Interface port (5V TTL)
CPU/Memory/Storage
64-bit Intel i3-6100U (4 threads at 2.3GHz), 16GB memory, 128GB SSD/Expandable storage with M.2 NGFF or 2.5" SSD
Standard
ITU-T J.83 Annex B (QAM-B)
Constellations
64-QAM, 256-QAM
Symbol Rate
64-QAM, 5.056941 MBaud/256-QAM, 5.360537 MBaud
Interleaving
Fixed I=128, J=1
Parameters
64-QAM, 7/8 Convolutional Code, 1/32 Guard Interval Ratio, 2K FFT, 13 Segments
Sample Rate
8.126984 Ms/s
Temperature
32° to 104° Fahrenheit
Humidity
95% Non-condensing
Storage Temperature
-4° to 158° Fahrenheit (-20° to 70° Celsius)
Humidity
95% Non-condensing
Regulatory Compliance
FCC, UL, RoHS
Unit Dimensions (W × H × D)
19.0” x 1.7” x 8.5”
Unit Weight (Rack-only)
5.65 Ibs.
Warranty
1 Year
UPC
719192641662
