One:Quick Share

One:Quick Share

One:Quick Share

SC-00DA

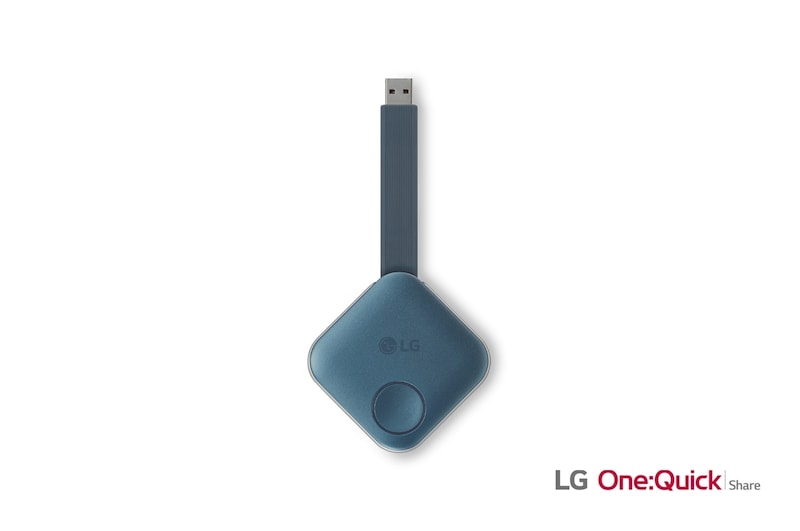

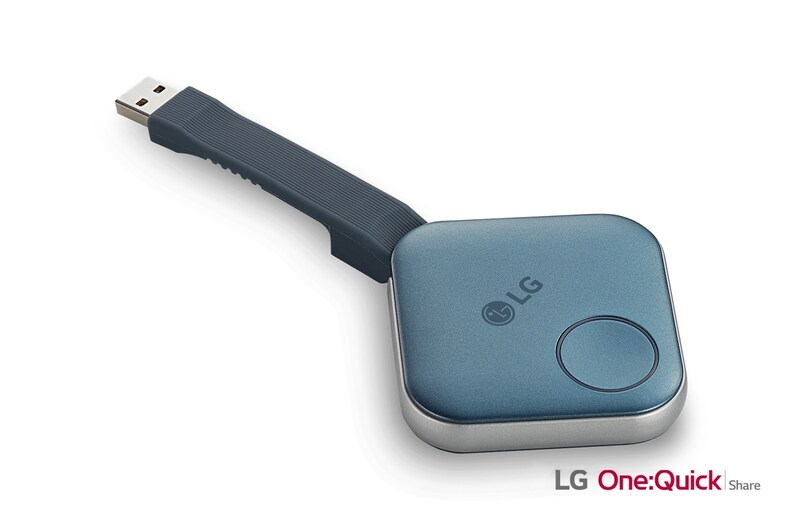

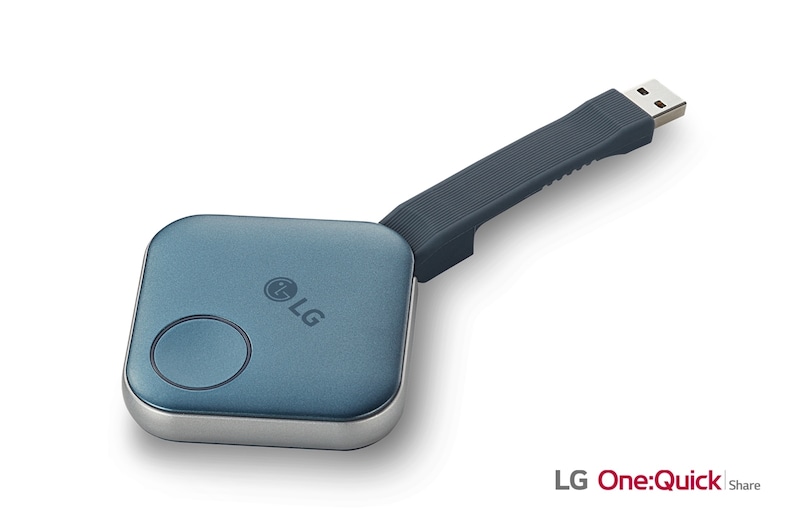

Front view of One:Quick Share SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA
Front view of One:Quick Share SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA
LG One:Quick Share, SC-00DA

主要功能

  • 內置作業系統：Linux
  • Wi-Fi：IEEE 802.11 a/b/g/n/ac (遠至 30 米)
  • 連接：USB 2.0 Type A (1)
  • 配合 LG One:Quick Share 應用程式運作
更多
列印

所有規格

ONE:QUICK SHARE

  • User Switching

    Yes

  • Split View

    Yes (Max. 4 Screen)

  • Admin Mode

    Yes

  • Signage Control

    Yes

  • Sound

    Yes

USB DONGLE HW(SC-00DA)

  • Embedded OS

    Linux

  • CPU

    Quad-core Cortex™-A7

  • Internal Memory

    eMMC (4 GB) , DDR3 (512 MB)

  • Wi-Fi

    IEEE 802.11 a/b/g/n/ac

  • Video

    H.264

  • Connectivity

    USB 2.0 Type A (1)

  • Size (W × H × D)

    63.8 × 63.8 × 13.5 mm / USB cable (85.5 mm)

  • Weight

    46 g

  • Power Consumption

    2.0 W (Typ.), 2.5 W (Max.)

  • Operating Temperature / Humidity

    0℃ to 40℃ / 0% to 85%

RECOMMENDED PC SPECIFICATION

  • Operating System Support

    Windows 8.1 64 bit (or Later Version)<Br>macOS 10.12 / 10.13 / 10.14 / 10.15 64 bit

  • CPU

    Intel Sandy Bridge i3 (or Later Version)<Br>Skylake i3 / i5 / i6 (or Later Version)<Br>AMD Rygen 1st Generation (or Later Version)

  • Memory

    8 GB↑

COMPATIBLE MODEL LIST(AS OF OCTOBER 2021)

  • Standard Signage

    UH7F / UH7F-H (65”/55”/49”)UH5F / UH5F-H (98”/86”/75”/65”/55”/49”/43”)UM3DG / UM3F / UM3DF (65”/55”/49”/43”)UM3DG-H (98”/86”/75”)UL3G / UL3J (86”/75”/65”/55”/50”/43”)WP400 / WP401

  • TV Signage

    UR640S / UT640S (86”/ 75”/ 65”/ 55”/50”/ 43”)STB-6500

  • LED Signage

    LAEC015-GN
