XF3ES-B 系列 - 75 吋 UHD 3,000nits 嵌入式高亮度顯示屏

XF3ES-B 系列 - 75 吋 UHD 3,000nits 嵌入式高亮度顯示屏

XF3ES-B 系列 - 75 吋 UHD 3,000nits 嵌入式高亮度顯示屏

75XF3ES-B

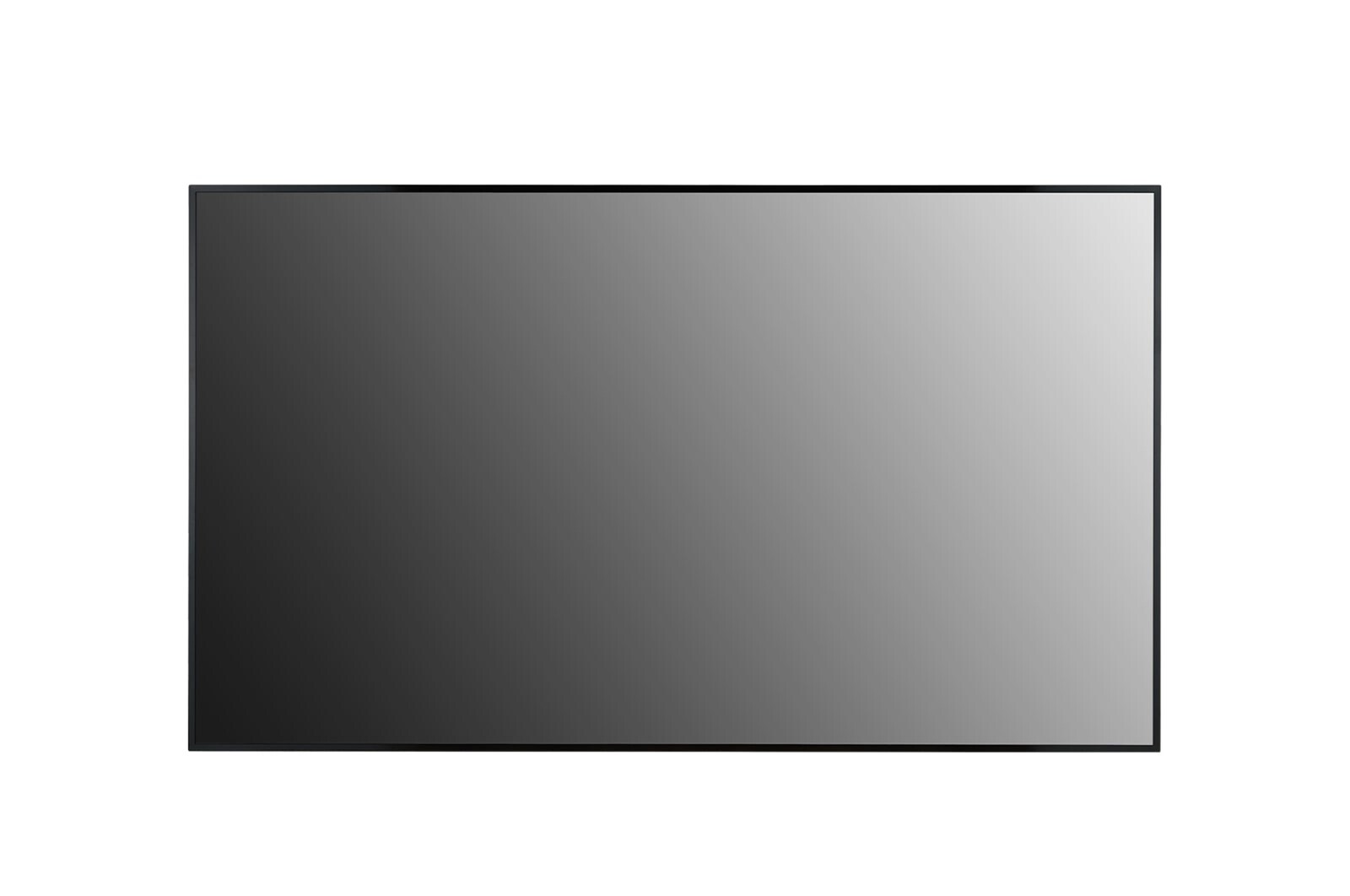

Front view of XF3ES-B 系列 - 75 吋 UHD 3,000nits 嵌入式高亮度顯示屏 75XF3ES-B

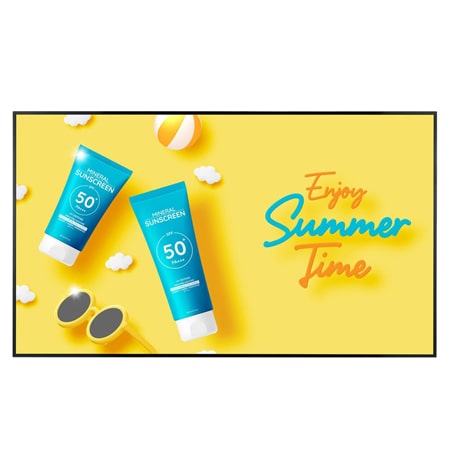

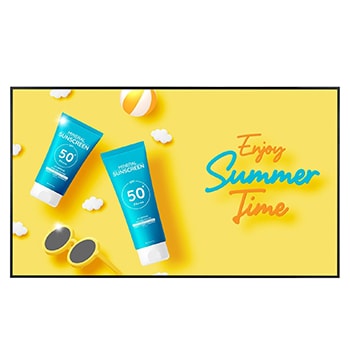

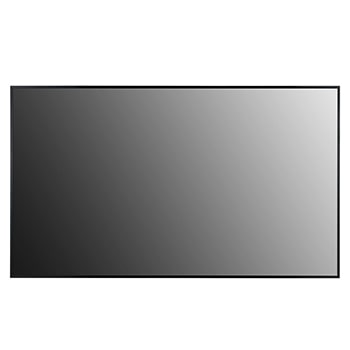

75XF3ES-B 的正視圖

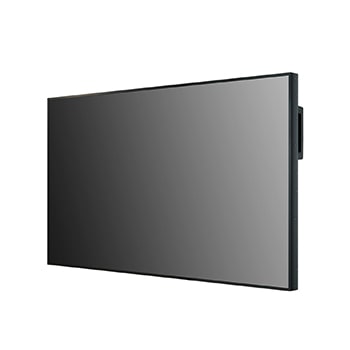

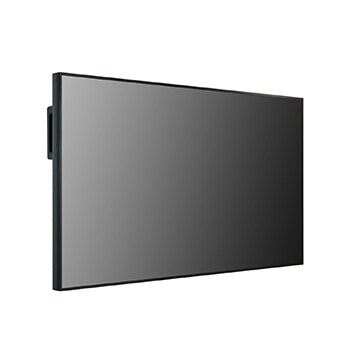

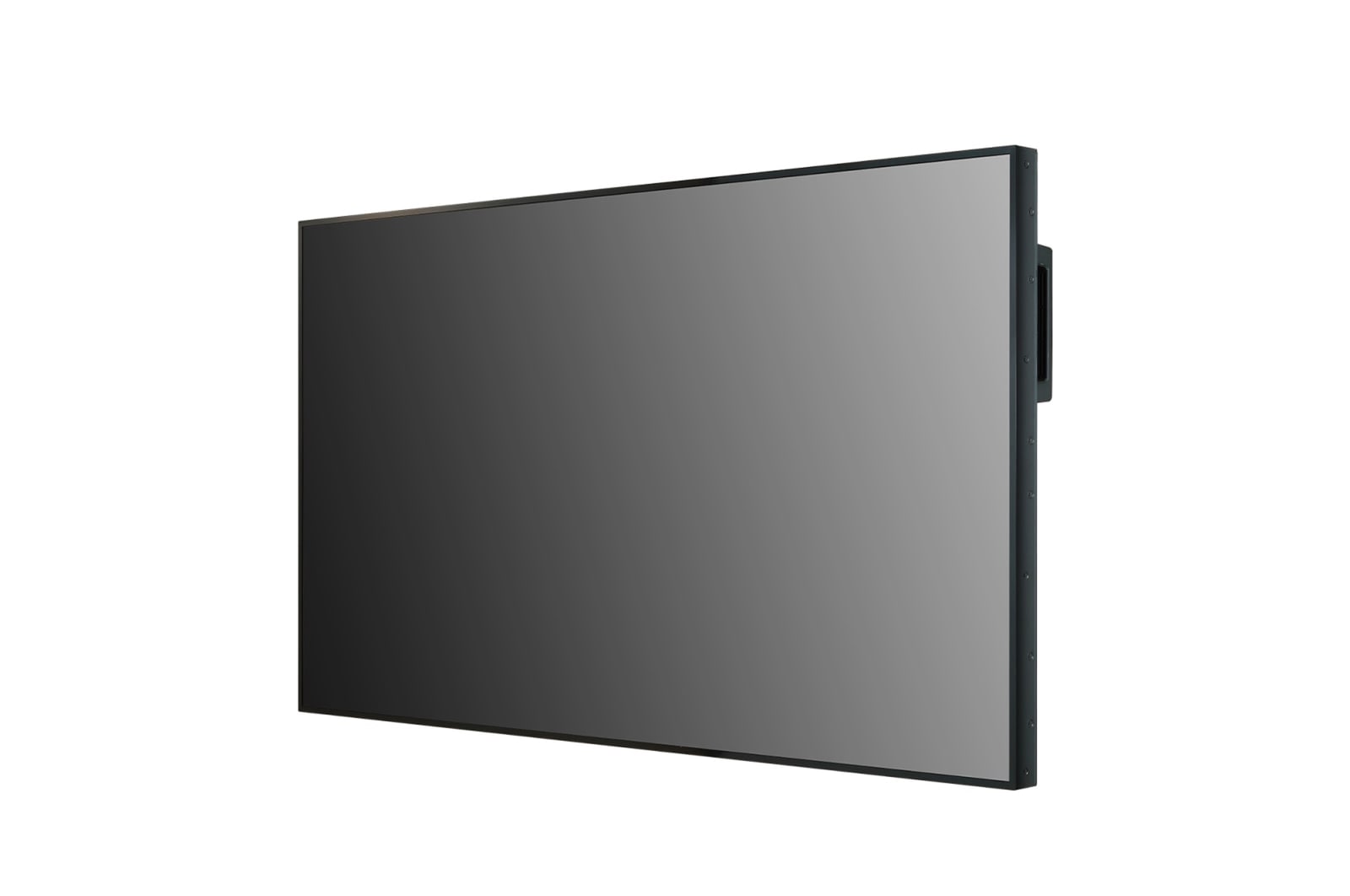

75XF3ES-B 的 -45 度側視圖

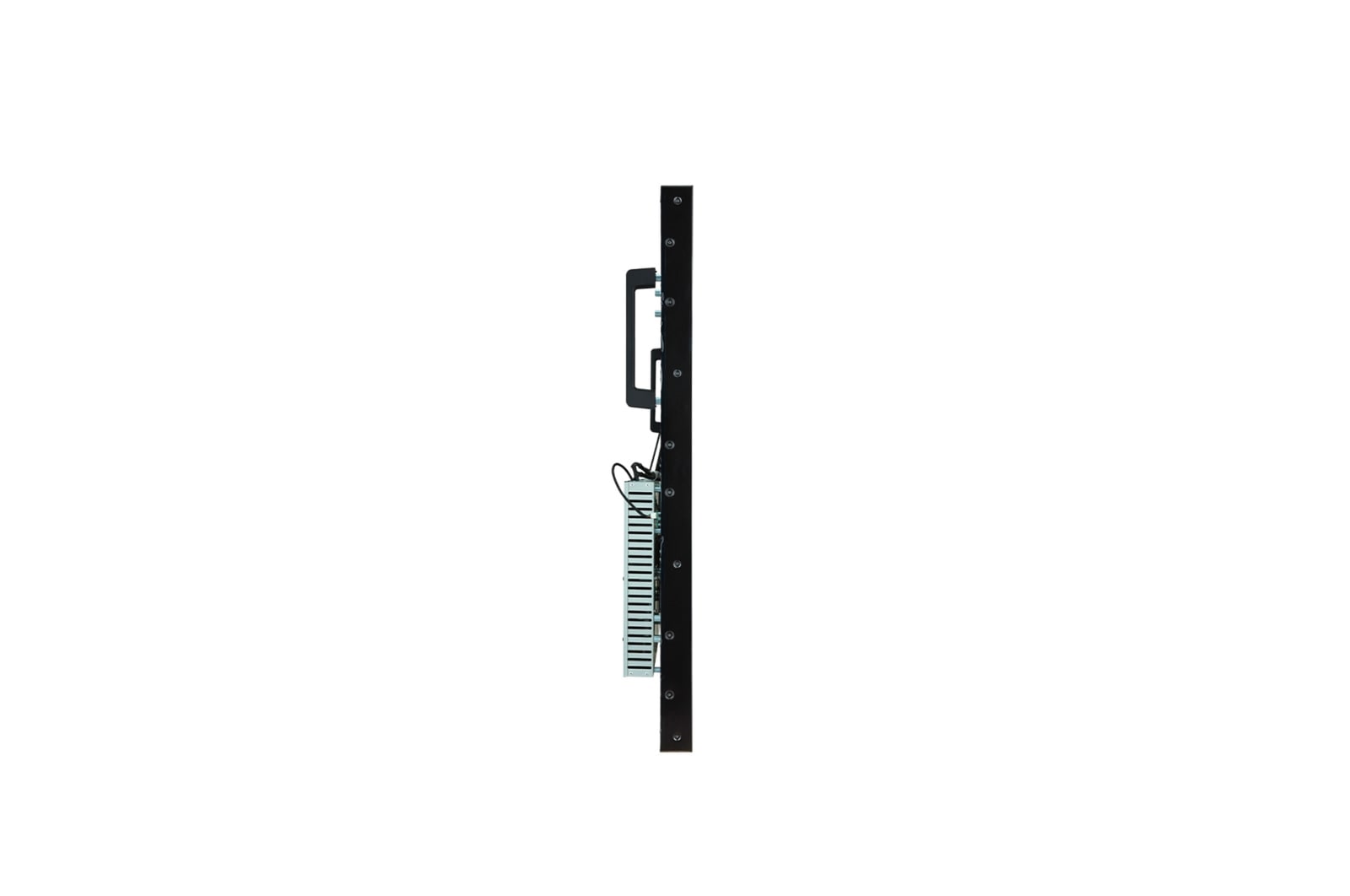

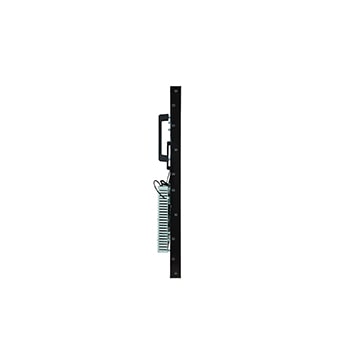

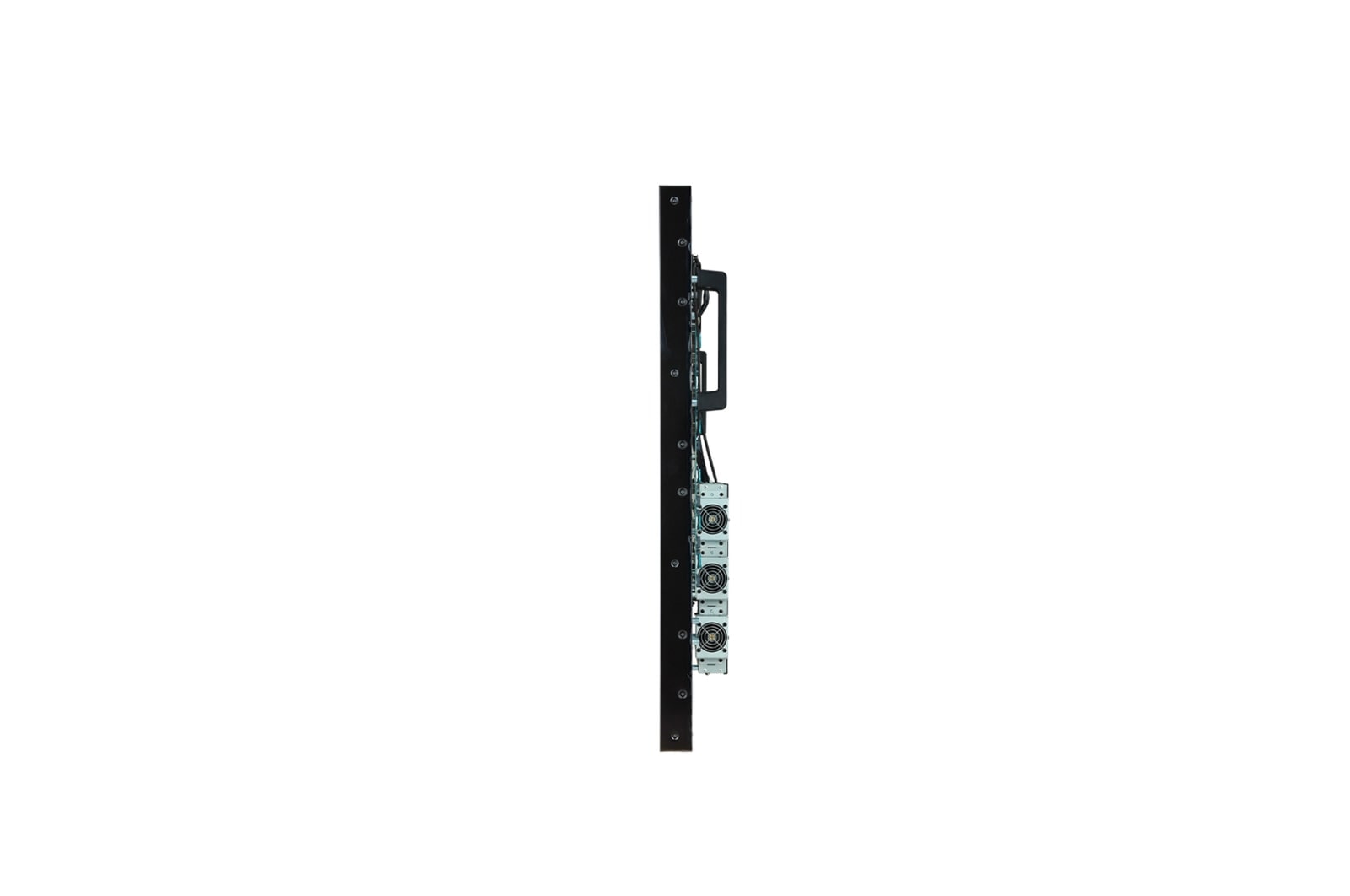

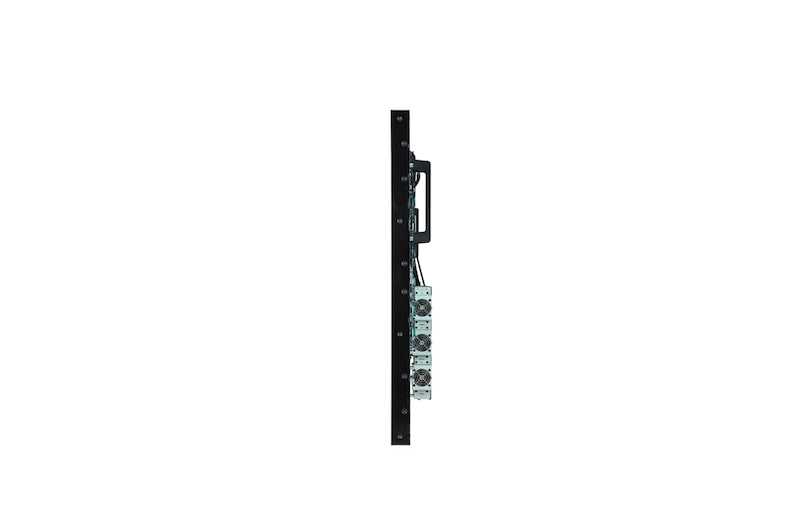

75XF3ES-B 的 -90 度側視圖

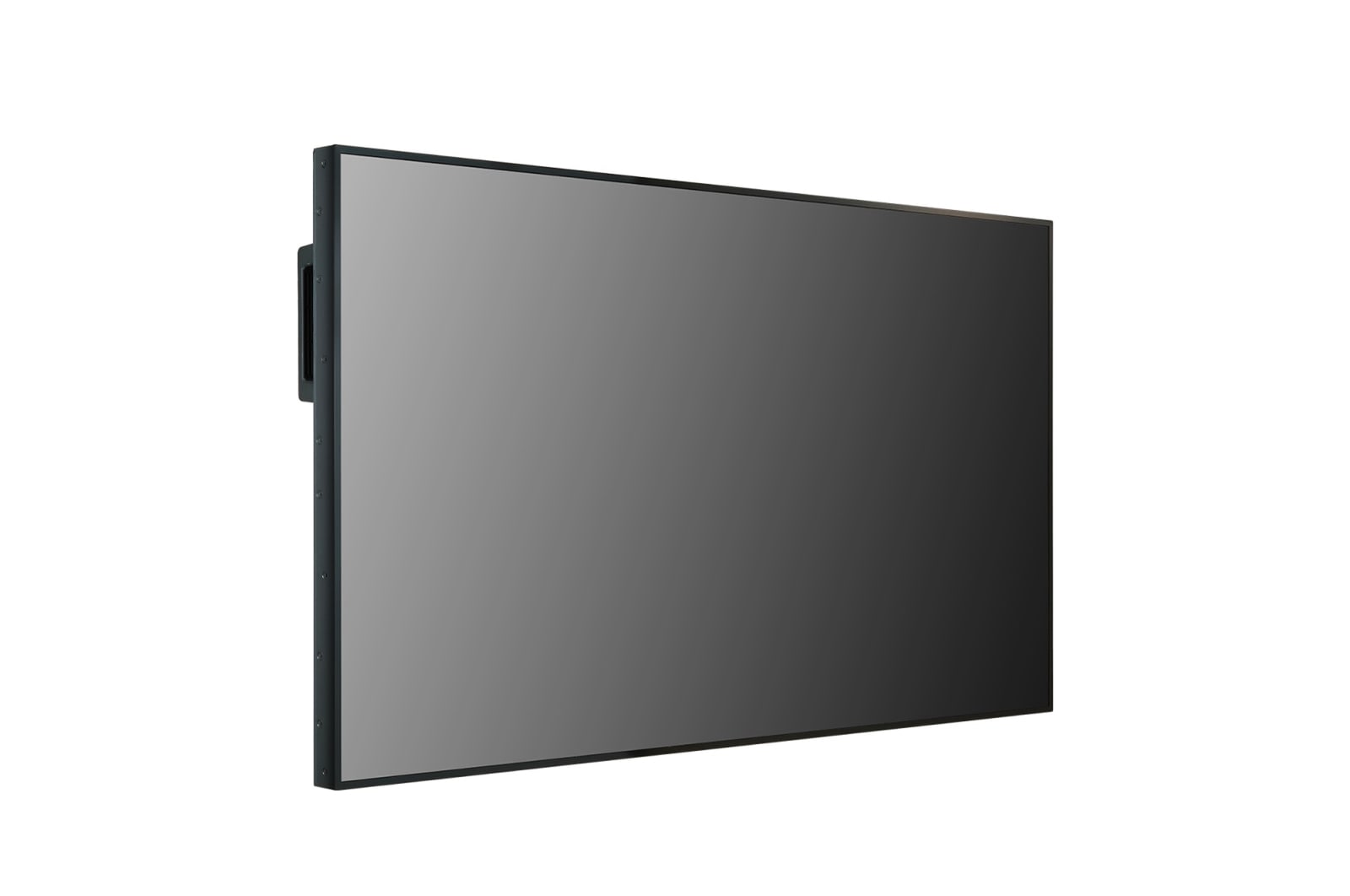

75XF3ES-B 的 +45 度側視圖

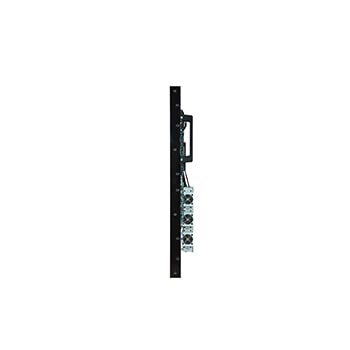

75XF3ES-B 的 +90 度側視圖

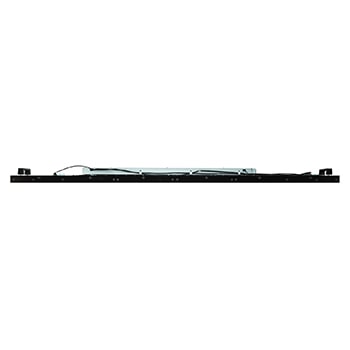

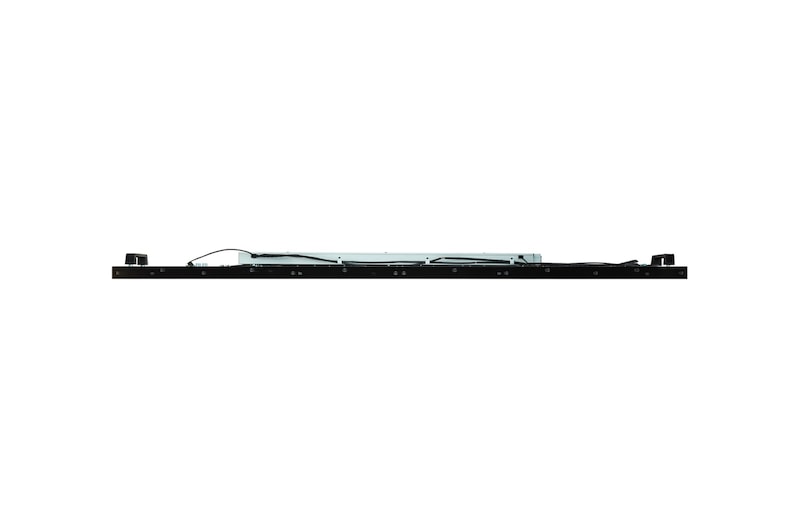

75XF3ES-B 的頂視圖
Front view of XF3ES-B 系列 - 75 吋 UHD 3,000nits 嵌入式高亮度顯示屏 75XF3ES-B
75XF3ES-B 的正視圖
75XF3ES-B 的 -45 度側視圖
75XF3ES-B 的 -90 度側視圖
75XF3ES-B 的 +45 度側視圖
75XF3ES-B 的 +90 度側視圖
75XF3ES-B 的頂視圖

主要功能

  • 亮度：3,000 cd/m² (Typ.)
  • 壽命：50,000 小時
  • 邊框：11.8mm (四邊一致)
  • 深度：128.9 mm
  • 介面：HDMI (2)/ DP/ DVI-D/ USB/ RJ45/ RS232C/ IR/ External speaker out
更多
列印

所有規格

面板

  • 螢幕尺寸（吋）

    75" (74.52" Measured Diagonal)

  • 實際解像度

    3,840 x 2,160 (UHD)

  • 亮度

    3000

機械規格

  • 邊框闊度

    11.8 mm (Even)

  • 重量（屏身）

    37.5 kg

  • 包裝後的重量

    47.0 kg

  • 顯示器尺寸（闊 x 高 x 深）

    1,675.2 x 953.6 x 128.9 mm

  • 紙箱尺寸（闊 x 高 x 深）

    1,816 x 1,106 x 285 mm

環境狀況

  • 操作溫度

    0℃ to 50℃ (w/o Direct Sunlight, Direct Sunlight in Cooling System),
    0℃ to 40℃ (Direct Sunlight)

  • 操作濕度

    10 % to 80 %

電源

  • 電源供應

    100-240 V~, 50/60 Hz

  • 電源類型

    Built-In Power

耗電量

  • 最大

    700W

  • 標準

    620W (Full White)
    353W (IEC 62087)

認證

  • 安全

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class "A" / CE / KC

  • ERP / 能源之星

    Yes (EU Only) / No

配件

  • 基本

    Remote Controller, Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)

  • 選購

    Wi-Fi Dongle (AN-WF500)
