LG MAGNIT

LG MAGNIT

LG MAGNIT

LSAD007-M21

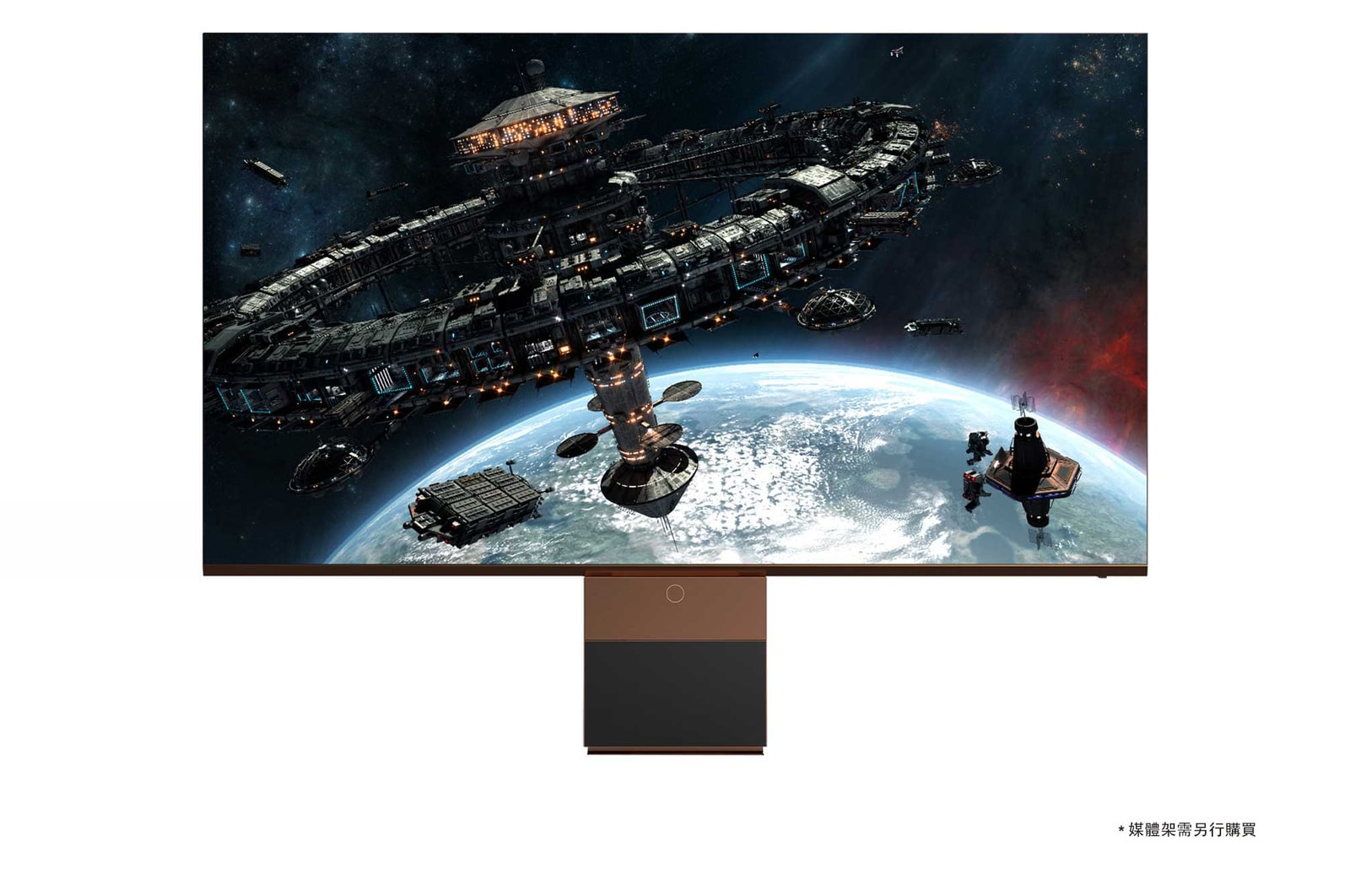

Front view of LG MAGNIT LSAD007-M21

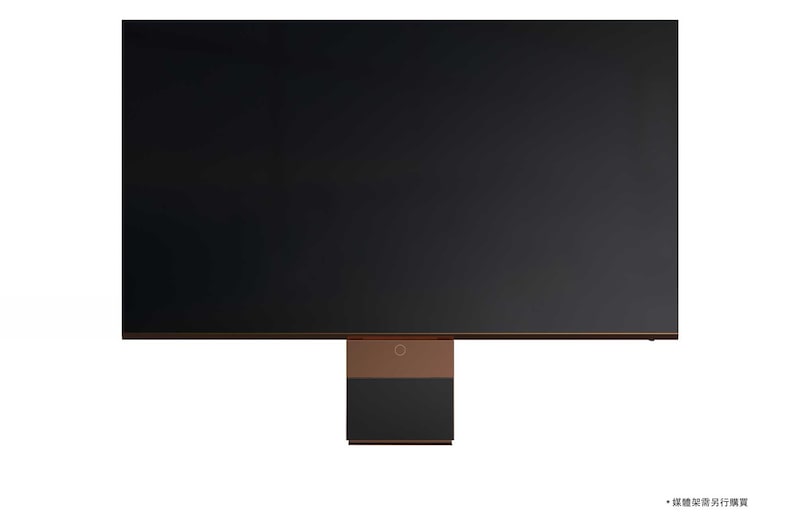

正面圖（*媒體架需另行購買）

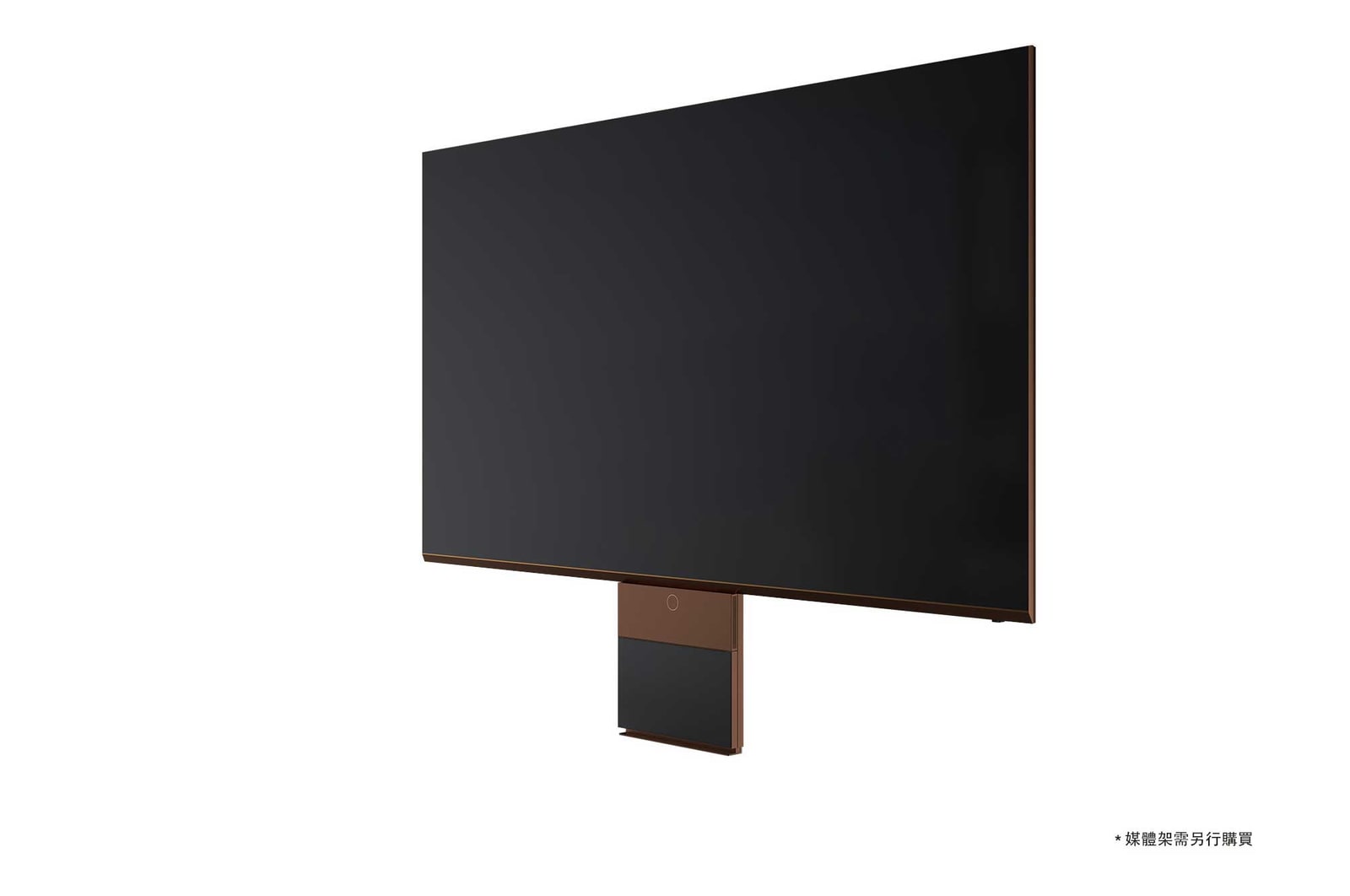

-45度側視圖（*媒體架需另行購買）

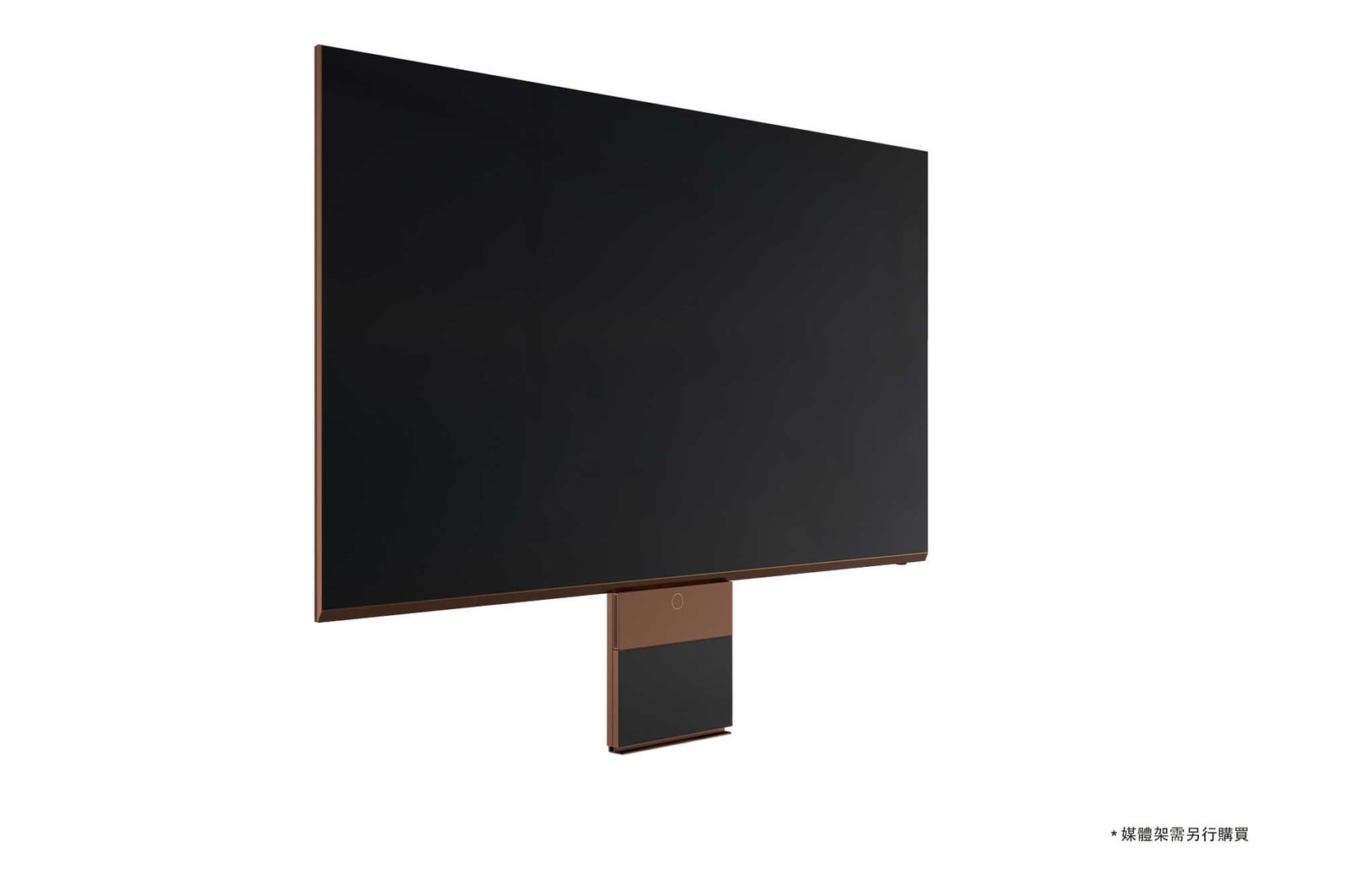

+45度側視圖（*媒體架需另行購買）

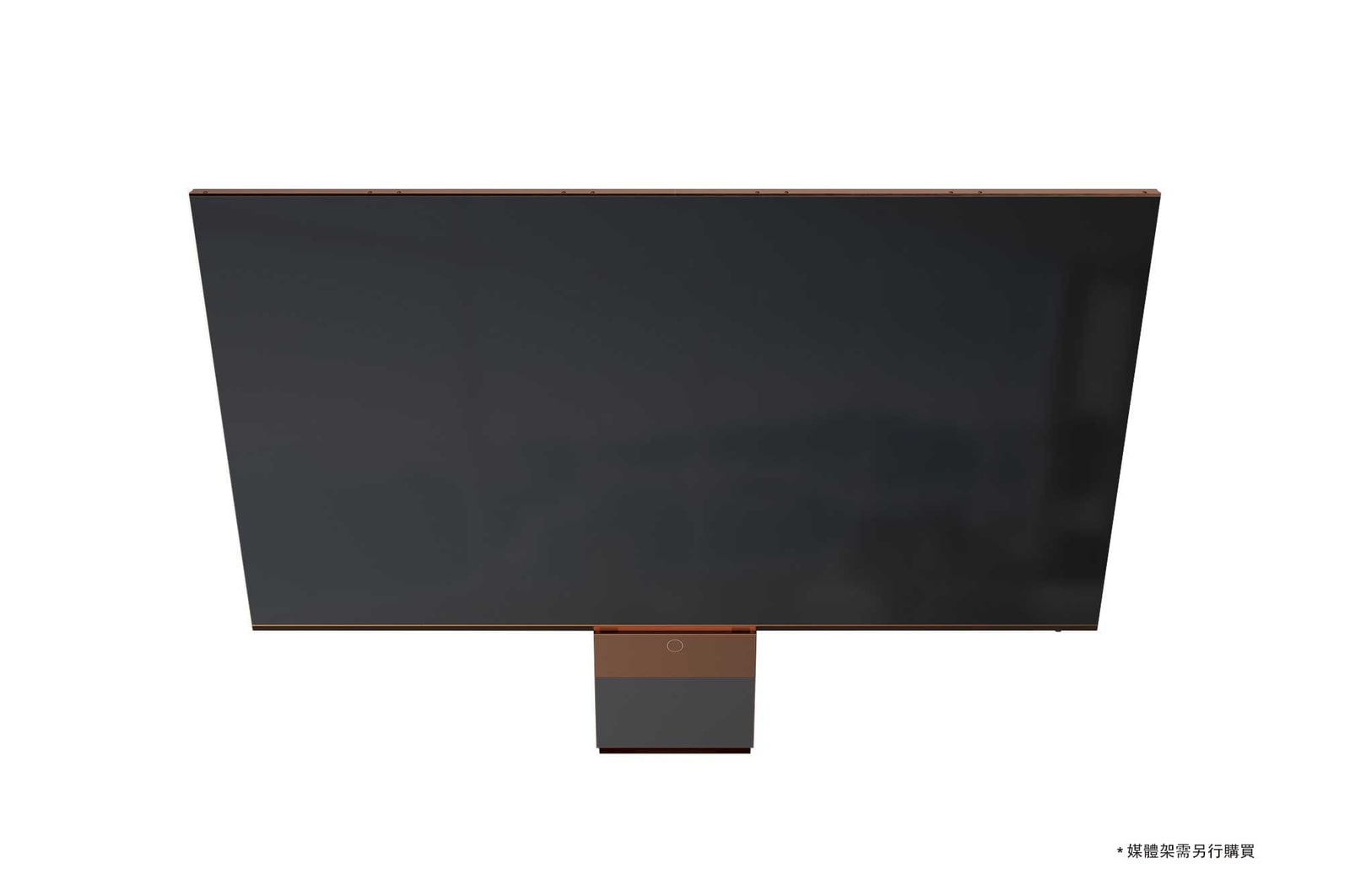

從頂部拍攝的圖片（*媒體架需另行購買）

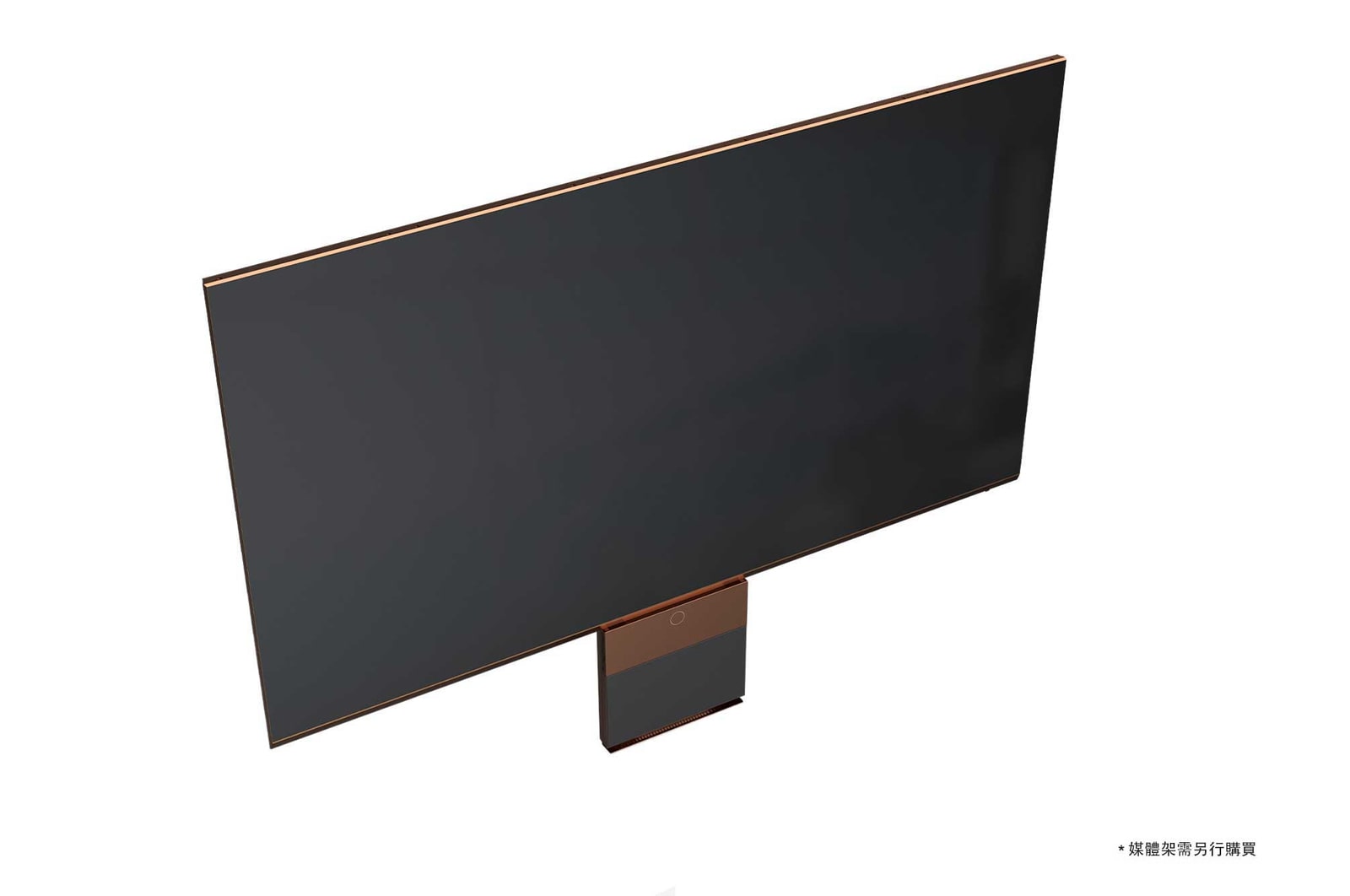

圖片取自左上角（*媒體架需另行購買）

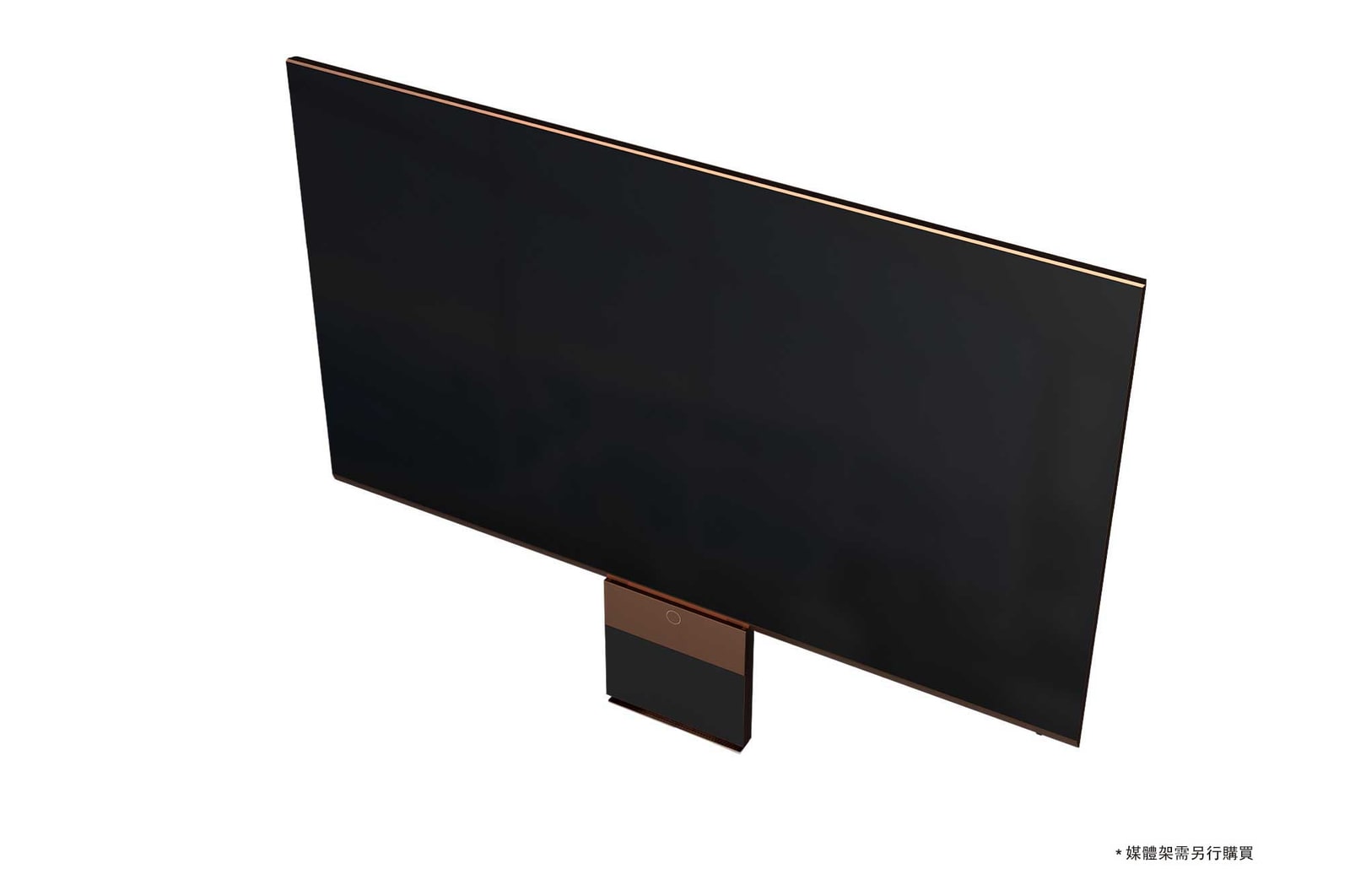

圖片取自右上角（*媒體架需另行購買）
Front view of LG MAGNIT LSAD007-M21

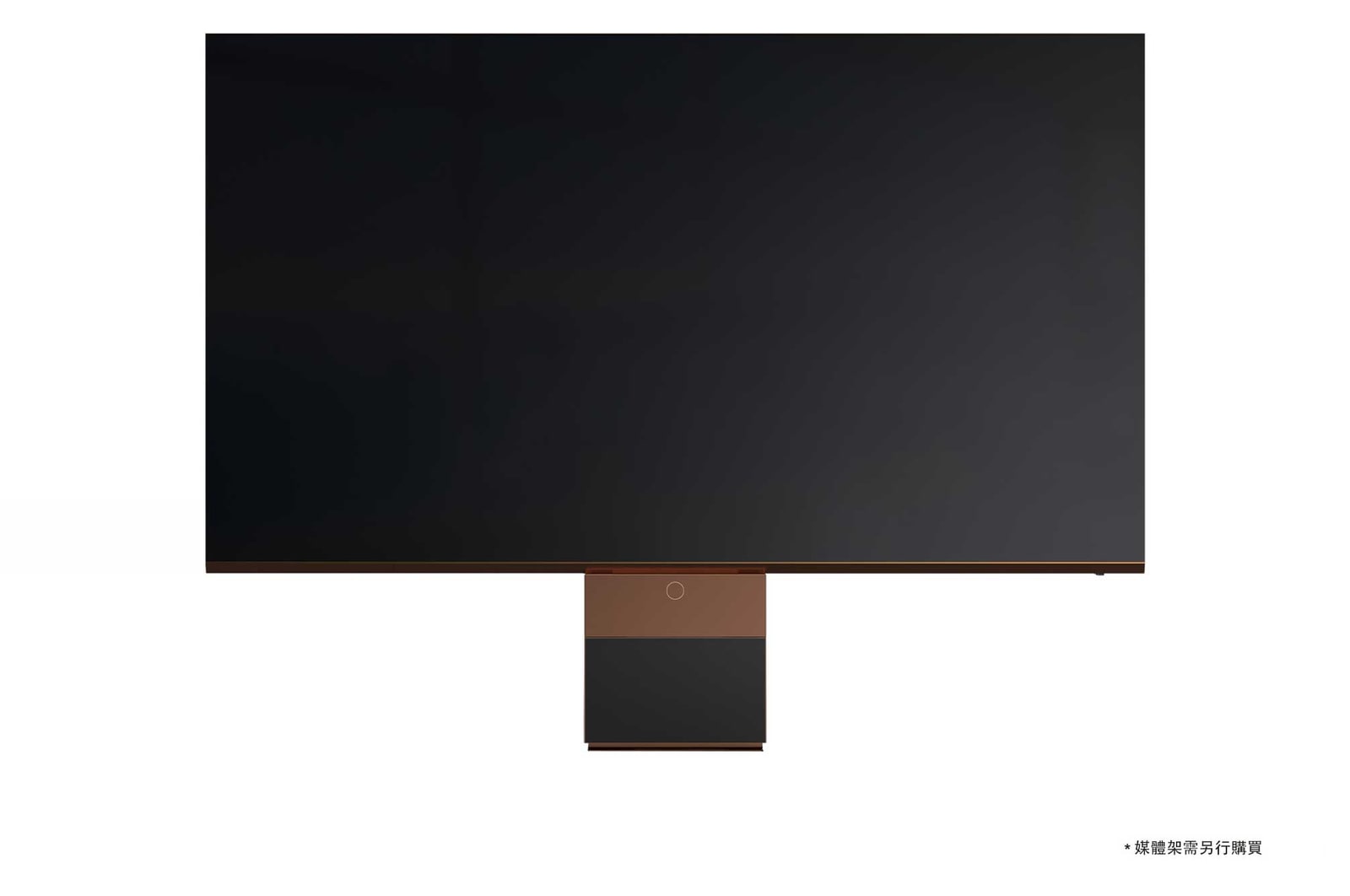

正面圖（*媒體架需另行購買）
-45度側視圖（*媒體架需另行購買）
+45度側視圖（*媒體架需另行購買）
從頂部拍攝的圖片（*媒體架需另行購買）
圖片取自左上角（*媒體架需另行購買）

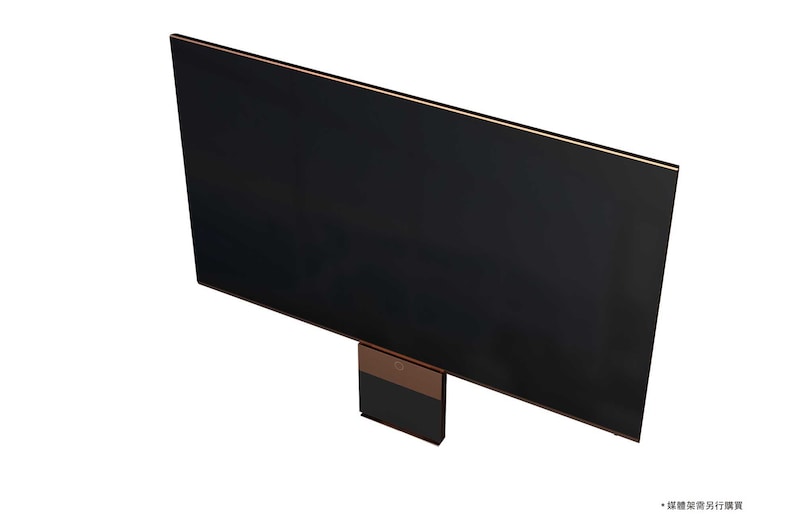

圖片取自右上角（*媒體架需另行購買）

主要功能

  • 家用 Micro LED 技術
  • 4K (3,840×2,160) 解像度、136 吋
  • a9 AI 處理器畫質最佳化
  • 內置各種串流服務
  • 低藍光認證減輕眼部疲勞
  • 時尚媒體架 (選配)
更多
列印

所有規格

STANDARD

  • Certification

    CE,FCC,ETL,CB

CONTROLLER

  • Controller

    External (MSAD-0072)

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/㎡, Max.)

    395

  • Frame Rate (Hz)

    100 / 120

  • Heat Dissipation (BTU/h/㎡, Max.)

    1,348

  • Heat Dissipation (BTU/h/Screen, Avg.)

    5,118

  • Heat Dissipation (BTU/h/Screen, Max.)

    6,824

  • Power Consumption (W/Screen, Avg.)

    1,500

  • Power Consumption (W/Screen, Max.)

    2,000

  • Power Supply (V)

    100 to 240

  • Refresh Rate (Hz)

    3,840

ENVIRONMENT

  • Environment

    RoHS, REACH

I/O PORT

  • I/O Port

    HDMI In(4), Digital Audio Out, USB In(2), RS232C In, LAN In

OPERATION SPECIFICATIONS

  • LED Lifetime (Half brightness)

    100,000

  • IP rating Front

    IP50

  • IP rating Rear

    IP20

  • Operating Humidity

    10~80%RH

  • Operating Temperature(℃)

    0℃ to +40℃

OPTICAL SPECIFICATIONS

  • Visual Viewing Angle (Horizontal)

    150

  • Brightness Uniformity(%)

    95

  • Color Temperature (K)

    4,800~9,300 / Default 7,300

  • Color Uniformity

    ±0.002Cx,Cy

  • Contrast Ratio

    150,000:1 @10lux

  • Max Brightness (After Calibration, nit)

    250 / Peak 2,000

  • Processing Depth (bit)

    20 (HDR10, HDR10 Pro)

  • Visual Viewing Angle (Vertical)

    148

PHYSICAL PARAMETERS

  • Pixel Configuration

    Micro

  • Cabinet material

    Die-casting Aluminum

  • Flatness of Cabinet (mm)

    ±0.5

  • Module Dimensions(WxH,mm)

    150x168.75

  • No. of Modules per Screen (WxH)

    20x10

  • Physical Pixel Density (pixels/㎡)

    1,638,400

  • Pixel Pitch (mm)

    0.78

  • Screen Dimensions (W x H x D, mm, including bezel)

    3,010x1,732x57.7

  • Screen Resolution (WxH)

    3,840x2,160

  • Screen Surface Area (㎡)

    5.06

  • Service access

    Front

  • Weight of the screen (kg)

    200
