- 21.3 吋 5MP (2,048x2,560) IPS 顯示屏
- 1,100 cd/m² 亮度 (Typ.)
- 多解像度模式 (5/3/2MP)
- 前置校準感應器
- 焦點檢視模式 / 病理模式

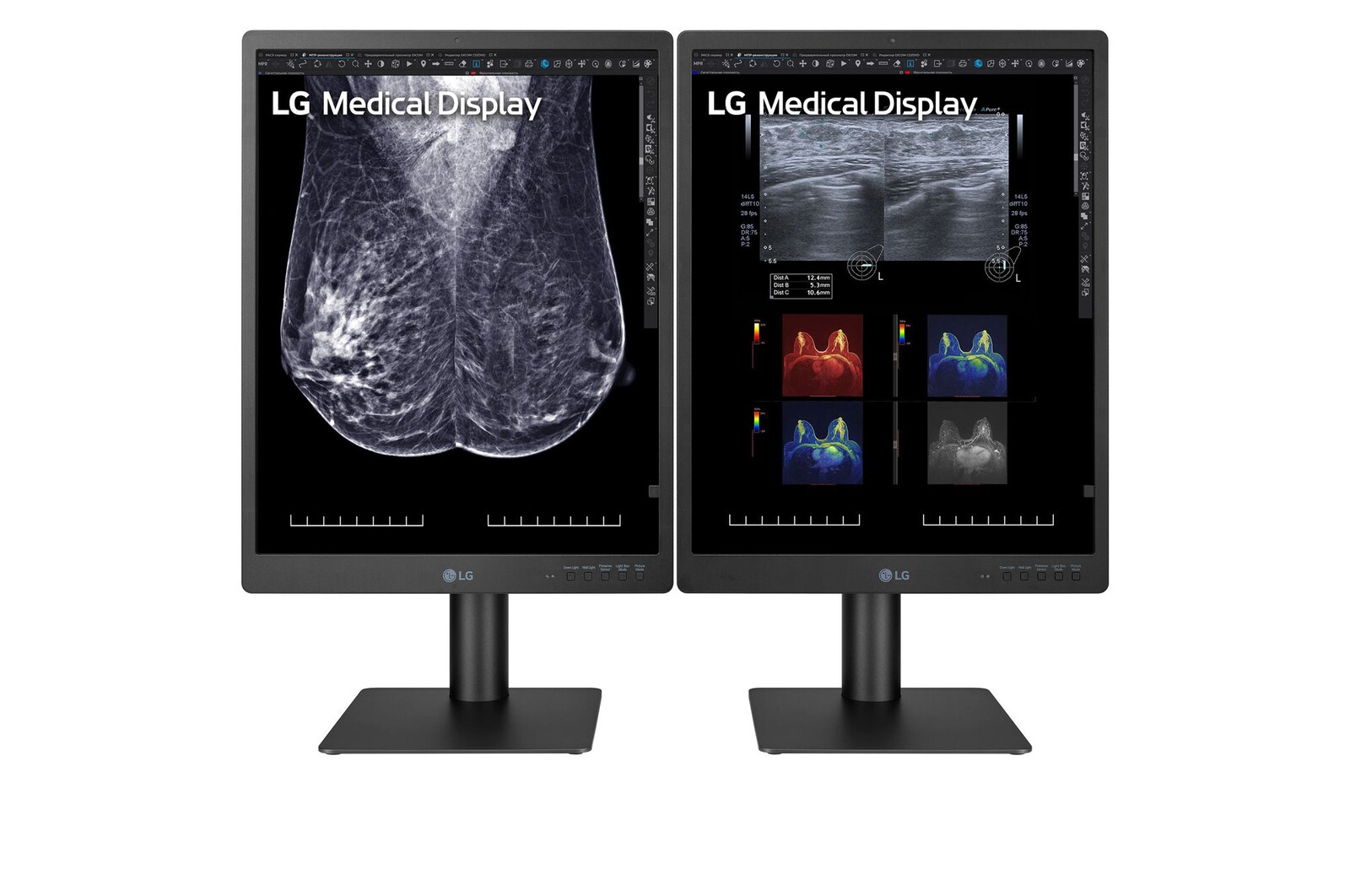

- 串接多螢幕 (Daisy Chain)
所有規格
STANDARD
RoHS
YES
REACH
YES
WEEE
YES
MFDS
YES
UL (cUL)
YES
IEC (IEC 60601-1 / IEC 60601-1-2)
YES
EN (EN 60601-1 / EN 60601-1-2)
YES
IEC (IEC 60950-1 / IEC 55032, 55024)
YES
EN (EN 60950-1 / EN 55032, 55024)
YES
CE
MDR(Pending)
FDA
510(K)(Class II)
ISO13485
YES
GMP
YES
SW APPLICATION
Dual Controller
YES
ACCESSORY
Power Cord
YES
Adapter
YES
Calibration Report (Paper)
YES
DVI-D
YES(1ea)
Display Port
YES
USB A to B
YES
MECHANICAL
Borderless Design
Normal
Machanical Power Switch
YES
OneClick Stand
YES

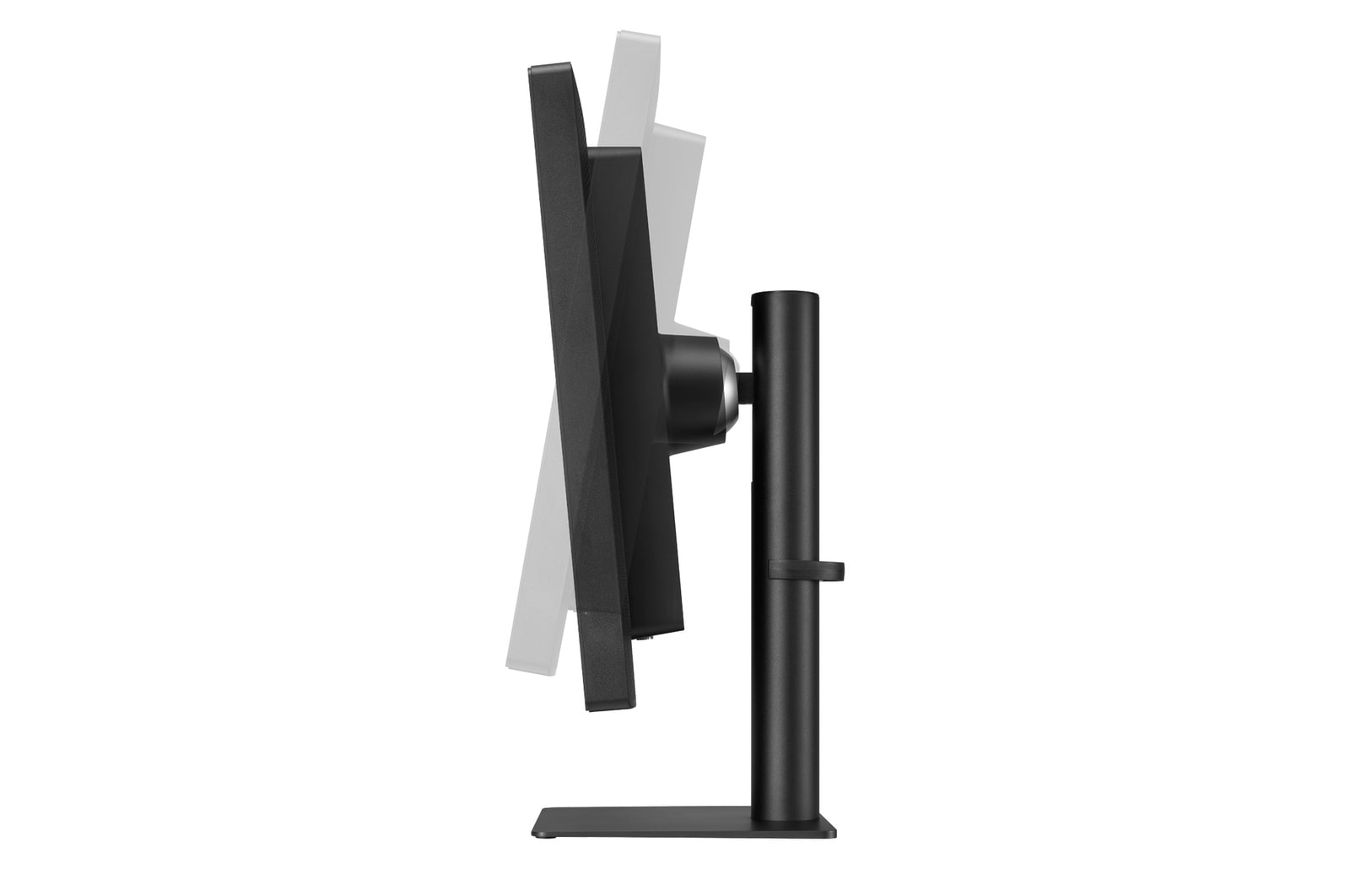

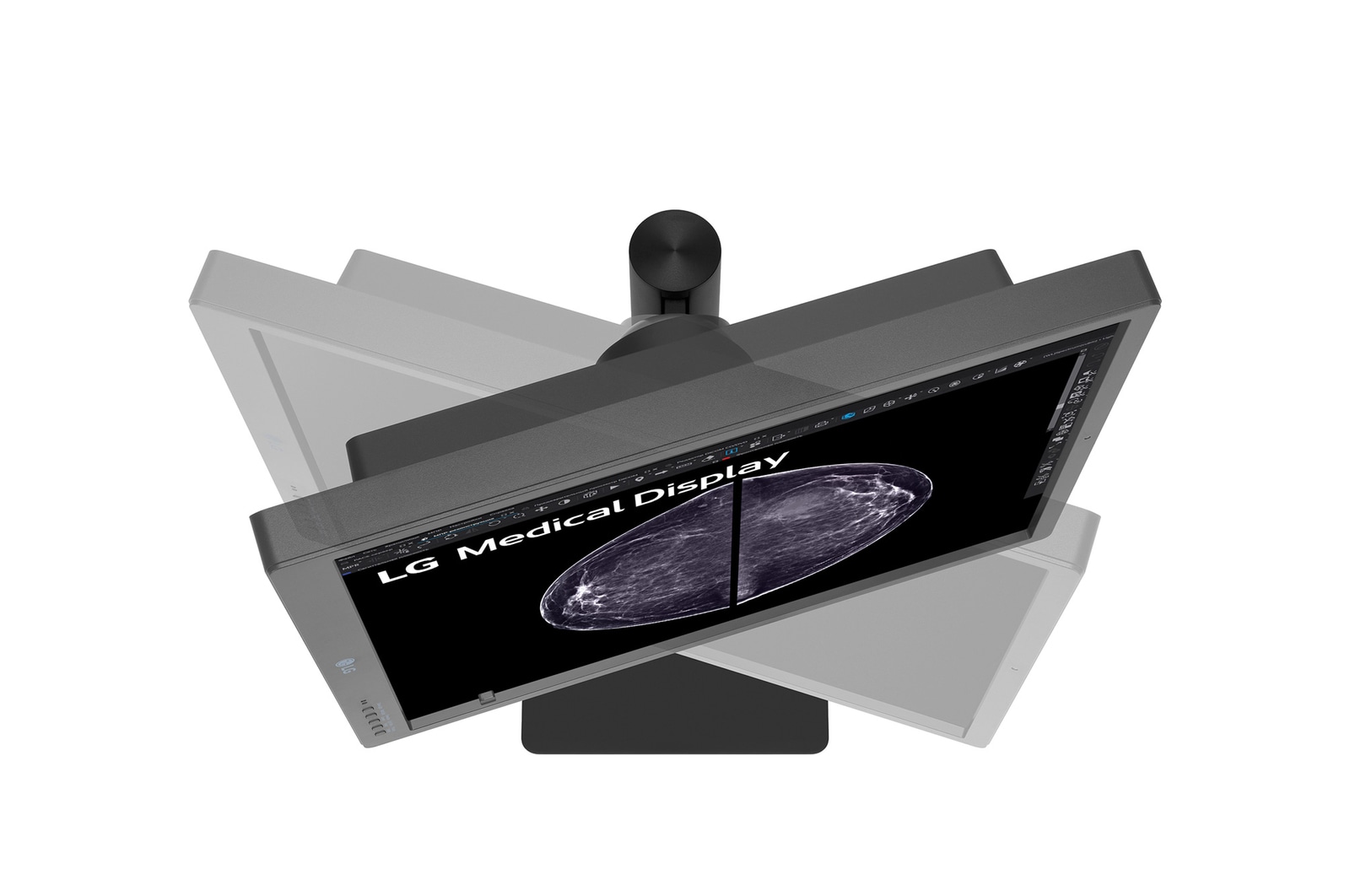

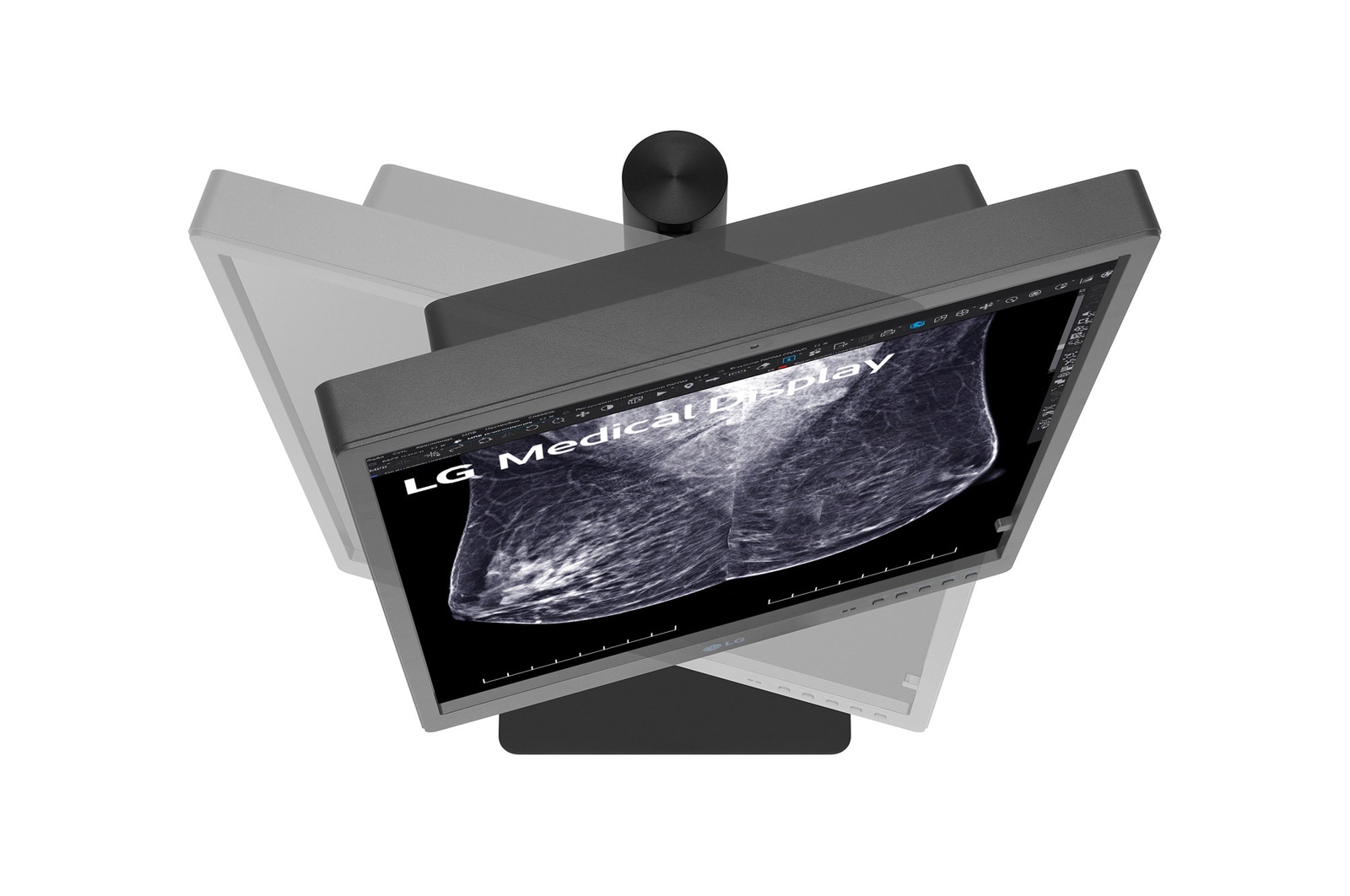

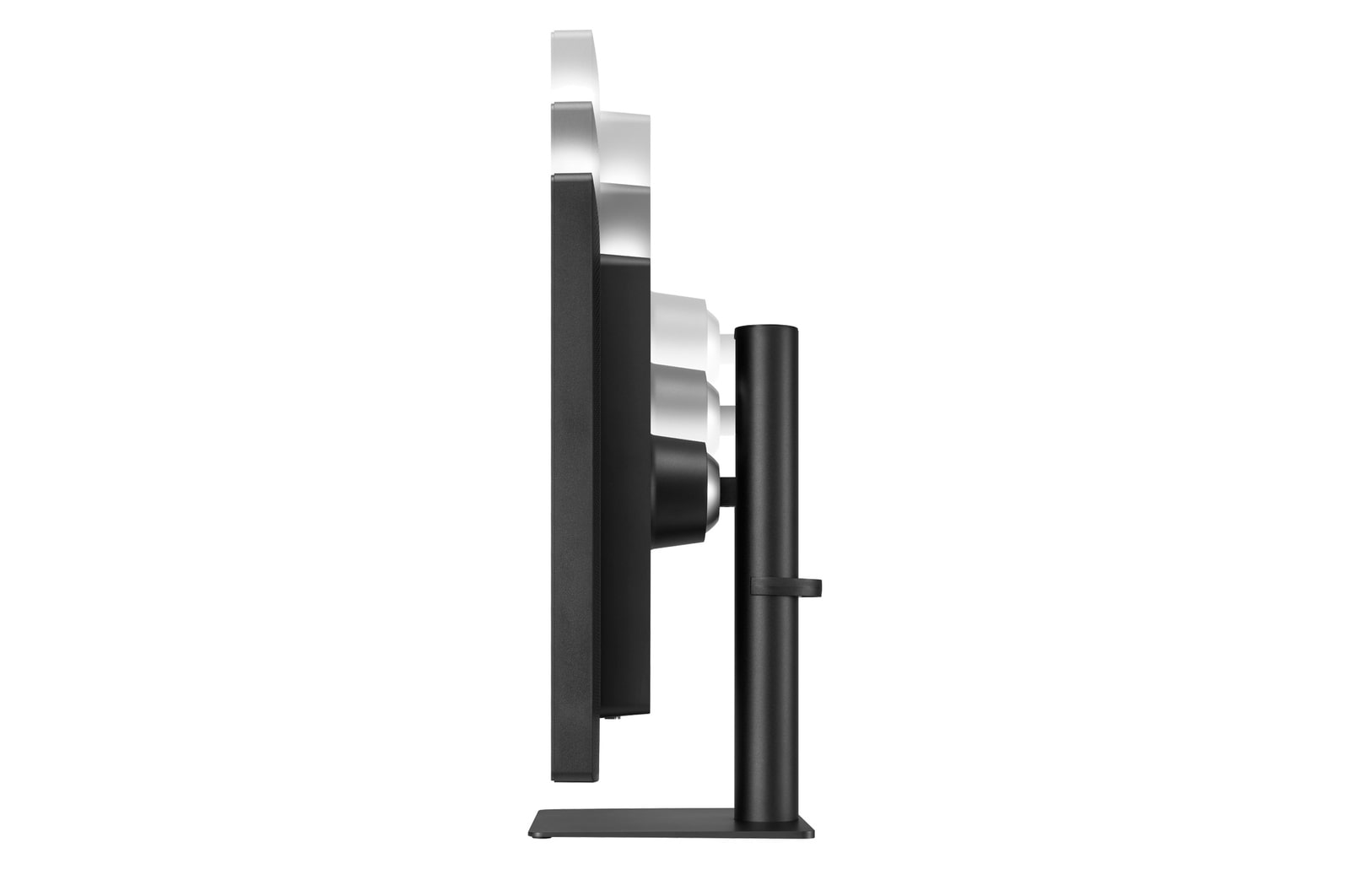

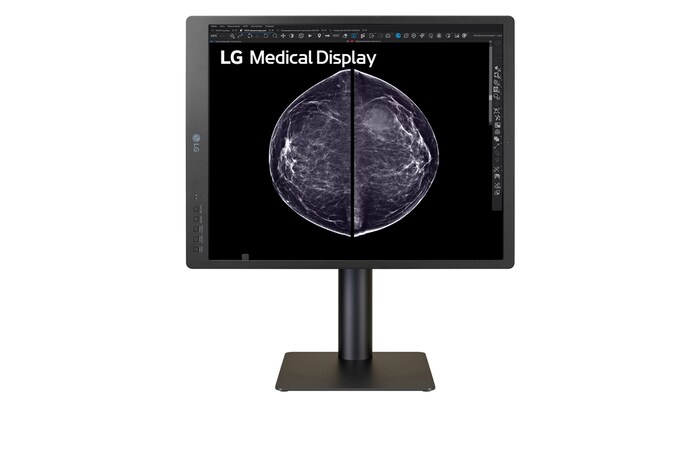

Display Position Adjustments
Tilt/Height/Swivel/Pivot
Wall Mountable [mm]
100 x 100 mm
DIMENSIONS/WEIGHTS
Dimension with Stand (W x H x D) [mm]
364.5 x 634.4 x 233.6
Dimension without Stand (W x H x D) [mm]
364.5 x 473.4 x 78
Dimension in Shiping (W x H x D) [mm]
524 x 577 x 296
Weight with Stand [kg]
7.85
Weight without Stand [kg]
5.45
Weight in Shipping [kg]
11.4
FEATURES
DICOM Compliant
YES
Hot Key
YES(5keys)
HW Calibration
YES
Auto Brightness
YES
Brightness stabilization
YES
Flicker Safe
YES
Presence Sensor
YES
Front Sensor
YES
Reader Mode
YES(Text Mode)
Color Temperature
6500K / 7500K / 9300K / Manual (5000K ~ 10000K)
Pathology Mode
YES
Super Resolution+
YES
Focus View
YES
Light Box Mode
YES
Lighting
YES(Down/ Wall)
Black Stabilizer
YES
Smart Energy Saving
YES
POWER
Type
External Power(Adapter)
DC Output
19V @6.32A
AC Input
100-240Vac, 50-60Hz
Power Consumption (DC Off)
Less than 0.3W

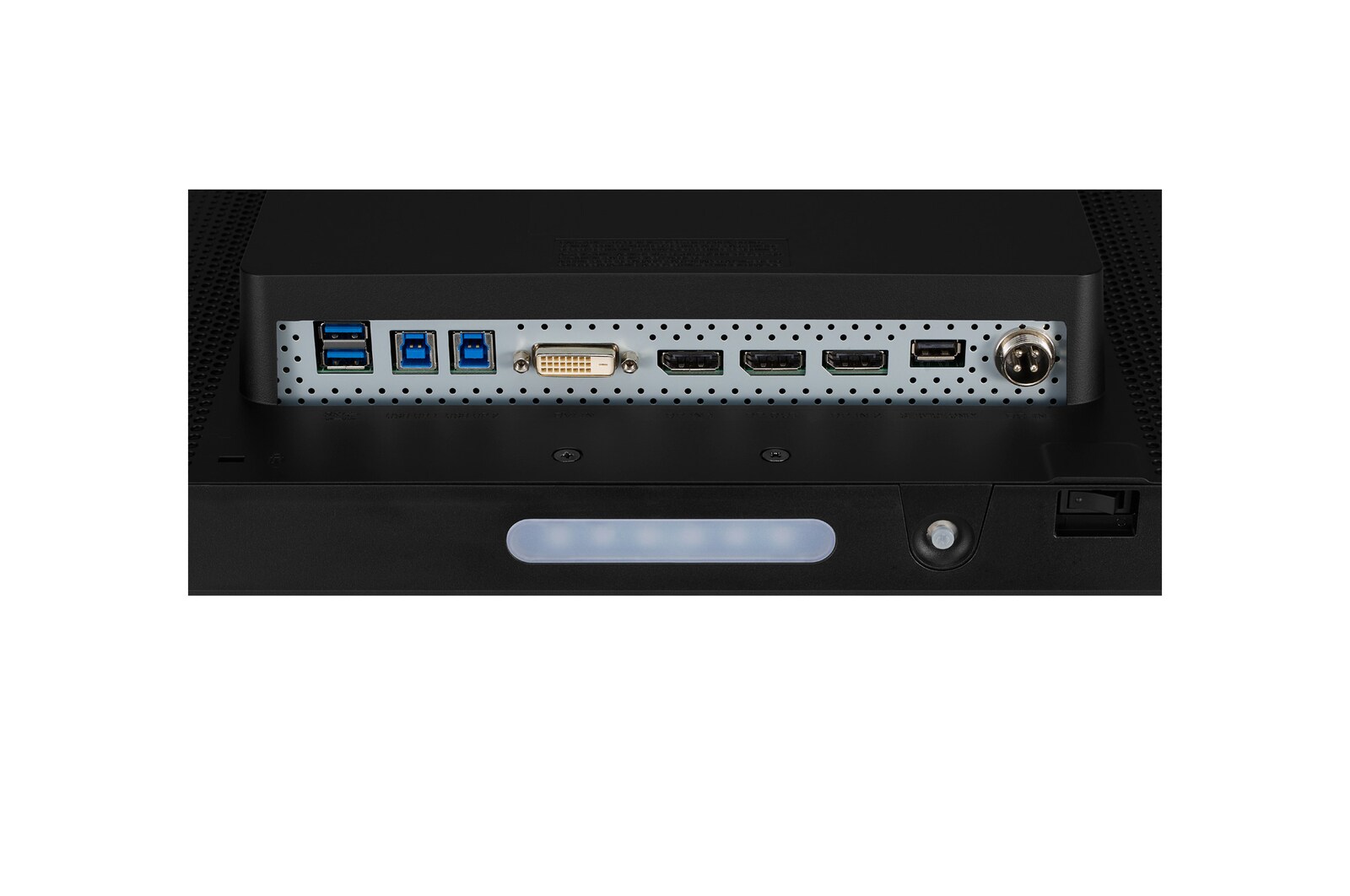

CONNECTIVITY
DisplayPort
YES(In 2ea / Out 1ea)
Daisy Chain
YES(5MP/48Hz)
USB Upstream Port
YES(2ea/ver3.0)
USB Downstream Port
YES(2ea/ver3.0)
DISPLAY
Size [Inch]
21.3
Resolution
2048 x 2560
Panel Type
IPS
Aspect Ratio
4:5
Pixel Pitch [mm]
0.165 X 0.165 mm
Brightness (Typ.) [cd/m²]
1100cd/m²
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Color Bit
10bit
Contrast Ratio (Typ.)
1800:1
Surface Treatment
AG
Response Time
5ms (GtG at Faster)
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
