27 吋全高清手術顯示器

27 吋全高清手術顯示器

27 吋全高清手術顯示器

27HK510S-W

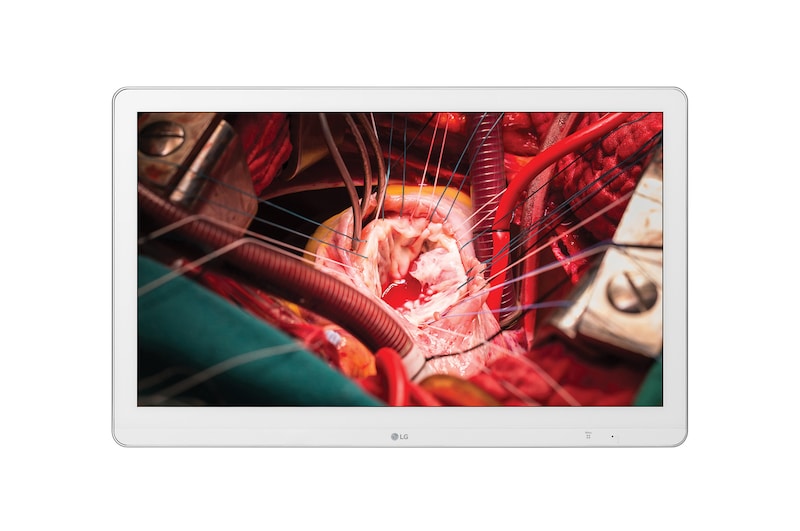

Front view of 27 吋全高清手術顯示器 27HK510S-W

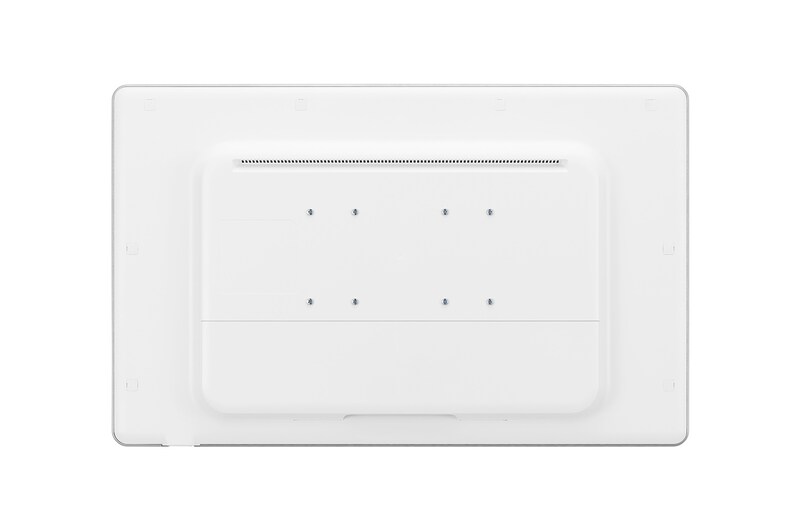

27HK510S 的後視圖
27HK510S 的 右視圖
27HK510S 的左側視圖
27HK510S 的底部側視圖
27HK510S 的頂部側視圖

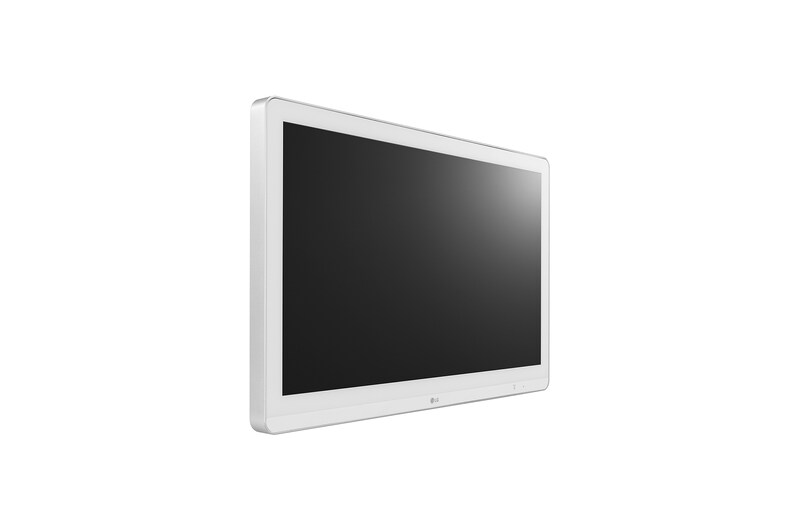

27HK510S 的 -15 度側視圖
27HK510S 的 +15 度側視圖
27HK510S 的 +15 度背視圖
Front view of 27 吋全高清手術顯示器 27HK510S-W
27HK510S 的後視圖
27HK510S 的 右視圖
27HK510S 的左側視圖
27HK510S 的底部側視圖
27HK510S 的頂部側視圖
27HK510S 的 -15 度側視圖
27HK510S 的 +15 度側視圖
27HK510S 的 +15 度背視圖

主要功能

  • 27 吋全高清 IPS 顯示屏 (1920x1080)
  • sRGB 115% (深紅色)
  • 高亮度穩定性
  • 防塵防水
  • 保護玻璃
  • 不閃爍技術
更多

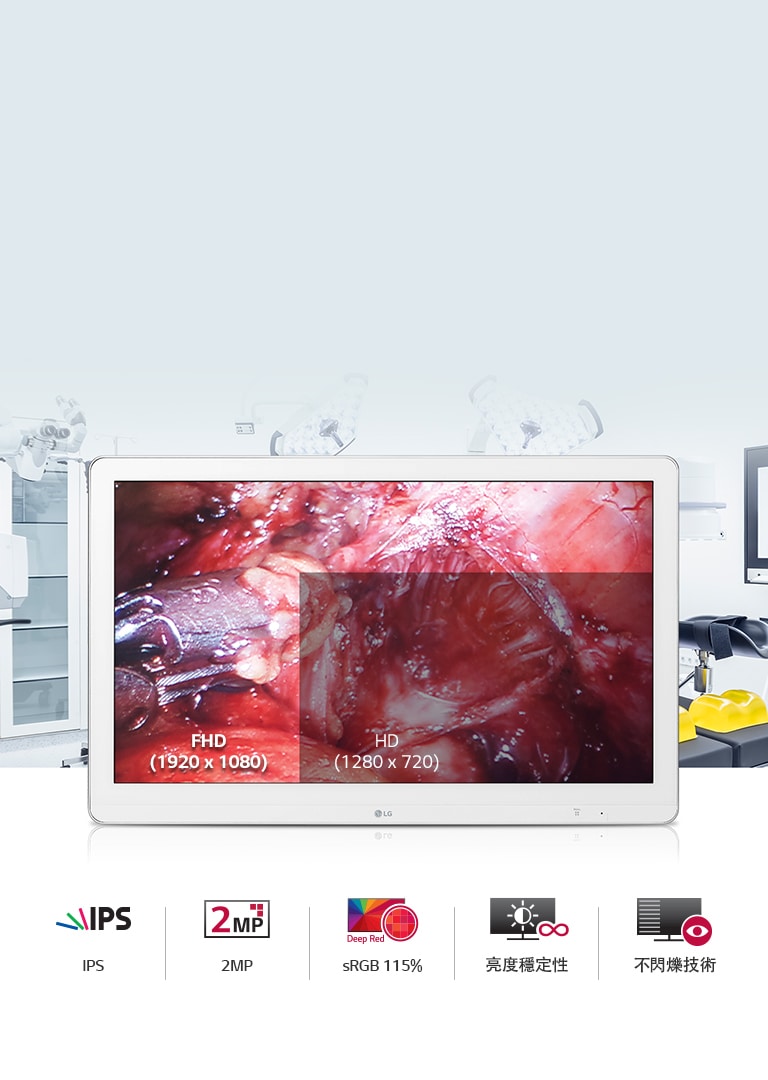

高兼容性的顯示器

高兼容性的顯示器

高兼容性的顯示器

LG 手術顯示器的細緻畫質符合手術室要求，其 27 吋全高清 IPS 顯示屏幫助全面提升工作效率。

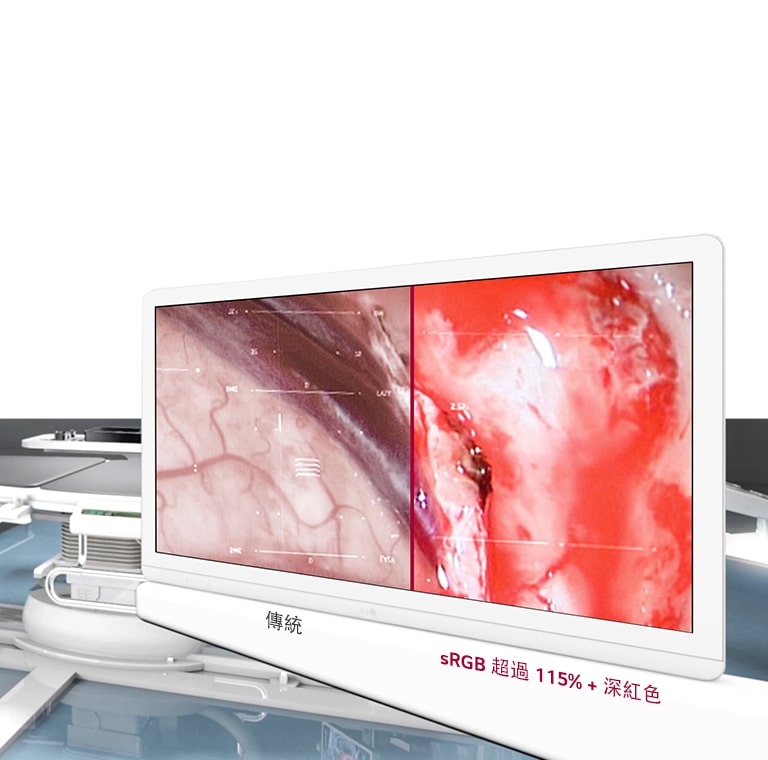

完美畫質

完美畫質

全高清 IPS

完美畫質

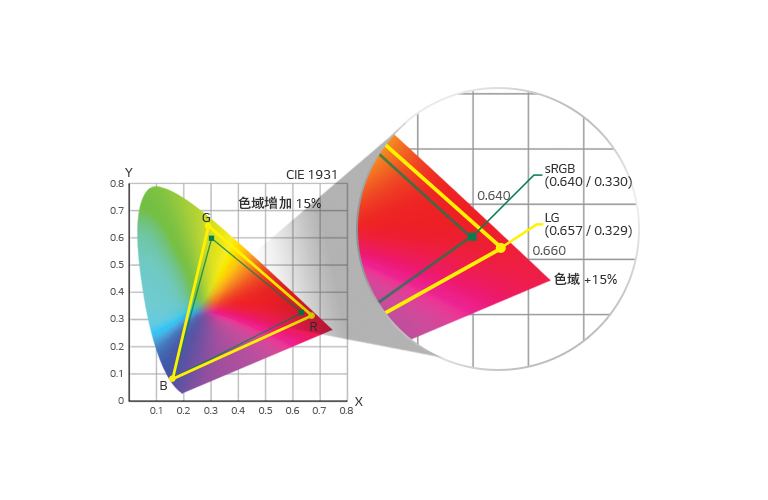

sRGB 115% (深紅色)

sRGB 115% (深紅色)

全高清 IPS 顯示器提供超過 115% sRGB (深紅色) 色域，專為配合其他全高清手術裝置而設計，外科醫生能夠以深紅色光譜查看精準、逼真的圖像。

保持亮度穩定性

保持亮度穩定性

LG 手術顯示器仔細偵測和設定灰度色調，符合 DICOM Part 14 標準。此外，LG 手術顯示器亦提供亮度穩定性設定。

*DICOM (Digital Imaging and Communications in Medicine)：適用於在醫療領域用顯示器的灰度色調特性標準。

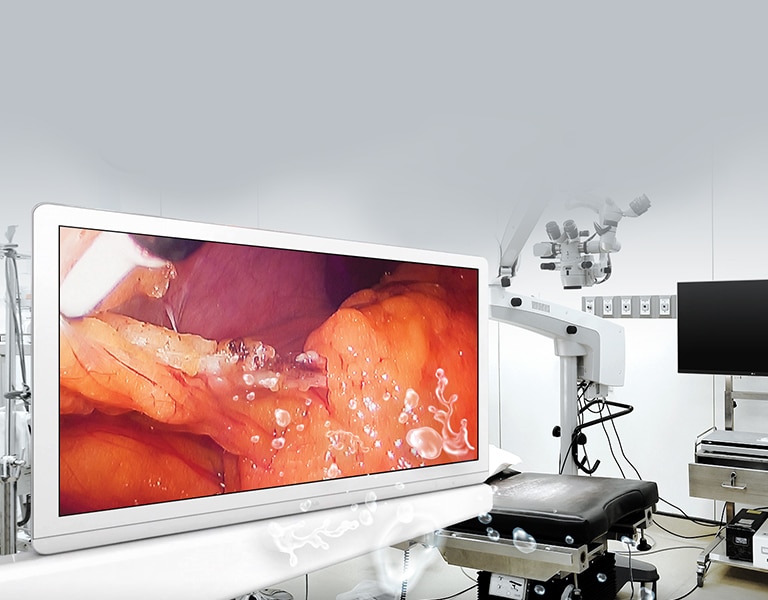

專為手術室而設計

專為手術室而設計

專為手術室而設計

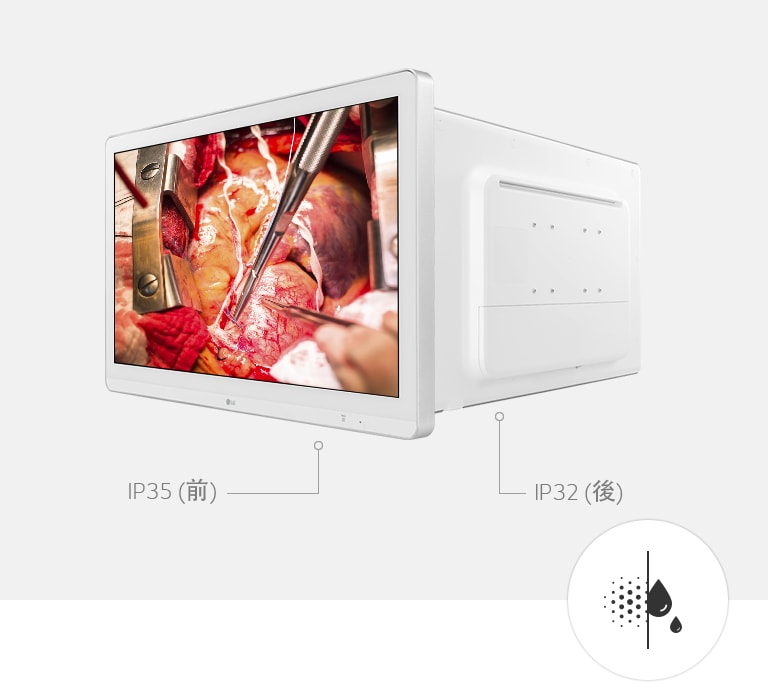

防塵及防水

防塵及防水

為確保裝置避免接觸血液或體液，LG 手術顯示器可被清潔及耐用，正面防護等級為 IP35，背面防護等級達 IP32，可以全方位保護顯示器。

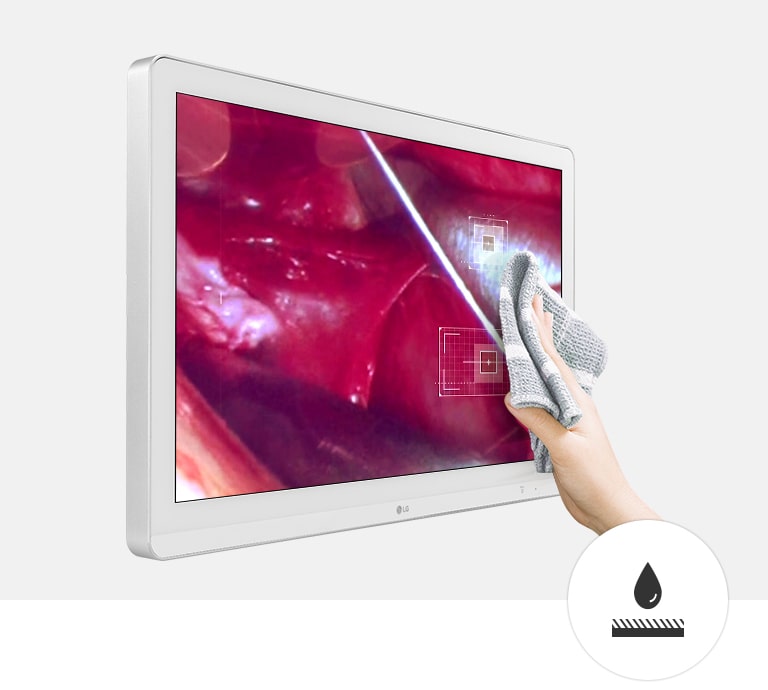

保護玻璃

保護玻璃

LG 手術顯示器配備保護玻璃，更持久耐用，可幫助避免因接觸水或體液而受損，而且更易清潔。

減輕眼睛疲勞

不閃爍技術

減輕眼睛疲勞

不閃爍技術幾乎消除屏幕閃爍的情況，與 IPS 技術結合，為長時間輪班工作的醫療人員減輕眼睛疲勞，舒適工作。

列印

所有規格

DIMENSIONS/WEIGHTS

  • Dimension with Stand (W x H x D) [mm]

    No Stand

  • Dimension without Stand (W x H x D) [mm]

    656.4x412.9x62.2

  • Dimension in Shiping (W x H x D) [mm]

    743x157X496

  • Weight with Stand [kg]

    No Stand

  • Weight without Stand [kg]

    7.7(17lb)

  • Weight in Shipping [kg]

    11.3(24.9lb)

FEATURES

  • DICOM Compliant

    YES

  • Hot Key

    YES(2keys)

  • HW Calibration

    YES(LG Calibration Studio)

  • Brightness stabilization

    YES

  • Flicker Safe

    YES

  • Color Temperature

    6500K/7500K/9300K
    Manual (5000K ~ 10000K)

  • Super Resolution+

    YES

  • Failover Input Switch

    YES

  • Black Stabilizer

    YES

  • PBP

    YES(2PBP)

  • PIP

    YES

  • Smart Energy Saving

    YES

CONNECTIVITY

  • 3G-SDI

    YES(3G,INx1/OUTx1)

  • RS-232

    YES(1ea)

  • D-Sub

    YES

  • HDMI

    YES(1ea)

  • USB Upstream Port

    YES(1ea/ver3.0)

  • USB Downstream Port

    YES(1ea/ver3.0)

POWER

  • Type

    External Power(Adapter)

  • DC Output

    19V, 6.32A

  • AC Input

    100-240Vac, 50/60Hz

  • Power Consumption (DC Off)

    Less than 0.3W

STANDARD

  • RoHS

    YES

  • REACH

    YES

  • WEEE

    YES

  • MFDS

    YES

  • Vandal-proof

    IK06

  • UL (cUL)

    YES

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    YES

  • EN (EN 60601-1 / EN 60601-1-2)

    YES

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    YES

  • EN (EN 60950-1 / EN 55032, 55024)

    YES

  • CE

    MDR

  • FDA

    Registration (Class I)

  • ISO13485

    YES

  • GMP

    YES

ACCESSORY

  • Power Cord

    YES

  • Adapter

    YES

  • Calibration Report (Paper)

    YES

  • D-Sub

    YES

  • DVI-D

    YES

  • HDMI

    YES

DISPLAY

  • Size [Inch]

    27

  • Resolution

    1920x1080

  • Aspect Ratio

    16:9

  • Pixel Pitch [mm]

    0.3114x0.3114

  • Brightness (Typ.) [cd/m²]

    1000

  • Color Gamut (Typ.)

    sRGB 115%(Area),
    sRGB over 99%(Coverage)

  • Color Bit

    10bit

  • Contrast Ratio (Typ.)

    1000:1

  • Surface Treatment

    Protection Glass
    (1.6t, Anti-Reflection, Anti-fingerprint)

  • Response Time

    14ms(Off-setting), 5ms(Faster-setting)

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°(Up/Down)

SW APPLICATION

  • LG Calibration Studio (True Color Pro)

    YES

MECHANICAL

  • Borderless Design

    Normal

  • Machanical Power Switch

    YES

  • OneClick Stand

    No Stand

  • Display Position Adjustments

    No Stand

  • Wall Mountable [mm]

    200x100/100x100
