27 吋 4K Mini-LED 手術顯示器

功能

圖庫

規格

支援

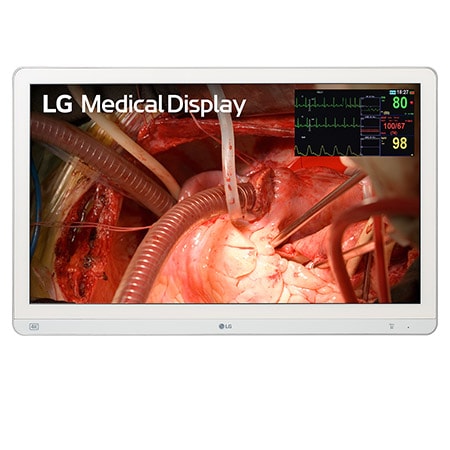

27 吋 4K Mini-LED 手術顯示器

27 吋 4K Mini-LED 手術顯示器

27HQ710S-W

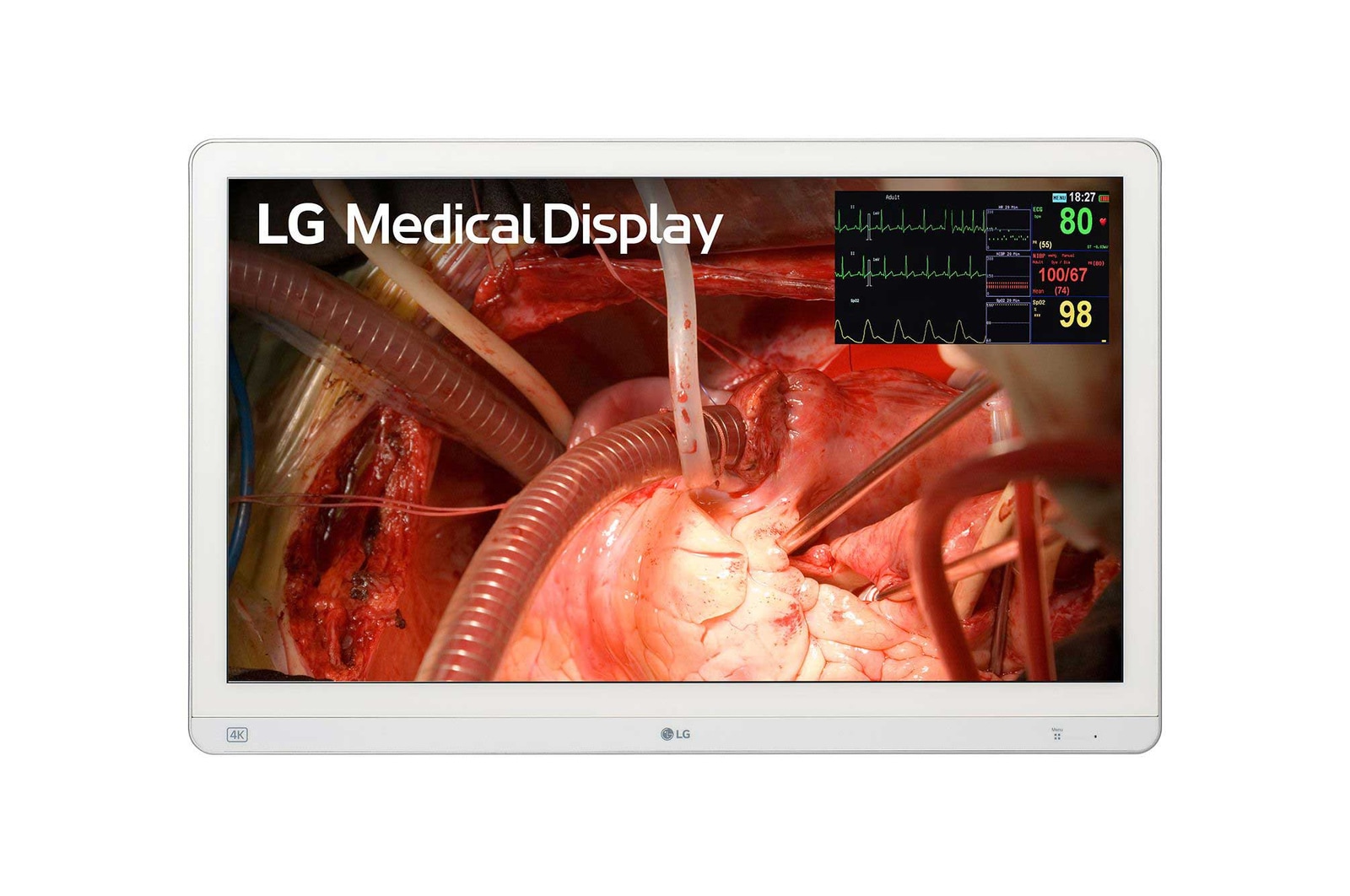

  • 27HQ710S 的正視圖

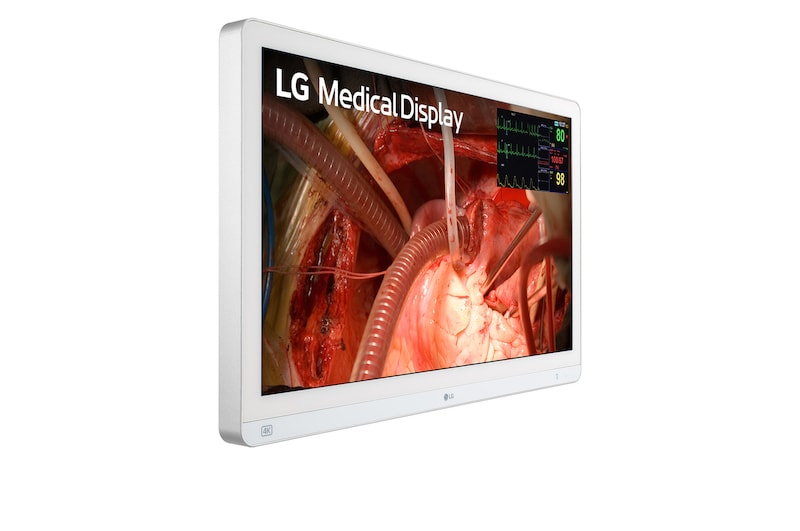

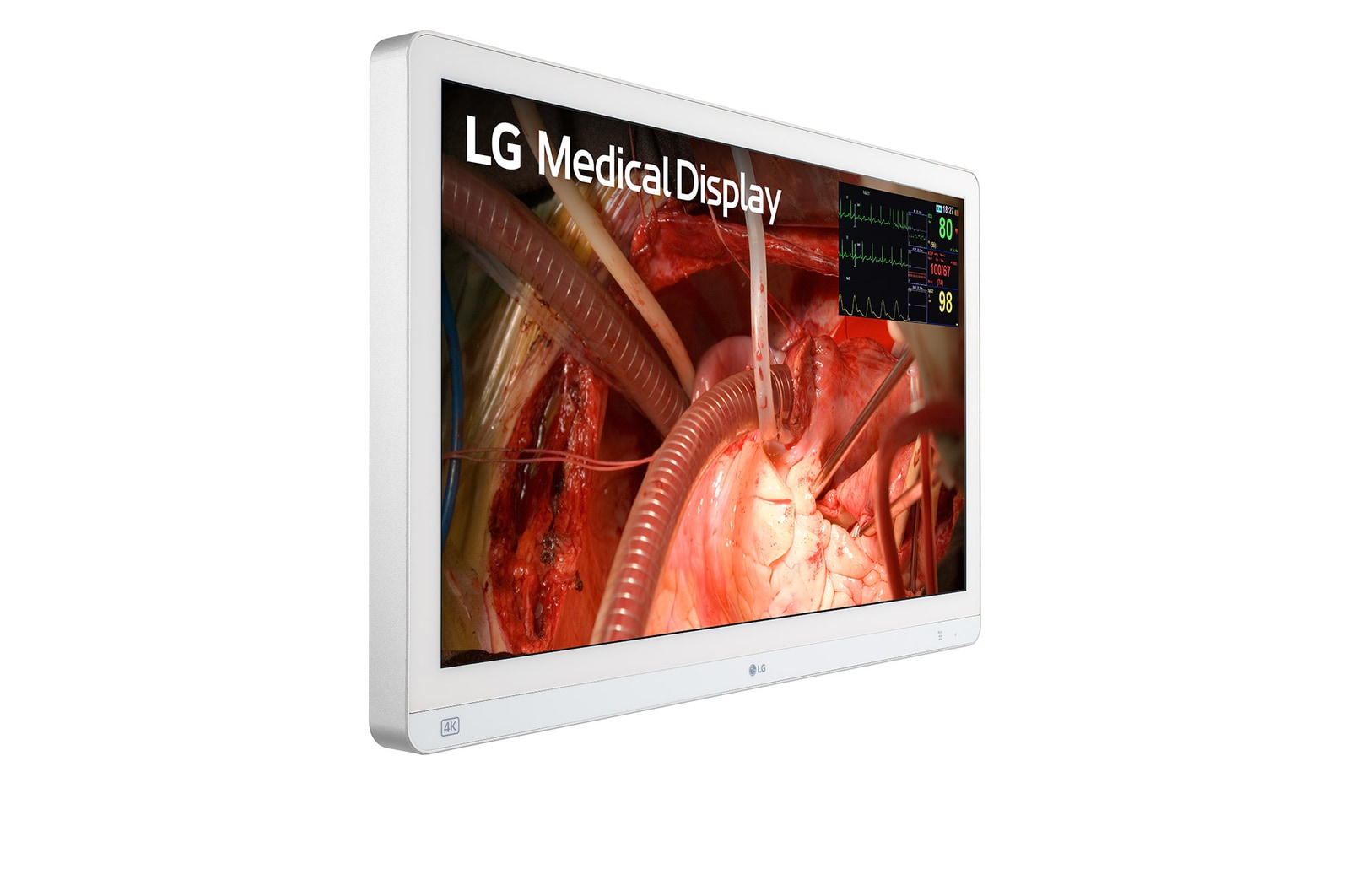

  • 27HQ710S 的 -15 度側視圖

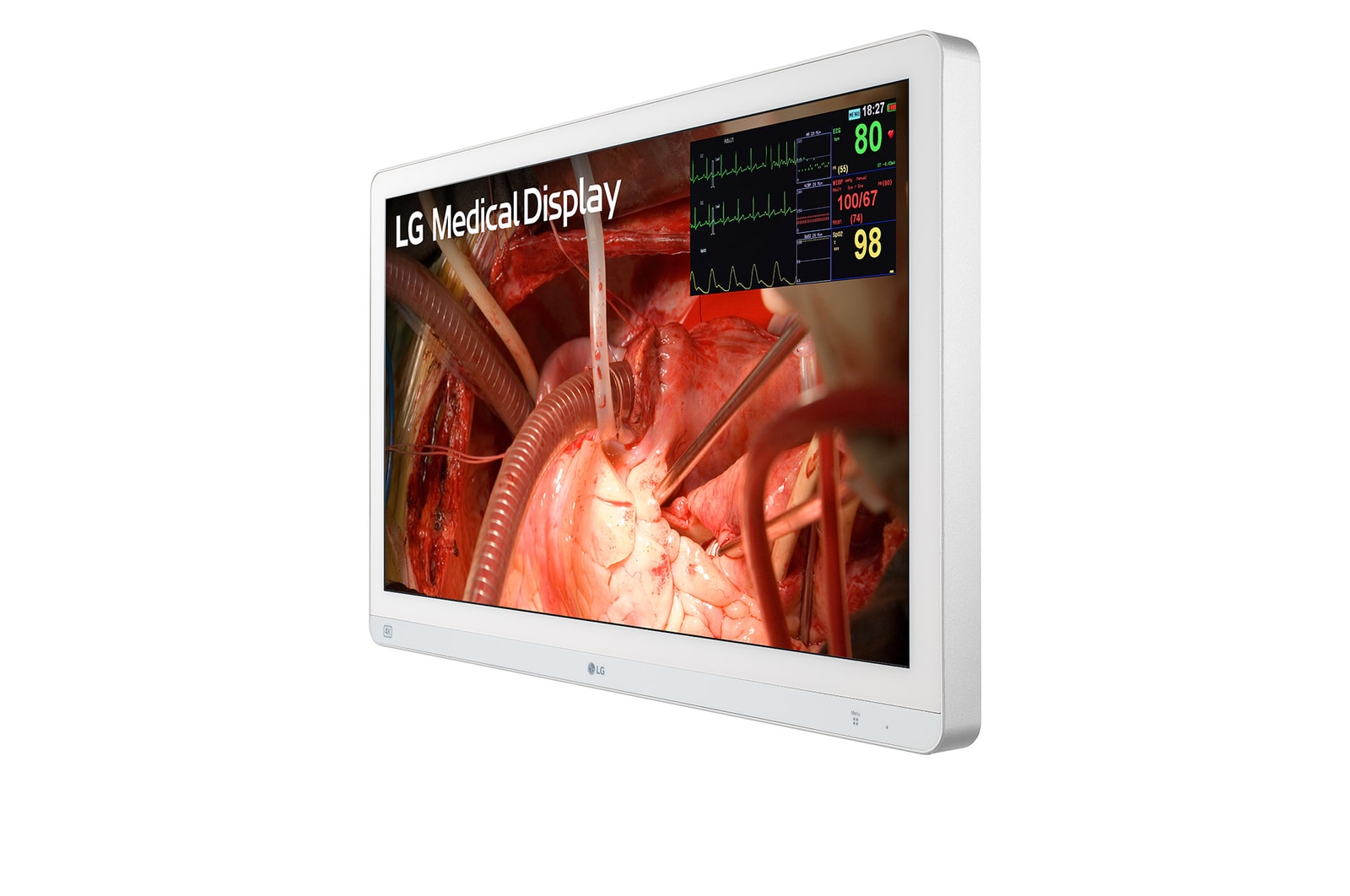

  • 27HQ710S 的 +15 度側視圖

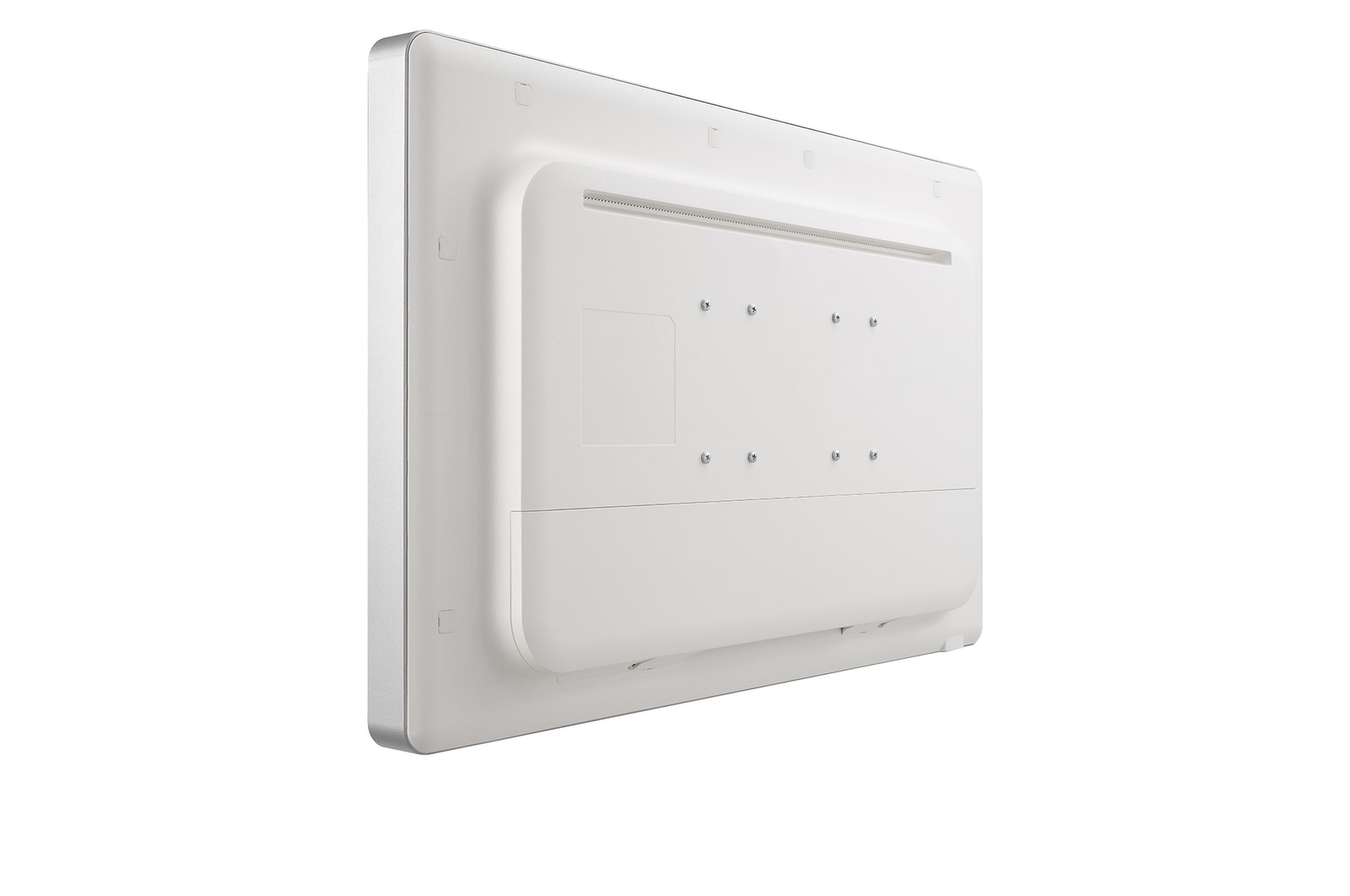

  • 27HQ710S 的 +15 度背視圖

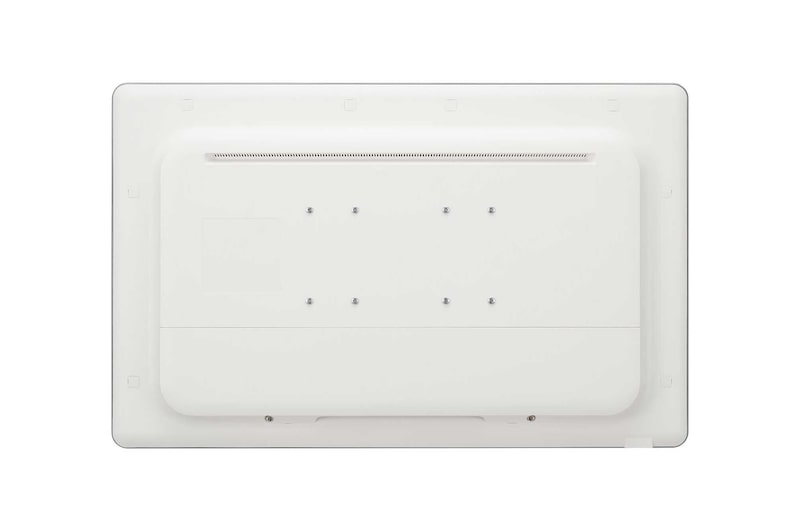

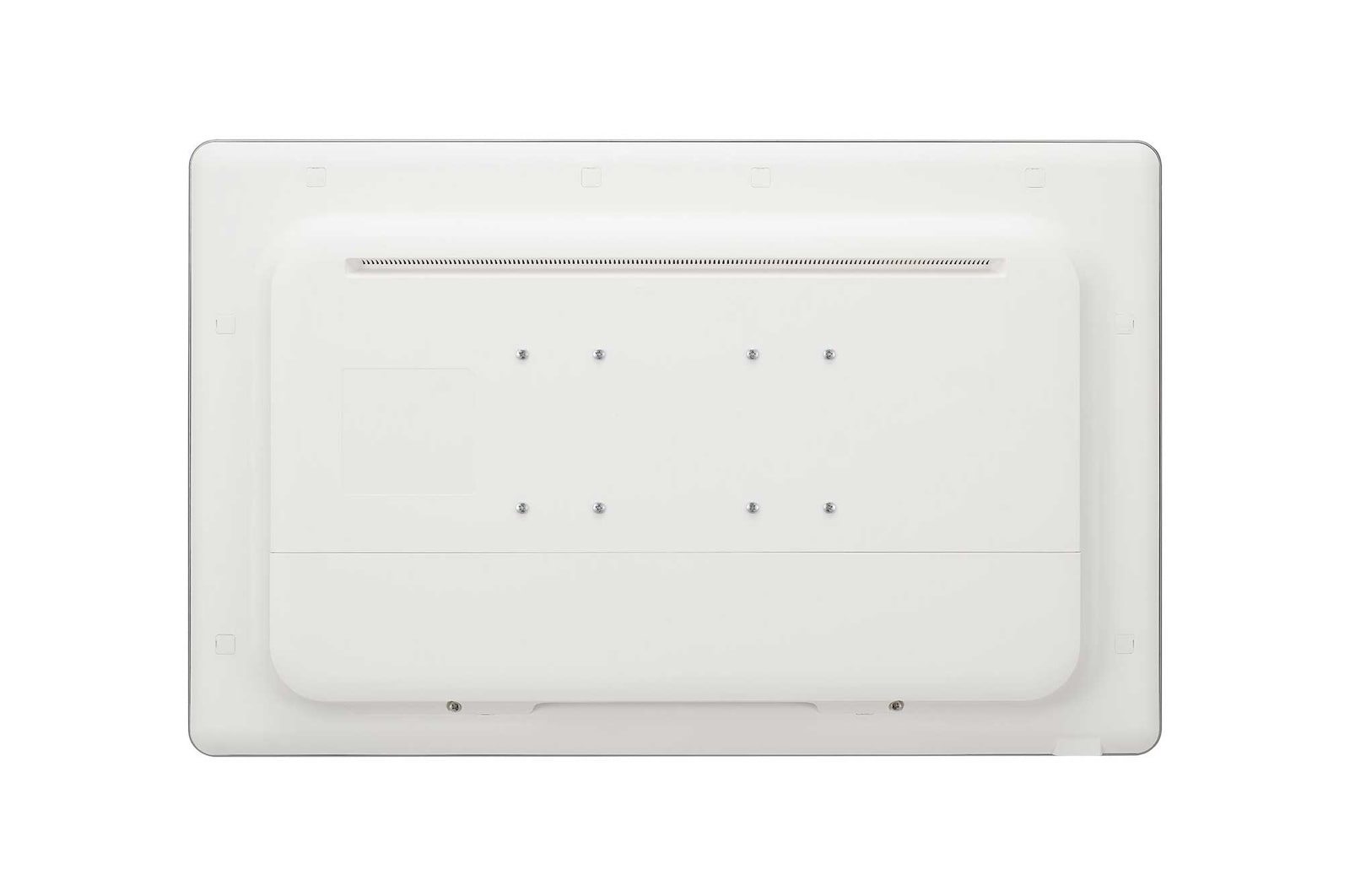

  • 27HQ710S 的後視圖

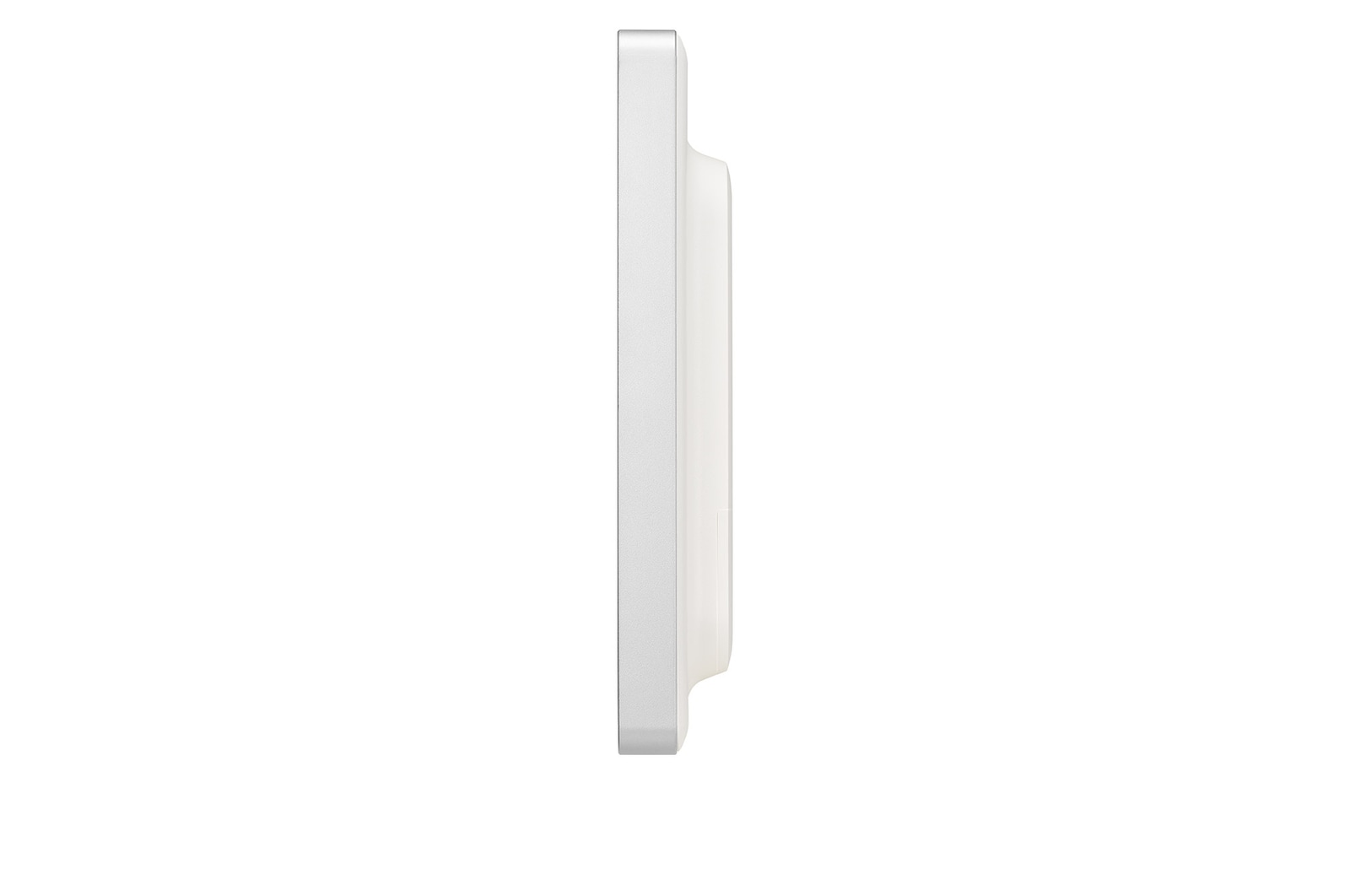

  • 27HQ710S 的右側視圖

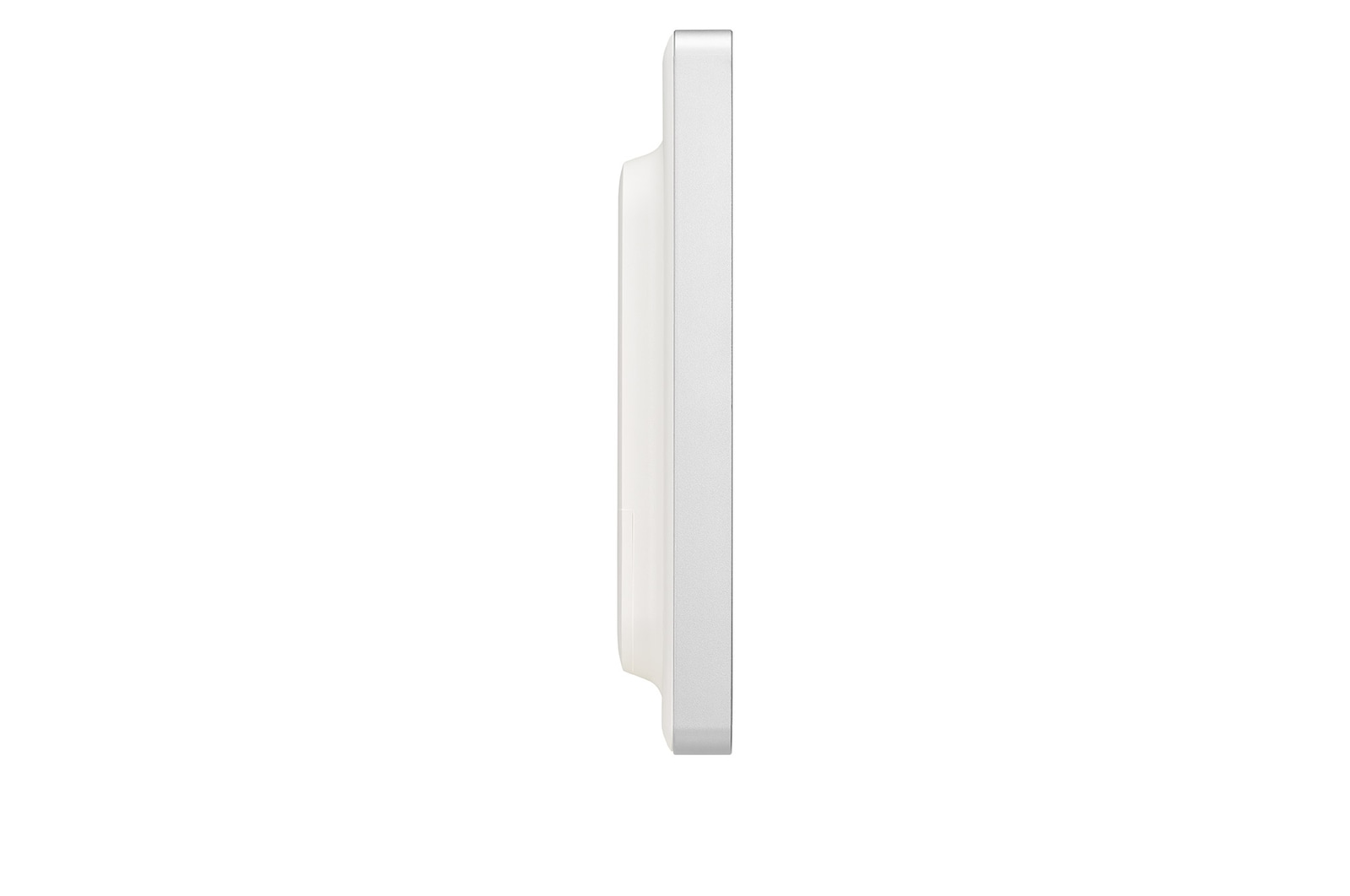

  • 27HQ710S 的左側視圖

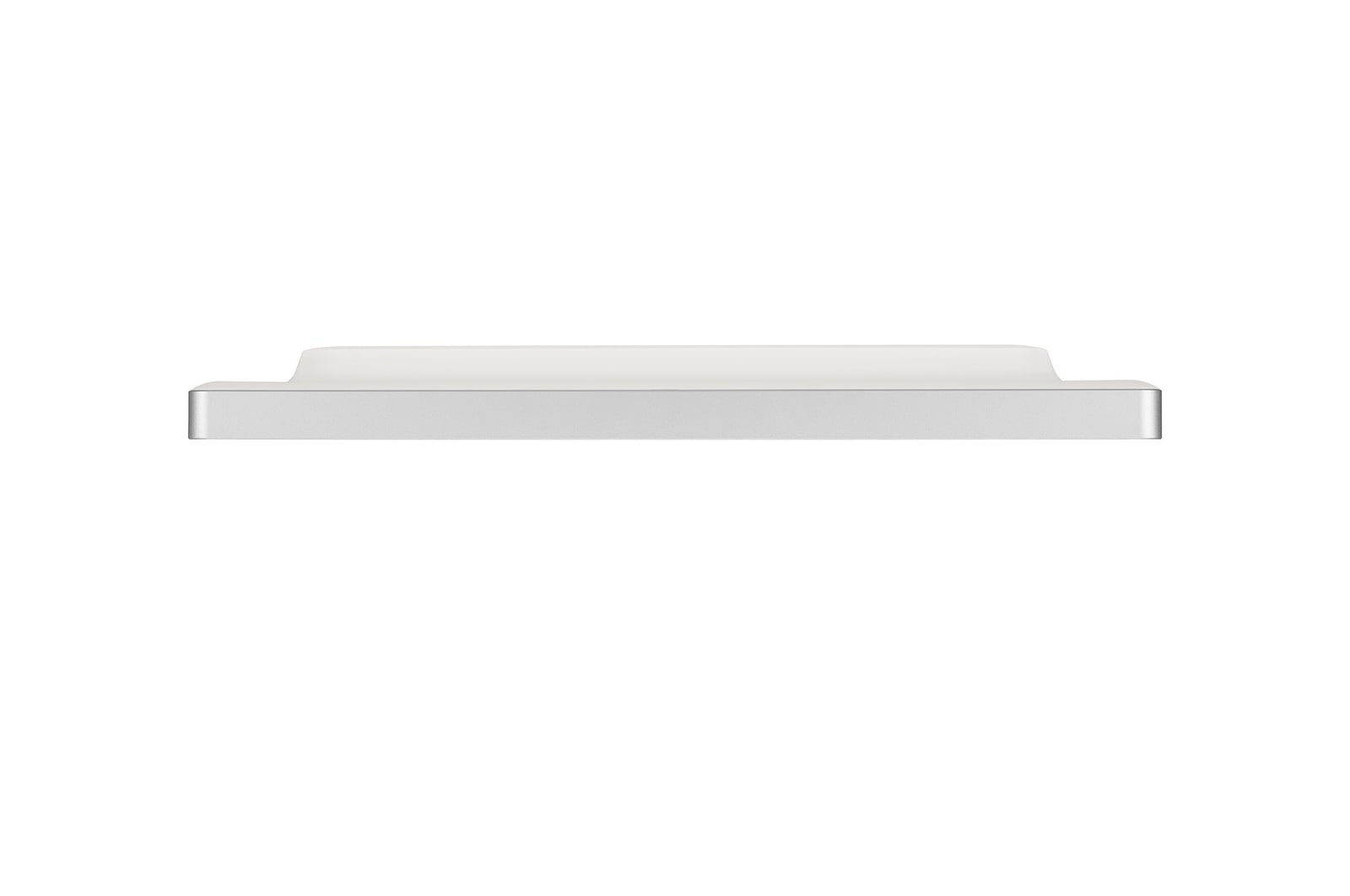

  • 27HQ710S 的底部側視圖

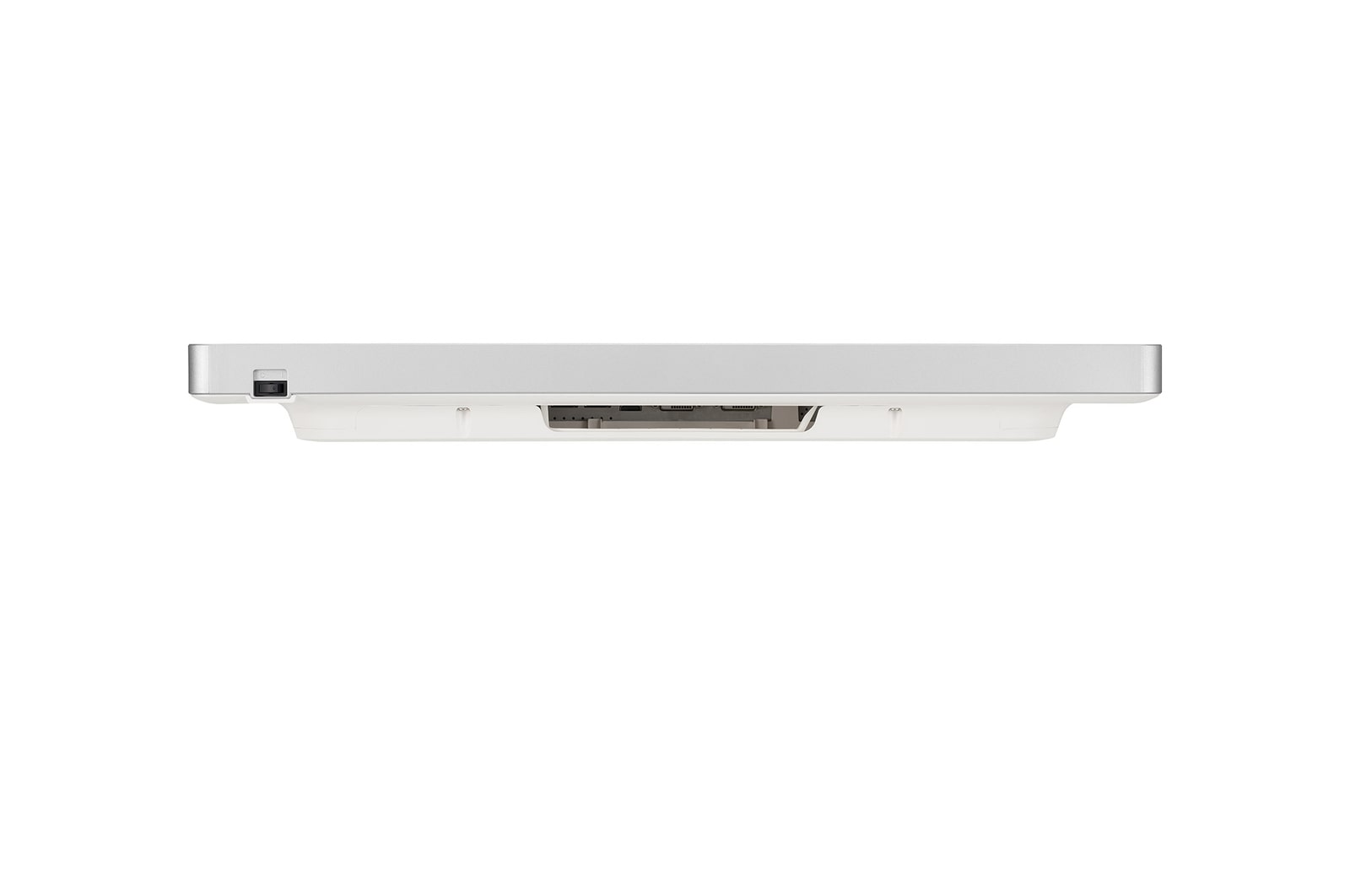

  • 27HQ710S 的頂部側視圖

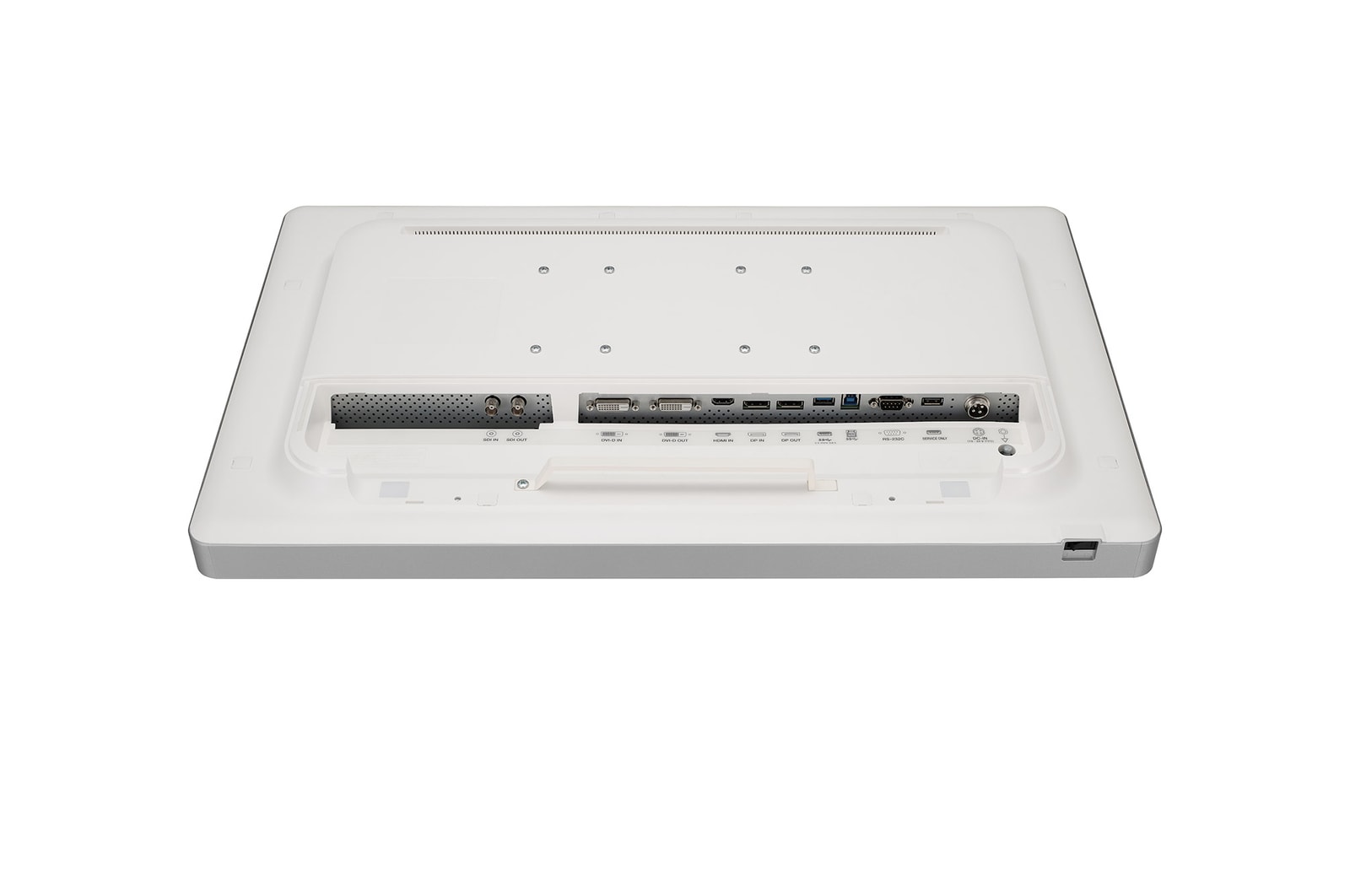

  • 27HQ710S 的連接埠特寫
27HQ710S 的正視圖
27HQ710S 的 -15 度側視圖
27HQ710S 的 +15 度側視圖
27HQ710S 的 +15 度背視圖
27HQ710S 的後視圖
27HQ710S 的右側視圖
27HQ710S 的左側視圖
27HQ710S 的底部側視圖
27HQ710S 的頂部側視圖
27HQ710S 的連接埠特寫

主要功能

  • 27 吋 4K (3840x2160) Mini-LED 顯示屏
  • 支援 HDR10、HDR 效果
  • sRGB 139% (範圍)
  • 鏡像模式、旋轉模式
  • 保護玻璃 (1.3T、防反光、防指紋)
  • 支援高達 4PBP、PIP / 3G-SDI
更多

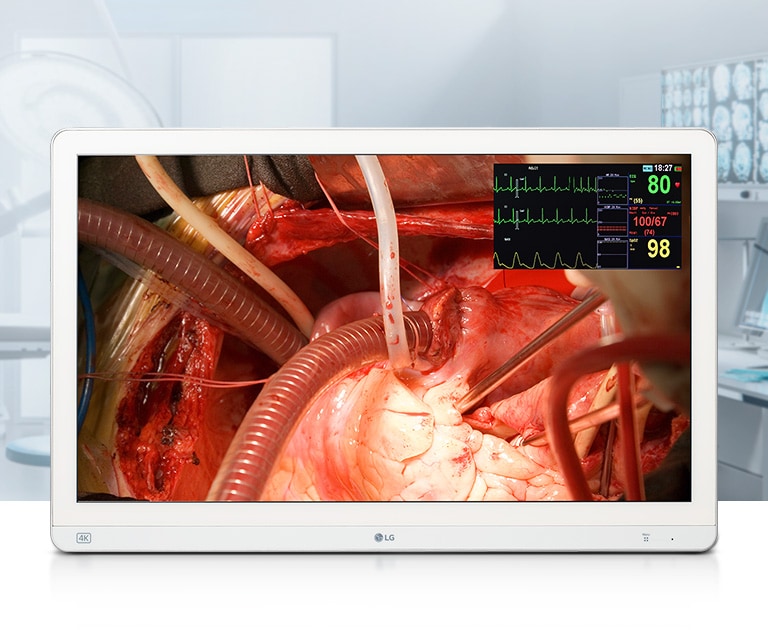

27 吋 4K Mini-LED 手術顯示器

27HQ710S

27 吋 4K Mini-LED 手術顯示器

*所有圖片僅供參考，實際產品/使用情況可能有所不同。

*規格因應地區而有所差異。所有功能、標準和產品規格或有所更改，恕不另行通知。

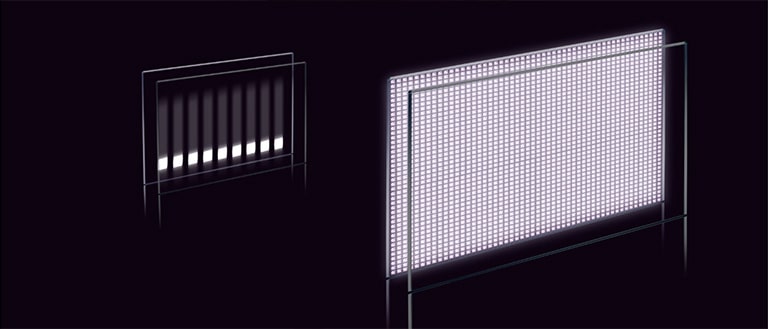

Mini-LED 呈現高畫質畫面

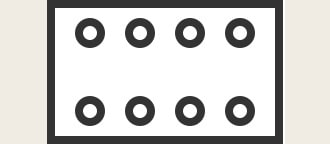

Edge LED 圖像。

Edge LED

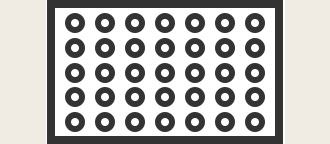

Mini-LED 圖像。

Mini-LED

*所有圖片僅供參考，實際產品/使用情況可能有所不同。

**規格因應地區而有所差異。所有功能、標準和產品規格或有所更改，恕不另行通知。

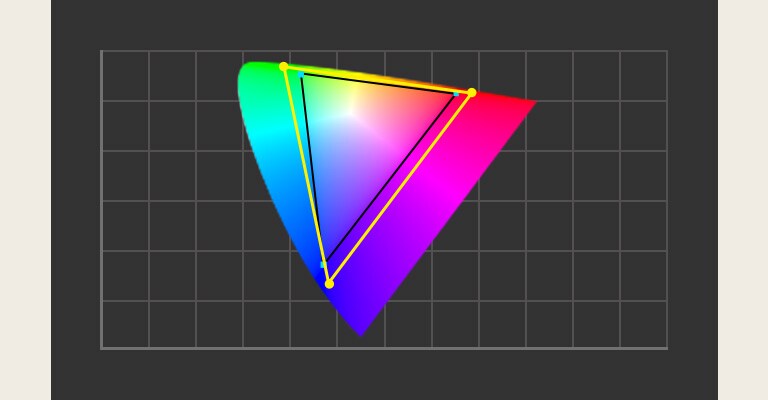

sRGB 139% (範圍) 及 DCI-P3 98% (CIE1976)。

sRGB 139% (範圍) 及 DCI-P3 98% (CIE1976)

*與支援 sRGB 115% (範圍)及 98% (覆蓋範圍) 的上一代型號 LG 27HJ710S (黑色線三角形)比較，27HQ710S (黃色線三角形) 支援 sRGB 139% (範圍) 及 DCI-P3 98% (CIE1976) 色域。

**所有圖片僅供參考，實際產品/使用情況可能有所不同。

***規格因應地區而有所差異。所有功能、標準和產品規格或有所更改，恕不另行通知。

耐用設計

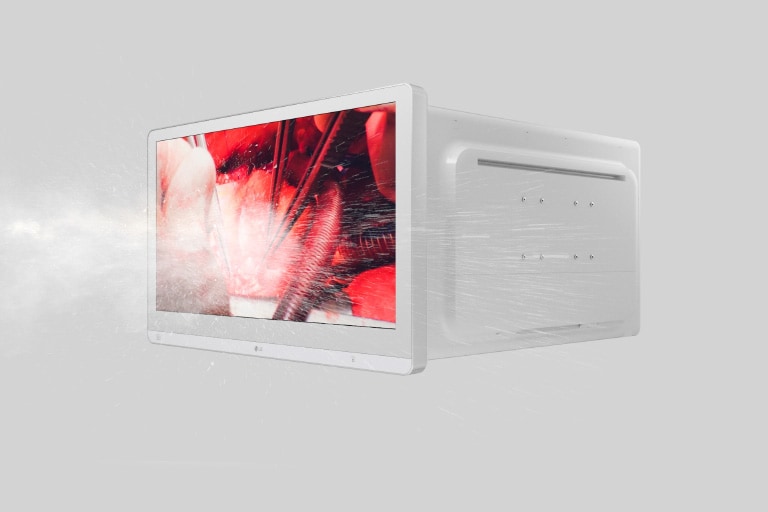

防塵及防水

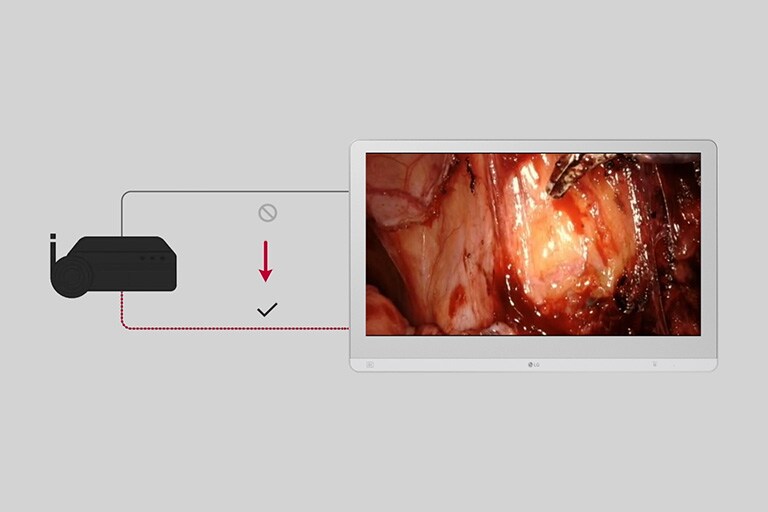

故障轉移輸入鍵

*所有圖片僅供參考，實際產品/使用情況可能有所不同。

**規格因應地區而有所差異。所有功能、標準和產品規格或有所更改，恕不另行通知。

方便用家

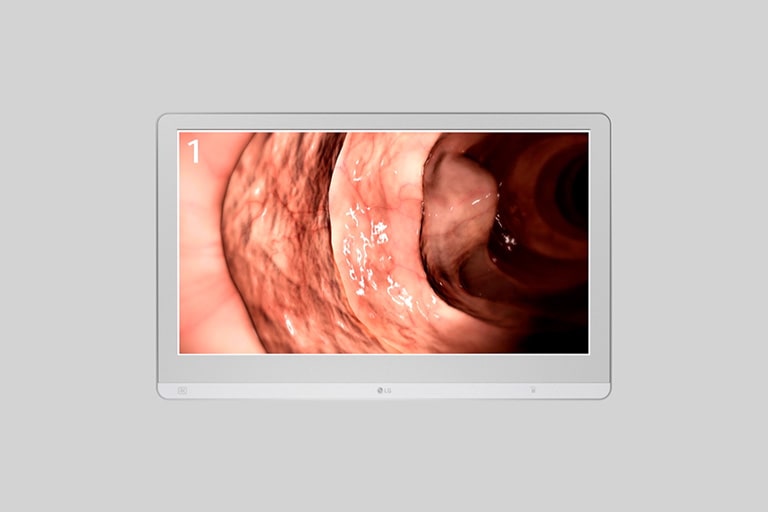

高達 4PBP 及 PIP

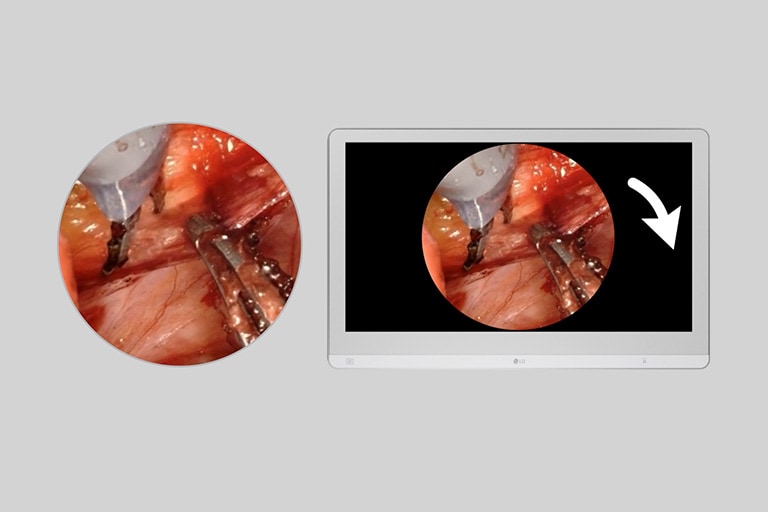

鏡像及旋轉模式

*所有圖片僅供參考，實際產品/使用情況可能有所不同。

**規格因應地區而有所差異。所有功能、標準和產品規格或有所更改，恕不另行通知。

列印

所有規格

DIMENSIONS/WEIGHTS

  • Dimension with Stand (W x H x D) [mm]

    No Stand

  • Dimension without Stand (W x H x D) [mm]

    650.8x411.7x66.6

  • Dimension in Shiping (W x H x D) [mm]

    837x167x536

  • Weight with Stand [kg]

    No Stand

  • Weight without Stand [kg]

    8

  • Weight in Shipping [kg]

    11.9

FEATURES

  • HDR 10

    YES

  • HDR Effect

    YES

  • DICOM Compliant

    YES

  • Hot Key

    YES(2keys)

  • HW Calibration

    YES(LG Calibration Studio)

  • Brightness stabilization

    YES

  • Flicker Safe

    YES

  • Color Temperature

    6500K/8500K/9300K
    Manual (5000K ~ 10000K)

  • Super Resolution+

    YES

  • Rotation & Mirror Mode

    YES

  • Failover Input Switch

    YES

  • Black Stabilizer

    YES

  • PBP

    YES(2PBP/3PBP/4PBP)

  • PIP

    YES

  • Smart Energy Saving

    YES

CONNECTIVITY

  • 3G-SDI

    YES(3G,INx1/OUTx1)

  • RS-232

    YES(1ea)

  • DVI (Max Resolution at Hz)

    YES(1In/1Out)

  • HDMI

    YES(1ea)

  • DisplayPort

    YES(in 1ea/out 1ea)

POWER

  • Type

    External Power(Adapter)

  • DC Output

    19V, 6.32A

  • AC Input

    100-240Vac, 50/60Hz

  • Power Consumption (DC Off)

    Less than 0.3W

STANDARD

  • KC (for Rep. of Korea)

    YES

  • RoHS

    YES

  • WEEE

    YES

  • IP(Front/Except for front)

    IP45/IP32

  • Vandal-proof

    IK06

  • UL (cUL)

    YES

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    YES

  • EN (EN 60601-1 / EN 60601-1-2)

    YES

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    YES

  • EN (EN 60950-1 / EN 55032, 55024)

    YES

  • CE

    MDR

  • FDA

    Registration (Class I)

  • ISO13485

    YES

ACCESSORY

  • Power Cord

    YES

  • Adapter

    YES

  • Calibration Report (Paper)

    YES

  • HDMI

    YES

  • Display Port

    YES

DISPLAY

  • Size [Inch]

    27

  • Resolution

    3840x2160

  • Aspect Ratio

    16:9

  • Pixel Pitch [mm]

    0.1554x0.1554

  • Brightness (Typ.) [cd/m²]

    800

  • Color Gamut (Typ.)

    DCI-P3 98%, sRGB 100%

  • Color Bit

    10bit

  • Contrast Ratio (Typ.)

    1000:1

  • Surface Treatment

    Protection Glass
     (1.3t, Anti-Reflection, Anti-fingerprint, Optical Bonding)

  • Response Time

    5ms (GtG at Faster)

  • Viewing Angle (CR≥10)

    178º(R/L), 178º(U/D)

SW APPLICATION

  • LG Calibration Studio (True Color Pro)

    YES

MECHANICAL

  • Borderless Design

    Normal

  • Machanical Power Switch

    YES

  • OneClick Stand

    No Stand

  • Display Position Adjustments

    No Stand

  • Wall Mountable [mm]

    200x100/100x100
