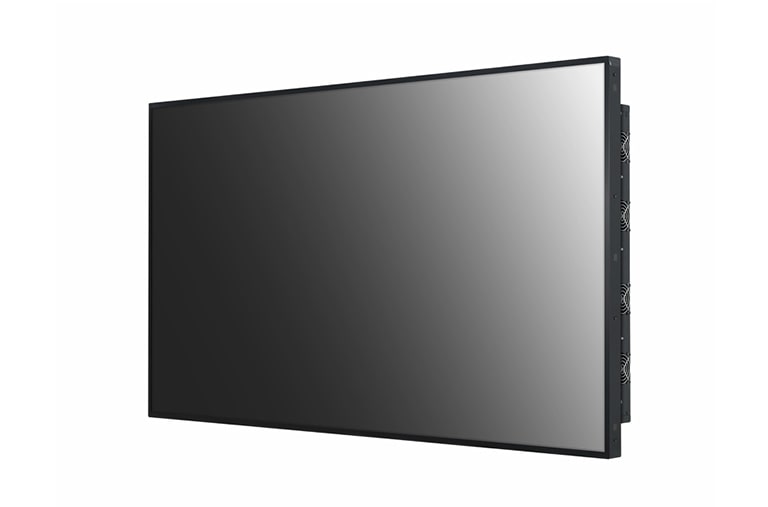

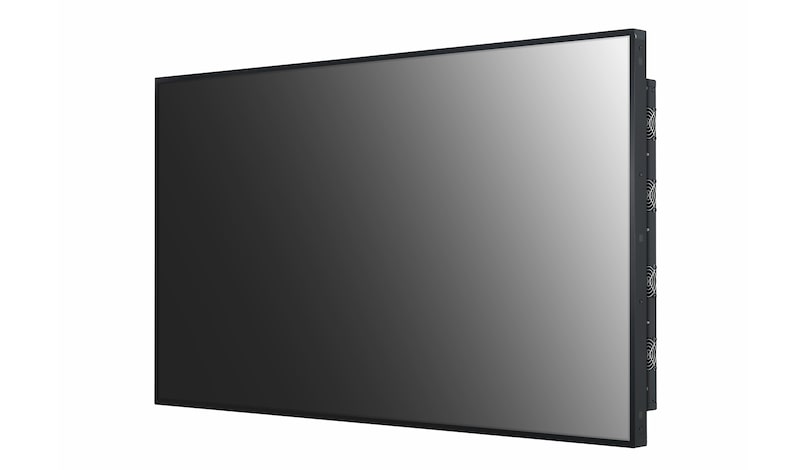

XF3E Series - 55" High Brightness Signage

55XF3E

XF3E Series - 55" High Brightness Signage

Outstanding Visibility

High Brightness

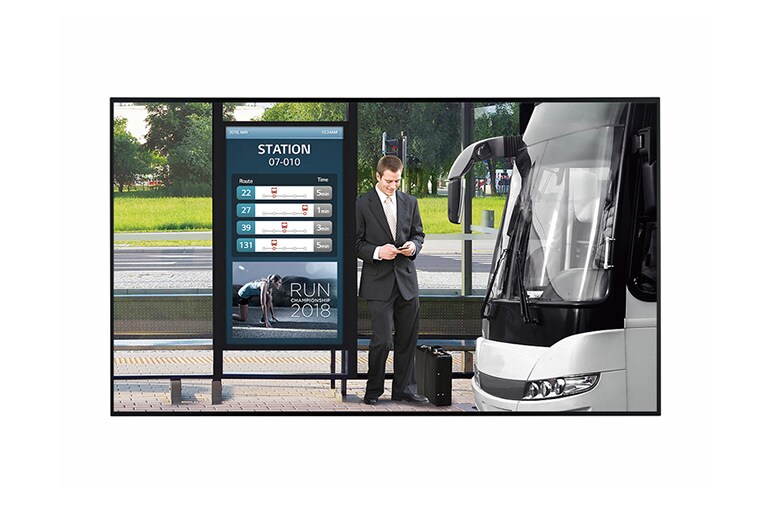

With a great brightness of 3,000 cd/㎡, XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
Outstanding Visibility

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

*Lame quart d'onde.

Outstanding Visibility

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Product Reliability

High Operating Temperature

Its high reliability under high operating temperatures reduces additional costs for air conditioning system.
Product Reliability

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
Easy Maintenance

High-Performance with webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.
Easy Maintanance

Space Efficiency

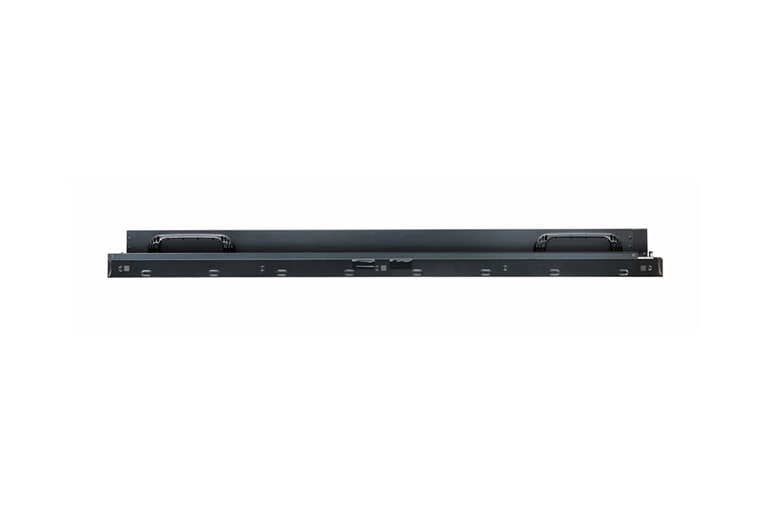

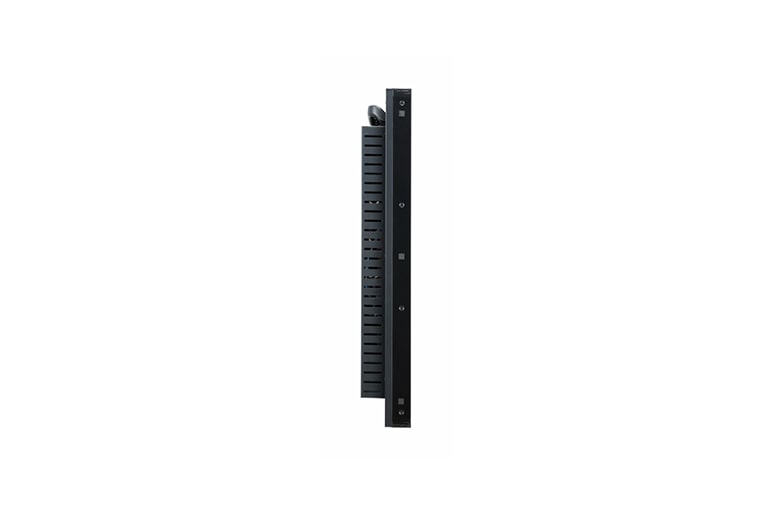

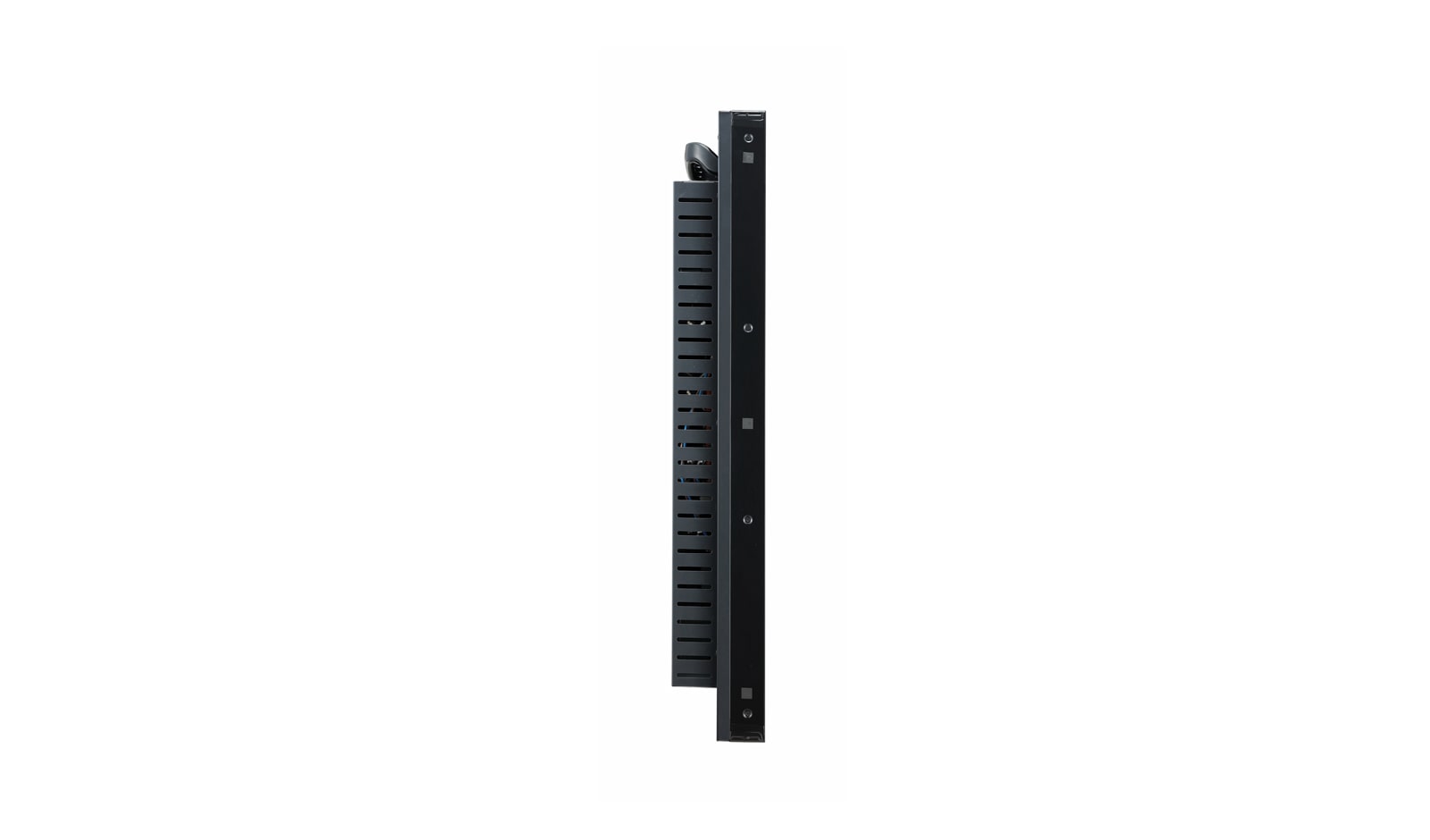

The slim depth saves space for installation and makes the enclosure design slimmer.

All Spec

PANEL

Screen Size (Inch)

55

Panel Technology

IPS / M+

Back Light Type

Direct

Aspect Ratio

16:9

Native Resolution

1920 x 1080 (FHD)

Refresh Rate

60Hz

Brightness

3,000nit (Typ.), 2,400nit (Min.)

Contrast Ratio

1,300:1

Dynamic CR

500,000:1

Color Gamut

NTSC 67%

Viewing Angle (H x V)

178º x 178º

Color Depth (Number of Colors)

16.7 Million colors

Response Time

8ms (G to G)

Surface Treatment (Haze)

Haze 3%

Life time

50,000Hrs (Typ.)

Operation Hours (Hours/Day)

24/7

Portait / Landscape

YES / YES

Transparency

N/A

QWP (Quarter Wave Plate)

YES

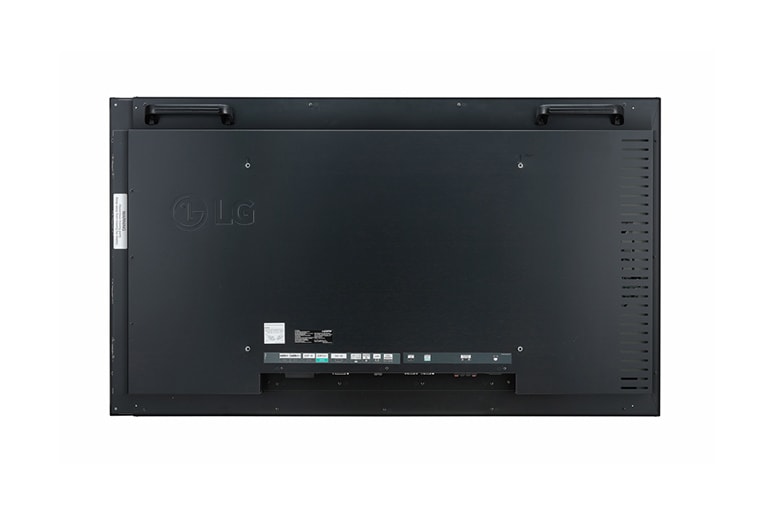

CONNECTIVITY

HDMI In

YES (2ea)

HDMI In (HDCP Ver.)

2.2

DP In

YES (HDCP 1.3)

DVI-D In

YES

RGB In

NO

Audio In

YES

RS232C In

YES

RJ45(LAN) In

YES (1ea)

IR In

YES

USB In

USB2.0 Type A (1ea)

HDMI Out

NO

DP Out

YES

Audio Out

NO

Touch USB

NO

External Speaker Out

YES

RS232C Out

YES

RJ45(LAN) Out

NO

IR Out

NO

Daisy Chain

NO

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

T/R/L/B : 12/9.9/9.9/12mm

Weight (Head)

26.5Kg

Packed Weight

32.25Kg

Monitor Dimensions (W x H x D)

1235.5 x 709.4 x 106.8mm

Monitor Dimension with Stand (W x H x D)

N/A

Handle

NO

VESA Standard Mount Interface

600 x 400 mm

Carton Dimensions (W x H x D)

1344 x 820 x 236mm

Weight (Head+Stand)

N/A

PROTECTION GLASS

Thickness

N/A

Degree of Protection

N/A

Tempered / Chemical strengthening

N/A

Anti-Reflective

N/A

Infrared - Resistance (IR)

N/A

Shatter-Proof

N/A

FEATURE - HARDWARE

Internal Memory (eMMC)

8GB

Wi-Fi/BT (Built-in)

NO

Temperature Sensor

YES

Auto Brightness Sensor

YES

Pixel Sensor

NO

Proximity Sensor

NO

Current Sensor

NO

BLU Sensor

NO

Humidity Sensor

YES

Acceleration(Gyro) Sensor

NO

Power Indicator

YES

Local Key Operation

NO

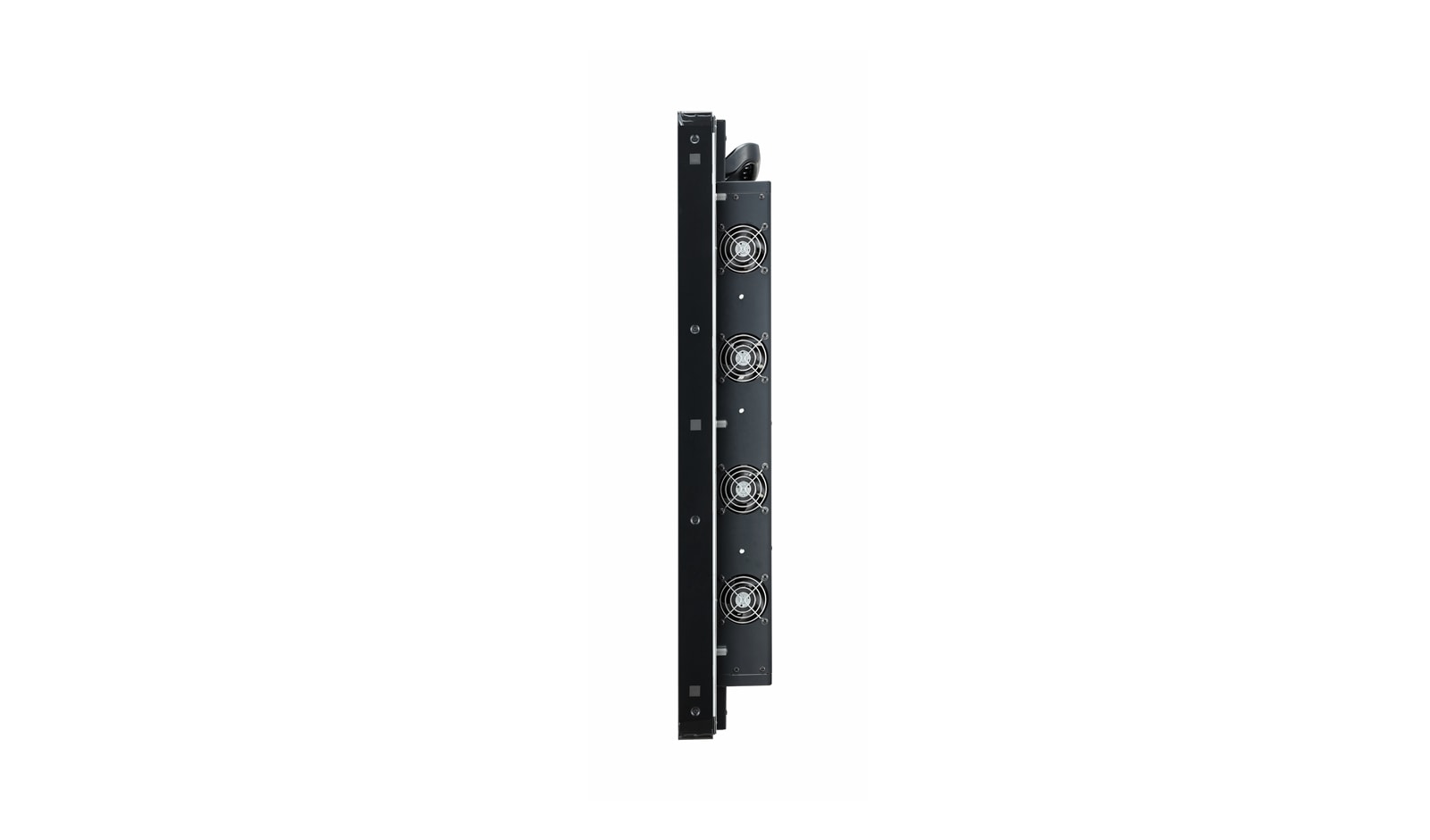

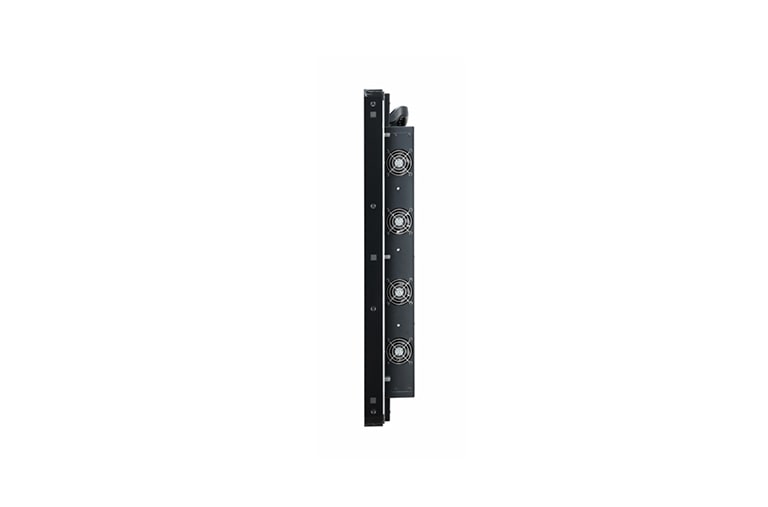

FAN (Built-in)

YES

FEATURE - SOFTWARE

OS Ver. (webOS)

webOS 3.0

Local Contents Scheduling

YES

Group Manager

NO

USB Plug & Play

YES

Fail over

YES

Booting Logo Image

YES

No Signal Image

NO

RS232C Sync

YES

Local Network Sync

YES

Backlight Sync

YES

PIP

NO

PBP

NO

Screen Share

NO

Video Tag

YES (2 Video Tag)

Play via URL

NO

Screen Rotation

YES

External Input Rotation

YES

Gapless Playback

YES

Tile Mode Setting

YES

Setting Data Cloning

YES

SNMP

YES

ISM Method

YES

Auto Set ID

YES

Status Mailing

YES

Control Manager

YES

Cisco Certification

NO

Crestron Connected

NO

Smart Energy Saving

YES

PM mode

YES

Wake on LAN

YES

Network Ready

NO

Beacon

YES

HDMI-CEC

YES

SI Server Setting

YES

webRTC

NO

Pro:Idiom

NO

Brightness Compensation

NO

W/B Setting by Grey scale

NO

Scan Inversion

NO

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 50 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 40 °C (Direct Sunlight)

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-in Power

POWER CONSUMPTION

Typ.

250W (Full White) 230W (IEC 62087)

Max.

300W

BTU (British Thermal Unit)

853 BTU/Hr(Typ.), 1024 BTU/Hr(Max.)

DPM

0.5W(DP, DVI-D, HDMI)

Power off

0.5W

SOUND

Speaker (Built-in)

NO

CERTIFICATION

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC

ERP / Energy Star

NO / NO

ePEAT(US only)

NO

OPS COMPATIBILITY

OPS Type compatible

NO

OPS Power Built-in

NO

SOFTWARE COMPATIBILITY

SuperSign CMS

YES

SuperSign Control+

YES

SuperSign WB

NO

SuperSign Cloud

NO

Promota

NO

Mobile CMS

NO

Connected Care

YES

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic

Remote Controller(including battery 2ea), Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)

Optional

AN-WF500 (Stand is not available)

SPECIAL FEATURE

Overlay Touch Compatibility

N/A

Smart Calibration

N/A

Tilt (Face up)

N/A

Tilt (Face down)

N/A

IP Rating

N/A

Conformal Coating (Power Board)

YES

Power Protection

N/A

Direct Sunlight

YES

DEDICATED FEATURE - TOUCH

Available Object Size for Touch

N/A

Response Time ('Paint' app on Windows 10 PC)

N/A

Accuracy (Typ.)

N/A

Interface

N/A

Protection Glass Thickness

N/A

Protection Glass Transmission

N/A

Operating System Support

N/A

Multi Touch Point

N/A
