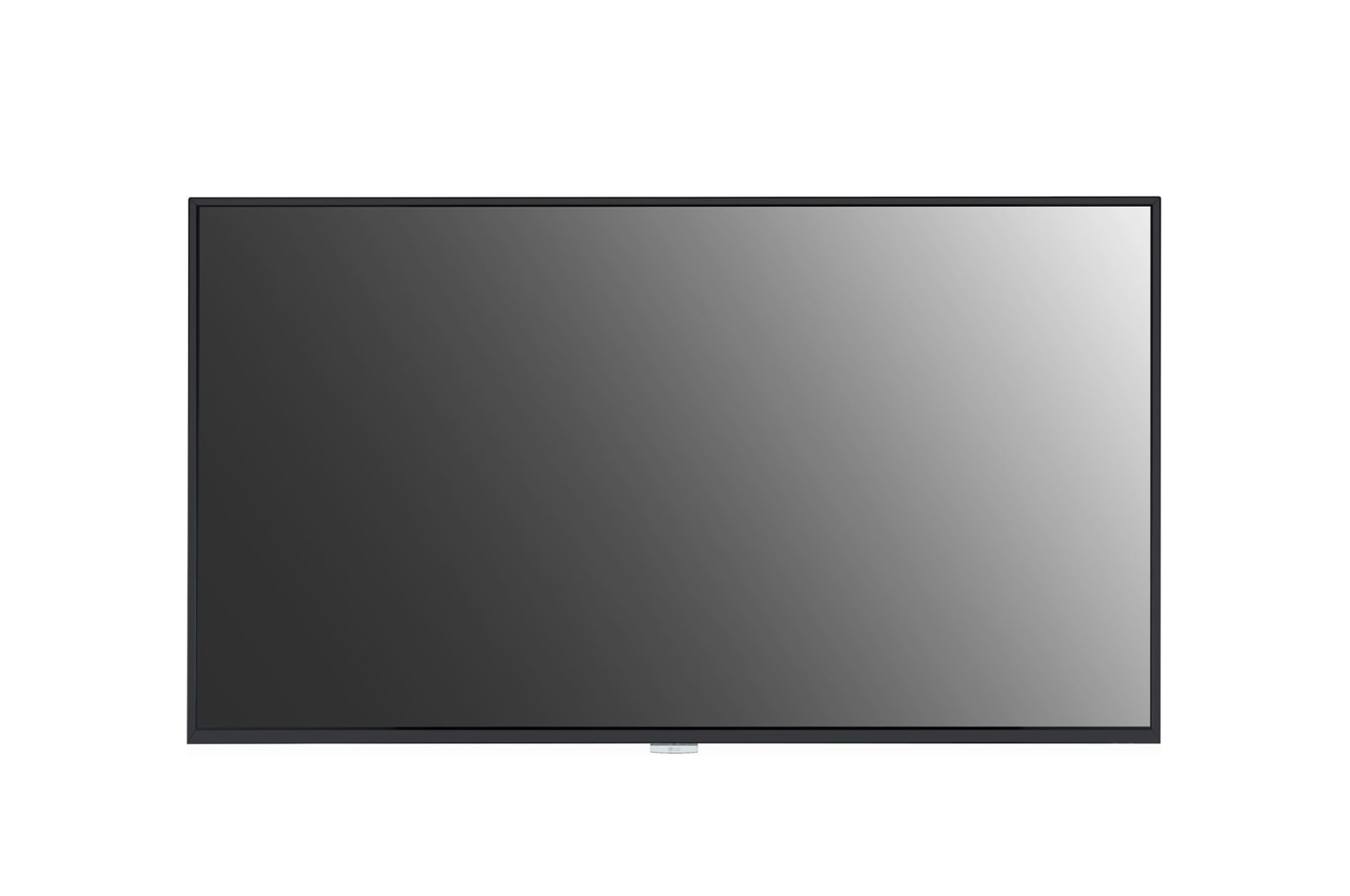

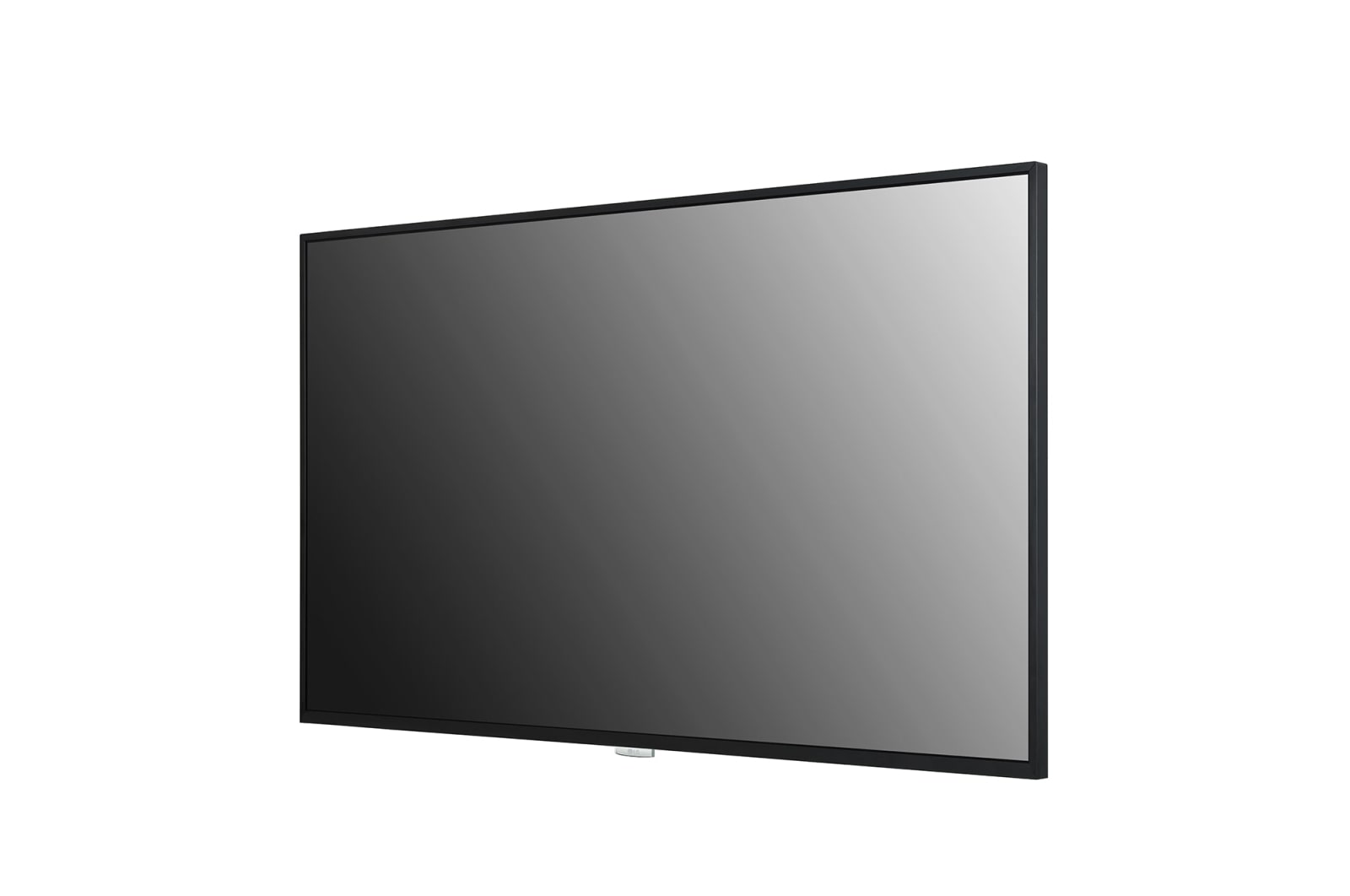

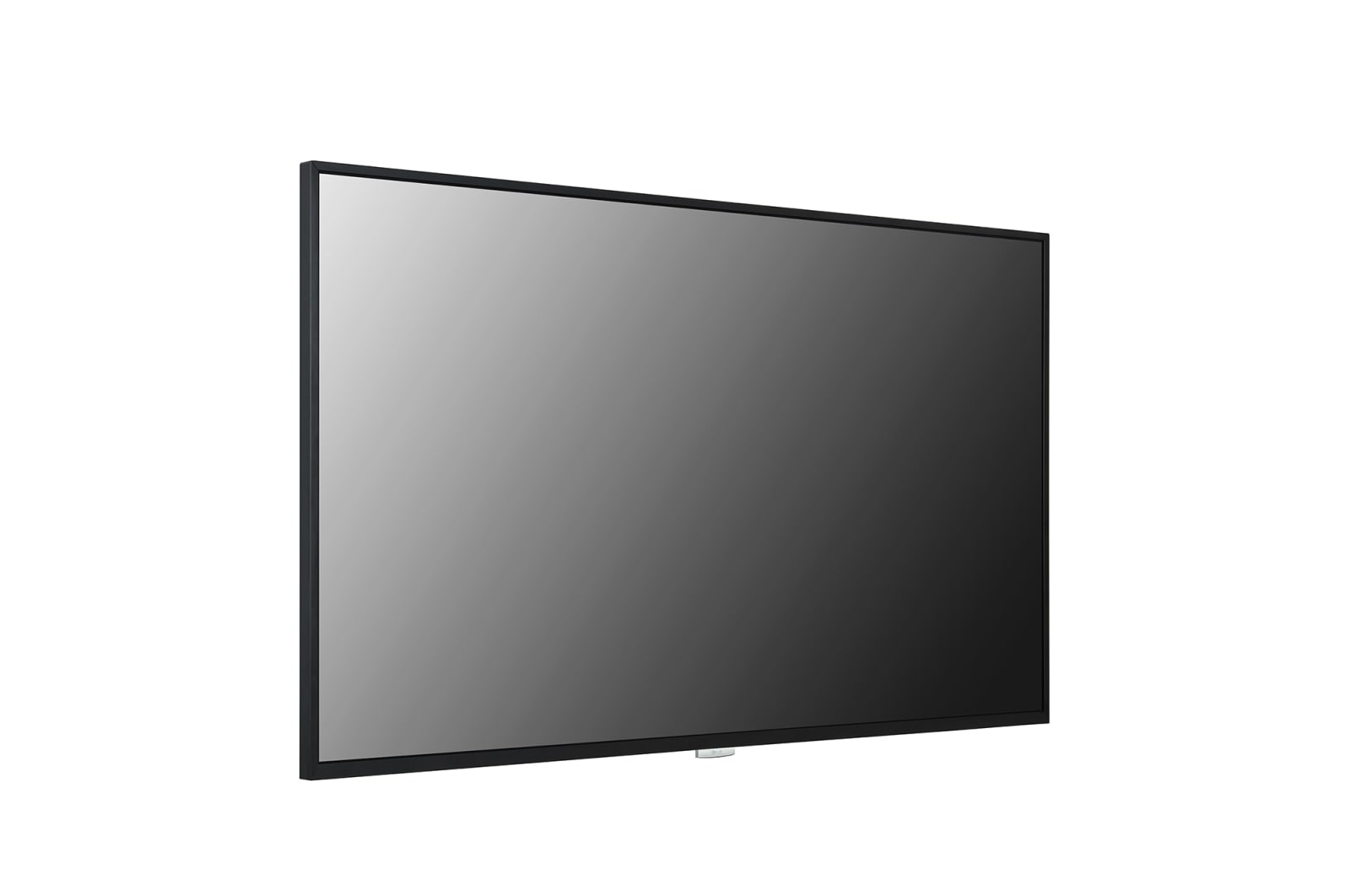

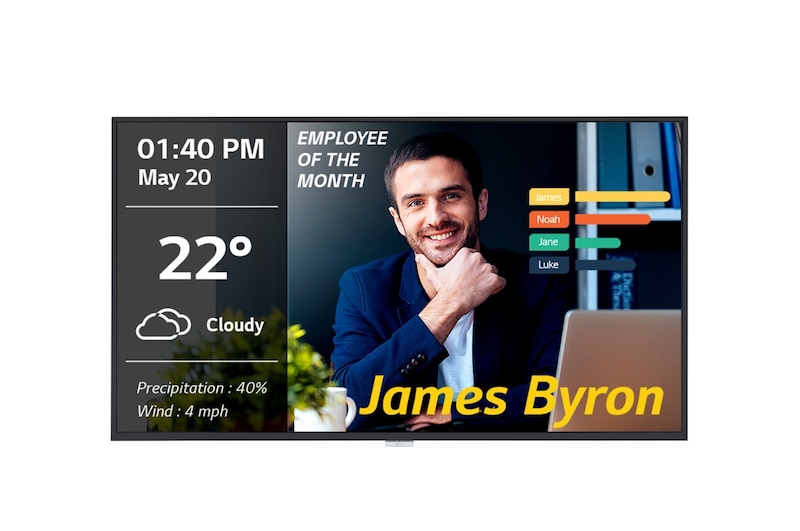

UM3DG Series - 43" Digital Signage

43UM3DG-B

Key Features

4K ULTRA HD Resolution
Vivid colour and wide viewing angle with IPS panel
Crestron-certified compatibility with AV control system
Built-in Content Management System and speaker
IP5x Certified Design

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion

High Efficiency Video Coding

The UM3DG series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic when compared to the existing H.264 codec.

*High Efficiency Video Coding

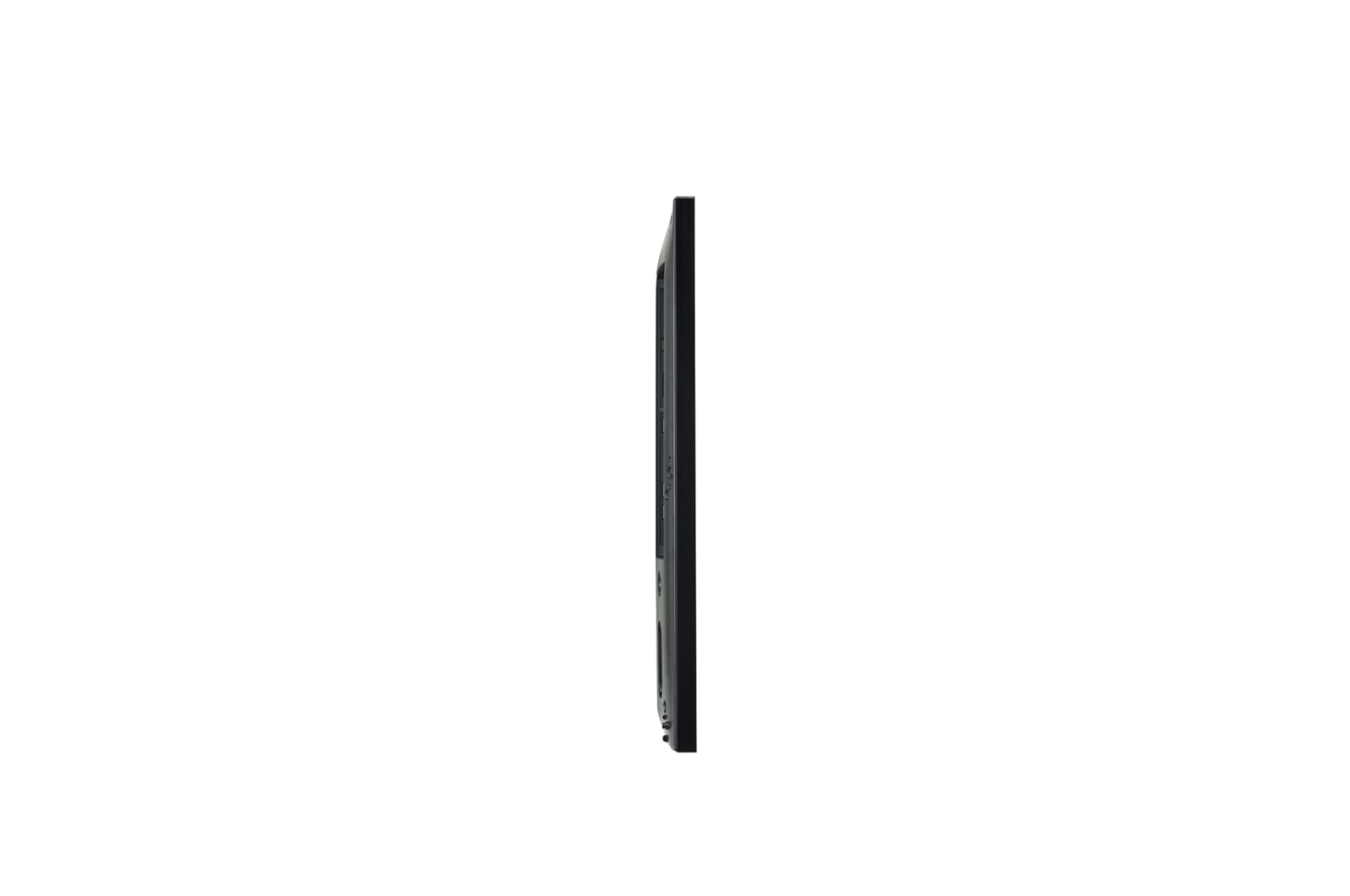

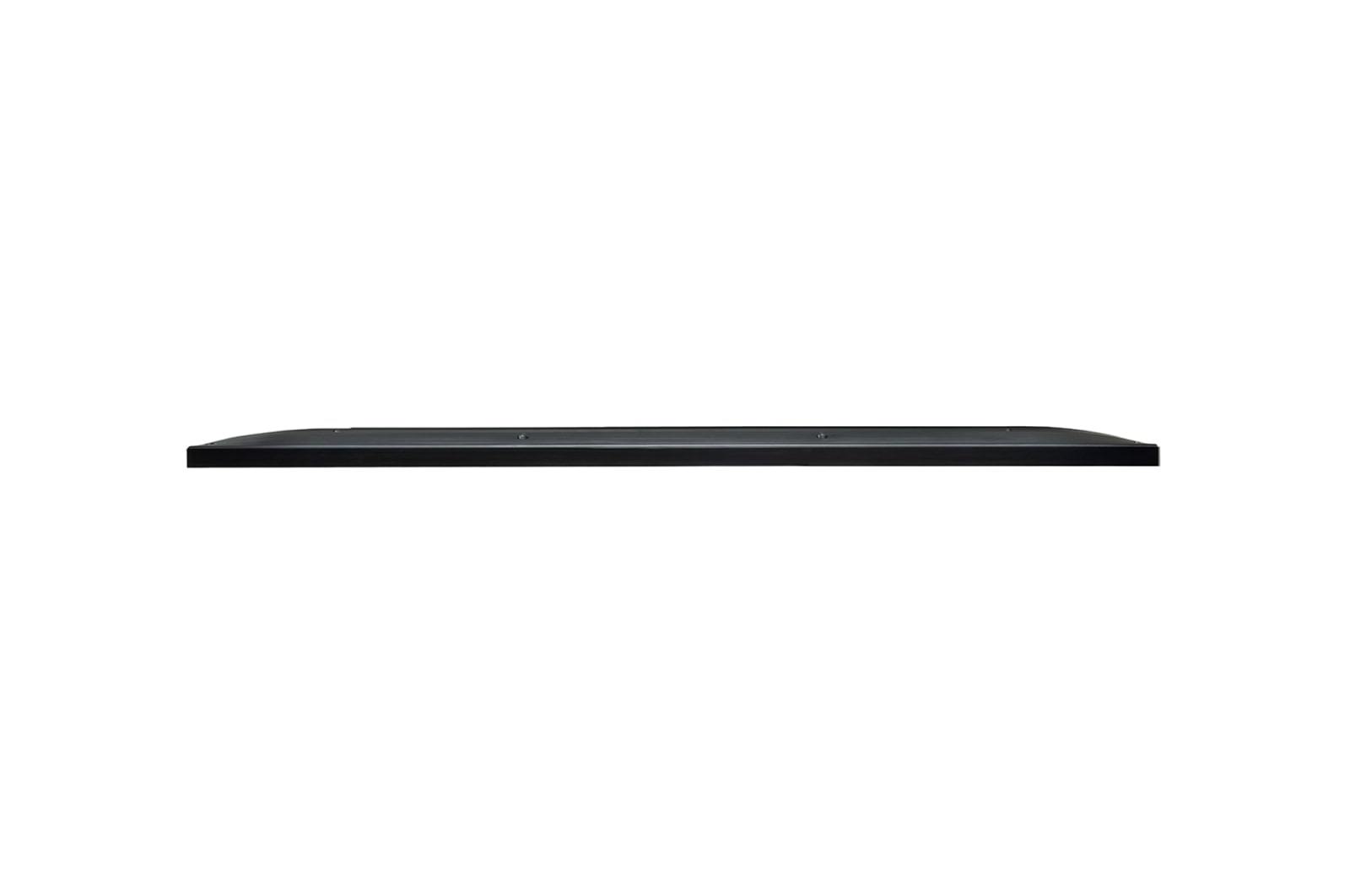

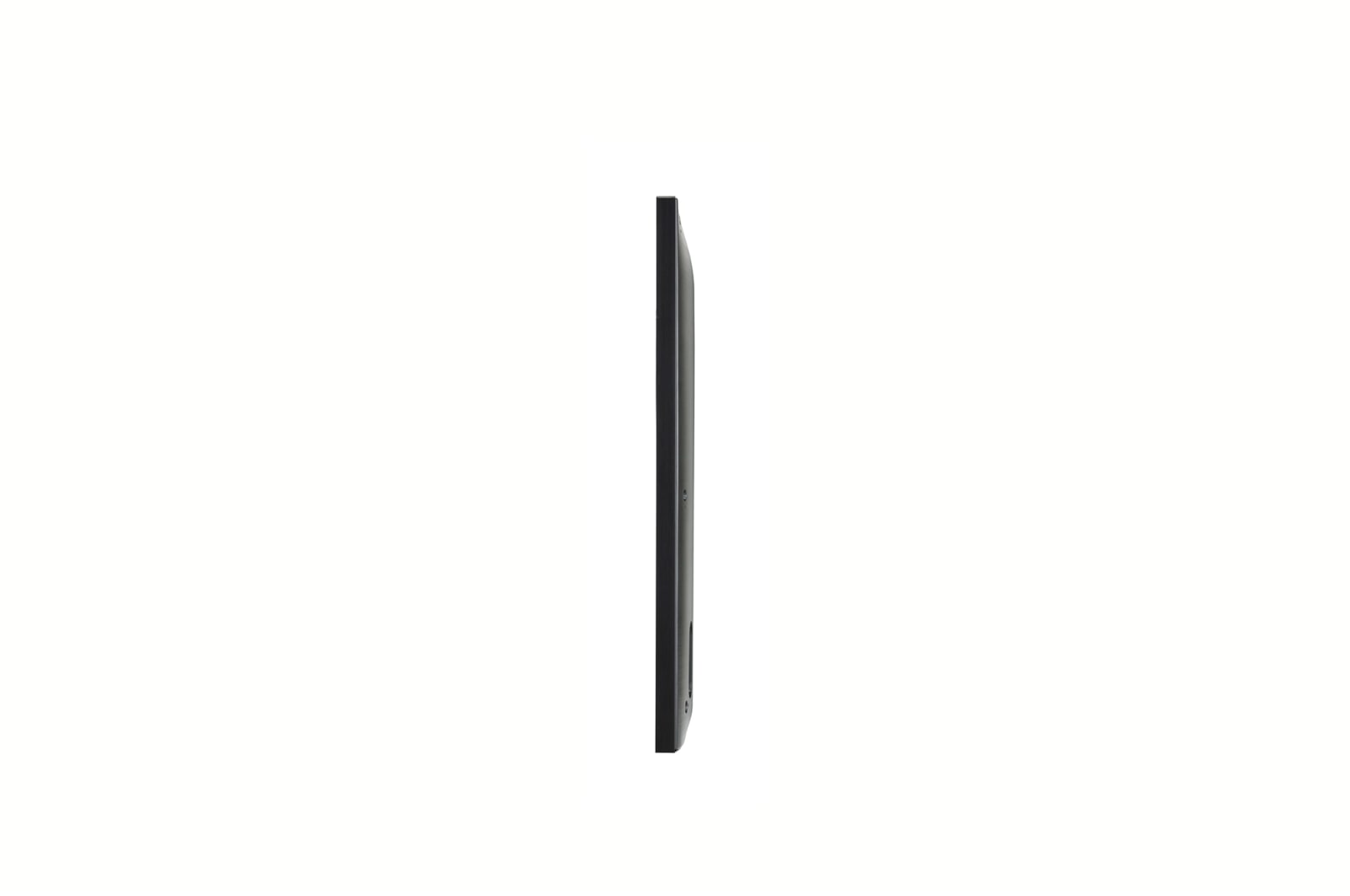

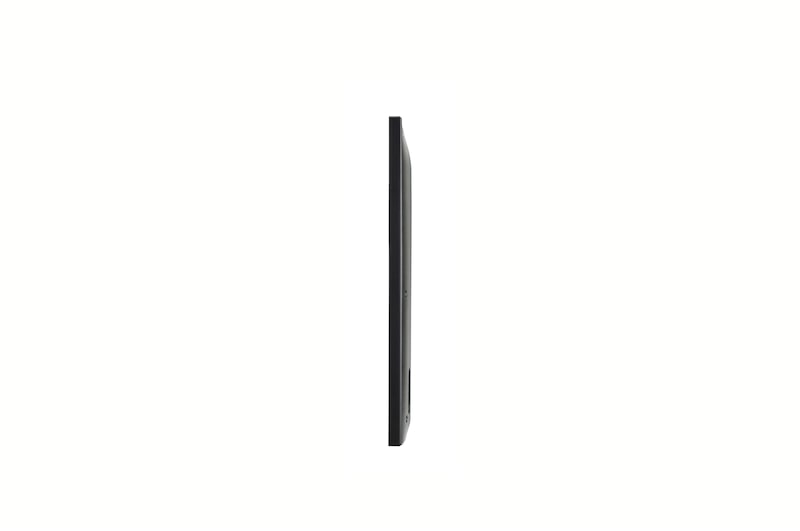

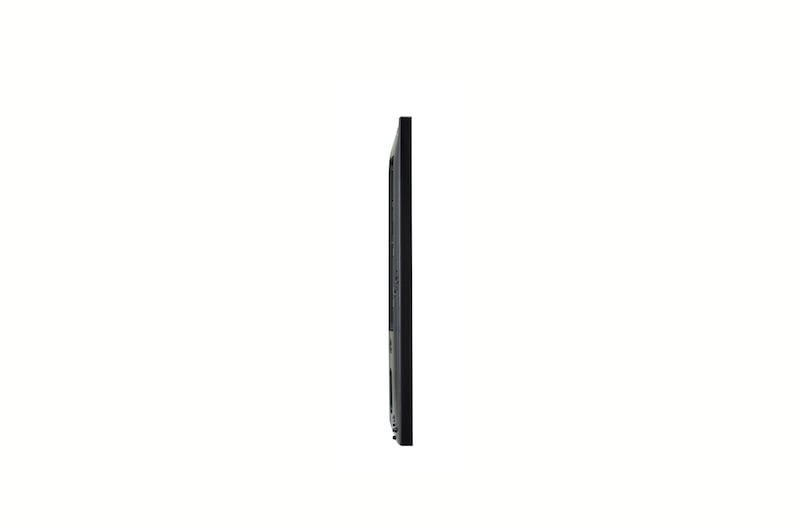

Narrow Bezel & Slim Depth

The UM3DG series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

15° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the UM3DG series supports the installation with 15 degrees of tilt*.

* Tilt installation of up to 15 degrees facedown is supported. (in conditions within 30°C temperature, 50% humidity)

Remote Monitoring

The UM3DG series can email notifications to users when there is a problem, such as tilting of the product by external impact, so users can operate the product in a safer manner as they can get the information about the problem right away.

Simple Accessibility

Unlike other models where various buttons have to be pressed for control, the UM3DG series provides a single joystick to easily facilitate power on/off, input/setting operation, volume control, etc.

High-Performance with webOS

Built-in SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Compatibility with AV Control System

The UM3DG series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

Compatibility with Video Conference System

For the optimum visual meeting, the UM3DG series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

ENERGY STAR® Certified

All Spec

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ePEAT(US only)
NO
ERP / Energy Star
YES(NewErP) / YES

SOUND

Speaker (Built-in)
YES (10W x 2)

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

MECHANICAL SPECIFICATION

Bezel Width
T/R/L: 8.4mm, B: 14.4mm
Bezel Color
Black
Carton Dimensions (W x H x D)
1060.0 x 660.0 x 152.0mm
Handle
NO
Monitor Dimensions (W x H x D)
962.5 x 556.8 x 39.9mm (without LG Logo)
Monitor Dimension with Stand (W x H x D)
962.5 x 613.1 x 290.0mm
Packed Weight
13.7Kg
VESA Standard Mount Interface
200 x 200 mm
Weight (Head)
11.2Kg
Weight (Head+Stand)
11.8Kg

OPS COMPATIBILITY

OPS Power Built-in
NO
OPS Type compatible
NO

ACCESSORY

Optional
Stand(ST-653T), Wall bracket(LSW240B)
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender

POWER

Power Type
Built-in Power
Power Supply
AC 100-240V~, 50/60Hz

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C

SOFTWARE COMPATIBILITY

Connected Care
YES
Mobile CMS
YES
Promota
YES
SuperSign Cloud
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES

SPECIAL FEATURE

Power Protection
N/A
Conformal Coating (Power Board)
YES
Direct Sunlight
N/A
IP Rating
IP5X
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face down)
Max. 15 degree
Tilt (Face up)
N/A

PANEL

Contrast Ratio
1,200:1
Aspect Ratio
16:9
Back Light Type
Edge
Brightness
350nit (Typ.)
Color Depth (Number of Colors)
1.07 Billion colors
Color Gamut
BT709 95%
Dynamic CR
500,000:1
Life time
50,000Hrs (Min.)
Native Resolution
3840 x 2160 (UHD)
Operation Hours (Hours/Day)
18/7
Panel Technology
IPS
Portait / Landscape
YES / YES
QWP (Quarter Wave Plate)
N/A
Refresh Rate
60Hz
Response Time
8ms (G to G)
Screen Size (Inch)
43
Surface Treatment (Haze)
Haze 1%
Transparency
N/A
Viewing Angle (H x V)
178º x 178º

FEATURE - HARDWARE

Local Key Operation
YES
Acceleration(Gyro) Sensor
NO
Auto Brightness Sensor
YES
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
8GB
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES
Wi-Fi/BT (Built-in)
YES

CONNECTIVITY

Daisy Chain
NO
Audio In
NO
Audio Out
YES
DP In
NO
DP Out
NO
DVI-D In
NO
External Speaker Out
NO
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
HDMI Out
NO
IR In
YES
IR Out
NO
RGB In
NO
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
NO
RS232C In
YES
RS232C Out
YES
Touch USB
NO
USB In
USB2.0 Type A (1ea)

FEATURE - SOFTWARE

Pro:Idiom
YES
Auto Set ID
YES
Backlight Sync
NO
Beacon
YES
Booting Logo Image
YES
Brightness Compensation
NO
Cisco Certification
YES
Control Manager
YES
Crestron Connected
YES
External Input Rotation
YES
Fail over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
YES
Network Ready
YES
No Signal Image
YES
OS Ver. (webOS)
webOS 4.1
PBP
NO
PIP
NO
Play via URL
YES
PM mode
YES
RS232C Sync
YES
Scan Inversion
NO
Screen Rotation
YES
Screen Share
YES
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
YES
SNMP
YES
Status Mailing
YES
Tile Mode Setting
YES
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
YES
W/B Setting by Grey scale
NO

POWER CONSUMPTION

BTU (British Thermal Unit)
239 BTU/Hr(Typ.), 359 BTU/Hr(Max.)
DPM
0.5W
Max.
105W
Power off
0.5W
Smart Energy Saving (70%)
50W
Typ.
70W
