UH5F Series - 86" Digital Signage

Features

Gallery

Specs

Support

UH5F Series - 86" Digital Signage

UH5F Series - 86" Digital Signage

86UH5F-H

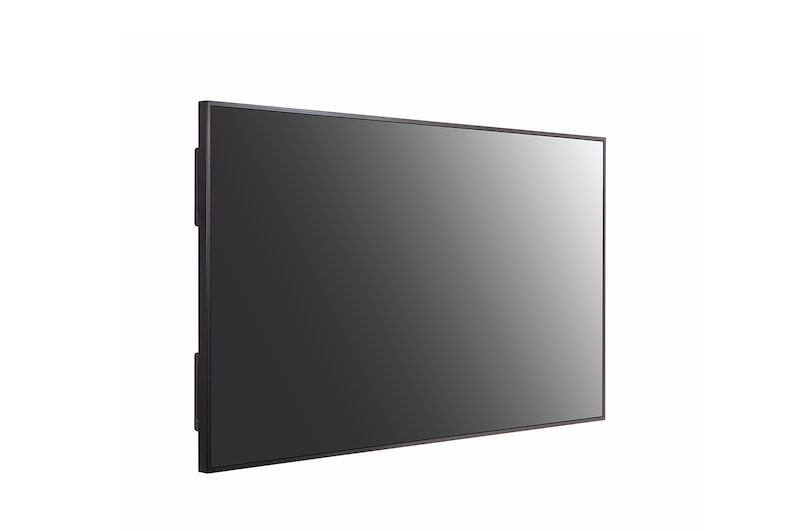

  • Front view of 86UH5F-H
  • LG UH5F Series - 86" Digital Signage, 86UH5F-H
  • LG UH5F Series - 86" Digital Signage, 86UH5F-H
  • LG UH5F Series - 86" Digital Signage, 86UH5F-H
  • LG UH5F Series - 86" Digital Signage, 86UH5F-H
  • LG UH5F Series - 86" Digital Signage, 86UH5F-H
  • LG UH5F Series - 86" Digital Signage, 86UH5F-H

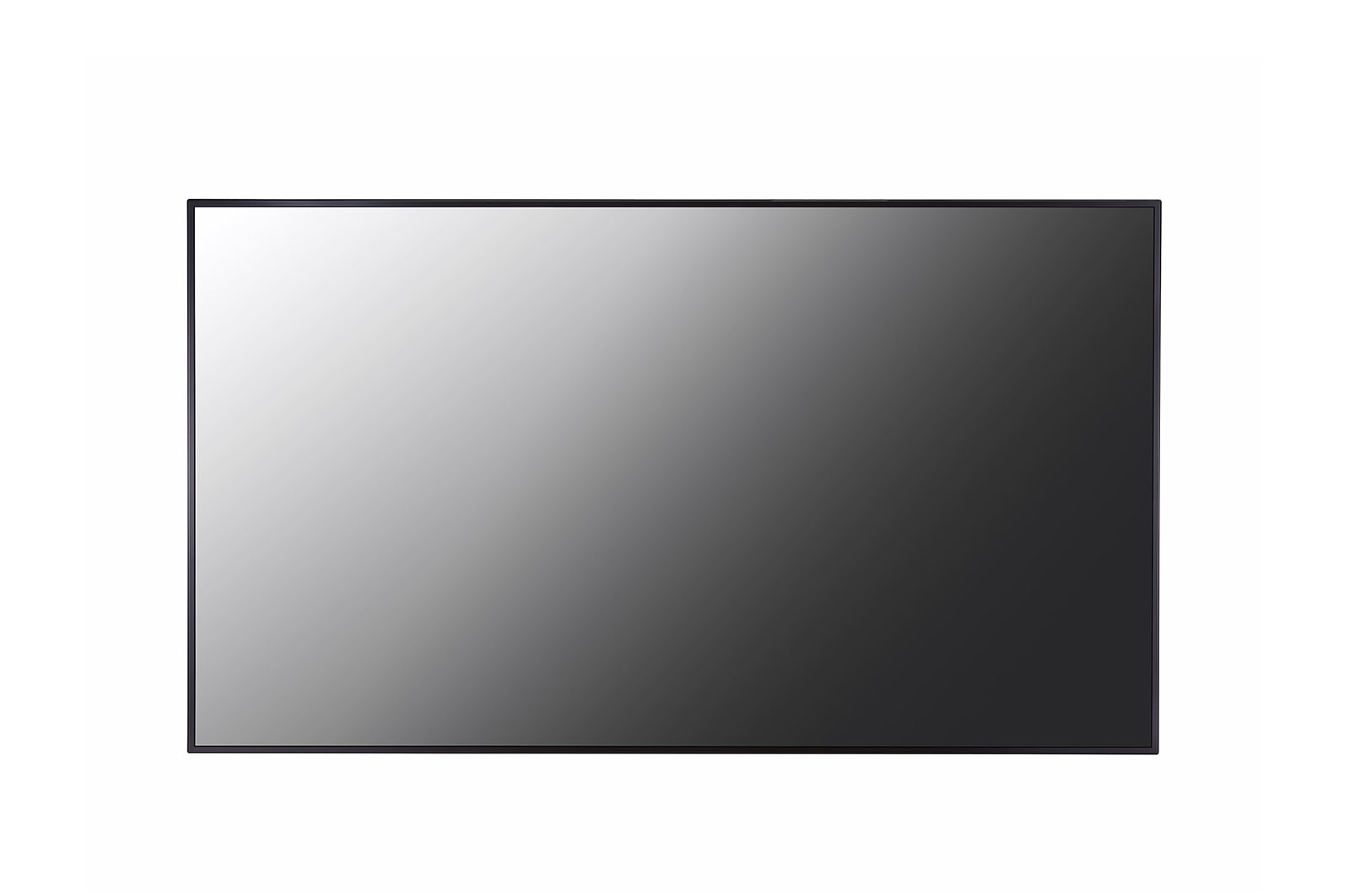

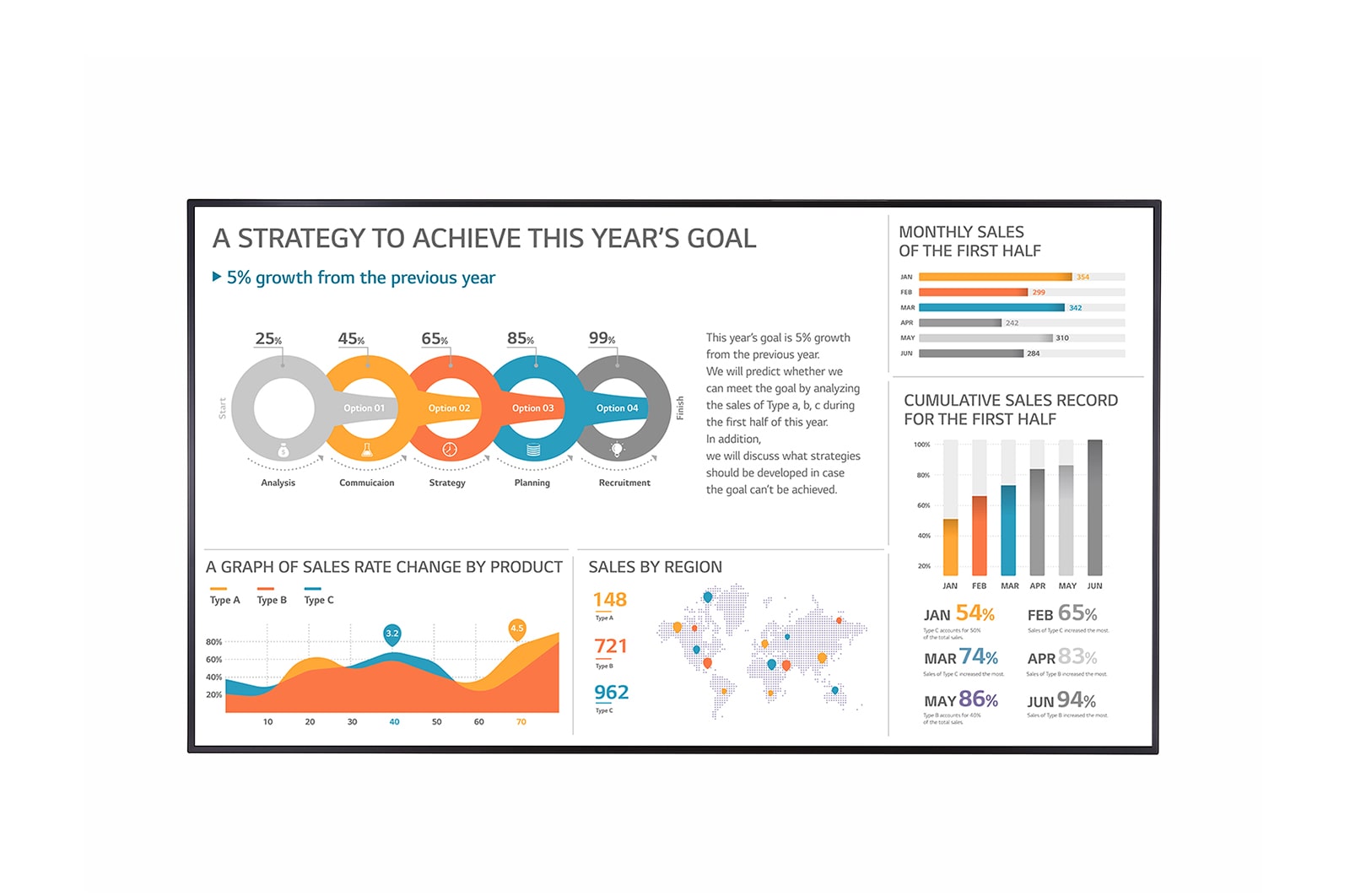

Front view of 86UH5F-H
LG UH5F Series - 86" Digital Signage, 86UH5F-H
LG UH5F Series - 86" Digital Signage, 86UH5F-H
LG UH5F Series - 86" Digital Signage, 86UH5F-H
LG UH5F Series - 86" Digital Signage, 86UH5F-H
LG UH5F Series - 86" Digital Signage, 86UH5F-H
LG UH5F Series - 86" Digital Signage, 86UH5F-H

Key Features

  • Crestron-certified compatibility with AV control system
  • Vivid colour and wide viewing angle with IPS panel
  • 60.6 mm slim design with 14.3 mm even bezel
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Content Management System and speaker
More

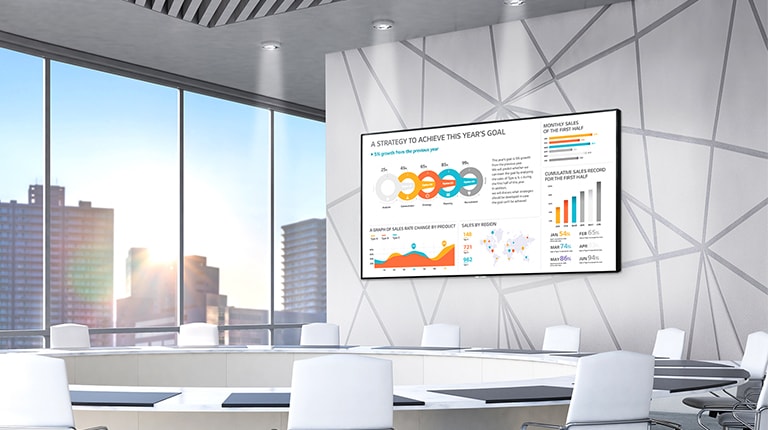

LG UHD Large Screen Signage.

SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

Clear View with Non-glare Coating.

SUPERB PICTURE QUALITY

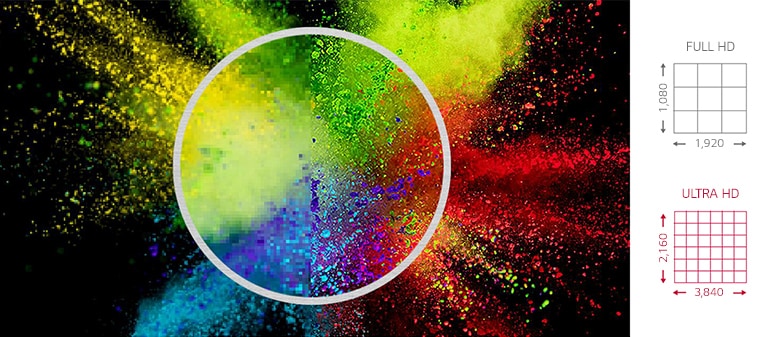

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

ULTRA HD Resolution

webOS SMART SIGNAGE PLATFORM

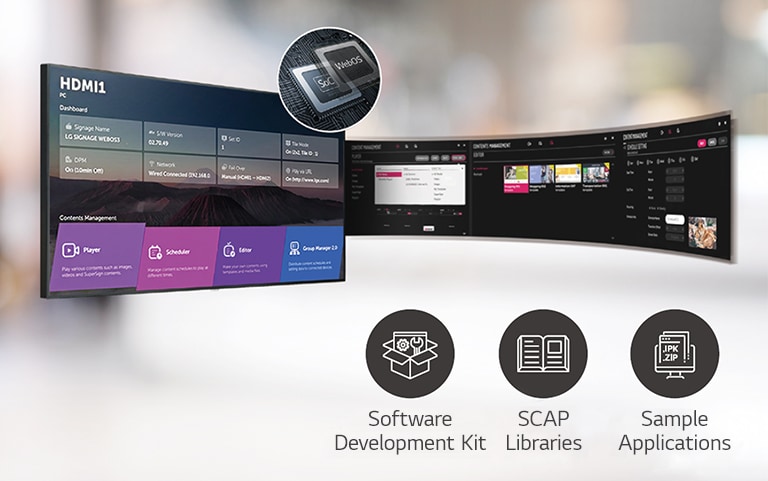

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

High-Performance with webOS.

webOS SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Various Sensor Applications.

MEETING ROOM SOLUTION COMPATIBILITY

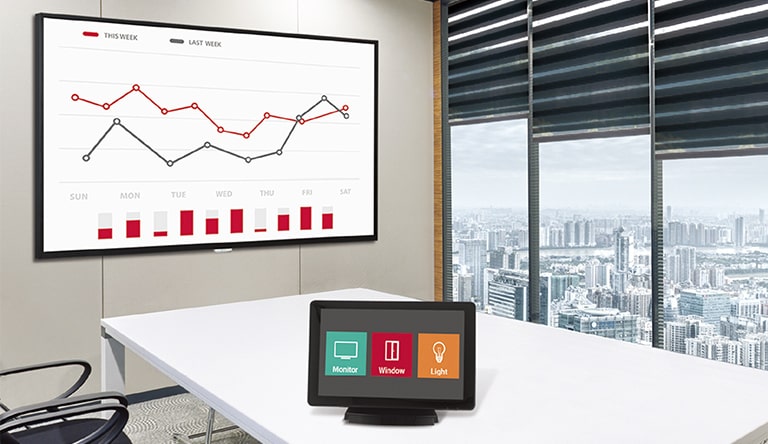

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

Compatible with AV Control System.

* Network based control
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

Compatible with Video Conference System.

* Using an HDMI cable connection
EASY MANAGEMENT

Real-time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Real-time Monitoring

USER CONVENIENCE

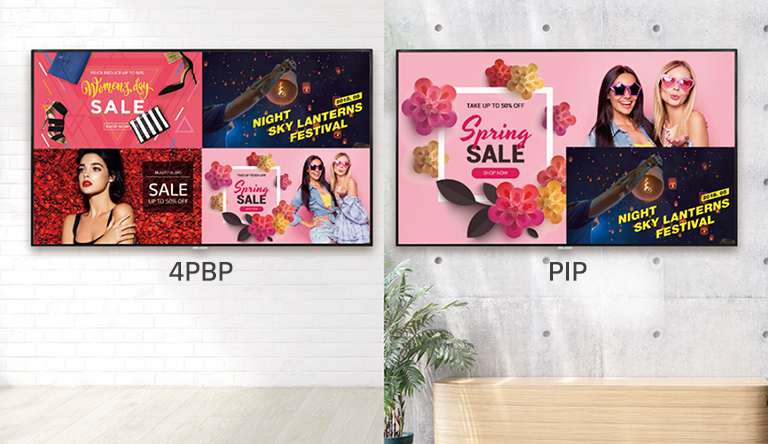

Multiscreen Feature with PBP / PIP

PBP (Picture-By-Picture)features multiple screens in a single display with up to 4 input sources while PIP (Picture-In-Picture) supports playing both a main screen and a subscreen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

multiscreen_feature_with_pbp_/ PIP.

USER CONVENIENCE

Wireless Access Point

The UH5F-H series operates as a virtual router which can be an wireless access point for mobile devices.

Wireless Access Point.

Print

All Spec

SOUND

  • Speaker (Built-in)

    YES (10W x 2)

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES(Old ErP for Jordan) / NO

ACCESSORY

  • Optional

    OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, DP Cable(1.8M), Regulation Book, Phone to RS232C Gender

POWER

  • Power Type

    Built-in Power

  • Power Supply

    AC 100-240V~, 50/60Hz

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

MECHANICAL SPECIFICATION

  • Bezel Width

    Even bezel : 14.3mm

  • Bezel Color

    Black

  • Carton Dimensions (W x H x D)

    2073 x 1250 x 285mm

  • Handle

    YES

  • Monitor Dimensions (W x H x D)

    1926.2 x 1097.2 x 60.6mm (without Handle and LG Logo)

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    72.5Kg (With Pallet)

  • VESA Standard Mount Interface

    600 x 400 mm

  • Weight (Head)

    49.0Kg

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    YES

  • OPS Type compatible

    YES (Piggyback)

SPECIAL FEATURE

  • Power Protection

    N/A

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    YES

  • Promota

    YES

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

PANEL

  • Contrast Ratio

    1,100:1

  • Aspect Ratio

    16:9

  • Back Light Type

    Edge

  • Brightness

    500nit (Typ.)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    NTSC 72%

  • Dynamic CR

    1,000,000:1

  • Life time

    50,000Hrs (Typ.)

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    IPS

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    120Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    86

  • Surface Treatment (Haze)

    Haze 28%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

FEATURE - HARDWARE

  • Local Key Operation

    YES

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    YES

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8GB

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    YES

CONNECTIVITY

  • Daisy Chain

    NO

  • Audio In

    YES

  • Audio Out

    YES

  • DP In

    YES (HDCP 2.2/1.3)

  • DP Out

    YES

  • DVI-D In

    YES (HDCP 1.4)

  • External Speaker Out

    NO

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (2ea)

FEATURE - SOFTWARE

  • Pro:Idiom

    YES

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    YES

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    YES

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    NO

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 4.0

  • PBP

    YES (4PBP)

  • PIP

    YES

  • Play via URL

    YES

  • PM mode

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    YES

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    NO

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    733.69 BTU/Hr(Typ.), 955.5 BTU/Hr(Max.)

  • DPM

    0.5W

  • Max.

    280W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    150.5W

  • Typ.

    215W
