75'' UHD IR-Type Touch Interactive Digital Board

75'' UHD IR-Type Touch Interactive Digital Board

75TR3PJ-B

75'' UHD IR-Type Touch Interactive Digital Board

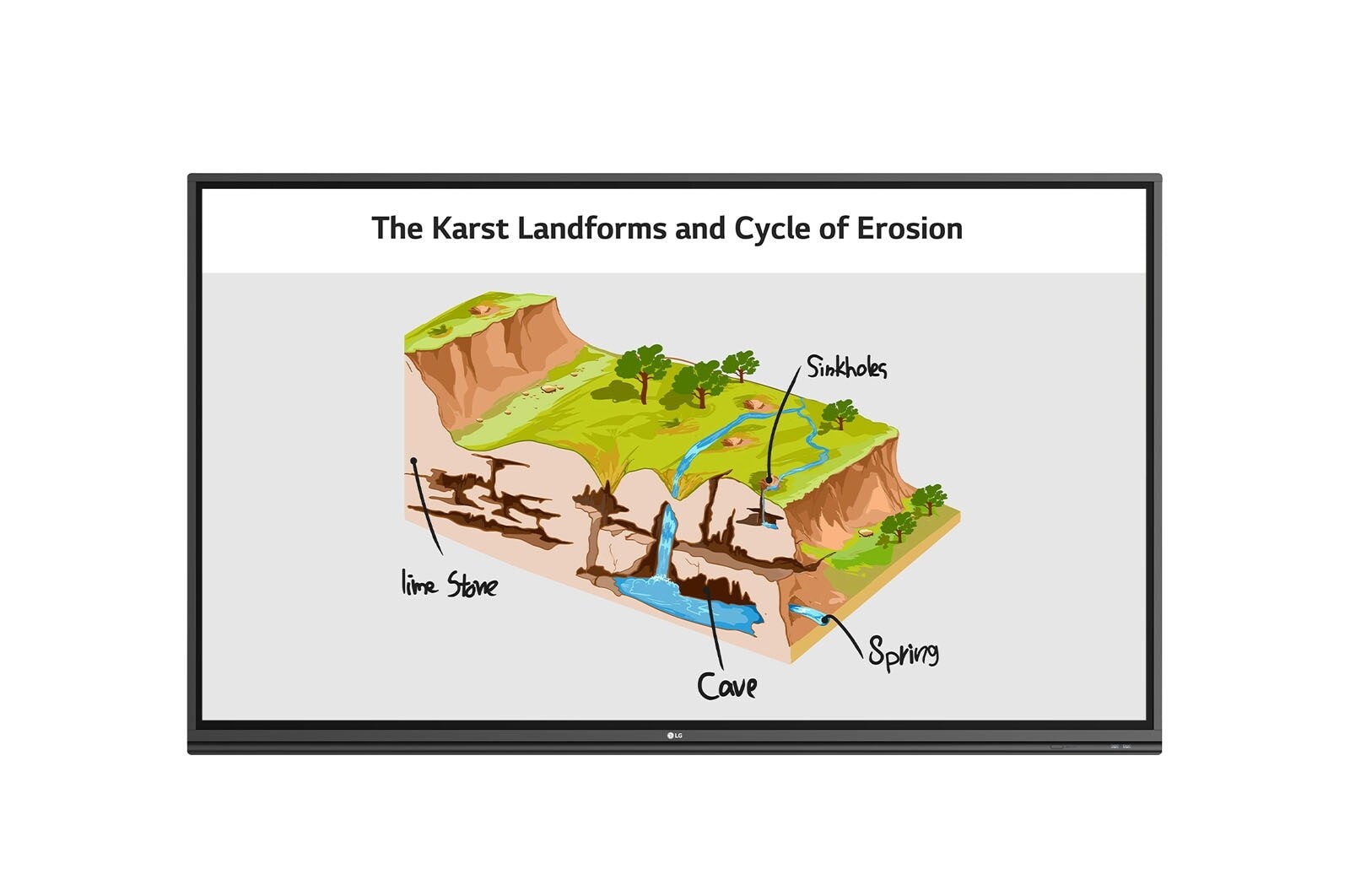

Front view with infill image

True Interactivity for
Bringing People Together

When the teacher marks it on the TR3PJ, it is displayed on the students' electronic device screens at the same time.

* 86 inch
* All images are for illustrative purposes only.
** Video Conferencing Solutions need to be purchased separately.

Multi Touch & Writing

The TR3PJ series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board writing experience and makes collaboration much easier.

Three children are drawing on the TR3PJ at the same time.

The screens of students' laptops and teacher's mobile are being shared to the display.

ScreenShare Pro Upgrade

With the newly upgraded ScreenShare Pro, which enables to show a maximum of six shared screens or a file on a screen in real-time, it has enhanced usability by allowing users to share Chromecast, Airplay and Miracast mirroring on the same network.

* ScreenShare Pro is a Wi-Fi based software and supported by separated application.
** All devices should be connected within the same network.
A teacher is having a class and the screen on the display is being shared to each students' laptop.

Air Class

Air Class supports connecting up to 30 students and offers interactive classes by using mobile devices equipped with web browsers, providing a variety of tools such as voting, answering, and sharing project texts.
Display Power Management function to manage power more efficiently.

DPM
(Display Power Management)

By activating DPM function, the display can be set to be on only when there is an input signal, which enables more efficient power management.
Engineering Drawing class with TR3PJ's annotation tool using Un-do and Re-do functions.

Annotation Upgrade

At annotation tool mode, ‘Un-do’ and ‘Re-do’ functions provide enhanced user experience. (Annotation tool can be used on any source.)

* Un-do : Moves one step back
Re-do : Moves one step forward
A woman searching for information using the web browser.

Web Browser

The TR3PJ series supports the web browser* in the Android OS**, so you can search the web easily and quickly, without connecting to an external desktop.

* Network-based Function
** The Android OS is updated to 9.0 ver.
System-on-a chip integrated with Android OS and free apps.

All-in-One

The TR3PJ series integrates both Android OS and Free apps into a high performance SoC, without a PC.

Secure Mode

Secured mode disables screen mirroring options for SSP (Screen Share Pro), which is an application that enables screen sharing between mobile devices and the display, to prevent any unauthorized contents to be shown via screen sharing functions in various devices.

Secure Mode for blocking unauthorized contents.

Built-in OPS Slot allows users to connect to an external desktop easily, which provides more expanded functions.

Built-in OPS Slot

The TR3PJ series supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the interactive digital board with internal power delivery.
USB is not being able to be connected to a display for security.

USB Block

The USB Block Mode that helps secure and prevent data from being copied into unauthorized devices in advance, which is essential for being used in space where security is critical.

Partial Capture

Users can select the desired area of the screen to crop the image and store that in internal memory. Also, TR3PJ allows that send cropped images directly to email or note apps.

A woman captures part of the TR3PJ and explains it to the man.

Three people are gathered in a conference room, having a virtual meeting with other people who are appearing on the screen.

Bluetooth Connectivity

TR3PJ supports Bluetooth to connect wirelessly to various devices such as speaker, mouse, keyboard, etc. This is optimized for building a hybrid environment so that online and offline meetings and classes can proceed with ease.

All Spec

PANEL

Screen Size (Inch)

75

Panel Technology

IPS

Back Light Type

Direct

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60Hz

Brightness

390nit (Typ., without Glass)

Contrast Ratio

4,000:1

Dynamic CR

NO

Color Gamut

NTSC 72%

Viewing Angle (H x V)

178º x 178º

Color Depth (Number of Colors)

16.7 Million colors

Response Time

8.5ms (G to G)

Surface Treatment (Haze)

Haze 25%

Life time

30,000Hrs (Min.)

Operation Hours (Hours/Day)

16/7

Portait / Landscape

NO / YES

CONNECTIVITY

HDMI In

YES (3ea)

HDMI In (HDCP Ver.)

2.2/1.4

DP In

NO

DVI-D In

NO

RGB In

YES

Audio In

YES

RS232C In

YES

RJ45(LAN) In

YES (1ea)

IR In

NO

USB In

USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)

HDMI Out

YES

DP Out

NO

Audio Out

YES

Touch USB

USB3.0 Type B (2ea)

External Speaker Out

NO

RS232C Out

NO

RJ45(LAN) Out

YES

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

T/R/L/B : 17.7/17.7/17.7/45.7mm

Weight (Head)

52.2Kg

Packed Weight

64.7Kg

Monitor Dimensions (W x H x D)

1710 × 1020 × 87.0mm

Handle

YES

VESA Standard Mount Interface

800 x 400 mm

Carton Dimensions (W x H x D)

1863 × 1140 x 225mm

FEATURE - HARDWARE

Internal Memory (eMMC)

32GB

Wi-Fi/BT (Built-in)

YES

Temperature Sensor

NO

Auto Brightness Sensor

YES

Power Indicator

YES

Local Key Operation

YES

FEATURE - SOFTWARE

Booting Logo Image

YES

PIP

NO

PBP

NO

Screen Share

YES

Setting Data Cloning

NO

Crestron Connected

YES

Smart Energy Saving

YES

PM mode

NO

Wake on LAN

YES

Network Ready

NO

HDMI-CEC

YES

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 90 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-in Power

POWER CONSUMPTION

Typ.

280W

Max.

500W

BTU (British Thermal Unit)

955 BTU/Hr(Typ.), 1706 BTU/Hr(Max.)

DPM

0.5W

Power off

0.5W

SOUND

Speaker (Built-in)

YES (16W x 2)

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE

ERP / Energy Star

YES / NO

OPS COMPATIBILITY

OPS Type compatible

YES (Slot)

OPS Power Built-in

YES

SOFTWARE COMPATIBILITY

Connected Care

YES

LANGUAGE

OSD

English, Simplified Chineses, Catalan, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Latvian, Thai

ACCESSORY

Basic

Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

Optional

NO

SPECIAL FEATURE

Conformal Coating (Power Board)

YES

DEDICATED FEATURE - TOUCH

Available Object Size for Touch

Ø2 mm ↑

Response Time ('Paint' app on Windows 10 PC)

10ms ↓

Accuracy (Typ.)

±1mm

Interface

USB3.0

Protection Glass Thickness

4mm (Anti-Glare)

Protection Glass Transmission

0.87

Operating System Support

Windows 7/8/10/XP/Linux/Mac/Android (Windows XP/Linux/Mac Support one point touch)

Multi Touch Point

Max. 20 Points

DEDICATED FEATURE - CREATE BOARD

CPU

Quad core A73

GPU

Mail G52 Multicore 2

Memory(RAM)

4GB

Storage

32GB

Wi-Fi

802.11a/b/g/n/ac/ax

LAN

Gigabit LAN

Bluetooth

Bluetooth 5.0

OS ver. (Android)

Android 9
