49VL5G-M

VL5G-M Series - 49" FHD Video Wall

(1)

Incredible Immersion with
Ultra-Narrow Bezel

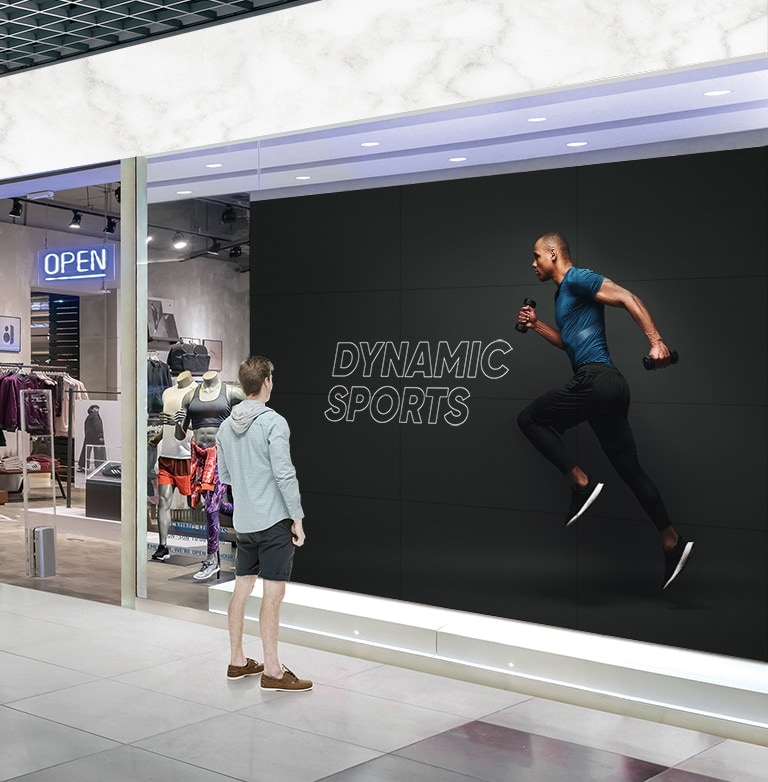

A man is looking at a big screen attached to the window of a sports store.

* All images in this web page are for illustrative purposes only.
Seamless Large Screens with Ultra-Narrow Bezel1
Achieving Incredible Immersion

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

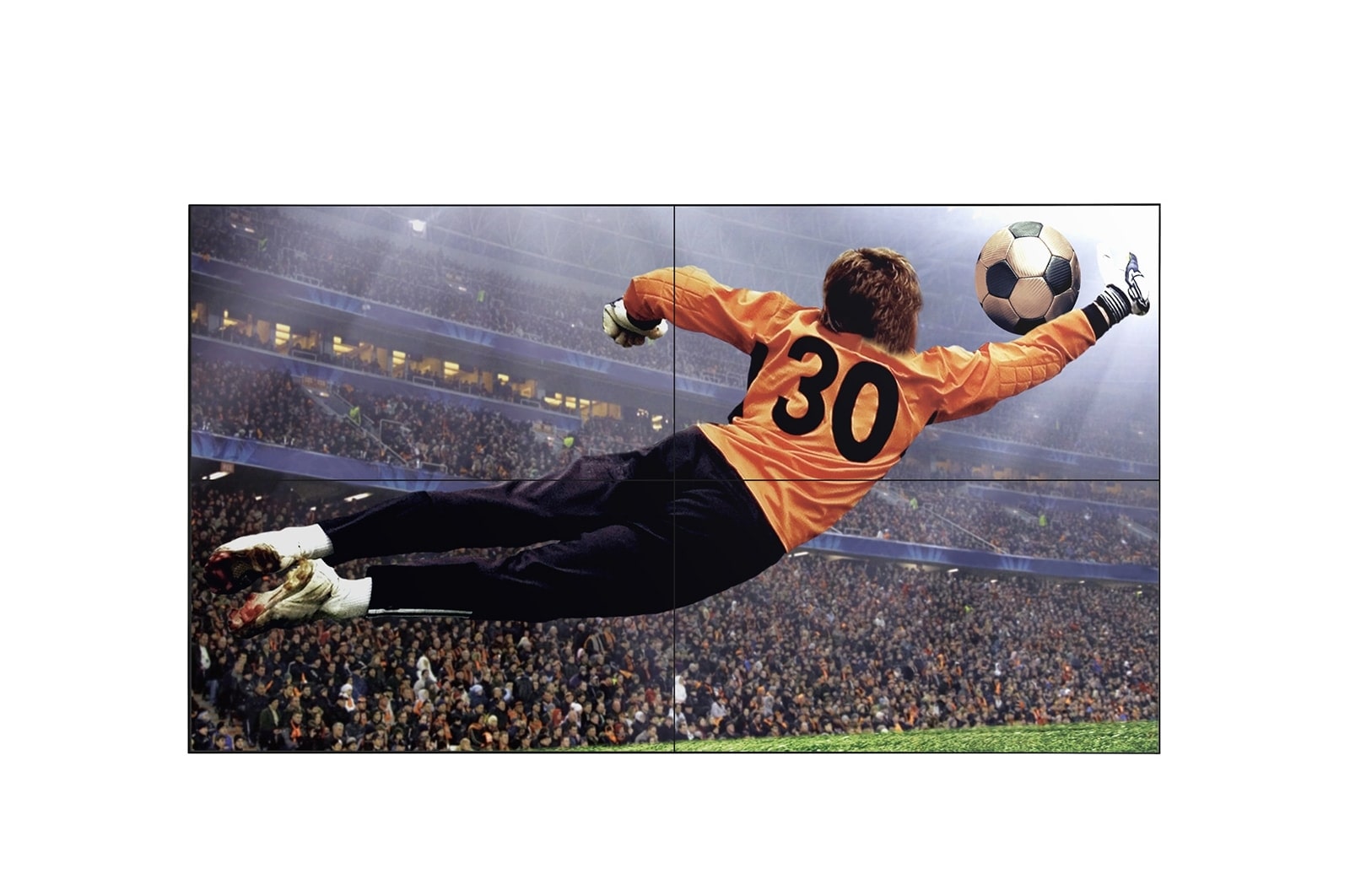

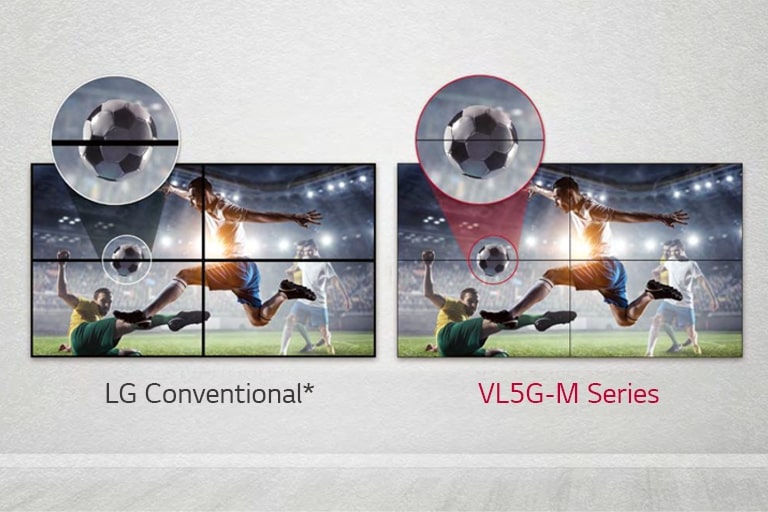

VL5G-M series has a less image gap between tiled screens compared to LG Conventional, so its content is seen well without being disturbed by the gap.

Image Gap Reduction

The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "LG Conventional" refers to displays which do not include an image improvement algorithm.

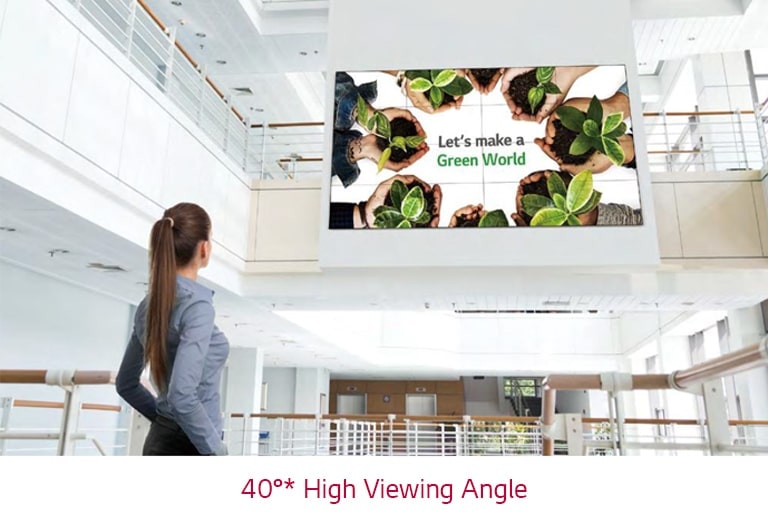

A woman is looking up at the screen installed upstairs.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G-M series is high enough to display vivid colors throughout the screen with no distortion.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Wider Viewing Angle1
Vivid and Dynamic Picture Quality

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 49VL5F captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment1
User Convenience

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment1
User Convenience

White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 49VL5F allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
User-Friendly Menu Structure1
User Convenience

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

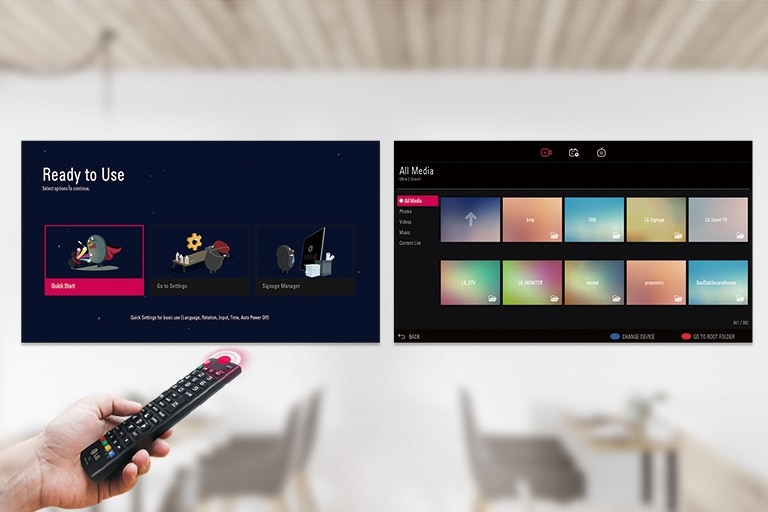

A display is easily controlled using a user-friendly GUI and a remote control.

Intuitive GUI

The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.

All Spec

PANEL

Screen Size (Inch)

49

Panel Technology

IPS

Back Light Type

Direct

Aspect Ratio

16:9

Native Resolution

1920 x 1080 (FHD)

Refresh Rate

60Hz

Brightness

500nit (Typ.)

Contrast Ratio

1,000:1

Dynamic CR

500,000:1

Color Gamut

NTSC 72%

Viewing Angle (H x V)

178º x 178º

Color Depth (Number of Colors)

1.07 Billion colors

Response Time

8ms (G to G)

Surface Treatment (Haze)

Haze 3%

Life time

60,000Hrs (Typ.)

Operation Hours (Hours/Day)

24/7

Portait / Landscape

YES / YES

Transparency

N/A

QWP (Quarter Wave Plate)

N/A

CONNECTIVITY

HDMI In

YES (2ea)

HDMI In (HDCP Ver.)

1.4

DP In

YES (HDCP 1.3)

DVI-D In

YES (HDCP 1.4)

RGB In

NO

Audio In

YES

RS232C In

YES

RJ45(LAN) In

YES (1ea)

IR In

YES

USB In

USB2.0 Type A (1ea)

HDMI Out

NO

DP Out

YES

Audio Out

YES

Touch USB

NO

External Speaker Out

NO

RS232C Out

YES

RJ45(LAN) Out

NO

IR Out

NO

Daisy Chain

Input : HDMI, DP, DVI-D / Output : DP

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

T/R/L/B : 2.25/1.25/2.25/1.25mm

Weight (Head)

16.9Kg

Packed Weight

21.9Kg

Monitor Dimensions (W x H x D)

1077.6 x 607.8 x 89.7mm

Monitor Dimension with Stand (W x H x D)

N/A

Handle

YES

VESA Standard Mount Interface

600 x 400 mm

Carton Dimensions (W x H x D)

1214 x 778 x 263mm

Weight (Head+Stand)

N/A

FEATURE - HARDWARE

Internal Memory (eMMC)

NO

Wi-Fi/BT (Built-in)

NO

Temperature Sensor

YES

Auto Brightness Sensor

NO

Pixel Sensor

NO

Proximity Sensor

NO

Current Sensor

NO

BLU Sensor

NO

Humidity Sensor

NO

Acceleration(Gyro) Sensor

NO

Power Indicator

NO

Local Key Operation

NO

FAN (Built-in)

NO

FEATURE - SOFTWARE

OS Ver. (webOS)

Non-webOS

Local Contents Scheduling

YES

Group Manager

NO

USB Plug & Play

YES

Fail over

YES

Booting Logo Image

YES

No Signal Image

YES

RS232C Sync

YES

Local Network Sync

NO

Backlight Sync

NO

PIP

NO

PBP

NO

Screen Share

NO

Video Tag

NO

Play via URL

NO

Screen Rotation

YES

External Input Rotation

NO

Gapless Playback

NO

Tile Mode Setting

YES

Setting Data Cloning

YES

SNMP

YES

ISM Method

YES

Auto Set ID

YES

Status Mailing

NO

Control Manager

NO

Cisco Certification

NO

Crestron Connected

YES

Smart Energy Saving

YES

PM mode

YES

Wake on LAN

YES

Network Ready

NO

Beacon

NO

HDMI-CEC

YES

SI Server Setting

NO

webRTC

NO

Pro:Idiom

NO

Brightness Compensation

NO

W/B Setting by Grey scale

YES

Scan Inversion

YES

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-in Power

POWER CONSUMPTION

Typ.

100W

Max.

120W

BTU (British Thermal Unit)

341 BTU/Hr(Typ.), 409 BTU/Hr(Max.)

Smart Energy Saving (70%)

60W

DPM

0.5W

Power off

0.5W

SOUND

Speaker (Built-in)

NO

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC

ERP / Energy Star

YES / Energy Star 8.0(US Only)

ePEAT(US only)

NO

OPS COMPATIBILITY

OPS Type compatible

NO

OPS Power Built-in

NO

SOFTWARE COMPATIBILITY

SuperSign CMS

YES

SuperSign Control+

YES

SuperSign WB

YES

SuperSign Cloud

NO

Promota

NO

Mobile CMS

NO

Connected Care

NO

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, RS232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual

Optional

NO

SPECIAL FEATURE

Overlay Touch Compatibility

N/A

Smart Calibration

N/A

Tilt (Face up)

N/A

Tilt (Face down)

N/A

IP Rating

IP5X tested

Conformal Coating (Power Board)

YES

Power Protection

N/A

Direct Sunlight

N/A
