LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model)

LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model)

LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model)

LAP015EP

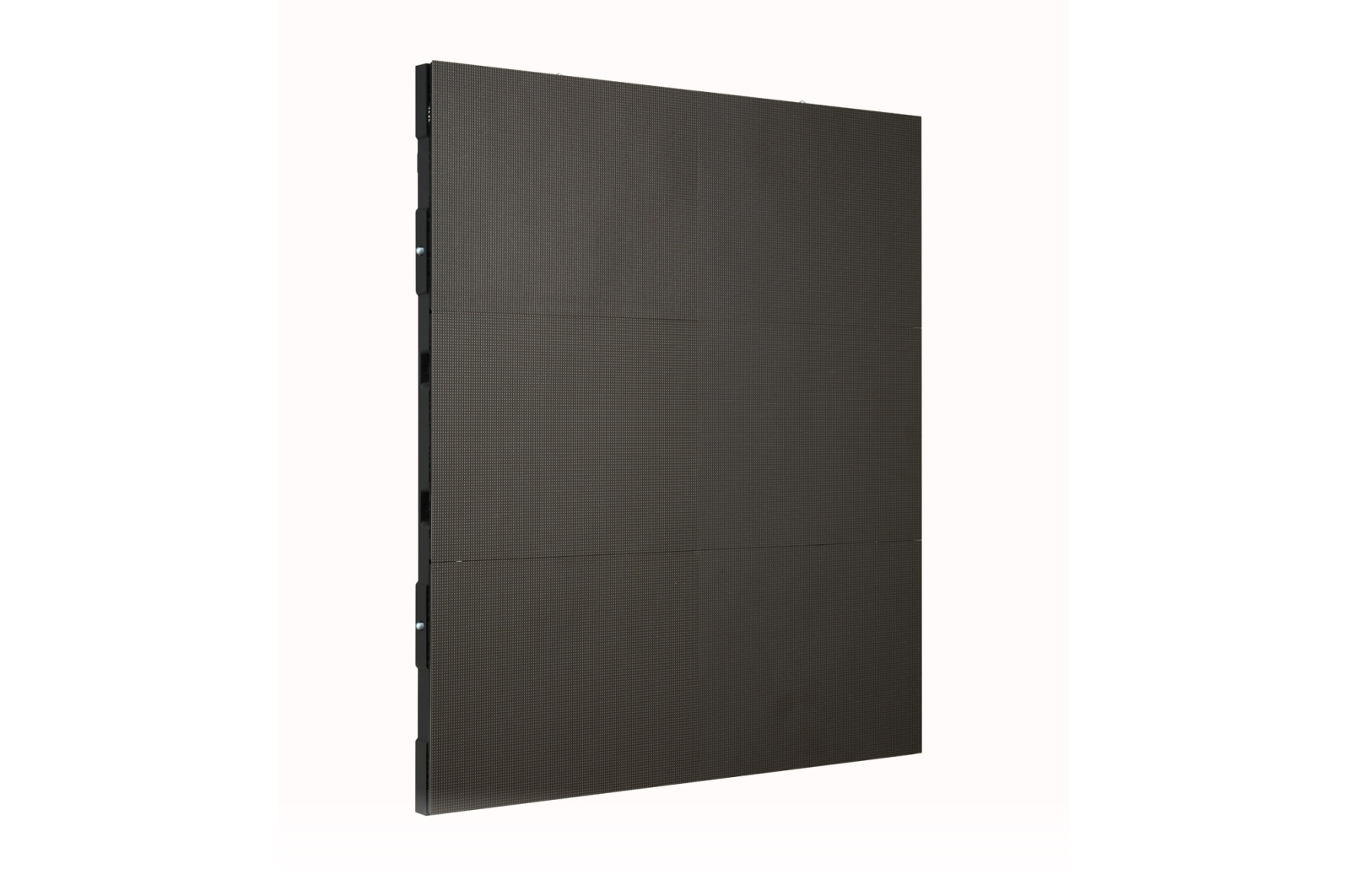

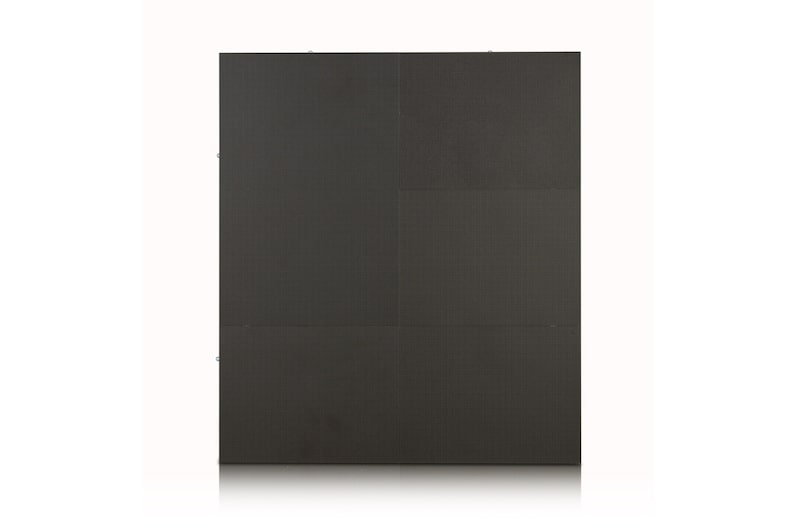

Front view of LAP015EL7BP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP

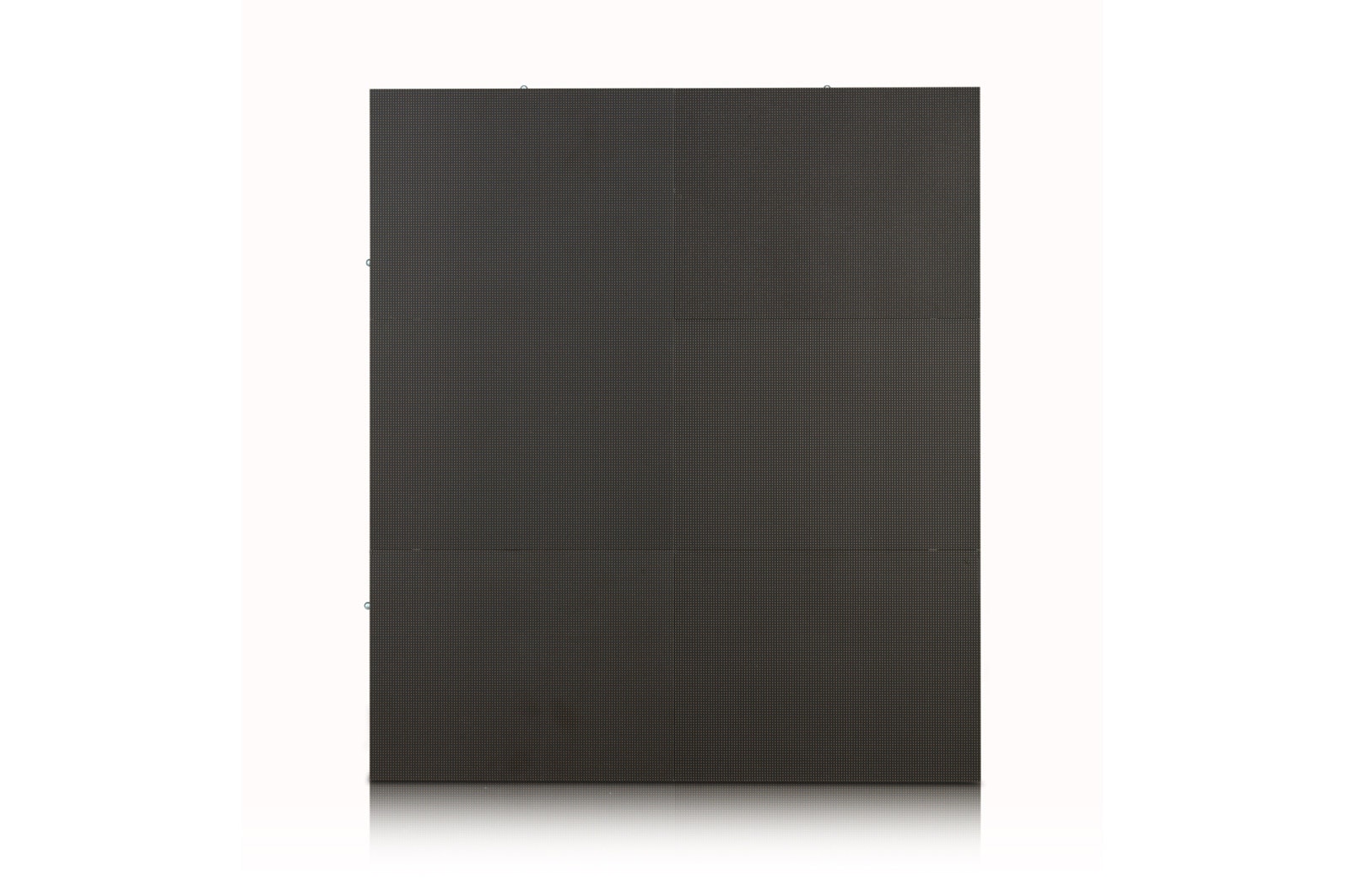

Front view of LAP015EL7BP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP
LG LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model), LAP015EP

Key Features

  • 1.5 mm pixel pitch
  • Brightness: 700 cd/m²
  • Max. 1000R curvatures (Concave/Convex)
  • Built-in Content Management System and 4K system controller
  • Front installation and service access supported
More
LG PREMIUM FINE-PITCH LED SIGNAGE 1

LG PREMIUM FINE-PITCH
LED SIGNAGE

Boasting detailed color and super contrast, LG's LAPE series brings content to life through freedom of design, giving it outstanding presence as a work of media art.
SELECTABLE TWO PRODUCT TYPES

SELECTABLE TWO PRODUCT TYPES

SELECTABLE TWO PRODUCT TYPES

The LAPE Series comes in 2 product types which differ in the way the power is installed. Each has their own distinctive benefits, so customers can choose between two types based on installation environment.

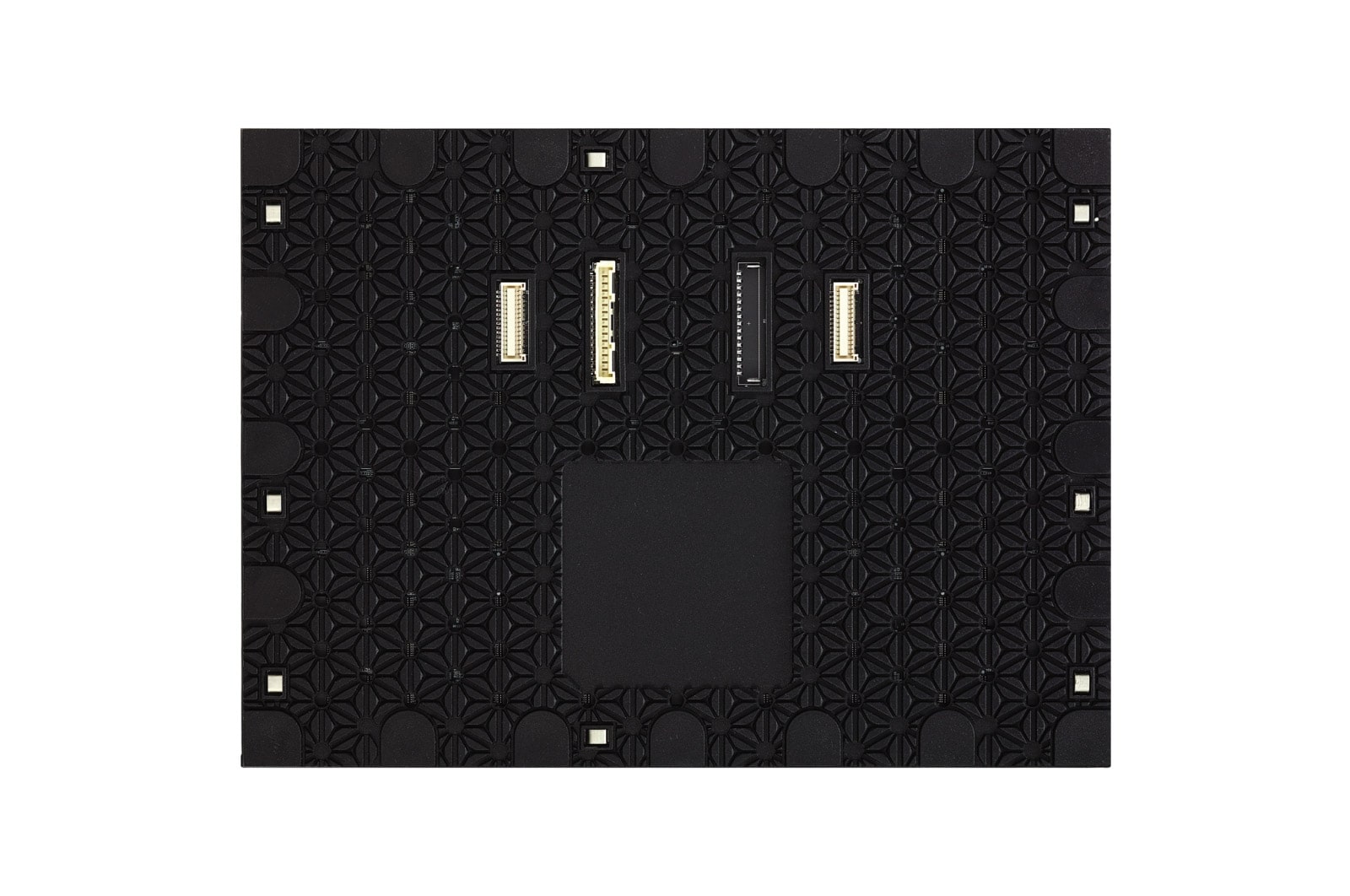

FLEXIBLE LDM

FLEXIBLE LDM

With a specially designed flexible LDM(LED Display Module), the LAPE series supports true concave and convex curvature up to 1,000R. This greatly amplifies design flexibility, providing users with the ability to create true curved screens.

* The "Conventional" shown above refers to an LED screen composed of flat LED unit cases.

REALISM THROUGH LIFELIKE COLORS

REALISM THROUGH LIFELIKE COLORS

REALISM THROUGH LIFELIKE COLORS

The LAPE series delivers vivid and distinctive picture quality through a wide range of color details with deep contrast thanks to LG's exclusive ‘Dynamic Contrast Algorithm'.
DETAILED EXPRESSION OF COLOR DEPTH

DETAILED EXPRESSION OF COLOR DEPTH

DETAILED EXPRESSION OF COLOR DEPTH

16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.
SMOOTH PLAYBACK IN DYNAMIC MOTION

SMOOTH PLAYBACK IN DYNAMIC MOTION

SMOOTH PLAYBACK IN DYNAMIC MOTION

Powered by LG's display technology, a high refresh rate of 3,840Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.
FLEXIBLE POWER MANAGEMENT 1

FLEXIBLE POWER MANAGEMENT 1

FLEXIBLE POWER MANAGEMENT

Thanks to the modular power concept design, users can choose the desired brightness of the screen by customizing the number of PSUs* based on the electrical capacity of the user environment.

* The number of power units required may vary depending on the installation environment.
* The above description is an example of a UHD screen configuration with a 2.0 mm pitch in "redundancy off" mode.

POWER/SIGNAL REDUNDANCY SUPPORT 1

POWER/SIGNAL REDUNDANCY SUPPORT 1

POWER/SIGNAL REDUNDANCY SUPPORT

The LAPE series is designed to support signal redundancy (optional), providing users with peace of mind.

* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.

PRECISE FHD/UHD SCEEN CONFIGURATION 1

PRECISE FHD/UHD SCEEN CONFIGURATION 1

PRECISE FHD/UHD SCEEN CONFIGURATION

It has often been difficult to configure a perfect FHD/UHD resolution screen prohibiting native resolution image display. With the LAPE series, this is possible for all model options.
SMART HIGH PERFORMANCE SYSTEM CONTROLLER 1

SMART HIGH PERFORMANCE SYSTEM CONTROLLER 1

SMART HIGH PERFORMANCE SYSTEM CONTROLLER

The LAPE series comes with a versatile 4K system controller, providing simplified system configuration in a high-resolution canvas platform. The controller also has a built-in high performance media player as well as scaler.

* The "Conventional" shown above refers to LED displays that don't have an all-in-one system controller.

HIGH PERFORMANCE SoC with webOS1

HIGH PERFORMANCE SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

INTUITIVE MANAGEMENT SOFTWARE

INTUITIVE MANAGEMENT SOFTWARE

INTUITIVE MANAGEMENT SOFTWARE

LG's new management control software platform ‘LED Assistant' provides easy screen management.
EASY TO HANDLE & INSTALL 1

EASY TO HANDLE & INSTALL 1

EASY TO HANDLE & INSTALL

Conventional large-sized and heavy cabinet-based installation often results in LED dot defects during installation. The LAPE series breaks free from conventional norms by introducing much smaller and light weight LDM(LED Display Module)-based installation, providing incomparable ease of handling.
EASY SCREEN ALIGNMENT 1

EASY SCREEN ALIGNMENT

The unit frame of the LAPE series has been carefully designed for easy screen flatness alignment. Each LDM has 20 Z-axis alignment points for ultra-fine flatness alignment.
FRONT INSTALLATION & SERVICE 1

FRONT INSTALLATION & SERVICE

The LAPE series comes with front installation and front service access, freeing users from needing rear access space, as well as a sleek screen design for maximum space optimization
Print

All Spec

CERTIFICATION

  • EMC

    FCC Class A / CE / KC

  • Environment

    RoHS

CONNECTIVITY

  • Video Inputs

    HDMI In, DP In, OPS In, USB

  • Control

    RJ45 In, RS232C In/out

  • Special Features

    HDR10, Temperature Sensor, Power Detection

CONTROLLER

  • Controller

    LCLG005-A

ELECTRICAL PARAMETER

  • Power Consumption (W/Unit, Max.)

    200

  • Power Consumption (W/Unit, Avg.)

    67

  • Power Consumption (W/m², Max.)

    770

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION CONDITIONS

  • Lifetime (Duration of Half Brightness in Hours)

    100,000

  • Operating Temperature (°C)

    0°C to + 40°C

  • Operating Humidity

    10-80% RH

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)

    700 cd/m²

  • Color Temperature

    3,200 ~ 9,300

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    140

  • Brightness Uniformity

    95%

  • Color Uniformity

    ±0.015Cx, Cy

  • Contrast Ratio

    6,000

  • Processing Depth (bit)

    16 (HDR10)

PHYSICAL PARAMETERS

  • Pitch Name

    P1.5

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    1.50

  • Module Resolution (W x H)

    160 x 120

  • Module Dimensions (W x H, mm)

    240 x 180

  • Weight per Module (kg)

    0.36

  • No. of Modules per Unit Case (W x H)

    2 x 3

  • Unit Case Resolution (W x H)

    320 x 360

  • Unit Case Dimensions (W x H x D, mm)

    480 x 540 x 105

  • Unit Case Surface Area (m²)

    0.259

  • Weight per Unit Case (kg/unit)

    10.1

  • Weight per Square Meter (kg/m²)

    38.4

  • Physical Pixel Density (pixels/m²)

    444,444

  • Flatness of Unit Case (mm)

    ±0.2

  • Unit Case Material

    Die Casting Aluminum

  • Service Access

    Front<sup>1)</sup> and Rear<br />1) Min. 400mm of space should be required between the cabinet rear and the wall.
