A wide display is installed on the wall of the conference hall, and presentation is prominently and clearly displayed on the large screen.
* All images in this page are for illustrative purposes only and may differ from the actual product.
** Stand accessories differ by models, and need to be purchased separately.
Experience the convenience of LG’s LED All-in-One LAPA series, featuring stunning 163/136-inch screen. This all-in-one package includes an embedded controller and built-in speaker, making setup a breeze. Dispelling the notion that LED displays are difficult and complex to install, it requires no controller connections or module configuration.
A large LAPA screen mounted on the wall of a retail store is displaying a lecture featuring products, with sound playing through its built-in speaker.
The installation process for the LED All-in-One is straightforward. First, secure the cabinets (three for the LAPA Series). Next, attach each LED display module to the cabinets, and finally, plug in the power cable. This simple installation saves time and labor, allowing users to easily manage the LED screen.

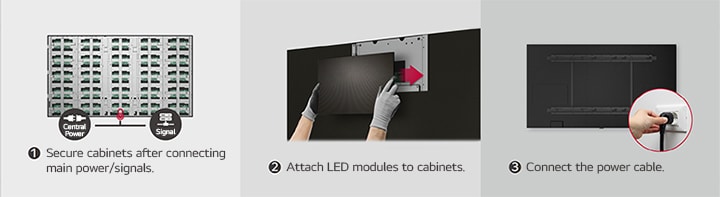

This consists of a total of three images illustrating the steps for securing three cabinets, attaching LED modules, and connecting the power cable.
* The image is illustrated as an example of LAPA136 model.
* Fixing screws or installing wall mount/accessories is needed additionally.
The LAPA series operates with a double AC cable, simplifying power connections and ensuring a clean, tidy installation.

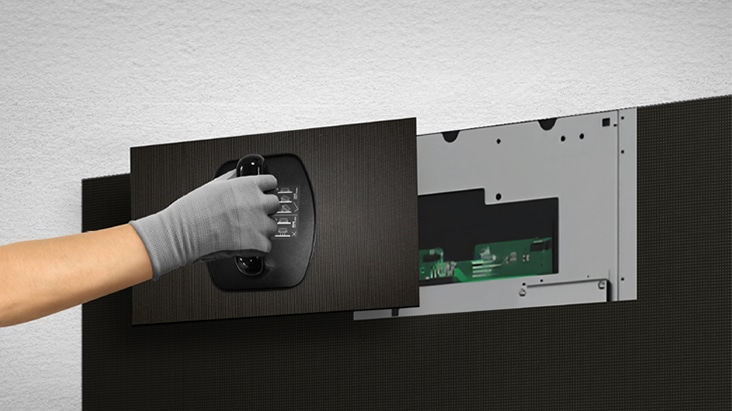

In case of a failure related to the LED module or the system board, it can be serviced from the front. The LED module can be easily detached using the provided magnetic tool and replaced quickly without cabling.

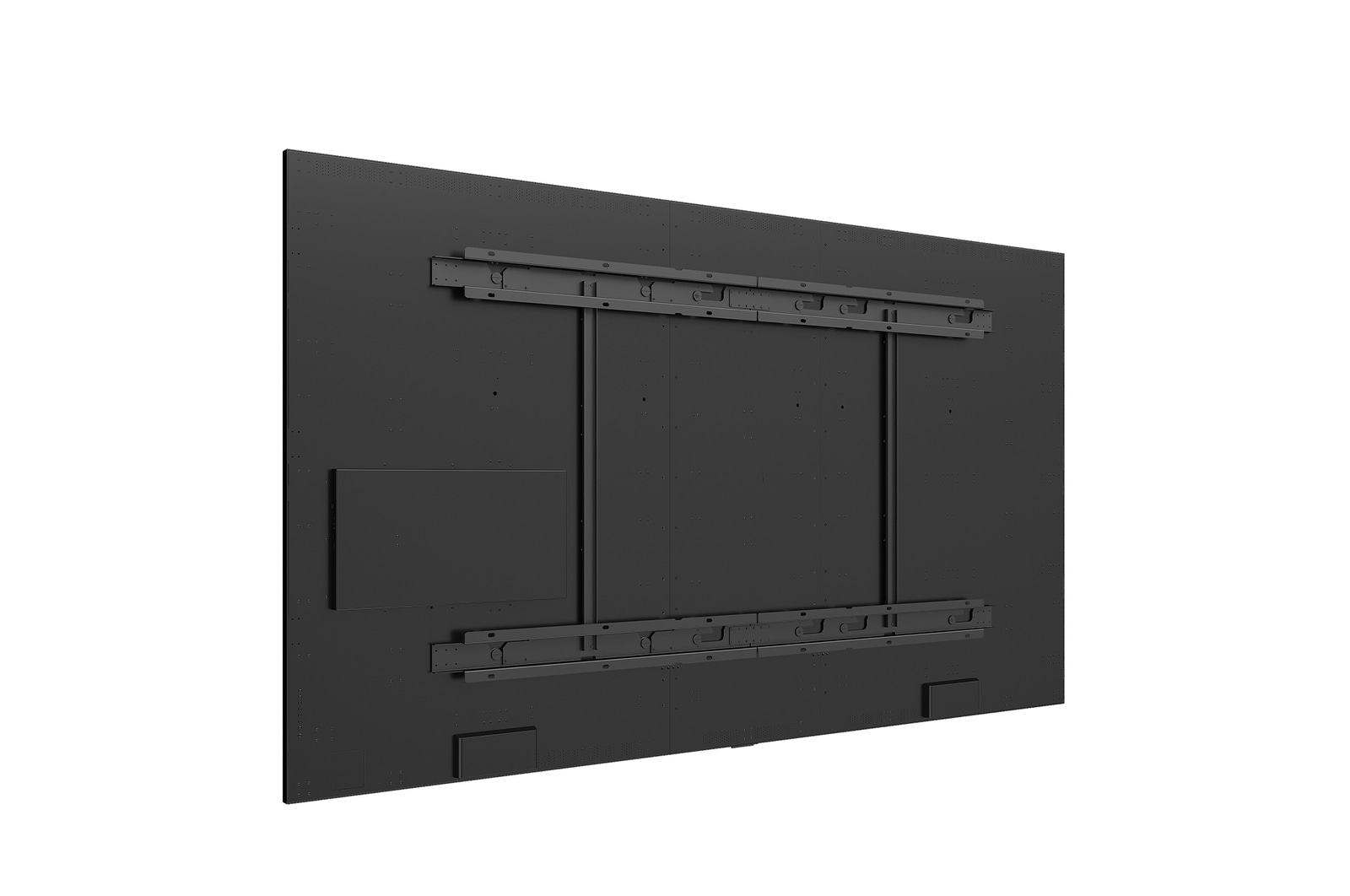

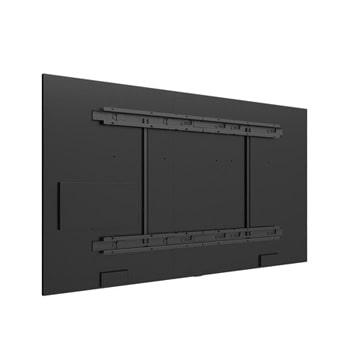

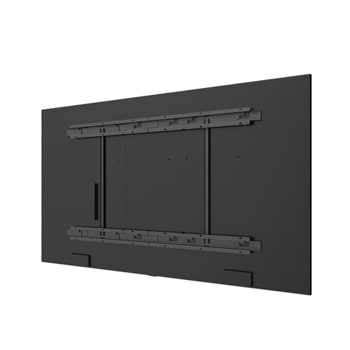

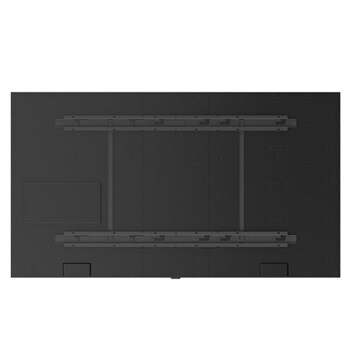

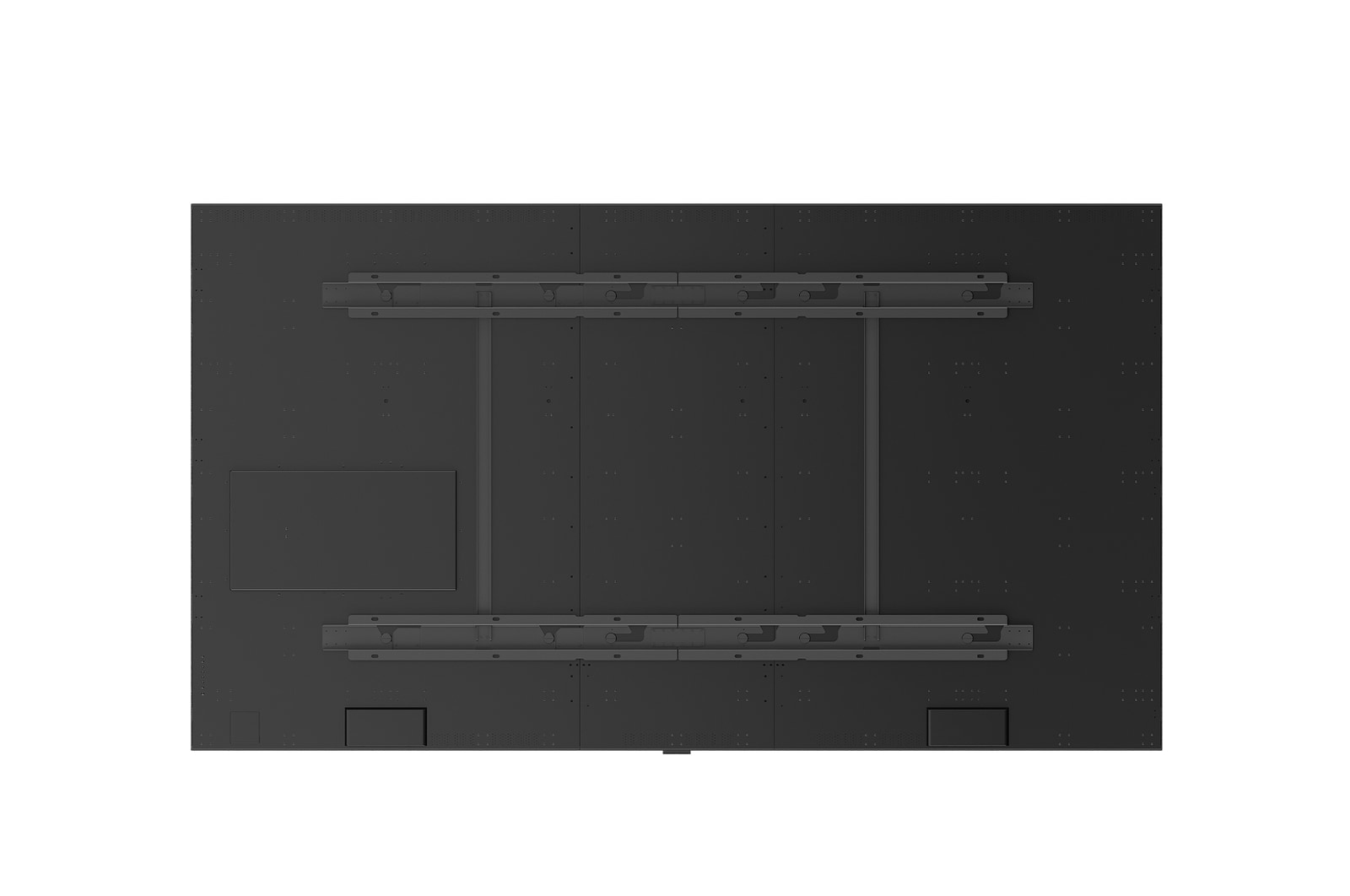

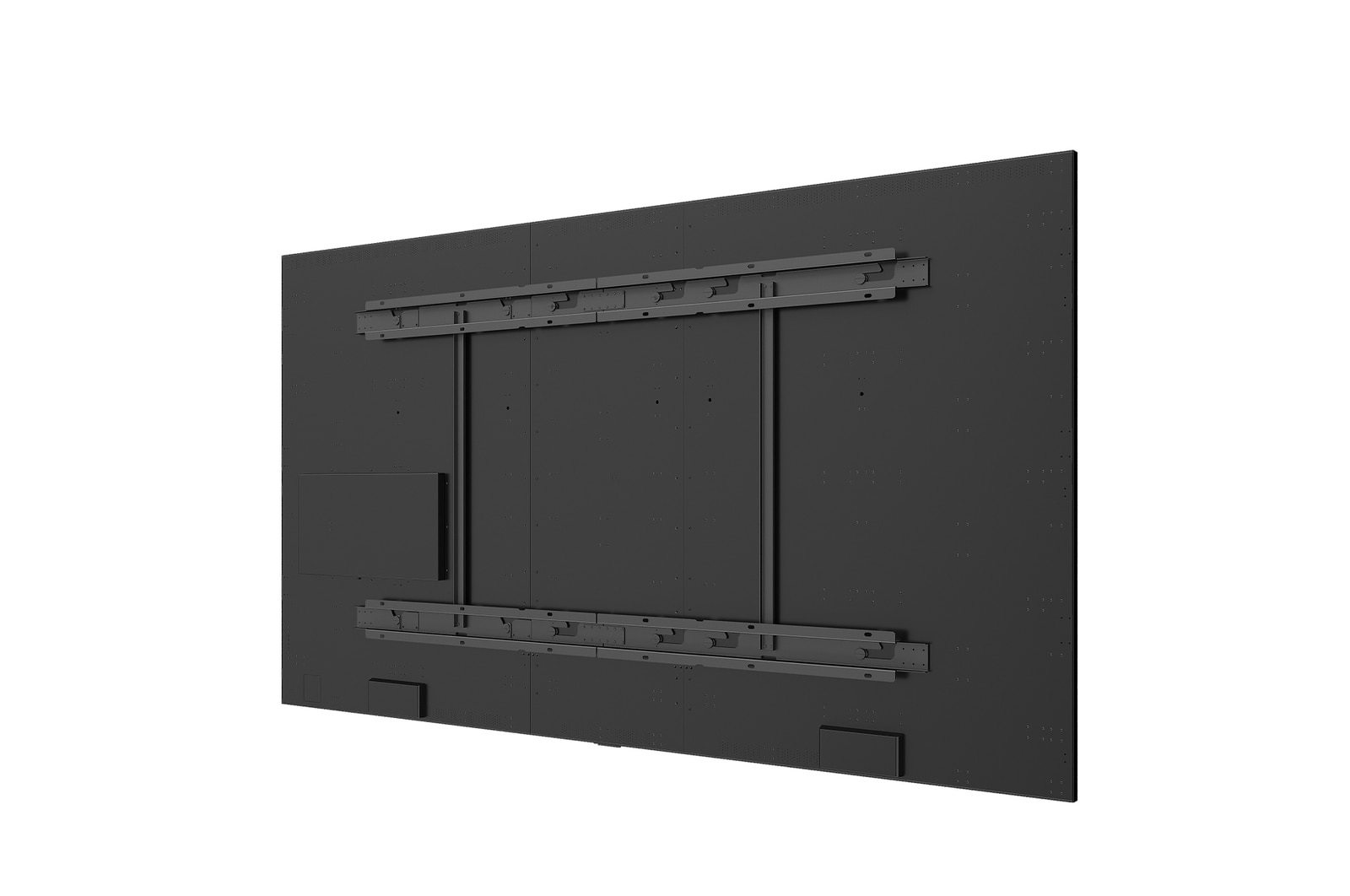

The product is offered with the necessary component including the landscape wall mount and tools for installation. For added convenience, a dedicated stand is available as an option, allowing you to easily position the screen based on your installation needs. Additionally, the LAPA series can be seamlessly arranged side by side in a 1 × N configuration, accommodating up to 10 screens to suit your specific installation site and purpose.
The LAPA series, installed on the wall with a landscape wall mount, with a dedicated stand, and side by side as two displays in a multi-screens setup, are shown in three different images.
* Stand accessories vary by model and must be purchased separately.

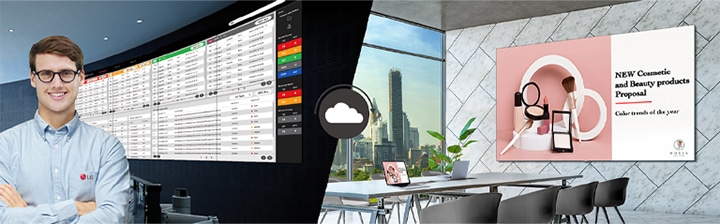

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.
One of LG's employees is remotely monitoring the LAPA LED screen installed in a different place using the cloud-based LG monitoring solution called LG ConnectedCare.
* The availability of LG ConnectedCare differs by region.

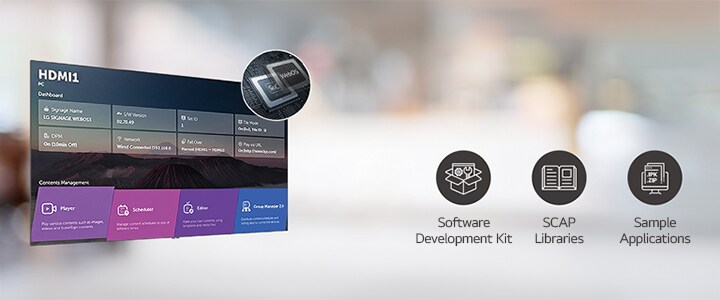

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform offers an intuitive GUI and simple app development tools.
Several tasks that can be performed simultaneously are arranged through the LG webOS smart platform.
* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.

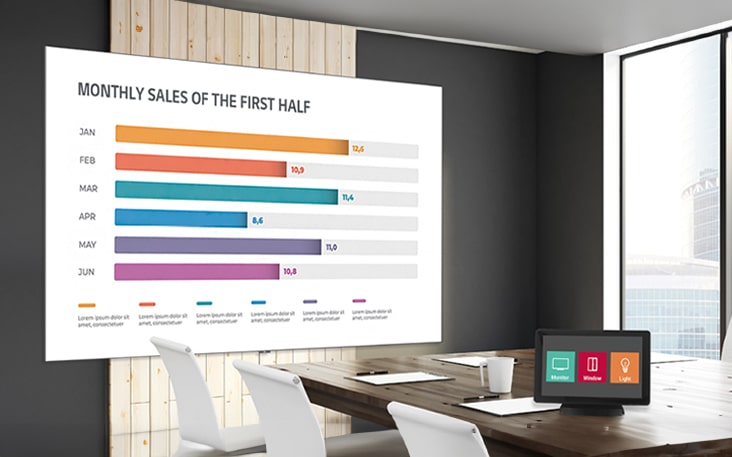

The LAPA series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
*** Crestron Connected® needs to be purchased separately.

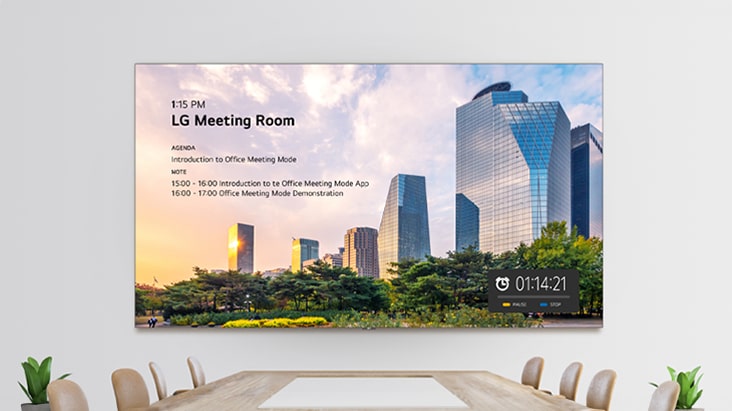

With Office Meeting Mode, easily configure meeting room details such as room number. It also includes convenient features like automatic input switching, a presentation timer, and adjustable settings such as auto-brightness and picture mode.
* Users can enable Office Meeting Mode at EZ Setting menu of the Signage.
The LAPA series is compatible with LG One:Quick Share*, a wireless screen sharing solution. It helps to simply share one’s personal PC screen to the display with its button and embedded Wi-Fi**, and it can also adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control.
* LG One:Quick Share needs to be purchased separately.
** Users need to set up SoftAP enabled at Network Menu of the Signage.
The LAPA series has satisfied the standards for the BS476 Part7 Class 1 rating, confirming its compliance with flame spread standards. Its excellent fire resistance can help improve safety at the installation site.
* The LAPA series was evaluated for spread of flame at 1.5 min and final spread of flame under BS476 Part7:1997 (R2016) procedures, verified by TUV SUDCertification and Testing (China) Co., Ltd. in December 2024, and satisfied Class 1 (165+25mm) standard requirements. (Technical Reprot No. 68.189.24.0712.01).
** Actual results or performance may vary depending on the use environment.
The LAPA series is designed to function at altitudes of up to 5,000 meters. To support this capability, the original power supply unit (PSU) on the power board was replaced with a new PSU optimized for high-altitude performance.
The LAPA operates smoothly at altitudes of up to 5,000 meters.
* Actual results or performance may vary depending on the use environment.
Certification
CE,FCC,ETL,CB,CE-RED
EMC Class A
Controller
Embedded(webOS)
Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/㎡, Max.)
888
Heat Dissipation (BTU/h/Screen, Avg.)
2,218
Heat Dissipation (BTU/h/Screen, Max.)
4,436
Power Consumption (W/㎡, Max.)
260
Power Consumption (W/Screen, Avg.)
650
Power Consumption (W/Screen, Max.)
1,300
Power Supply (V)
100 to 240
Refresh Rate (Hz)
3,840
Environment
RoHS, REACH
I/O Port
HDMI(3), DP(1), USB, LAN,
RS232C In/Out, IR,
Digital Audio Out (1, SPDIF Optical)
IP rating Front
IP30
IP rating Rear
IP30
LED Lifetime (Half brightness)
100,000
Operating Humidity
10~90%RH
Operating Temperature(℃)
0℃ to +40℃
Brightness Uniformity(%)
98%
Max. Brightness (After Calibration)
Typ. 500
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
3,000:1
Color Temperature
3,200~9,300
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Visual Viewing Angle (Horizontal)
150
Visual Viewing Angle (Vertical)
150
Cabinet material
Aluminum
Flatness of Cabinet (mm)
±0.15
Module Dimensions(WxH,mm)
300*168.75
Module Resolution (WxH)
192*108
No. of Modules per Screen (WxH)
10x10 (Total 100)
Physical Pixel Density (pixels/㎡)
409,600
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.56
Screen Dimensions (W x H x D, mm, including bezel)
3,005 X 1,692.5 X 29.95 (Thickest 59.5)
Screen Resolution (WxH)
1,920x1,080
Screen Surface Area (㎡)
5.06
Service access
Front
Weight of the screen
108.5
Speaker
Built-in(9W+9W)
