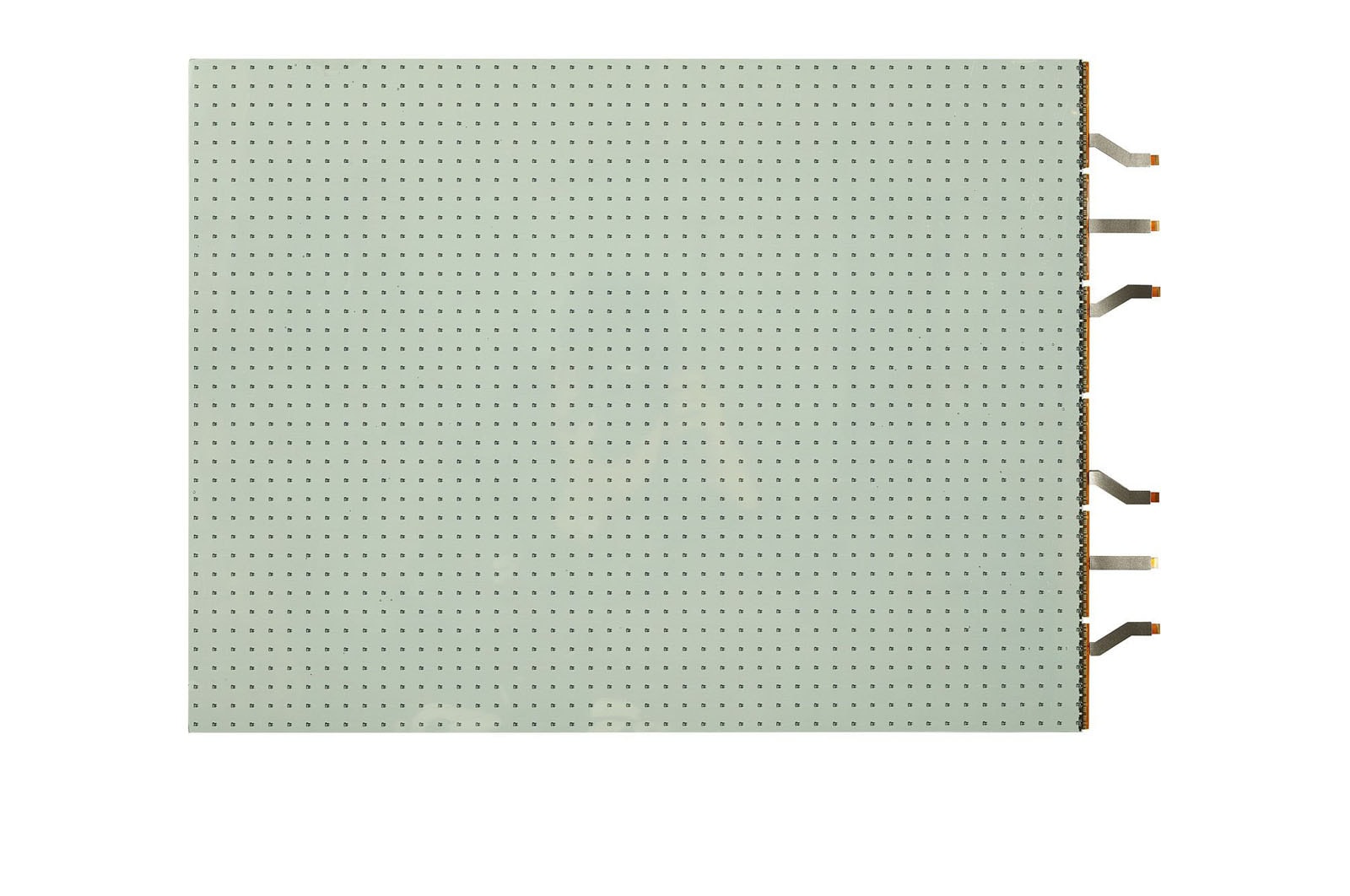

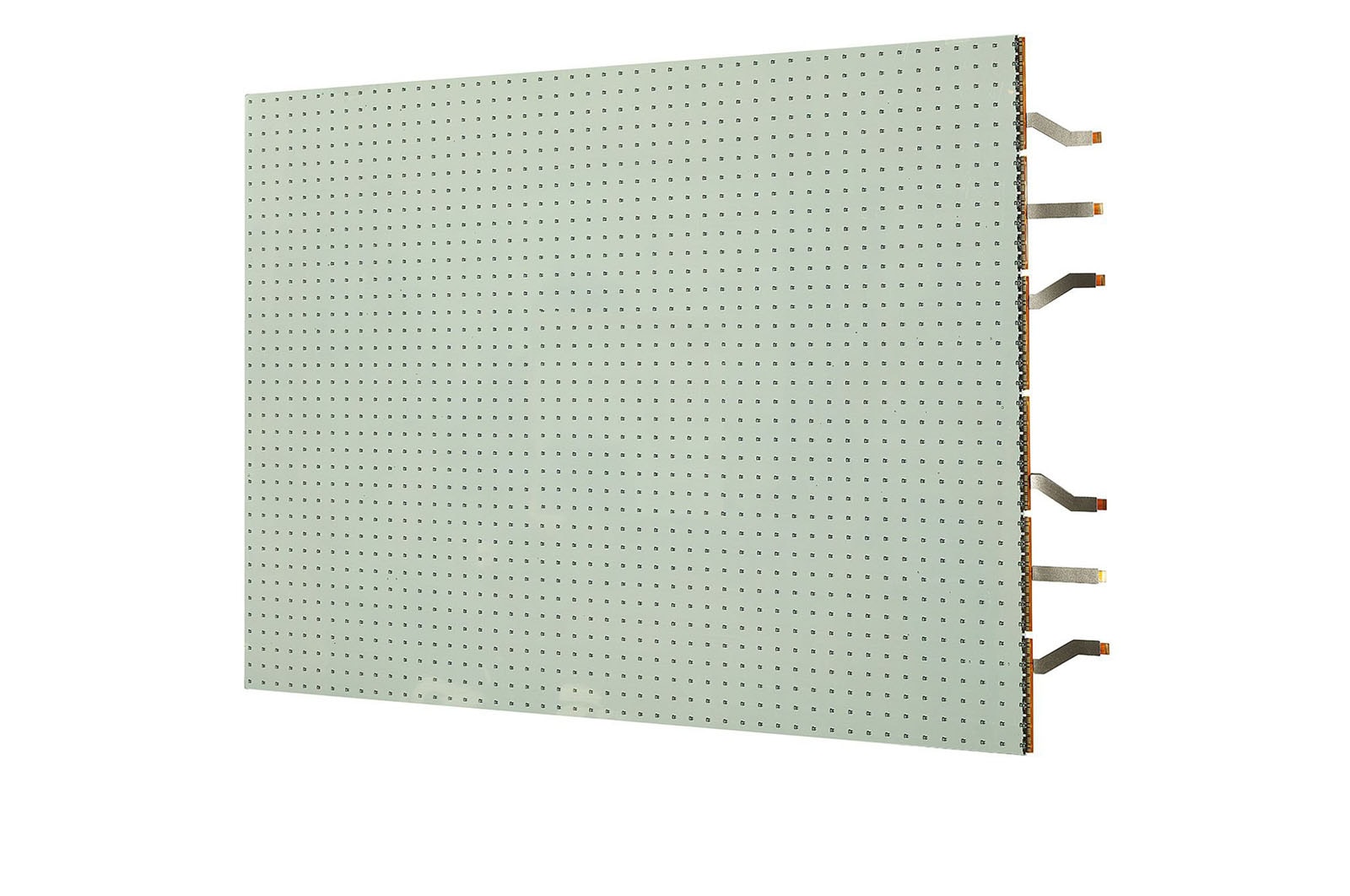

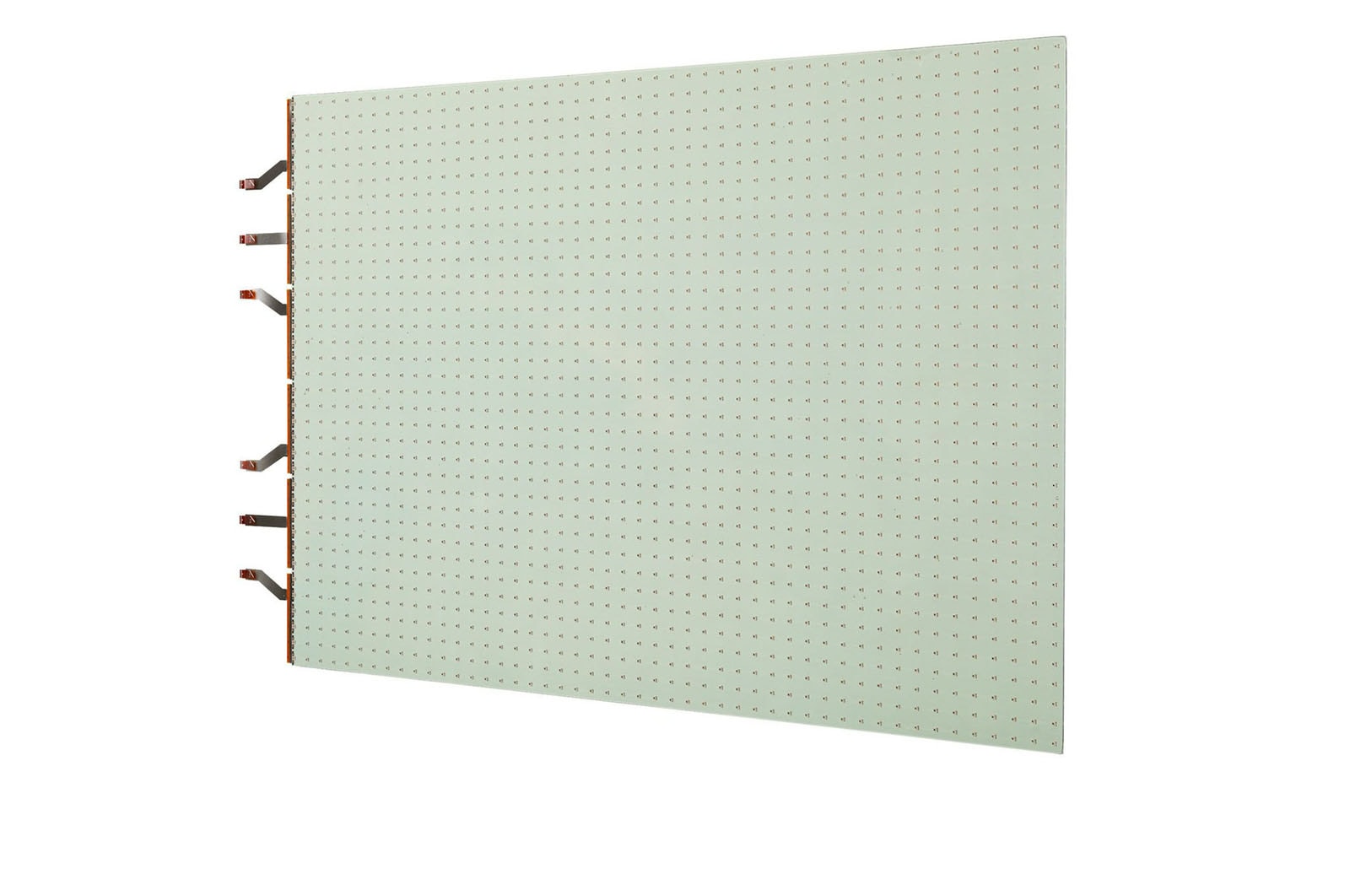

Transparent LED Film

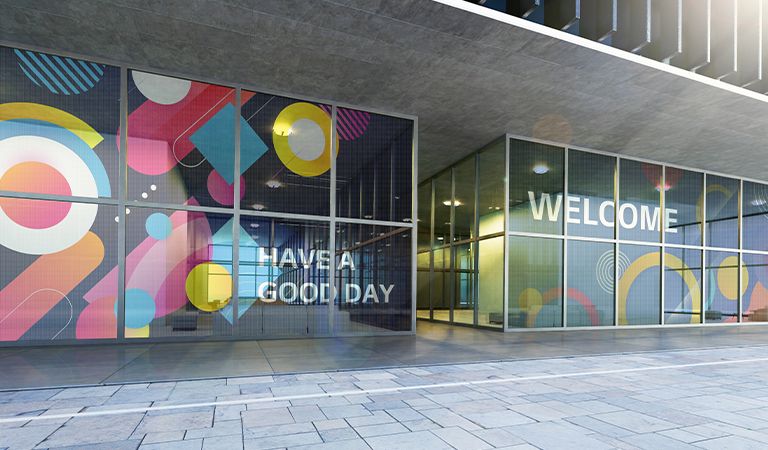

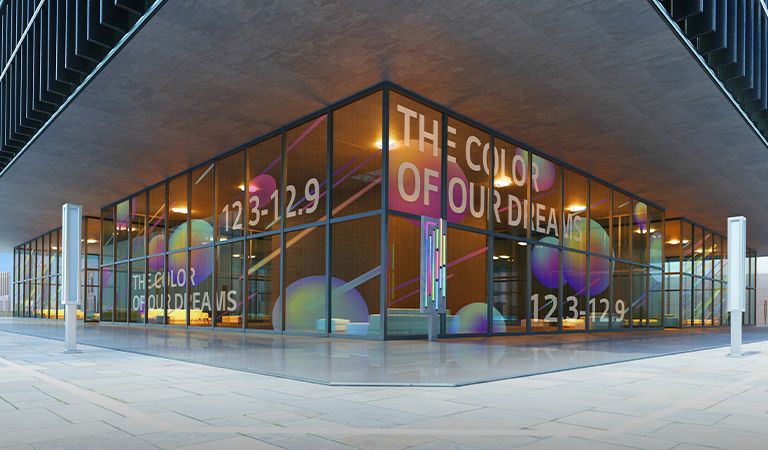

The transparent LED films installed on the glass wall at the building's entrance show content welcoming visitors. Some of the content shows the color well, and some of it looks transparent enough for the background behind the LED films to be seen.
* All images in this page are for illustrative purposes only.
Transparent LED film is installed on the building's first floor glass wall. The content is shown in vivid colors, while at the same time, the part lacking color is transparent, so the inside of the building behind the LED film can be seen.

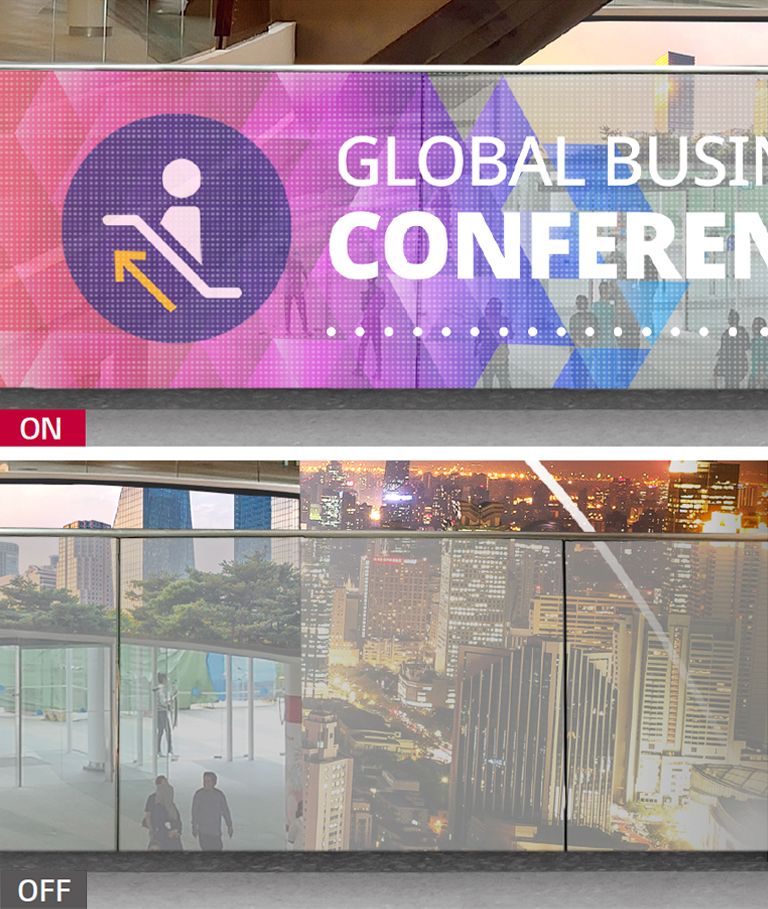

LG Transparent LED film shows information when the power is turned on, and reflects the background behind the product when the power is turned off.
* Transparency : Typ. 53%

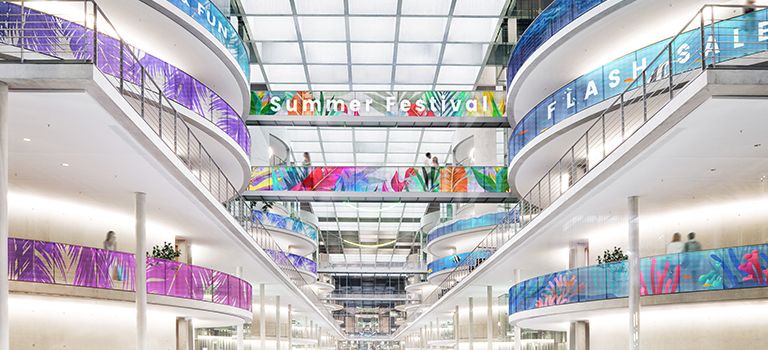

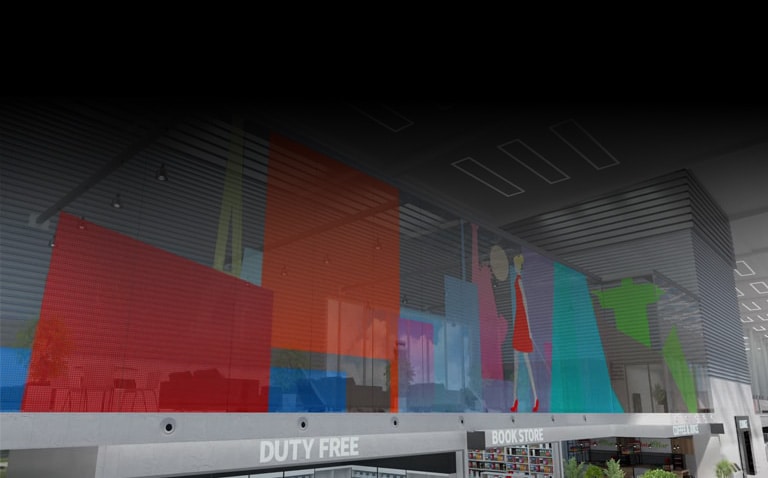

Transparent LED films are installed on the railings of several floors in the building. Even where the railing curves, the content of the transparent LED films is shown smoothly.
Experience the Colors of Transparency
Pixel Pitch
13.7±0.2mm (14)
LED Type
R, G, B 3in1 Color Package (SMD2020)
Resolution
48 x 36
Pixels per Film
1,728
Physical Pixel Density(pixels/㎡)
5,102
Brightness
Typ.4,000nit
Contrast Ratio
≥ 100,000:1
Luminance Uniformity
≥ 70%
Chromaticity Uniformity
Δu’v’≤0.015
Viewing Angle (H x V)
120 x 120
Life Time (Brightness 50%)
50,000 Hrs
Daily Usage
24h / 7days
Warranty
2 year
Transparency
Typ 53%
Operating Temperature
0℃ ~ 45℃ (Instaliling at indoor glass)
Curved Installation
2,000 R (Concave and Convex available on Glass)
Film Trimming
Yes (horizontal direction according to Bezel only)
Color Processing
(9bit) 500/500/500 Level ( R, G, B)
Colors
125,000,000 Colors
Color Chromaticity
Cx: 0.25±0.03, Cy : 0.33±0.03
Dimension (W x H x D)
655 x 492 x 2.9mm(with front & back protection film)
Weight
1kg
Power Consumption
75W per Film
Interface
Input : RGMIIOutput : Differential Serial
Dimension (W x H x D)
69.4 x 492 x 25mm
Weight
0.4Kg
Power Consumption
75W(Transparent panel 1EA + First(1EA) & Common(1EA) Bezel kit)
Accessory
DC Jack Connection cable(1100mm) 1ea, DC Jack Connection cable(240mm) 1ea Screw 2 type, Gasket Rubber 3 type, Cable hole cover 1 type, ESG, Regulation book, Warranty Card
Interface
Input : Differential SerialOutput : Differential Serial
Dimension (W x H x D)
51.4 x 492 x 25mm
Weight
0.3Kg
Power Consumption
75W per Film
Accessory
DC Jack Connection cable(240mm) 2ea, Screw 2 type, Gasket Rubber 2 type, Cable hole cover 2 type, ESG, Regulation book, Warranty Card
Resolution
960x540 (1/4 FHD)
Interface
Input : LVDSOutput : RJ45 x4EA
Maximum Transmission Length
100m (Cable type: CAT5E, CAT6)
Dimension (W x H x D)
293 x 188.7 x 37mm
Weight
1.5Kg
Temperature Sensor
Yes
Power Consumption
20 W
Accessory
Power cord, LVDS MCX cable, ESG, Regulation book, Warranty Card
Video - Max. Input Resolution
DP : 1920x1080@60HzHDMI : 1920x1080@60HzDVI-D : 1920x1080@60Hz
Interface - Digital (w/ HDCP) - HDMI
Input : 1EA
Interface - Digital (w/ HDCP) - DP
Input : 1EAOutput : 1EA
Interface - Digital (w/ HDCP) - DVI-D
Input : 1EA
Interface - Comm. Port - RS-232C
Input : 1EA (Phone Jack Type)Output : 1EA (Phone Jack Type)
Interface - Comm. Port - RJ-45
Input : 1EA (without LED indicator)Output : 1EA (without LED indicator)
Interface - Comm. Port - IR Receiver (w/ Light Sensor)
1EA (Phone Jack Type) : Used for installation
Interface - USB3.0
1EA
Interface - LVDS
Output : 1EA
Dimension (W x H x D mm)
293 x193.3 x 40.1mm
Weight (Head, Kg)
1.6kg
Temperature Sensor
Yes
Light Sensor
Yes
Source Selection
HDMI, DVI-D, DP
TPC (Temporal Peak luminance Control)
Yes
Motion Eye Care
Yes
Power Consumption
17W
CMS S/W
Yes (2.9)
Signage365care
Yes (2.7)
Accessory
Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card
Model No.
ACC-LATP1
Dimension (W x H x D)
183*86*28mm
Weight
769g
Input
100~240V, 50~60Hz
Output
19.5V/10.8A (210W)
Color
White
DC output cable
14AWG, 1.5m
Type
L Type
Accessory
Power Cord, Regulation Book
Resolution
480x270 (1/16 FHD)
Maximum Transmission Length
100m (Cable type : CAT5E, CAT6)
Dimension (W x H x D)
333 x186.8 x 40.1mm
Weight
1.8.2Kg
Video - Max. Input Resolution
HDMI : 1920x1080@60Hz
Interface - Digital (w/ HDCP) - HDMI
Input : 1EA
Interface - Comm. Port - RS-232C
Input : 1EA (3.5⌀ headphone jack type)Output : 1EA (3.5⌀ headphone jack type)
Interface - Comm. Port - RJ-45
Input : 1EAOutput : 2EA (1EA to connect film with LED Indicator)
Interface - Comm. Port - IR Receiver (w/ Light Sensor)
1EA (Phone Jack Type) : Used for installation
Interface - USB3.0
1EA
Interface - LVDS
-
Temperature Sensor
Yes
Light Sensor
Yes
TPC (Temporal Peak luminance Control)
Yes
Motion Eye Care
Yes
Power Consumption
30
CMS S/W
Yes (3.0)
Signage365care
Yes (2.7)
Accessory
Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book Warranty Card
