EW5TK Series - 55'' Transparent OLED Touch Signage

EW5TK Series - 55'' Transparent OLED Touch Signage

EW5TK Series - 55'' Transparent OLED Touch Signage

55EW5TK-A

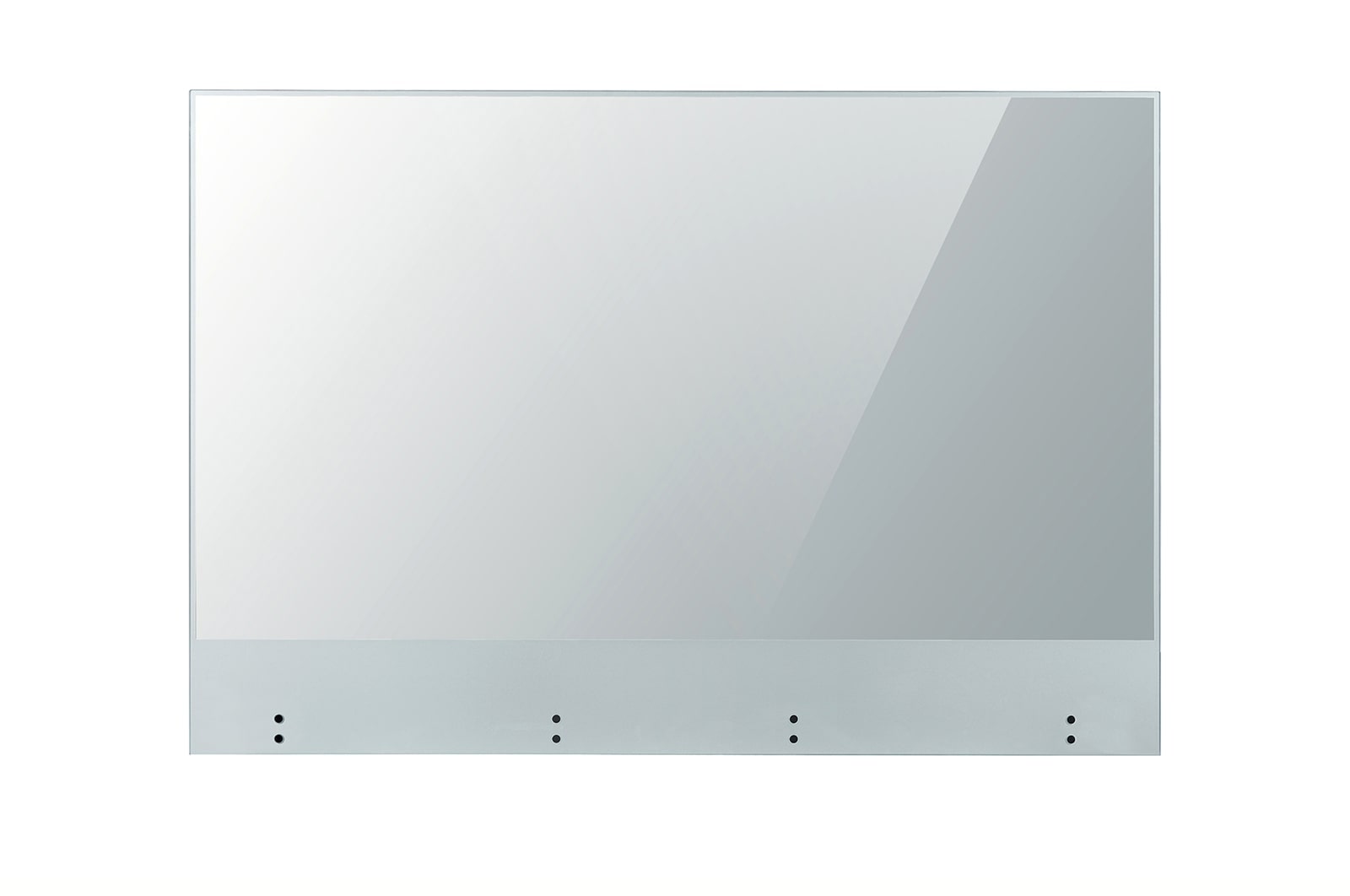

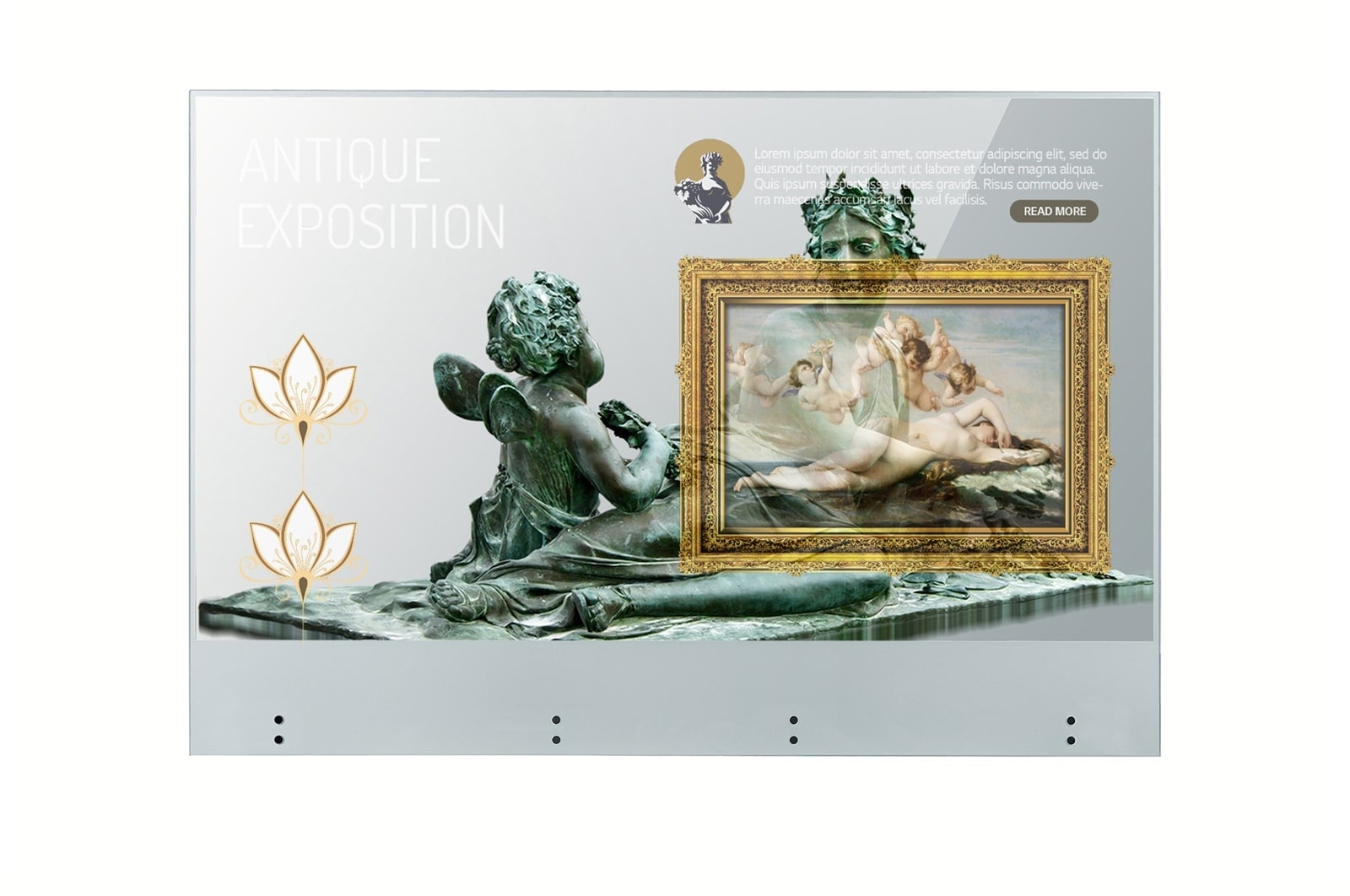

Front view of EW5TK Series - 55'' Transparent OLED Touch Signage 55EW5TK-A

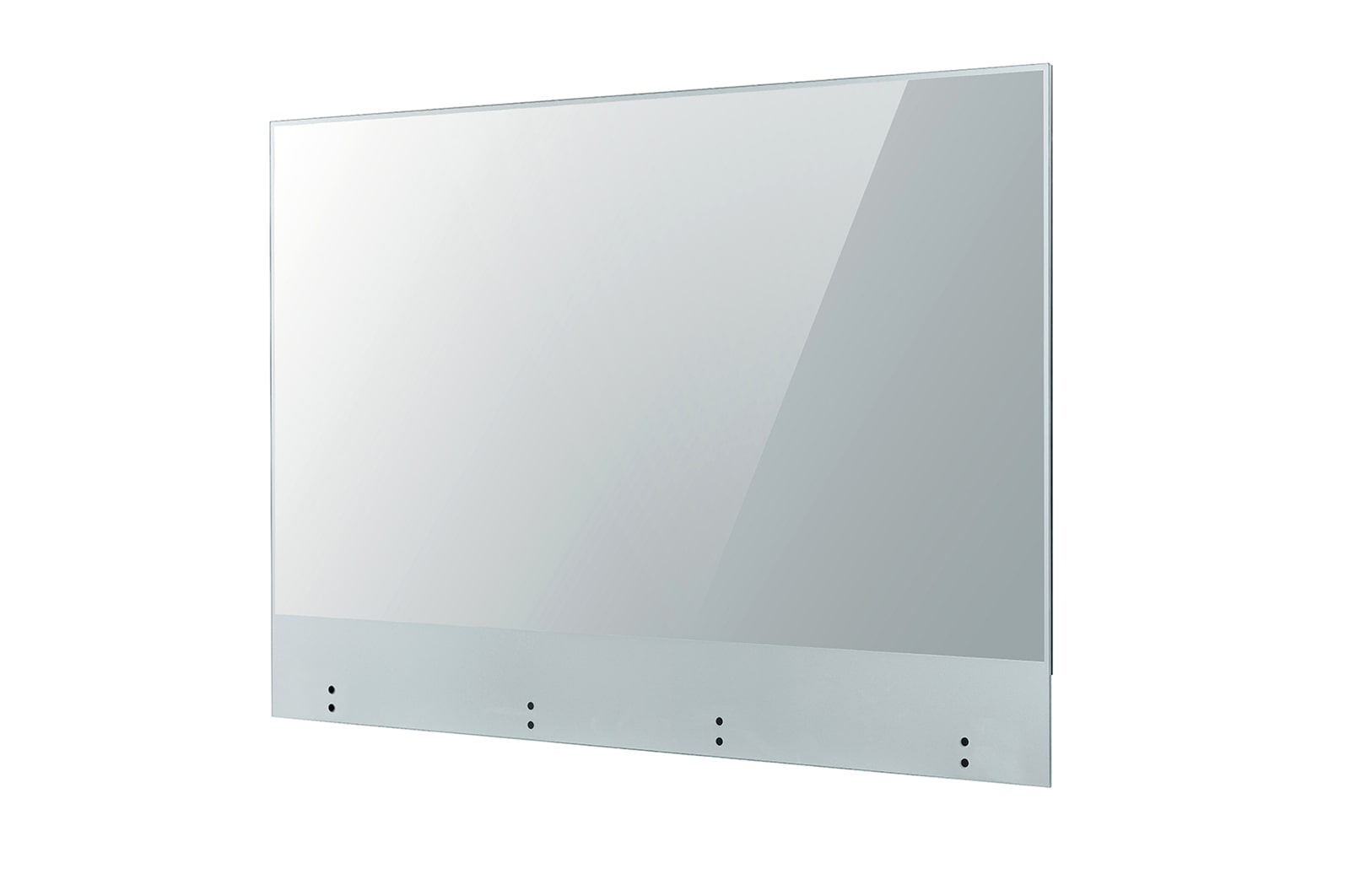

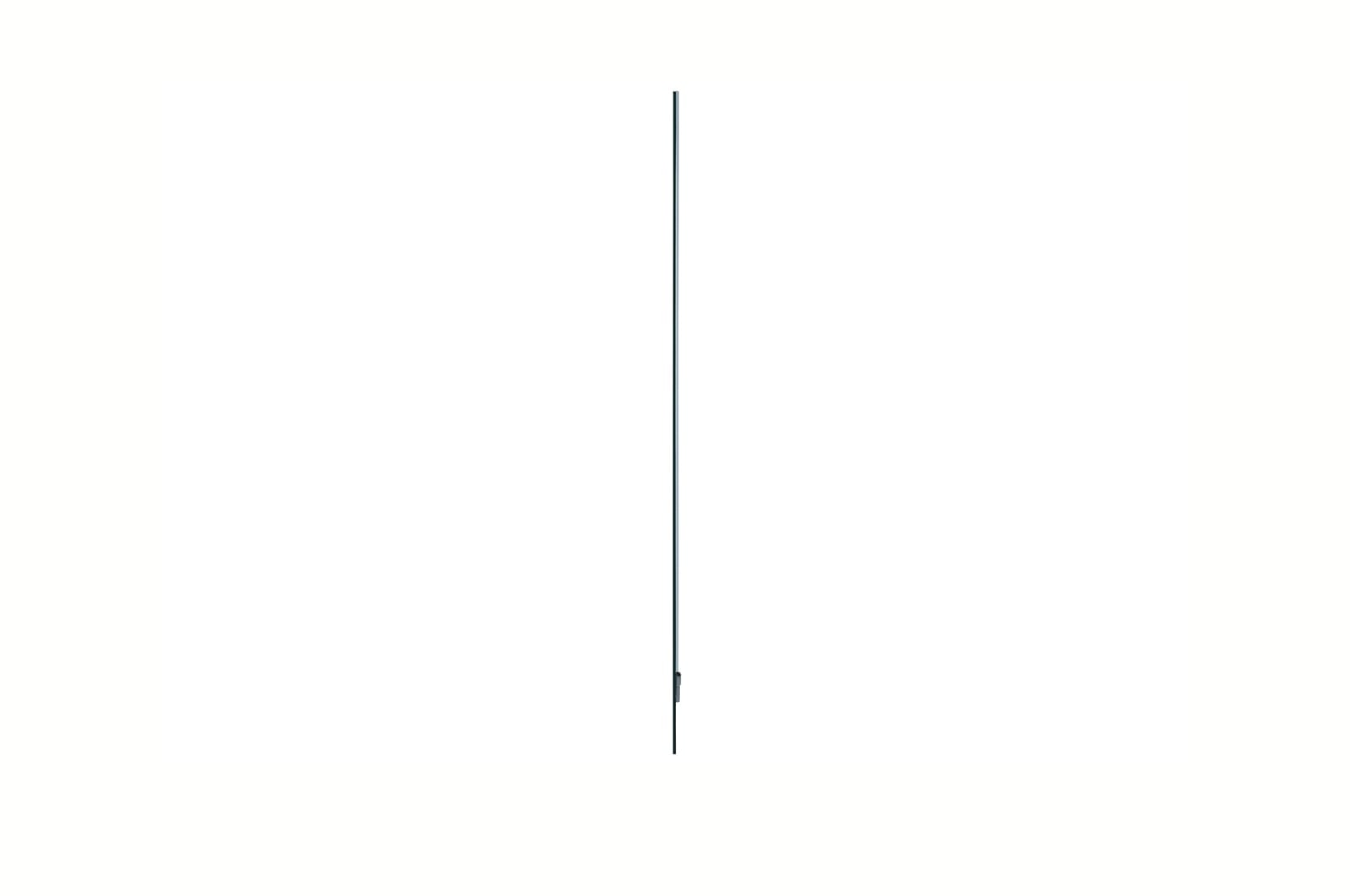

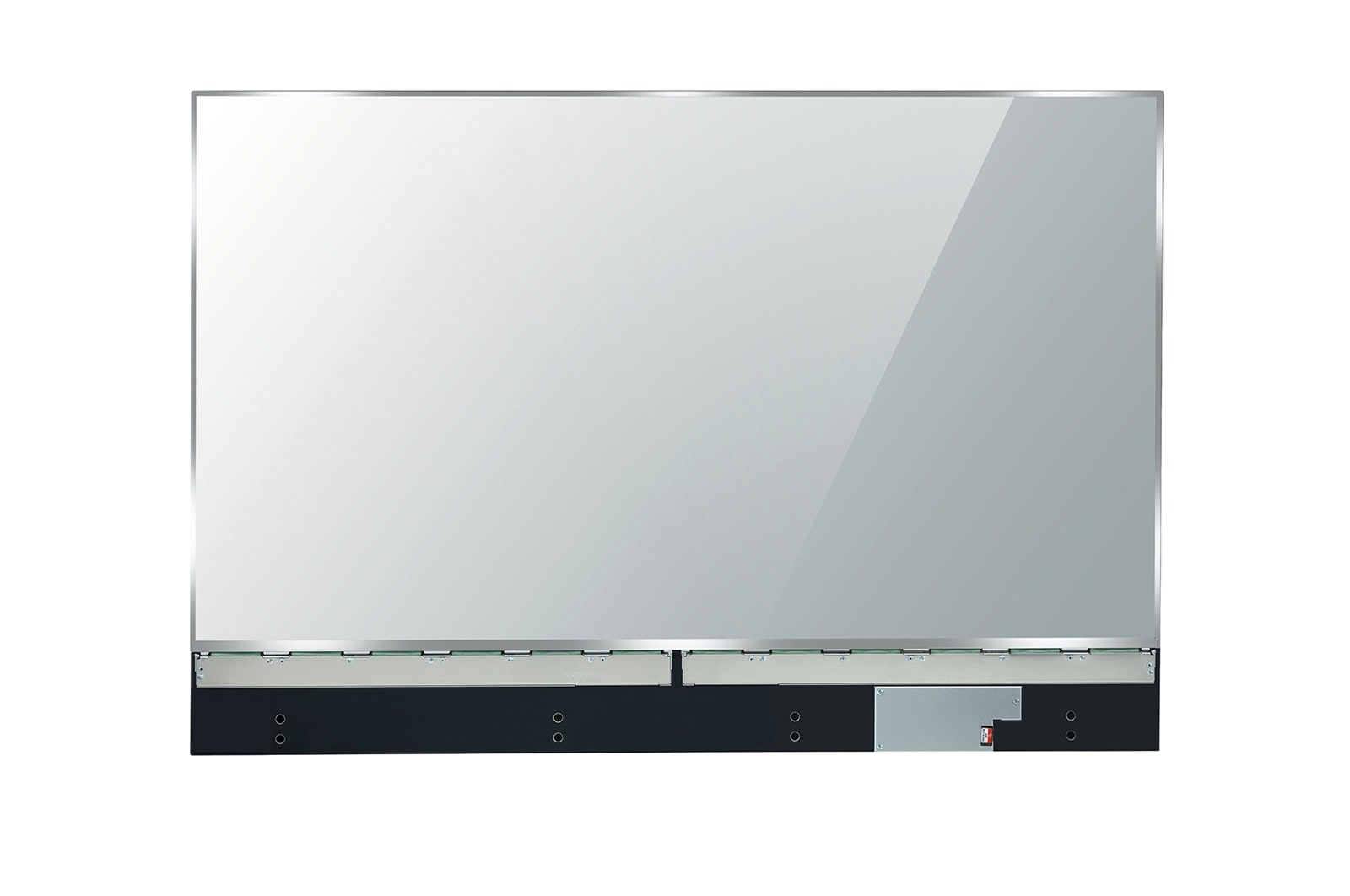

LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
Front view of EW5TK Series - 55'' Transparent OLED Touch Signage 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A
LG EW5TK Series - 55'' Transparent OLED Touch Signage, 55EW5TK-A

Key Features

  • Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
  • Transparency(Typ.) : 33% (Set)
  • Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
  • Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
  • P-Cap Touch, Tempered Front Glass (3T)
More
Print

All Spec

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES / NO

DEDICATED FEATURE - TOUCH

  • Response Time ('Paint' app on Windows 10 PC)

    120ms ↓

  • Accuracy (Typ.)

    3.5mm

  • Available Object Size for Touch

    Ø12 mm ↑

  • Interface

    USB2.0

  • Multi Touch Point

    Max. 10 Points

  • Operating System Support

    Windows 8.1, Windows 10

  • Protection Glass Thickness

    3mm (Anti-Reflective / Anti-Finger print)

  • Protection Glass Transmission

    84% (Typ.)

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

MECHANICAL SPECIFICATION

  • Bezel Width

    T/R/L/B : 7.9/7.9/7.9/144.5mm

  • Bezel Color

    Matt Silver

  • Carton Dimensions (W x H x D)

    1345 x 945 x 207mm

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    1225.5 x 832.9 x 7.4mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    24.5Kg

  • VESA Standard Mount Interface

    N/A

  • Weight (Head)

    12.9Kg (Head) 3.4Kg (Signage Box)

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    N/A

  • OPS Type compatible

    N/A

POWER

  • Power Type

    Built-in Power

  • Power Supply

    AC 100-240V~, 50/60Hz

ACCESSORY

  • Optional

    NO

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea, MCX Cable Holder 4ea

PROTECTION GLASS

  • Anti-Reflective

    YES

  • Degree of Protection

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    YES

  • Tempered / Chemical strengthening

    Chemical strengthening

  • Thickness

    3mm

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    YES

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    NO

SPECIAL FEATURE

  • Power Protection

    N/A

  • Conformal Coating (Power Board)

    N/A

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

PANEL

  • Contrast Ratio

    150,000:1

  • Aspect Ratio

    16:9

  • Back Light Type

    OLED

  • Brightness

    150/400nit (APL 100%/25%, without Glass)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    BT709 120%

  • Dynamic CR

    NO

  • Life time

    30,000Hrs (Typ.)

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    18/7 (Moving Content Only)

  • Panel Technology

    OLED

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    120Hz

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Screen Size (Inch)

    55

  • Surface Treatment (Haze)

    Haze 3% (SET)

  • Transparency

    33% (SET)

  • Viewing Angle (H x V)

    178º x 178º

FEATURE - HARDWARE

  • Local Key Operation

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    16GB

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    NO

CONNECTIVITY

  • Daisy Chain

    NO

  • Audio In

    NO

  • Audio Out

    YES

  • DP In

    YES (HDCP 1.3)

  • DP Out

    YES

  • DVI-D In

    NO

  • External Speaker Out

    NO

  • HDMI In

    YES (1ea)

  • HDMI In (HDCP Ver.)

    1.4

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    YES (Sharing RS232C Out)

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    YES

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    USB2.0 Type B (1ea)

  • USB In

    USB2.0 Type A (2ea)

FEATURE - SOFTWARE

  • Pro:Idiom

    YES

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    NO

  • Booting Logo Image

    NO

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    NO

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    NO

  • Network Ready

    NO

  • No Signal Image

    NO

  • OS Ver. (webOS)

    webOS 4.0

  • PBP

    NO

  • PIP

    NO

  • Play via URL

    NO

  • PM mode

    YES

  • RS232C Sync

    NO

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    NO

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    NO

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    NO

  • W/B Setting by Grey scale

    NO

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    955 BTU/Hr(Typ.), 1023 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    N/A

  • Max.

    300W

  • Typ.

    84W (IEC 62087)
