24” 2MP IPS Clinical Review Monitor

Features

Gallery

Specs

Support

24” 2MP IPS Clinical Review Monitor

24” 2MP IPS Clinical Review Monitor

24HR513C-B
  • front view of 24HR513C
  • -15 degree side view of 24HR513C
  • +15 degree side view of 24HR513C
  • perspective view of 24HR513C
  • side view of 24HR513C

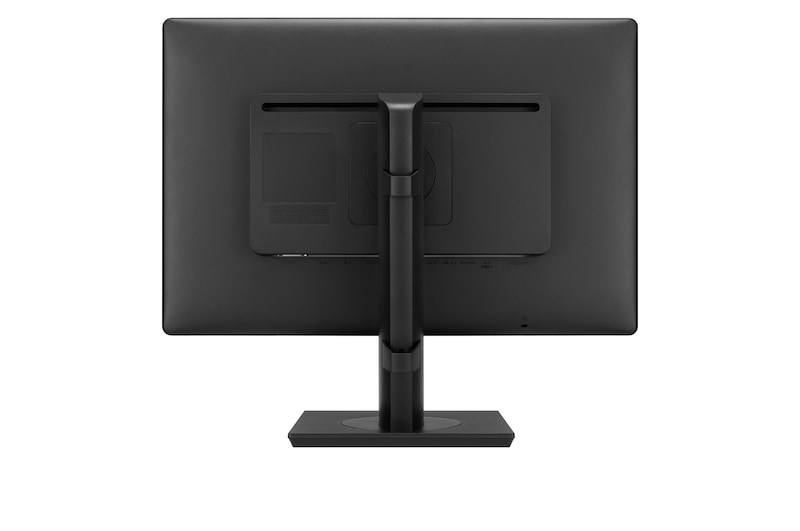

  • rear view of 24HR513C
  • rear perspective view of 24HR513C

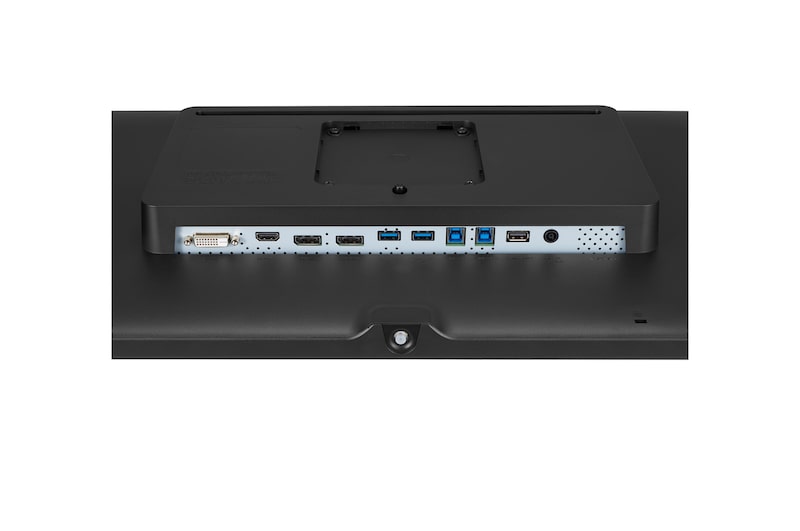

  • close-up view of ports of 24HR513C

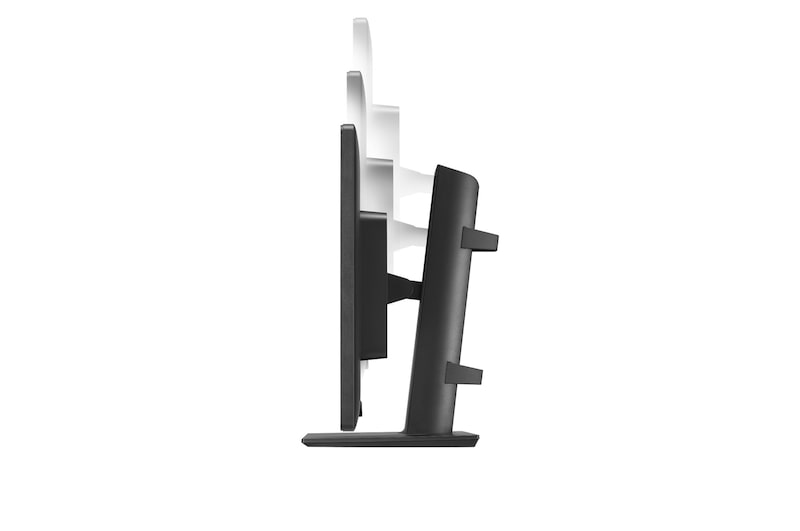

  • side view of 24HR513C screen moving downwards for height adjustment

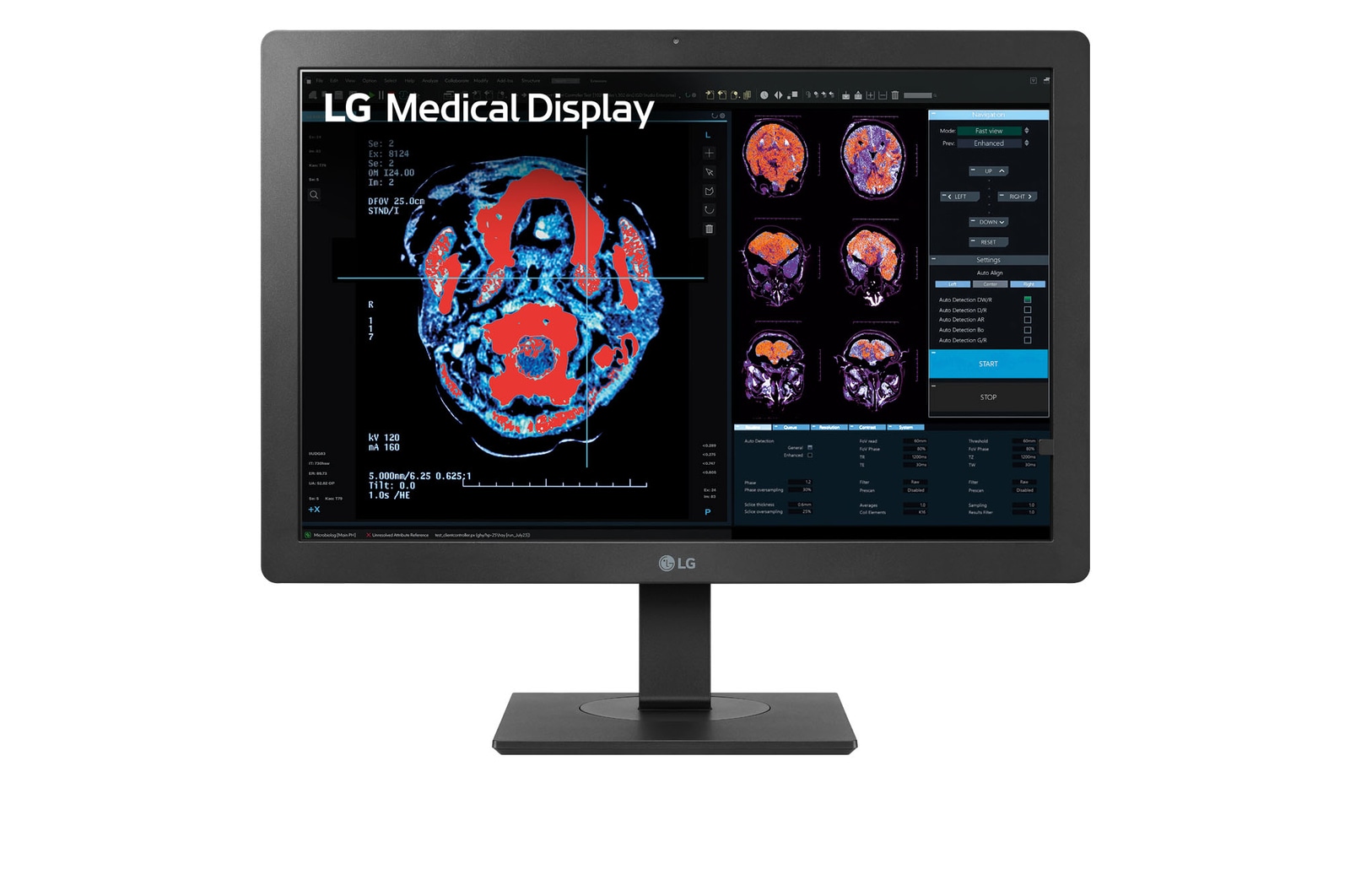

front view of 24HR513C

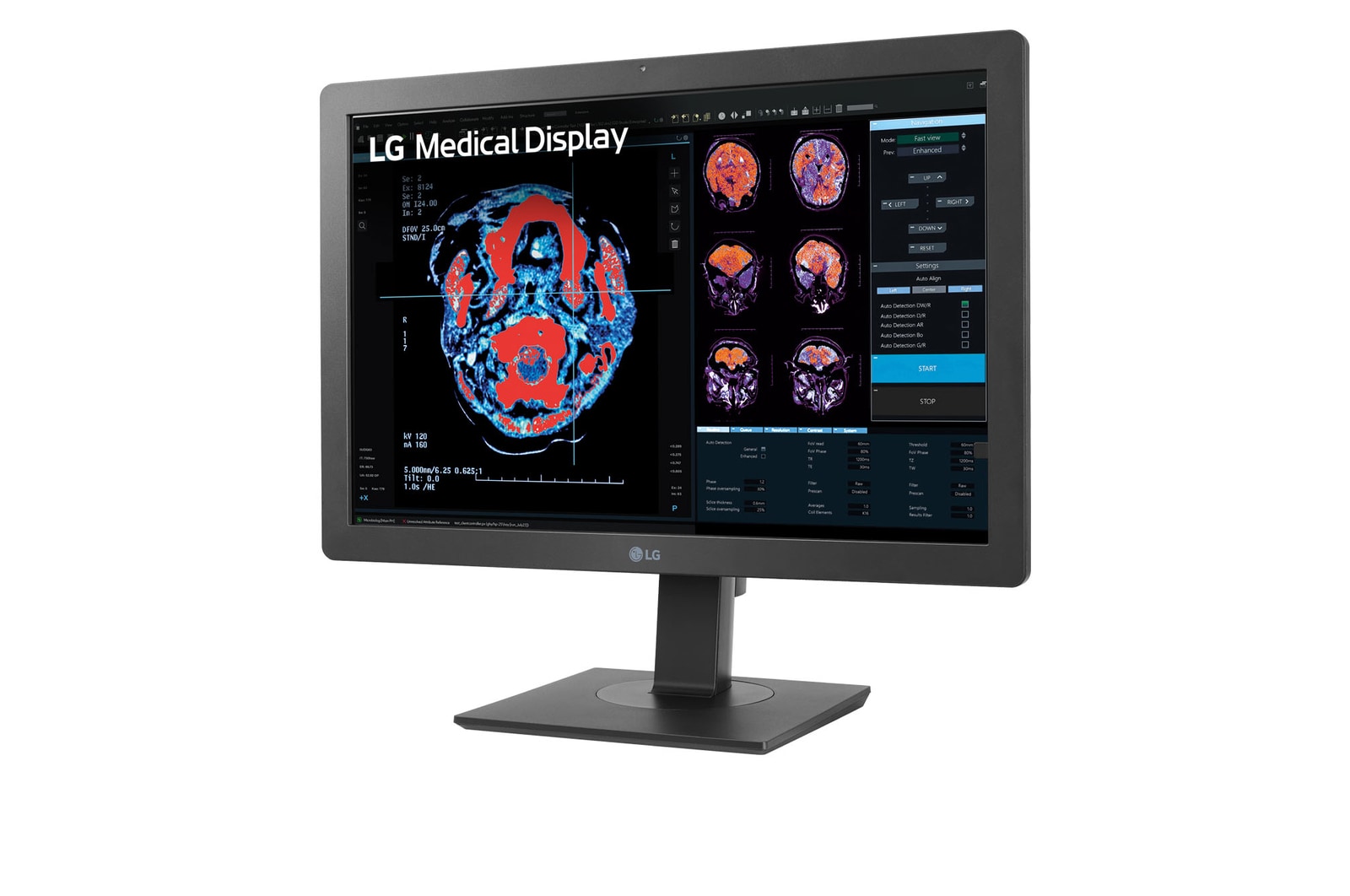

-15 degree side view of 24HR513C

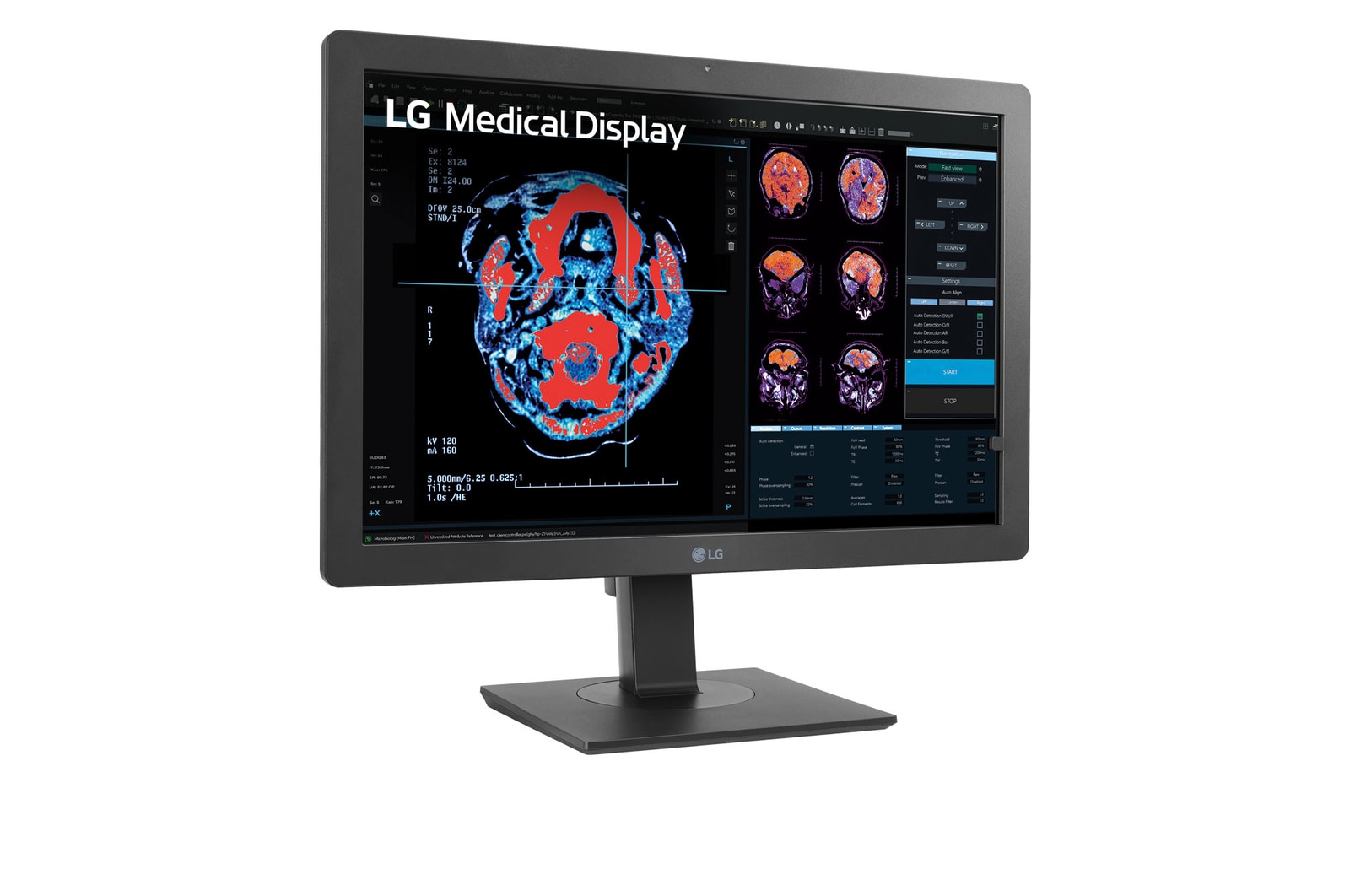

+15 degree side view of 24HR513C

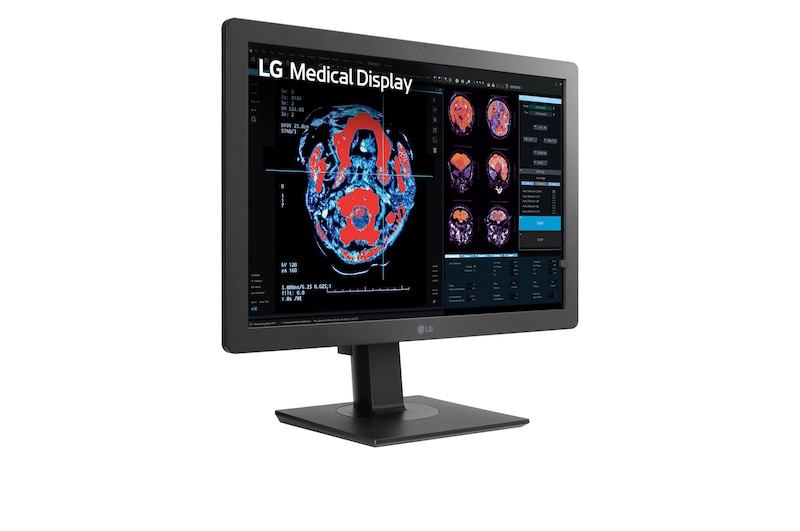

perspective view of 24HR513C

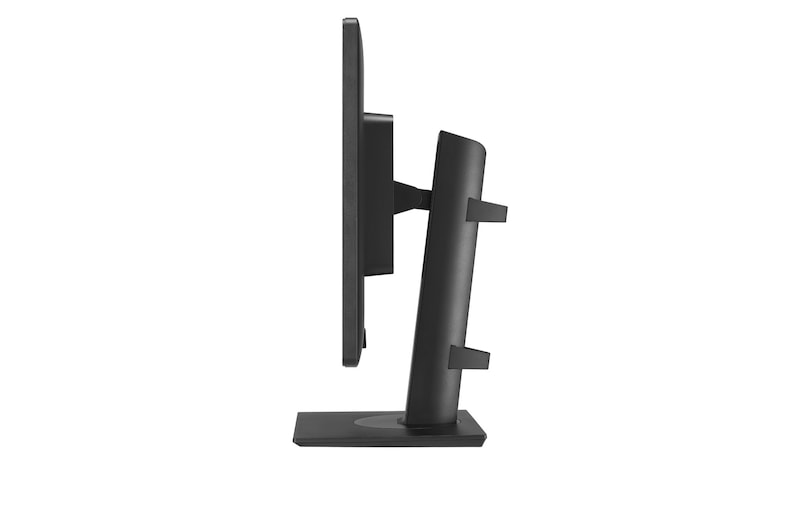

side view of 24HR513C

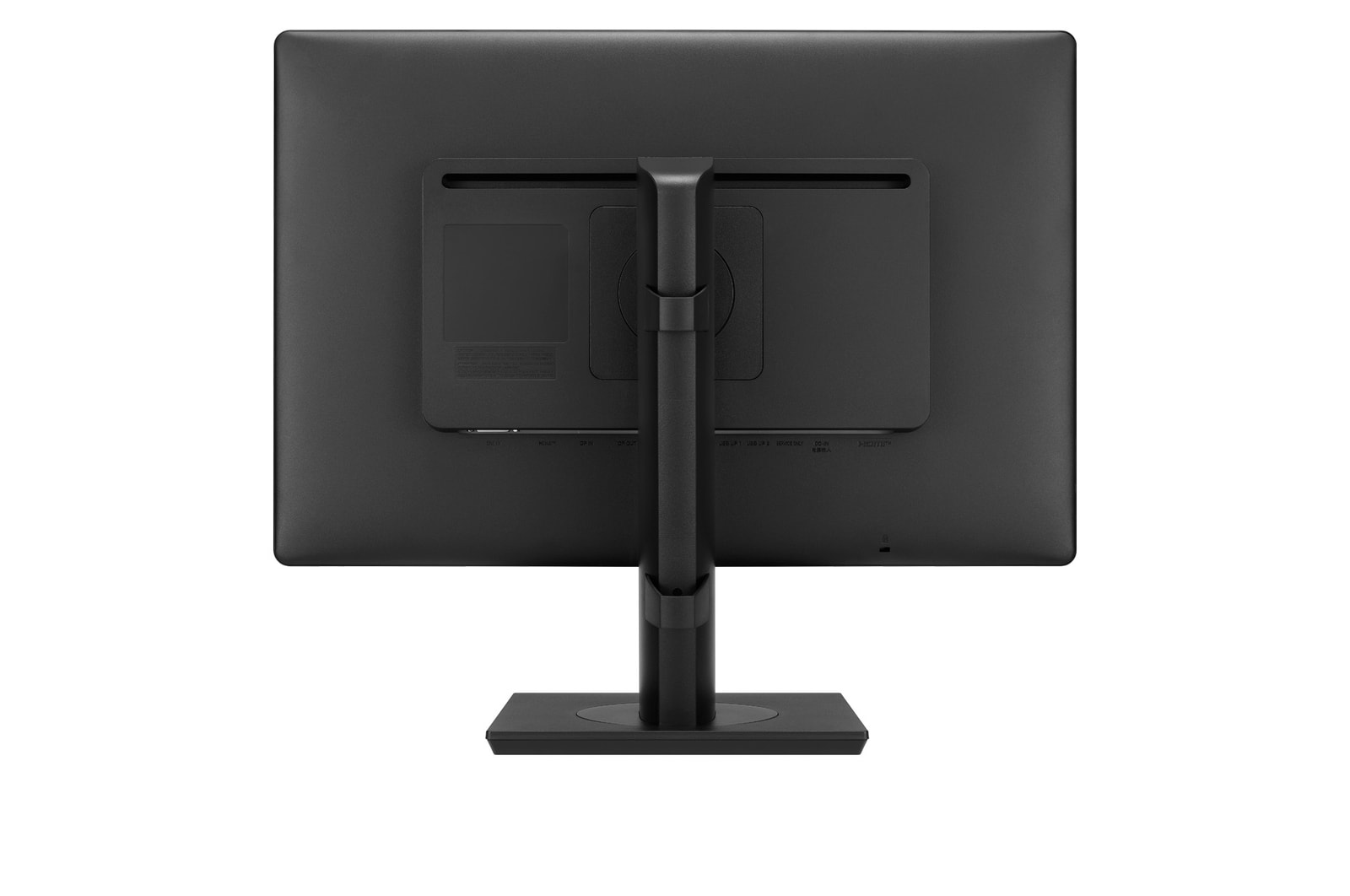

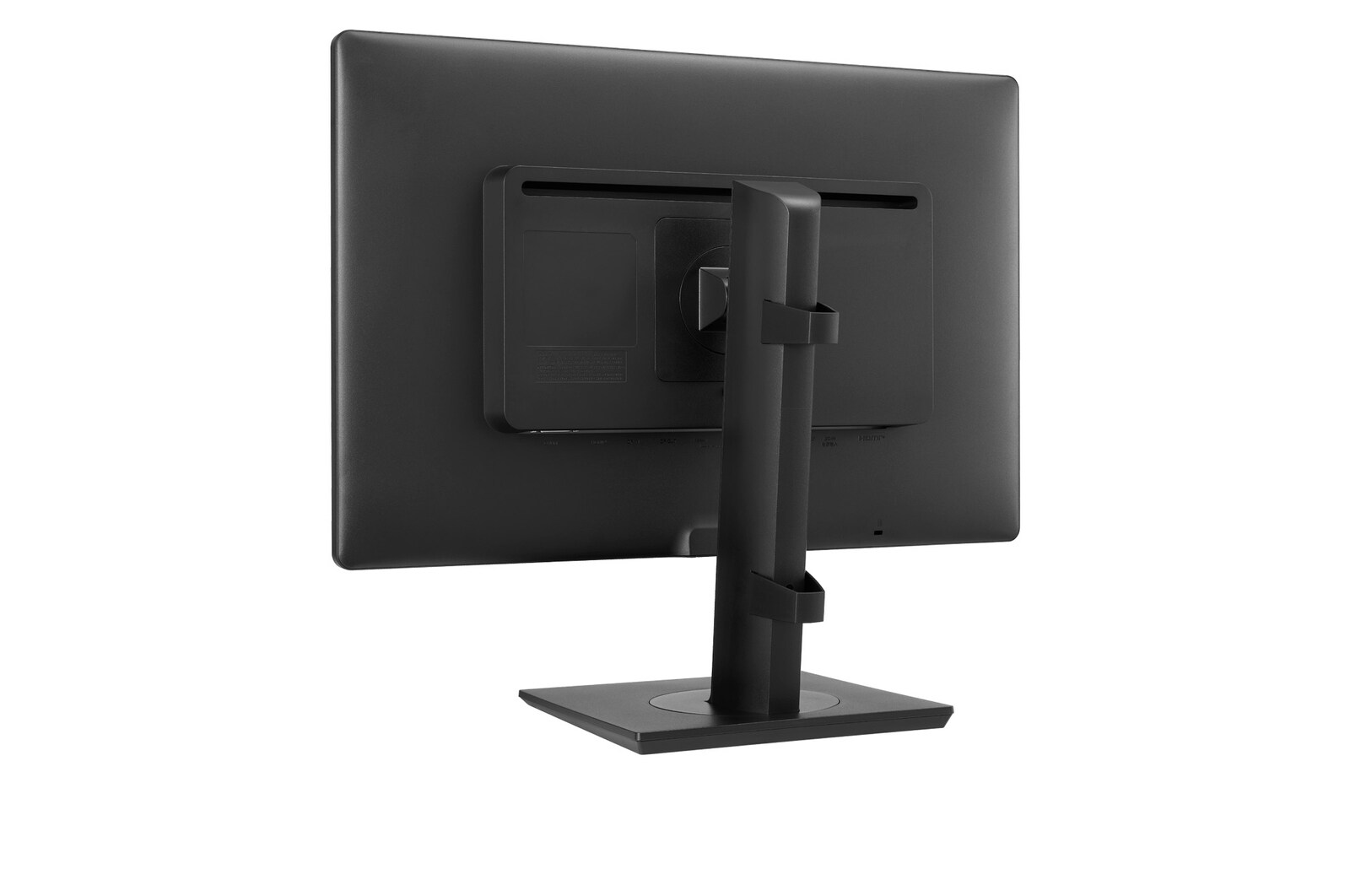

rear view of 24HR513C
rear perspective view of 24HR513C

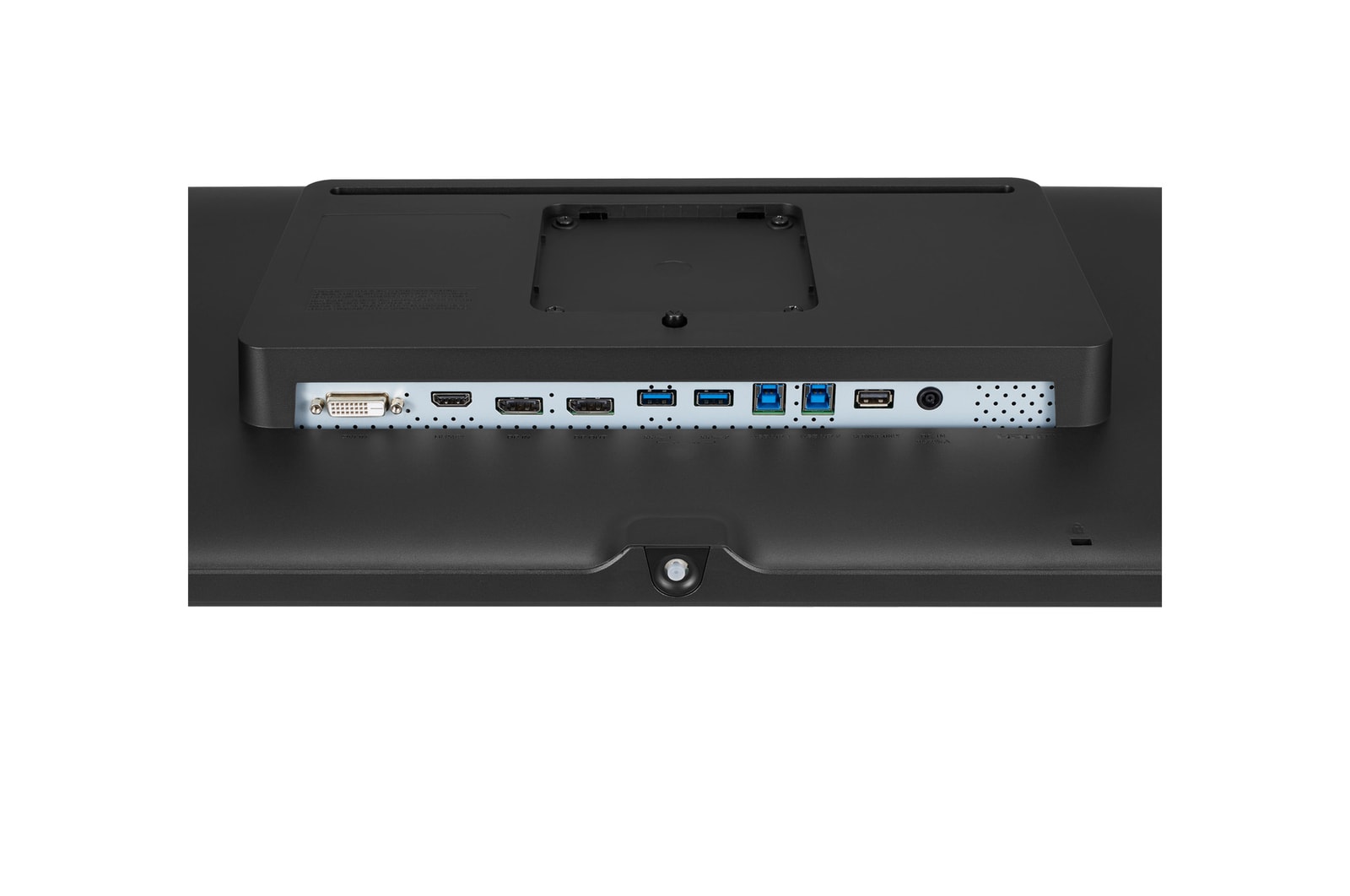

close-up view of ports of 24HR513C

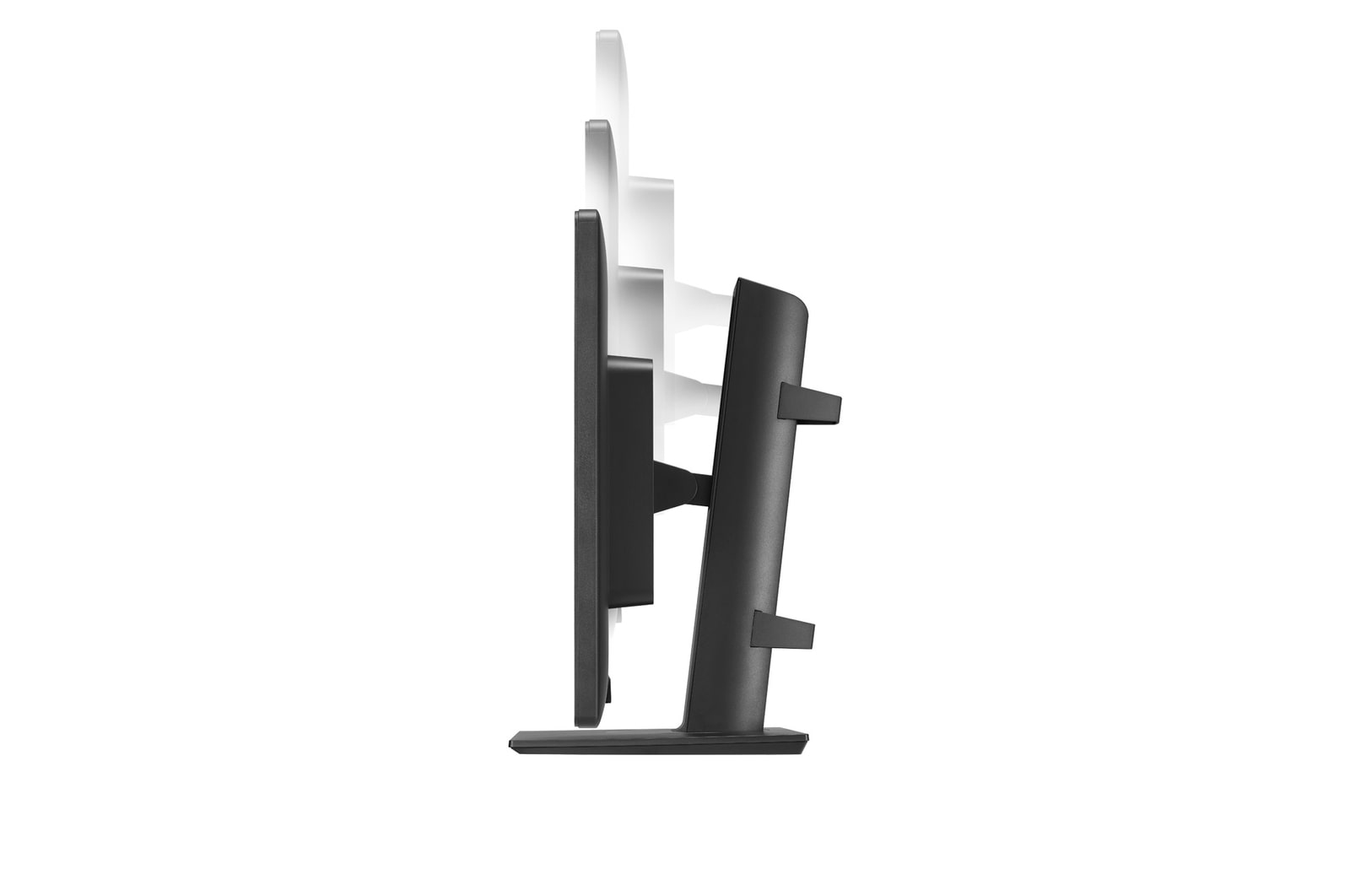

side view of 24HR513C screen moving downwards for height adjustment

Key Features

  • 24-inch 2MP (1920x1200) IPS Display
  • 600cd/m² Brightness (Typ.)
  • Internal Front Calibration Sensor
  • Focus View Mode / Pathology Mode
  • Daisy Chain
  • Bi-directional Auto Pivot
More
24” 2MP Clinical review monitor.

24” 2MP Clinical review monitor

Clinical review and Diagnosis in one display

Multi-purpose

600cd/m² Brightness (Typ.)

Internal Front Calibration Sensor

Efficiency

Management with LCS Medical

Daisy Chain

Convenience

Variety of interfaces including HDMI

Ergonomic Design

Multi-purpose

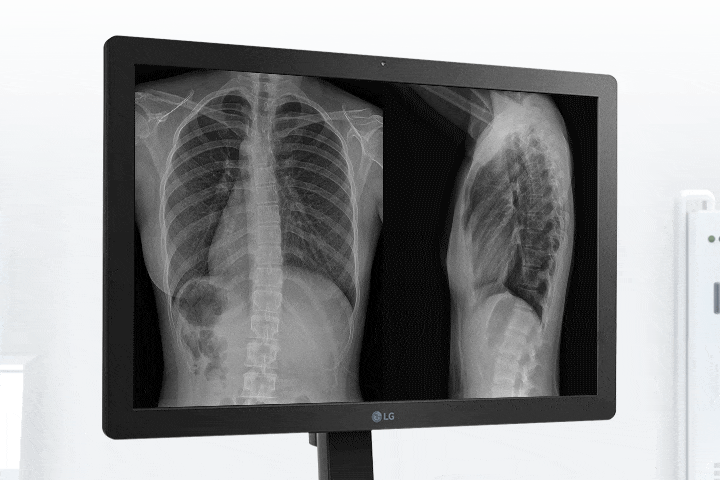

With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes.

600cd/m² Brightness (Typ.)

High brightness suitable for Diagnosis

With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes, meeting the ACR standards for diagnostic monitors.

*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m².

*This display is not intended for mammography.

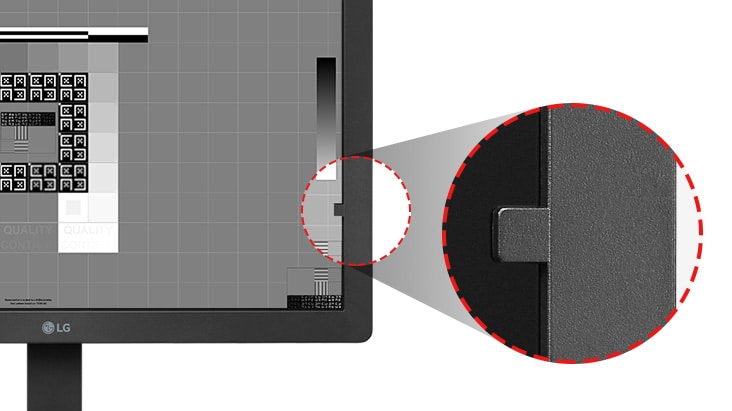

Internal front calibration sensor

Consistency in medical images

The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

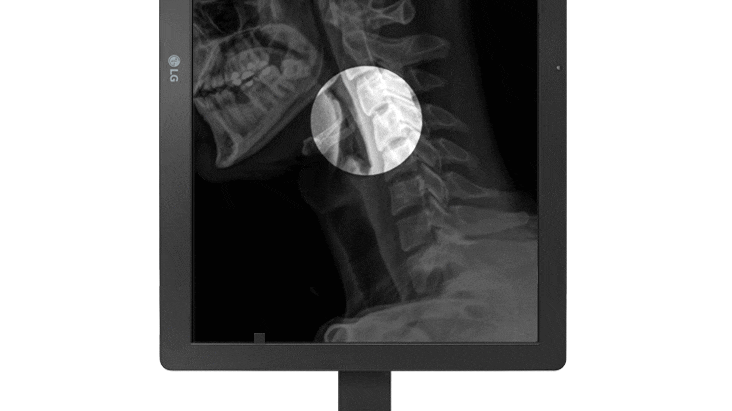

Focus view mode

Focus on the region of interest

24HR513C features the Focus view mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

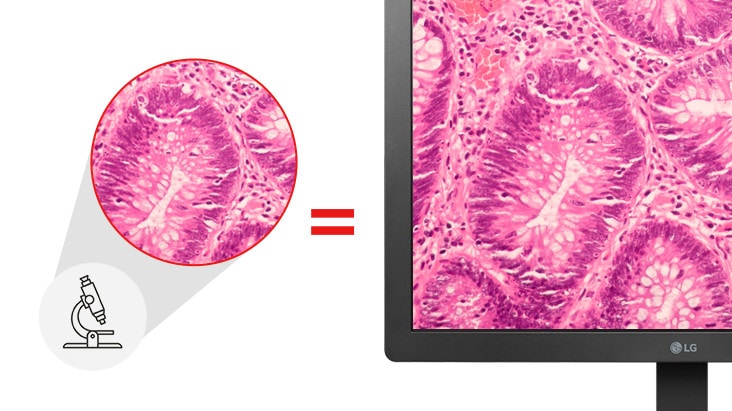

Pathology mode

Just like looking at a microscope

With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Streamlined and efficient workflow

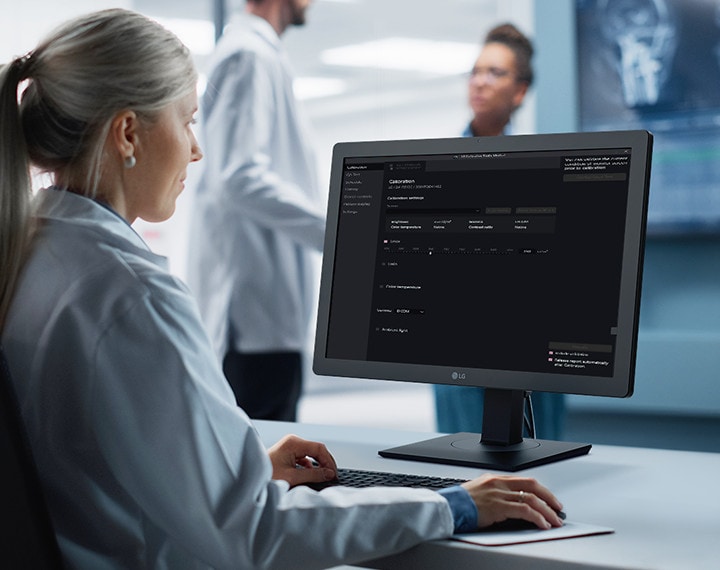

Convenient calibration and QA test.

LCS Medical*

Convenient calibration and QA test

Conveniently manage 24HR513C with LCS Medical. With calibration complying with DICOM Part 14, this software enables precise and consistent display of medical images. It also supports Quality Assurance Tests conforming to international QC Standards*.

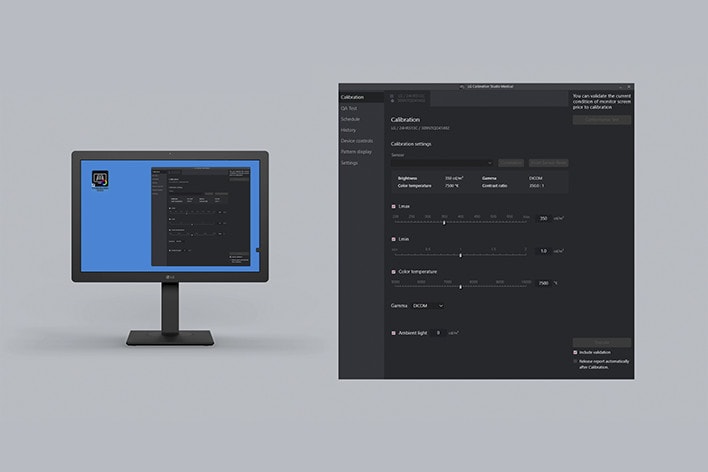

Calibration

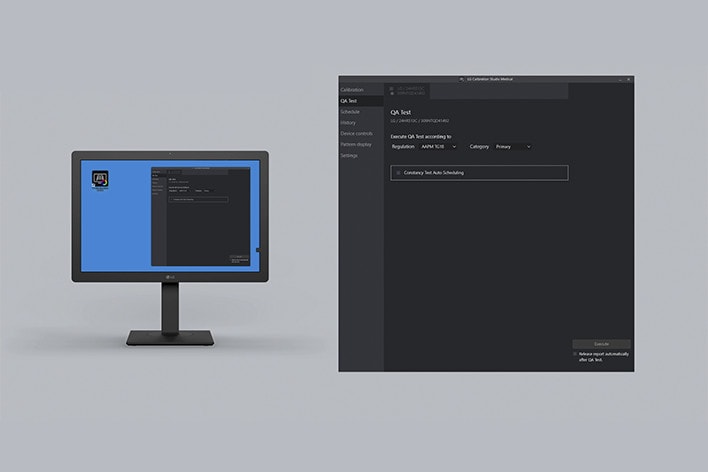

QA Test

*LCS Medical : LG Calibration Studio Medical

*LCS Medical supports Quality Assurance Tests that comply with international QC Standards including AAPM TG18, ACR, DIN-6868-157, IEC 62563-1, NYC PDM, JESRA X-0093, and RANZCR.

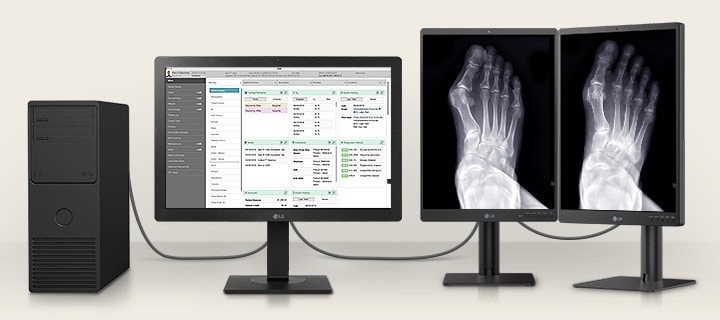

Daisy Chain

Simple connection for a clutter-free workspace

Make your workspace productive with Daisy Chain Setup. You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.

You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

*The 3MP diagnostic monitor featured in the image is 21HQ513D.

User convenience

Versatile connectivity

Variety of interfaces, including an HDMI Port

With HDMI, DisplayPort, and DVI-D input terminals, 24HR513C guarantees compatibility with a wide range of interfaces, enhancing user convenience.

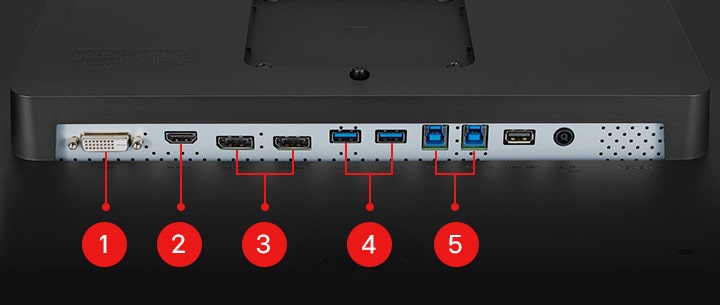

DVI IN, HDMI™, DisplayPort x 2, USB 3.0 Downstream x 2, USB 3.0 Upstream x 2.

1. DVI IN / 2. HDMI™ / 3. DisplayPort x 2 / 4. USB 3.0 Downstream x 2 / 5. USB 3.0 Upstream x 2

Ergonomic design

Customizable workstation for enhanced usability

24HR513C is designed to be adjustable for the posture of users' image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.

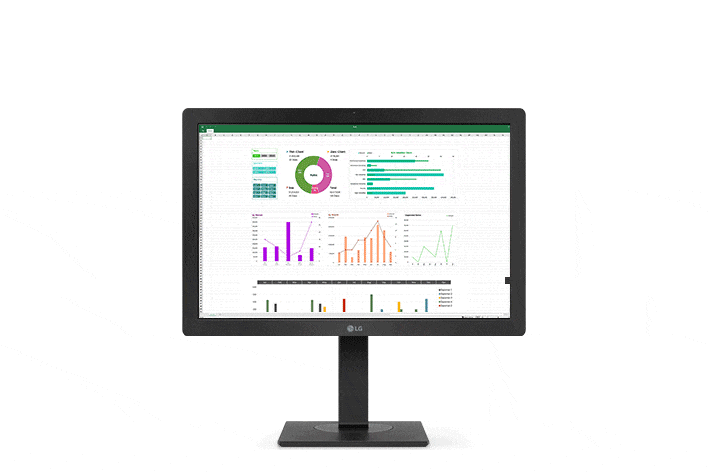

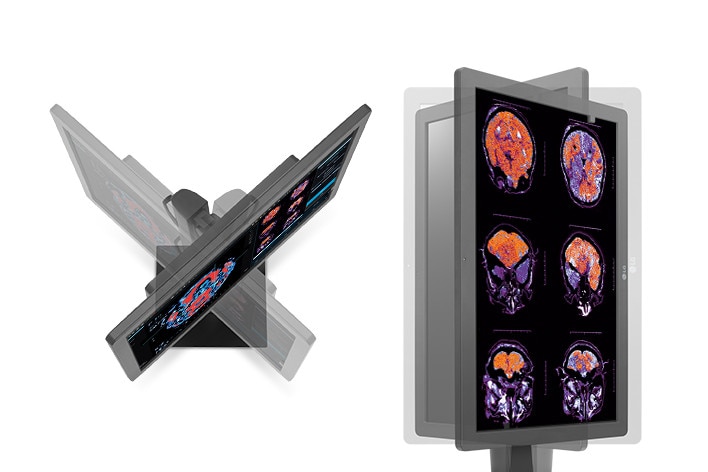

Bi-directional Auto Pivot

Swivel ±45°

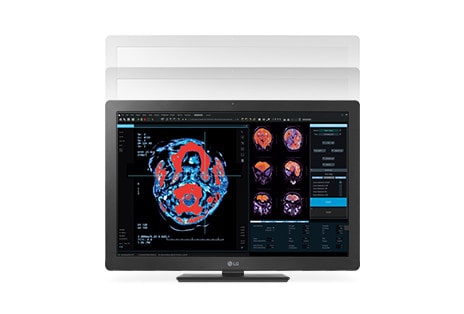

Height 0 ~ 150mm

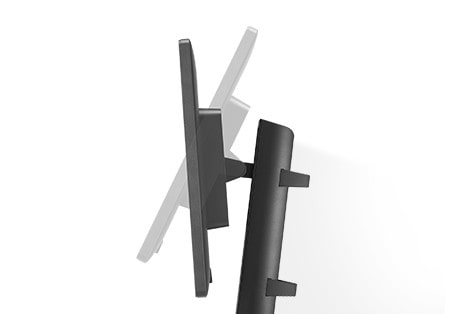

Tilt -5 ~ 25°

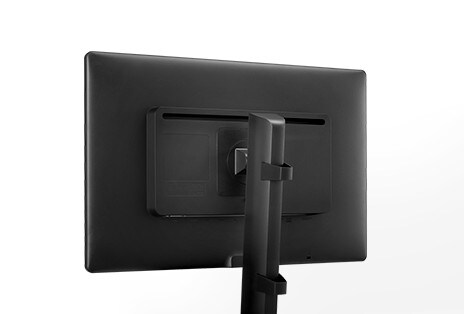

The One-Click Stand

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

*Auto Pivot refers to the automatic screen rotation function based on the pivot direction.

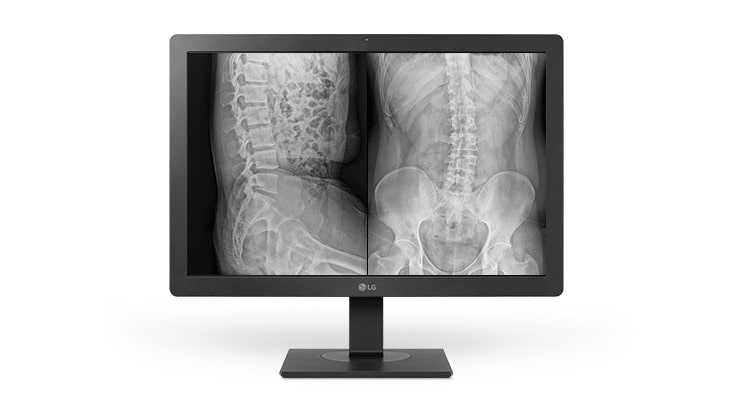

Auto luminance sensor

Automatically adjusts screen brightness

24HR513C features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Print

All Spec

DIMENSIONS/WEIGHTS

  • Dimension with Stand (W x H x D) [mm]

    574.2X559.4X248.2

  • Dimension without Stand (W x H x D) [mm]

    574.2X382.4X59.3

  • Dimension in Shiping (W x H x D) [mm]

    705X480X200

  • Weight with Stand [kg]

    7.1

  • Weight without Stand [kg]

    4.35

  • Weight in Shipping [kg]

    9.7

FEATURES

  • DICOM Compliant

    YES

  • HW Calibration

    YES

  • Auto Brightness

    YES

  • Brightness stabilization

    YES

  • Flicker Safe

    YES

  • Front Sensor

    YES

  • Reader Mode

    YES

  • Color Temperature

    6500K/7500K/9300K
    Manual(5000K~10000K)

  • Pathology Mode

    YES

  • Super Resolution+

    YES

  • Focus View

    YES

  • Black Stabilizer

    YES

  • Smart Energy Saving

    YES

CONNECTIVITY

  • HDMI

    YES(1EA)

  • DisplayPort

    YES(In 1EA/Out 1EA)

  • Daisy Chain

    YES

  • USB Upstream Port

    YES(2ea/ver3.0)

  • USB Downstream Port

    YES(2ea/ver3.0)

POWER

  • Type

    External Power(Adapter)

  • DC Output

    19V, 3.42A

  • AC Input

    100-240Vac, 50/60Hz

  • Power Consumption (DC Off)

    Less than 0.3W

STANDARD

  • KC (for Rep. of Korea)

    YES

  • RoHS

    YES

  • REACH

    YES

  • WEEE

    YES

  • MFDS

    YES

  • UL (cUL)

    YES

  • CE

    MDR

  • FDA

    YES(510k)

  • ISO13485

    YES

  • GMP

    YES

ACCESSORY

  • Power Cord

    YES

  • Adapter

    YES

  • Calibration Report (Paper)

    YES

  • DVI-D

    YES

  • HDMI

    YES

  • Display Port

    YES

  • USB A to B

    YES

DISPLAY

  • Size [Inch]

    24

  • Resolution

    1920x1200

  • Aspect Ratio

    16:10

  • Pixel Pitch [mm]

    0.27X0.27

  • Brightness (Typ.) [cd/m²]

    600

  • Color Gamut (Typ.)

    NTSC 70% (CIE1931)

  • Color Bit

    8bit

  • Contrast Ratio (Typ.)

    1000:1

  • Surface Treatment

    Anti Glare

  • Response Time

    5ms (GtG at Faster)

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°(Up/Down)

SW APPLICATION

  • Dual Controller

    YES

MECHANICAL

  • Borderless Design

    Normal

  • OneClick Stand

    YES

  • Display Position Adjustments

    Tilt/Height/Swivel/Pivot

  • Wall Mountable [mm]

    100x100
