31.5-inch 8MP IPS Black Diagnostic Monitor

Features

Gallery

Specs

Support

31.5-inch 8MP IPS Black Diagnostic Monitor

31.5-inch 8MP IPS Black Diagnostic Monitor

32HQ713D-B
  • front view of 32HQ713D
  • -15 degree side view of 32HQ713D
  • +15 degree side view of 32HQ713D

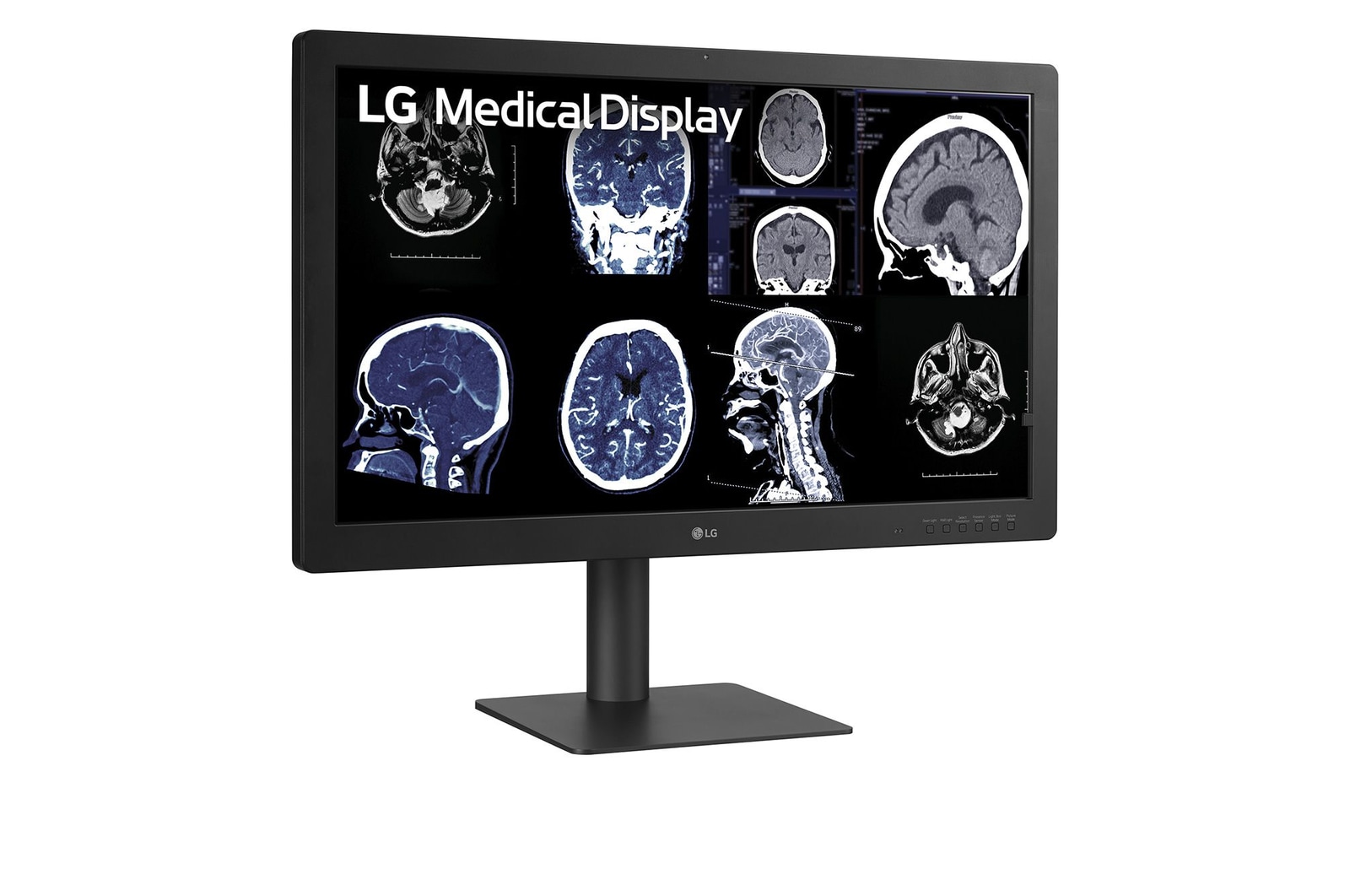

  • perspective view of 32HQ713D

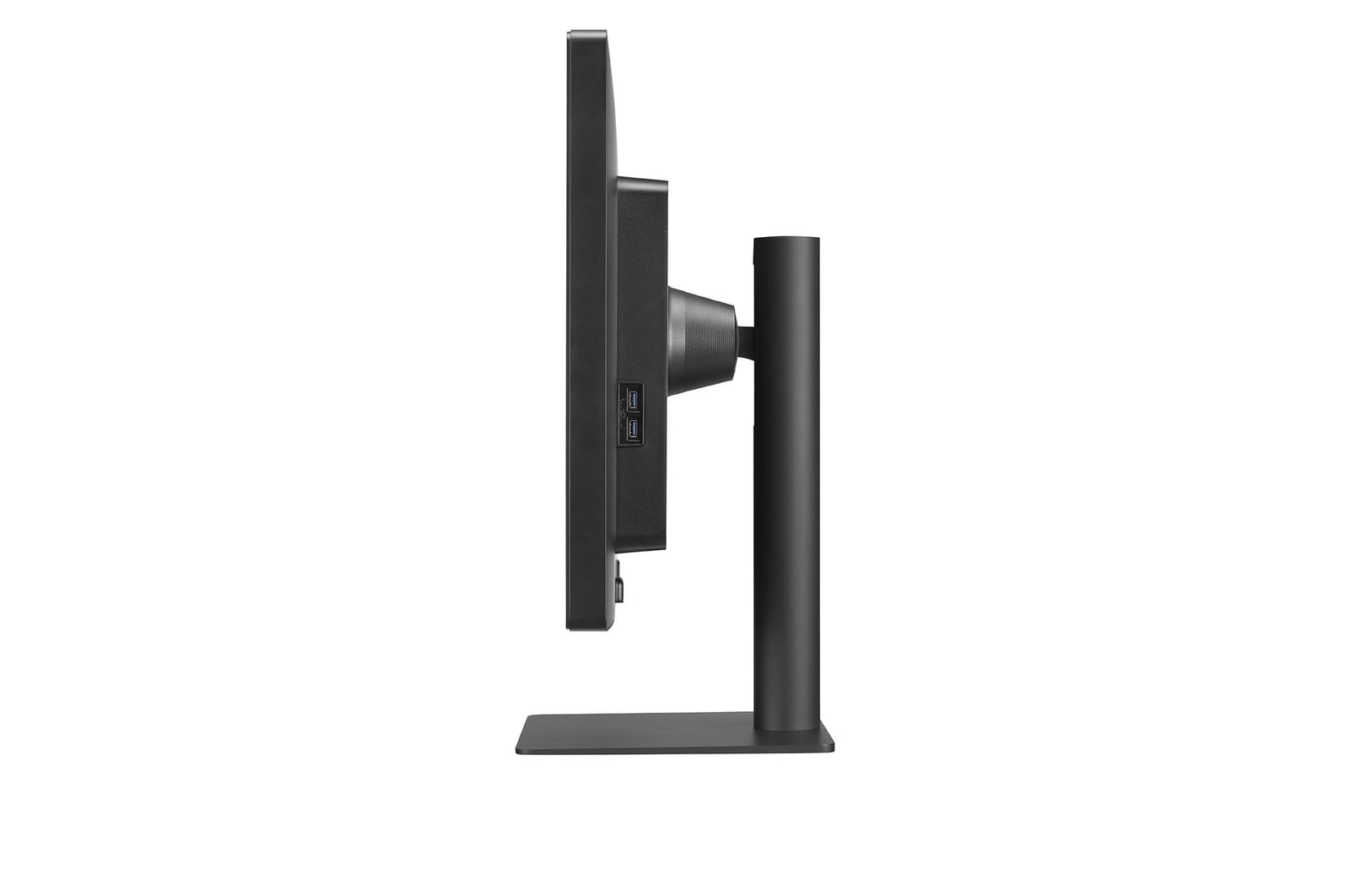

  • side view of 32HQ713D

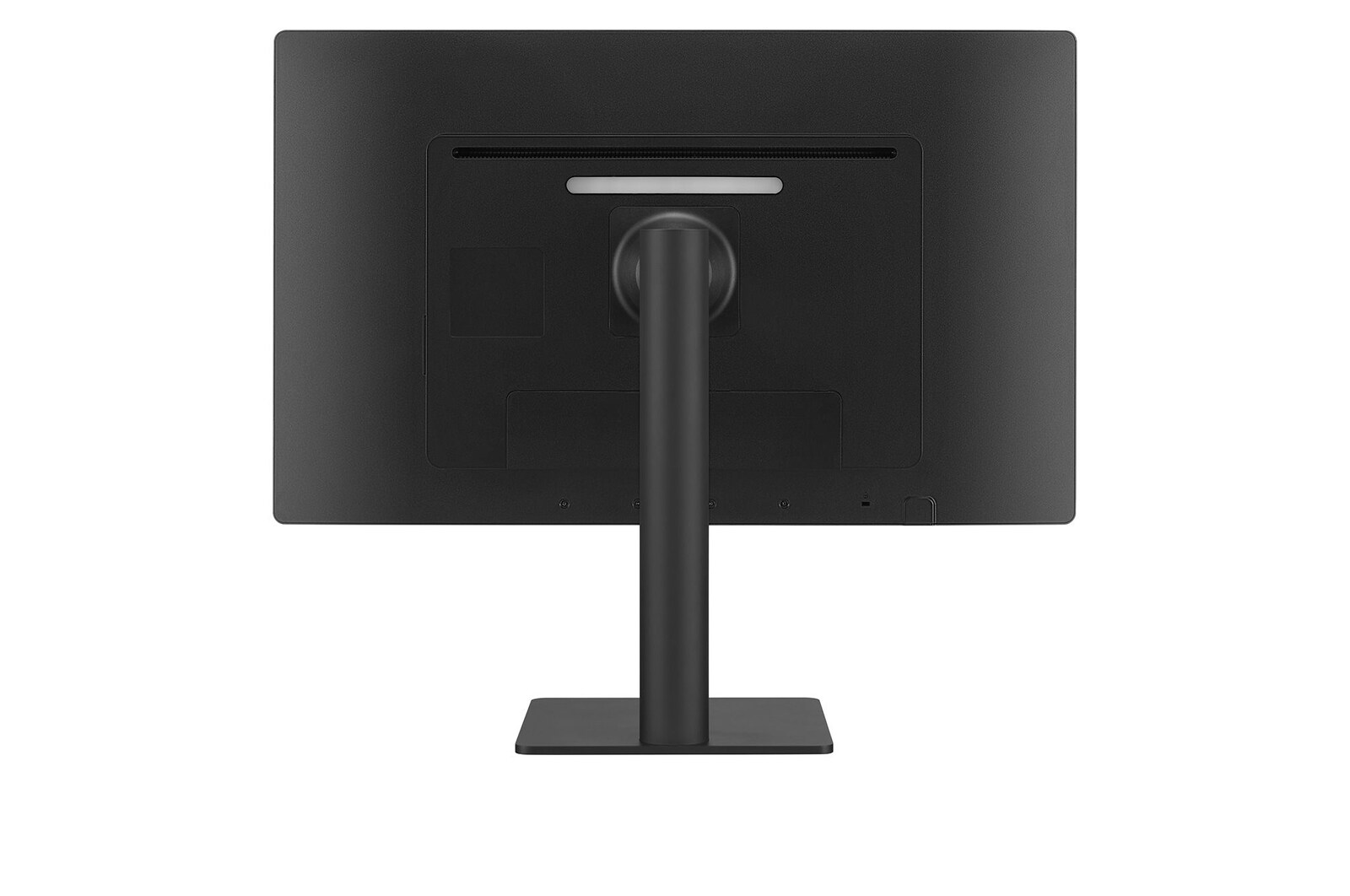

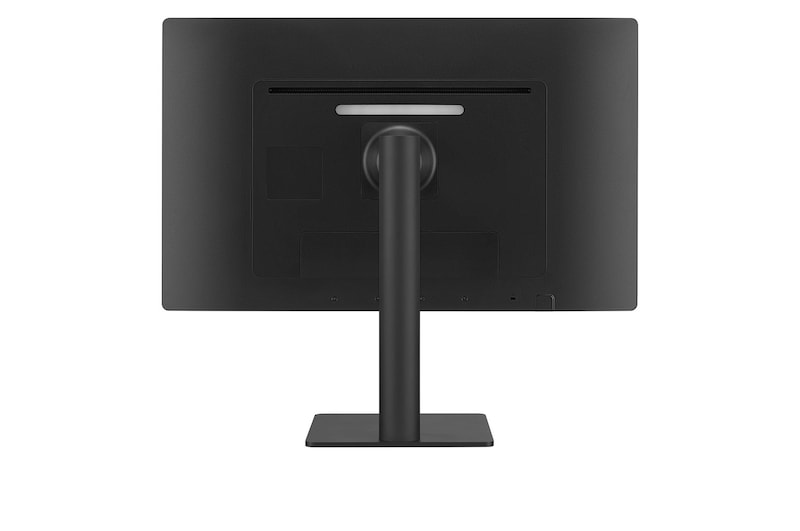

  • rear view of 32HQ713D
  • rear perspective view of 32HQ713D
  • close-up view of ports of 32HQ713D
  • side view of 32HQ713D of the monitor moving downwards for height adjustment

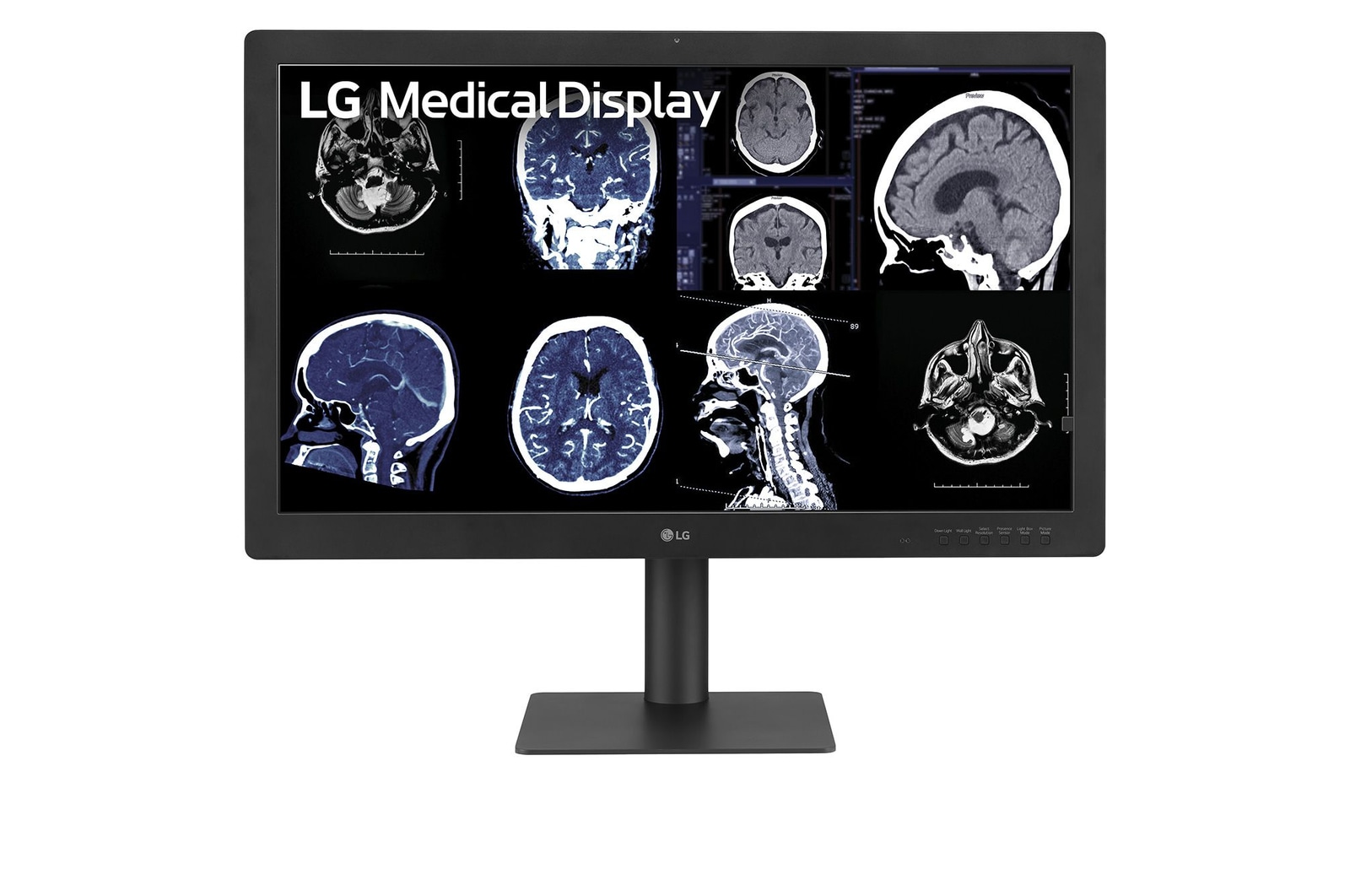

front view of 32HQ713D

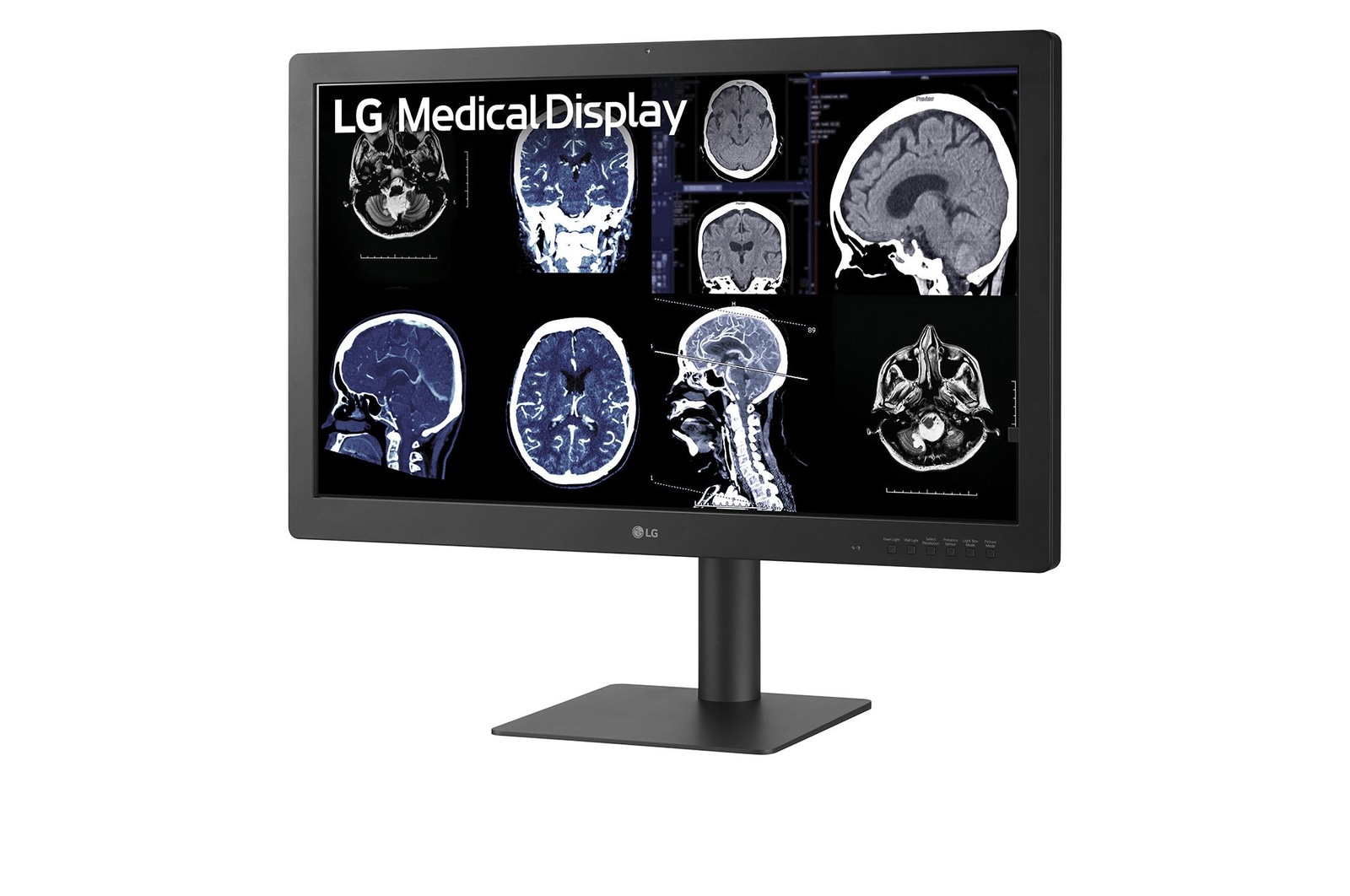

-15 degree side view of 32HQ713D

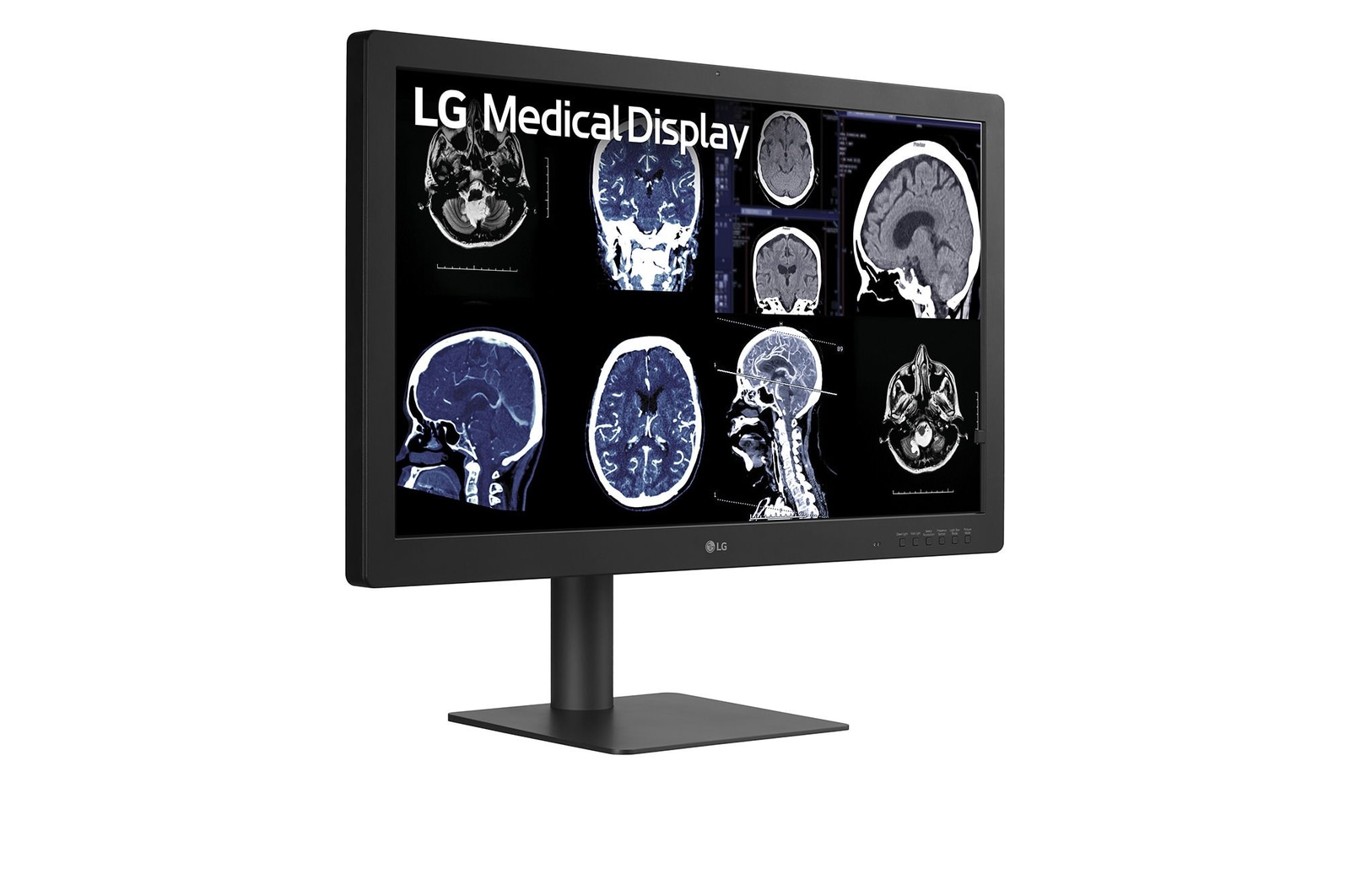

+15 degree side view of 32HQ713D

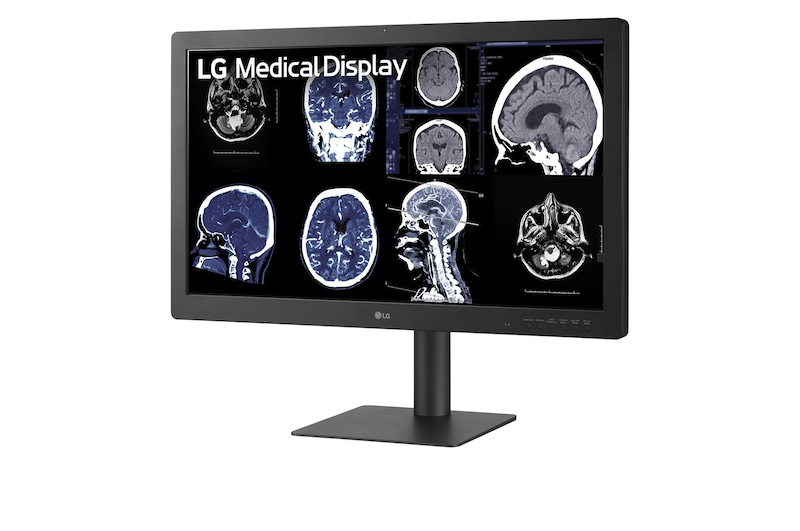

perspective view of 32HQ713D
side view of 32HQ713D
rear view of 32HQ713D

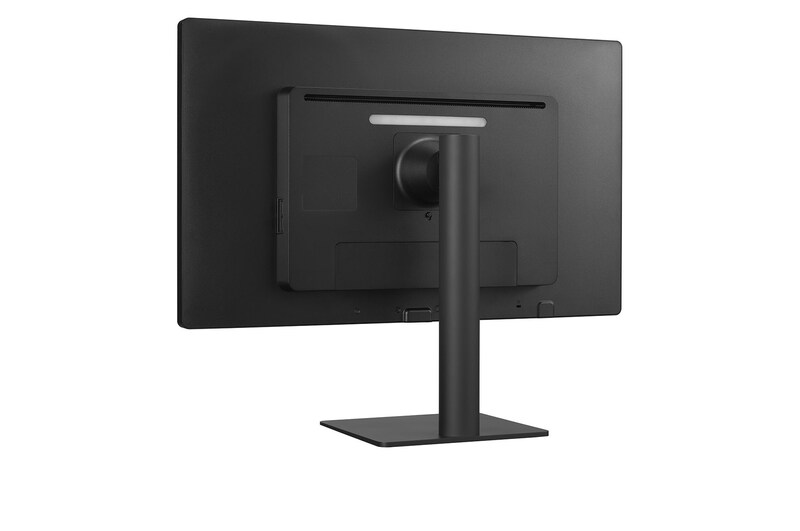

rear perspective view of 32HQ713D

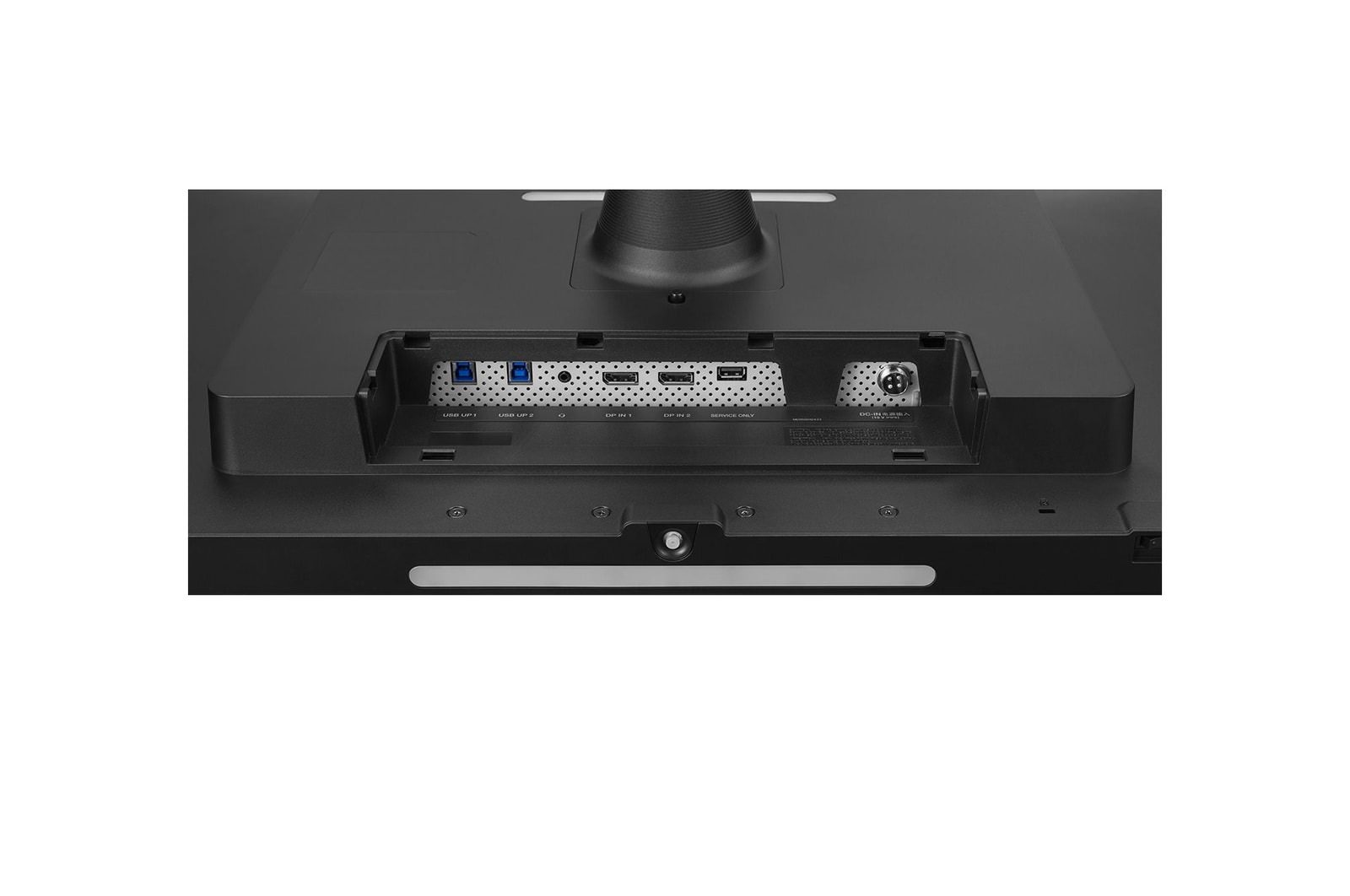

close-up view of ports of 32HQ713D

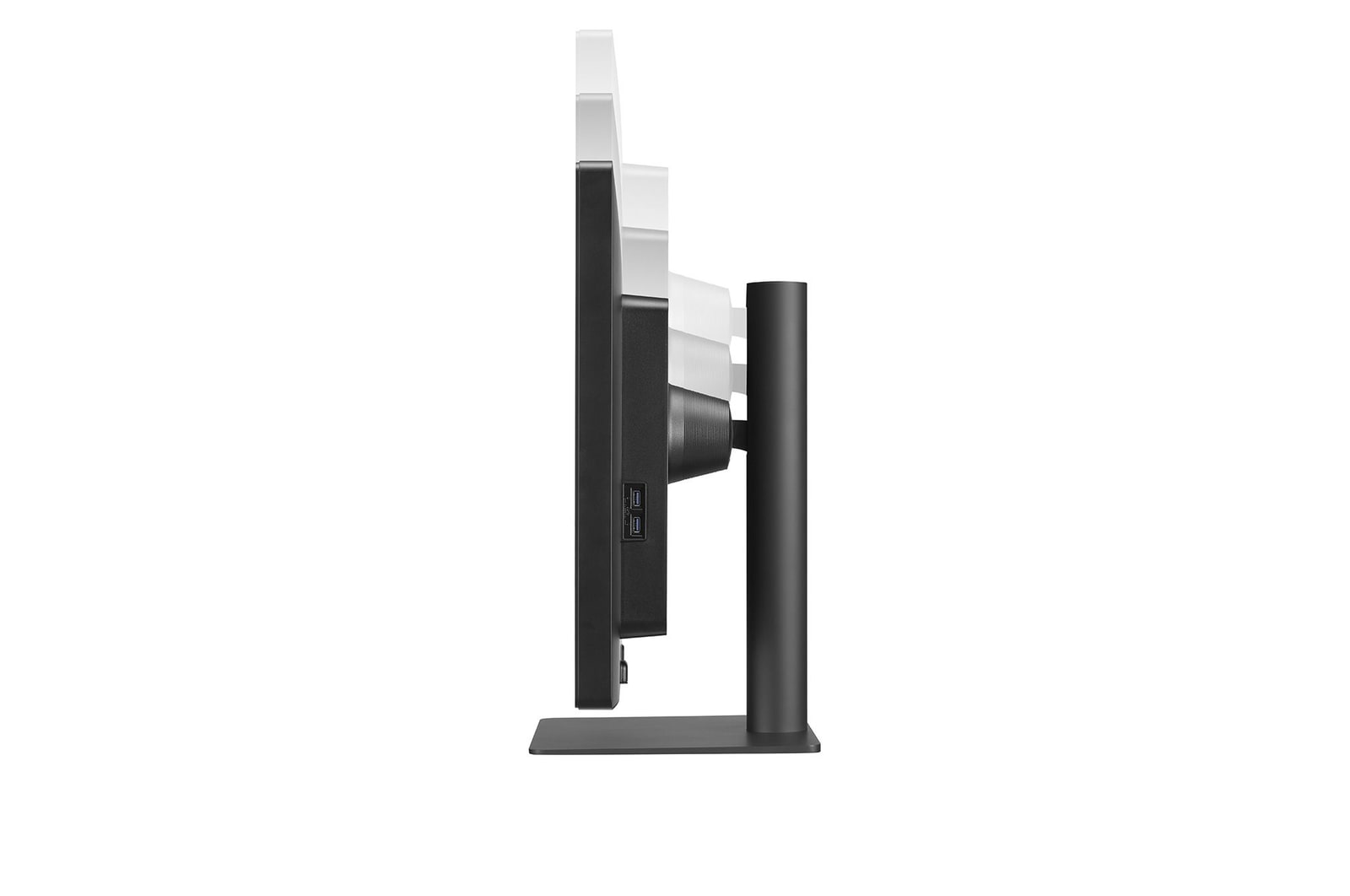

side view of 32HQ713D of the monitor moving downwards for height adjustment

Key Features

  • 31.5-inch 8MP (3840x2160) IPS Black Display
  • Multi-resolution Mode (8/6/4MP)
  • 1,000 cd/m2 Brightness (Typ.)
  • Focus View Mode / Pathology Mode
  • Internal Front Calibration Sensor
  • Down Light / Wall Light
More
Designed for Sharp Expression

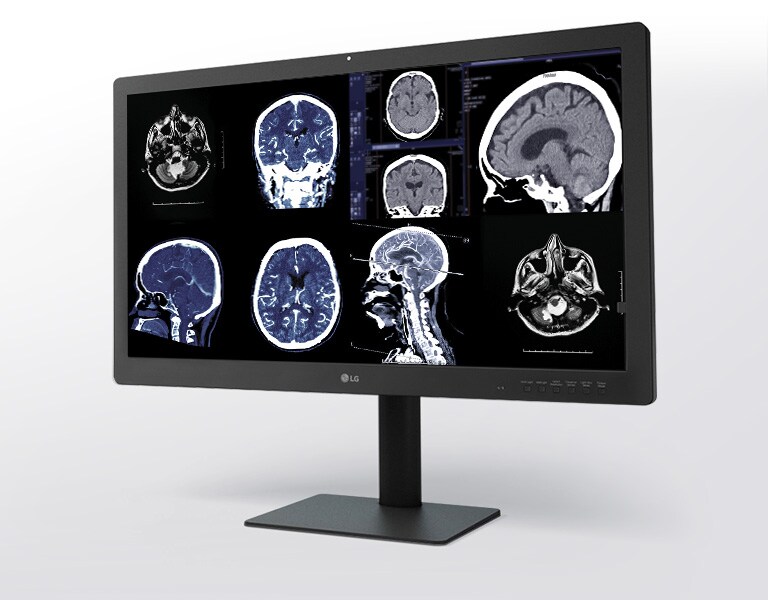

31.5-inch 8MP IPS Black Display

Designed for Sharp Expression

Clear Imaging

31.5-inch 8MP IPS Black Display

Self-calibration with Front Sensor

Efficiency

6 Hot Keys

Presence Sensor

Comfort

Ergonomic Stand

Down Light / Wall Light

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Clear Imaging

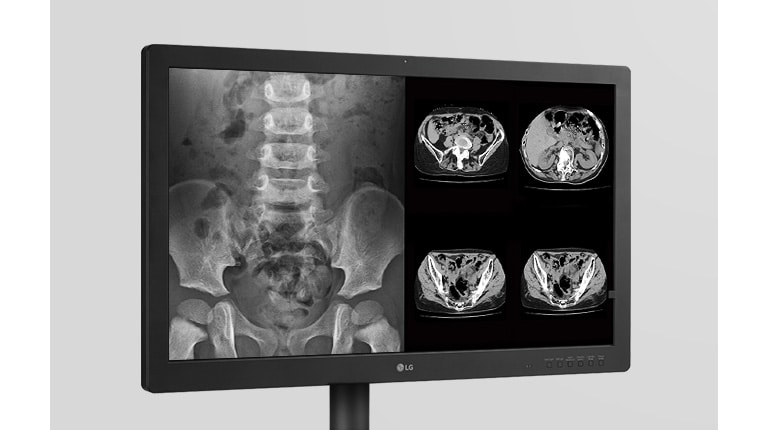

Reliable Imaging for Critical Assessment

IPS Black Panel

Reliable Imaging for Critical Assessment

IPS Black panel of 32HQ713D delivers deep black levels leading to sharp expression. With a significantly high contrast ratio of 2000:1, 32HQ713D helps to come up with clear image definition with detailed low gray expression.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

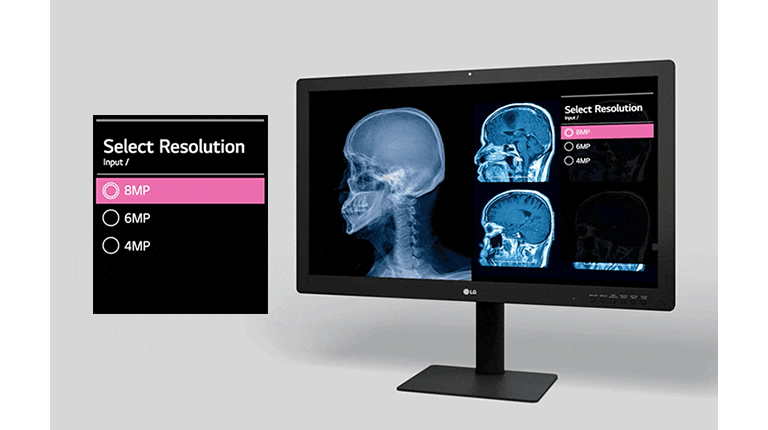

Set the Resolution Mode to Fit Your Needs

Multi-resolution Mode (8/6/4MP)

Set the Resolution Mode to Fit Your Needs

Thanks to Multi-resolution Mode (8/6/4MP), you can adjust the resolution of monitor to better fit your needs.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Just Like Looking at a Microscope

Pathology Mode

Just Like Looking at a Microscope

With Pathology Mode, the 32HQ713D provides image clarity and accuracy as if you were looking at a microscope.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

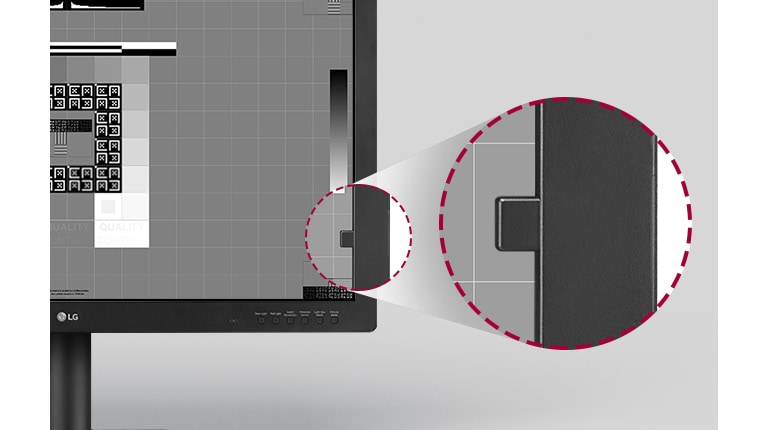

Consistency in Medical Images

Internal Front Calibration Sensor

Consistency in Medical Images

The front-sensor allows automatic, self-calibration without the need for additional measuring equipment. The front sensor helps image quality to remain stable.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

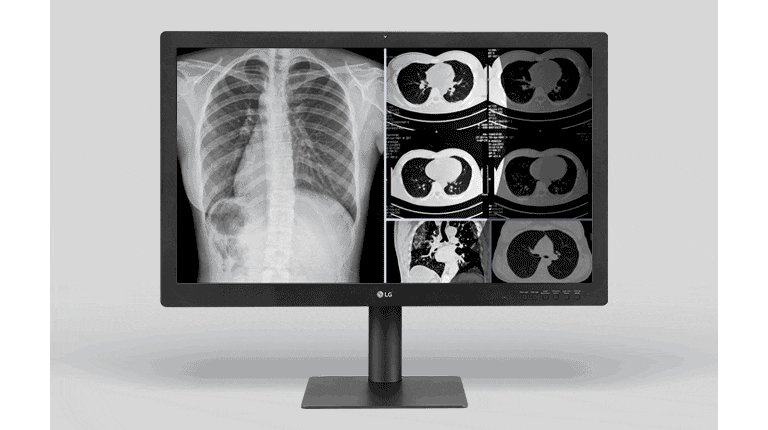

Fully Focus on the Region of Interest

Focus view mode

Fully Focus on the Region of Interest

LG 32HQ713D features the Focus View Mode which enables a detailed review of specific parts of the medical image. Users can easily select and zoom in on areas of interest while dimming the surrounding screen for enhanced focus.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Streamlined and Efficient
Workflow

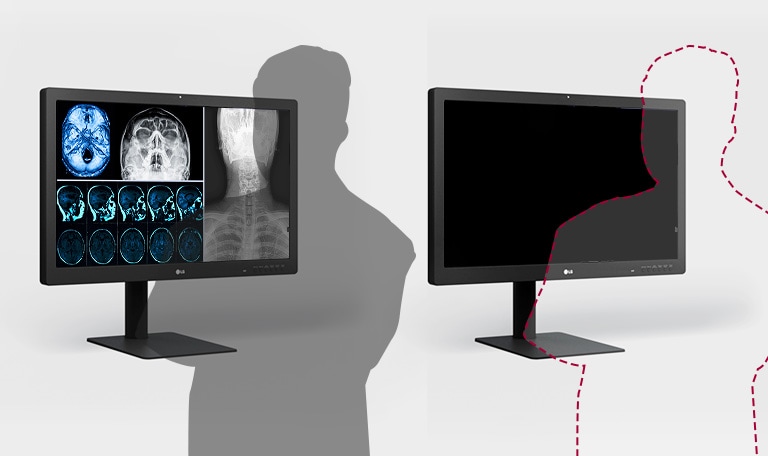

Convenient Power Management

Presence Sensor

Convenient Power Management

Presence Sensor automatically turns off the display when no motion is detected. It not only eliminates the hassle of manually turning the display on and off, but also contributes to convenient power management.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

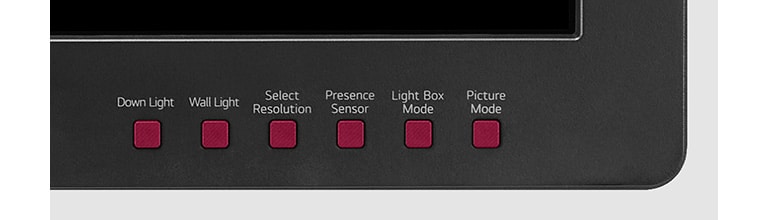

6 Hot Keys

Intuitive Control

The 32HQ713D's 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys provide easy and fast ways to operate while working, allowing you to change mode, screen resolution, and lighting settings.

Lightweight Meets Mighty Durability

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Ergonomic and Comfortable
Workspace

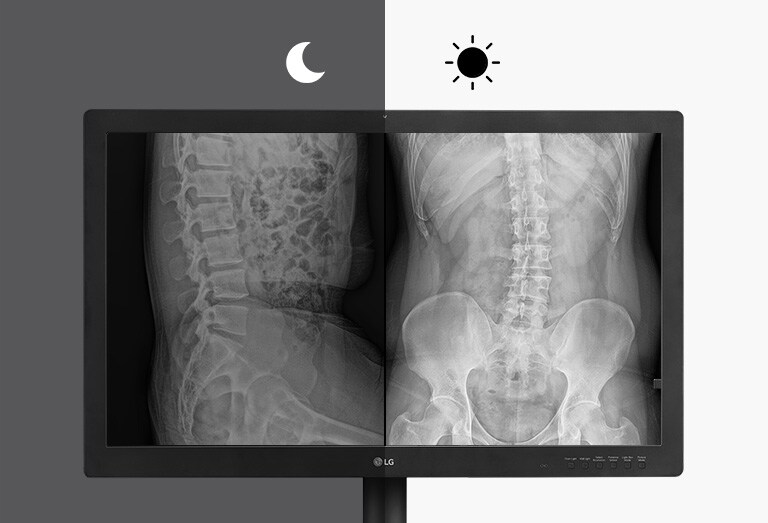

Ensuring Screen Brightness

Auto Luminance Sensor

Ensuring Screen Brightness

LG 32HQ713D features an Auto Luminance Sensor which sets screen brightness properly for the ambient lighting.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

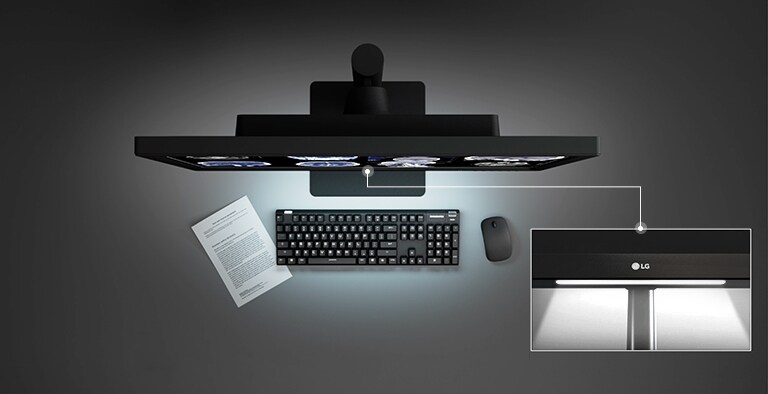

Down Light / Wall Light

Ideal Diagnostic Workspace

Down Light / Wall Light Mode enhances readability of documents below monitor even in low-light environments.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

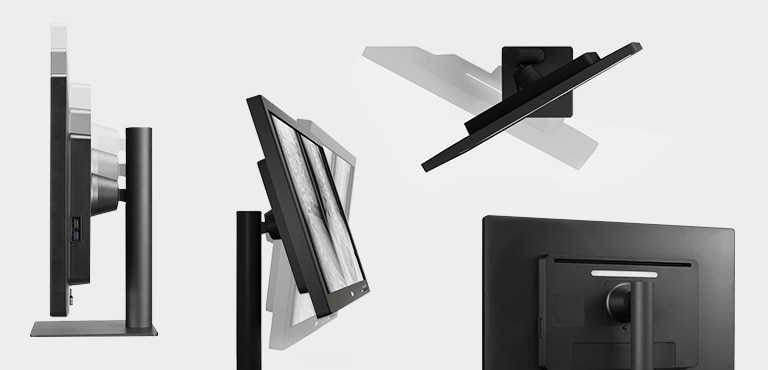

Ergonomic Design

Easy and Comfortable

The 32HQ713D is designed to be adjustable for the posture of users' image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel.

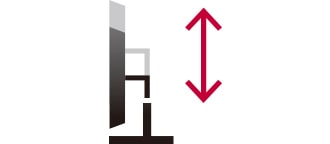

Height adjustable stand within the range of 0m to 110mm

Height

0 ~ 110mm

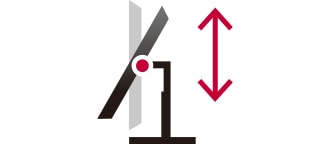

Tilt adjustable stand within the range of -5 degrees to 15 degrees

Tilt

-5 ~ 15°

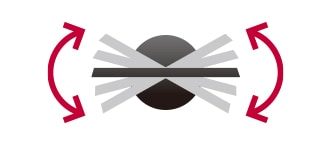

Swivel adjustable

Swivel

±15°

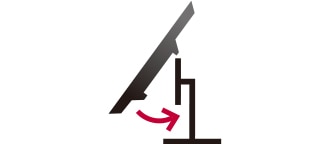

Quick and easy installation with the One-Click Stand

One-Click Stand

Installation

Ergonomic design with features of height, tilt, and swivel adjustment.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Print

All Spec

DIMENSIONS/WEIGHTS

  • Dimension with Stand (W x H x D) [mm]

    758.5x646.2x280.0

  • Dimension without Stand (W x H x D) [mm]

    758.5x465.3x79.1

  • Dimension in Shiping (W x H x D) [mm]

    1027x340x603

  • Weight with Stand [kg]

    13

  • Weight without Stand [kg]

    9.7

  • Weight in Shipping [kg]

    20

FEATURES

  • DICOM Compliant

    YES

  • Hot Key

    YES (6 keys)

  • HW Calibration

    YES

  • Auto Brightness

    YES

  • Brightness stabilization

    YES

  • Flicker Safe

    YES

  • Presence Sensor

    YES

  • Front Sensor

    YES

  • Reader Mode

    YES

  • Color Temperature

    6500K/7500K/9300K

  • Pathology Mode

    YES

  • Super Resolution+

    YES

  • Focus View

    YES

  • Light Box Mode

    YES

  • Black Stabilizer

    YES

  • PBP

    YES (2PBP)

  • Smart Energy Saving

    YES

CONNECTIVITY

  • DisplayPort

    YES(2ea)

  • USB Upstream Port

    YES(2ea/ver3.0)

  • USB Downstream Port

    YES(2ea/ver3.0)

  • Headphone out

    YES

POWER

  • Type

    External Power(Adapter)

  • DC Output

    19V, 6.32A

  • AC Input

    100-240Vac, 50/60Hz

  • Power Consumption (DC Off)

    Less than 0.3W

STANDARD

  • WEEE

    YES

  • MFDS

    YES

  • UL (cUL)

    YES

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    YES

  • EN (EN 60601-1 / EN 60601-1-2)

    YES

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    YES

  • EN (EN 60950-1 / EN 55032, 55024)

    YES

  • ISO13485

    YES

  • GMP

    YES

ACCESSORY

  • Power Cord

    YES

  • Adapter

    YES

  • Calibration Report (Paper)

    YES

  • Display Port

    YES

  • USB A to B

    YES

DISPLAY

  • Size [Inch]

    31.5

  • Resolution

    3840x2160

  • Aspect Ratio

    16:9

  • Pixel Pitch [mm]

    0.18159x0.18159

  • Brightness (Typ.) [cd/m²]

    1,000

  • Color Gamut (Typ.)

    sRGB 100%

  • Color Bit

    10bit (8bit+A-FRC)

  • Contrast Ratio (Typ.)

    2000:1

  • Surface Treatment

    Anti-glare, 3H

  • Response Time

    14ms (GtG, Not Support OD)

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°
    (Up/Down)

SW APPLICATION

  • Dual Controller

    YES

MECHANICAL

  • Borderless Design

    Normal

  • Machanical Power Switch

    YES

  • OneClick Stand

    YES

  • Display Position Adjustments

    Tilt/Height/Swivel

  • Wall Mountable [mm]

    100x100
