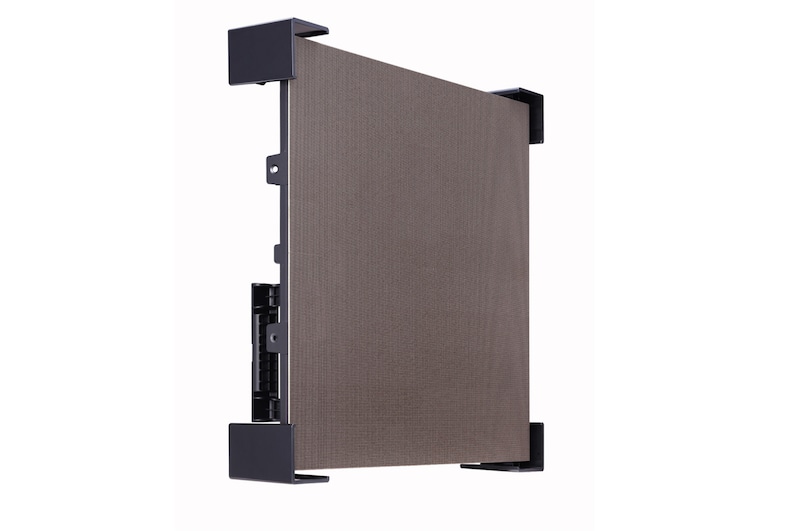

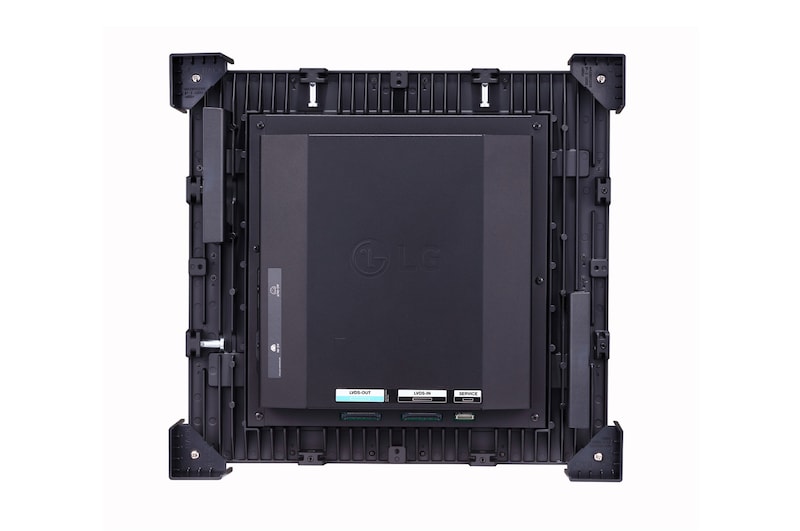

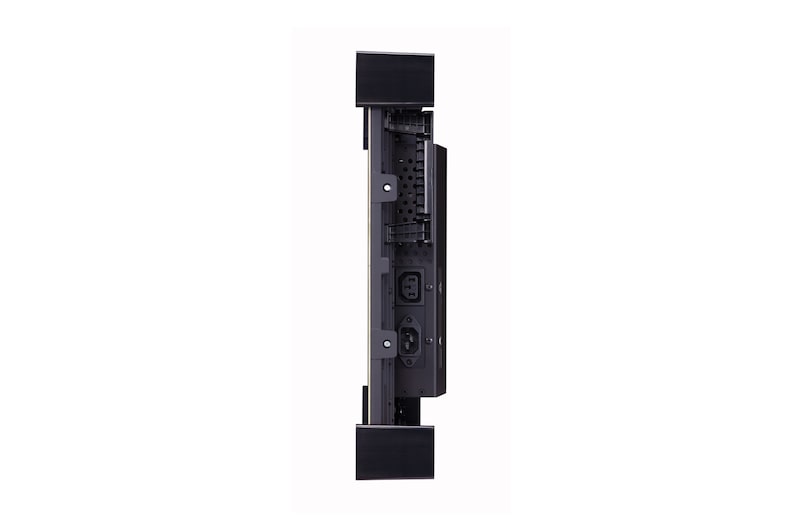

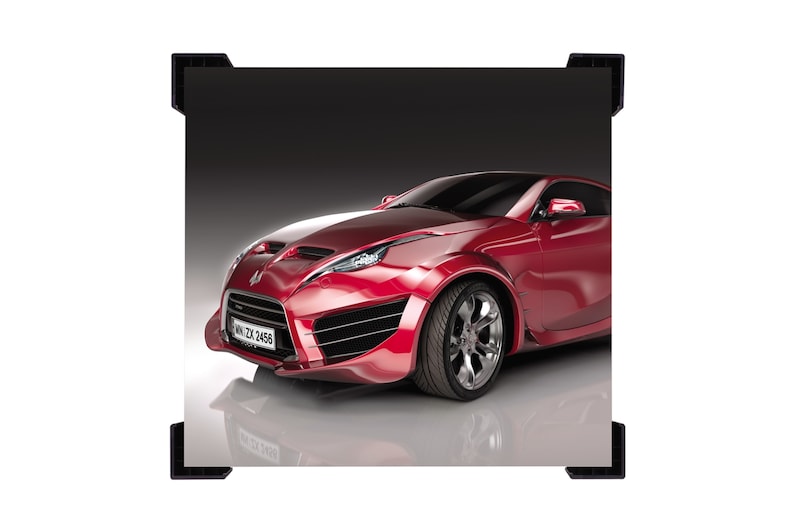

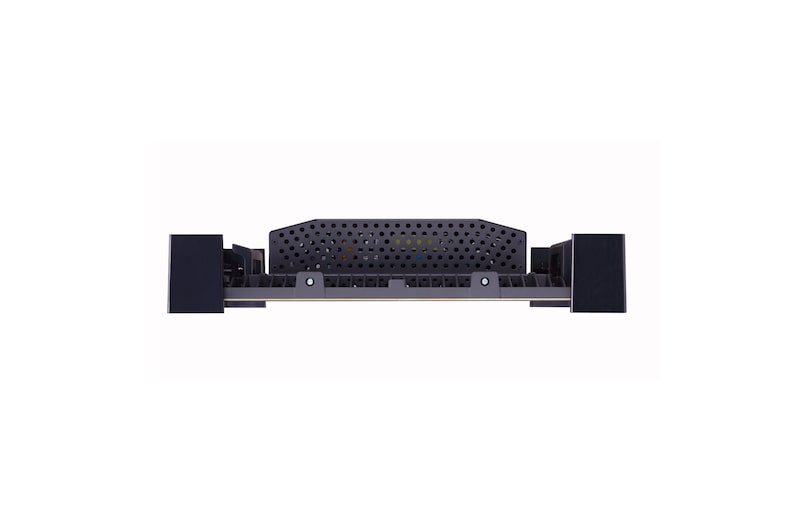

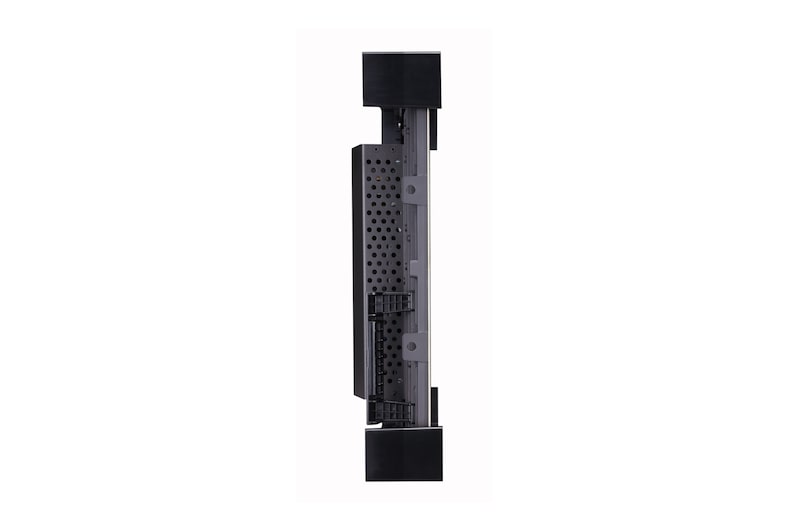

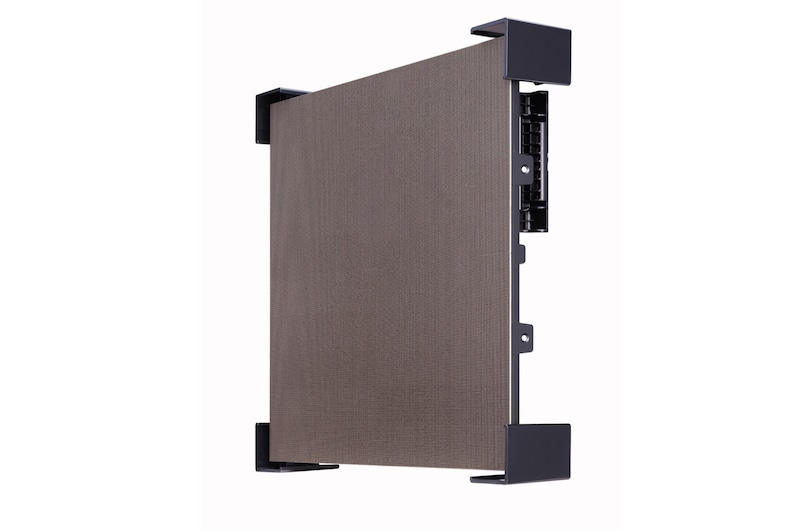

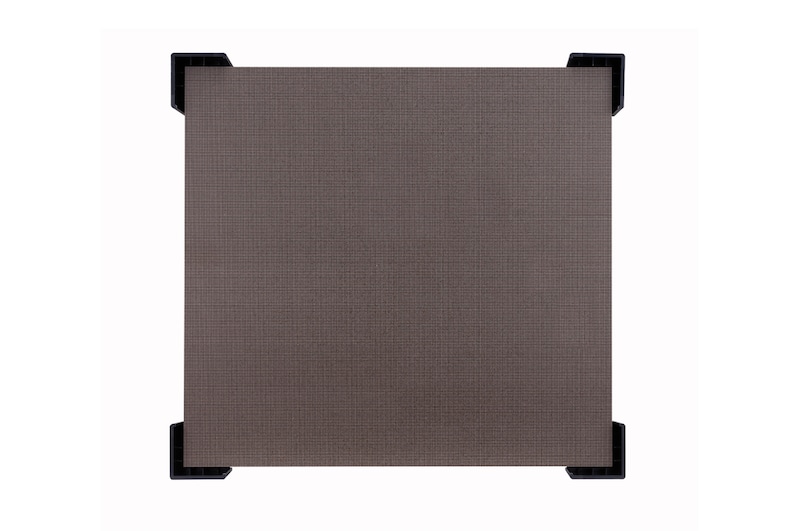

LAP010BL2
LAP Series - Premium Fine-pitch LED Signage
  • 1.0 mm pixel pitch
  • Brightness: 1,000 cd/m²
  • 1,920 Hz refresh rate
  • Built-in Content Management System
LAP Series - Premium Fine-pitch LED Signage
MSRP $
  • Outstanding Image Quality1

    Outstanding Image Quality

  • Auto Module Protection1

    Auto Module Protection

  • Easy Management1

    Easy Management

APPLICATION

  • Design Room

    Design Room1 Design Room2
  • Museums / Gallery

    Museums / Gallery1 Museums / Gallery2
  • Control Room

    Control Room1 Control Room2
  • Boardrooms

    Boardrooms1 Boardrooms2
  • Meeting Room

    Meeting Room1 Meeting Room2
  • Broadcast Studio

    Broadcast Studio1 Broadcast Studio2

PHYSICAL PARAMETERS

  • Pitch Name
    P1.0
    Pixel Pitch (mm)
    1.0
  • LED Type
    SMD 3-in-1
    Resolution(W x H, per Unit Case)
    384 x 360
  • Dimensions(W x H x D, per Module)
    192 x 180 x 16 mm
    Dimensions(W x H x D, per Unit Case)
    384 x 360 x 77 mm
  • Weight(per Unit Case)
    5 kg
    Weight(per SQM)
    36 kg1)
    1) LED Unit Case (Except LED Controller)
  • Unit Frame Material
    Die Casting Allumium
    Unit Frame Color
    Black
  • Access
    Rear

OPTICAL PARAMETER

  • Brightness(After Calibration)
    1,000nit
    Contrast Ratio
    6,000:1
  • Viewing Angle(H x V)
    160 x 140
    Bit Depth
    16bit
  • Brightness Uniformity
    ≥ 97%
    Color Uniformity
    ±0.015Cx, Cy
  • Color Gamut
    NTSC 100%, BT2020 94%
    Color temperature - Default
    6,500K
  • Color temperature - Adjustable
    3,200 ~ 9,300K
    Video Frame Rate
    50/60Hz

ELECTRICAL PARAMETER

  • Input Power Range
    100-240V~, 50/60Hz
    Power consumption - Max/Typ(per Unit Case)
    170/85W
  • Power consumption - Max/Typ(per SQM)
    1,230/615W
    Refresh rate
    1,920Hz

CONNECTIVITY (SYSTEM CONTROLLER)

  • Video Inputs
    HDMI In, DP In/Out, DVI, USB
    Control
    RJ45 In/Out, RS232C In/Out
  • Special Features
    Temperature Sensor, Ambient Light Sensor, Current Sensor

OPERATION CONDITIONS

  • Working Temperature/Humidity
    0 °C to 40 °C at 10 % to 80 %
    Storage Temperature/Humidity
    -20°C to 60 at 5 to 90%
  • LED Lifetime
    100,000hrs

CERTIFICATION

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • Environment
    RoHS
