UH5F-H Series

Specs

Support

Resource

UH5F-H Series

Share this content.

You can share the items you like with your friends

UH5F-H Series

49UH5F-H
(7)

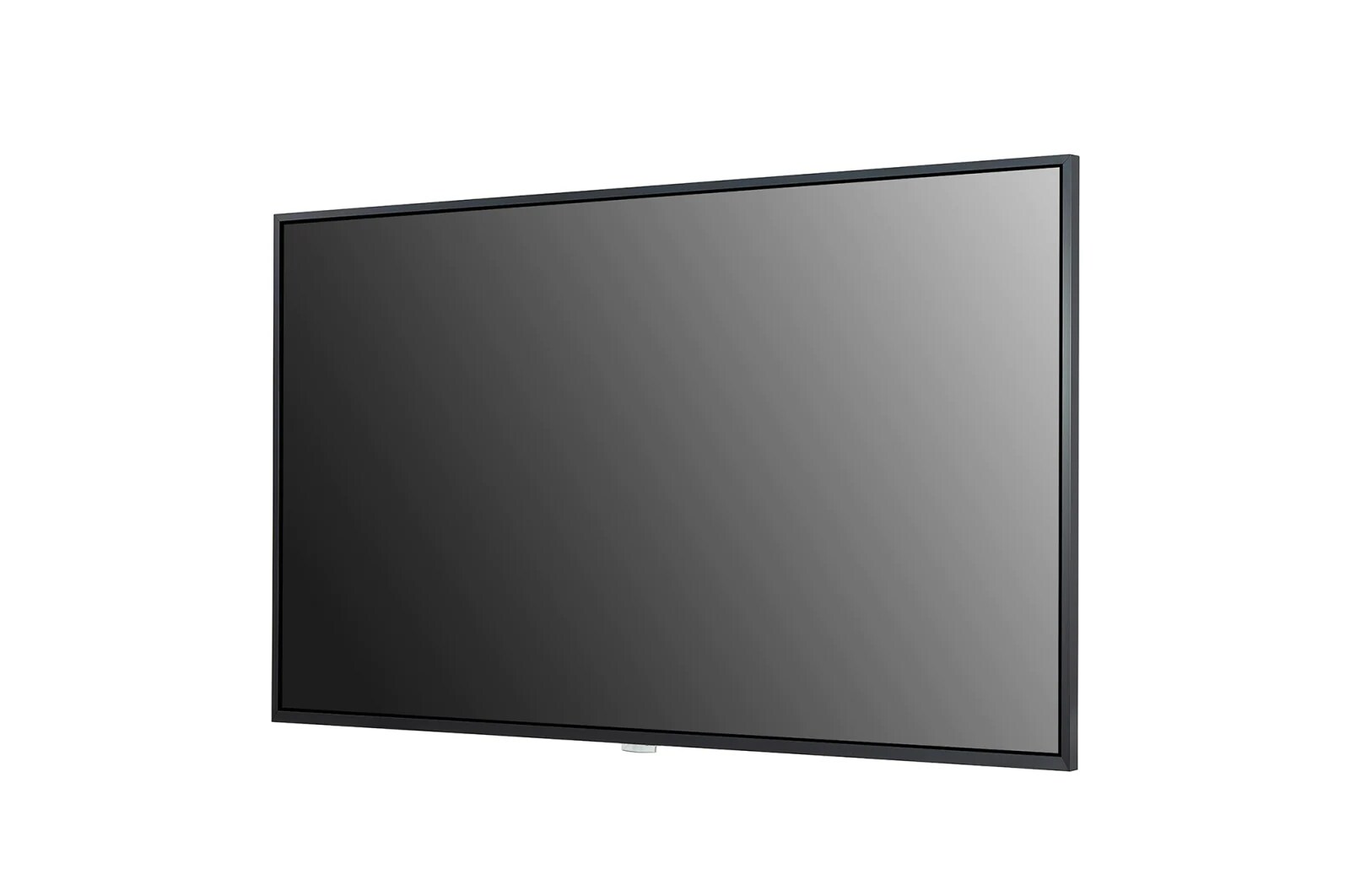

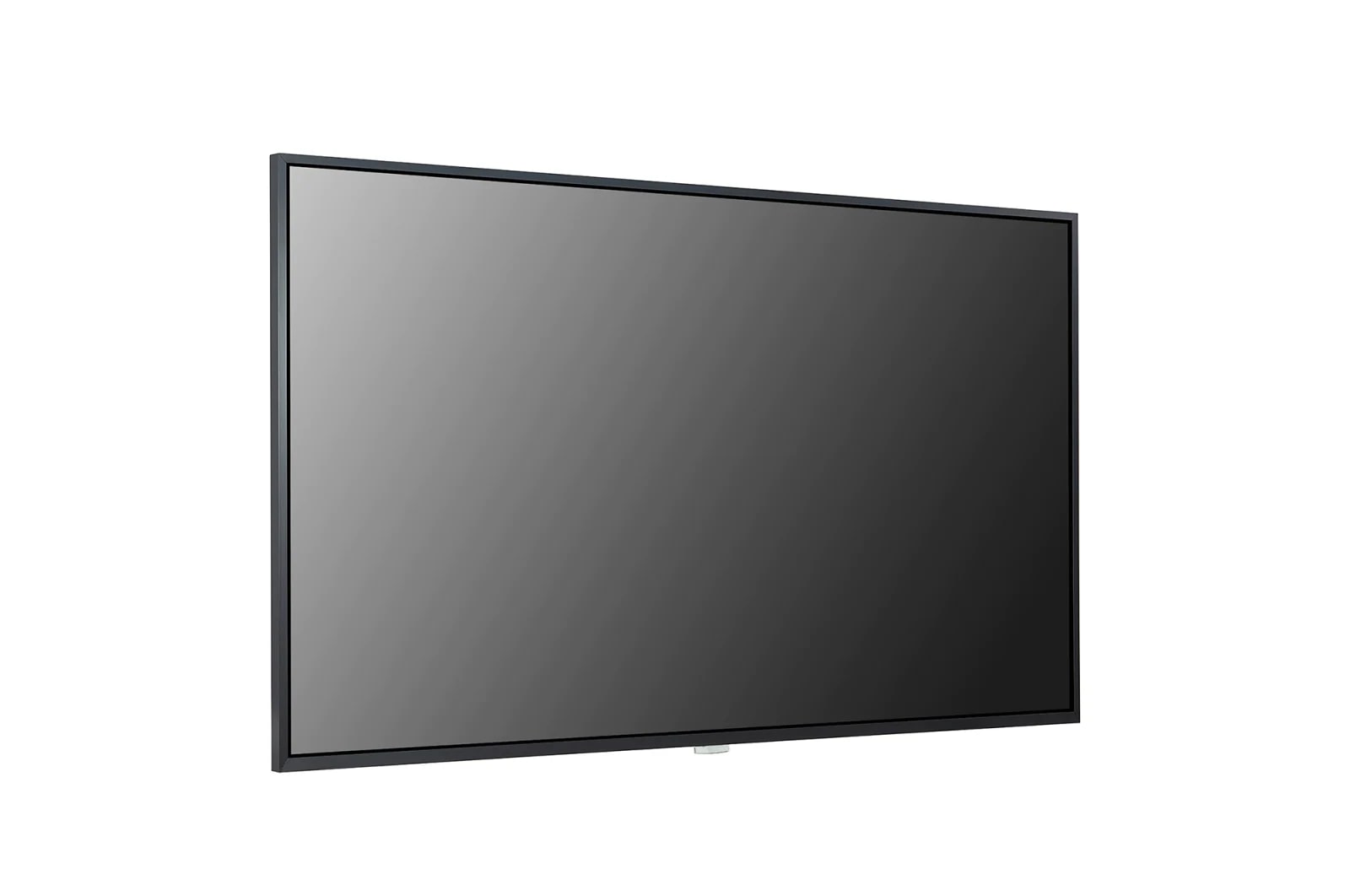

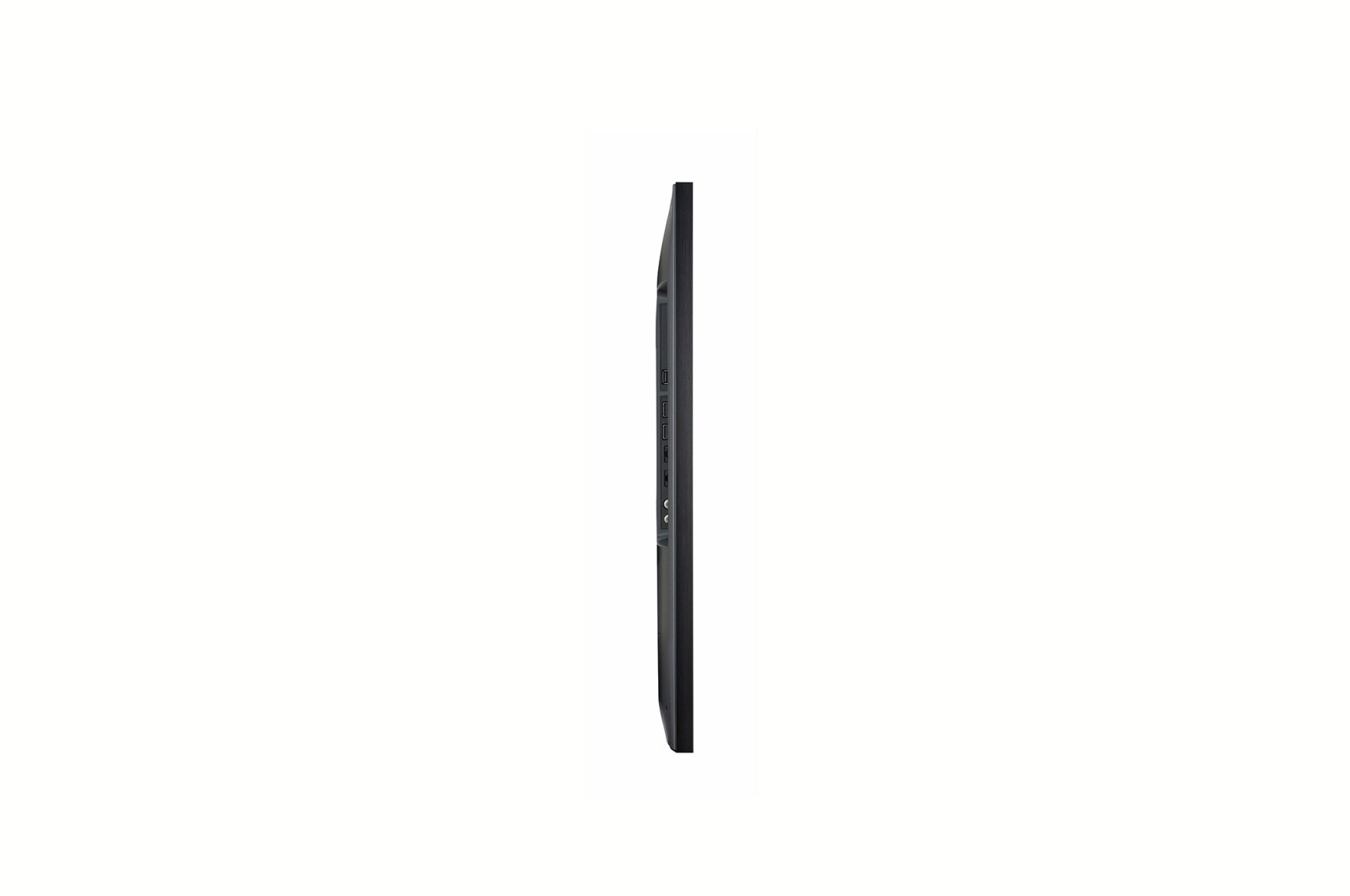

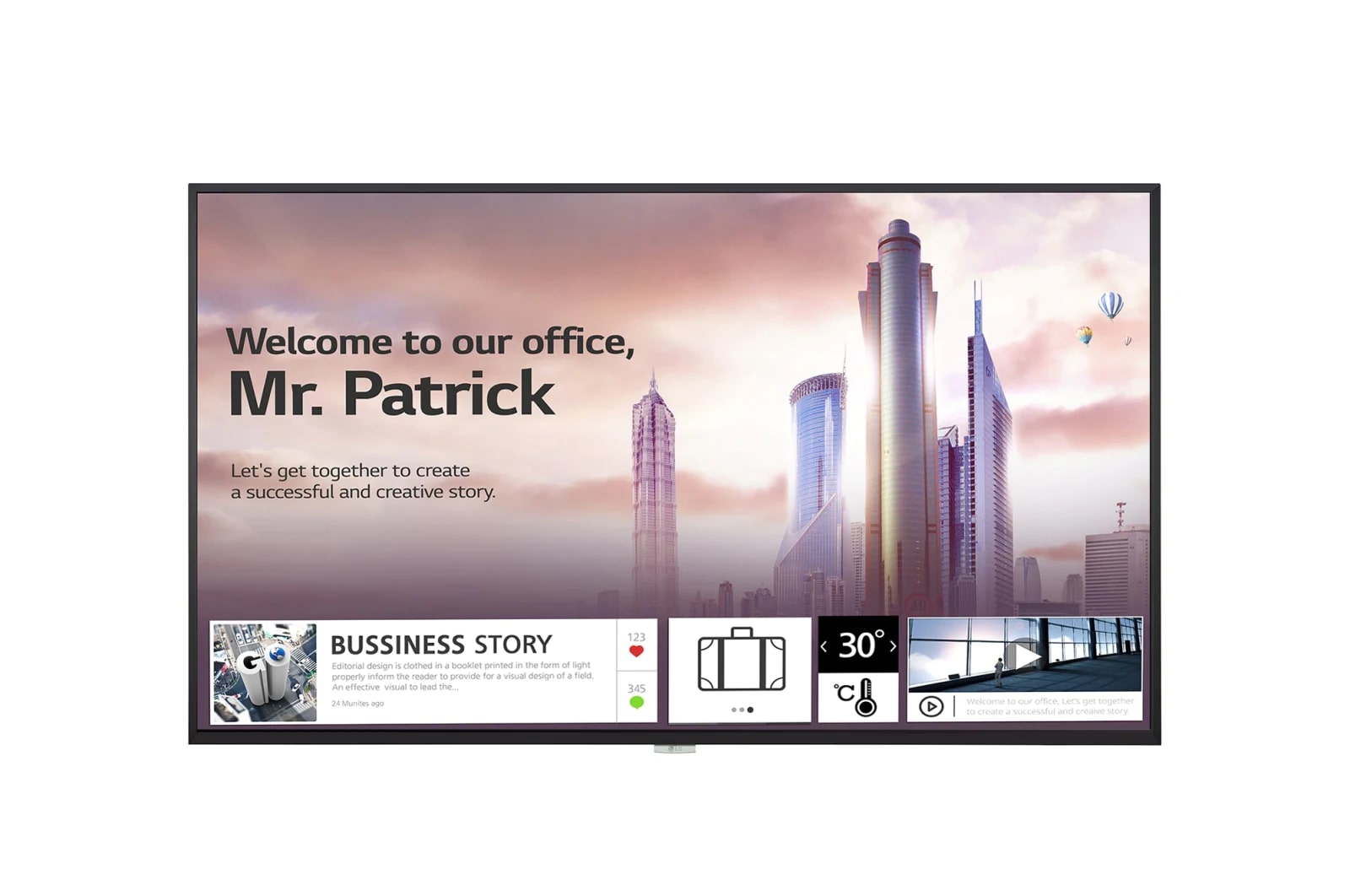

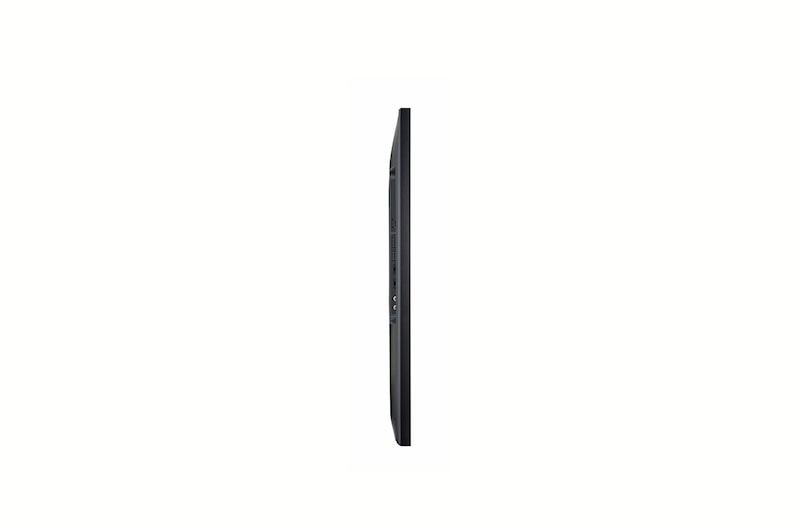

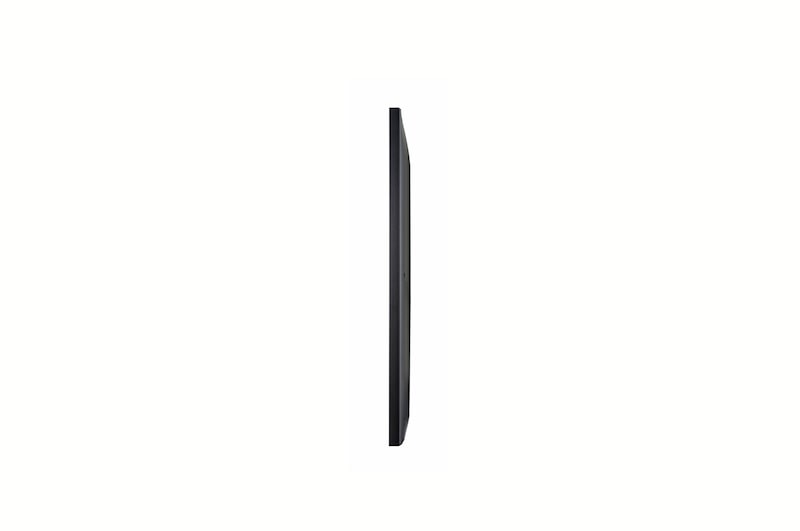

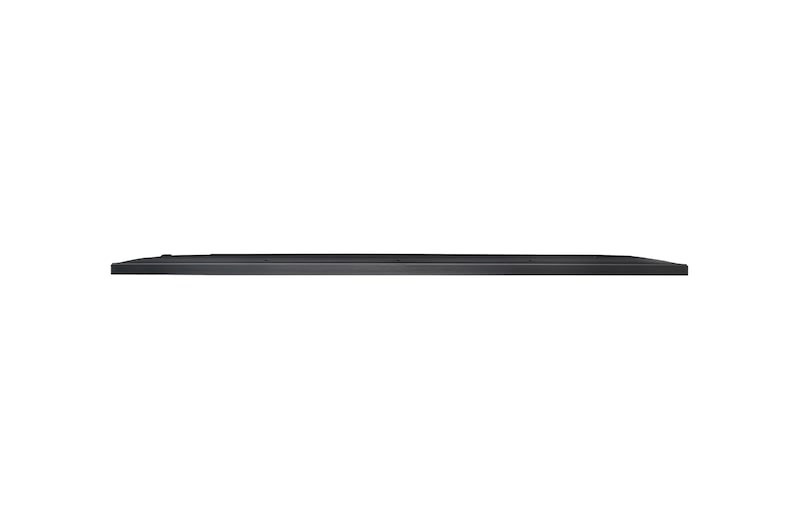

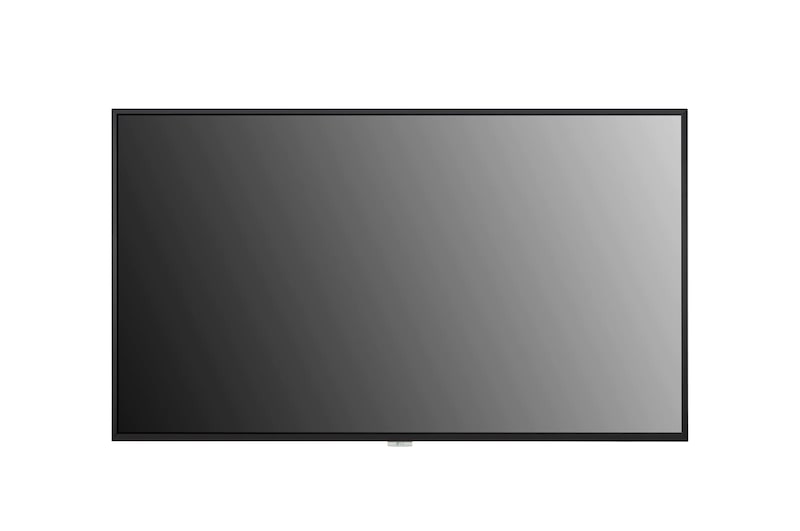

  • Front view of UH5F-H Series 49UH5F-H
  • LG UH5F-H Series, 49UH5F-H
  • LG UH5F-H Series, 49UH5F-H
  • LG UH5F-H Series, 49UH5F-H
  • LG UH5F-H Series, 49UH5F-H
  • LG UH5F-H Series, 49UH5F-H
  • LG UH5F-H Series, 49UH5F-H
Front view of UH5F-H Series 49UH5F-H
LG UH5F-H Series, 49UH5F-H
LG UH5F-H Series, 49UH5F-H
LG UH5F-H Series, 49UH5F-H
LG UH5F-H Series, 49UH5F-H
LG UH5F-H Series, 49UH5F-H
LG UH5F-H Series, 49UH5F-H

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Surface Treatment (Haze) : 28%
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • 30º Tilting Installation
More
Print

All Spec

PANEL

  • Screen Size

    49"

  • Panel Technology

    IPS

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness (Typ.)

    500 nit

  • Contrast Ratio

    1,100:1

  • Dynamic CR

    500,000 : 1

  • Colour Gamut

    BT709 95%

  • Viewing Angle (H ×V)

    178 ×178

  • Colour Depth

    1.07 Billion Colors (10 bit)

  • Response Time

    8ms (G to G)

  • Surface Treatment

    Haze 28%

  • Operation Hours (Hours / Day)

    24 / 7

  • Portrait / Landscape

    Yes / Yes

CONNECTIVITY

  • Input

    HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A

  • Output

    DP,Audio

  • External Control

    RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    9.9 mm (T/R/L), 14.4 mm (B)

  • Weight (Head)

    15.4 kg

  • Monitor Dimensions (W ×H ×D)

    1,098.6 × 644.5 × 39.9 mm

  • Monitor Dimensions with Stand (W × H × D)

    1,098.6 × 694.3 × 290.0 mm

  • Handle

    No

  • VESA™ Standard Mount Interface

    300 x 300 mm

KEY FEATURES

  • KEY FEATURES

    Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control manager, Crestron Connected®2) , Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100–240 V ~, 50/60 Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ. / Max.

    95 W / 130 W

  • BTU (British Thermal Unit)

    324 BTU/Hr (Typ.),
    444 BTU/Hr (Max.)

SOUND

  • Speaker

    Yes

CERTIFICATION

  • Safety

    AS/NZS 60950,CB Scheme

  • EMC

    AS/NZS CISPR32,RCM(Class A)

  • ErP / Energy Star

    Yes / Energy Star 8.0

OPS COMPATIBILITY

  • OPS type Compatible

    Yes

  • OPS Power Built-in

    No

SOFTWARE COMPATIBILITY

  • Software Compatibility

    SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Signage365Care4)

ACCESSORY

  • Basic

    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    Stand (ST-653T), Wall Bracket (65/55/49”: LSW350B, 43”: LSW240B), VESA Adapter (65/55/49”: AM-B330S, 43”: AM-B220S), OPS Kit (KT-OPSF)

SPECIAL FEATURE

  • Tilt (Facedown)

    Yes (Max. 30º)5)

  • IP Rating

    IP5X

DISCLAIMERS

  • Disclaimers

    1)The luminosity ratio of Full Black / Full White colour on video input condition.
    2) Network based control
    3) Compatibility may differ by equipment.
    4) The availability can differ by region.
    5) In conditions within 30ºC temperature, 50% humidity.
    * Specifications are subject to change without notice, so please contact LG sales team to verify before ordering
