UH5E Series

55UH5E-B
(6)

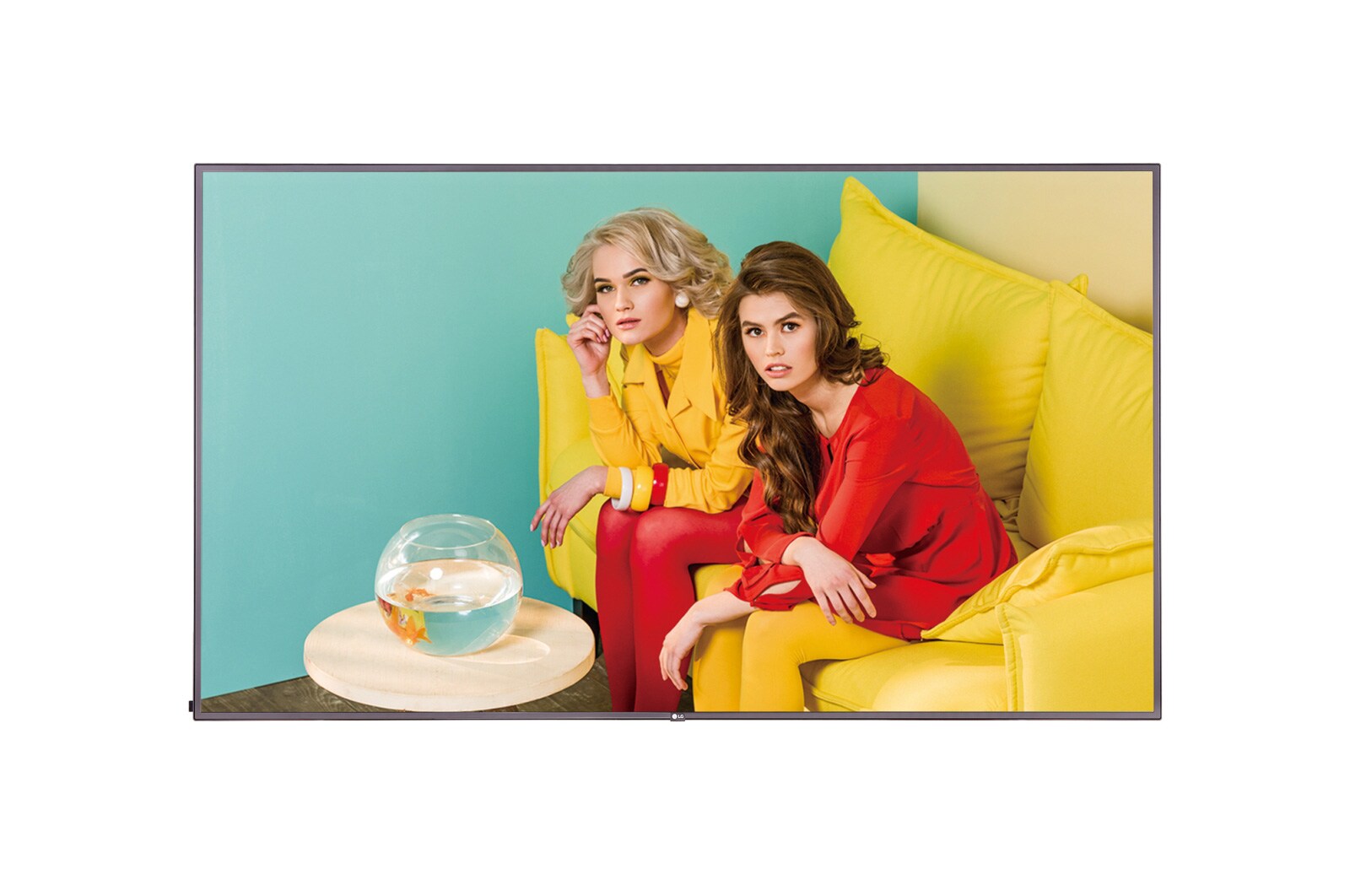

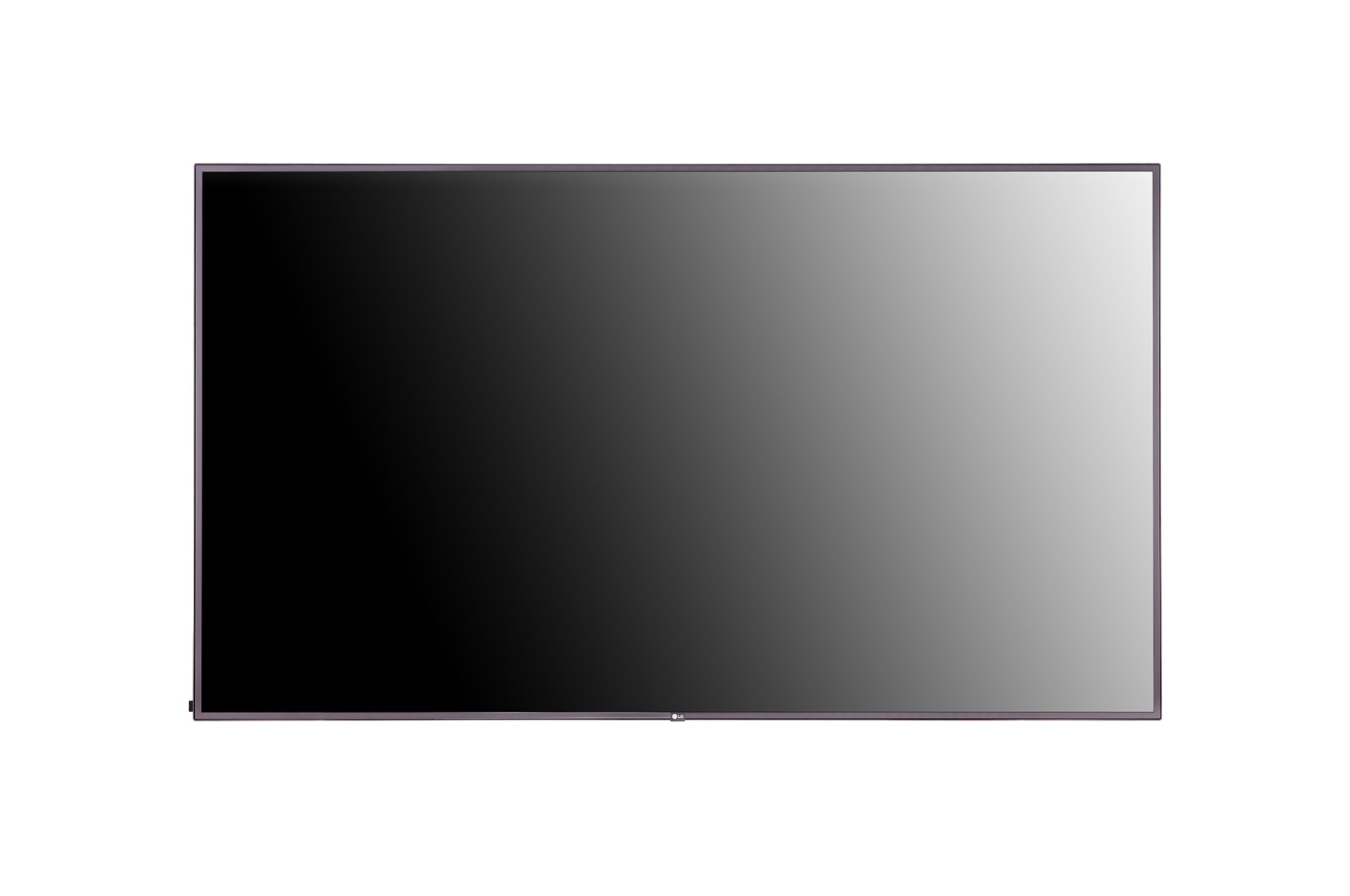

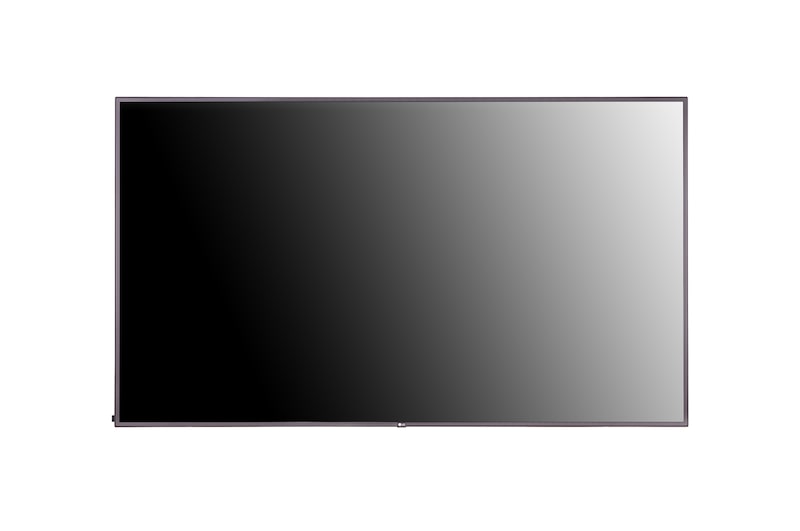

  • Front view of UH5E Series 55UH5E-B

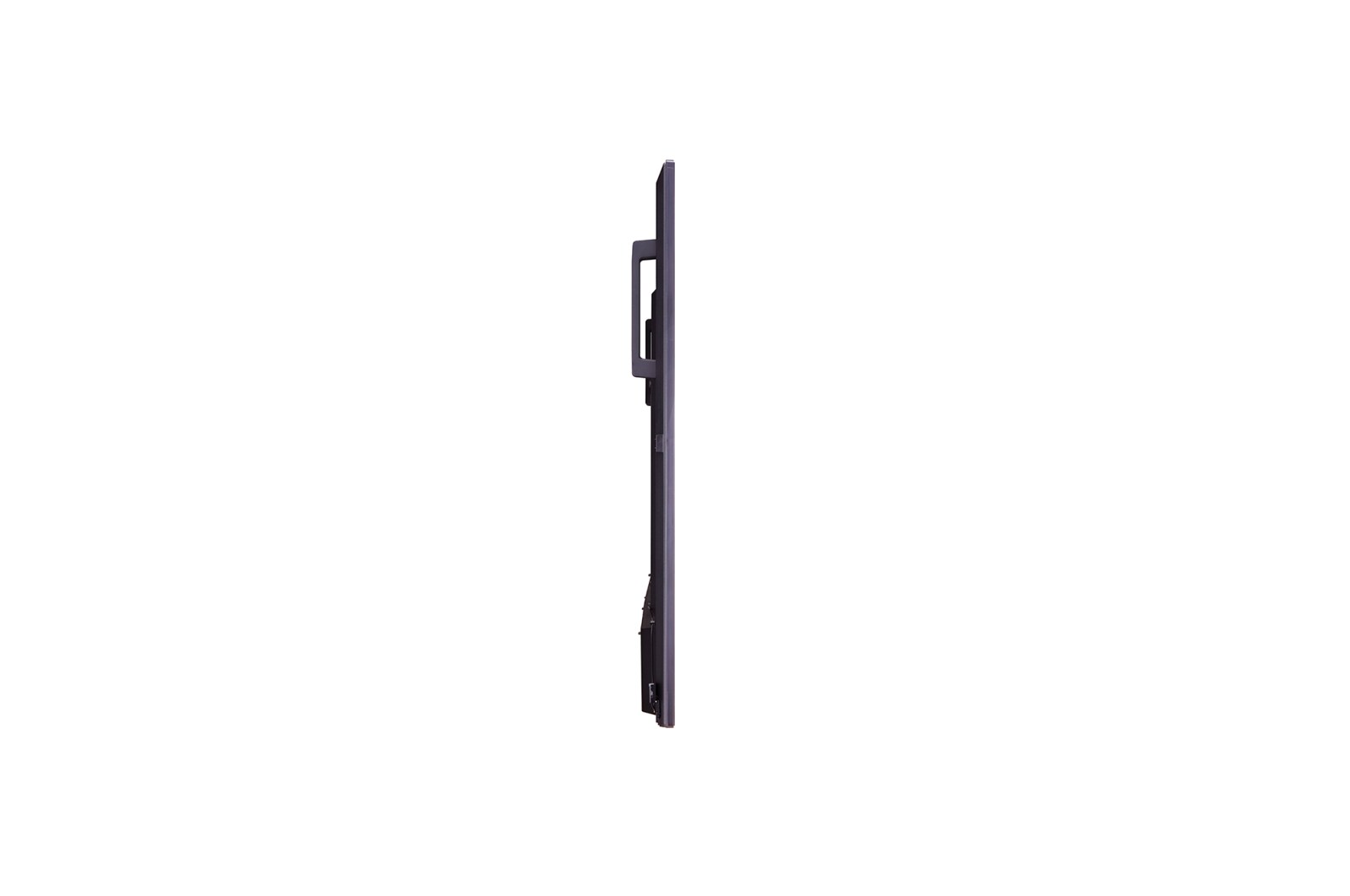

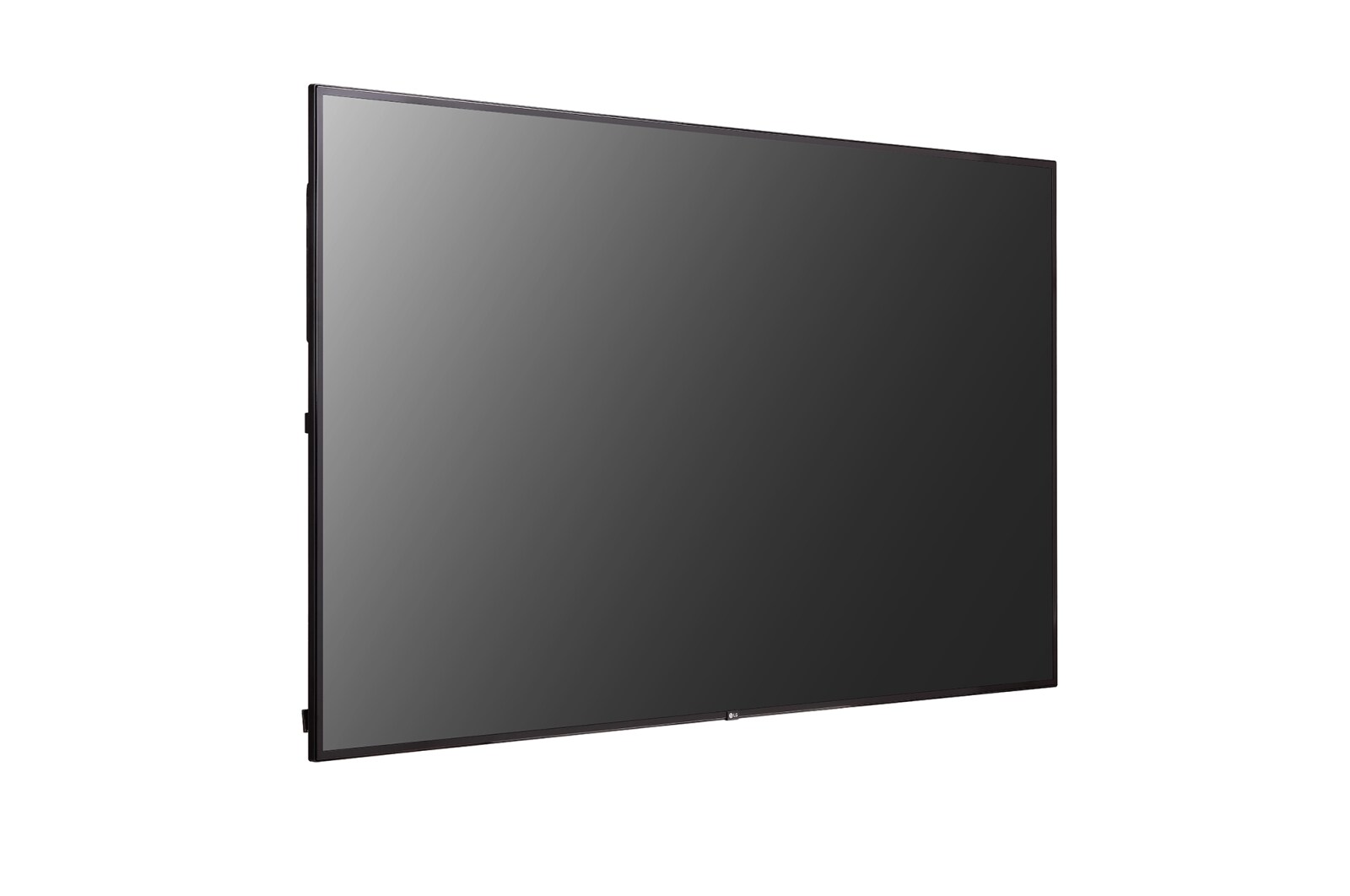

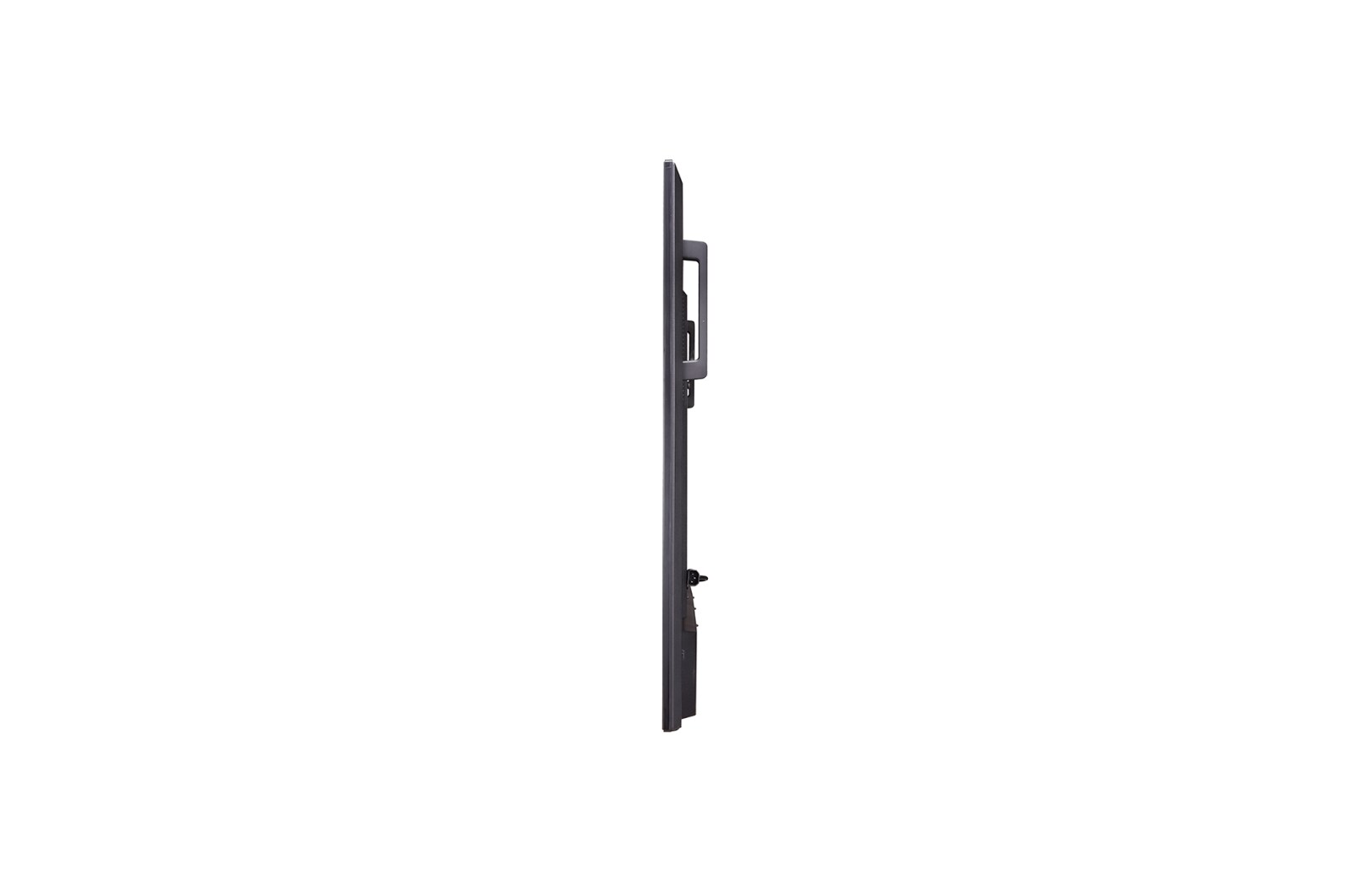

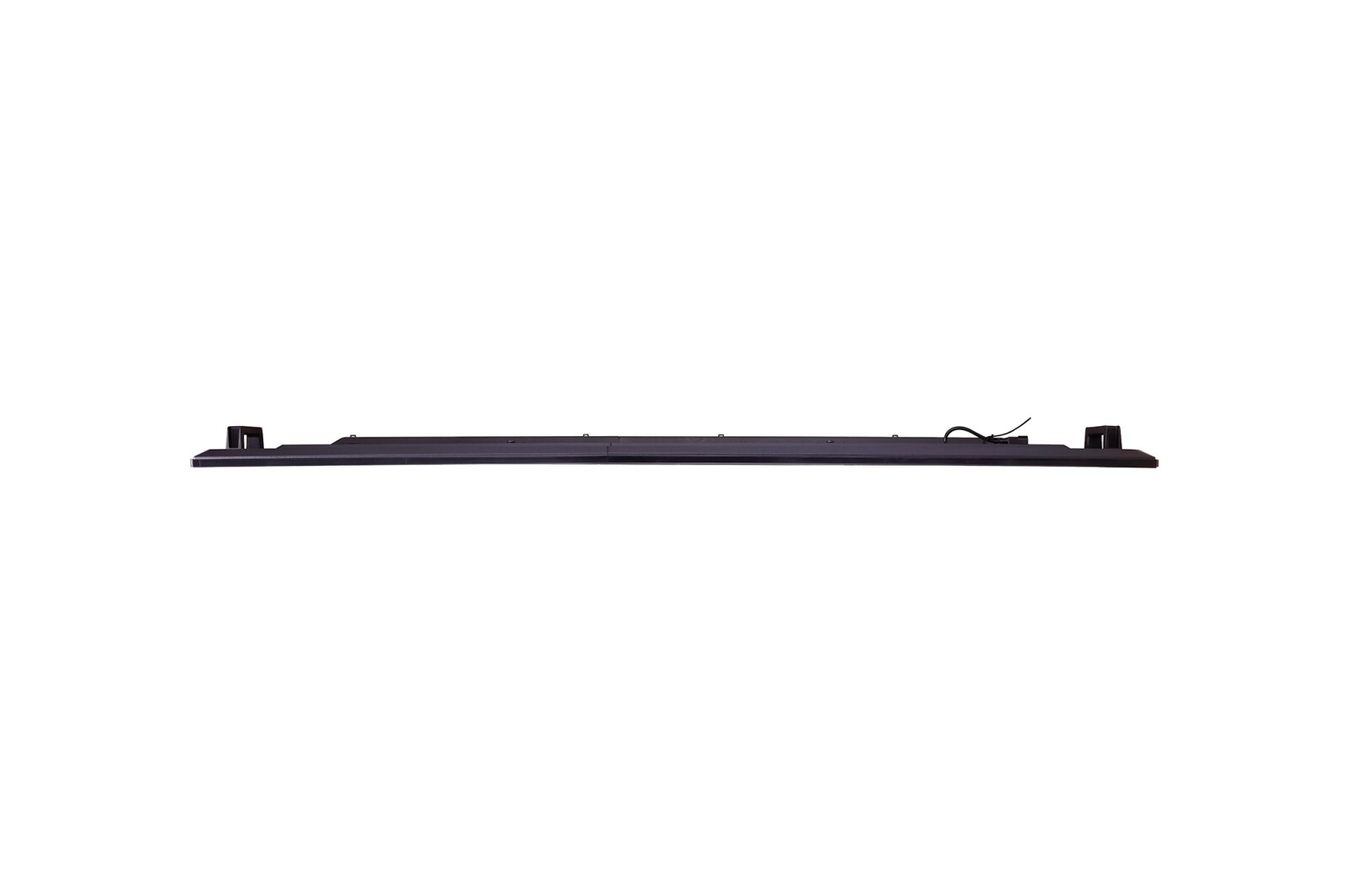

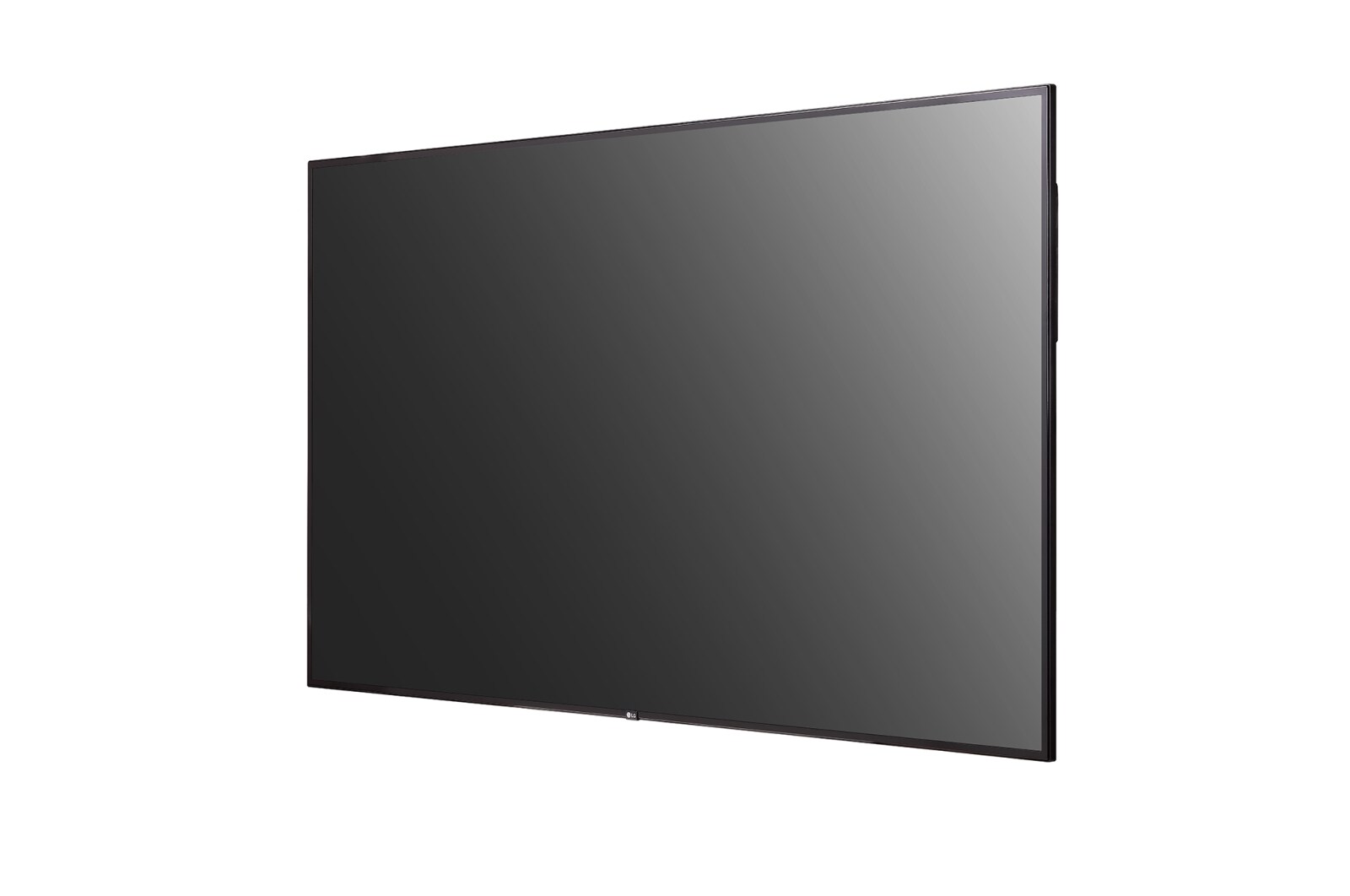

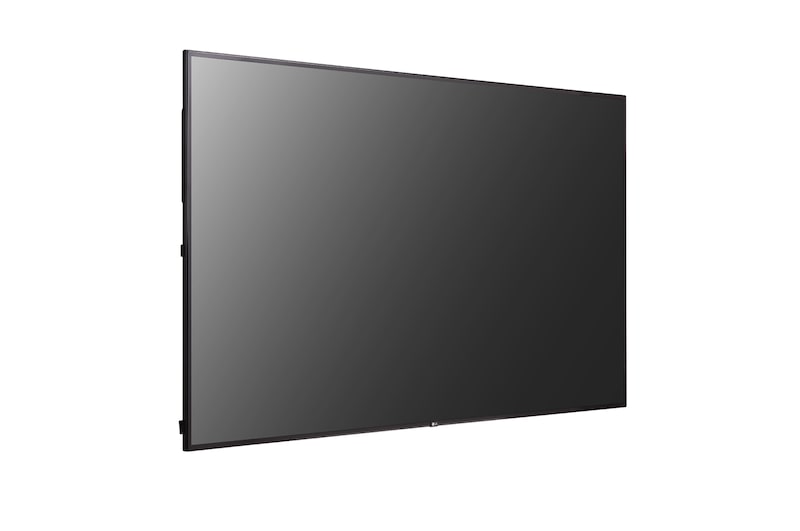

  • LG UH5E Series, 55UH5E-B
  • LG UH5E Series, 55UH5E-B
  • LG UH5E Series, 55UH5E-B
  • LG UH5E Series, 55UH5E-B
  • LG UH5E Series, 55UH5E-B
  • LG UH5E Series, 55UH5E-B
Front view of UH5E Series 55UH5E-B
LG UH5E Series, 55UH5E-B
LG UH5E Series, 55UH5E-B
LG UH5E Series, 55UH5E-B
LG UH5E Series, 55UH5E-B
LG UH5E Series, 55UH5E-B
LG UH5E Series, 55UH5E-B

Key Features

  • Ultra HD resolution (3840x2160)
  • IPS panel with wider viewing angles
  • Powerful webOS smart platform
  • Embedded CMS
  • Picture by picture/Picture in Picture
  • Signage 365 Care
More
Print

All Spec

PANEL

  • Screen Size

    55"

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    3,840 x 2,160 (UHD, RGB)

  • Brightness (Typ.)

    500cd/m²

  • Contrast Ratio

    1,100:1

  • Viewing Angle (H x V)

    178 x 178

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 28%

  • Life Time (Typ.)

    50,000Hrs

  • Operation Hours

    24Hrs

  • Orientation

    Landscape & Portrait

CONNECTIVITY

  • Input

    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

  • Output

    DP, Audio (Off/Fixed/Variable), External Speaker

  • External Control

    RS232C In/out, RJ45 (LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)

  • Monitor Dimension (W x H x D)

    1,239.8 x 725.2 x 38.6 mm

  • Weight (Head)

    16.6 kg

  • Carton Dimensions (W x H x D)

    1,330 x 807 x 170 mm

  • Packed Weight

    21.1kg

  • Handle

    No

  • VESA™ Standard Mount Interface

    300 x 300 mm

KEY FEATURE

  • Key Feature

    Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Image Customisation, Failover, Content Sync (RS232C, Local Network), Screen Share, OSD Rotation, Content Rotation, PIP/PBP (4), Tile Mode Setting (Max 15 x 15), Setting Data Cloning, Firmware Update by Network, SNMP 1.4, ISM Mode, Crestron ConnectedⓇ1), Control Manager, DPM, Smart Energy Saving, Wake on LAN, Beacon, HDMI-CEC2), SI Server Setting, Detachable Logo

ENVIRONMENTAL CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

  • Power Consumption - Typ./Max.

    115W/165W

  • Power Consumption - Smart Energy Saving

    70W

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    AS/NZS CISPR32,RCM(Class A)

  • ErP / Energy Star

    Yes(EU Only) / Yes(Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control/Control+

ACCESSORIES

  • Basic

    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    Speaker (SP-5200), Stand (ST-201T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)

To access more technical documentation and resources, please visit the LG B2B partner portal.
